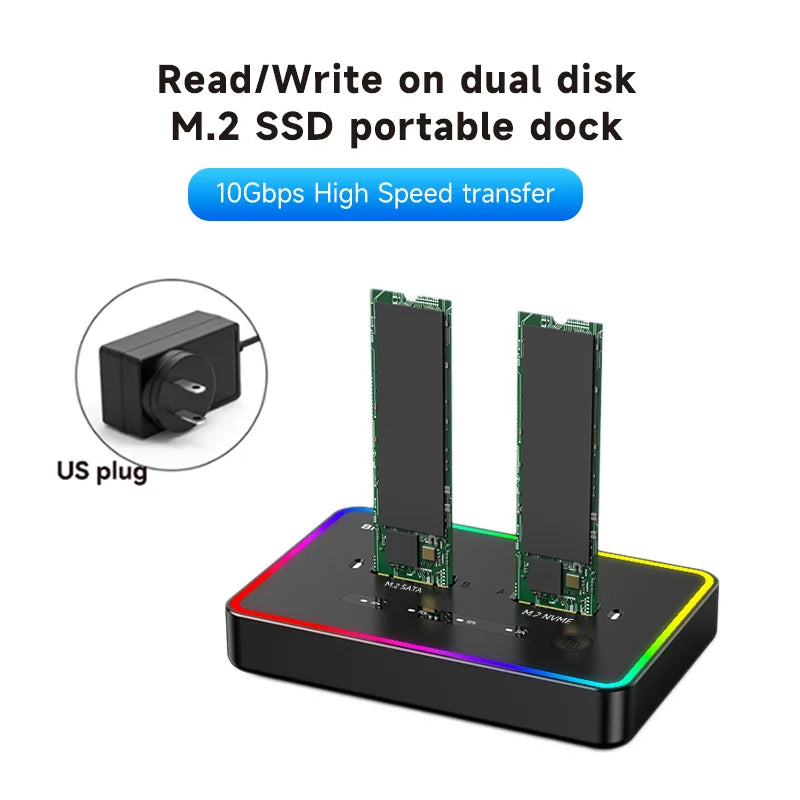

Blueendless Offline Clone Dual Protocol M.2 SSD Case SSD Docking Station Type C 10Gbps for PCIe NVMe or SATA 2 Bay SSD Enclosure

SPECIFICATIONS

Brand Name: Blueendless

Case Material: Plastic

Choice: yes

Dual Protocol: RGB light

External Interface: USB

High-concerned chemical: none

Model Number: DB280SC/SD06C/DB280NC

Origin: Mainland China

Package: Yes

SSD Docking Station: USB3.2 Gen2

Size: 1.8"

Ssd clone: for M2 SSD M Key

Supporting Hard Drive Capacity: 8tb

clone without PC: USB 3.1 M key Ssd Docking Station

material: plastic

offline clone: NVMe / SATA M.2 SSD

sd copy device: copy cloner

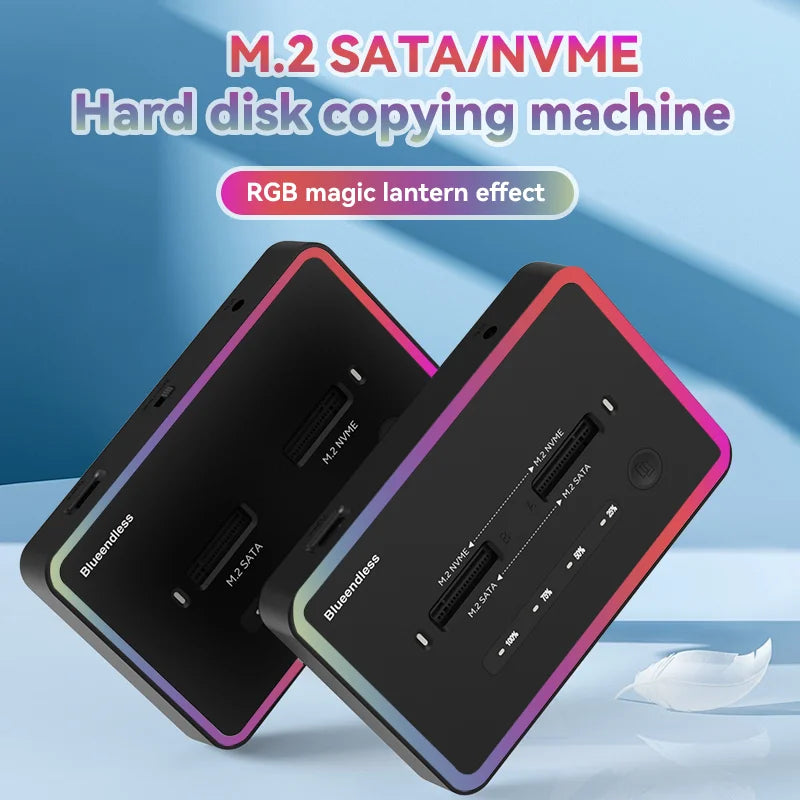

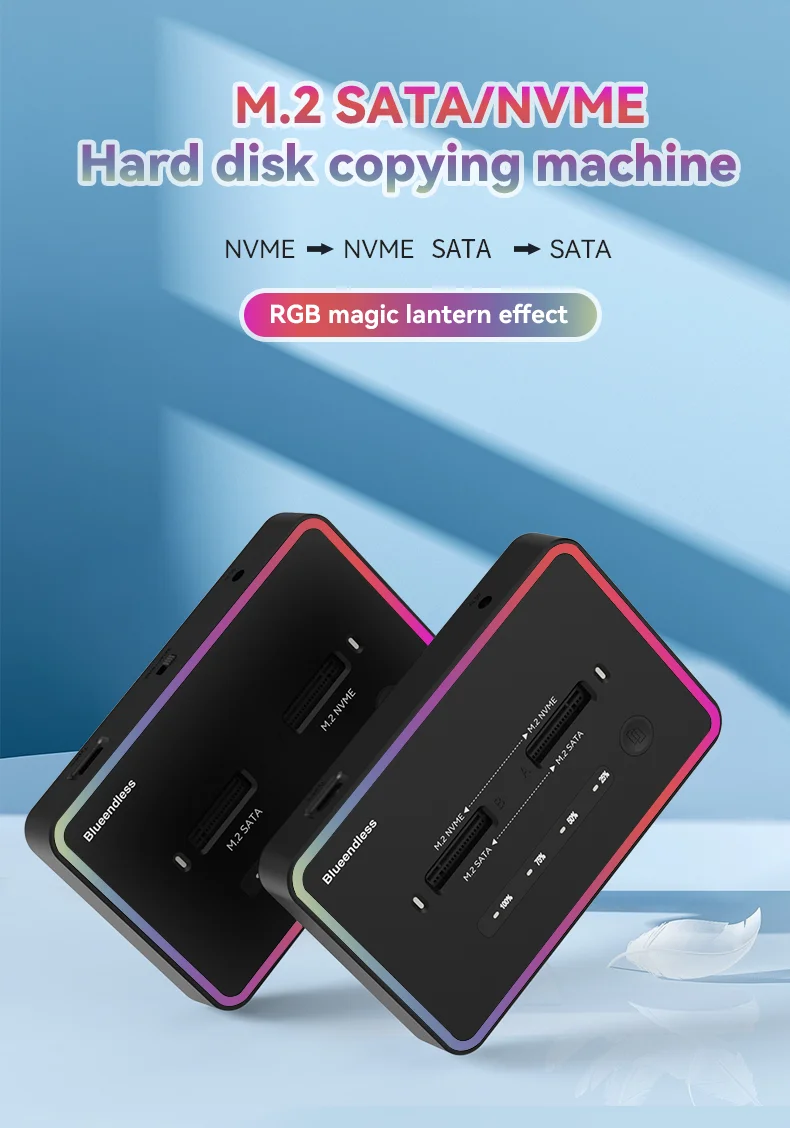

Blueendless offline clone Dual Protocol m.2 ssd case Ssd Docking Station

please note:

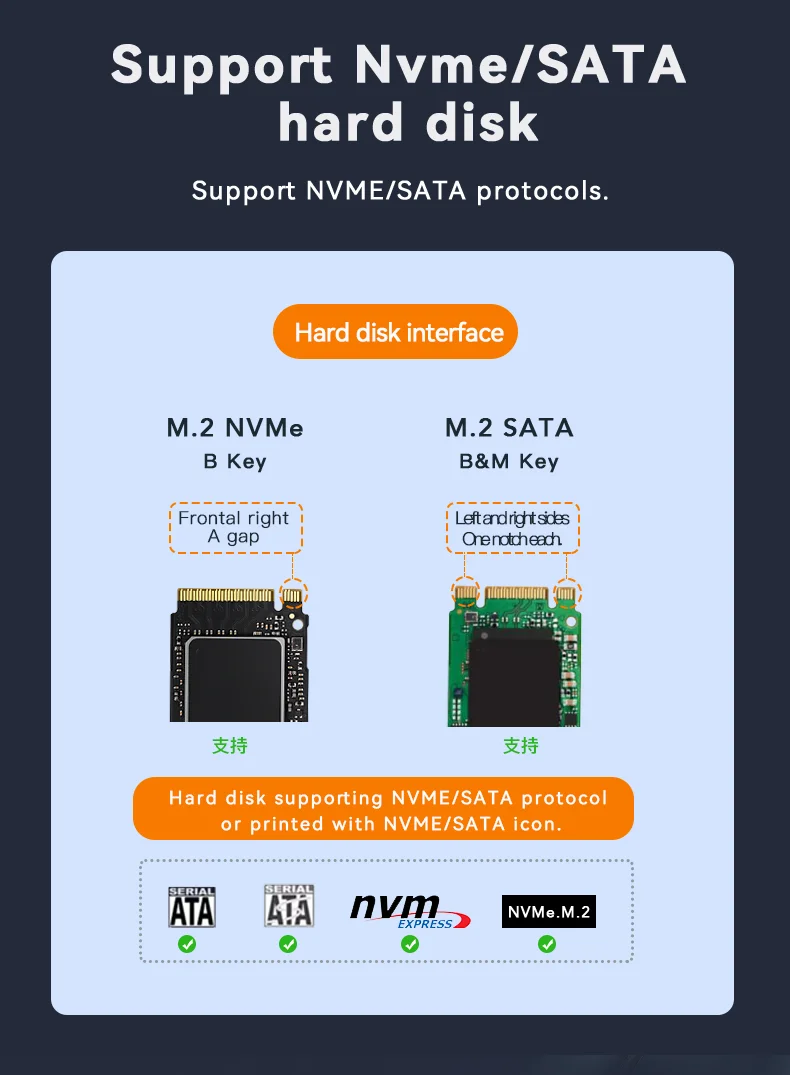

Please check your SSD hard drive protocol type before ordering

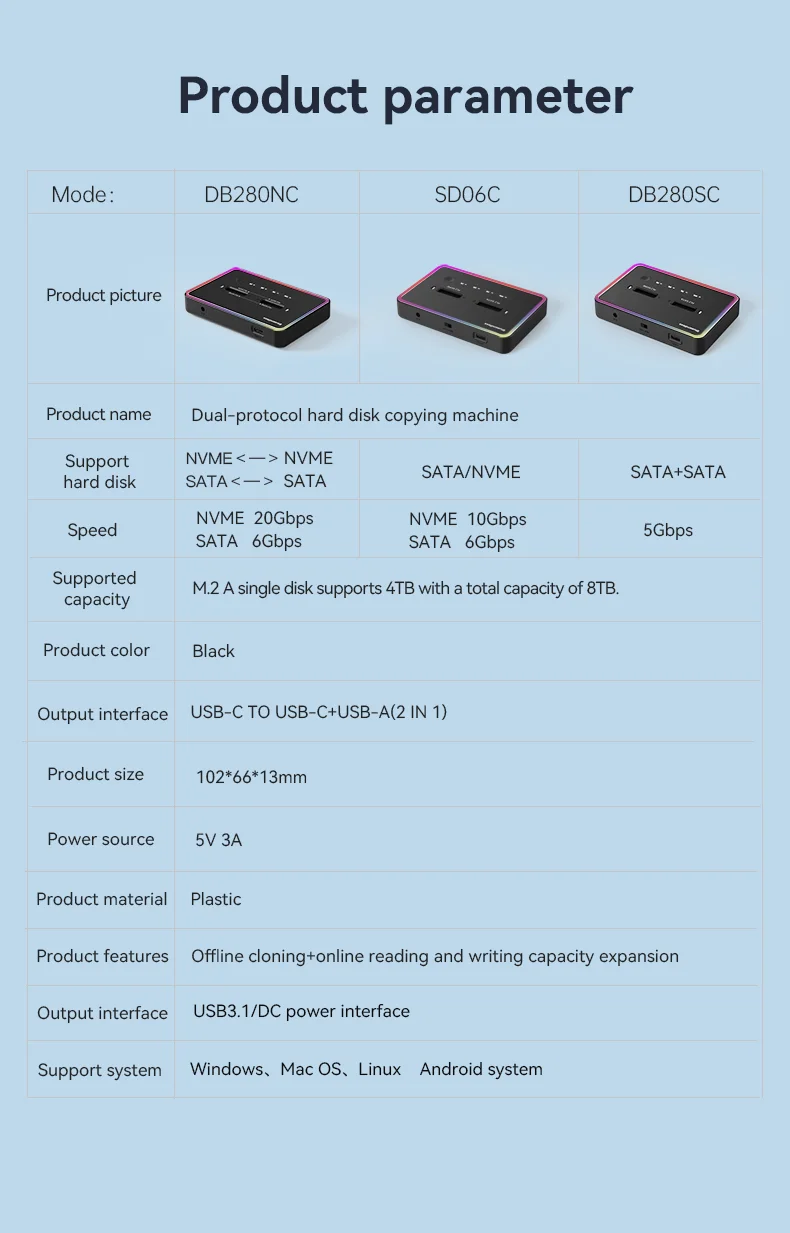

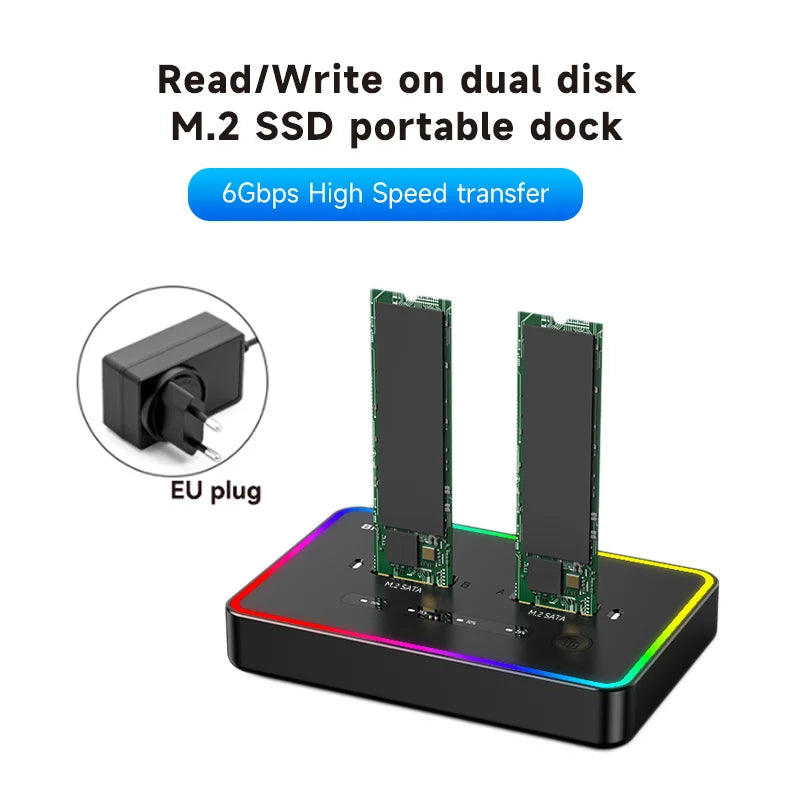

DB280SC：for 2 bay M.2 sata SSD,speed:5Gbps

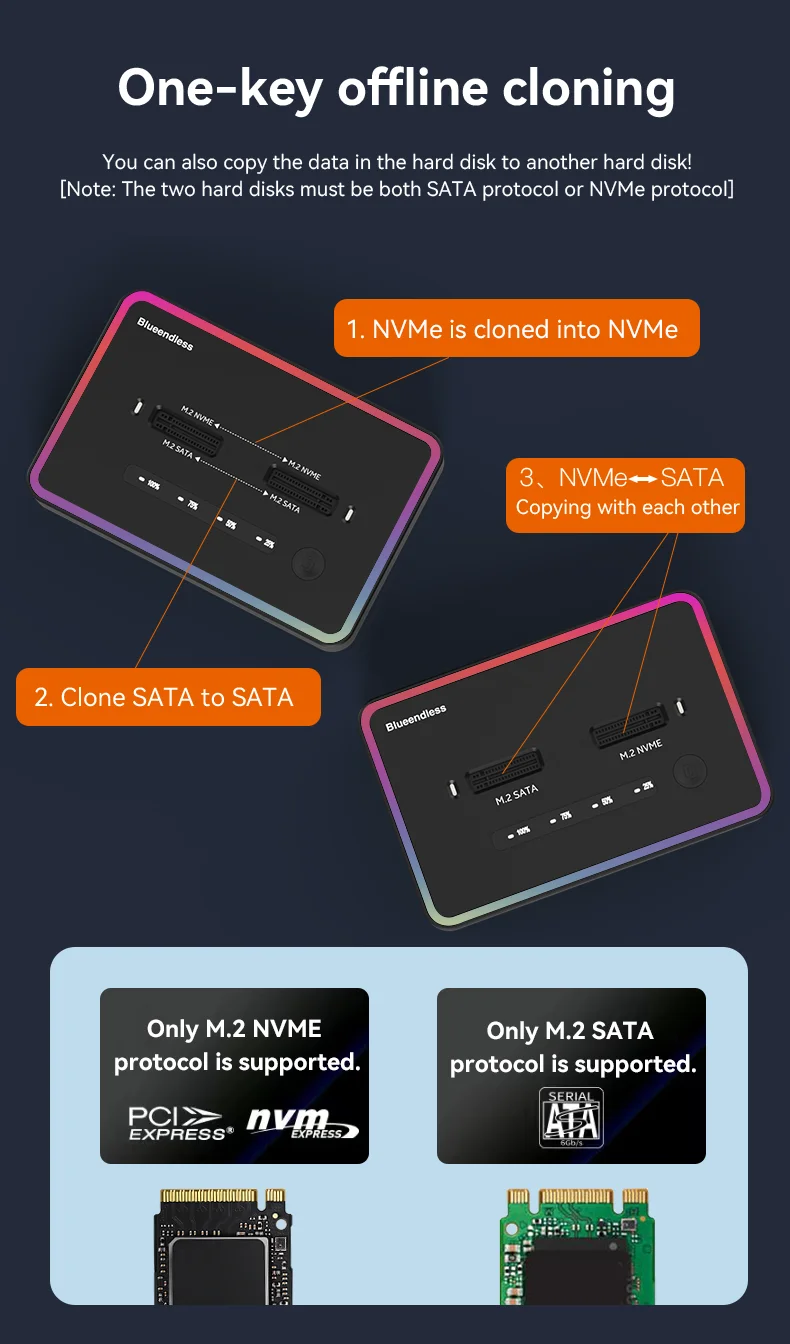

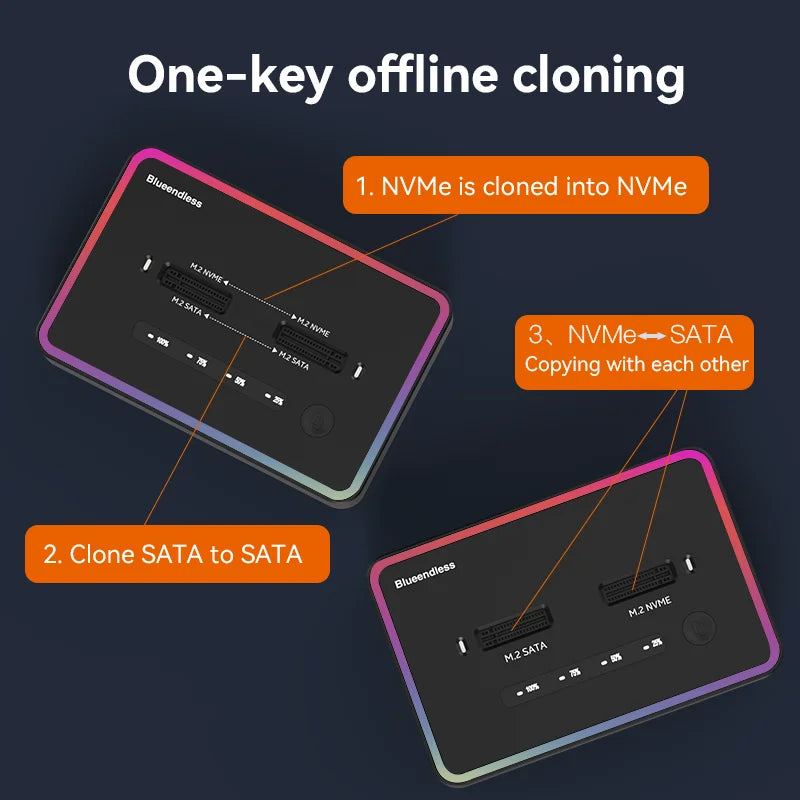

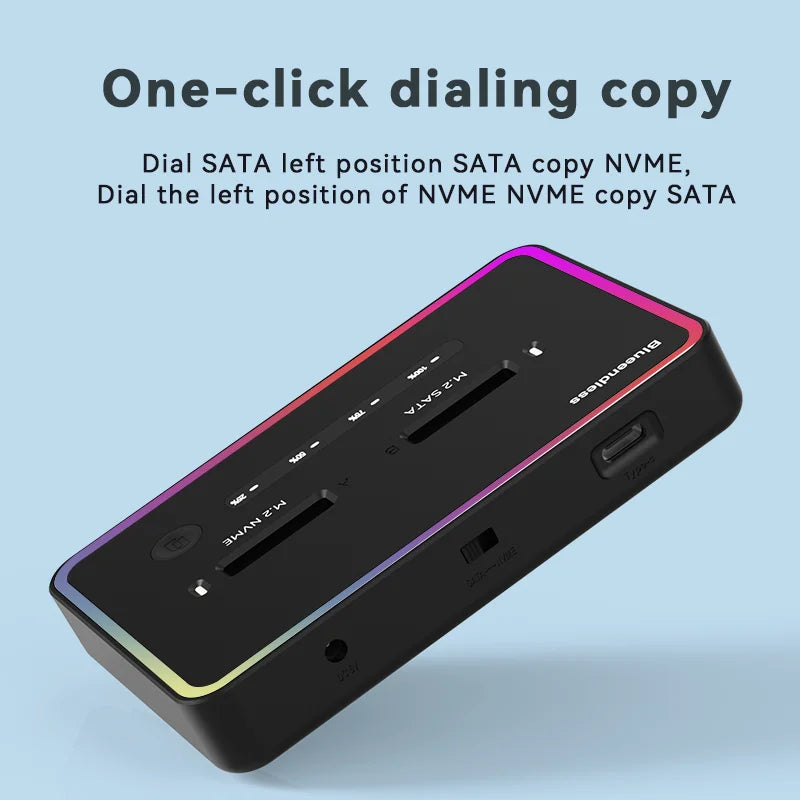

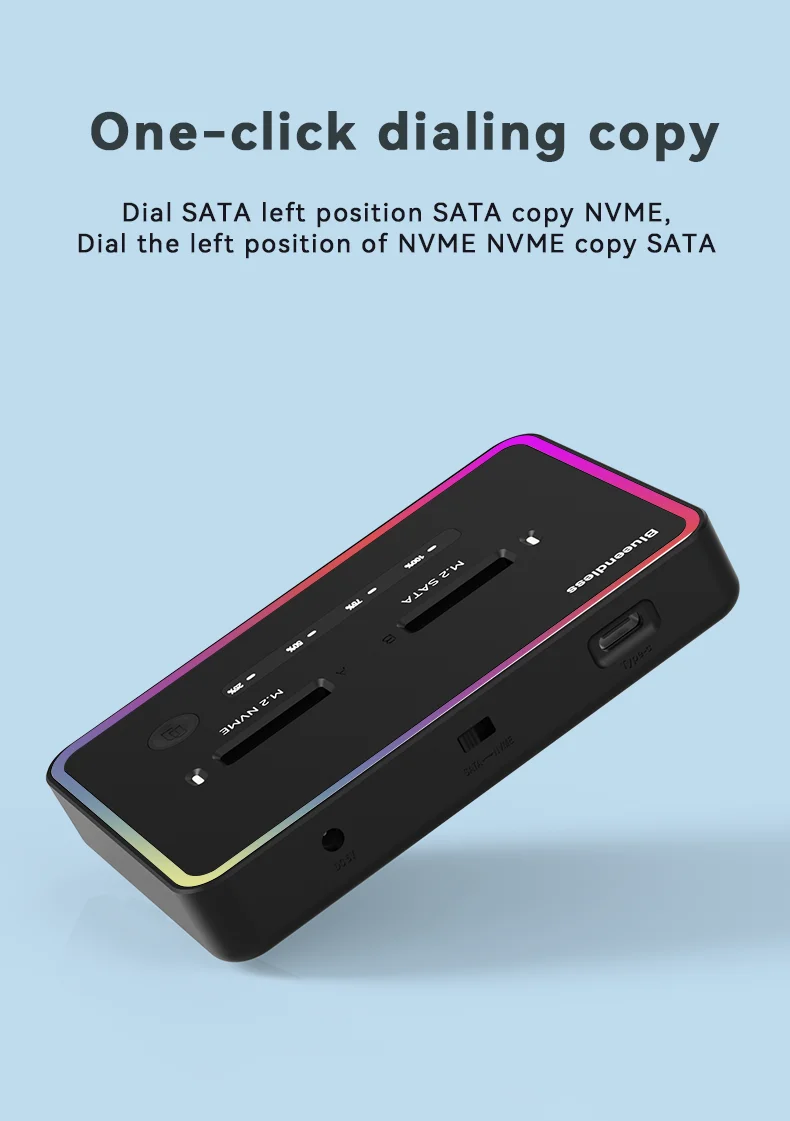

SD06C ：or 1pcs M.2 sata SSD and 1pcs M.2 NVME SSD

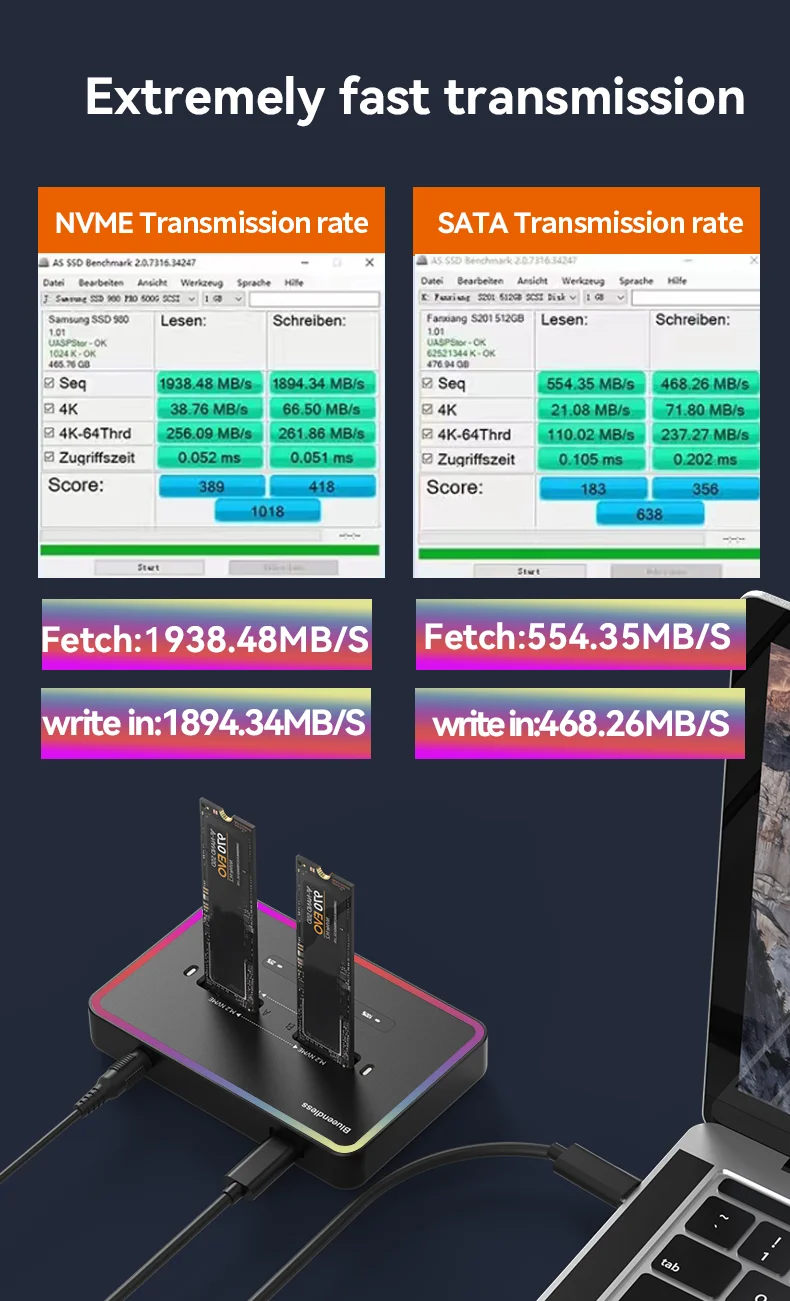

             speed: sata ssd 6Gbps       NVME ssd 10Gbps

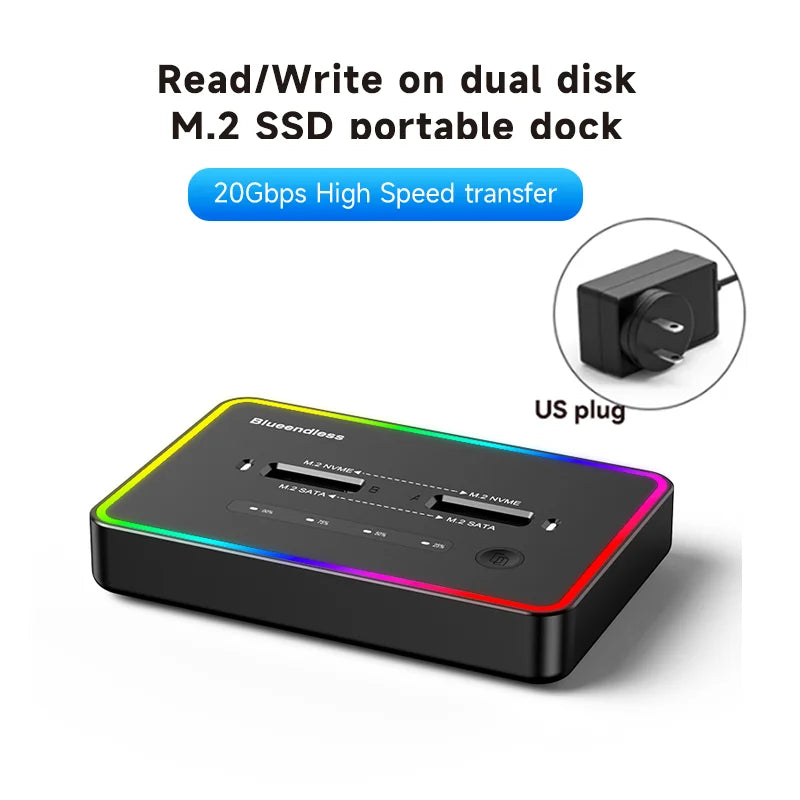

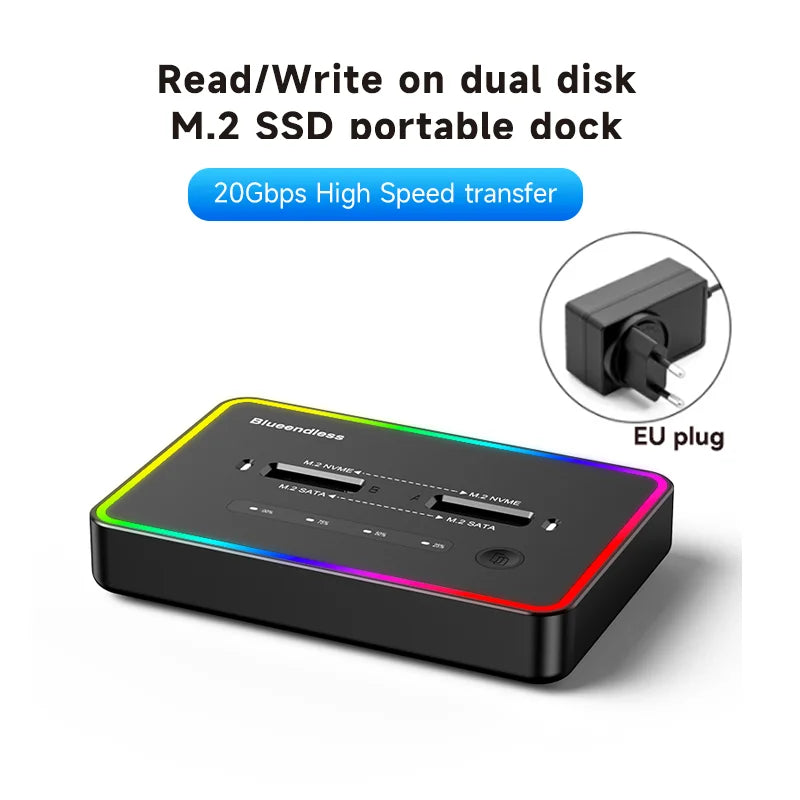

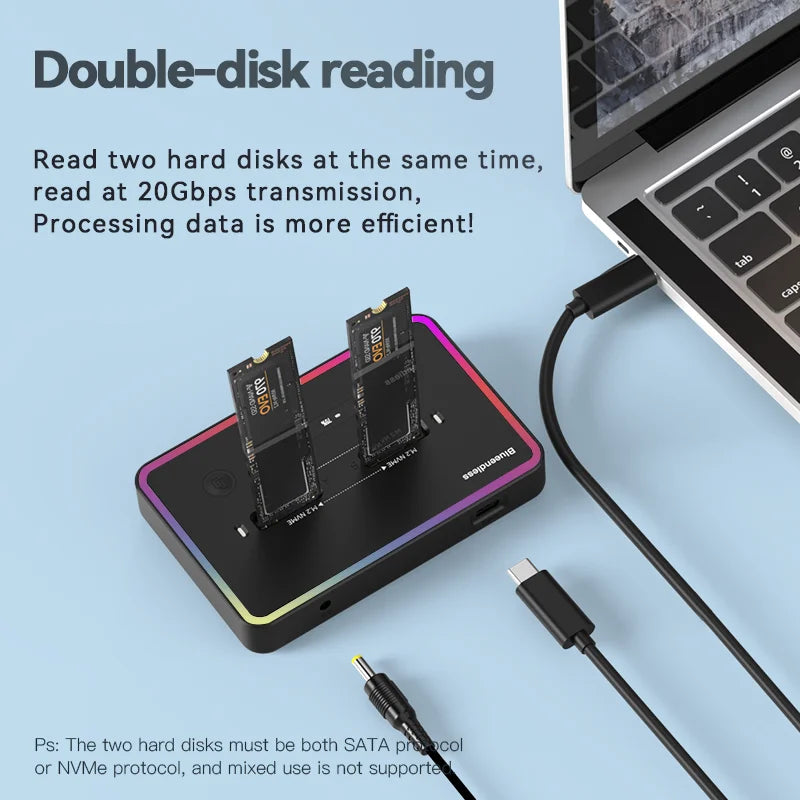

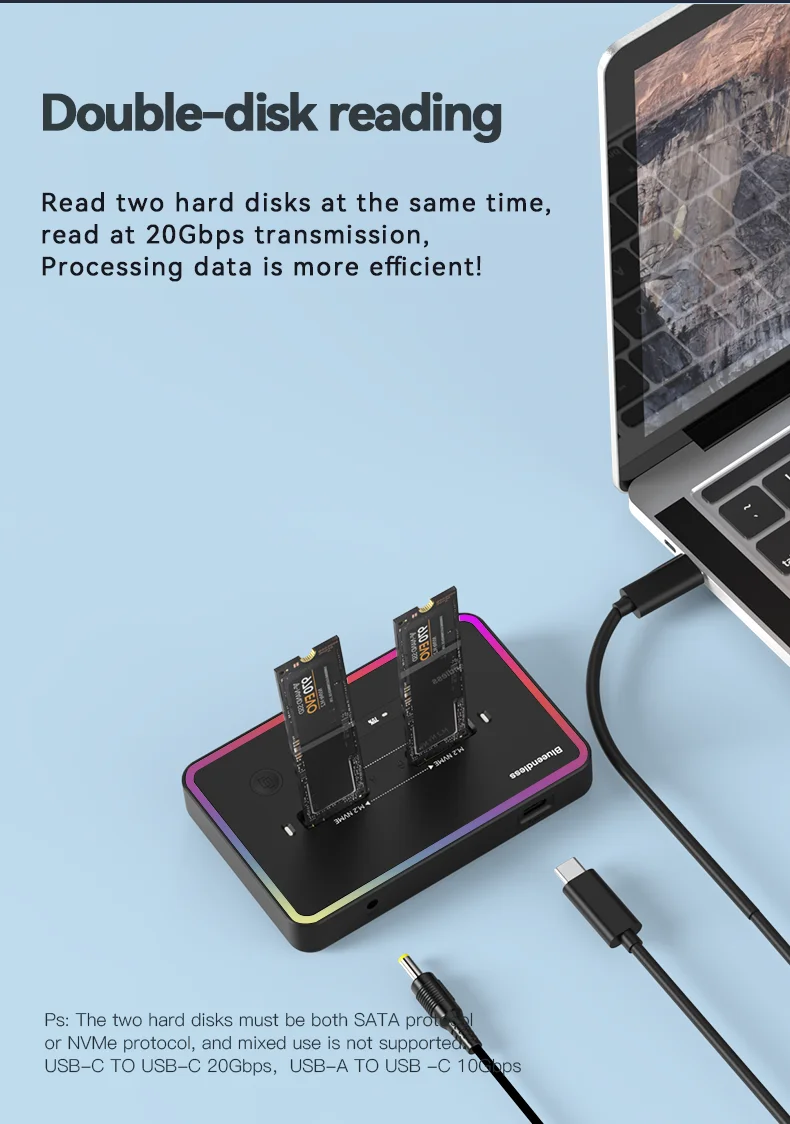

DB280NC:  for 2 bay M.2 NVME SSD or 2 bay M.2 SATA SSD

             speed: sata ssd 6Gbps       NVME ssd 20Gbps

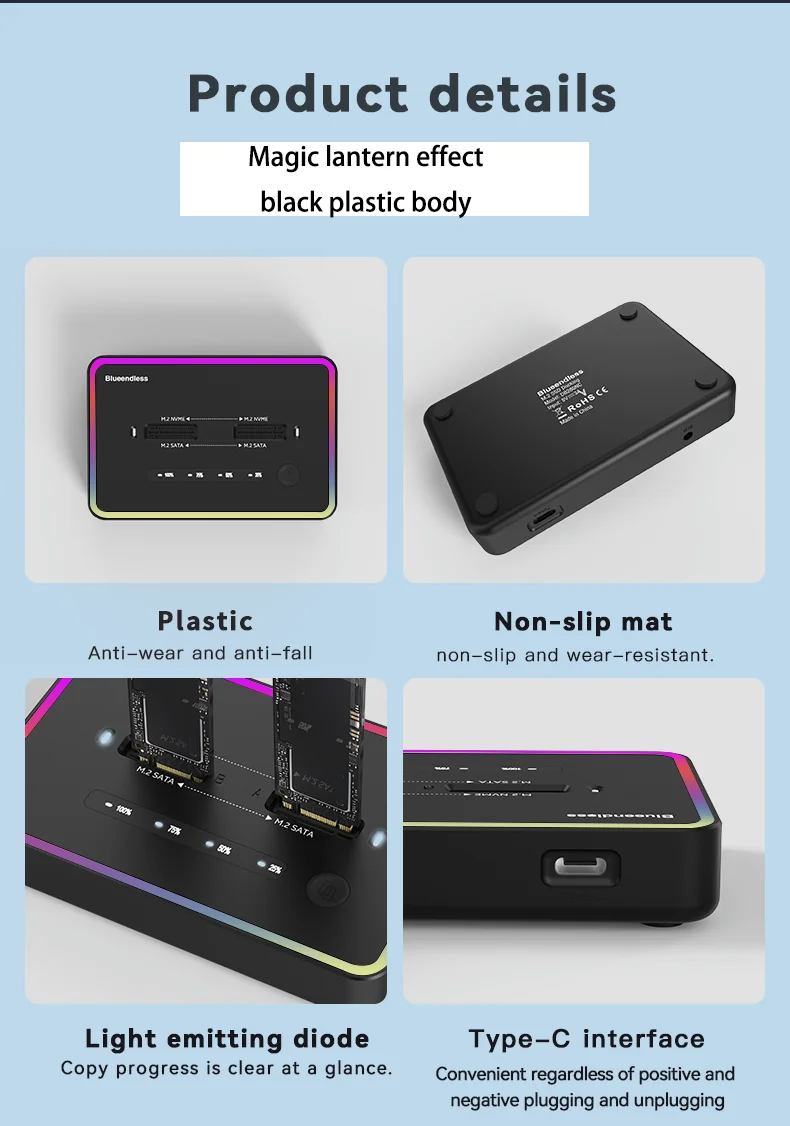

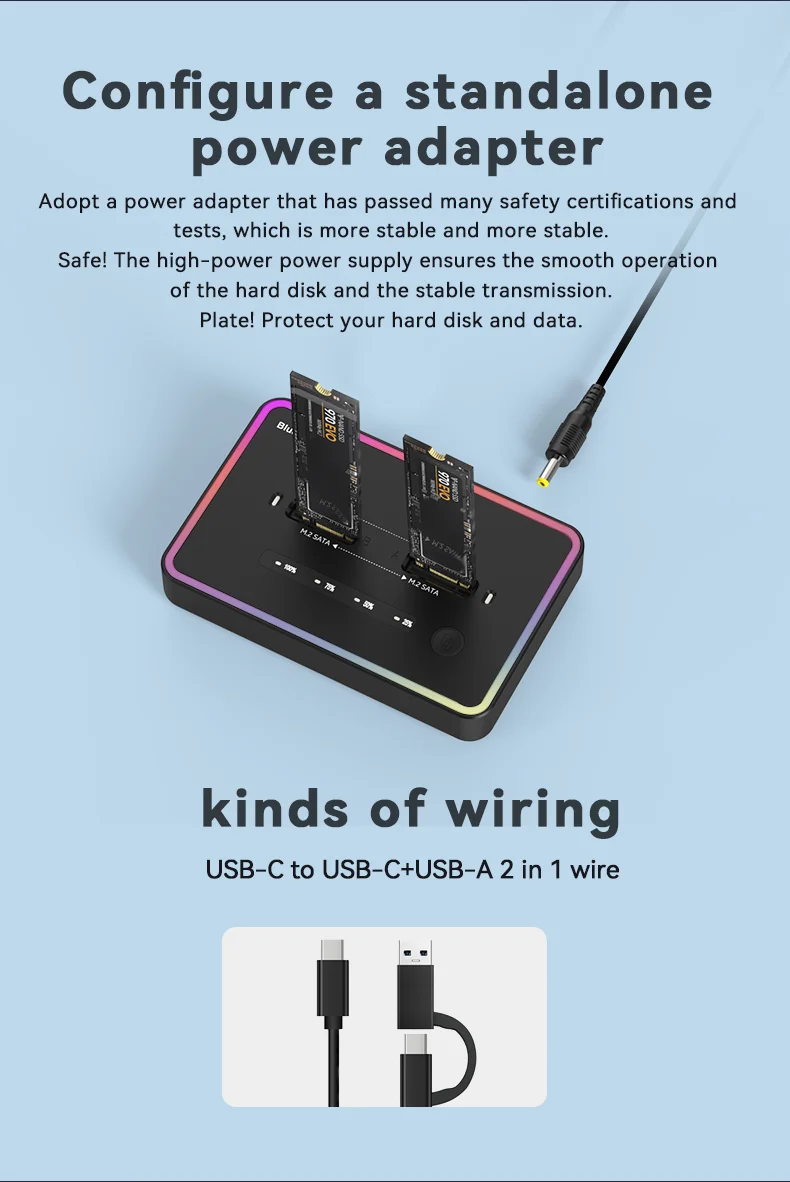

plastic material with RGB Light,5V/3A power adapter.

this is only a ssd docking,it doesn'tcontain the hard disk.

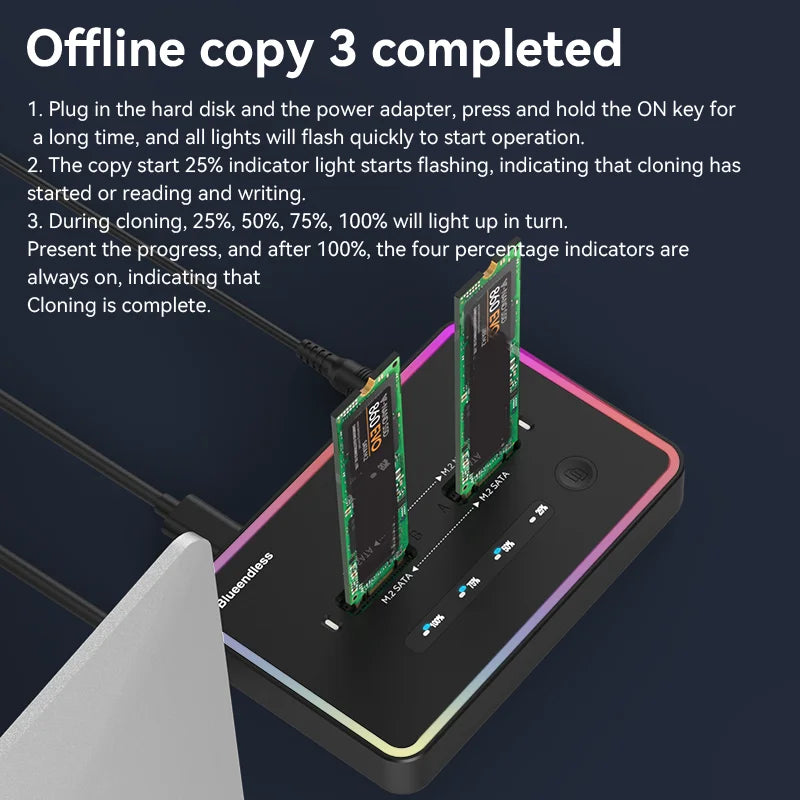

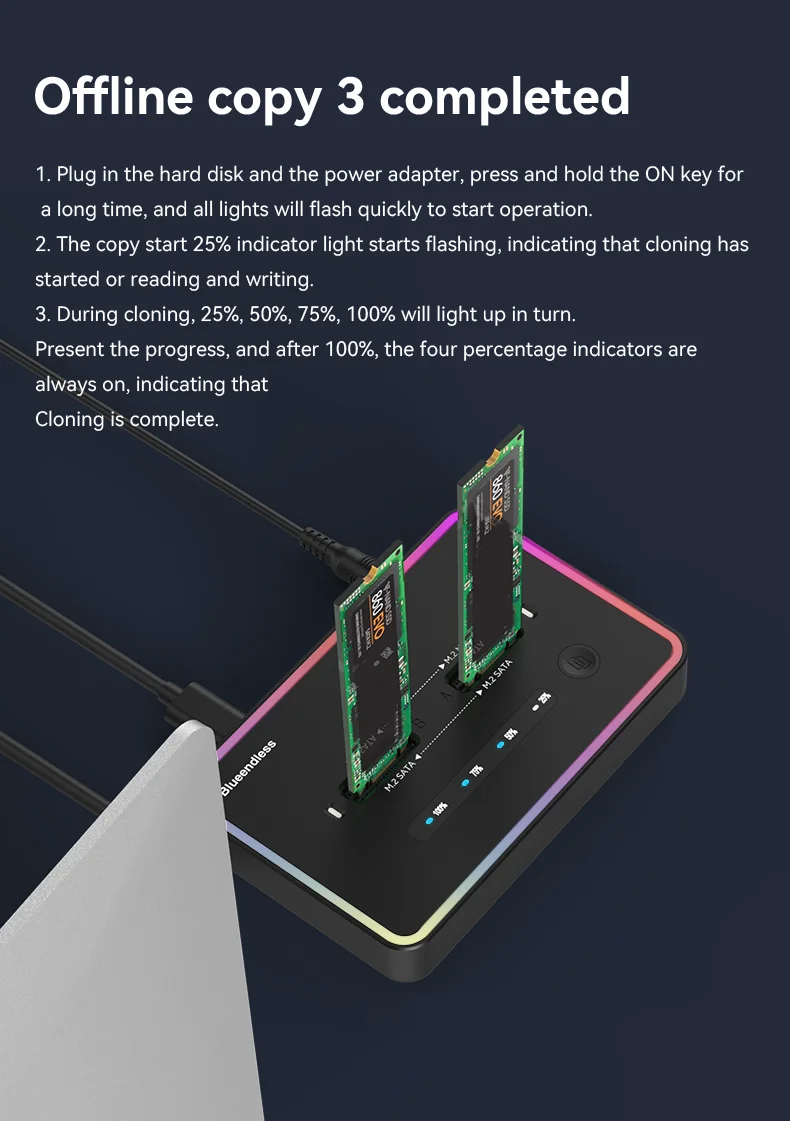

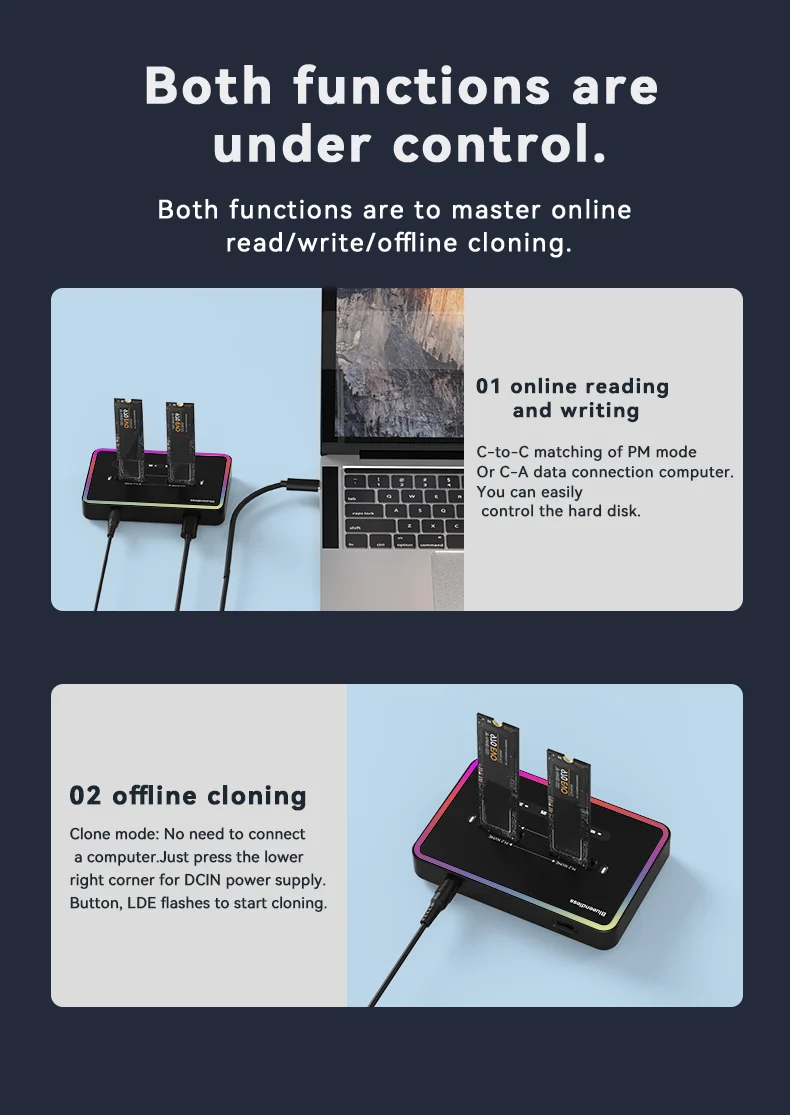

Offline Copy Operation 3 steps:

1、 After connecting the hard drive and the power adapter, press and hold the copy buttonuntil all lights start flashing. Release it and press again, then the copying process will begin.

2、 When the copying starts, all indicator lights will flash, indicating that cloning or read/write operations have begun.

3、 During cloning, the progress will be indicated by the lights in increments of 25%showing 25%, 50%, 75%, and finally 100%. After reaching 100%, the four percentageindicator lights will remain steadily lit, indicating that the cloning process is complete.

please pay attention to the following matters when using the offline clone function.

1.back disk(B) must be larger capacity(eliminate space loss) than front disk(A),
Plug in identify Source Disk(front port) and Target Disk(back port)

Connect power supply and switch on power. (make sure that the USB cable is disconnected)
2.To avoid your disk file damaged,please don't stop the device when it's under clone function.
3.When copy disk,please make sure disk B is empty,or the former file in disk B will be loss.(if disk B has file before,and just want to copy from disk A,please don't use offline clone function,just copy and paste on computer)
4.When offline copy the disk,please don't connect the computer,if connect the computer,disk will be under reading,can not support copy(device heating is normally,as big hard disk operate will be hot)

5.if the clone is interrupted ,you need to restart the device and clone again.
