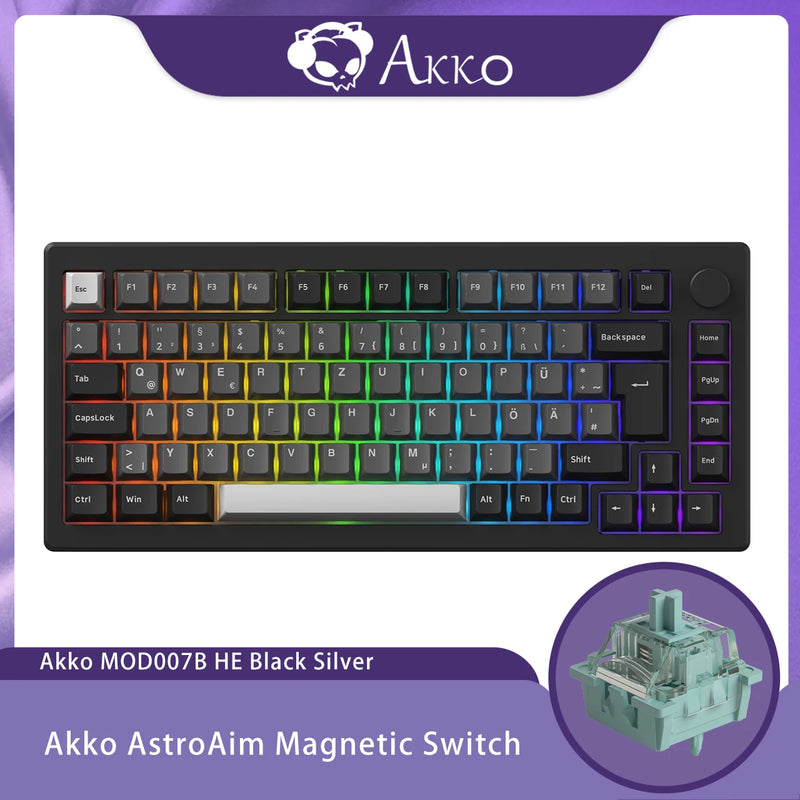

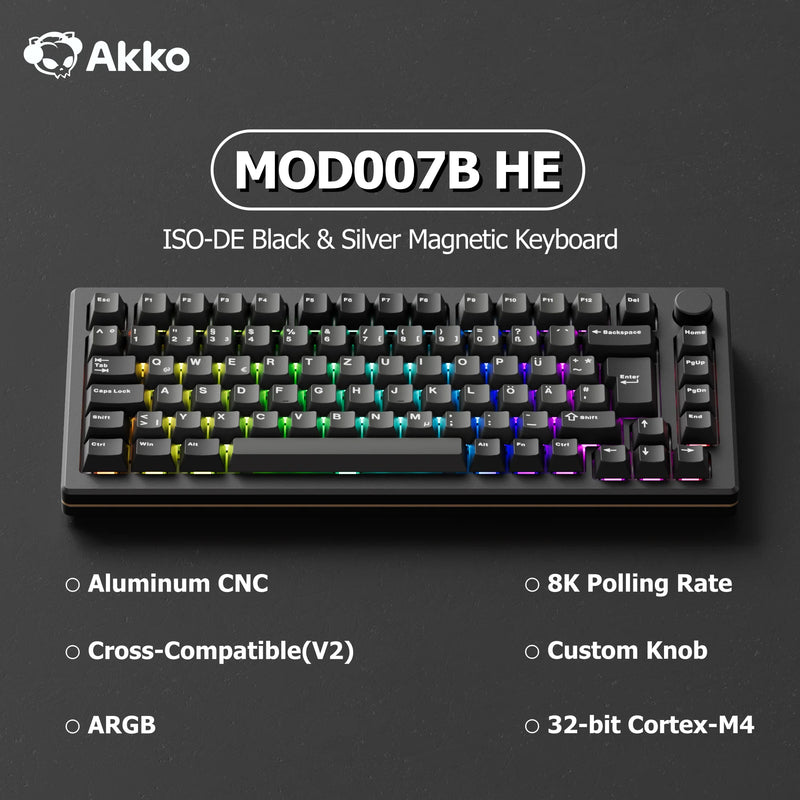

Akko MOD007B HE Magnetic Switch Mechanical Keyboard Black 75% ISO-DE Aluminum CNC Rapid Trigger 0.005mm 8K ARGB Gaming Keyboard
SPECIFICATIONS
AKKO Model: MOD007B
Acutation Range: 0.1-3.40mm
Application: Desktop,Laptop,Tablet
Axis Body Brand: Akko
Backlight Type: MULTICOLOR
Battery Included: Yes
Brand Name: AKKO
Case: Aluminum CNC
Connectivity: Bluetooth5.0 / 2.4GHz / USB Type-C
Full Size keyboard: Yes
High-concerned chemical: none
Interface Type: USB,Bluetooth,Bluetooth / USB
Keyboard Standard: 83 keys
Keycap: Cherry Profile
Keycup material: PBT plastic
Keycup printing: Doublshot
LED: ARGB(500Hz Refresh Rate)
Language: English
Layout: ISO-DE
Magnetic Switch Cross-Compatibility: Support
Mount: Gasket Mount
Operation Style: Mechanical
Origin: Mainland China
Package: Yes
Plate: Pre-installed Aluminum Plate
Polling Rate: 8,000Hz In wired and 2.4G modes, 125Hz in Bluetooth mode.
Precision: 0.005mm
RT Stabilizer: Support
Scanning Rate: 32,000Hz
Software: Akko Cloud Driver
Stabilizer: Pre-Lubed Demagnetized Plate-Mounted Stabilizer
Style: Standard
Switches Hot swap: no
Type: 2.4Ghz Wireless
Wrist Support: No
MOD 007B HE Black & Silver ISO V2
ISO Layout | Full Range 0.005mm RT | Cross-compatible | 8,000Hz Polling Rate | 32,000Hz Scanning Rate
|

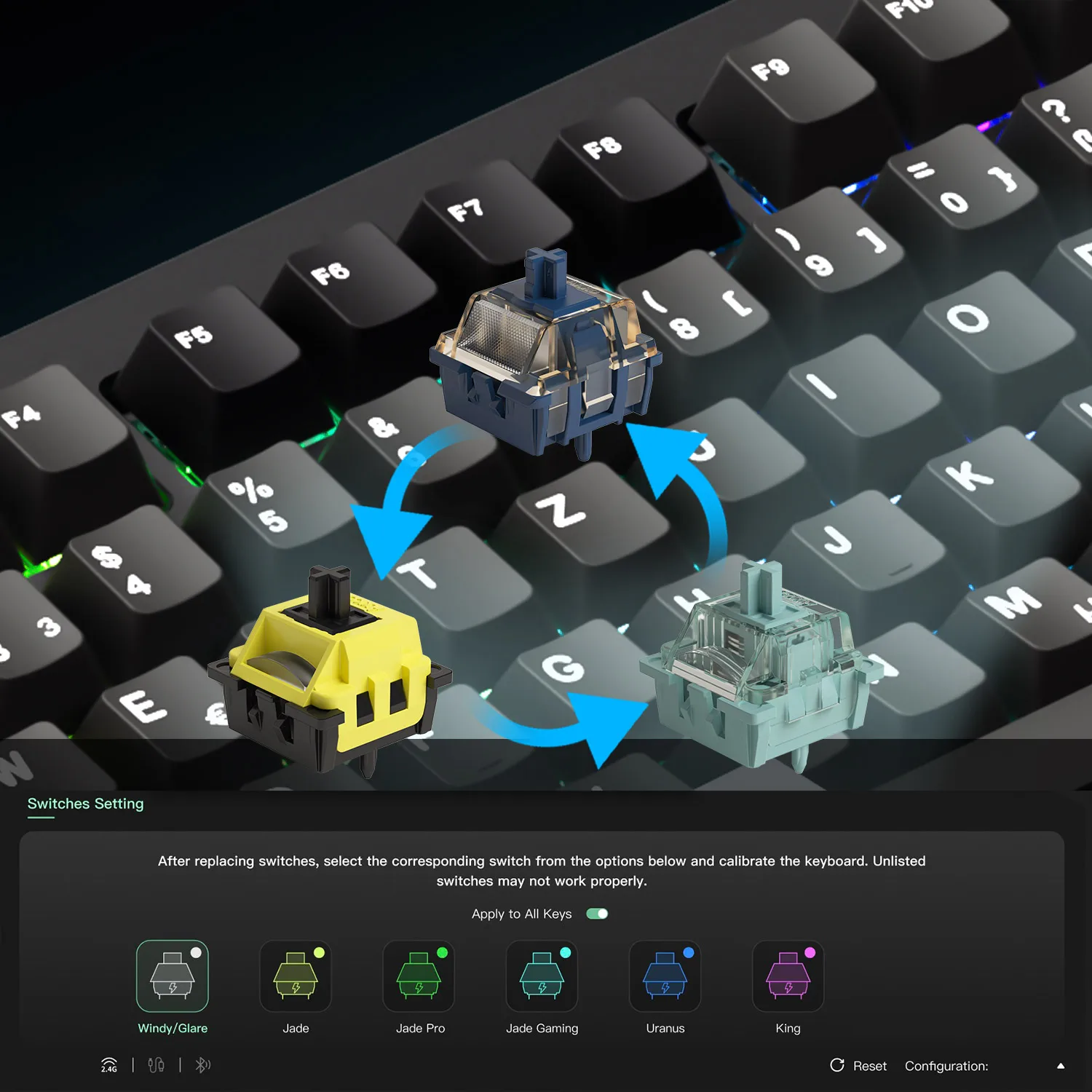

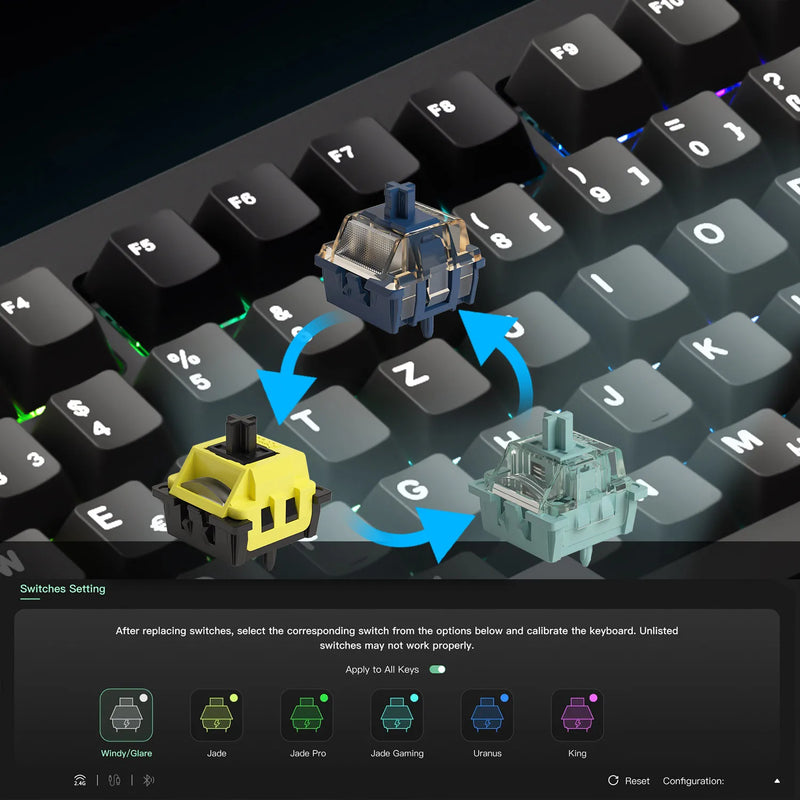

Cross-Compatible with Mainstream Magnetic Switches (V2)
MOD 007B HE Black & Silver ISO(V2) provides compatibility with 5 third-party magnetic switches. Users can choose the appropriate switch from the Akko Driver list and calibrate the keyboard easily after replacement. Mixing and
matching them in different keys is also possible.
Disclaimer: High-percision switches require tuning and experimenting with the keyboard. The switches listed are guaranteed to perform at 0.01mm precision. Other switches may work but are unable to reach the claimed accuracy.
|
|
|

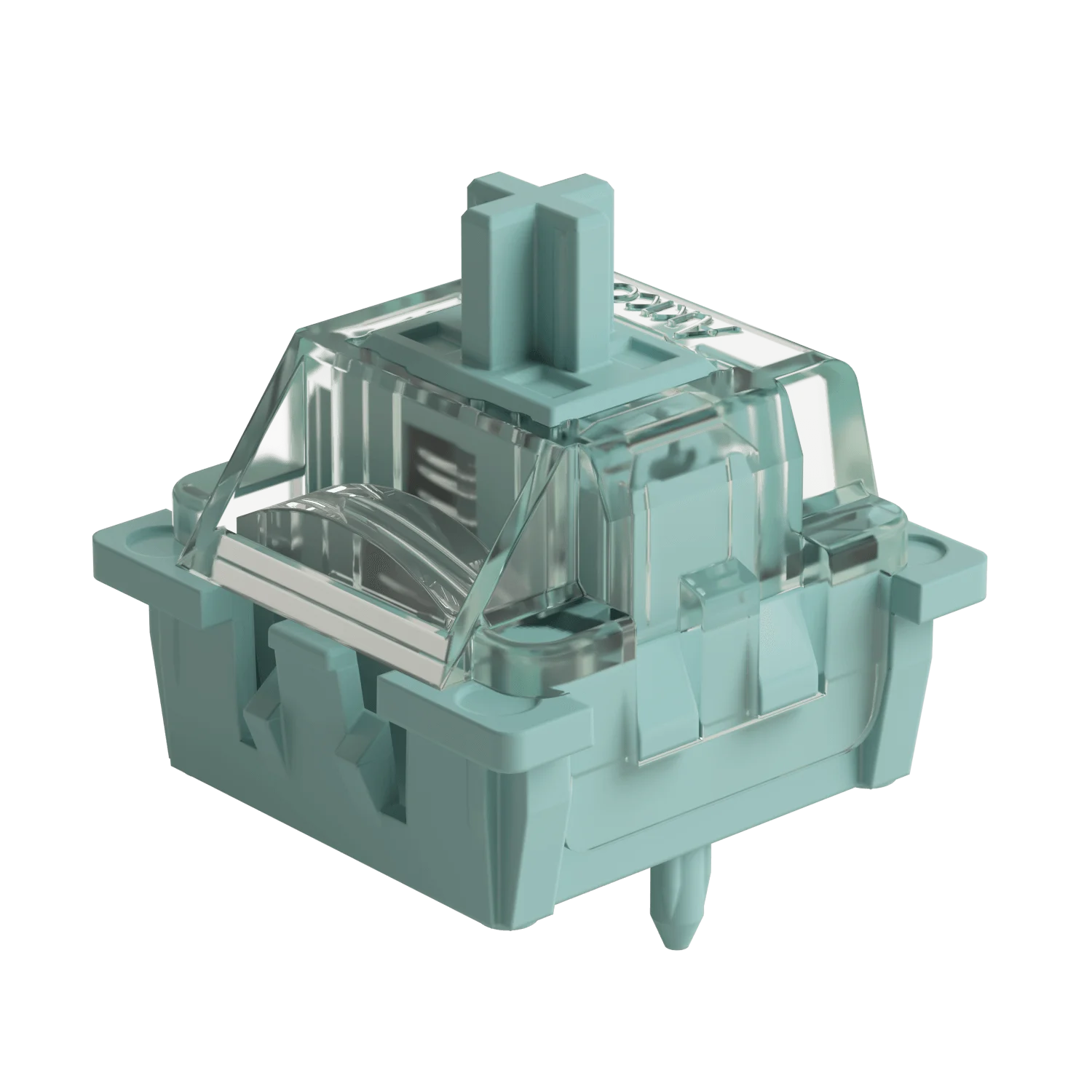

Akko AstroAim Magnetic Switch
Type: Linear
Total Travel: 3.5Β±0.1mm
Initial Force: 35gf
End Force: 55gf
Initial Magnetic Flux: 95Β±15Gs(PCB1.6mm) / 110Β±15Gs(PCB1.2mm)
Bottom-out Magnetic Flux: 580Β±40Gs(PCB1.6mm) / 720Β±50Gs(PCB1.2mm)
Top/Stem/Bottom: PC/POM/PA66
LED Diffuser
|
|

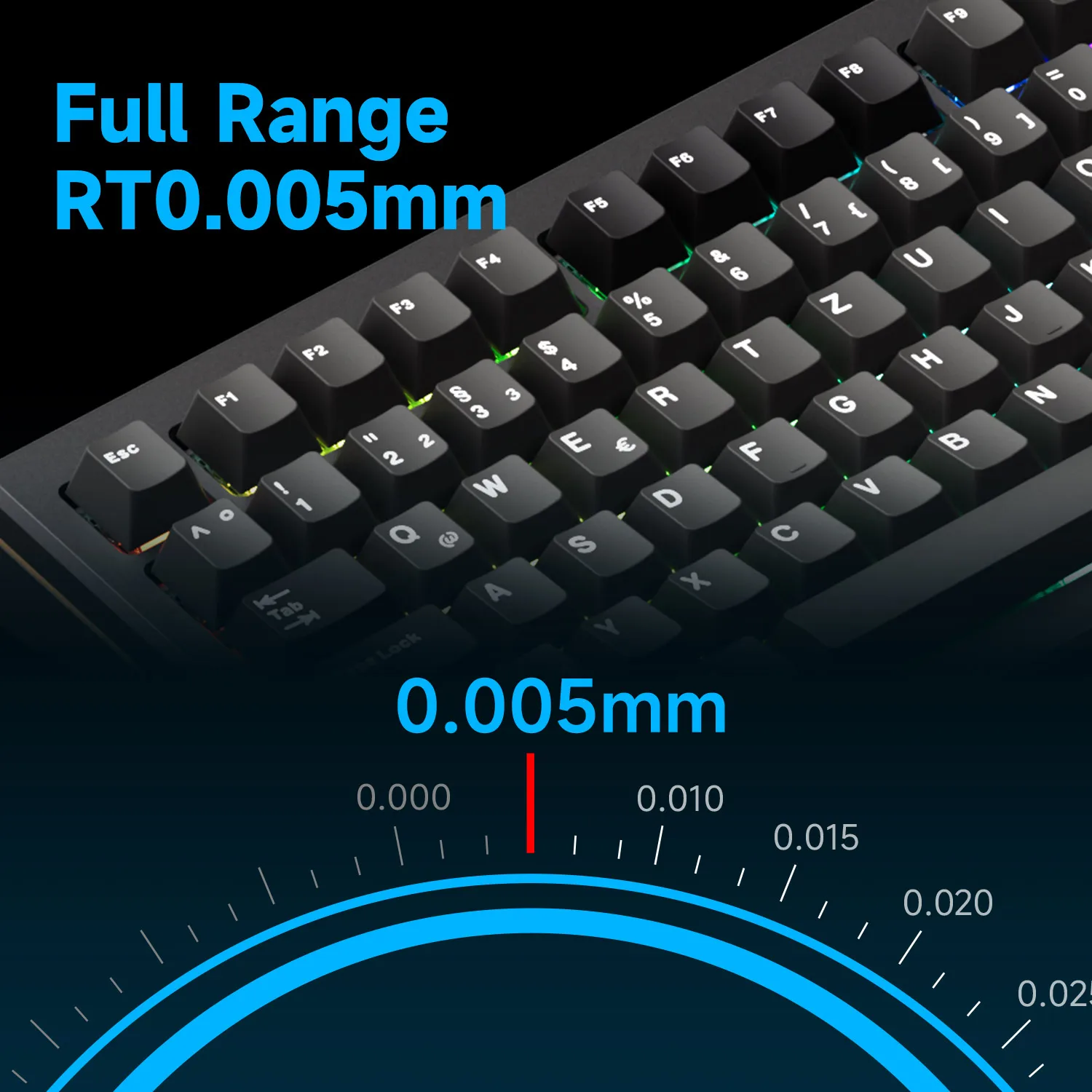

Full Range RT0.005mm(V2)
MOD 007B HE Black & Silver ISO (V2) attain ultra-precise 0.005mm Rapid Trigger and adjustable actuation distance in 0.005mm steps. Users can adjust their typing or gaming experience for faster response times and improved accuracy, perfect for competitive gaming.
|
|
|

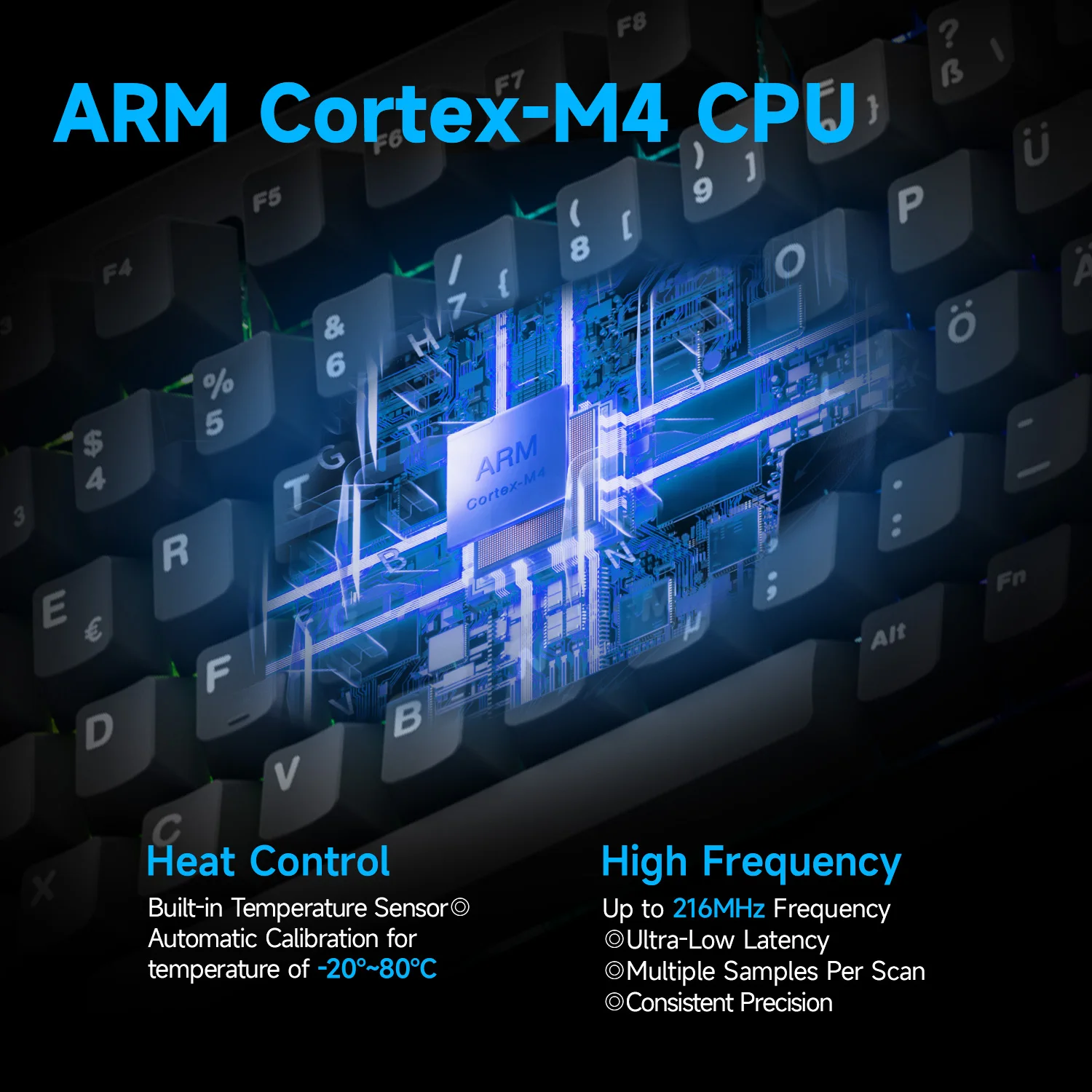

ARM Cortex-M4 CPU(V2)
The powerful CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20Β°C and 80Β°C, ensuring faster performance.
|
|
Universal 8K Polling Rate
8000Hz polling rate for all keys in wired or 2.4G wireless modes, enjoy ultra-fast response times and smoother, more precise inputs - perfect for gaming and high-performance tasks.
|
|
|

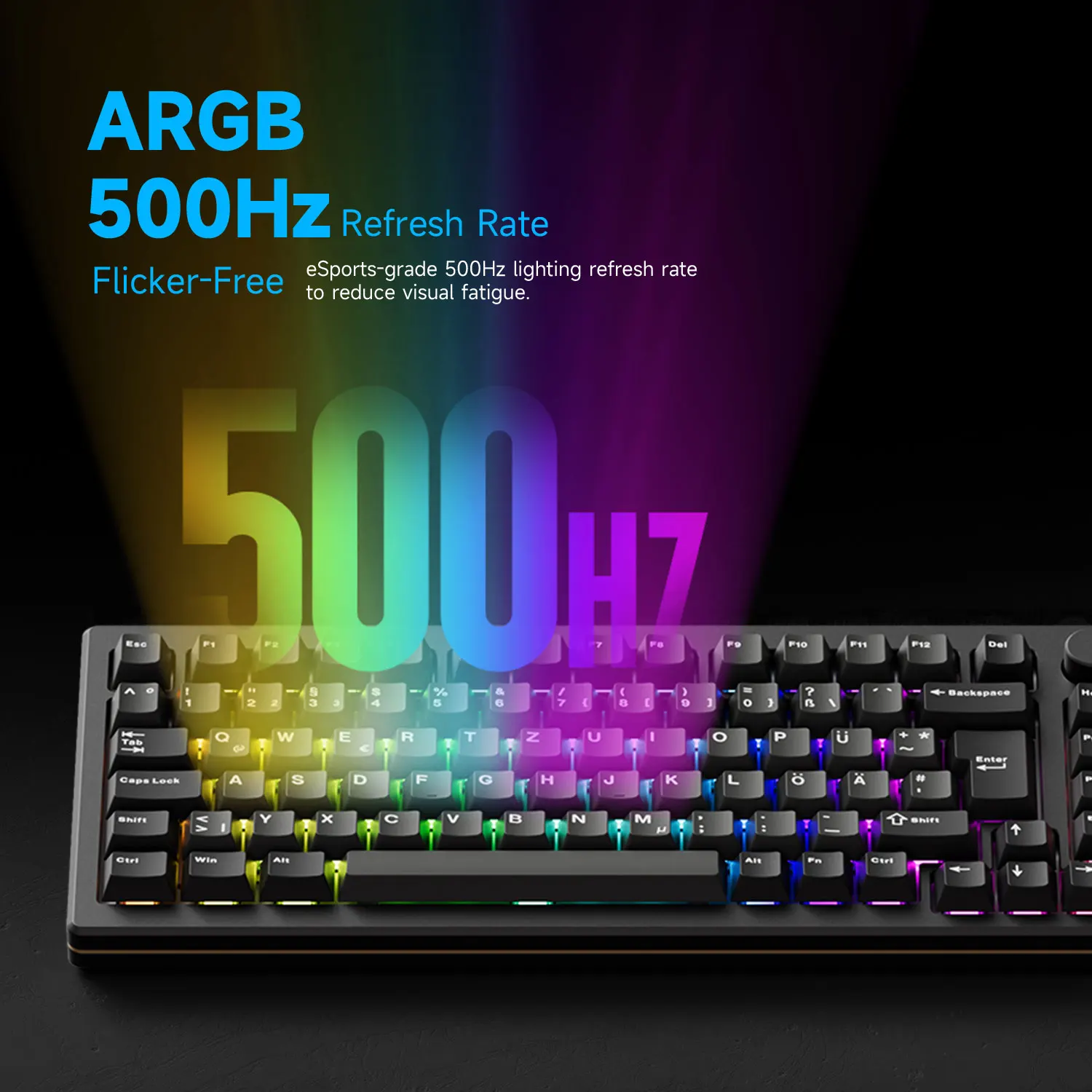

ARGB at a 500Hz Refresh Rate
MOD 007B HE Black & Silver ISO (V2) features ARGB(addressable RGB) with individually controlled LEDs for smooth, flicker-free lighting. With Alpha channel integration and a 500Hz refresh rate, it offers richer dynamic effects and reduces visual fatigueβperfect for gaming and aesthetic builds.
|
|
RT Stabilizer(V2)
This βRT Stabilizerβ mode is especially useful when set to a Rapid Trigger precision of 0.005mm, as magnetic switch keyboards may experience unintended inputs or disconnection from slight hand tremors, which can disrupt the overall gaming experience.
It can be activated via the Akko Driver with 4 different filtering levels.
|
|
|

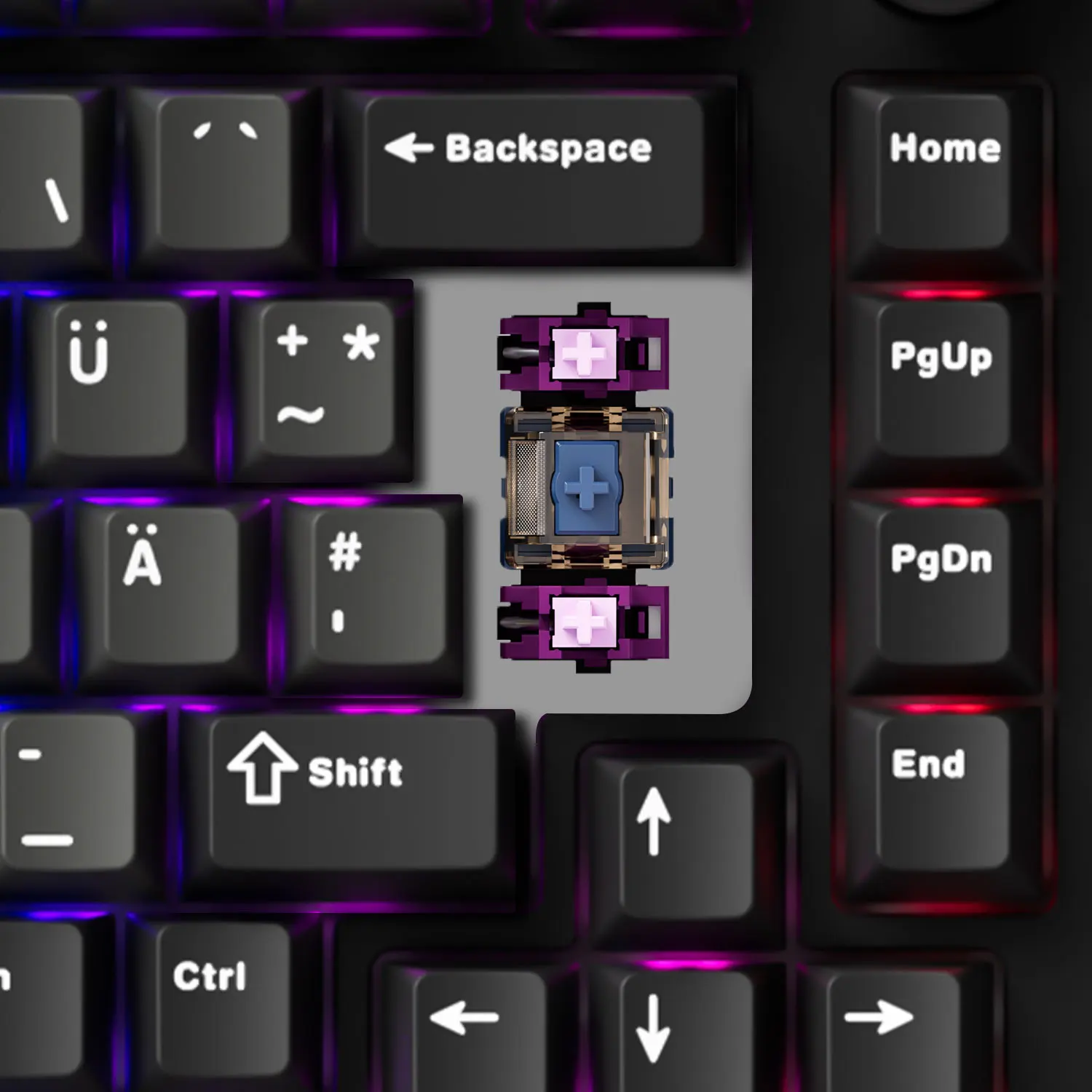

Demagnetized Stabilizer(V2)
Compared to traditional mechanical keyboard stabilizers, the Stabilizer Wire is demagnetized, reducing magnetic interference, improving trigger accuracy, optimizing feel, and enhancing long-term stabilityβessential for precise and consistent performance in magnetic switch keyboards.
|
|
Built-in 3600mAh Battery
With a battery of around 3600mAh, users can enjoy prolonged periods of uninterrupted typing, gaming, or productivity without connecting cable.

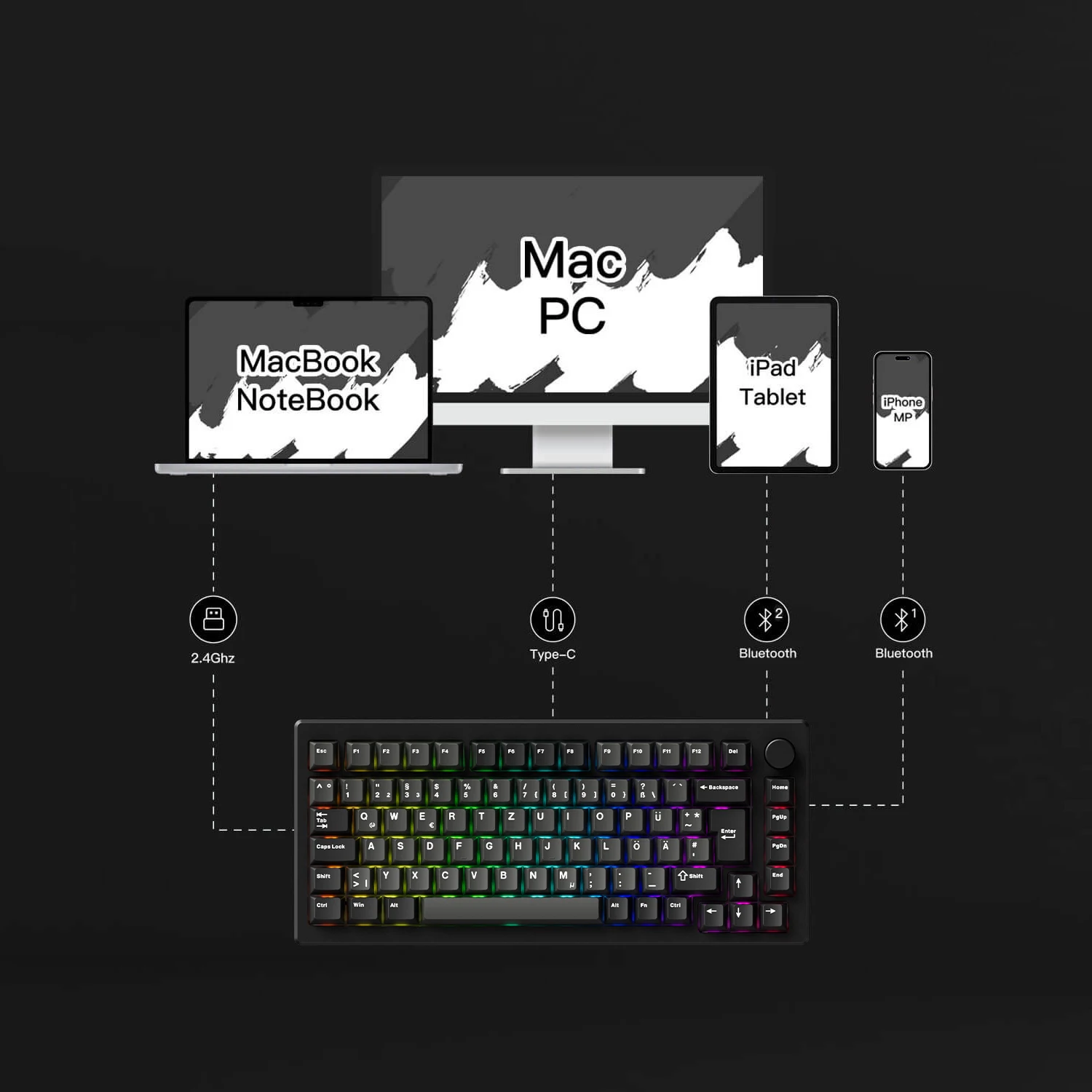

Multi-Mode
MOD 007B HE can be connected to multiple devices through Bluetooth 5.0, multi-host 2.4Ghz (with a receiver), and wired Type-C modes with an easy switch.
|
|
|
|
|
|

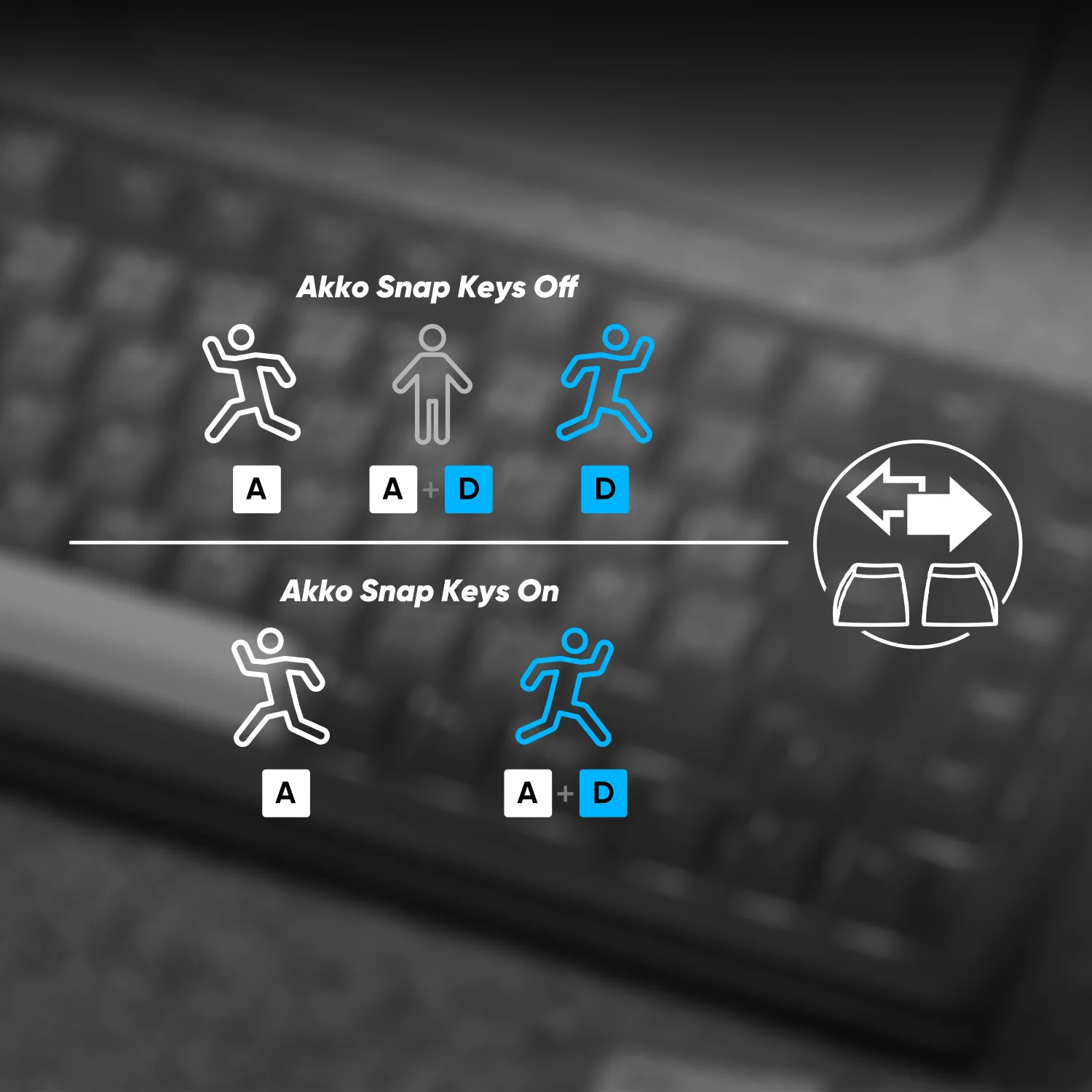

Snap Key
Snap Key is Akko's implementation of SOCD, which prioritizes the most recent keypress for swift directional changes without releasing previous inputs. This ensures fluid and responsive control, especially in FPS games, where quick reactions and precise movements are crucial.
|
Adjustable Actuation Distance
These magnetic switches allow users to adjust every keyβs actuation point from 0.1mm to 3.4mm, which offers different kinds of pressing for gaming or typing.
|

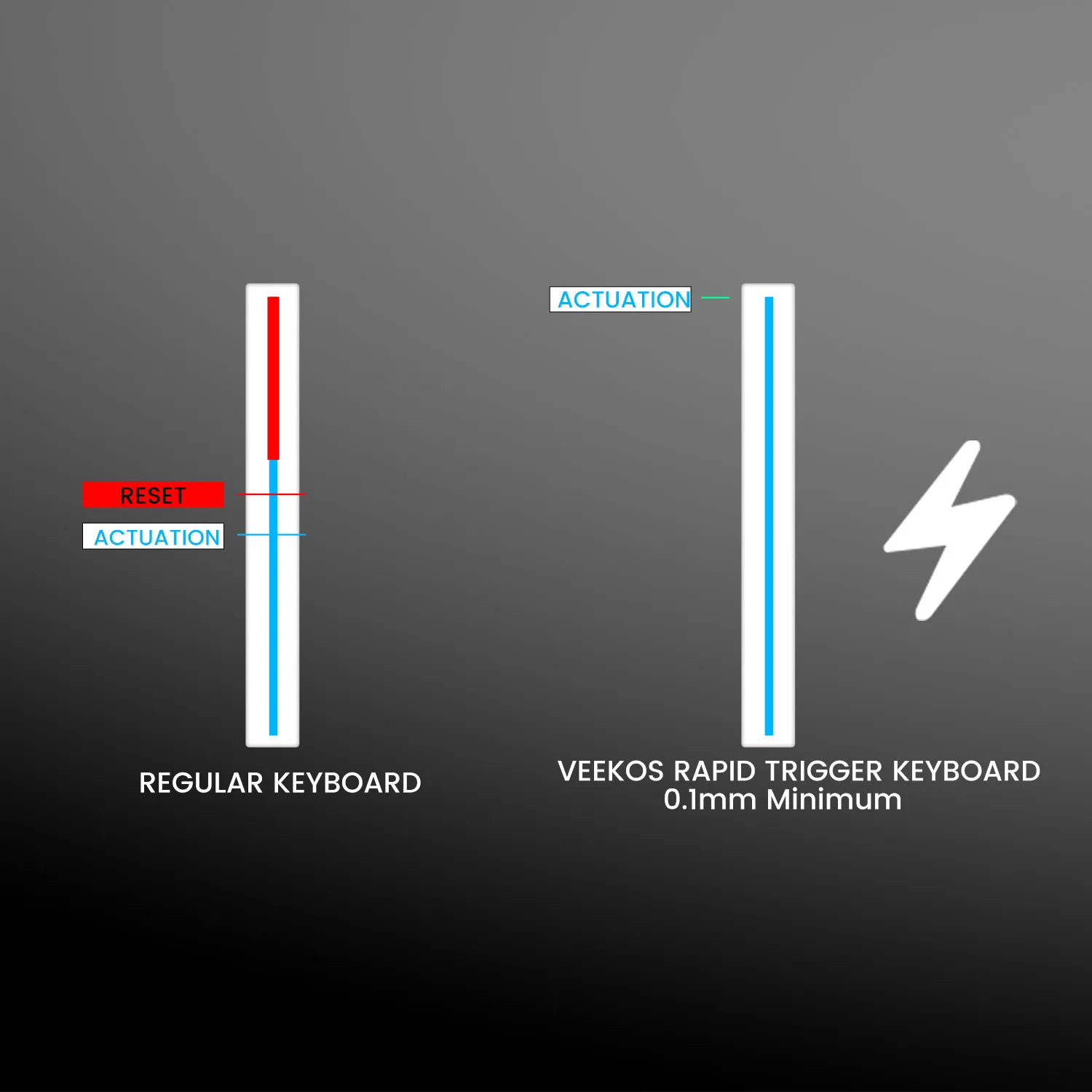

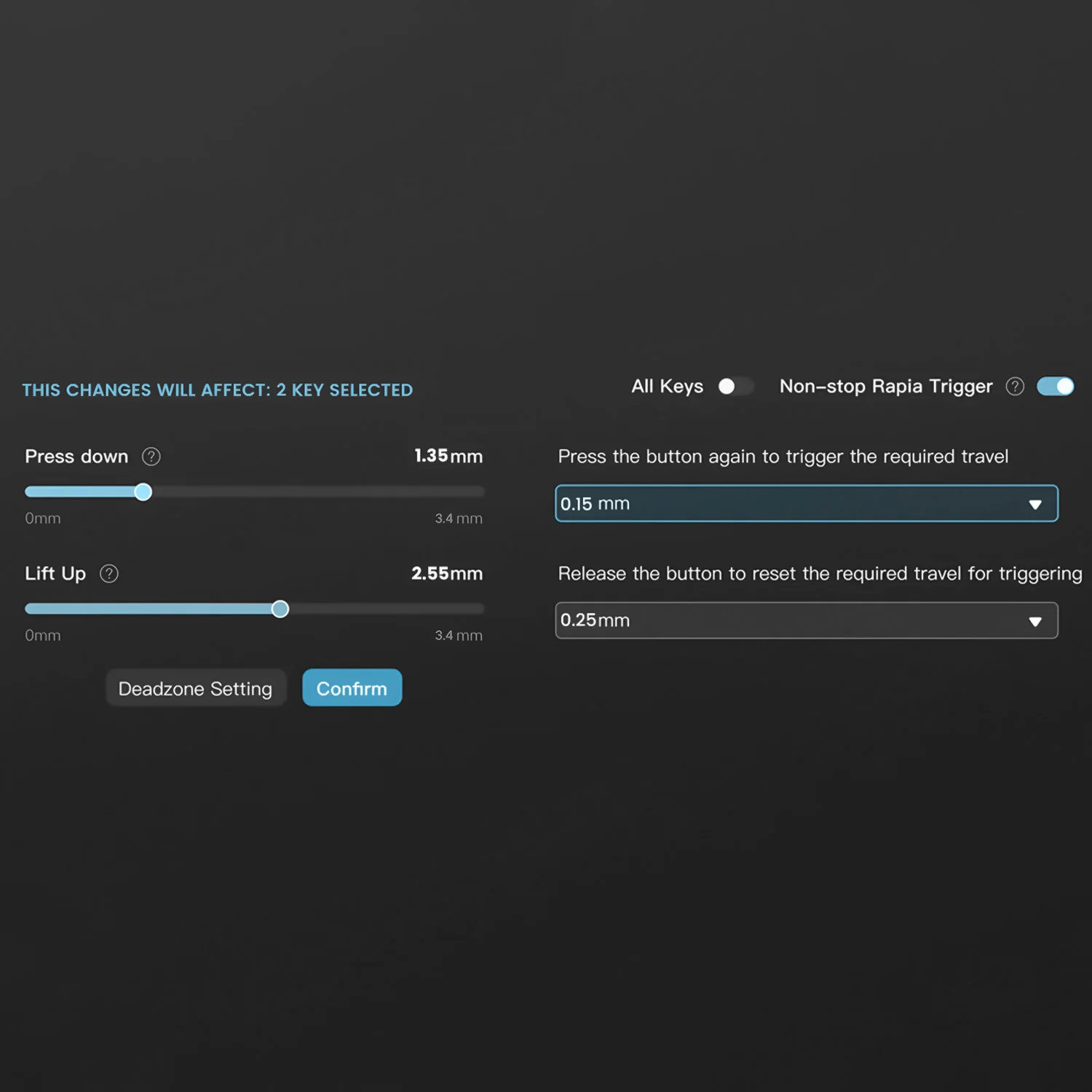

Rapid Trigger (RT)
Rapid Trigger dynamically changes the keysβ actuation and deactivation points. Through the Akko Driver, users can choose βAll Buttonsβ or βPer Buttonβ customization modes, as well as activate βNon-stop Rapid Triggerβ for near-instant key response. This gives FPS gamers a competitive edge in fast-paced gameplay.
For example, when gamers enable RT, they can achieve βCounter-Strafeβ in VALORANT games.
|
|
|
|
|

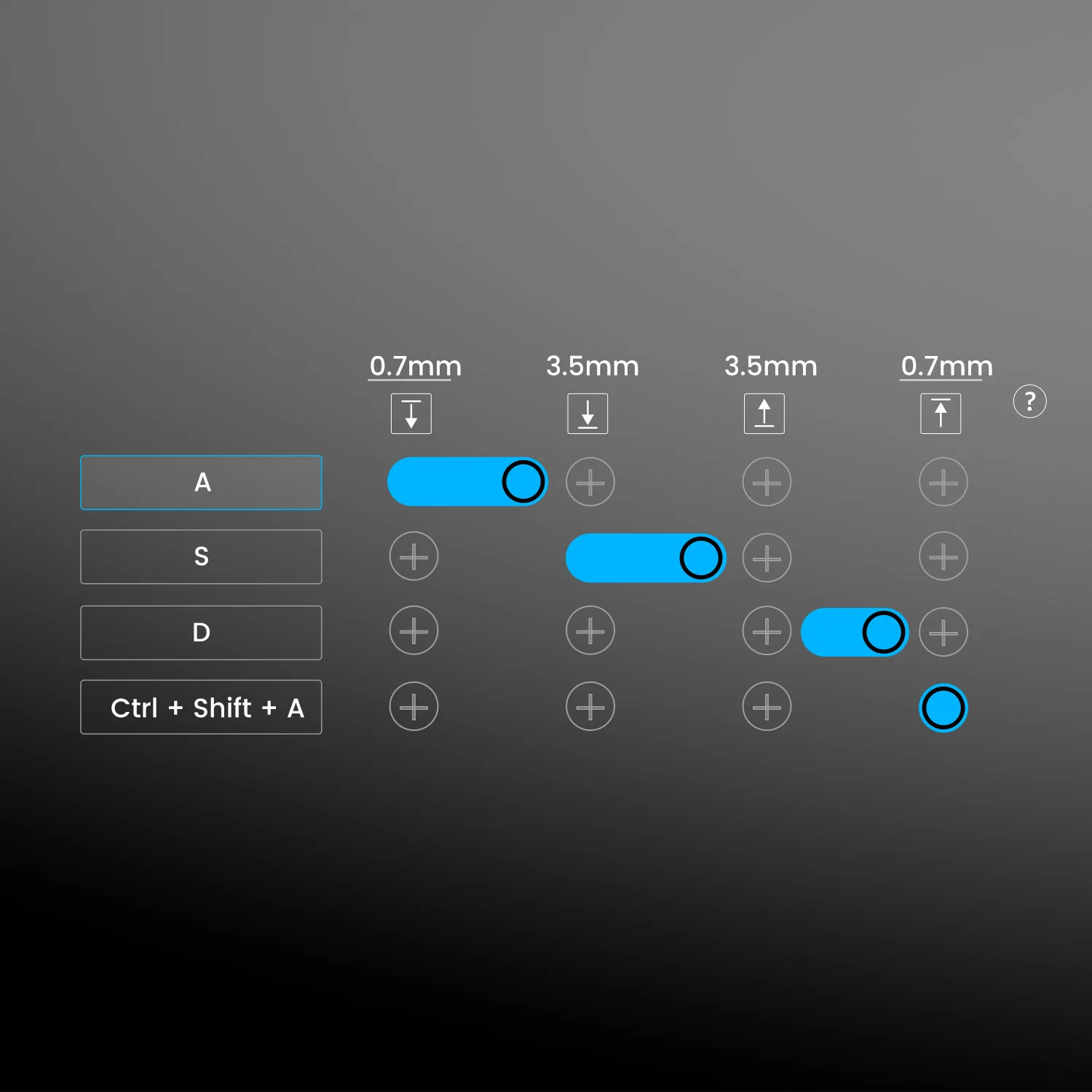

Dynamic Keystrokes (DKS)
Pressing a key can trigger four different key operations.
Depending on your keypress force: a light press triggers action 1, a deeper press activates action 2, and releasing the key also supports a two-stage key setting.
|

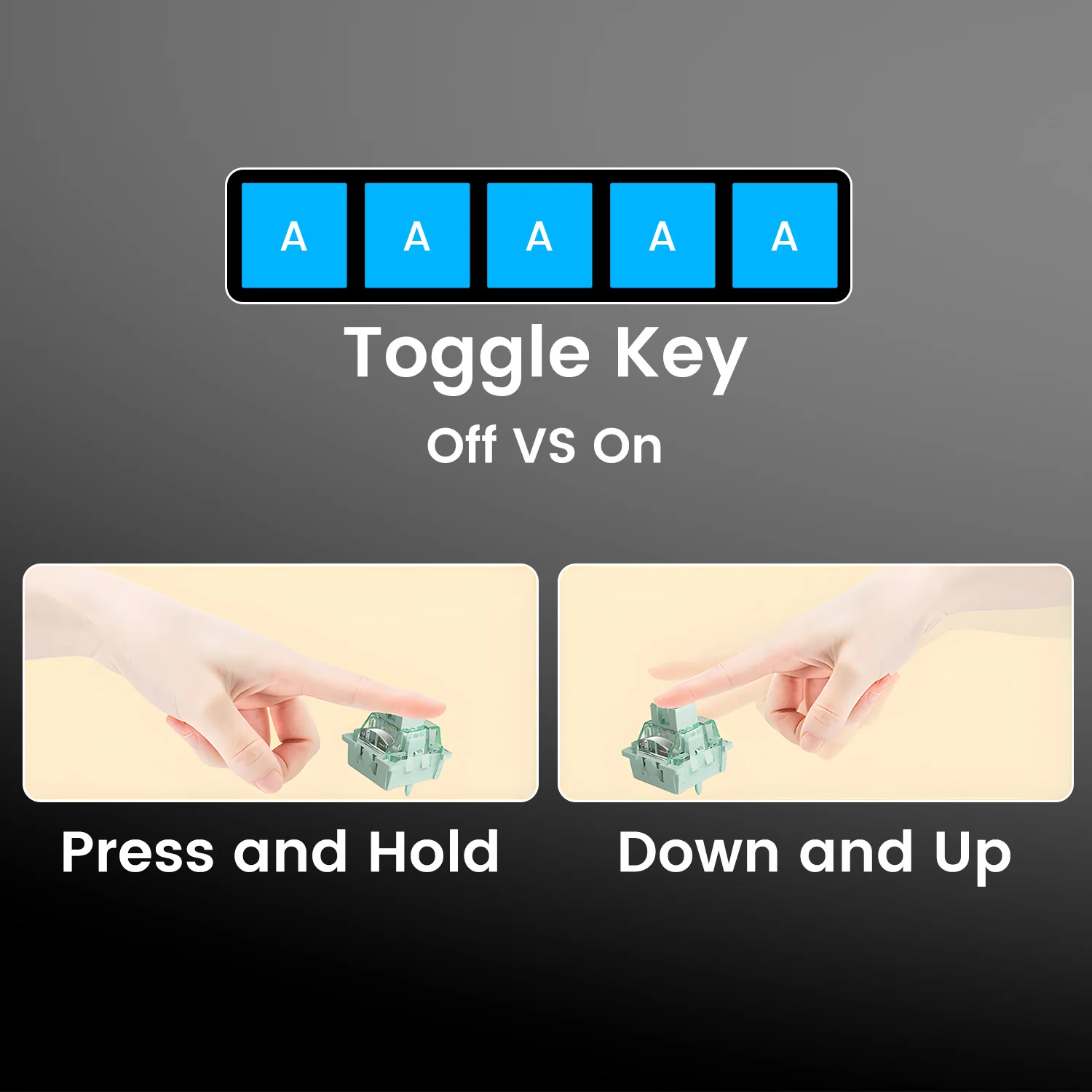

Toggle Key (TGL)
TGL, or Toggle Key, transforms a key into a toggle switch. When you press this switch, you can activate one of two scenarios: either continuously hold down the key/function, or trigger the key/function multiple times at a high frequency.focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
|

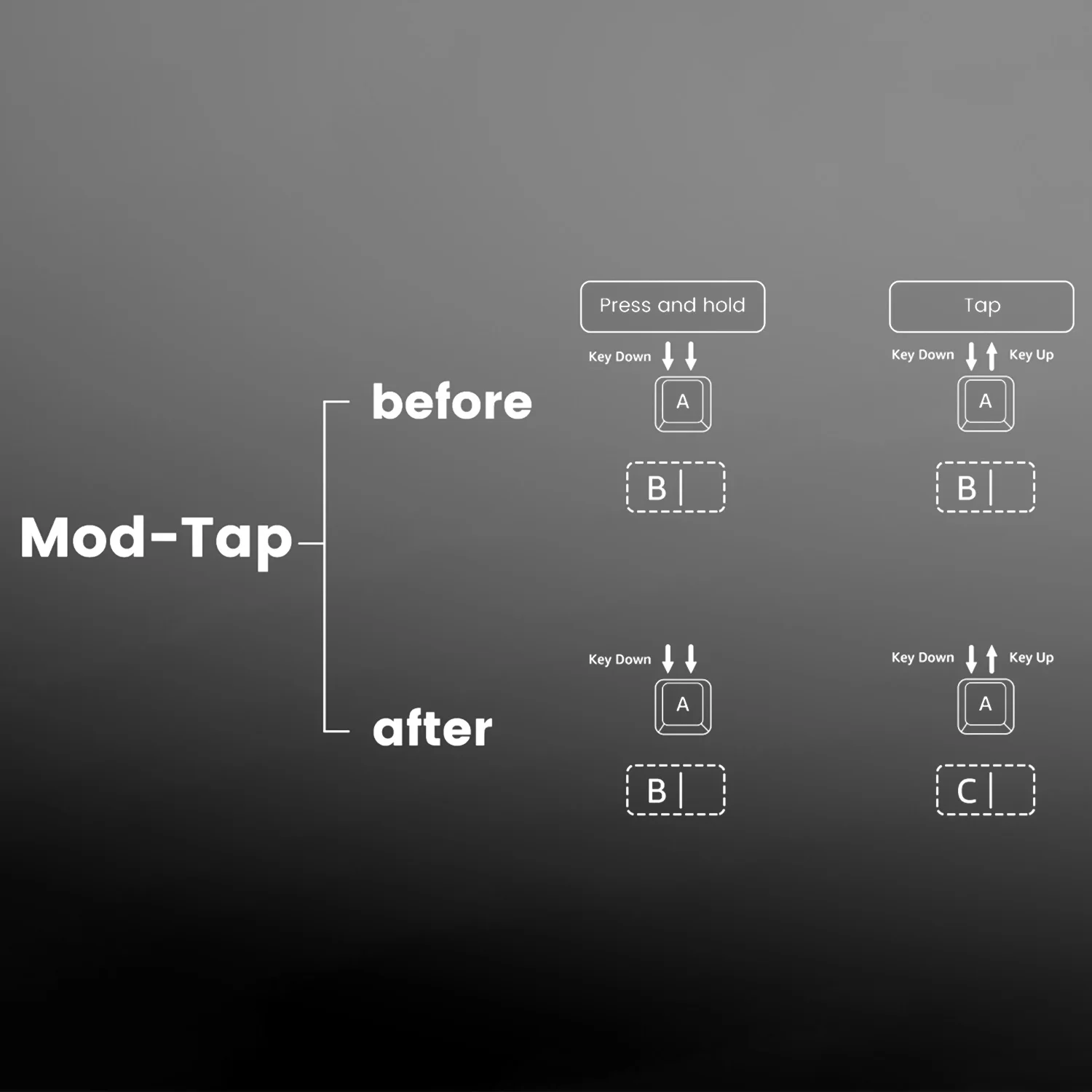

Mod-Tap
Mod-Tap is a design that provides convenience for gaming. It enables the creation of dedicated or dual-functional keys based on key press behavior.
A single keypress can achieve two functions: holding down the key for one function, and press the key for another.
|
|
|
|
|

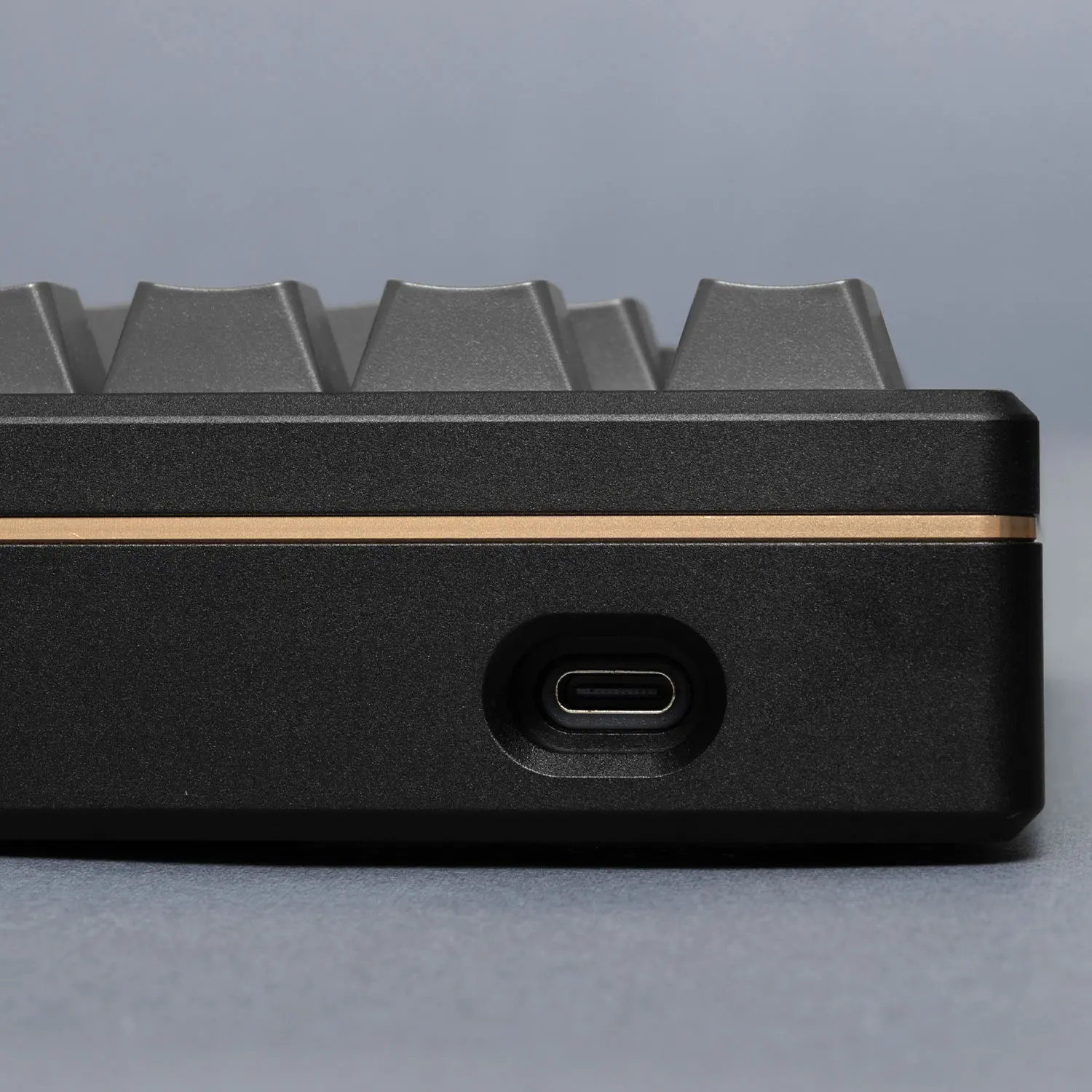

Detachable USB
Easy for wired connection, storage and portability. The coiled cable included in the box will keep your desktop tidy.
|

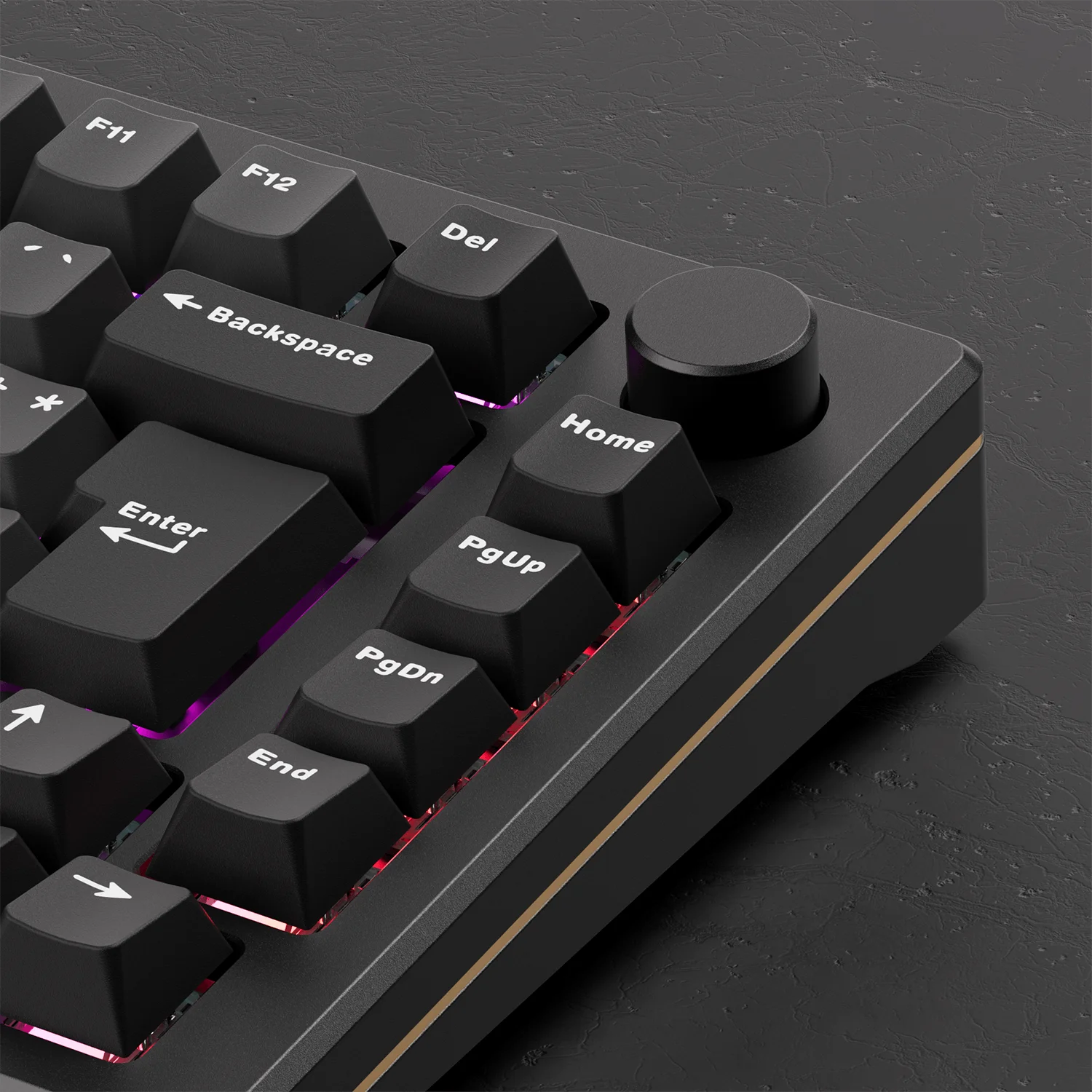

Programable Knob
Easily control the volume and lighting and program to other functions
|

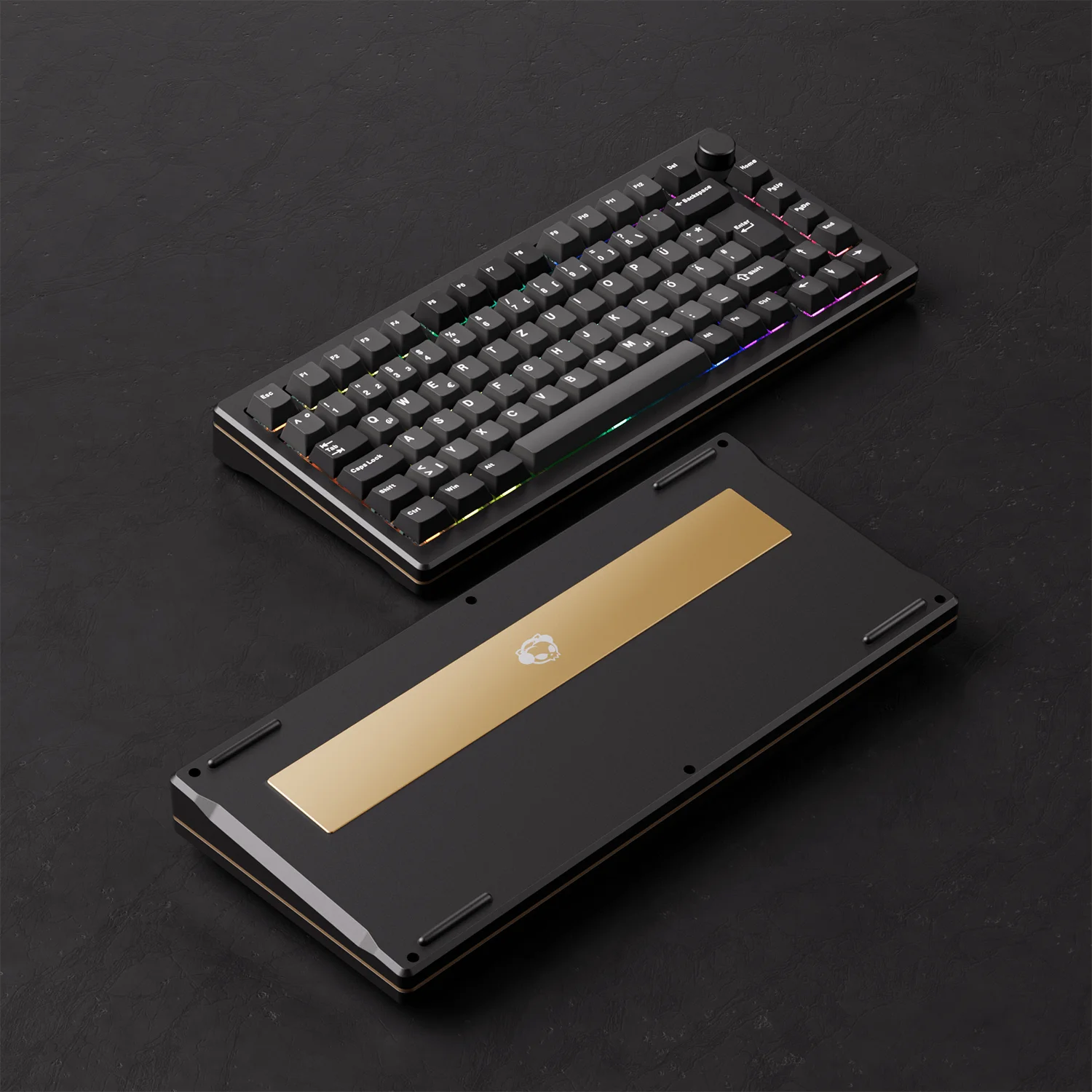

Aluminum Weight
Akko new aluminum weight, nice and designable bar.
|
|
|
|
|

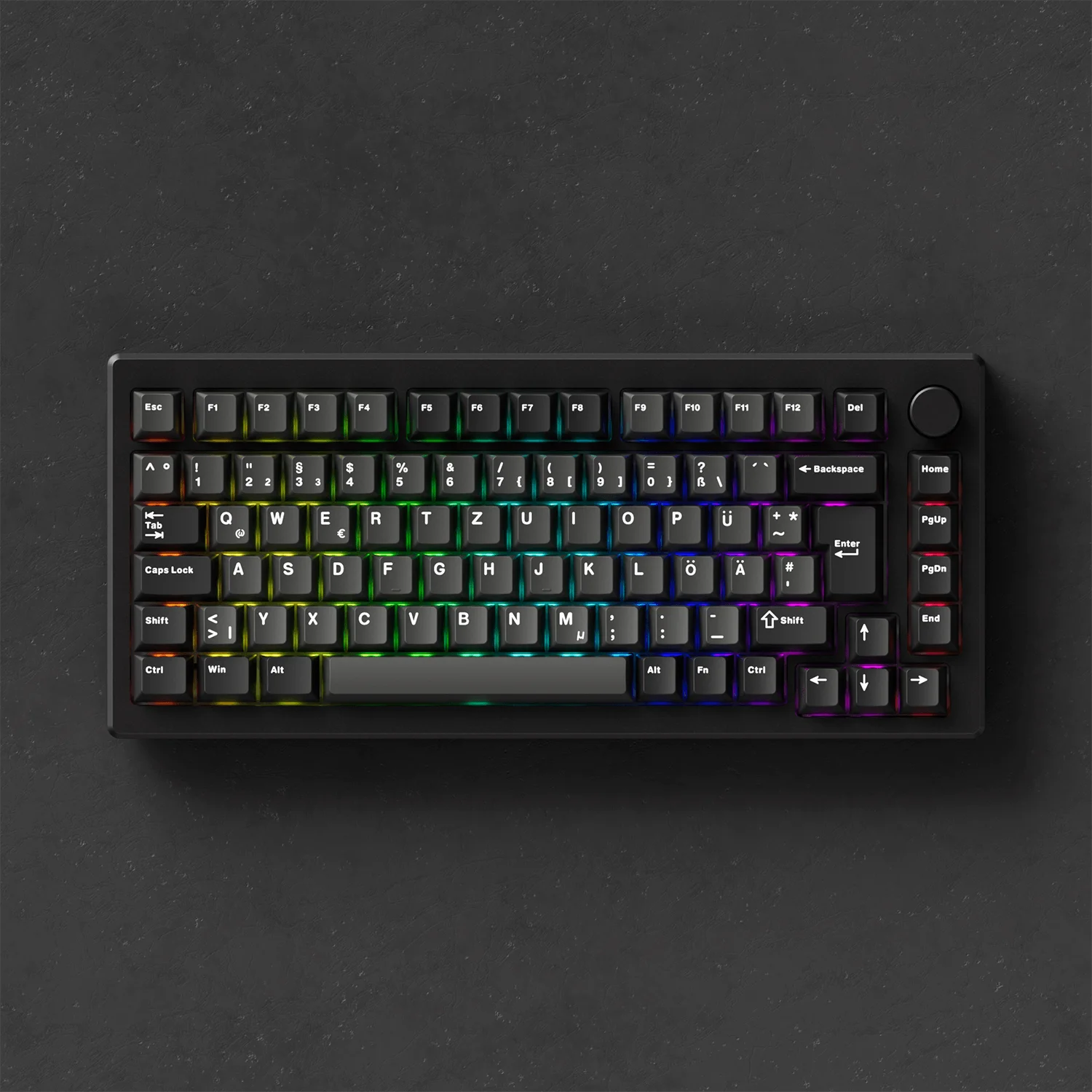

ISO-DE
|

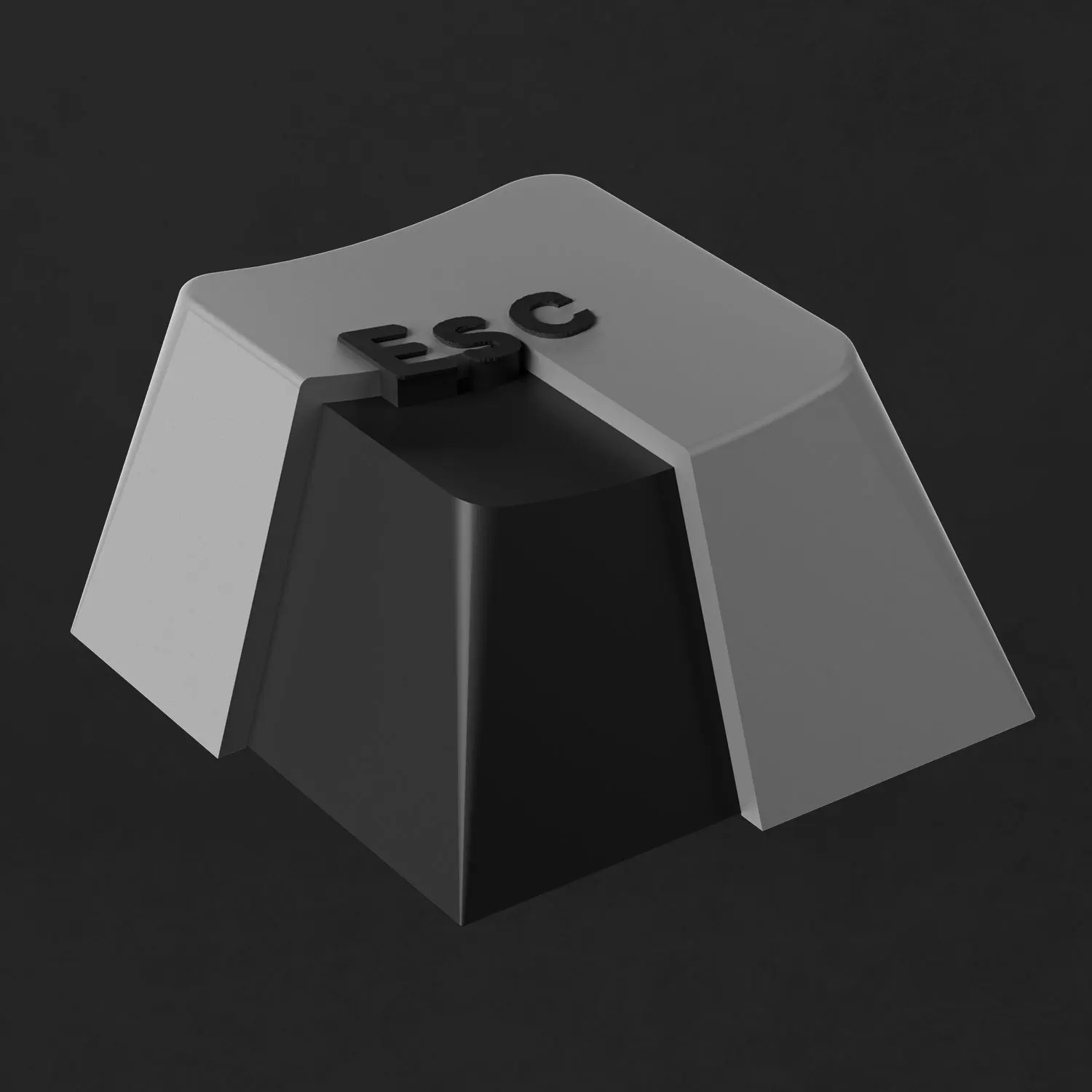

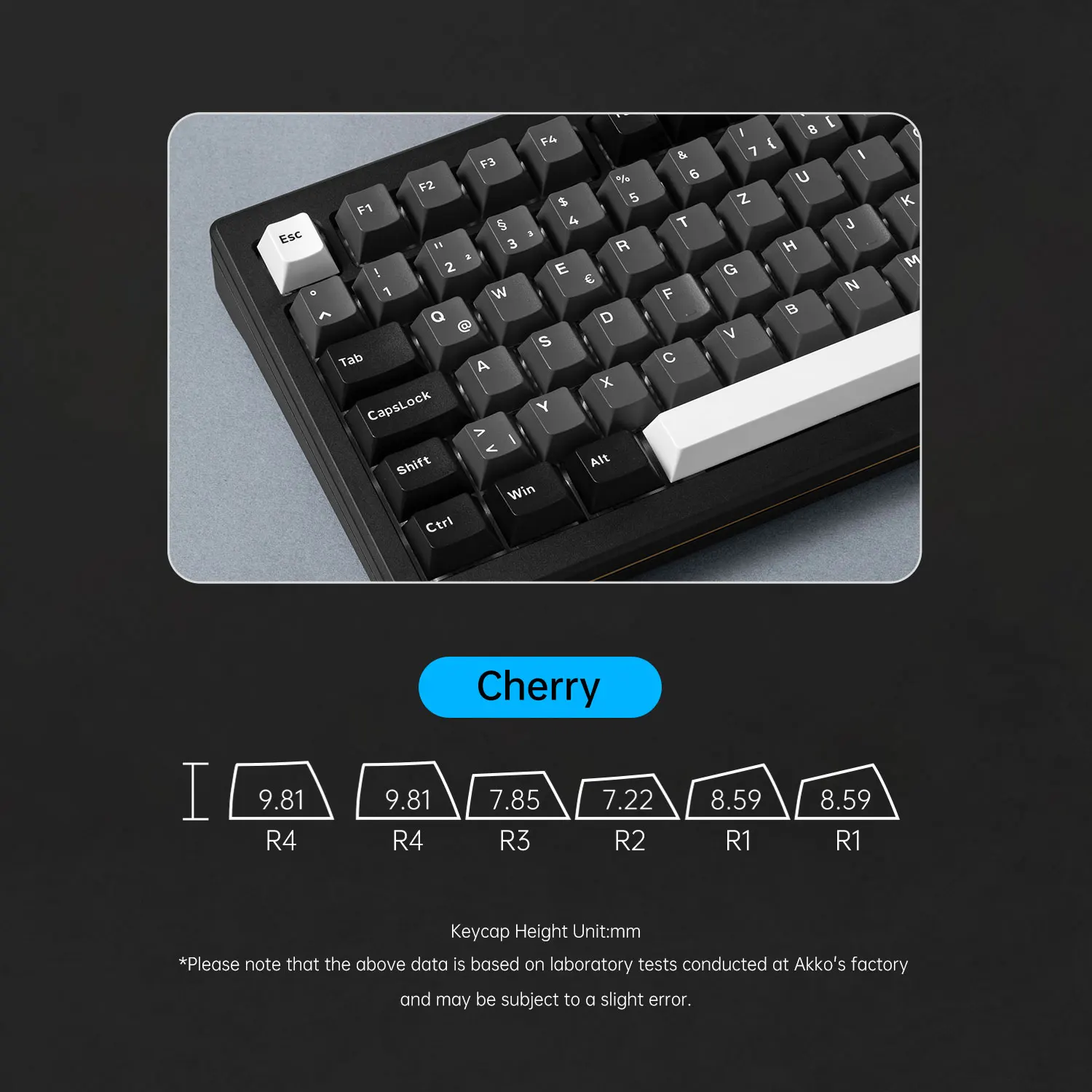

Cherry Profile
The Cherry profile keycaps feature a low-profile sculpted design, delivering a comfortable typing angle while ensuring precise keypress consistency.
|
Double-shot PBT
The PBT keycaps boast exceptional oil resistance, enhancing the overall typing experience while ensuring the longevity of the legends' visibility.
|
PORON Plate Foam
MOD 007B HE Black & Silver ISO is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.

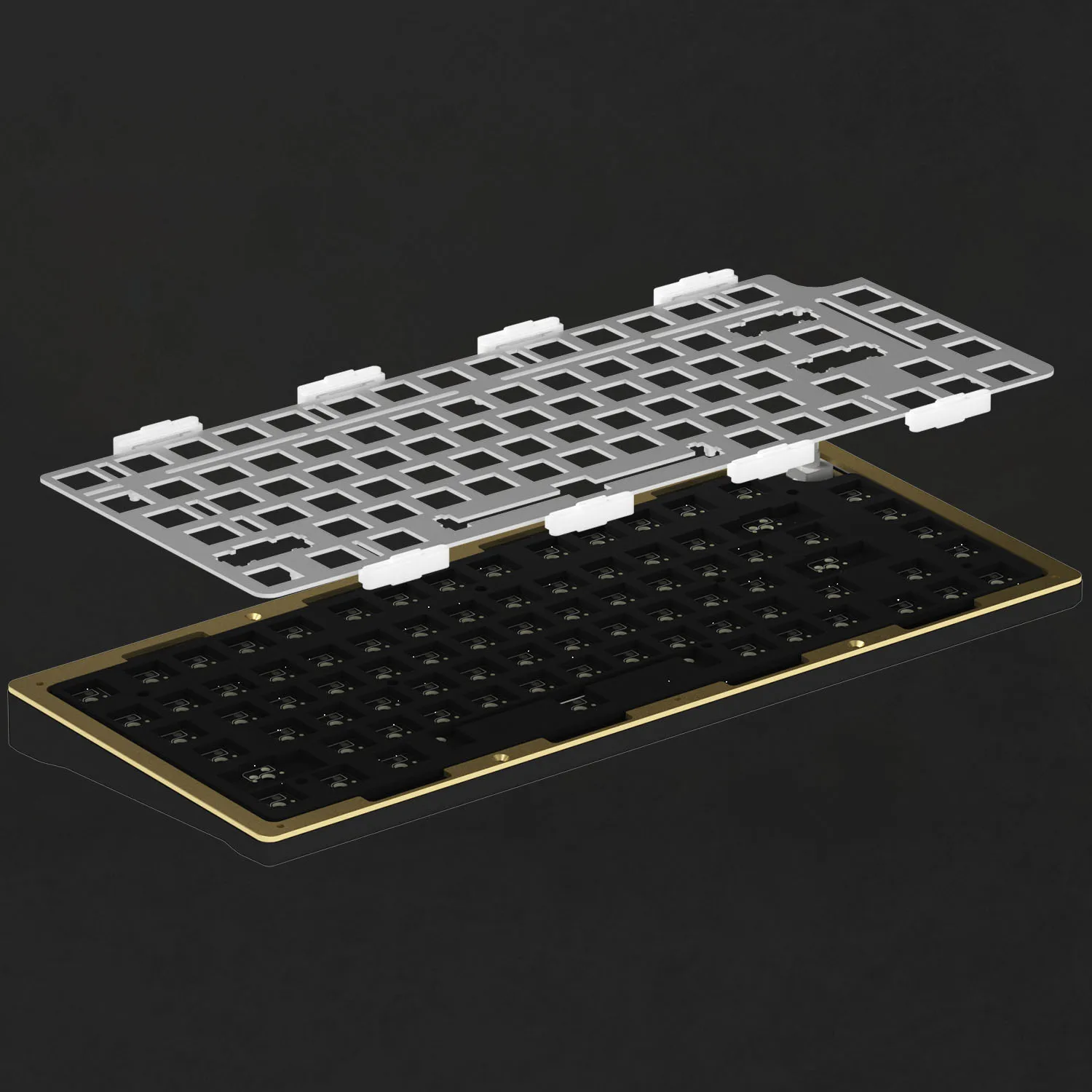

Aluminum Plate
MOD 007B HE Black & Silver ISO utilizes a pre-built Aluminum plate for a stiffer and higher-pitched sound profile.

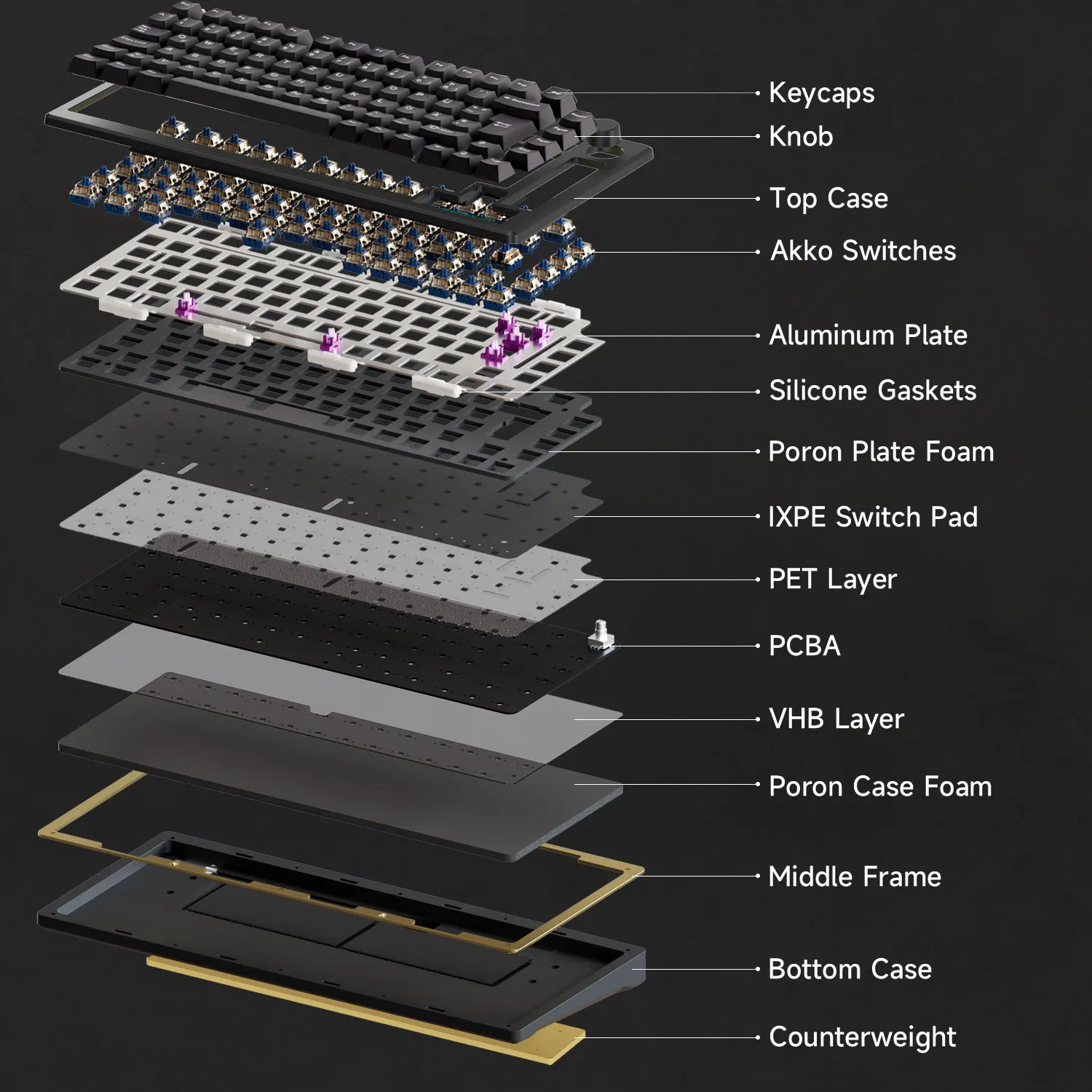

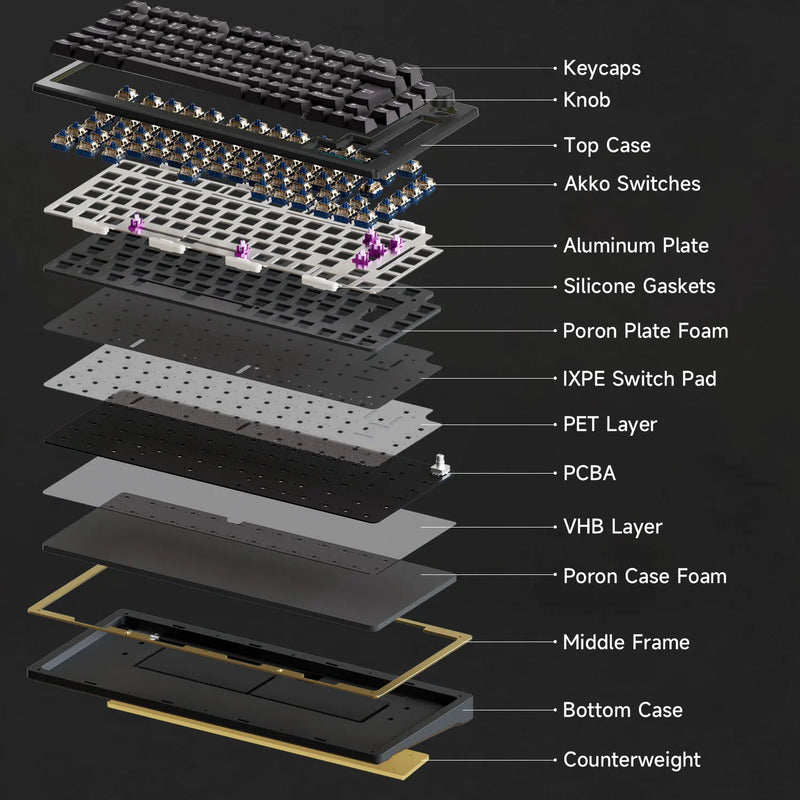

Gasket Mount & Upgrate Layer(V2)
A gasket mount keyboard is a type of mechanical keyboard that uses a gasket material, such as silicone or neoprene, to create a βfloatingβ mount for the switches. The gasket is placed between the plate and the PCB, which allows for a more flexible and cushioned typing experience.
This design allows for more flex and cushioning, which can result in a softer typing experience.
