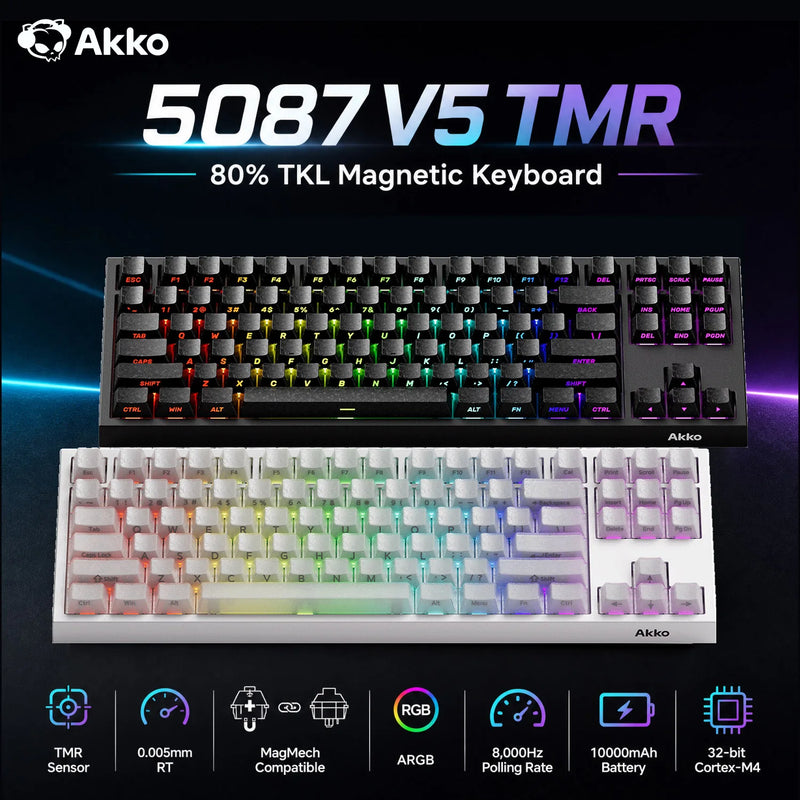

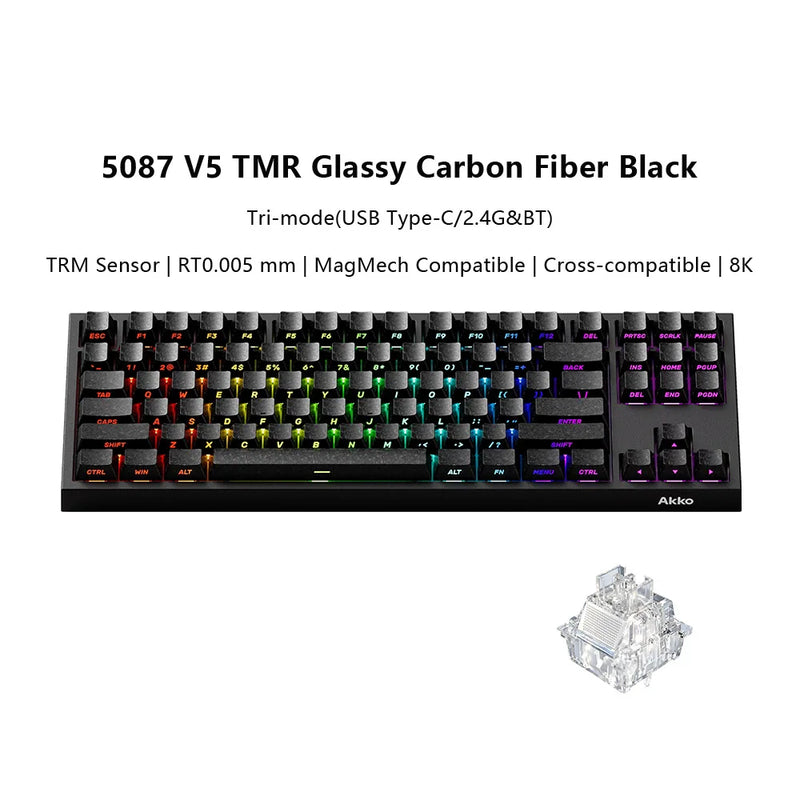

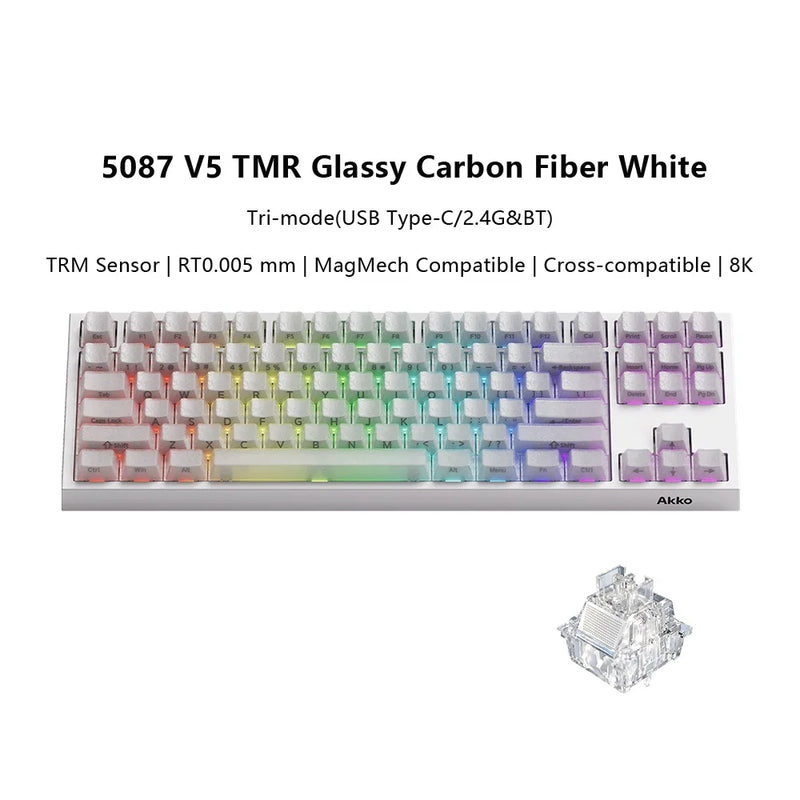

5087 V5 TMR Magnetic Keyboard

What’s New in the 5087 V5 Upgrade?

❶ The multi-device switch and USB-C port are seamlessly integrated into the keyboard’s side for easy access and a cleaner look. Quickly toggle between Mac, Windows, USB, 2.4G, and Bluetooth.

❷ A one-piece silicone pad provides full-area cushioning for a more consistent typing feel and improved acoustic uniformity.

❸ Introduces silicone Pillars that connect internal components, adding flexible support and structural stability while enhancing vibration control and overall typing feedback.

TKL Layout

Full Function, Space Saving. Keeps essential function keys and navigation keys while saving desk space.

8,000Hz

Polling Rate

16,000Hz

Scanning Rate

TMR Sensor

TMR reads across a perpendicular sensing plane — not just field strength like Hall Effect. Sharper accuracy at 0.005mm. Lower power draw. Consistent readings whether wired or not.

Deliver a more precious and stable typing experience!

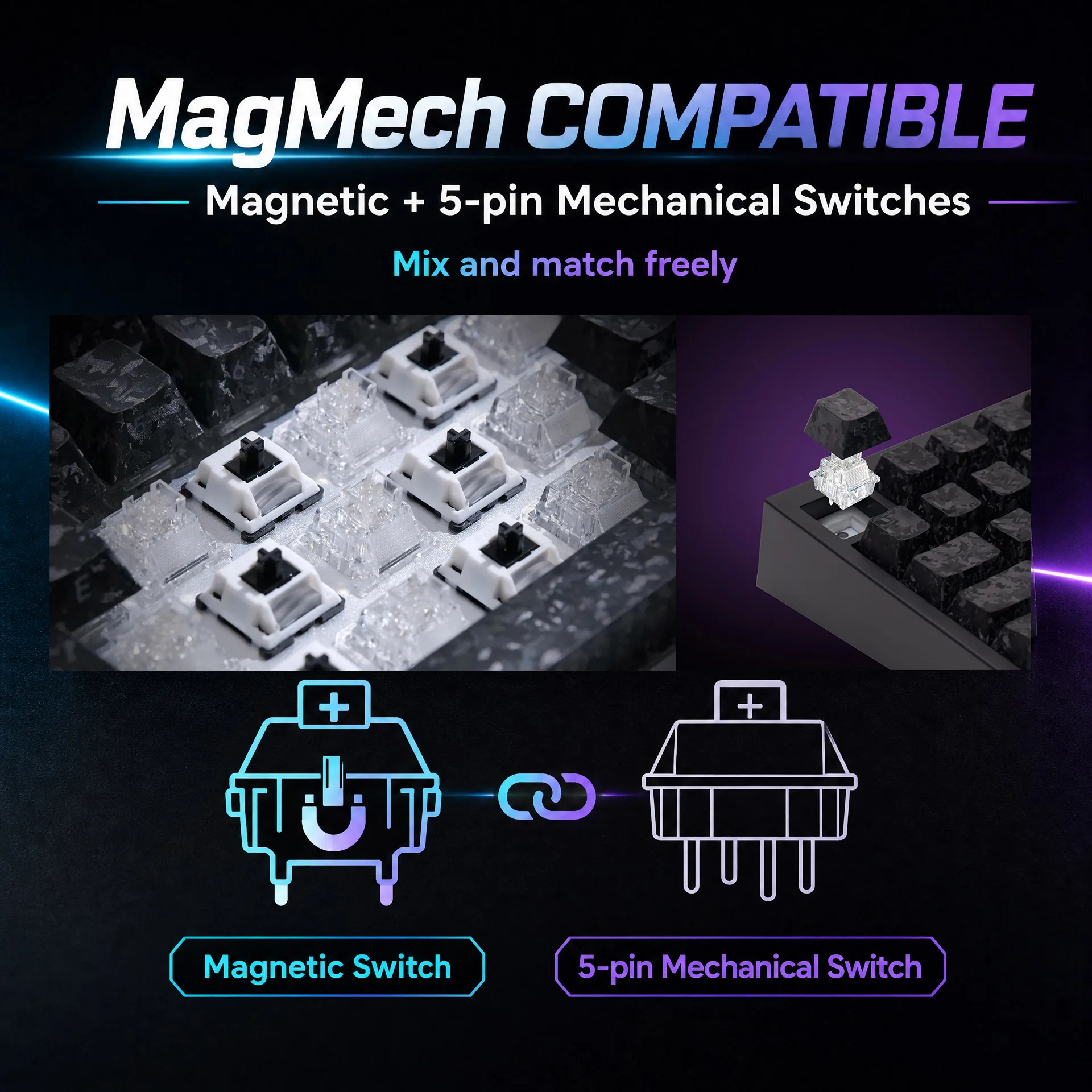

MagMech: Compatible with Magnetic Switches and Mechanical Switches

Users can mix and match magnetic switches and any 5-pin mechanical switches freely, like never before!

Imagine having only WASD / Arrow keys swapped for magnetic switches and leaving the rest for mechanical for a classic mechanical typing experience. What a dream!

Cross-Compatible with Mainstream Magnetic Switches

5087 V5 TMR Magnetic Keyboard provides compatibility with mainstream magnetic switches. Users can choose the appropriate switch from the Akko Driver list and calibrate the keyboard easily after replacement. Mixing and matching them in different keys is also possible.

Disclaimer: High-percision switches require tuning and experimenting with the keyboard. The switches listed are guaranteed to perform at 0.01mm precision. Other switches may work but are unable to reach the claimed accuracy.

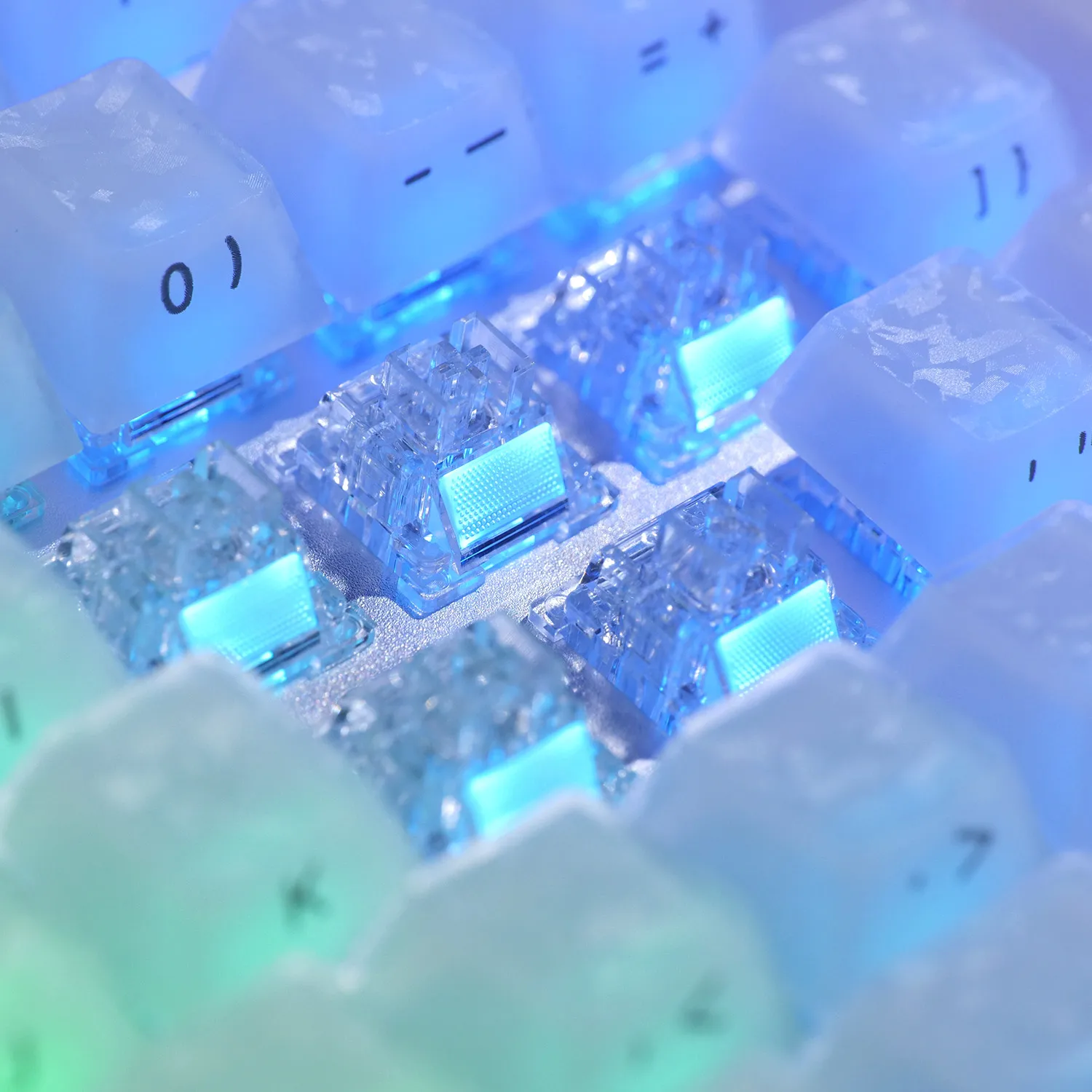

Akko Prism Magnetic Switch

Type: Linear

Total Travel: 3.5 ± 0.1mm

Initial Force: 30gf

End Force: 55gf

100M-keystroke lifespan. Prism stabilizing structure — smooth press, tight rebound.

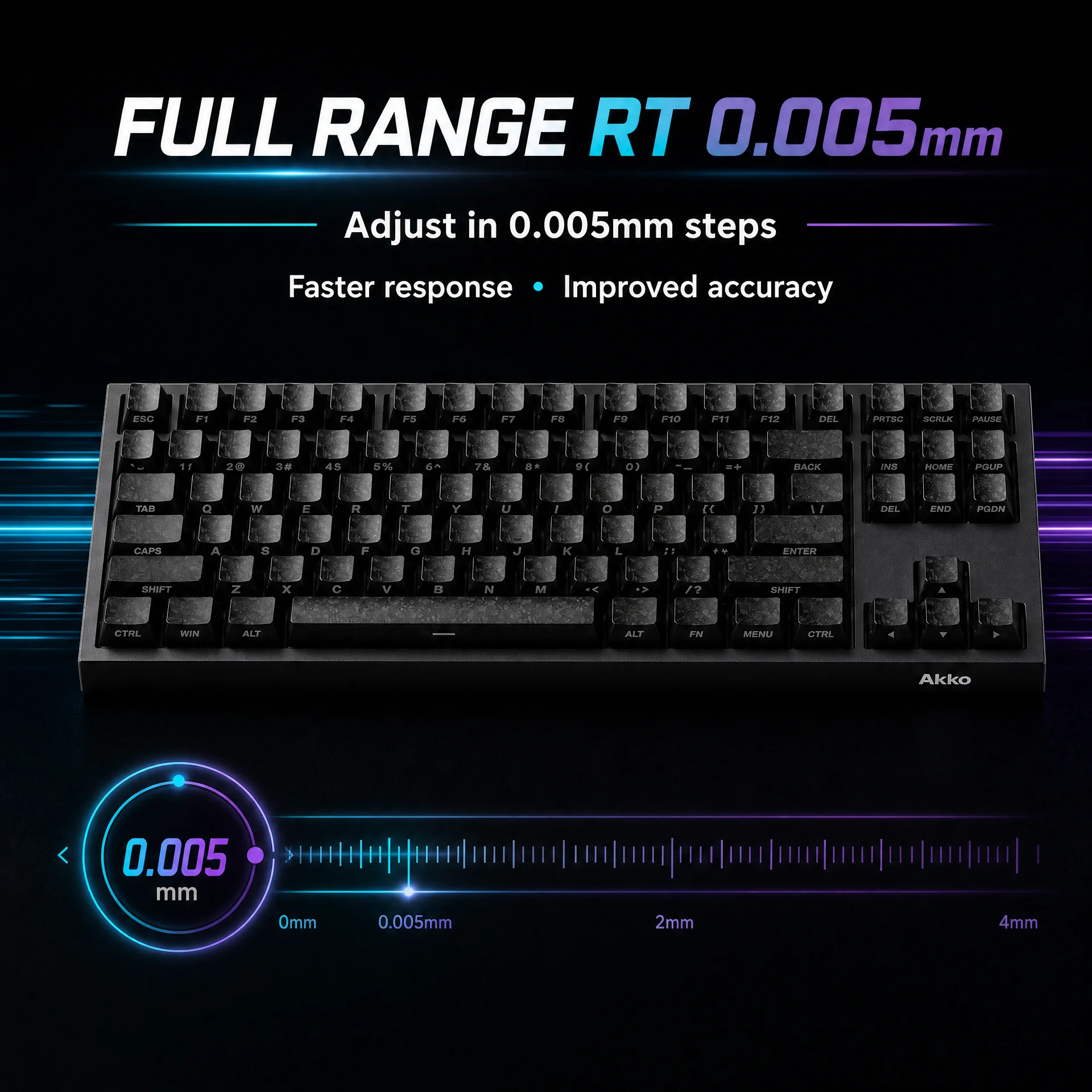

Full Range RT0.005mm

Attain ultra-precise 0.005mm Rapid Trigger and adjustable actuation distance in 0.005mm steps. Users can adjust their typing or gaming experience for faster response times and improved accuracy, perfect for competitive gaming.

ARM Cortex-M4 CPU

The powerful CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20°C and 80°C, ensuring faster performance and extended battery life.

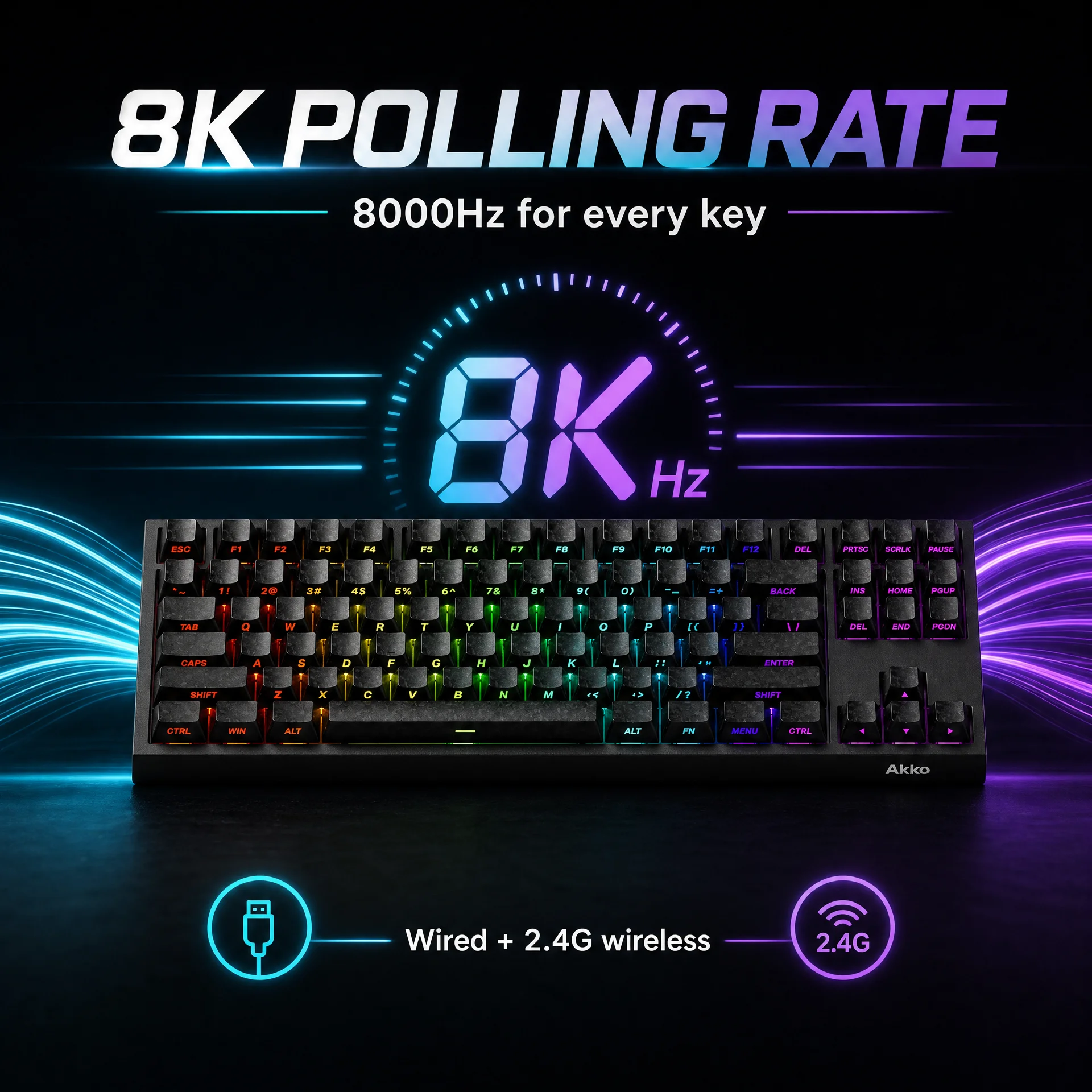

Universal 8K Polling Rate

With an 8000Hz polling rate for all keys in wired or 2.4Gwireless modes, enjoy ultra-fast response times and smoother, more precise inputs—perfect for gaming and high-performance tasks.

Classic Features

Snap Key

Snap Key, Akko's SOCD implementation, prioritizes the latest input for faster directional shifts, ensuring smooth, responsive control in FPS games.

Adjustable Actuation Distance

These magnetic switches allow users to adjust every key’s actuation point from 0.1mm to 3.4mm, which offers different kinds of pressing for gaming or typing.

Rapid Trigger (RT)

Rapid Trigger eliminates actuation delay by instantly activating and deactivating keys with minimal travel—perfect for FPS gaming.

Dynamic Keystrokes (DKS)

A single key supports four actions—light press for action 1, deeper press for action 2, and two-stage release settings.

Toggle Key (TGL)

TGL (Toggle Key) turns a key into a switch that can either hold a function or trigger it repeatedly at high speed.

Mod-Tap

Mod Tap allows dual-function keys—tap for one action, hold for another—offering greater gaming convenience.

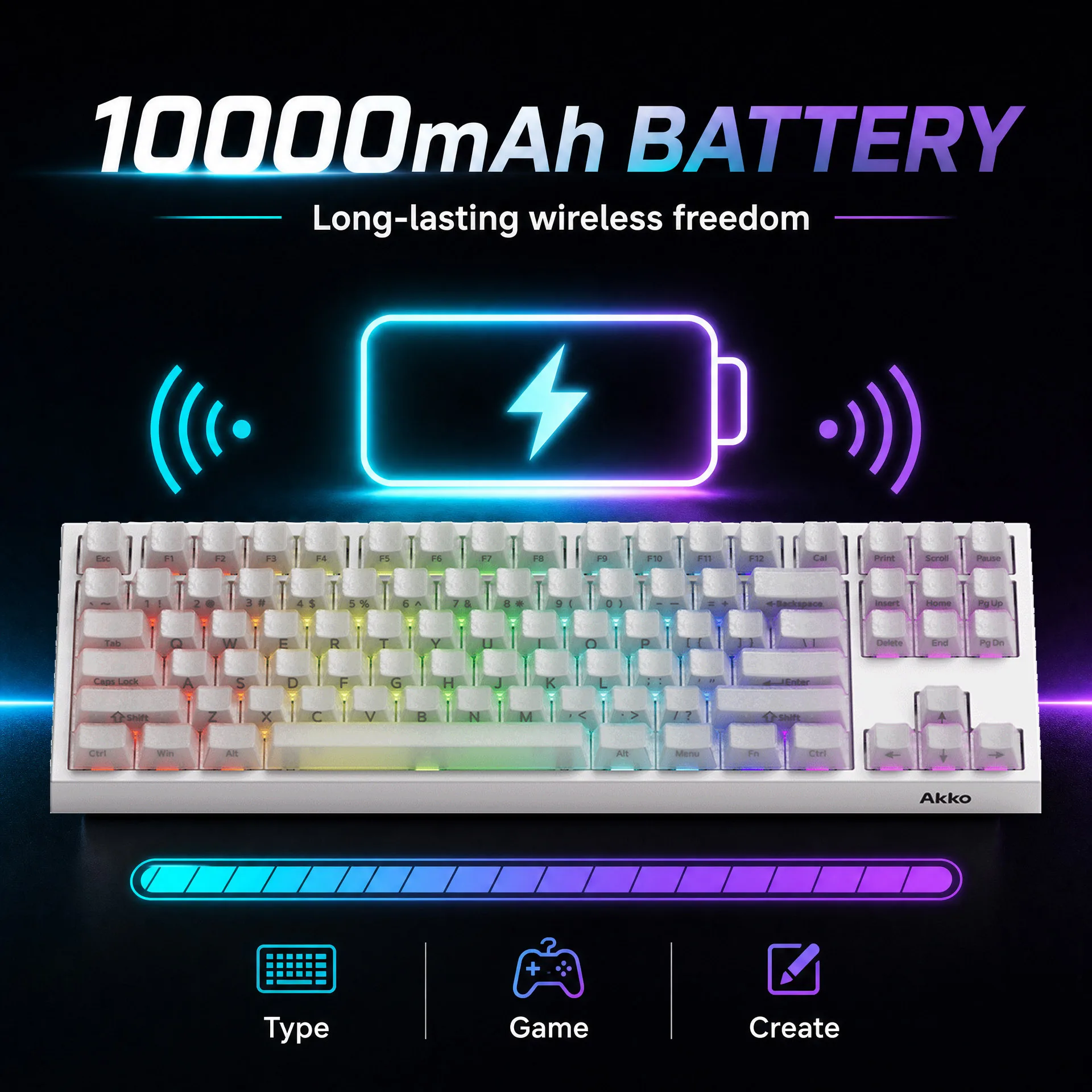

Built-in 10000mAh Battery

With a high-capacity battery of around 10000mAh, users can enjoy prolonged periods of uninterrupted typing, gaming, or productivity without the need for constant recharging.

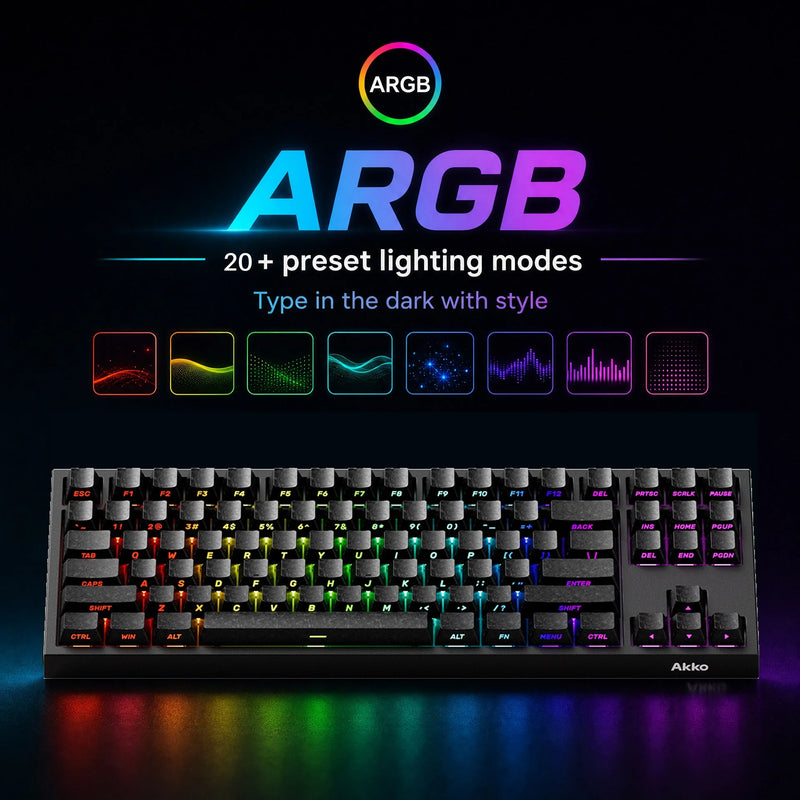

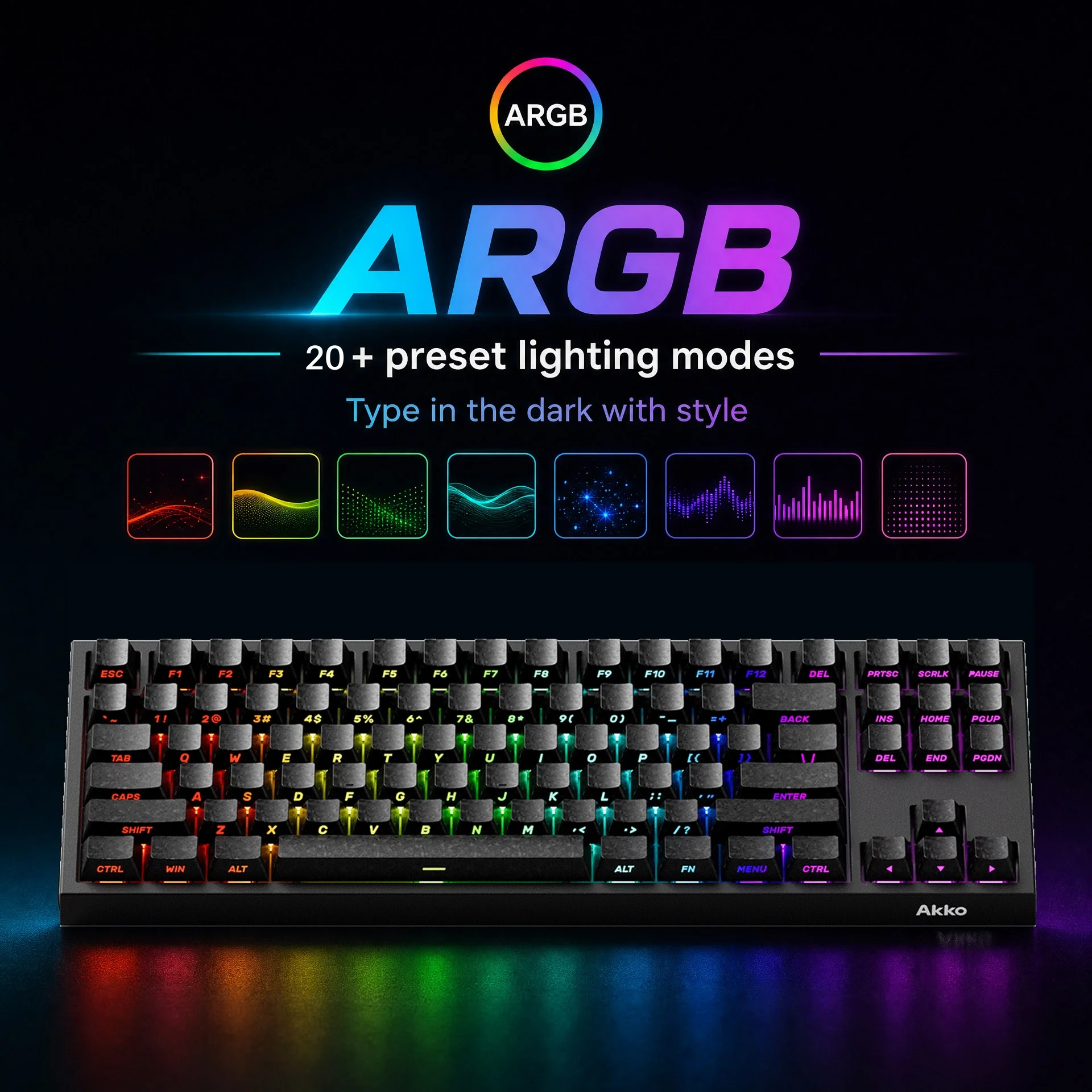

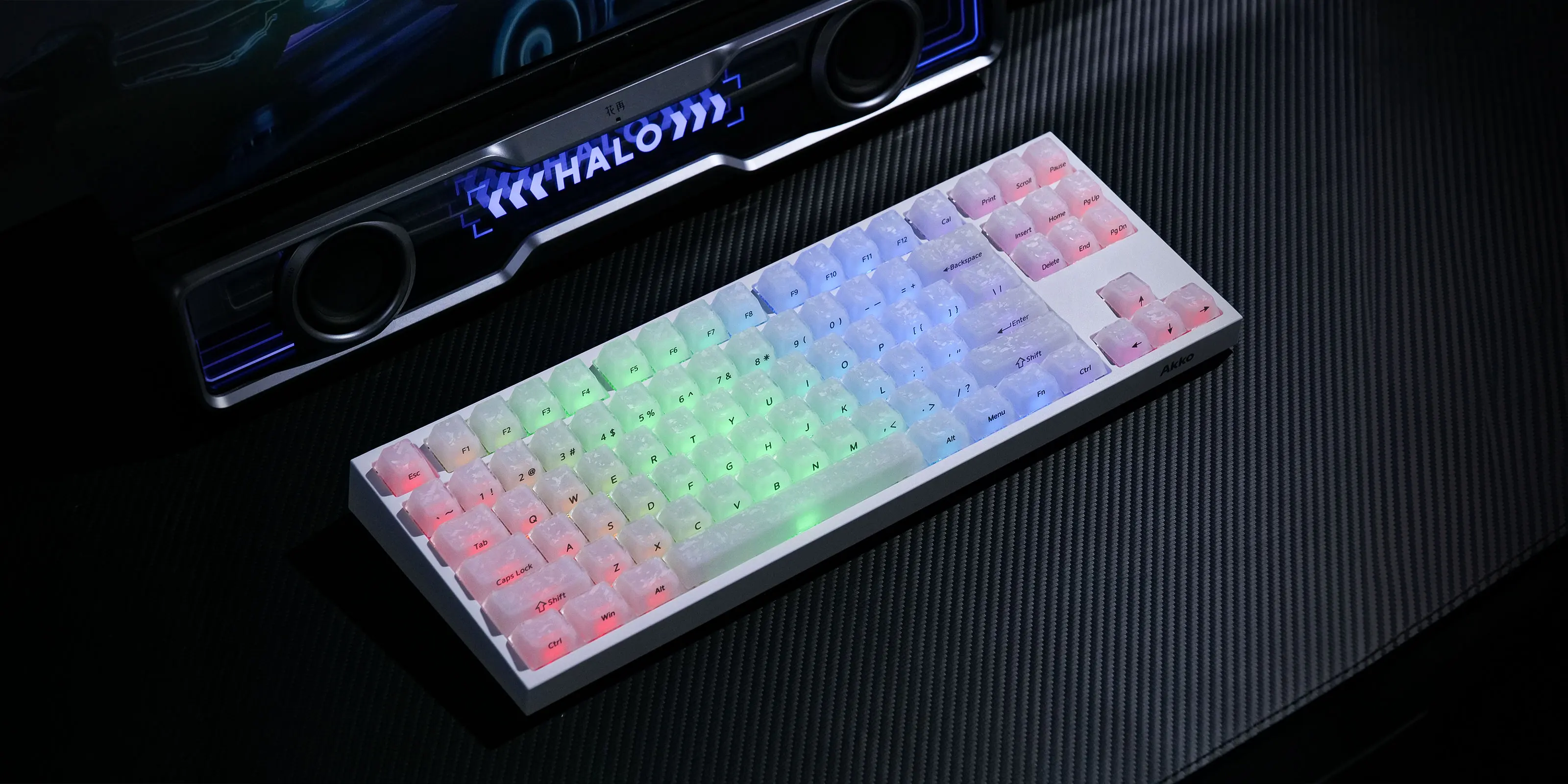

ARGB at a 500Hz Refresh Rate

5087 V5 TMR Magnetic Keyboard can help you type in the dark with decent backlit. It has over 15 preset backlighting modes.

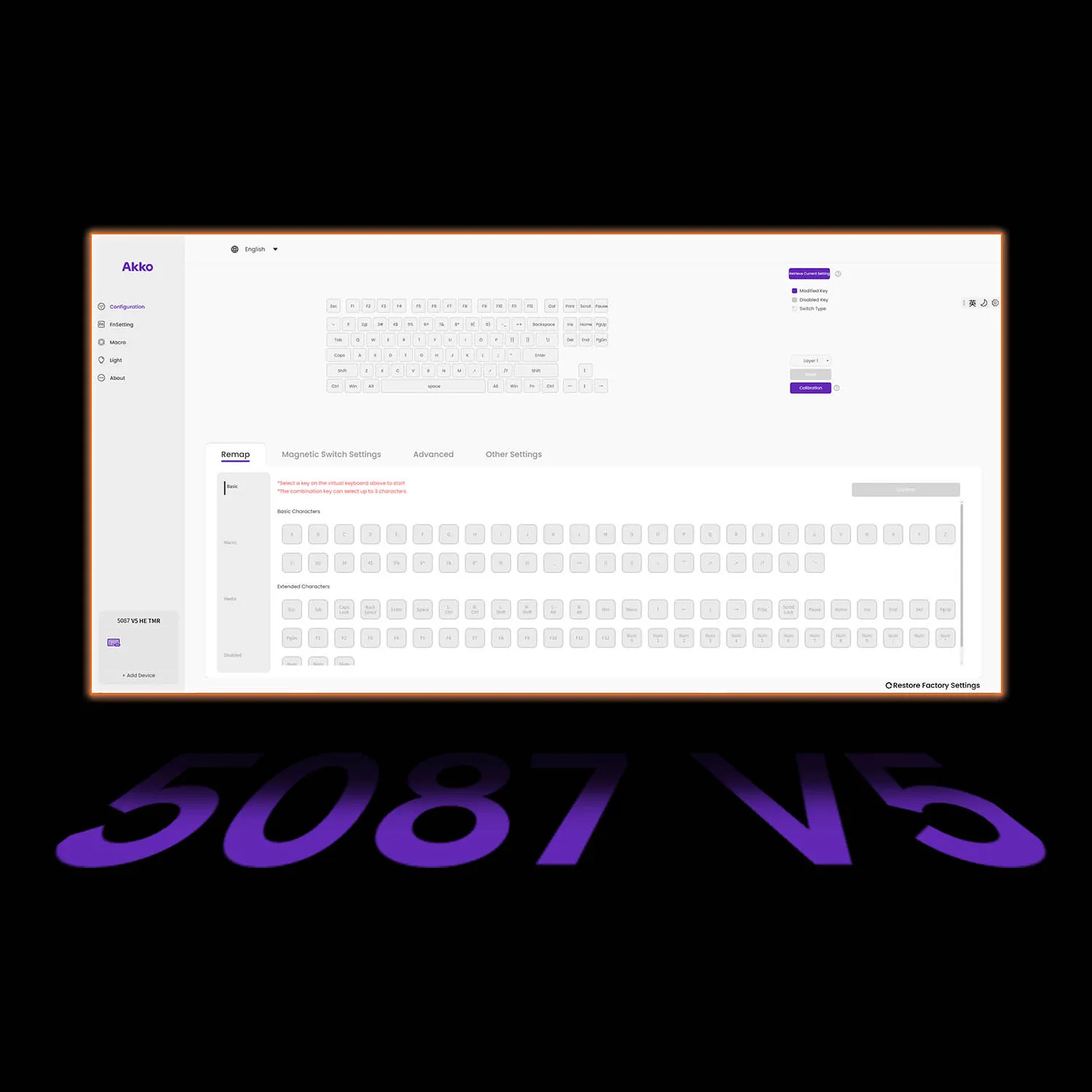

Web & Akko HUB Driver

Configure everything from one app, web driver available too. Full Customization for Lighting, Keys, and Macros.

Multi-Mode

5087 V5 TMR can be connected to multiple devices through Bluetooth 5.0, multi-host 2.4Ghz (with a receiver), and wired Type-C modes with an easy switch.

Side-Integrated Controls

The multi-device switch and USB-C port are seamlessly integrated into the keyboard’s side for easy access and a cleaner look. Quickly toggle between Mac, Windows, USB, 2.4G, and Bluetooth.

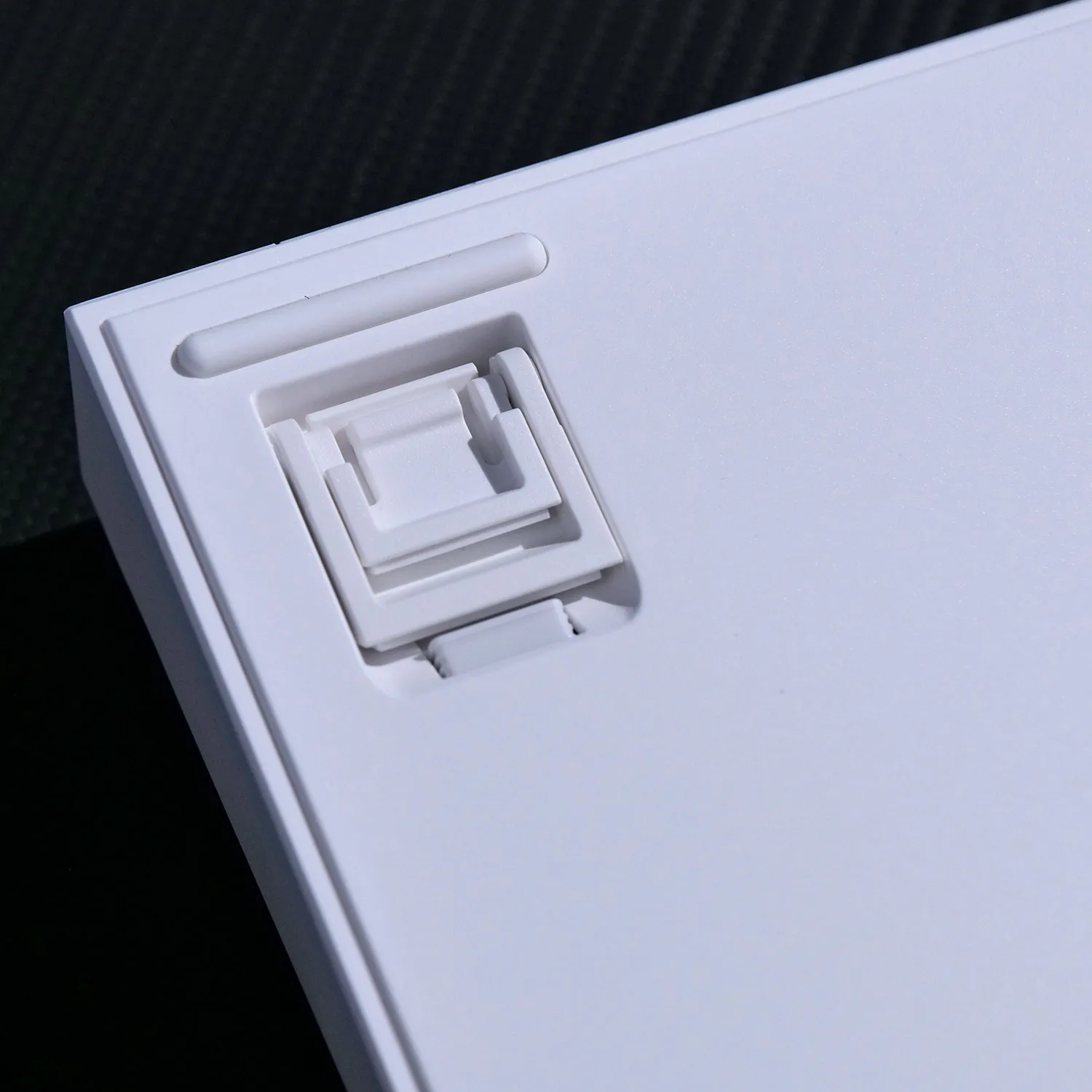

Dual-Position Feet

Adjustable two-stage keyboard feet allow you to set the perfect typing angle for comfort and ergonomics.

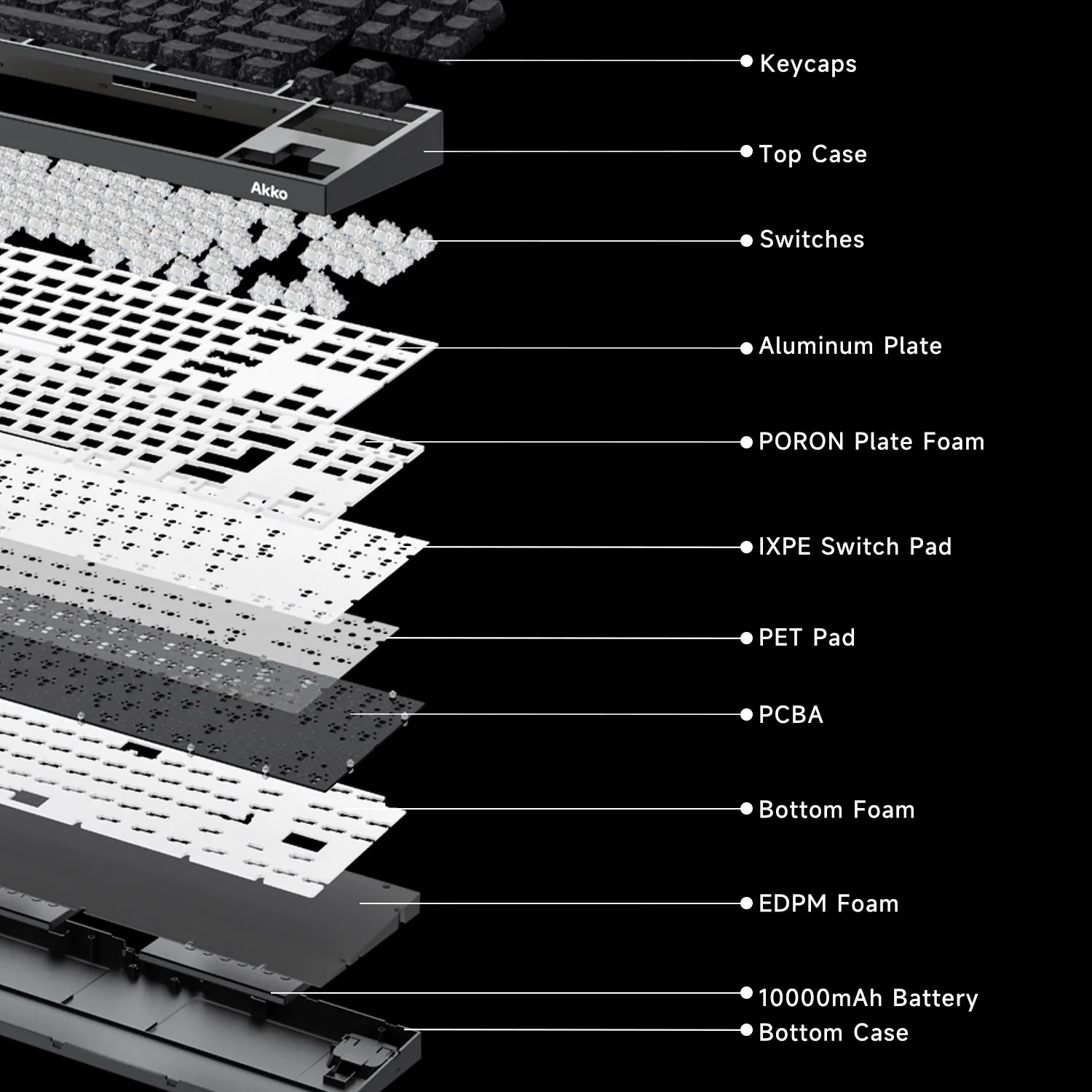

Gasket-Mounted

Gasket mount uses silicone to create a floating mount for the switches — placed between the plate and PCB, it allows for a more flexible and cushioned typing experience.

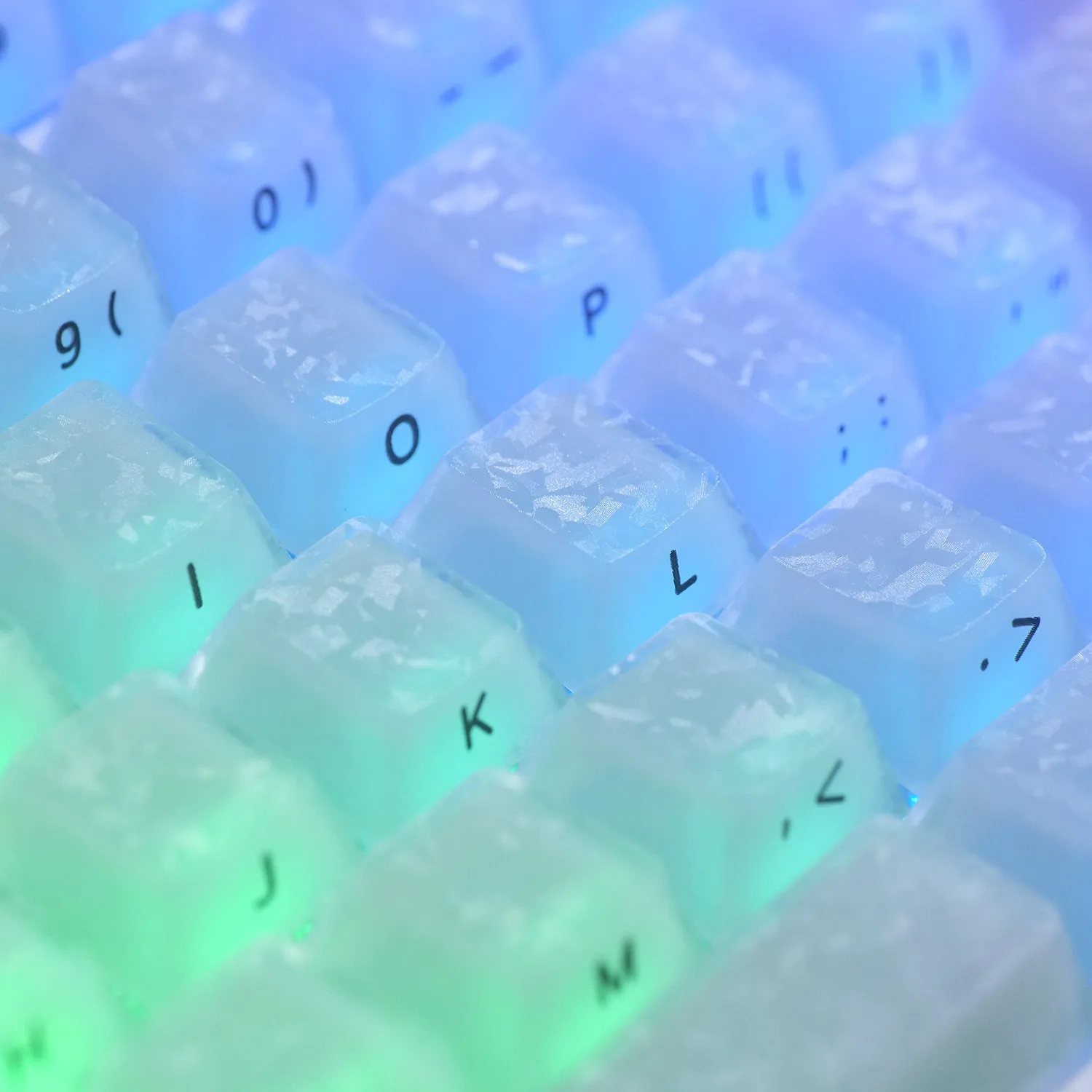

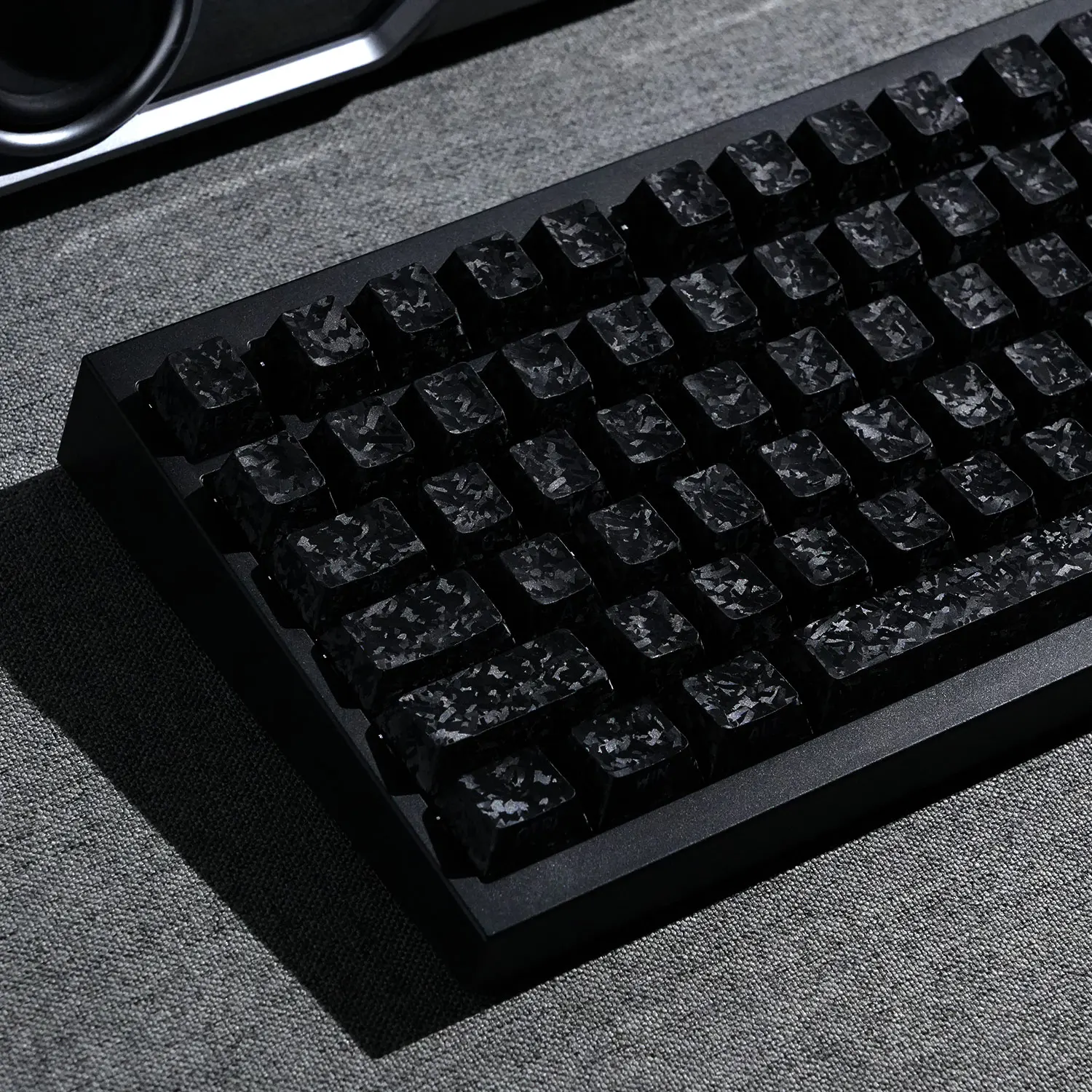

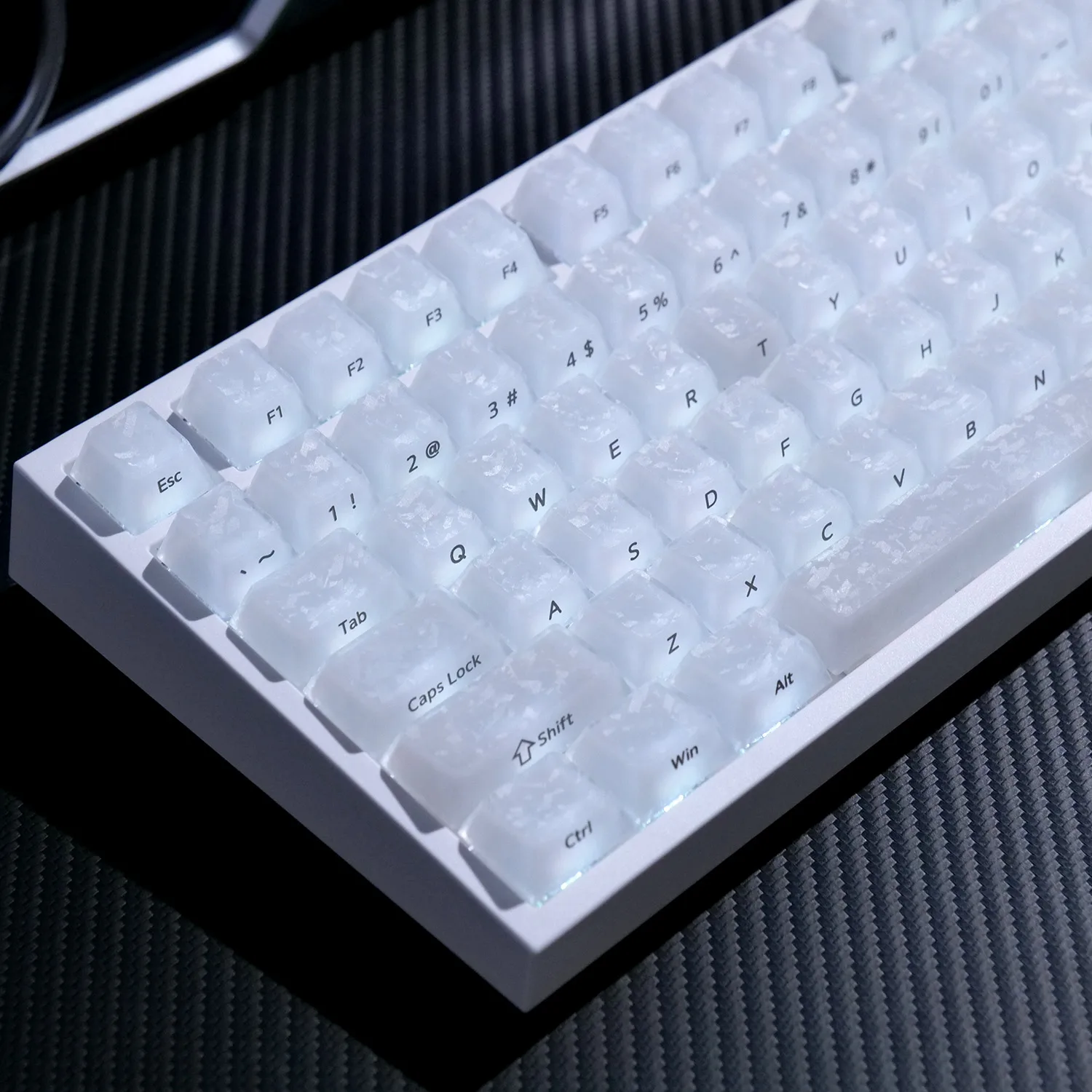

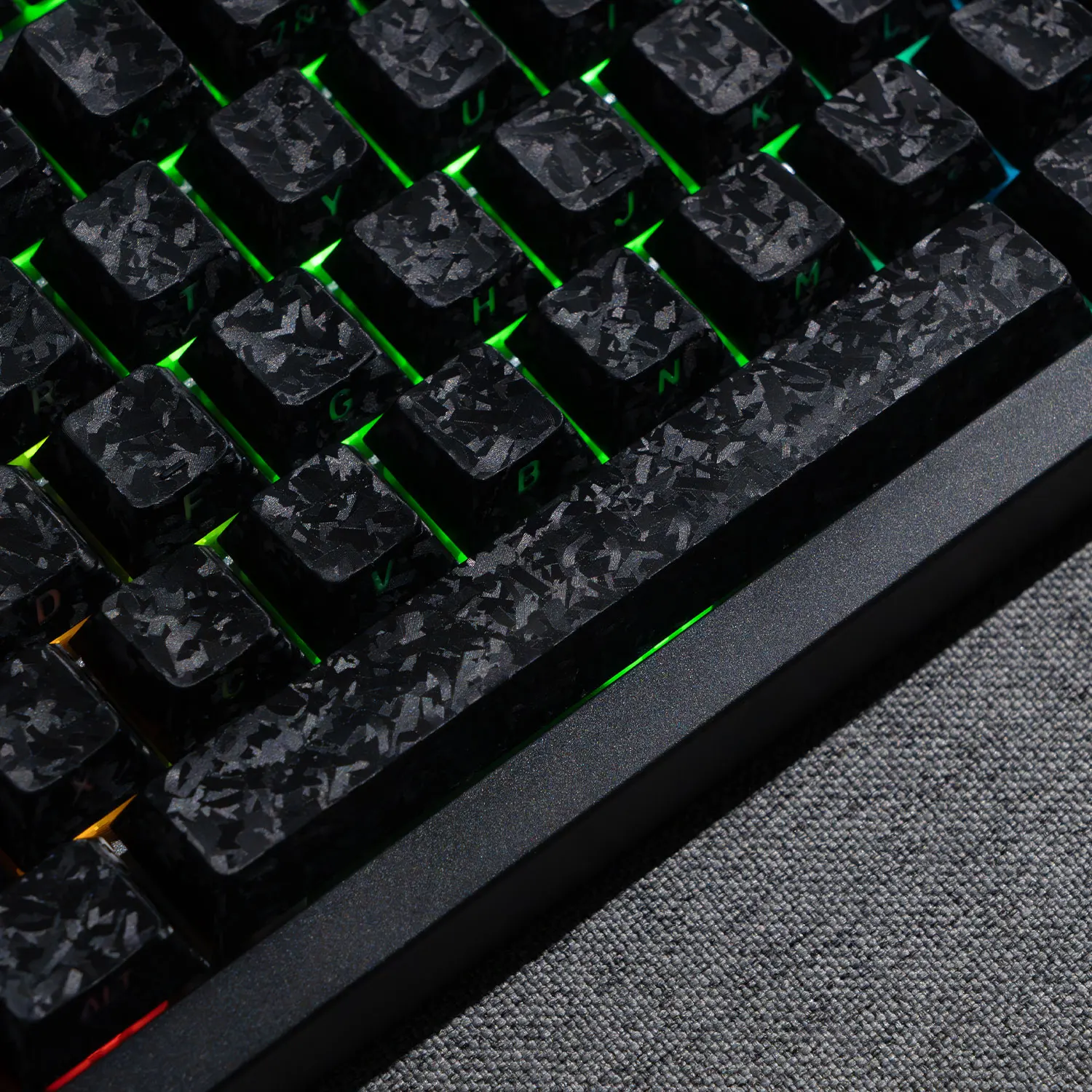

Cherry Profile Double-shot PC+ABS with Carbon Fiber Texture
