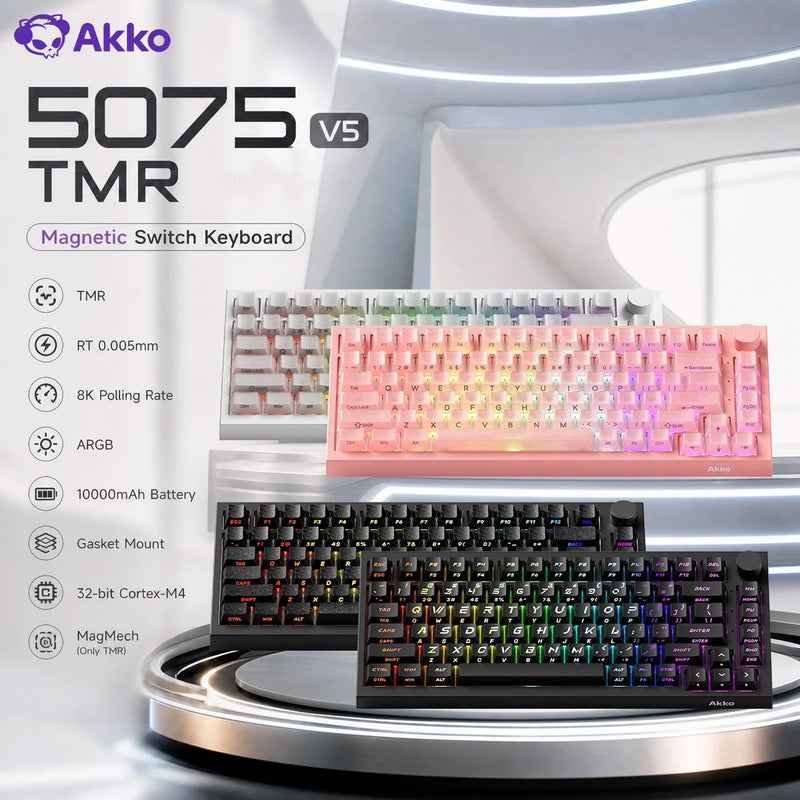

Akko Magnetic Keyboard 5075 V5 TMR 75% RT0.005mm Hot-swap Compatible with Magnetic/Mechanical Switches 8K ARGB Gaming Keyboard
SPECIFICATIONS
AI Large Model: No
AKKO Model: 5075 V5
Acutation Range: 0.100-3.400mm
Application: Desktop,Laptop,Tablet
Axis Body Brand: Akko/Kailh
Backlight Type: MULTICOLOR
Battery: 10000mAh
Battery Included: Yes
Brand Name: AKKO
Case Material: ABS
Certification: CE,weee,RoHS
Connectivity: Bluetooth5.0 / 2.4GHz / USB Type-C
Full Size keyboard: No
High-concerned chemical: none
Hotswap: Support
Interface Type: USB
Key Feature: Custom Actuation/Mod-Tap/Toggle Key/Dynamic Keystroke/Keys Remapping/Customizable RGB/SOCD
Keyboard Standard: 82 Key
Keycup material: PBT plastic
Keycup printing: Doublshot
LED: South-facing ARGB(500Hz Refresh Rate)
Language: English
Layout: US-ANSI
Magnetic Switch Cross-Compatibility: Support
Mechanical Switches Supported: Support
Model: 5075 V5 TMR
Mount: Gasket Mount
Operation Style: Mechanical
Origin: Mainland China
Package: Yes
Plate: Aluminum
RT Accuracy: 0.005-2.500mm
RT Stabilizer: Support
Software: Akko Driver & Web-Based Driver
Style: Standard
Switches Hot swap: Yes
Type: 2.4Ghz Wireless
Wrist Support: No
5075 V5 TMR Magnetic Keyboard
TRM Sensor | Full Range 0.005mm RT | MagMech Compatible | Cross-compatible | 8,000Hz Polling Rate
0.005
mm
Rapid Trigger
Actuation Precision
Dual
8
K
Hz
Polling Rate
Wired + 2.4GHz Wireless
10,000
mAh
Battery
Weeks Between Charges
5-Pin
Hot-Swap
Magnetic + Mechanical
What’s New in the 5075 V5 Upgrade?
1. The multi-device switch and USB-C port are seamlessly integrated into the keyboard’s side for easy access and a cleaner look. Quickly toggle between Mac, Windows, USB, 2.4G, and Bluetooth.

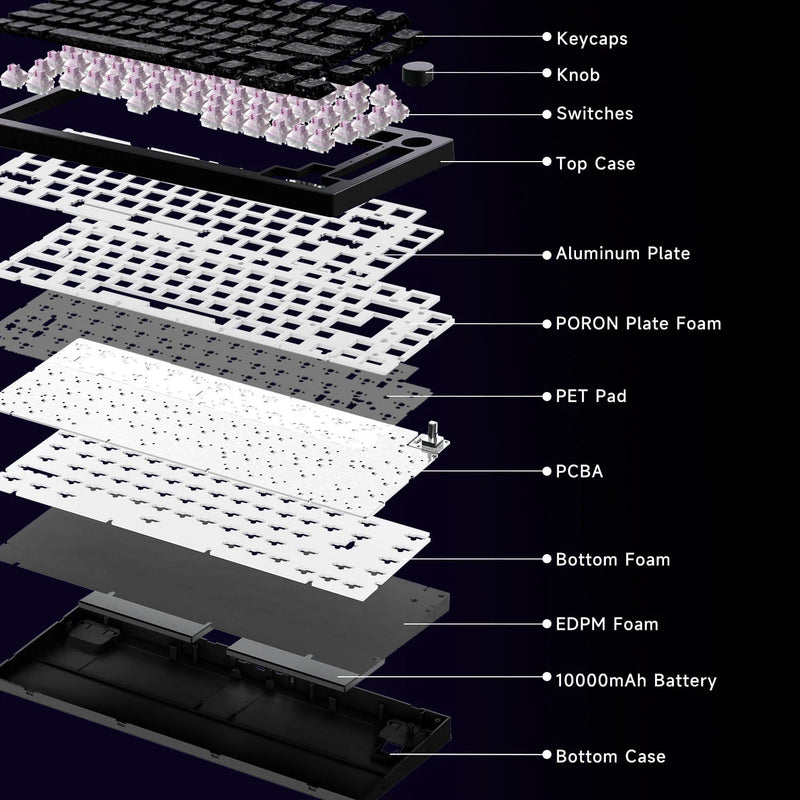

2. A one-piece silicone pad provides full-area cushioning for a more consistent typing feel and improved acoustic uniformity.
3. Introduces silicone Pillars that connect internal components, adding flexible support and structural stability while enhancing vibration control and overall typing feedback.
4. The V5 adopts a cleaner, more timeless look by removing the side RGB light strips found on the V3. With fewer visual distractions, the keyboard’s craftsmanship and design details take center stage.
|
TMR Sensor
TMR reads across a perpendicular sensing plane — not just field strength like Hall Effect. Sharper accuracy at 0.005mm. Lower power draw. Consistent readings whether wired or not.
Deliver a more precious and stable typing experience!
90
%↓
Lower power per sensor
47
%↑
Higher operating temp range
50
%↑
Higher trigger precision
|
|
|

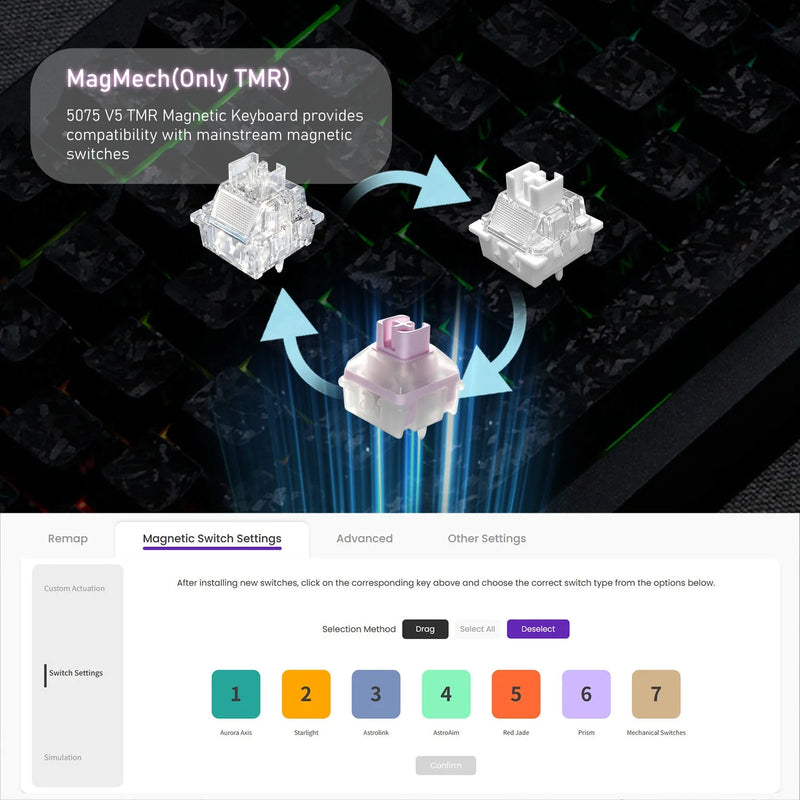

MagMech: Compatible with Magnetic Switches and Mechanical Switches
Users can mix and match magnetic switches and any 5-pin mechanical switches freely, like never before!
Imagine having only WASD / Arrow keys swapped for magnetic switches and leaving the rest for mechanical for a classic mechanical typing experience. What a dream!
|
|
Cross-Compatible with Mainstream Magnetic Switches
5075 V5 TMR Magnetic Keyboard provides compatibility with mainstream magnetic switches. Users can choose the appropriate switch from the Akko Driver list and calibrate the keyboard easily after replacement. Mixing and matching them in different keys is also possible.
Disclaimer: High-percision switches require tuning and experimenting with the keyboard. The switches listed are guaranteed to perform at 0.01mm precision. Other switches may work but are unable to reach the claimed accuracy.
|
|
|

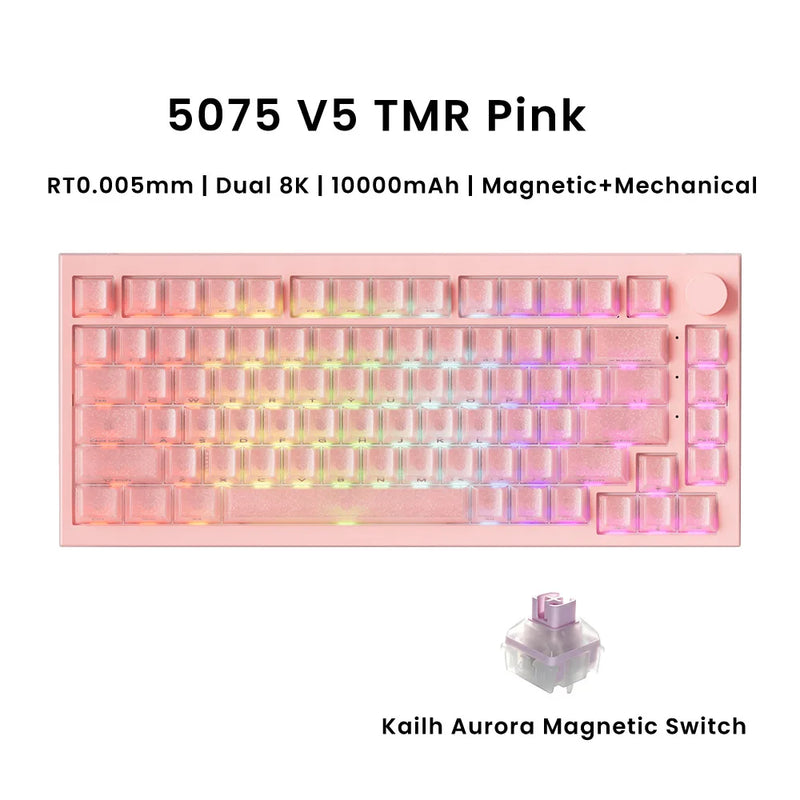

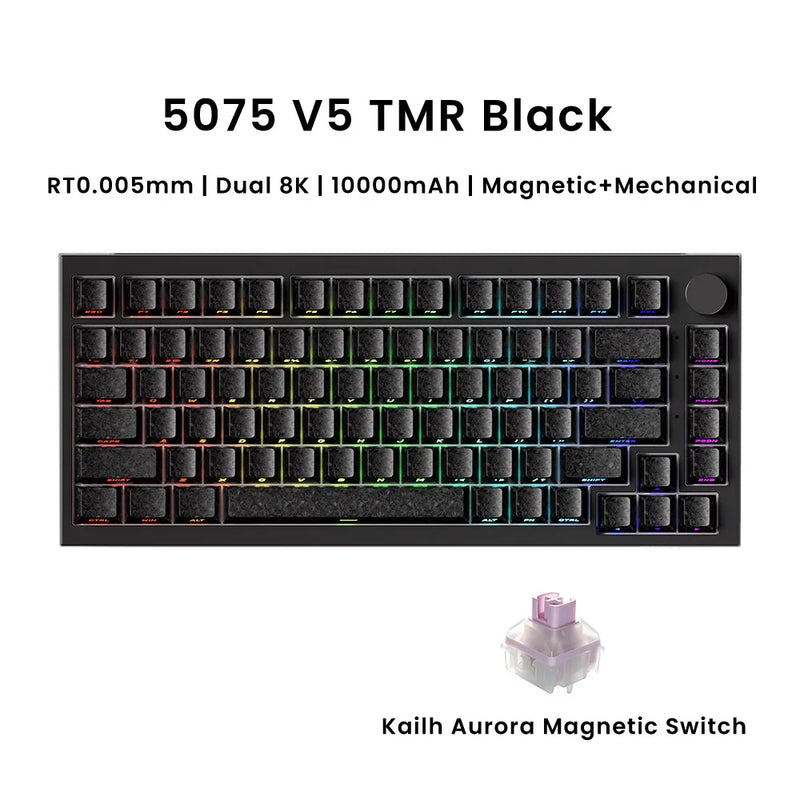

Kailh Aurora Magnetic Switch
Type: Linear
Total Travel: 3.5 ± 0.2mm
Initial Force: 30 ± 10gf
End Force: 55g
Optimized top-out sound. Ultra-smooth, with a focused and clean acoustic. Built for TMR sensing.
|
|
|

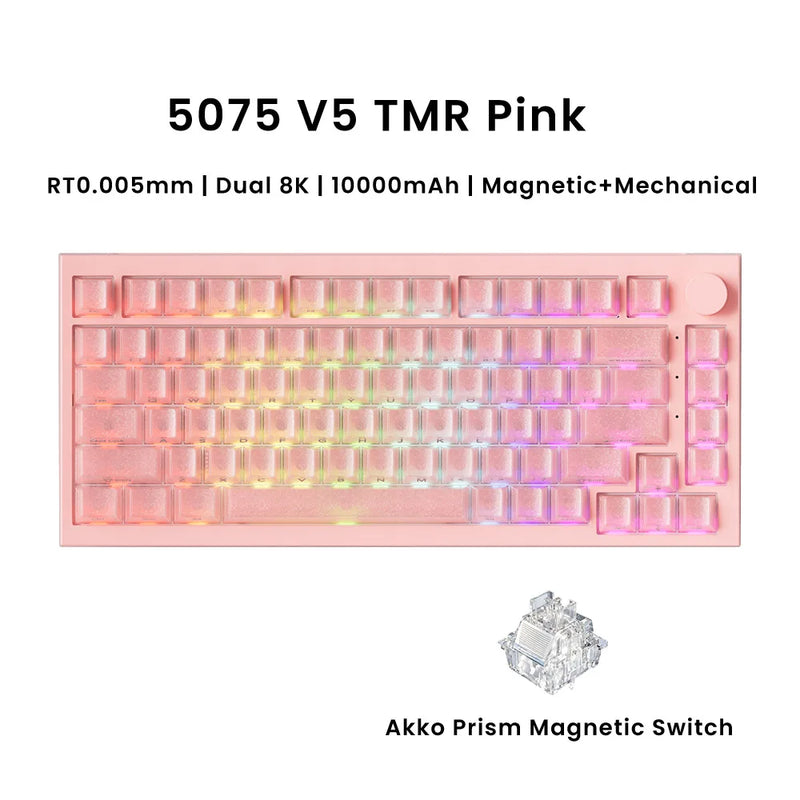

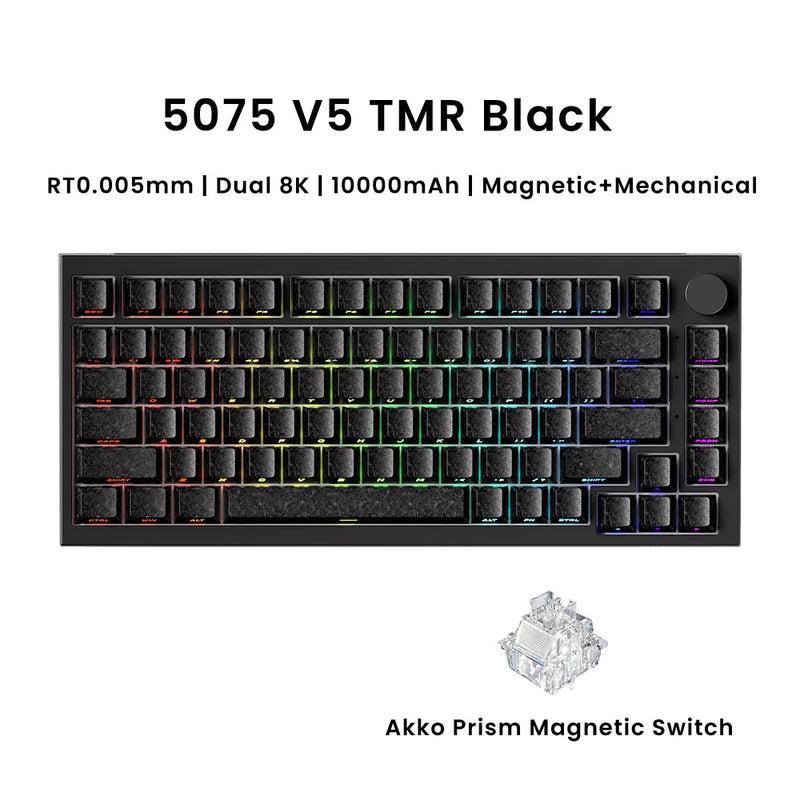

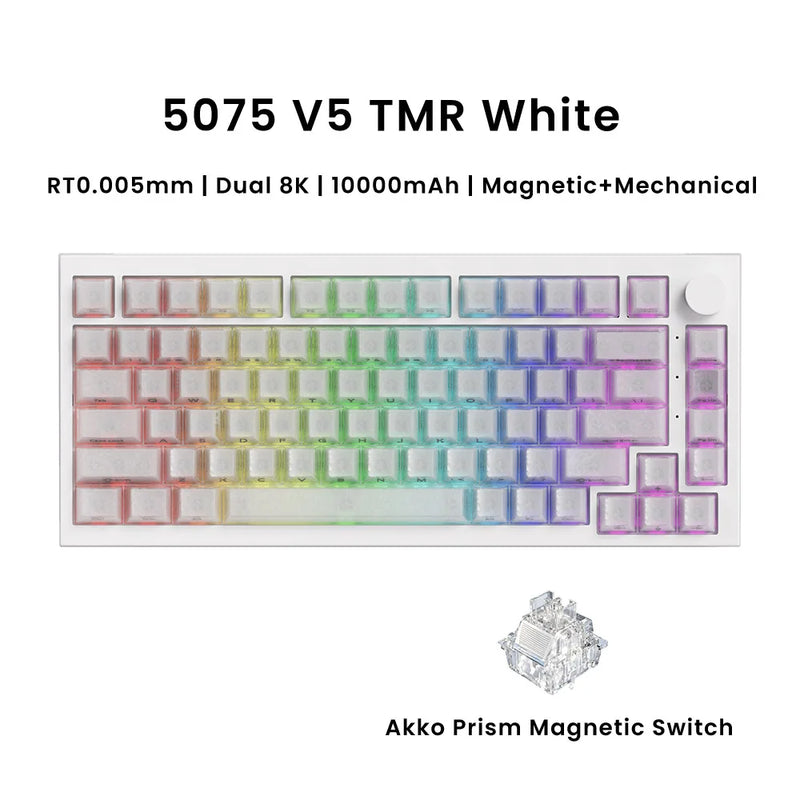

Akko Prism Magnetic Switch
Type: Linear
Total Travel: 3.5 ± 0.1mm
Initial Force: 30gf
End Force: 55gf
100M-keystroke lifespan. Prism stabilizing structure — smooth press, tight rebound.
|
|
|
Full Range RT0.005mm
Attain ultra-precise 0.005mm Rapid Trigger and adjustable actuation distance in 0.005mm steps. Users can adjust their typing or gaming experience for faster response times and improved accuracy, perfect for competitive gaming.
|
|
ARM Cortex-M4 CPU
The powerful CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20°C and 80°C, ensuring faster performance and extended battery life.
|
|
|

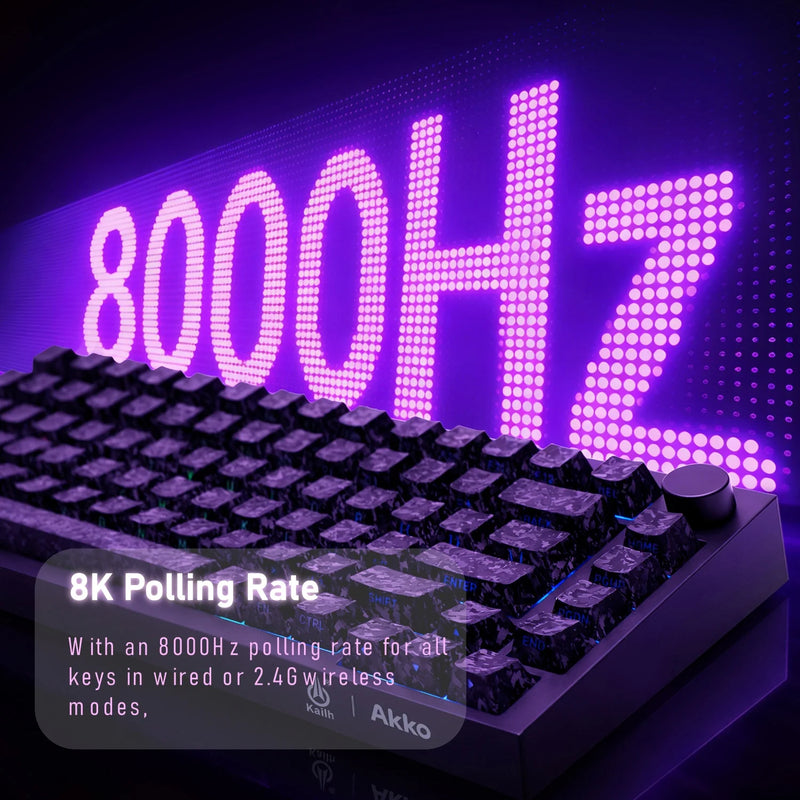

Universal 8K Polling Rate
With an 8000Hz polling rate for all keys in wired or 2.4Gwireless modes, enjoy ultra-fast response times and smoother, more precise inputs—perfect for gaming and high-performance tasks.
|
|
ARGB at a 500Hz Refresh Rate
5075 V5 TMR Magnetic Keyboard can help you type in the dark with decent backlit. It has over 15 preset backlighting modes.
|
|
Classic Features
|
|
|
Snap Key
Snap Key, Akko's SOCD implementation, prioritizes the latest input for faster directional shifts, ensuring smooth, responsive control in FPS games. |
Adjustable Actuation Distance
These magnetic switches allow users to adjust every key’s actuation point from 0.1mm to 3.4mm, which offers different kinds of pressing for gaming or typing. |
Rapid Trigger (RT)
Rapid Trigger eliminates actuation delay by instantly activating and deactivating keys with minimal travel—perfect for FPS gaming. |
|
|
|
Dynamic Keystrokes (DKS)
A single key supports four actions—light press for action 1, deeper press for action 2, and two-stage release settings |
Toggle Key (TGL)
TGL (Toggle Key) turns a key into a switch that can either hold a function or trigger it repeatedly at high speed.
|
Mod-Tap
Mod Tap allows dual-function keys—tap for one action, hold for another—offering greater gaming convenience.
|

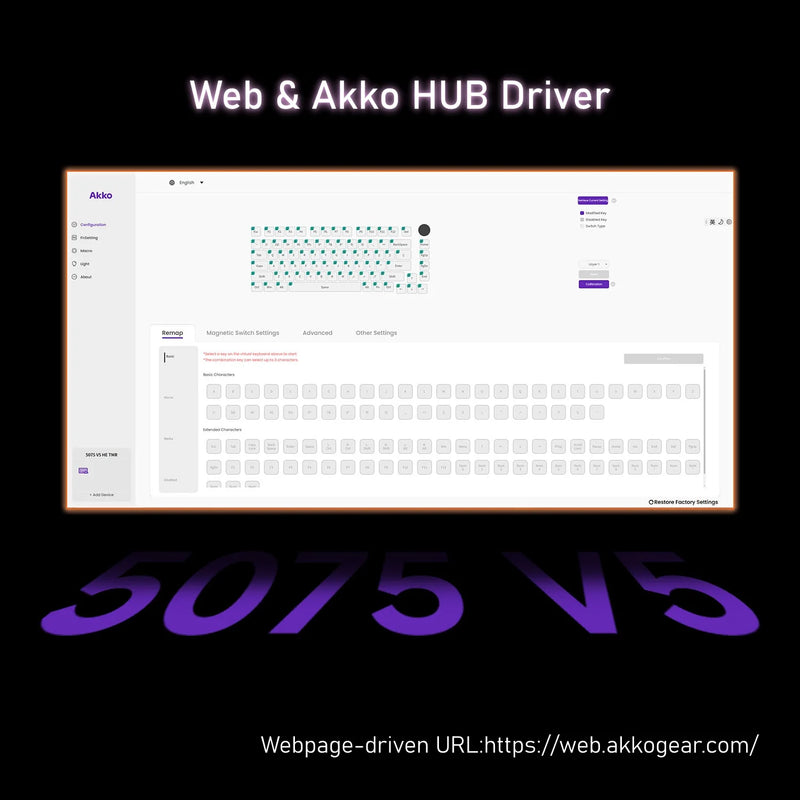

Web & Akko HUB Driver
Configure everything from one app — including a Custom Knob. Web driver available too. Full Customization for Lighting, Keys, and Macros.
|
|
|
|
Programable Knob
Press to toggle volume and light, turn left or right to adjust size, volume/light brightness. Help you to enhance workflow and control performance.
|
Side-Integrated Controls
The multi-device switch and USB-C port are seamlessly integrated into the keyboard’s side for easy access and a cleaner look. Quickly toggle between Mac, Windows, USB, 2.4G, and Bluetooth.
|
Dual-Position Feet
Adjustable two-stage keyboard feet allow you to set the perfect typing angle for comfort and ergonomics.
|
|
|
|
|
