ឧបករណ៍ពង្រីកសំឡេងកាស Fosi Audio PH05 5 ឆានែល, ឧបករណ៍ពង្រីកសំឡេងលើតុខ្នាតតូច ជាមួយចំណុចប្រទាក់អូឌីយ៉ូ Podcast Monitor គាំទ្រ 16-300 Ω ជាមួយ 12V

by ដោយ Fosi

All prices exclude shipping Customs and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន គយ និងពន្ធទេ។

Choose language

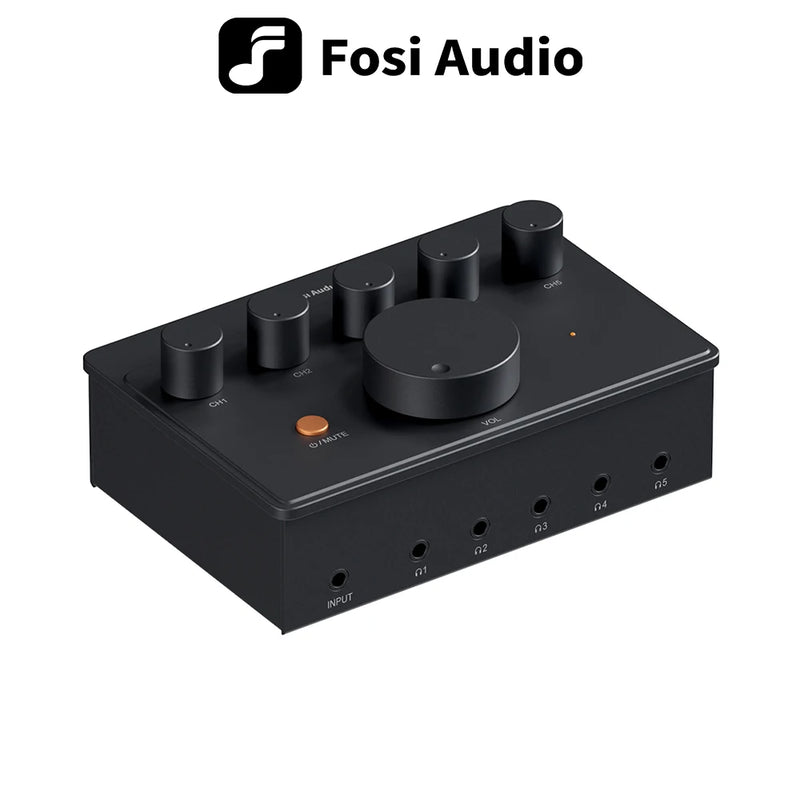

Fosi Audio PH05 5 Channel Headphone Amplifier, Mini Desktop Amp with Audio Interface Podcast Monitor Supports 16-300 Ω with 12V

SPECIFICATIONS

Bluetooth: No

Body Material: aluminum

Brand Name: Fosi Audio

Built-in Battery: No

Certification: CE

Channels: 5 (4.1)

Connectivity Tech: Wired

Connector Type: 3.5mm Jack, Stereo Audio

Control Type: Button Control

DAC Model: no

DSD (Direct Stream Digital): No

Dimensions (WxHxD): 103 x 57 x 43MM

High-concerned chemical: none

Input Type: LINE IN (AUDIO IN)

Model Number: PH05

Operational Amplifier Chips Model: NE5532

Origin: Mainland China

Output Type: LINE OUT (AUDIO OUT)

Output Voltage: 310mW in 32Ω

Package: yes

Recommended Headphone Maximum Impedance: 251 - 300 Ohm

Signal To Noise Ratio: 105dB

Type: Mini Amplifier

WIFI: No

feature: Portable Headphone,Headphone Amplifier Stereo Audio Amp

highlight: Splitter for Studio and Stage


Fosi Audio PH05 5 Channel Headphone Amplifier, Mini Desktop Amp with Audio Interface,Podcast Monitor Supports 16-300 Ω with 12V


Features:


Pro Splitter Amp:he PH05 is a versatile one-in-five-out stereo headphone splitter/amplifier, allowing you to connect up to five sets of headphones simultaneously, adapting to multiple audio-sharing and distribution scenarios. Whether for professional music studio production, podcasting, teaching, or everyday use like seniors watching TV, it will serve as your excellent companion.

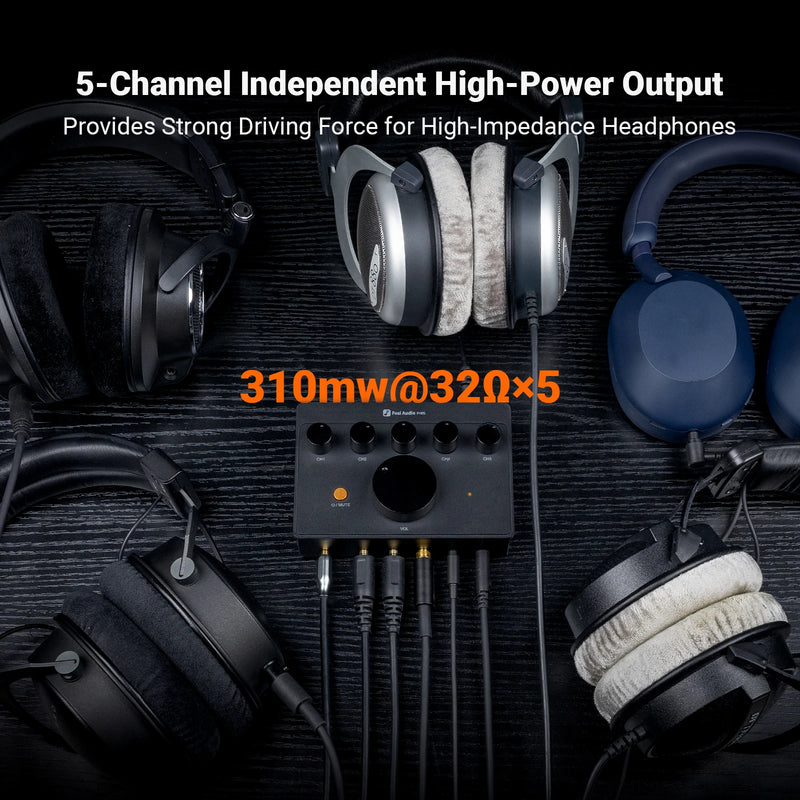

Independent Amplification: Each of the five channels can independently output power up to 310mW@32Ω, perfectly compatible with a variety of monitor headphones and IEMs with impedance ranging from 16 to 300 ohms, providing flexible audio sharing. PH05 is an upgrade model of PH04 which offers one more channel and higher power output.

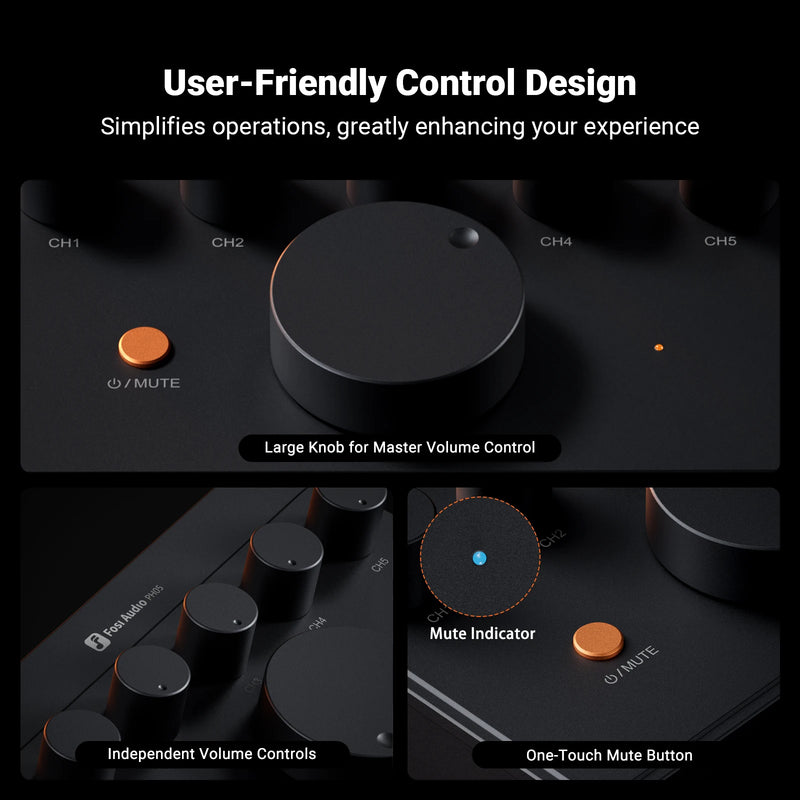

User-Friendly Control: Equipped with independent level control knobs for each channel, ensuring that adjustments made to one channel do not affect others, allowing personalized volume settings for each headphone. Additionally, features a large-diameter master volume control and a one-touch mute button, greatly enhancing ease of use.

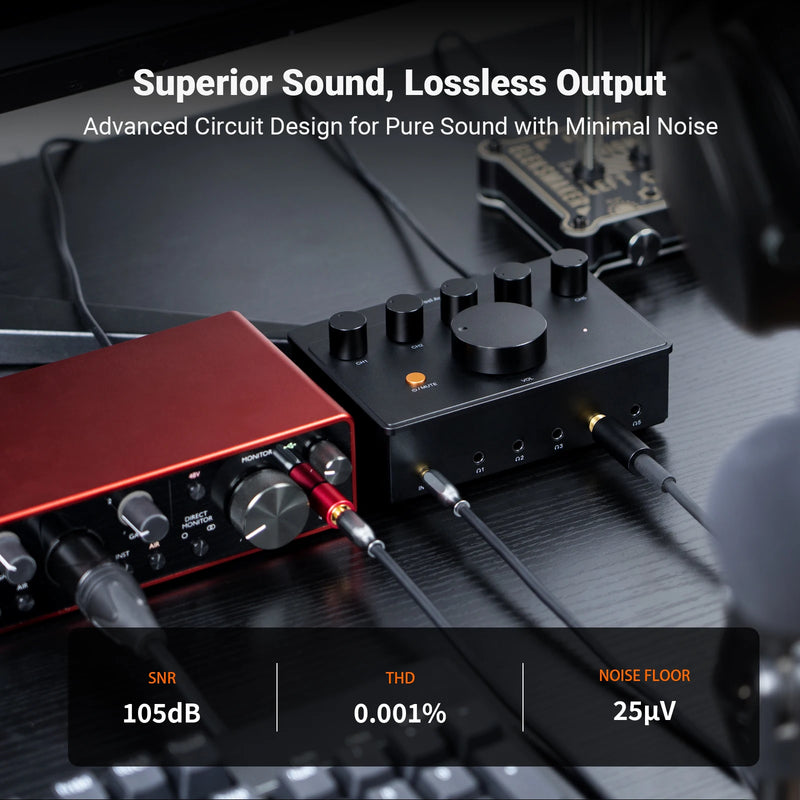

Outstanding Performance: In addition to delivering robust power output, the PH05 boasts an advanced circuitry design internally, ensuring pristine sound. With an SNR of up to 105dB, THD as low as 0.001%, and noise floor as low as 25μV, it guarantees exceptional audio fidelity.


Substantial & Compact: The perfect combination of all-aluminum alloy solid build, exquisite appearance, anti-slip foot pads, and greater stability. Experience the superior quality in every touch, complemented by the peace of mind that comes with Fosi Audio's 24-month warranty.



Specifications:


  • Rated Output Power: 310mW@32Ω×5

  • Recommended Headphone Impedance: 16Ω-300Ω

  • Input Interface: 3.5mmAUX

  • Output Interface: 3.5mm Headphone Out×5

  • THD:0.001%

  • Channel Output: Stereo

  • Frequency Response: 20-20khz (±0.1d)

  • SNR: 105dB

  • Crosstalk: 90dB

  • SINAD: 100dB

  • Op-amp chip: NE5532

  • Ear amplifier chip: HT97220 * 5

  • Audio input interface: AUX input

  • Weight: 500g

  • Product size: 230mmx130mmx90mm

  • Power supply: DC 12V 1A

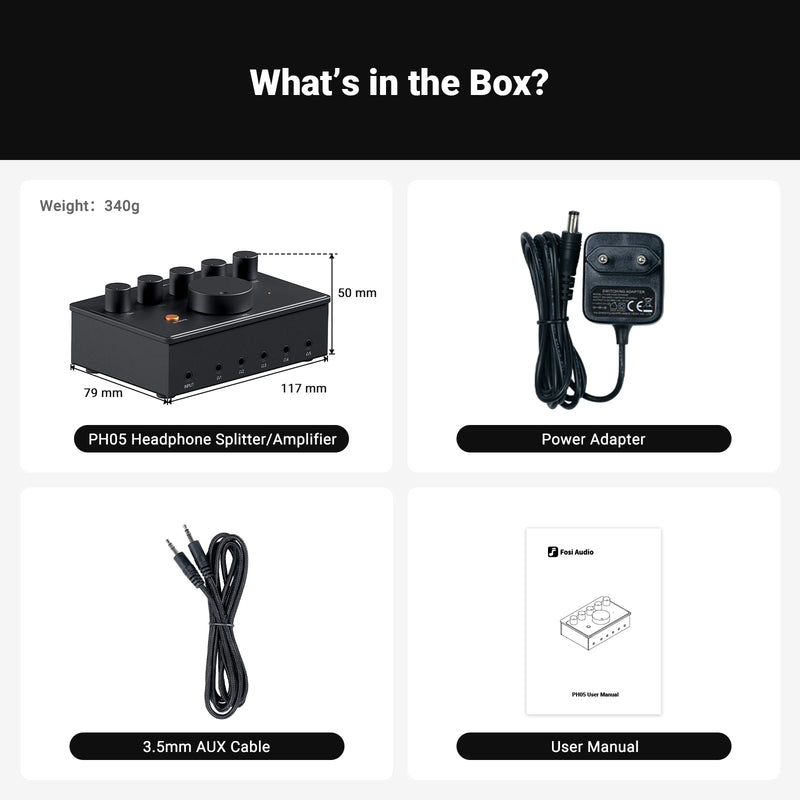

Package Include:


*PH05 Headphone amplifier x1

*User Manual x1

*12V 1A Power Supply x1
