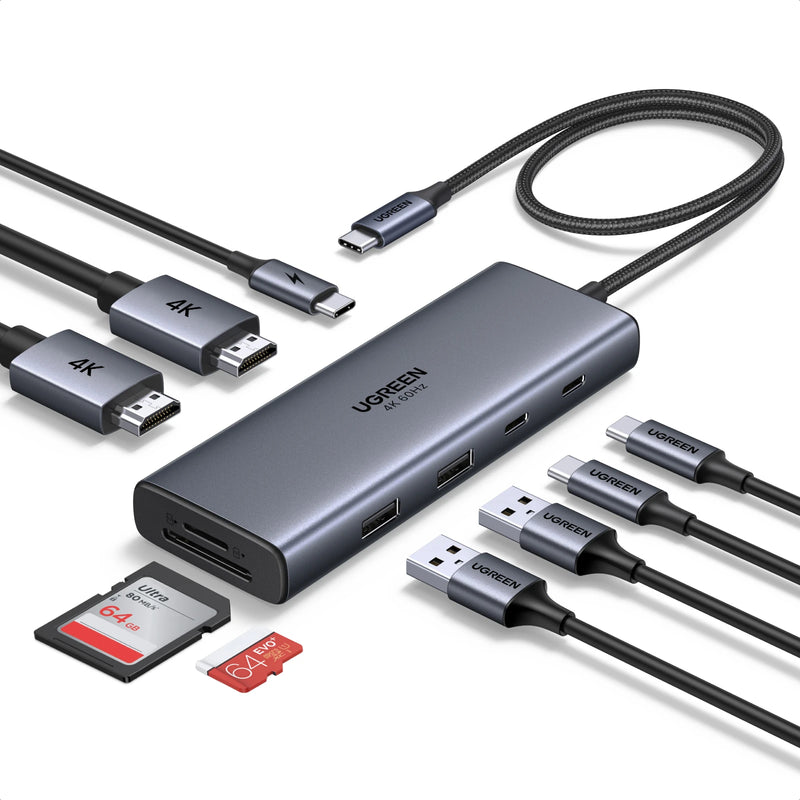

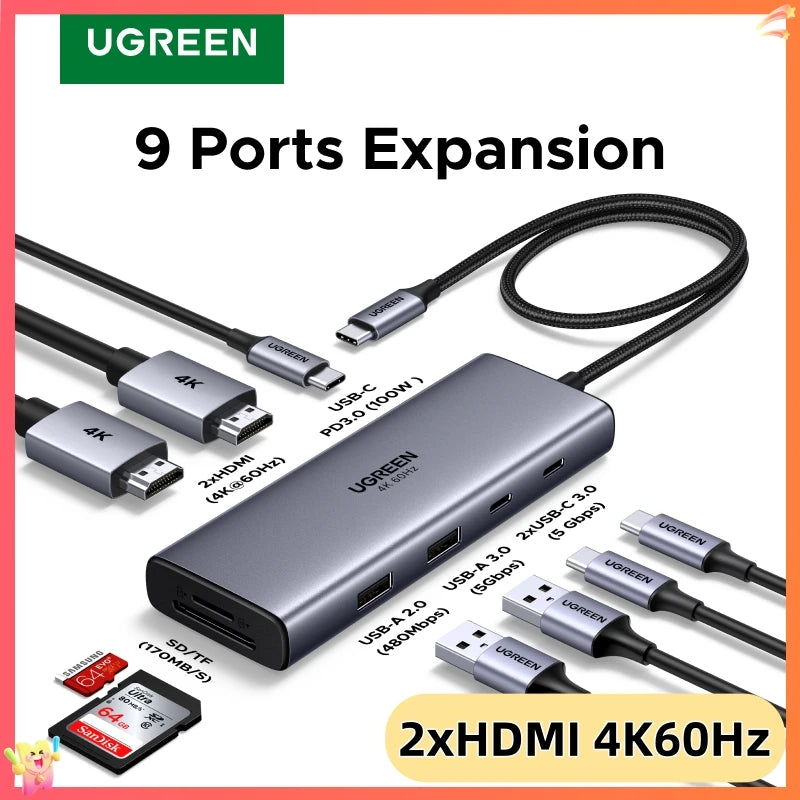

UGREEN USB C HUB 9-in-1 Dual HDMI 4K60Hz Display USB3.0 Type-C&USB-A Data Ports PD100W for Windows Laptop HP Dell Lenovo Samsung
SPECIFICATIONS
1xSD Port: Supports SD3.0 protocol, theoretical maximum transfer rate of 170MB/s, and supports dual cards working together.
1xTF(Micro SD) Port: Supports SD3.0 protocol, theoretical maximum transfer rate of 170MB/s, and supports dual cards working together.
1xUSB-A Data Ports: It complies with the USB 3.2 Gen1 standard, with a theoretical maximum speed of 5Gbps, is backward compatible with USB 2.0/USB 1.1, supports BC1.2, and is used to connect USB devices such as touchpads, speakers, cameras, flash drives, and hard drives.,Compliant with USB 2.0 standard, theoretical maximum speed of 480Mbps, backward compatible with USB 1.1, does not support BC1.2, used for connecting USB flash drives, keyboards, mice and other devices.
1xUSB-C Charging Port: Compliant with the PD3.0 standard protocol, it does not support data transmission, supports different voltages of 20V/15V/12V/9V/5V, and is backward compatible with PD2.0; it supports a maximum input of 20V/5A 100W, using dynamic pre-trimming: 5W deduction for inputs below 45W, 10W deduction for inputs between 45W and 90W, and 15W deduction for inputs above 90W; it supports a maximum of 85W for charging computers; it is used to connect a PD power adapter to power the docking station and charge the main device.
1xUSB-C Male Plug: It complies with the USB 3.2 Gen1 standard, with a theoretical maximum speed of 5Gbps, and is backward compatible with USB 2.0/USB 1.1; it supports the DP 1.4 protocol, HDCP 1.4/2.3, and HDR, but does not support 3D/CEC/ARC, and is used to connect to host devices such as computers/tablets/mobile phones.
2xHDMI Ports: Compliant with HDMI 2.0 standard, supports HDCP 1.4/2.2, 18Gbps video transmission bandwidth, supports HDR, but does not support 3D/CEC/ARC, supports a maximum resolution of 3840x2160@60Hz, and is backward compatible with 2560x1440@144/120/60Hz, 1920x1080@144/120/60Hz, etc., for connecting to display devices such as TVs, monitors, and projectors.
2xUSB-C Data Ports: It complies with the USB 3.2 Gen1 standard, with a theoretical maximum speed of 5Gbps, is backward compatible with USB 2.0/USB 1.1, supports BC1.2, and is used to connect USB devices such as touchpads, speakers, cameras, flash drives, and hard drives.
Brand Name: UGREEN
Cable Length: 40cm braided cable
Certification: CE,FCC,RoHS
Choice: yes
Compatible Game Console: Steam Deck,ROG Alloy,Legion Go
Compatible PC Devices: Laptop
Compatible Systems: Windows
Funtion: USB-C,HDMI-Compatible,Charging,Card Reader,USB-A
High-concerned chemical: none
Interface Type: USB-C HUB
Material: aluminum,others,Alloyed steel,Metal,Plastic
Origin: Mainland China
Package: Yes
Plug Type: None
Ports: 9
Product Name: USB HUB, USB C HUB, Docking Station, Dual HDMI HUB
Shell: Aluminum Metal Shell + PC + ABS
Standard: USB 3.2 Gen1
VRR: Not supported

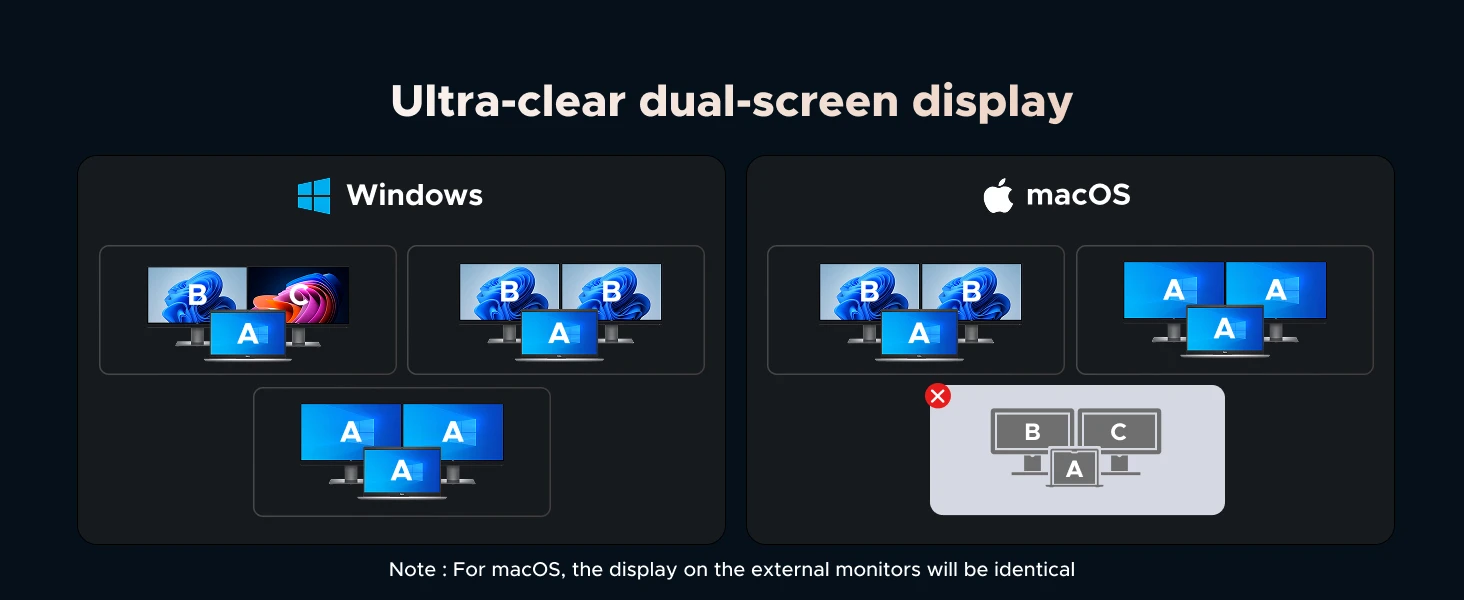

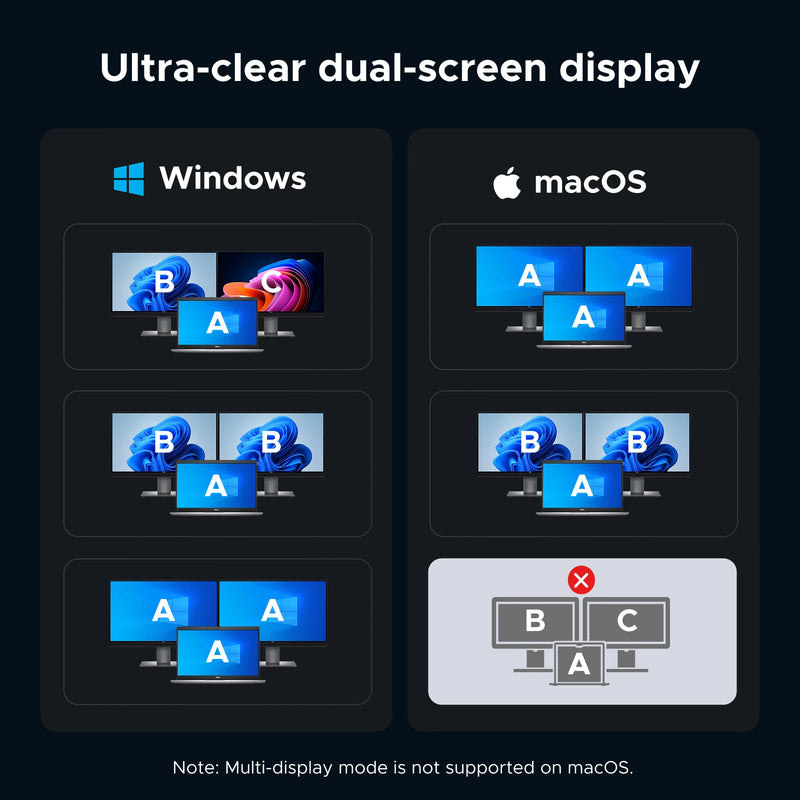

Windows HDMI Output Mode: Supports A+A+A, A+B+B, A+B+C (MST, including the computer's built-in screen + two external monitors).
macOS HDMI Output Mode: Supports A+A+A and A+B+B (SST, including the computer's built-in screen + two external monitors).
semi_Choice: yes
About this item:
1. 9 in 1 USB C Docking Station: Inspire more potential of your laptop's USB-C port with 2xHDMI ports, a 100W USB-C PD port, 2x5Gbps USB-C ports, a USB A 3.0, a USB A 2.0, SD/TF 170MB/s card reader.

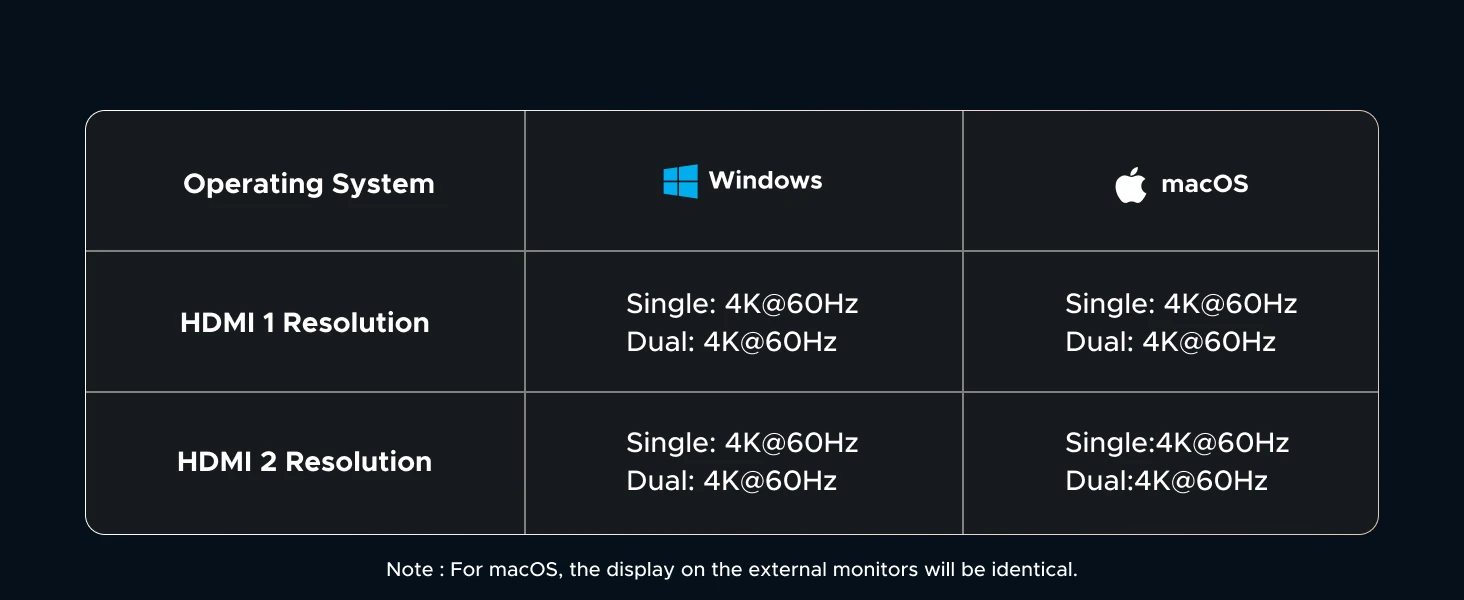

2. Dual 4k@60Hz Docking Station: The Docking Station allows you to connect two displays up to 4K@60Hz or a single screen up to 4K@60Hz via the HDMI 2 connector. Please note that due to macOS limitations, all docking displays will display the same content when connected to a MacBook.
3. High-Speed Data Transfer: Connecting keyboards, transfer files, movies, and photos at speeds up to 5Gbps via the USB-C data port and USB-A ports. Note: The USB A and C ports do not provide charging capabilities or video output.

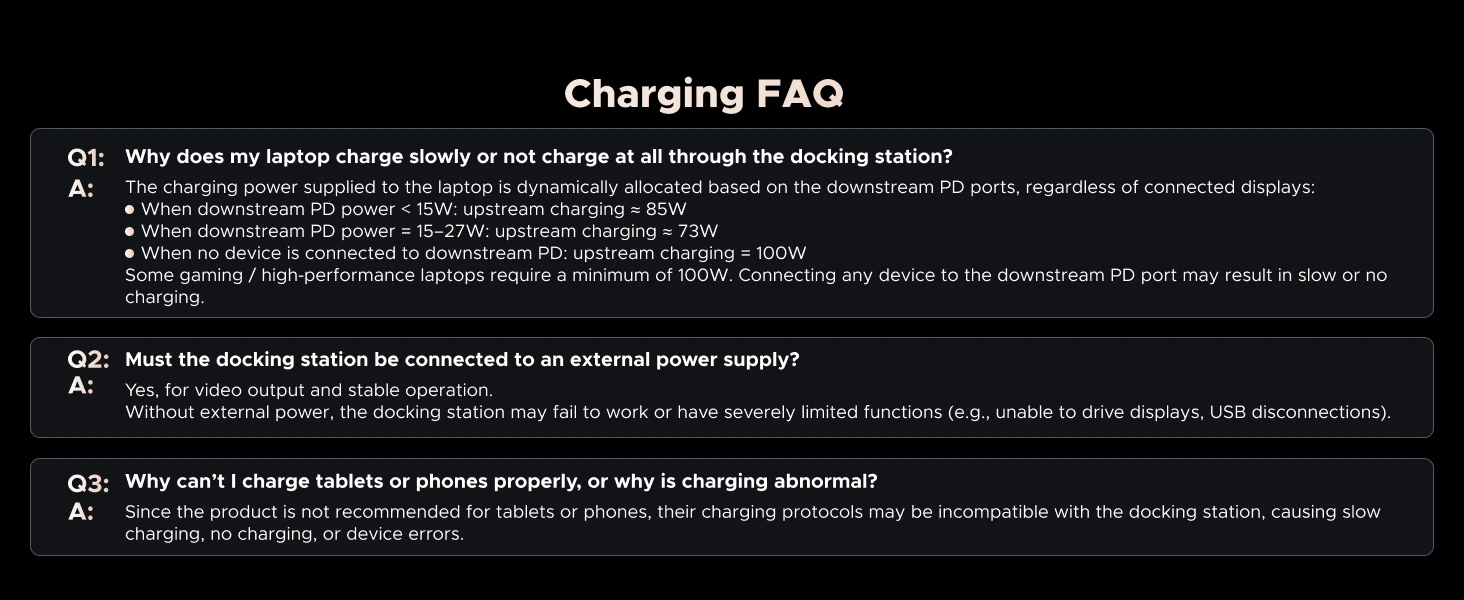

4. 100W Power Delivery: The Laptop docking station Supports up to 85W USB C pass-through charging via USB-C PD port, reserves 15W for other interface operation. Additionally, the port only supports charging; it does not facilitate data transfer or video output.
5. All-in-One Docking Station with Card Reader: This USB-C hub features a 170MB/s card reader compatible with SD and TF cards to meet all your card-reading needs, and comes with a 15 inches cable to help tidy up your desk.
Dual HDMI Dual 4K@60Hz Display Output
9-in-1: Video + USB Data + SD/TF + PD100W Charging

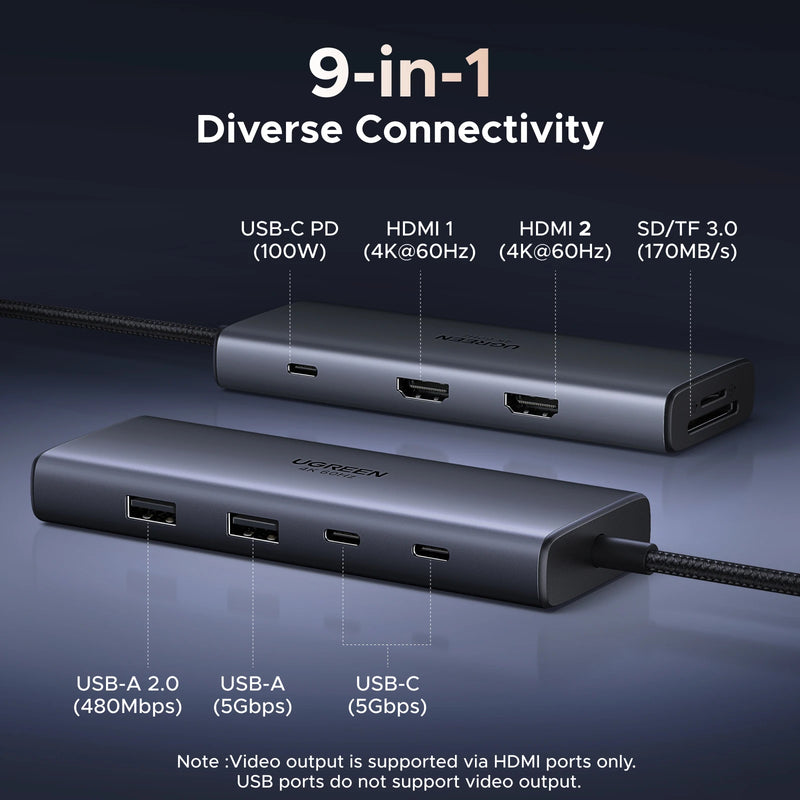

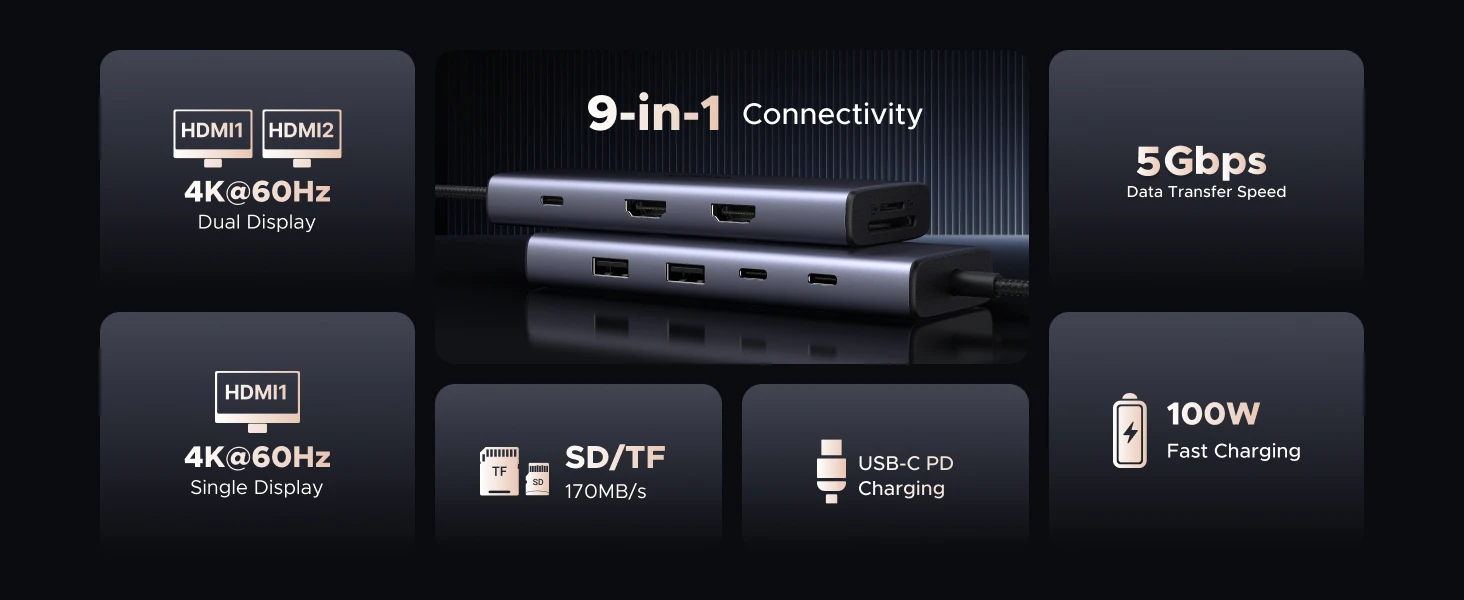

9-in-1 Diverse Connectivity

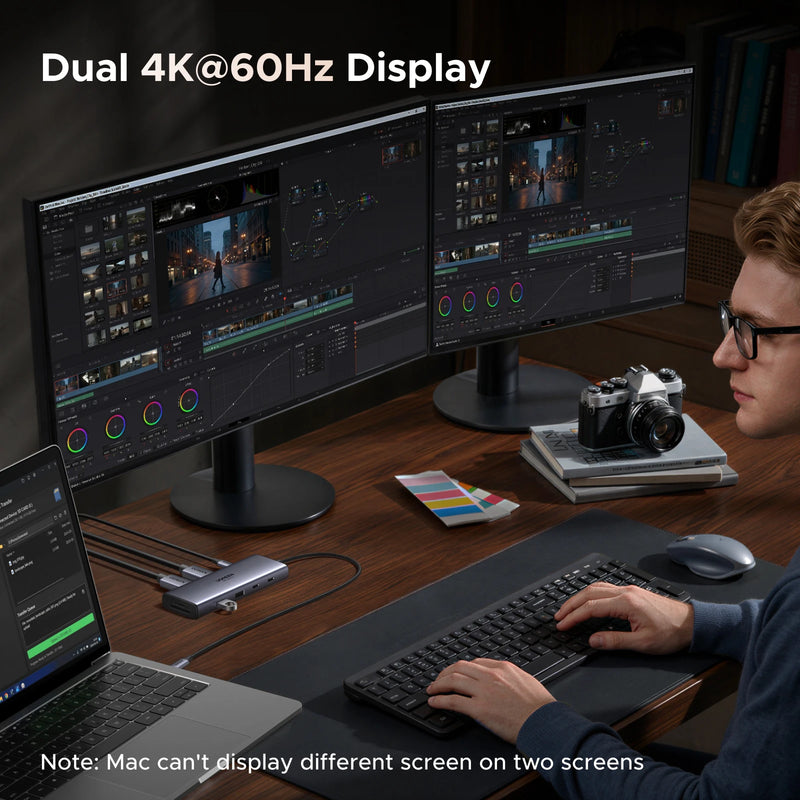

Dual 4K@60Hz Display

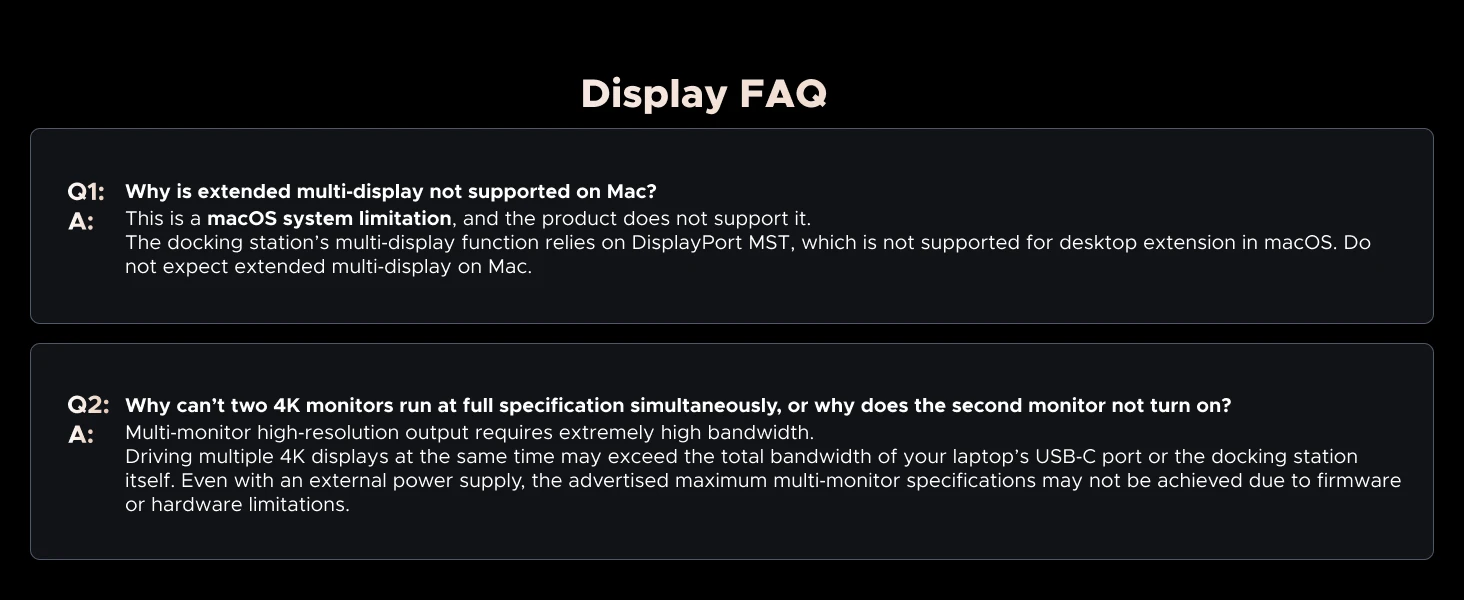

Note: Mac can't display different screen on two screens.
Ultra-Clear Dual-Screen Display

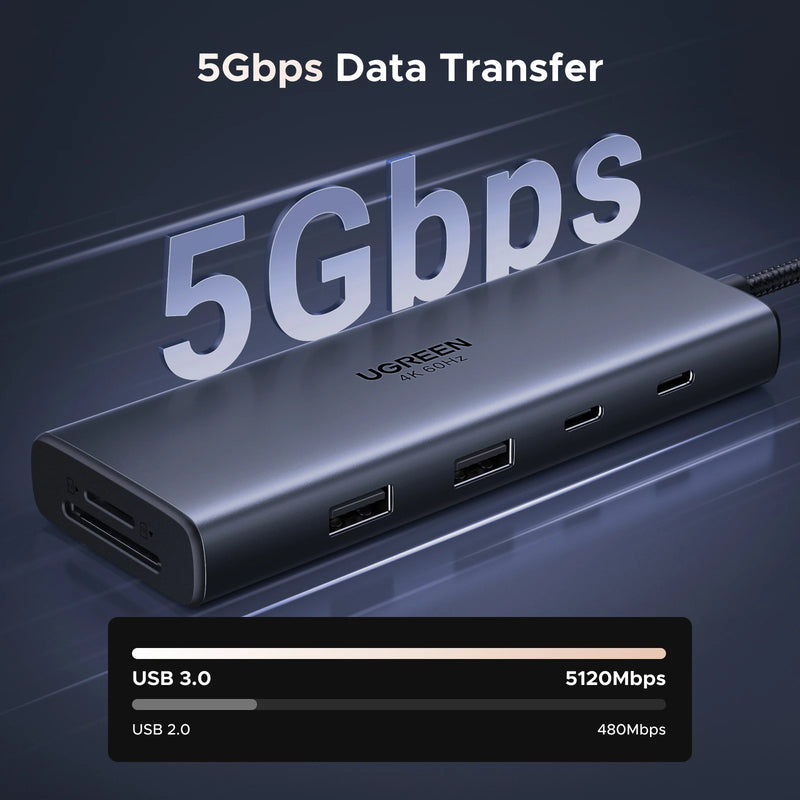

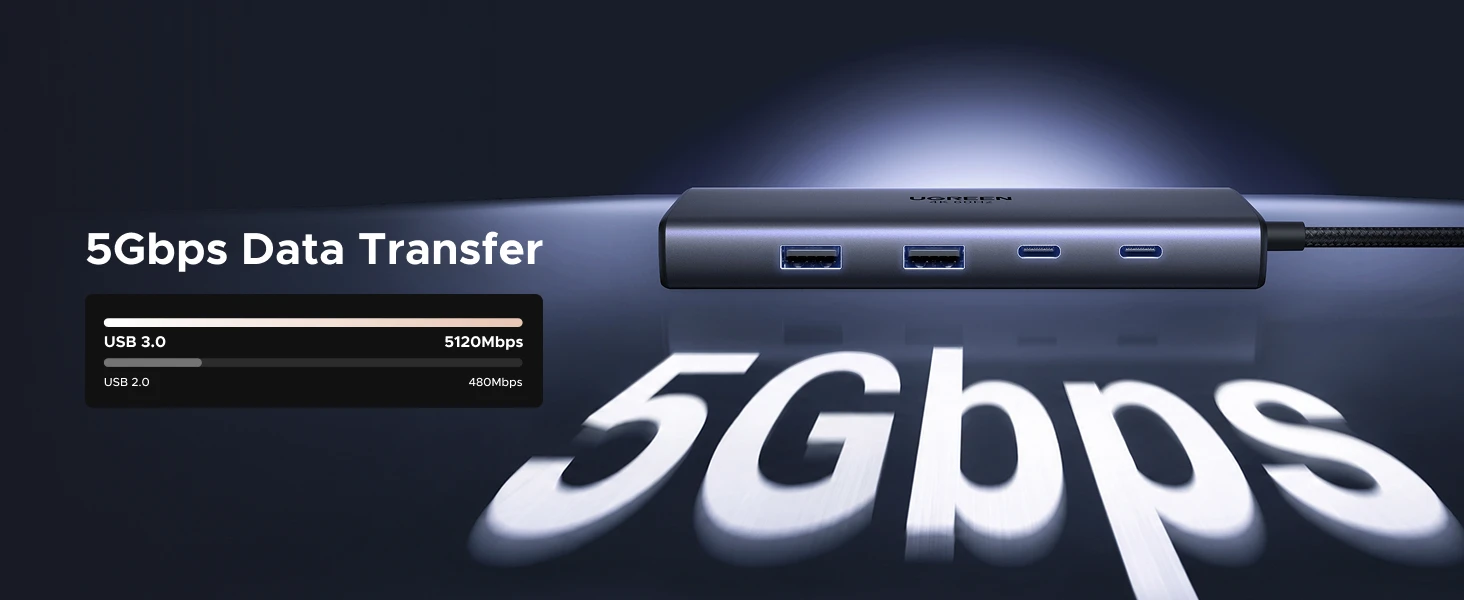

5Gbps Data Transfer

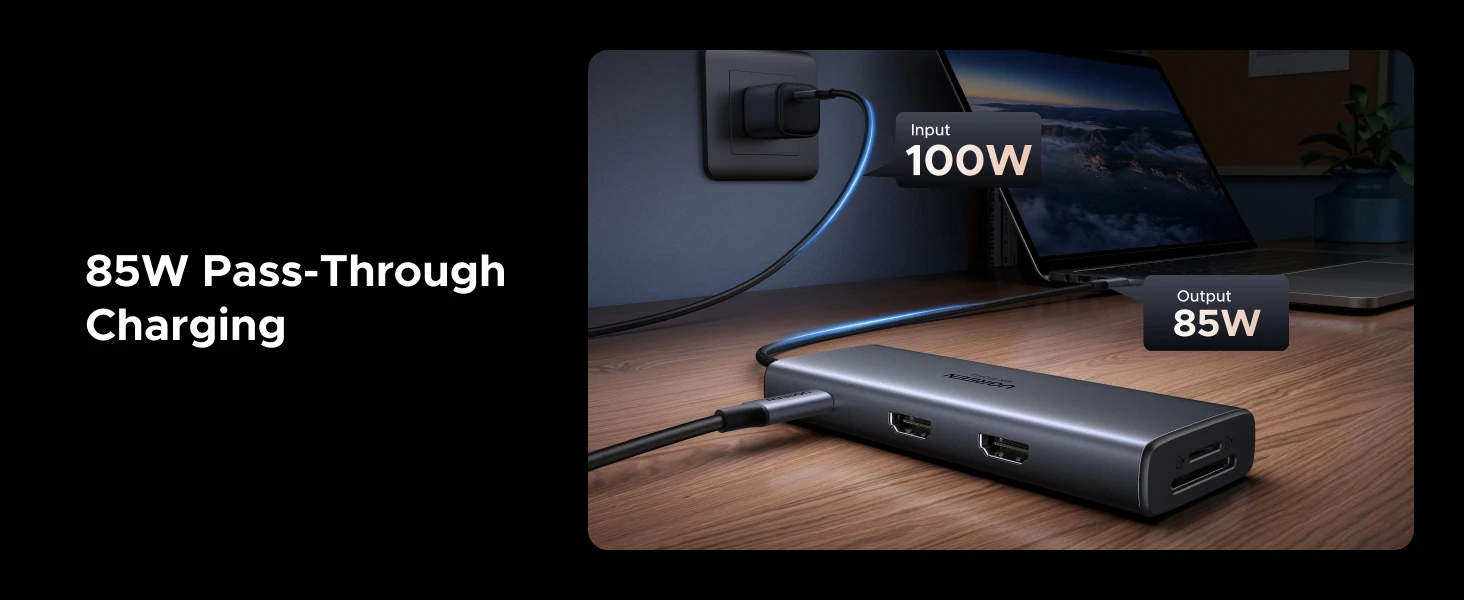

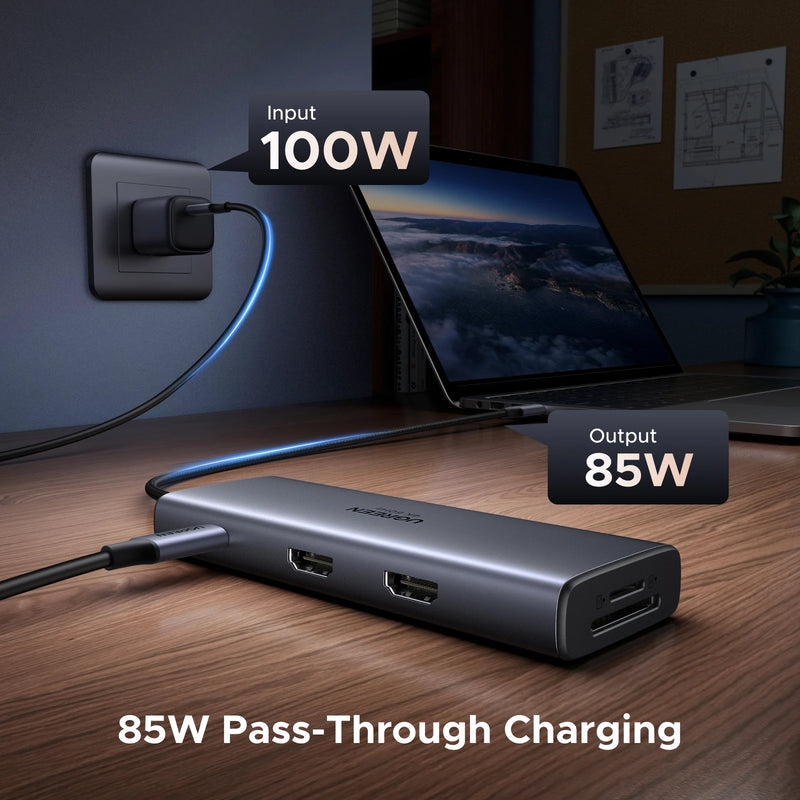

85W Pass-Through Charging
Capture and Share
Instantly
View and manage your photos with
170MB/s SD/TF card access

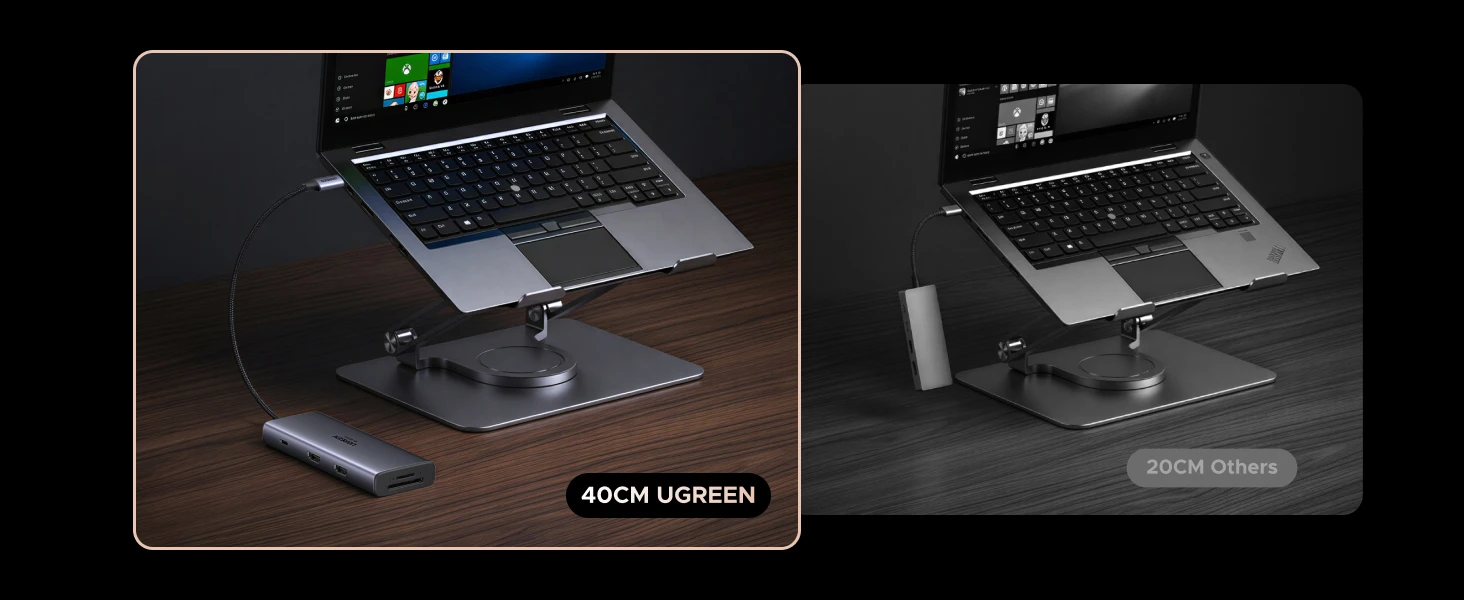

40CM Braided Cable

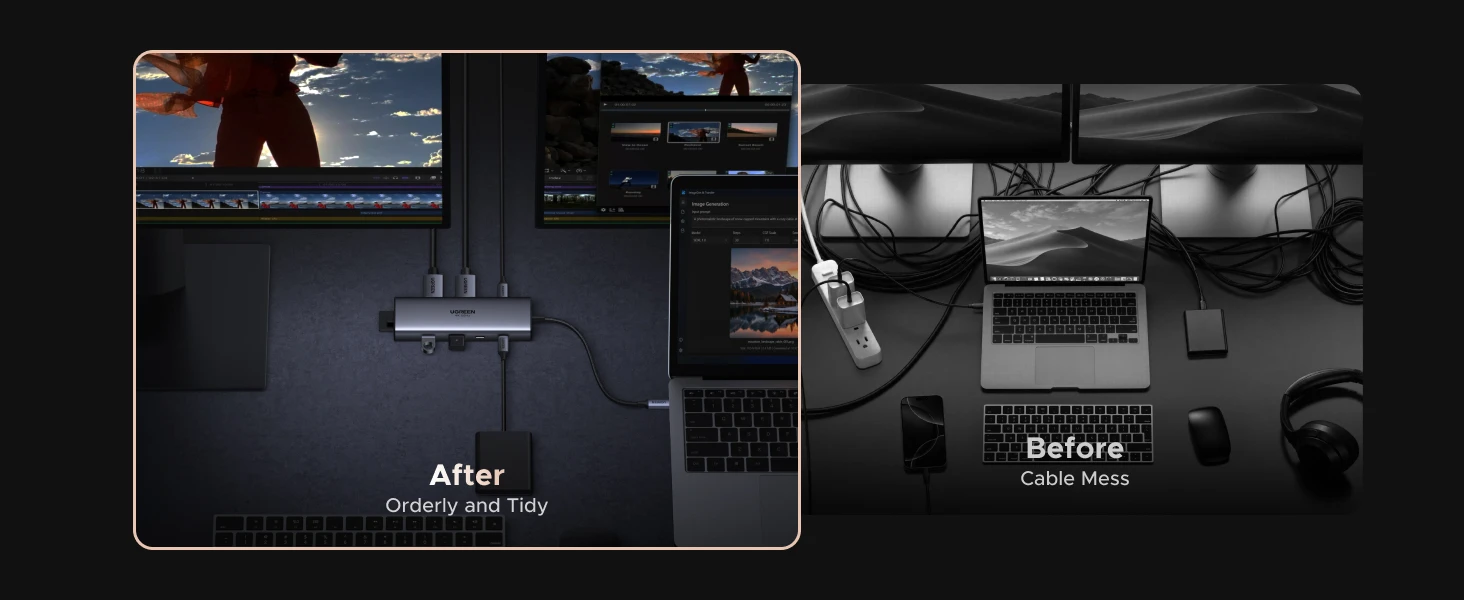

Before & After

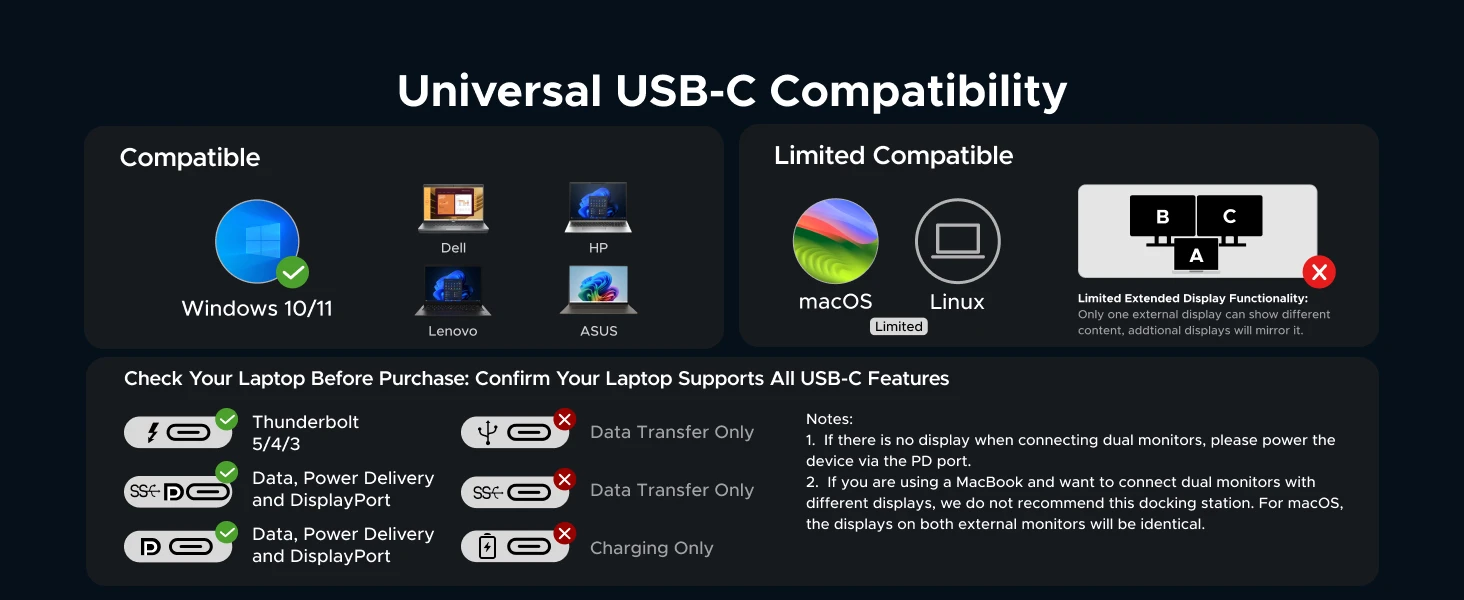

Universal USB-C Compatibility
