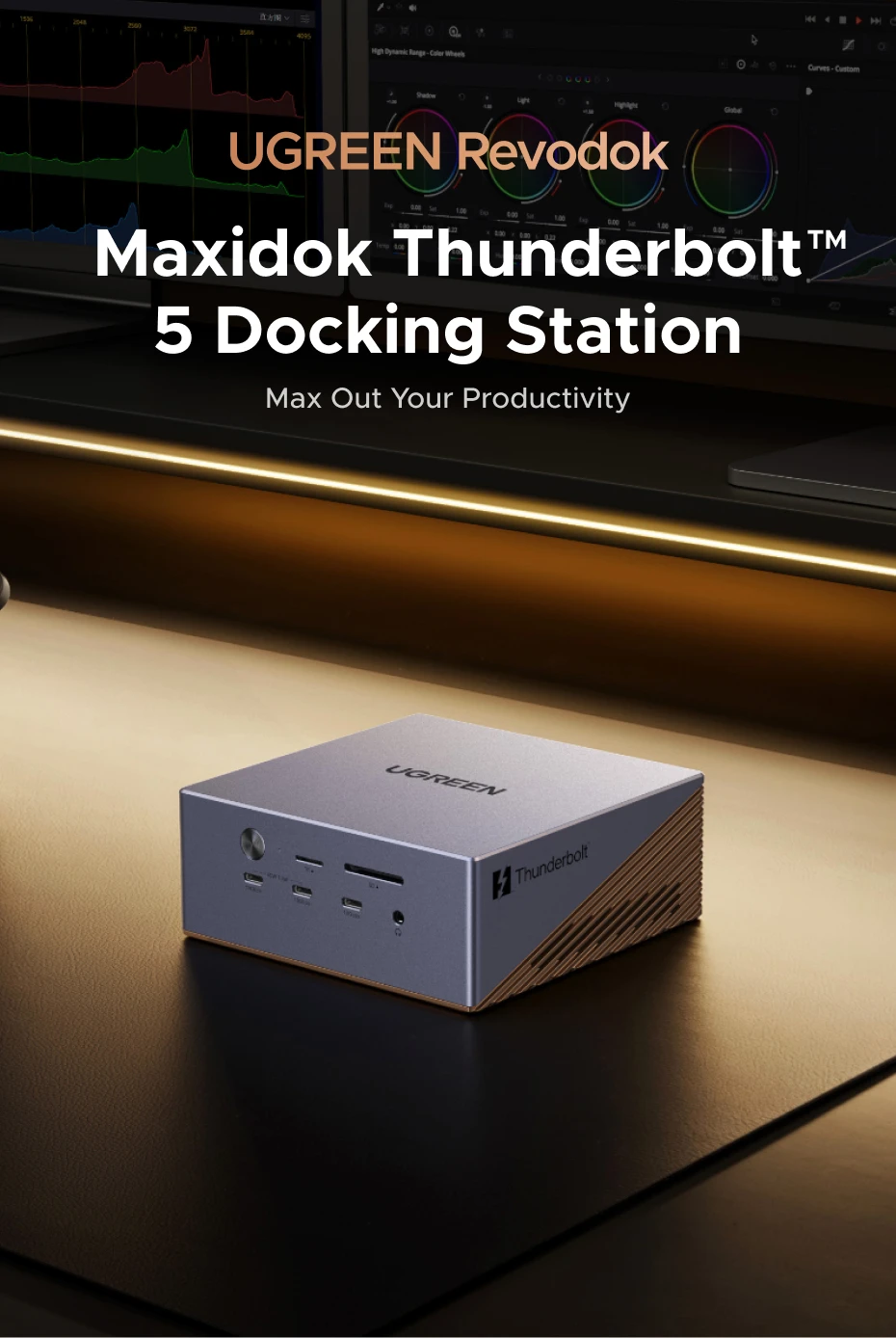

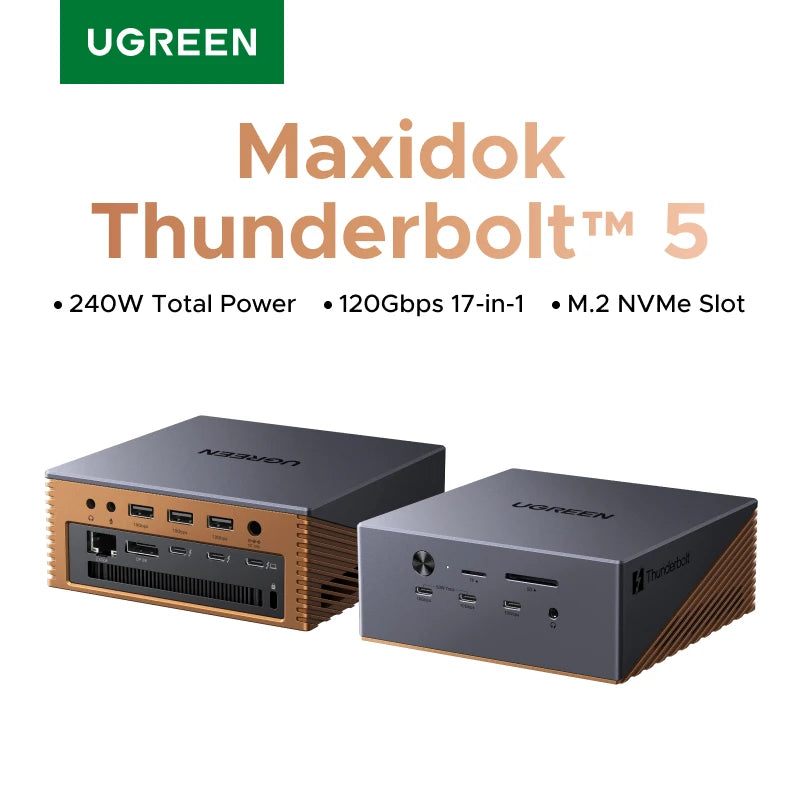

UGREEN Thunderbolt5 17-in-1 Docking Station USB HUB 120Gbps 8K60Hz M.2 NVMe SSD Slot 140W Fast Charging for MacBook Laptop

SPECIFICATIONS

1x3.5 mm Audio Combo Jack (Input/Output): Supports 2-channel stereo audio input and output, as well as in-line remote controls. Compatible with 4-pole TRRS headsets using either the CTIA or OMTP wiring standard. Also supports 3-pole TRS headphones and external speakers.

1x3.5 mm Audio Input Jack: Supports 2-channel stereo audio input. Compatible with 3-pole TRS microphones; 2-pole TS microphones are not supported.

1x3.5 mm Audio Output Jack: Supports 2-channel stereo audio output. In-line remote controls and microphone input are not supported. Compatible with 4-pole TRRS headsets using either the CTIA or OMTP wiring standard for audio playback. Also supports 3-pole TRS headphones and external speakers.

1xDP Output Port: It complies with DP2.1, supports HDCP1.4/2.3, supports HDR/DSC, and can achieve resolutions up to 8K@60Hz. It is backward compatible with lower resolutions such as 4K@240/120/60Hz, 2560x1440@480/360/240/144/120/60Hz, and 1080P@480/360/240/144/120/60Hz. It can be used to connect to display devices such as monitors and TVs with DP interfaces.

1xM.2 Output Port: Supports NVMe 1.4C and PCIe Gen4x4 protocols, with transfer speeds up to 64Gbps, and can be used with M.2 hard drives.

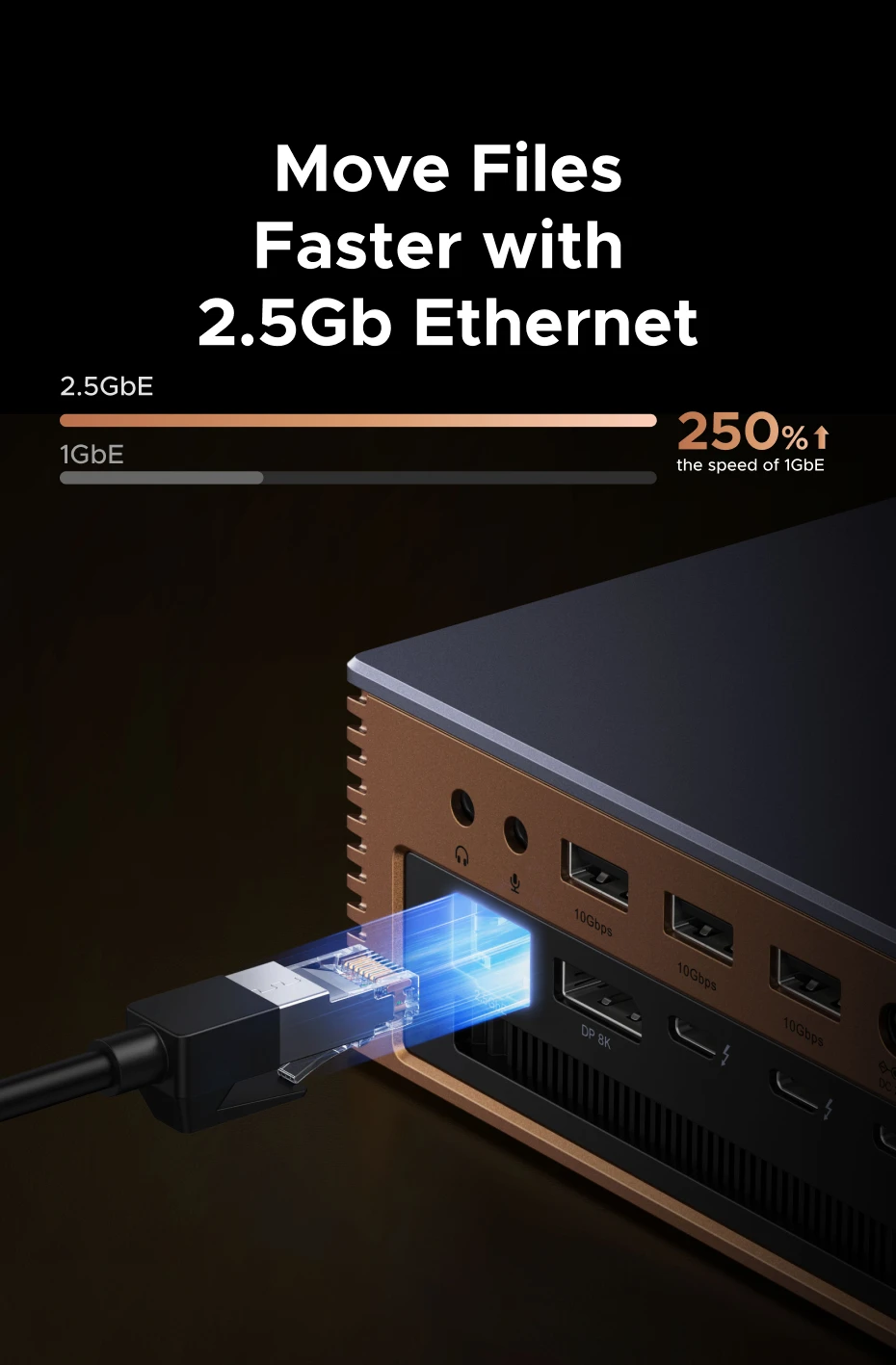

1xRJ45 Output Port: Supports a transmission rate of 2500Mbps, backward compatible with 1000Mbps/100Mbps/10Mbps, conforms to network technology standards, and supports network protocols such as IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x. It can be used to connect to routers and switches.

1xSD Output Port: Supports SD4.0 protocol, backward compatible with SD3.0, with a theoretical maximum transfer rate of 312MB/s; supports dual-card dual-read, allowing connection of SD cards for use.

1xTBT5 Input Port: Compliant with Thunderbolt 5 standard protocol, with a maximum total transfer rate of 80Gbps, compatible with USB4, Thunderbolt 4, and Thunderbolt 3, and supports daisy-chain expansion. Supports PD3.1, with a maximum uplink charging power of 140W and Smart Power function for dynamic power allocation. PCIe protocol bandwidth reaches 64Gbps, single-port resolution can reach up to 8K@60Hz, and the maximum video transmission bandwidth can reach 120Gbps, suitable for connecting to external computers and other host devices.

1xTF Output Port: Supports SD4.0 protocol, backward compatible with SD3.0, with a theoretical maximum transfer rate of 312MB/s; supports dual-card dual-read, and can be used with a TF card.

1xUSB3.2 C Output Port: USB 3.2 Gen2 standard, with a transfer rate of up to 10Gbps, backward compatible with USB 3.0/2.0/1.1 standards, supports BC1.2, and can connect USB devices such as mice, keyboards, and hard drives.

2xTBT5 Output Port: Compliant with Thunderbolt 5 standard protocol, with a total transmission rate of up to 80Gbps and a maximum video transmission bandwidth of up to 120Gbps. It is compatible with USB4, Thunderbolt 4, and 3, supports daisy-chain expansion, supports a maximum output power of 5V/3A, and has a PCIe protocol bandwidth of up to 64Gbps. The resolution can reach up to 8K@60Hz. It can be used for connecting external monitors, hard drives, and other devices.

2xUSB3.2 C (60W): USB 3.2 Gen2 standard, with a transfer rate of up to 10Gbps, backward compatible with USB 3.0/2.0/1.1 standards, supports BC1.2, supports PD protocol charging output, with a maximum total power of 60W (5V/3A, 9V/3A, 15V/3A, 20V/3A). It can be used to connect USB devices such as mice, keyboards, flash drives, and hard drives for data transfer, and to charge mobile phones, tablets, and computers.

3xUSB3.2 A Output Port: USB 3.2 Gen2 standard, with a transfer rate of up to 10Gbps, backward compatible with USB 3.0/2.0/1.1 standards, supports BC1.2, and can connect USB devices such as mice, keyboards, and hard drives.

Accessories Information: 1* Thunderbolt 5 cable: 1m; 1* Power adapter (with US/EU/UK plug): DC 5.7*2.5mm, (24V/10A) 240W.

Brand Name: UGREEN

Certification: CE,RoHS,FCC

Compatible PC Devices: Laptop

Compatible Systems: Windows,MacOS

Funtion: Thunderbolt,RJ45,USB-A,USB-C,Charging,DP,Card Reader,3.5mm

High-concerned chemical: none

Material: aluminum,others,Metal,Plastic

Materials: Top shell: PC+ABS; Bottom shell + sides: Aluminum alloy.

Model Number: U716-85590F

Origin: Mainland China

Package: Yes

Plug Type: None

Ports: 17

Product Name: Docking Station, TBT5 Docking, USB HUB, USB C HUB, USB Splitter

SSD/HDD Slot: M.2

Standard: Thunderbolt5

About this item:

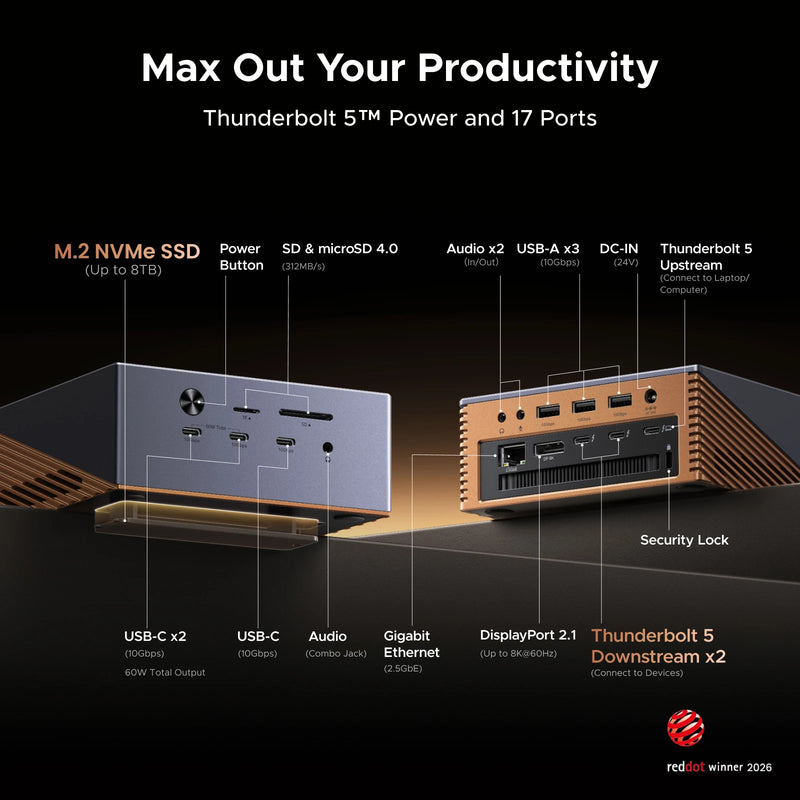

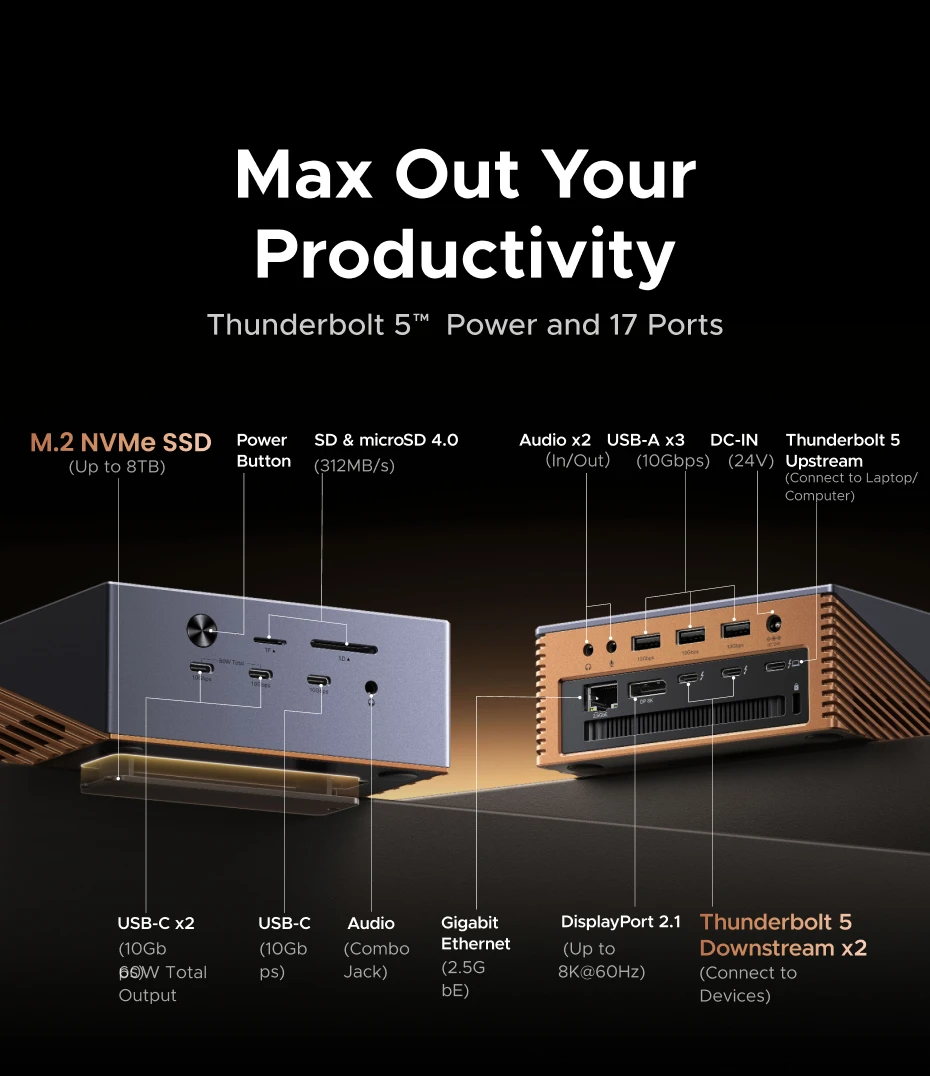

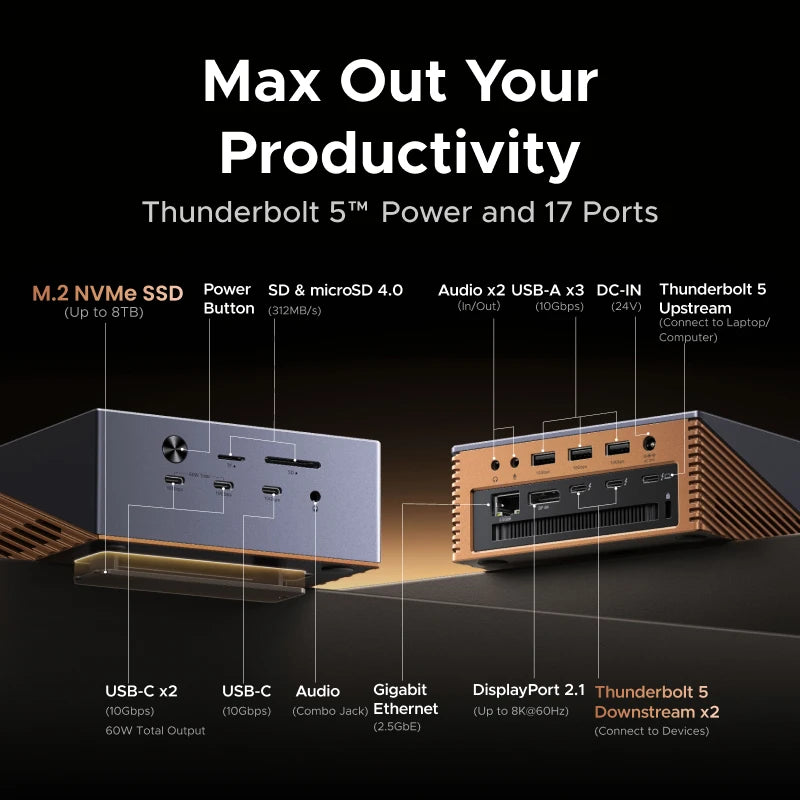

1. All-in-One Connectivity: Build a tidy workstation with 17 ports: 3×USB-A 10Gbps, 3×USB-C 10Gbps (2 ports share 60W charging), SD/TF 4.0, 3×3.5mm audio, 2.5G Ethernet, DP1.4, and 2×Thunderbolt 5 downstream ports.

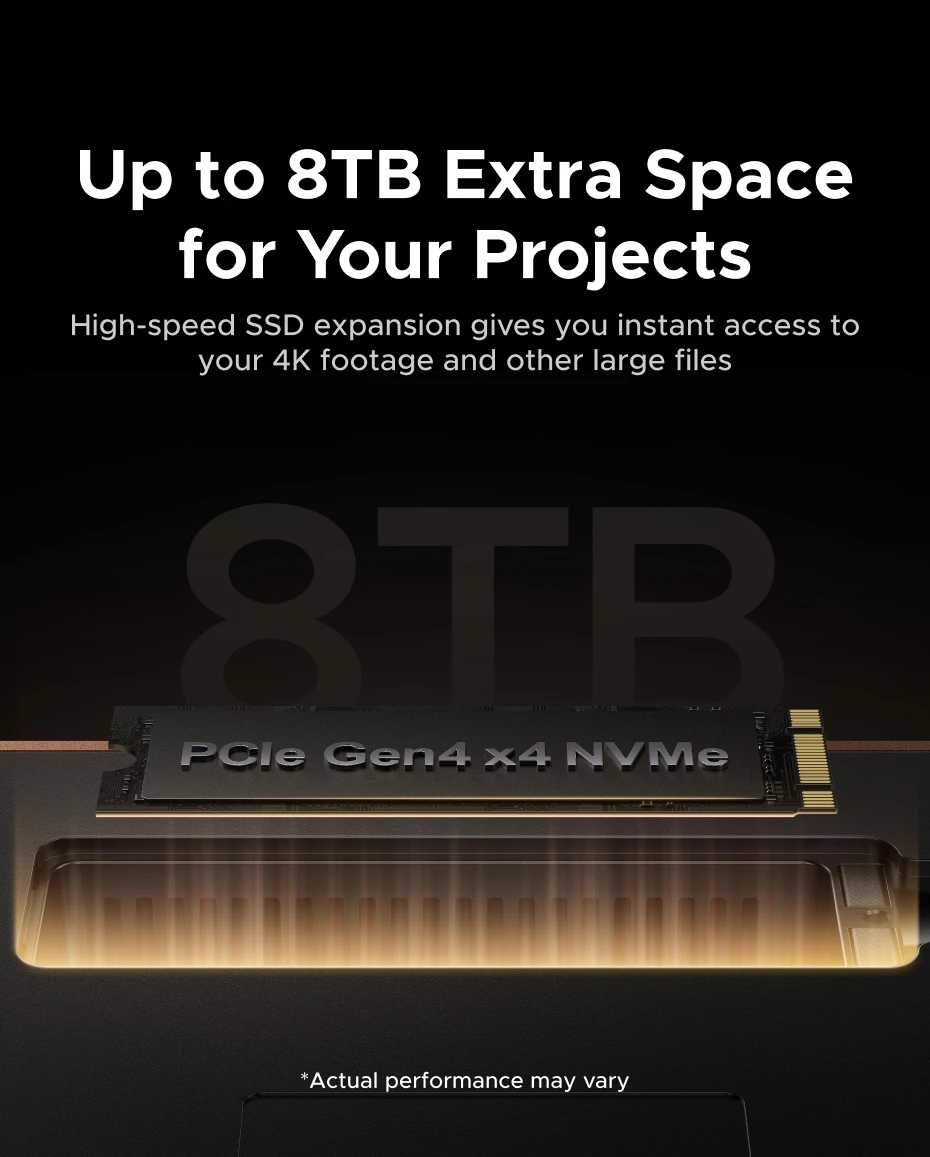

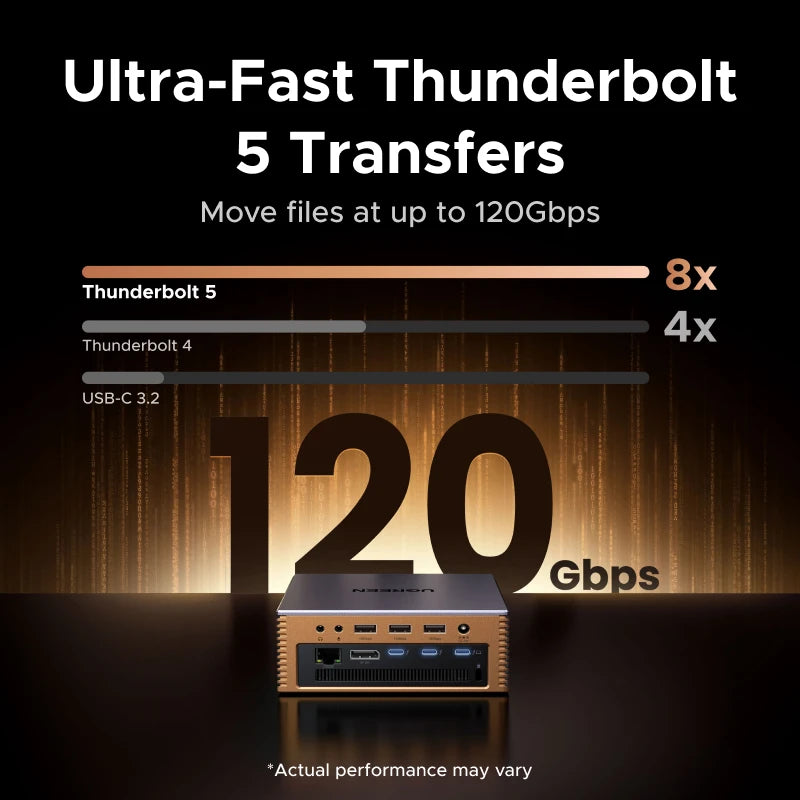

2. 120Gbps Thunderbolt 5 Speed & M.2 High-Speed Storage: Intel-certified Thunderbolt 5 provides up to 120Gbps bandwidth. Built-in NVMe PCIe Gen4x4 M.2 slot supports 2230–2280 SSDs up to 8TB for fast external storage. Note: Compatible with M.2 NVMe SSDs with heatsink (height≤12 mm; width≤24 mm), Not compatible with SSDs wider than 24 mm, including Seagate FireCuda 530 with Heatsink, Samsung 9100 PRO with Heatsink, WD_BLACK SN850X Premium Model with OEM Heatsink, and Lexar NM1090 Active Fan Version.

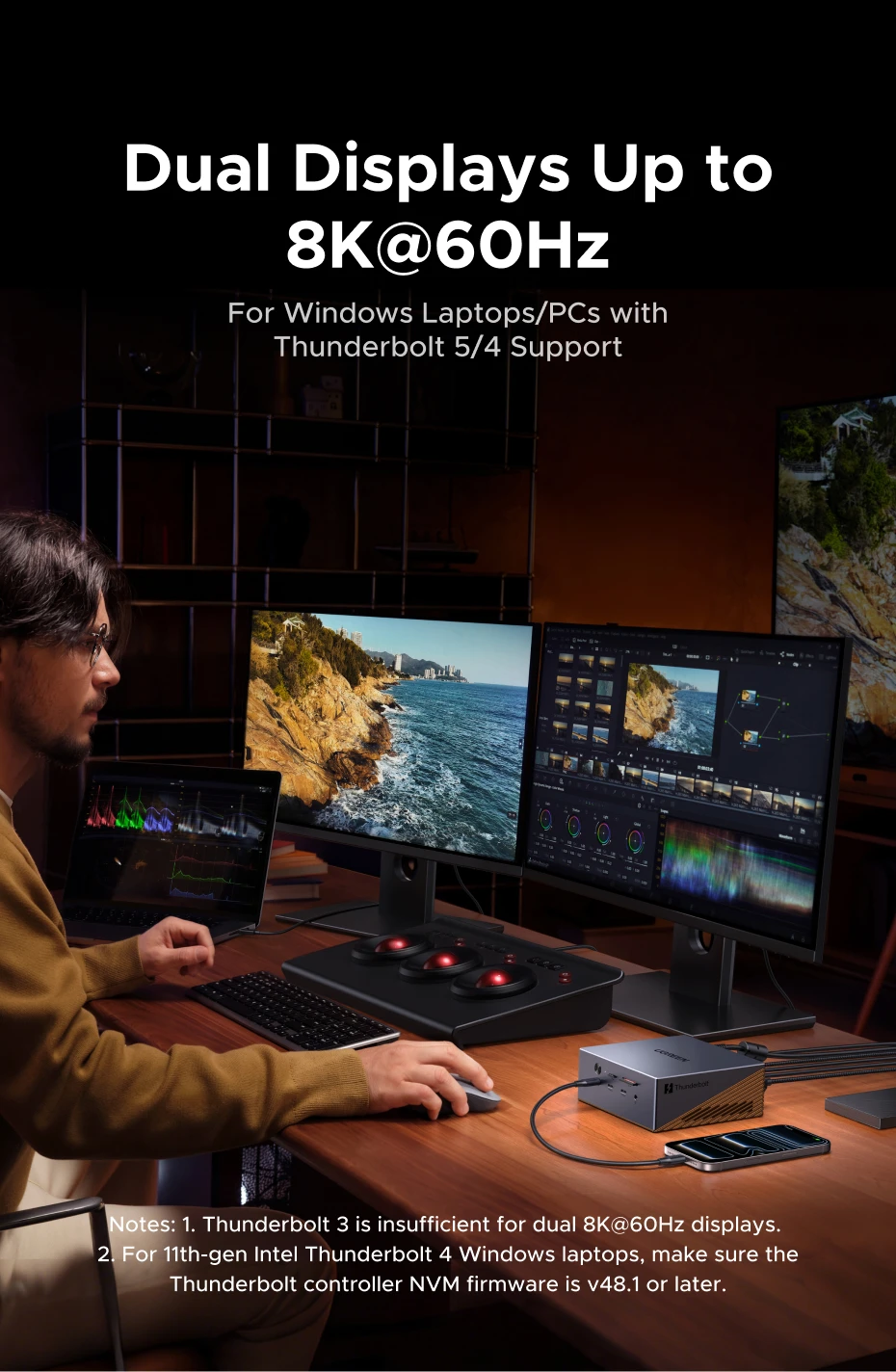

3. Multi-Monitor 8K/6K Output: Supports triple independent displays on Windows (2×TBT5+DP): single 8K@60Hz or dual 6K@60Hz. Mac supports dual displays. Native compatible with latest Windows and MacBooks for expanded workspace. Note: The DP port does not support DP++. To connect an HDMI monitor, please use an active DP-to-HDMI adapter or cable; passive adapters and cables will not work.

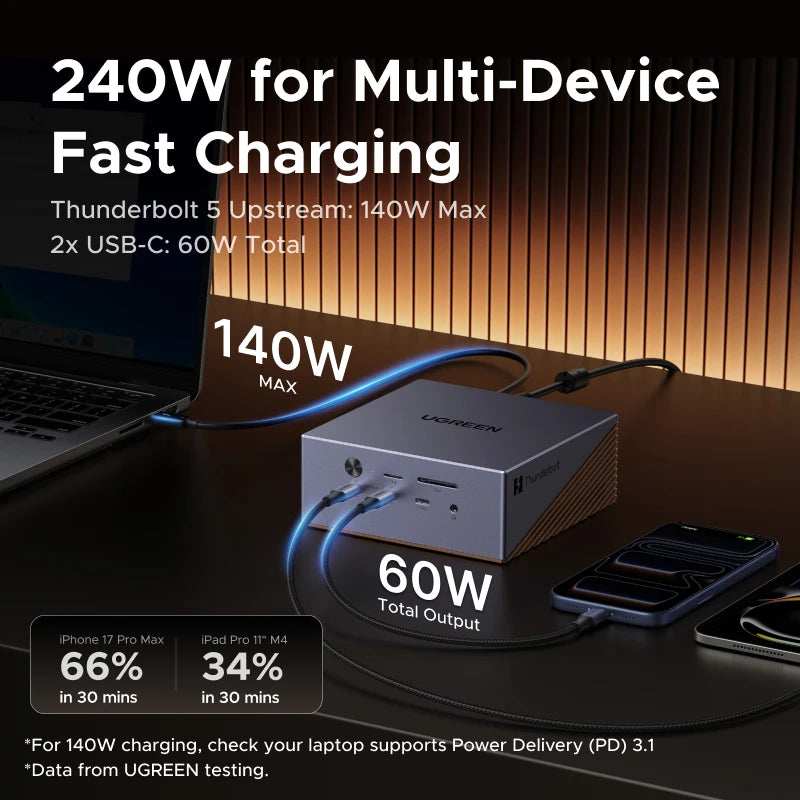

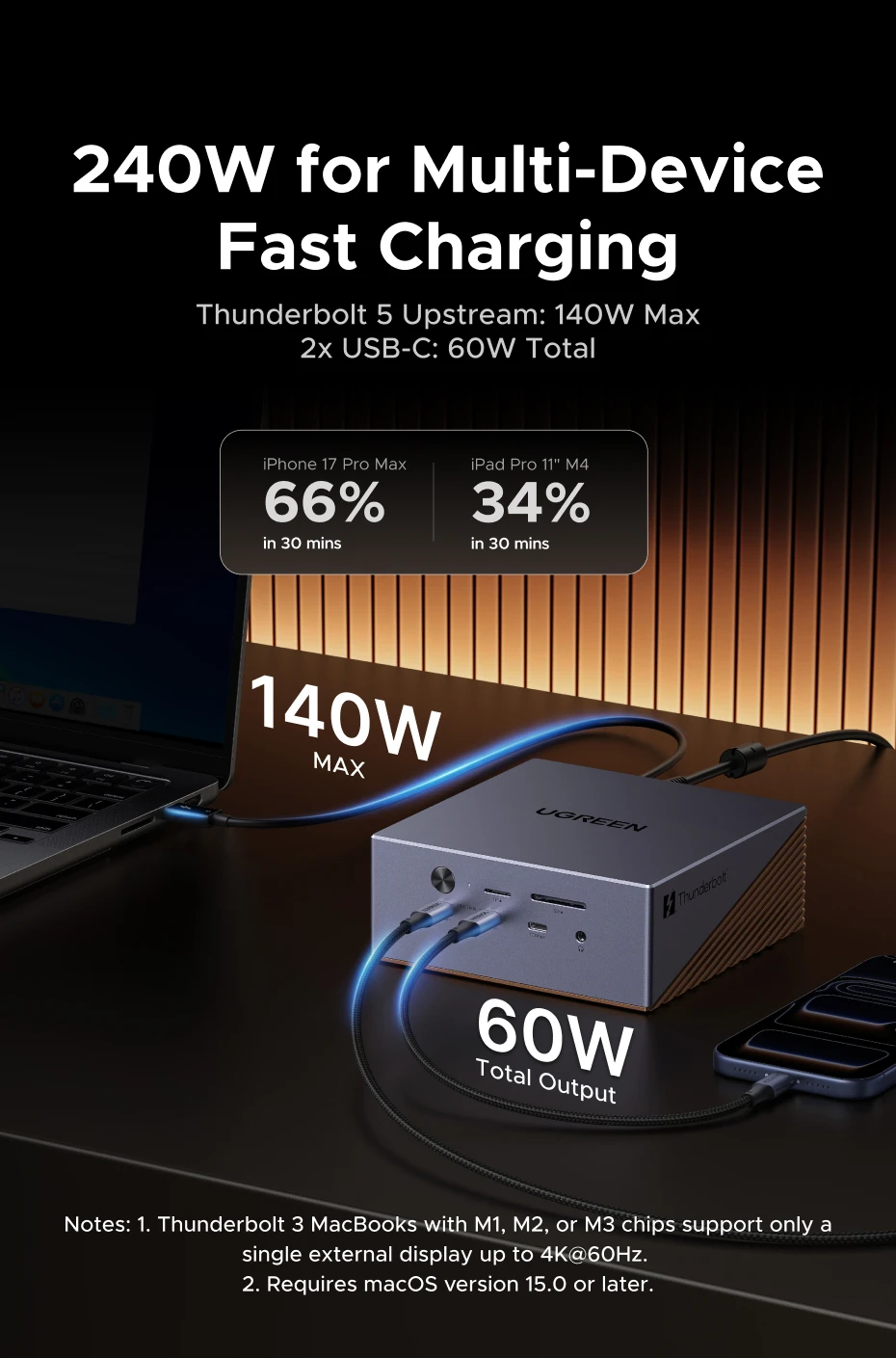

4. 240W Total System Power & High-Speed Networking (required) Equipped with up to 240W total power and a built-in 2.5GbE network port for fast and reliable wired connections, with lower latency and a more stable connection.

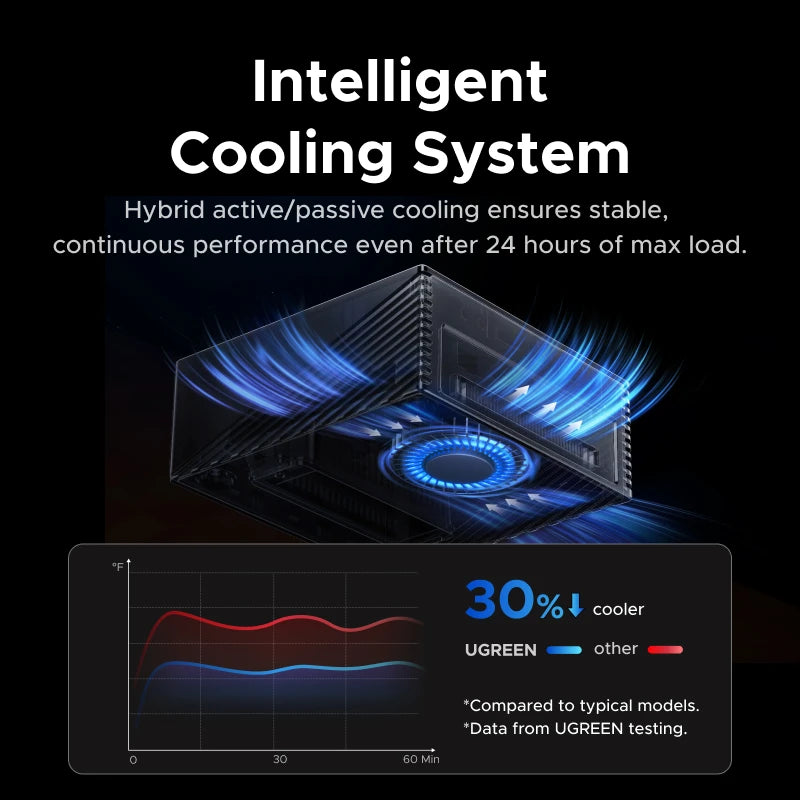

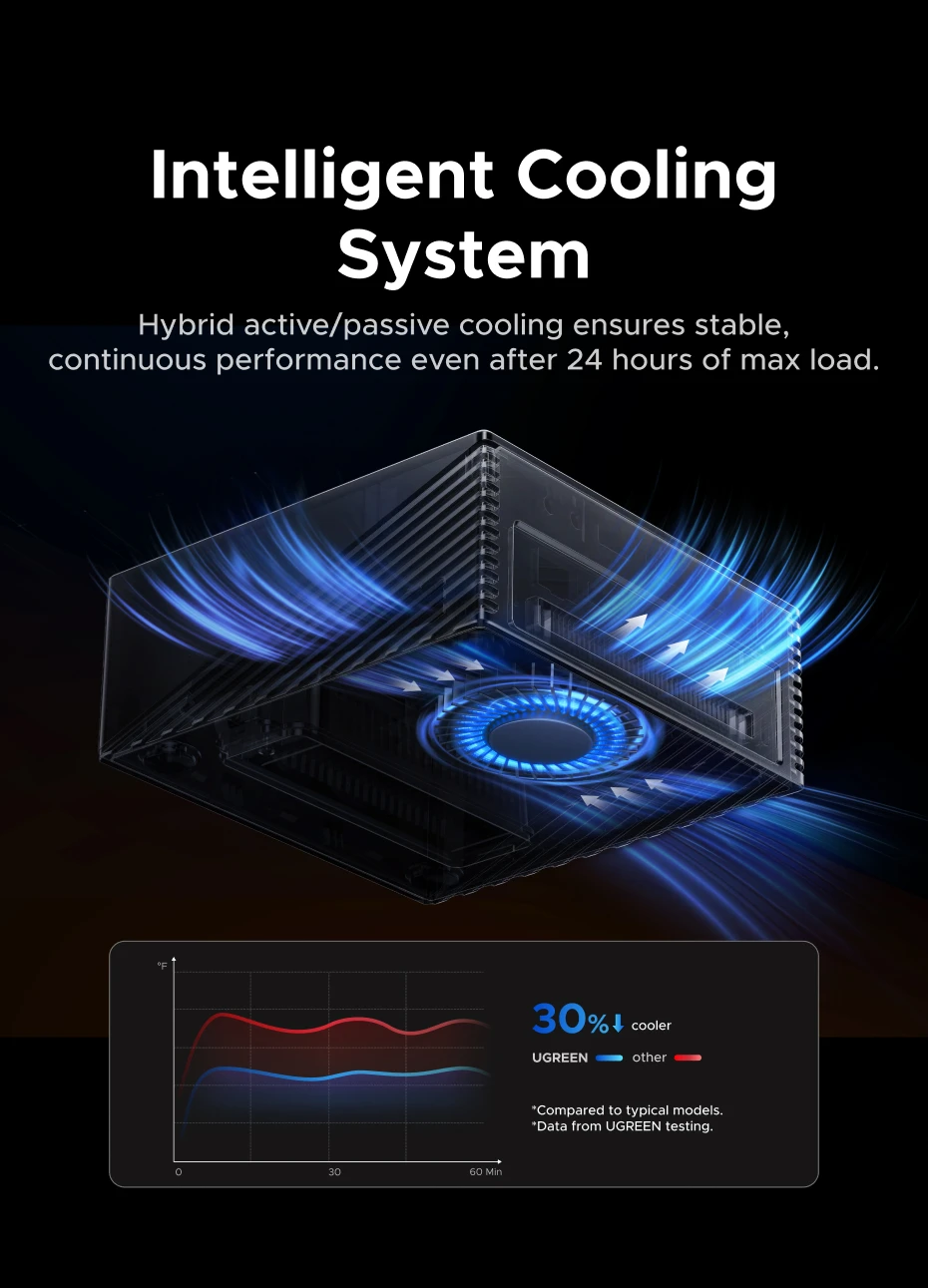

5. AI Cooling & Aluminum Chassis: AI smart cooling with 60mm ultra-thin fan ensures stable performance under heavy load. Premium aluminum unibody offers great heat dissipation, scratch resistance, and a clean matte finish, paired with a reliable security lock.
