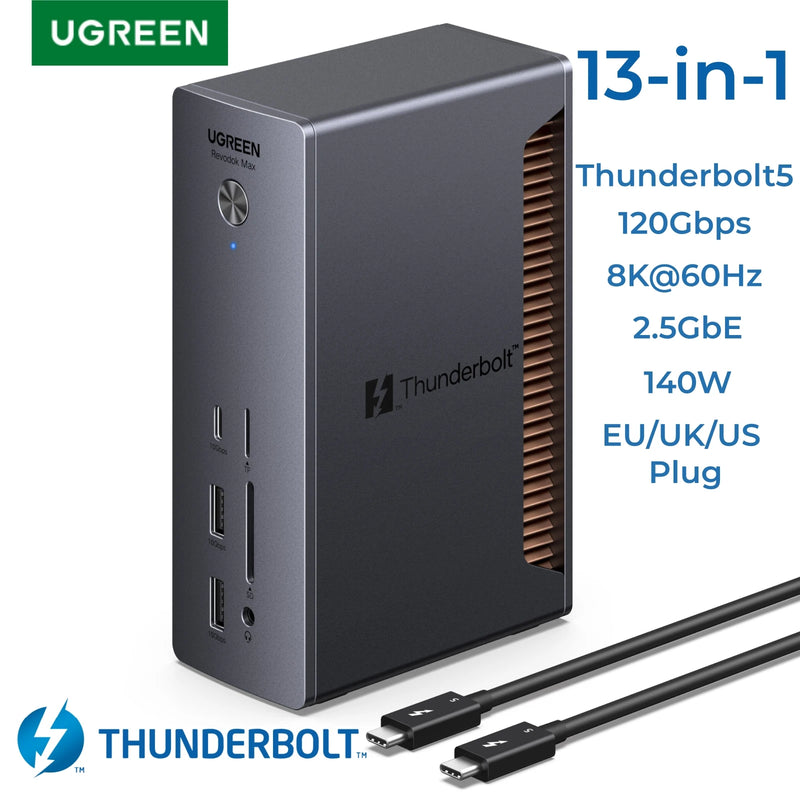

UGREEN Thunderbolt 5 Docking Station 8K60Hz 120Gbps 2.5GbE RJ45 SD&TF 3.5mm for MacBook Laptop Dell XPS Razer Blade 18 USB-C HUB
SPECIFICATIONS
1x3.5mm Port: Support two-channel stereo audio input and output, supports line control, supports CTIA/OMTP standard four-level headphones.
1xDC Input Port: 5.5*2.5mm, 100V~240V wide voltage input, DC 21V/8.57A 180W adapter (provided), used to power the docking station and computer.
1xRJ45 Port: Support 2500Mbps, backward compatible with 1000/100/10Mbps.
1xTBT5 Input Port: Support Thunderbolt 5 standard protocol, backward compatible with Thunderbolt 4/3.
1xUSB3.2 C Port: USB3.2 Gen2, 10Gbps, backward compatible with USB3.0/2.0/1.1, support BC1.2.
2xUSB3.0 A Ports: USB3.0, 5Gbps, backward compatible with USB2.0/1.1, support BC1.2.
2xUSB3.2 A Ports: USB3.2 Gen2, 10Gbps, backward compatible with USB3.0/2.0/1.1, support BC1.2.
3xTBT5 Output Ports: Support Thunderbolt 5 standard protocol, backward compatible with Thunderbolt 4/3. The first port of TBT5 supports 30W (5V/3A, 9V/3A, 20V/1.5A), the second/third ports of TBT5 support a maximum output power of 5V/3A, the PCIe protocol bandwidth can reach 64Gbps, and the single-port resolution can be up to 8K@60Hz.
Brand Name: UGREEN
Button Function: Power button: Turn on/off all functions of the dock.
Certification: CE,FCC,RoHS
Compatible PC Devices: Laptop
Compatible Systems: Windows,MacOS
Funtion: Card Reader,3.5mm,USB-A,USB-C,Thunderbolt,Charging
High-concerned chemical: none
Indicator Light: The green light is always on after the power is connected, and the green light turns to blue light when the signal is connected.
Interface Type: USB-C HUB
Material: aluminum,others,Metal,Plastic
Model Number: U715

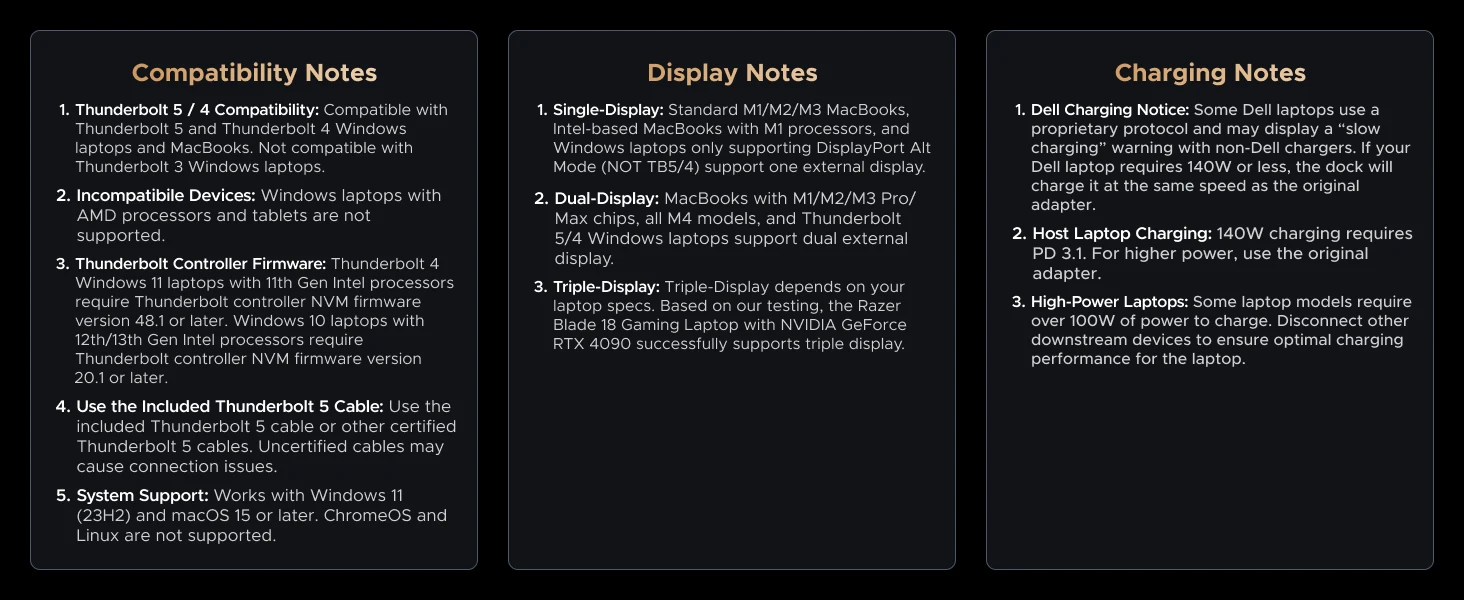

Note 1: Not compatible with USB-C extension cables.
Note 2: Must be used with a Thunderbolt 5 cable.
Note 3: Not compatible with game consoles.
Origin: Mainland China
Package: Yes
Plug Type: None,EU/UK/US Plug
Ports: 13,13
Power Supply Mode: Must be powered via the included DC adapter (21V/8.57A, 180W) to operate. Not compatible with external PD (Power Delivery) chargers.
Product Name: TBT5 Docking Station / Dock / USB HUB / USB-C HUB / USB Splitter
SD/TF Ports: Support SD4.0, 312MB/s, backward compatible with SD3.0, support 2 cards read & write simultaneously.
Standard: Thunderbolt5
Systems: Supports Windows 11 (version 23H2 or later) and macOS 14.5 or later. Other operating systems are not supported.
About this item:
1. 120Gbps Thunderbolt 5 Speed: Certified by Intel, 4 x Thunderbolt 5 ports deliver blazing-fast 120Gbps transfersβtheoretically moving a 21GB movie in just 2 seconds. It provides the ultimate bandwidth needed for large video edits, 3D rendering, and data-heavy professional workflows. Please note: This dock is not compatible with Thunderbolt 3 computers or devices.
2. Triple 4K@144Hz, Dual 6K@60Hz or Single 8K Display: Drive triple 4K, dual 6K monitors or a single 8K display for ultra-crisp visuals, boosting productivity and immersive entertainment. Please note: This dock has no built-in HDMI or DisplayPort video ports; display output is via thunderbolt ports.

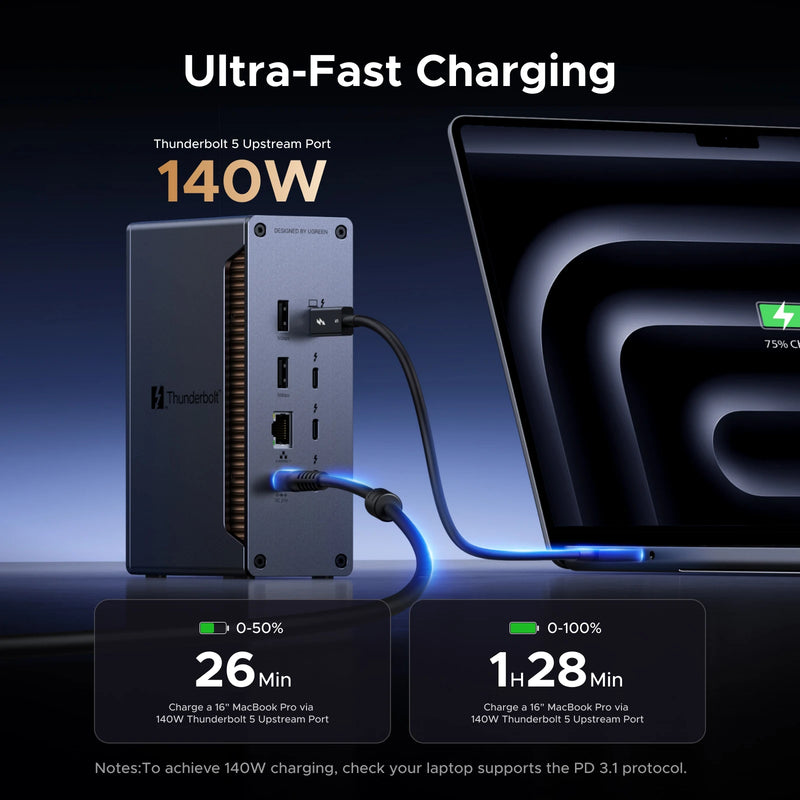

3. 140W Dynamic Charging: Dynamically allocates up to 140W to charge laptops or power multiple devices. Includes a compact 180W GaN adapter (33% smaller than traditional models) with US/EU/UK power plugs.
4. 2.5GB Ethernet & High-Speed Connectivity: Achieve 2500Mbps wired speeds with 2.5G network sharing (10G bandwidth), plus a UHS-II SD/TF 4.0 card slot (312MB/s), 5x USB ports (2 x USB-A 3.2, 2 x USB-A 3.0, 1 x USB-C 3.2) and 3.5mm Audio for seamless peripheral connections.
5. Advanced Thermal & Space-Saving Design: Engineered with a robust dual-layer aluminum chassis and internal thermal silicone to ensure peak performance without overheating during heavy loads. Dual-sided rubber pads allow for secure vertical or horizontal placement, perfectly adapting to any desk aesthetic.
IntelΒ Certification Thunderbolt 5

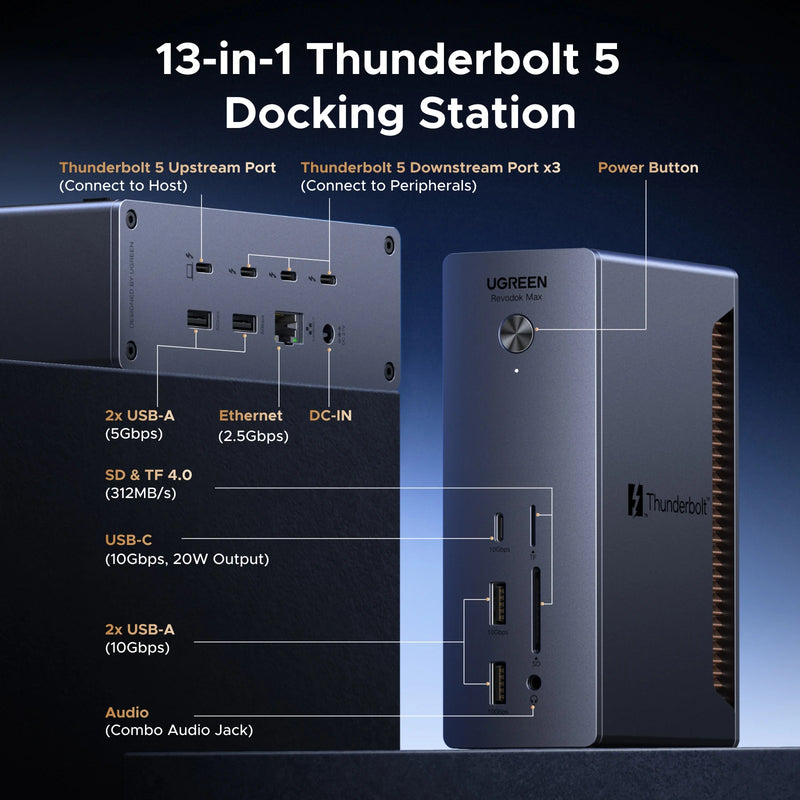

13-in-1 Docking Station
8K60Hz + 120Gbps + 140W Charging
13 Ports ExpansionΒ

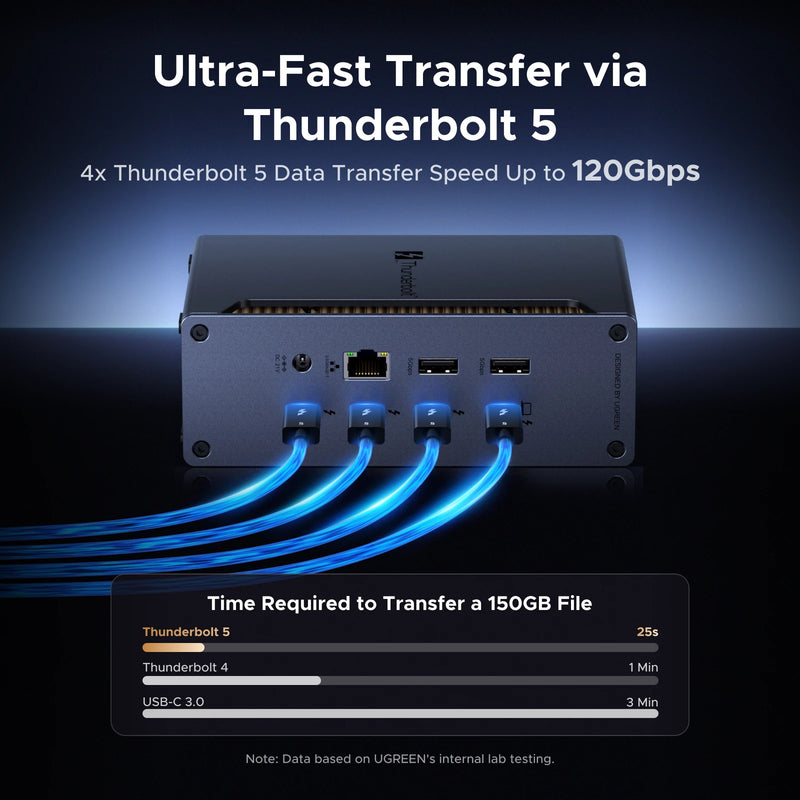

Transmission Rate Up To 120Gbps
150G file transfer in about 2 second
Dynamic Allocation Of Charging Power
Simultaneous fast charging of multiple devices

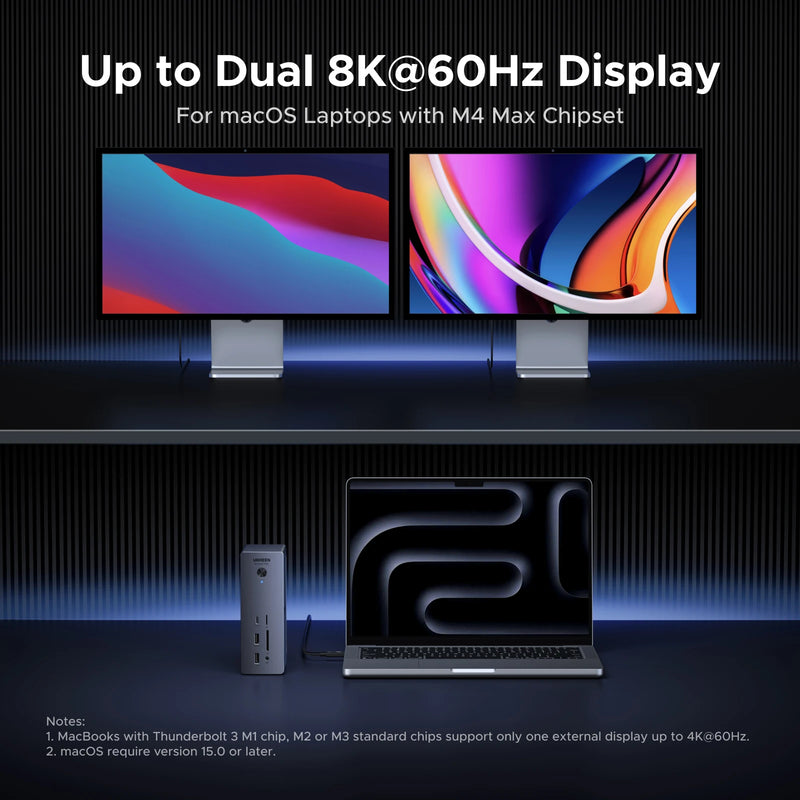

Single Display 8K60Hz, Dual Display 4K240Hz
8K large-screen movie scene feeling pull full, 4K multi-screen expansion can also realize the delicate high brush, image processing is easier than ever.

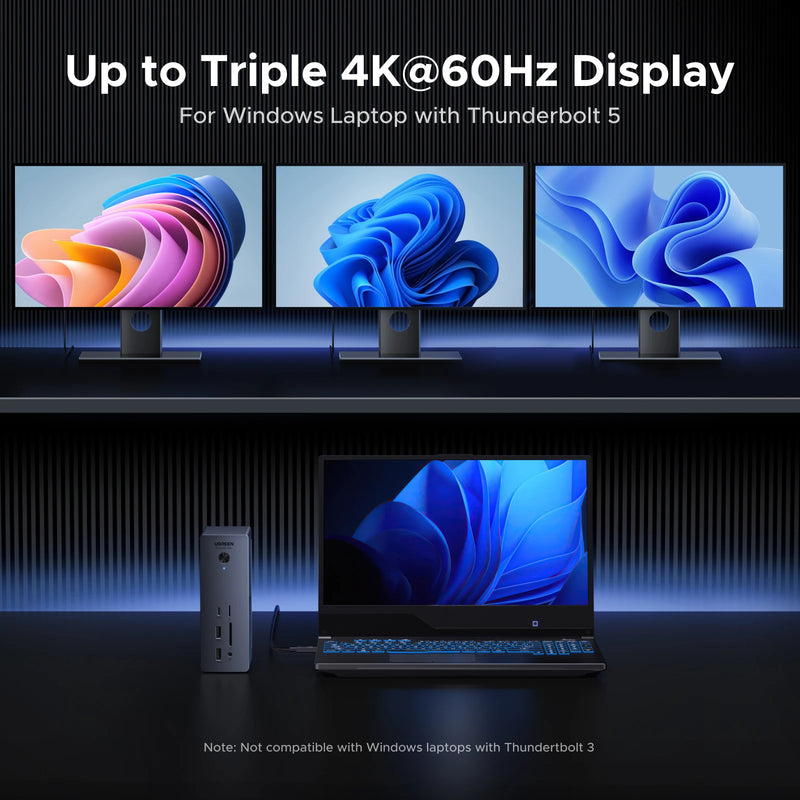

Thunderbolt Expansion - Mac Triple Screen Display
Efficient multitasking, both Win/Mac support triple display, easy to cope with AI office and complex project creation.
Multiple Display Modes
Creating a professional workstation for the Mac mini
Realize ultra-high-speed data transfer and efficiently connect all kinds of devices
Fully compatible with M1/2/3/4 Pro/Max
3xUSB3.2 Gen2 10Gbps Ports, Ultra High Speed Transmission
Features 2xUSB-A3.2 + 1xUSB-C3.2 + 2xUSB-A3.0
SD&TF Dual Card Slots
Support SD4.0, up to 312MB/s., support 2 cards work simultaneously
External Audio/Headphones
With a 3.5mm audio interface, support stereo sound effects
Heat Dissipation + Shielding Double Upgrade
Stable handling of heavy tasks
Thoughtful Design
UGREEN VS Others

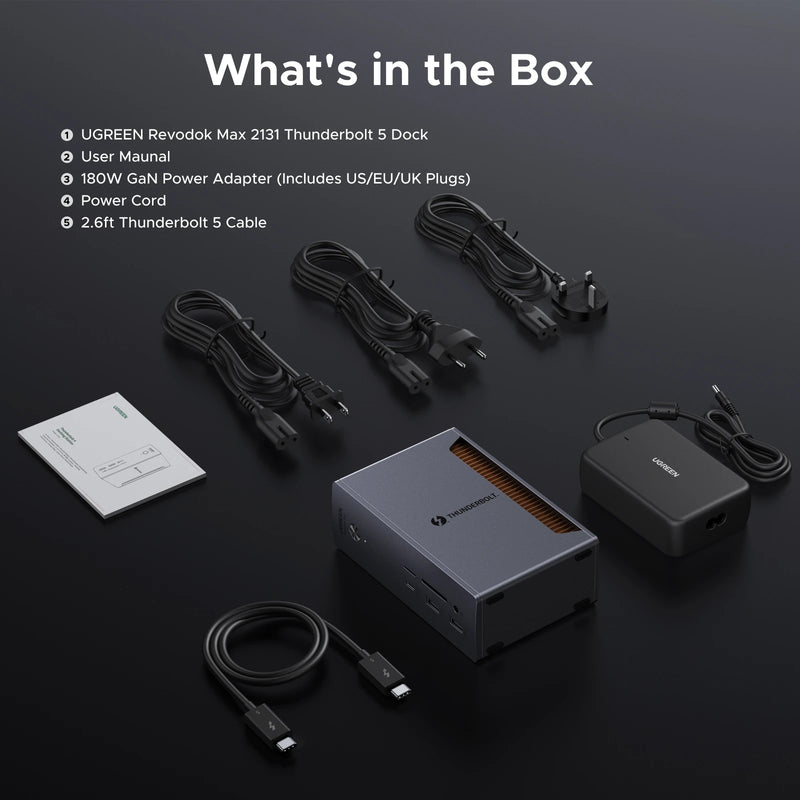

Package Display
1. Docking Station
2. DC180W Charge Adapter(EU/UK/US Plug, all in one)
3. Thunderbolt5 Cable
4. Instruction Manual
5. Warranty Card
6. Box
Q&A
