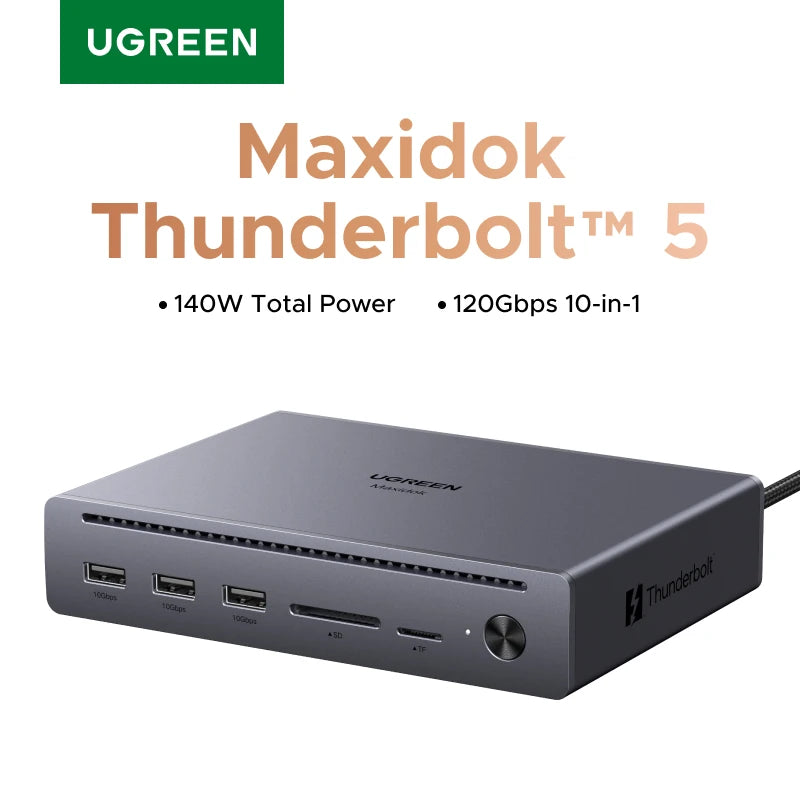

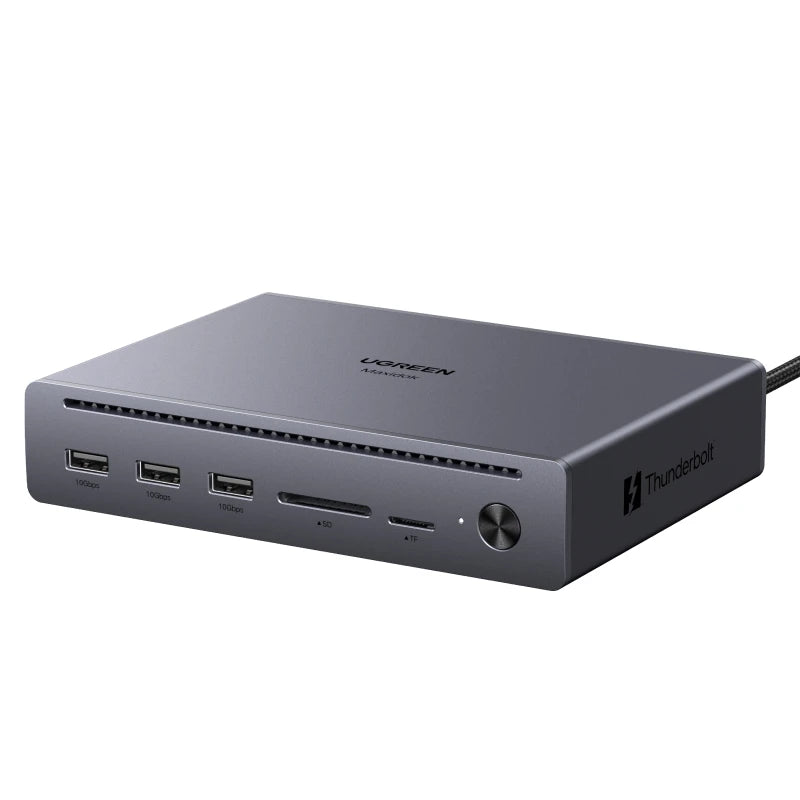

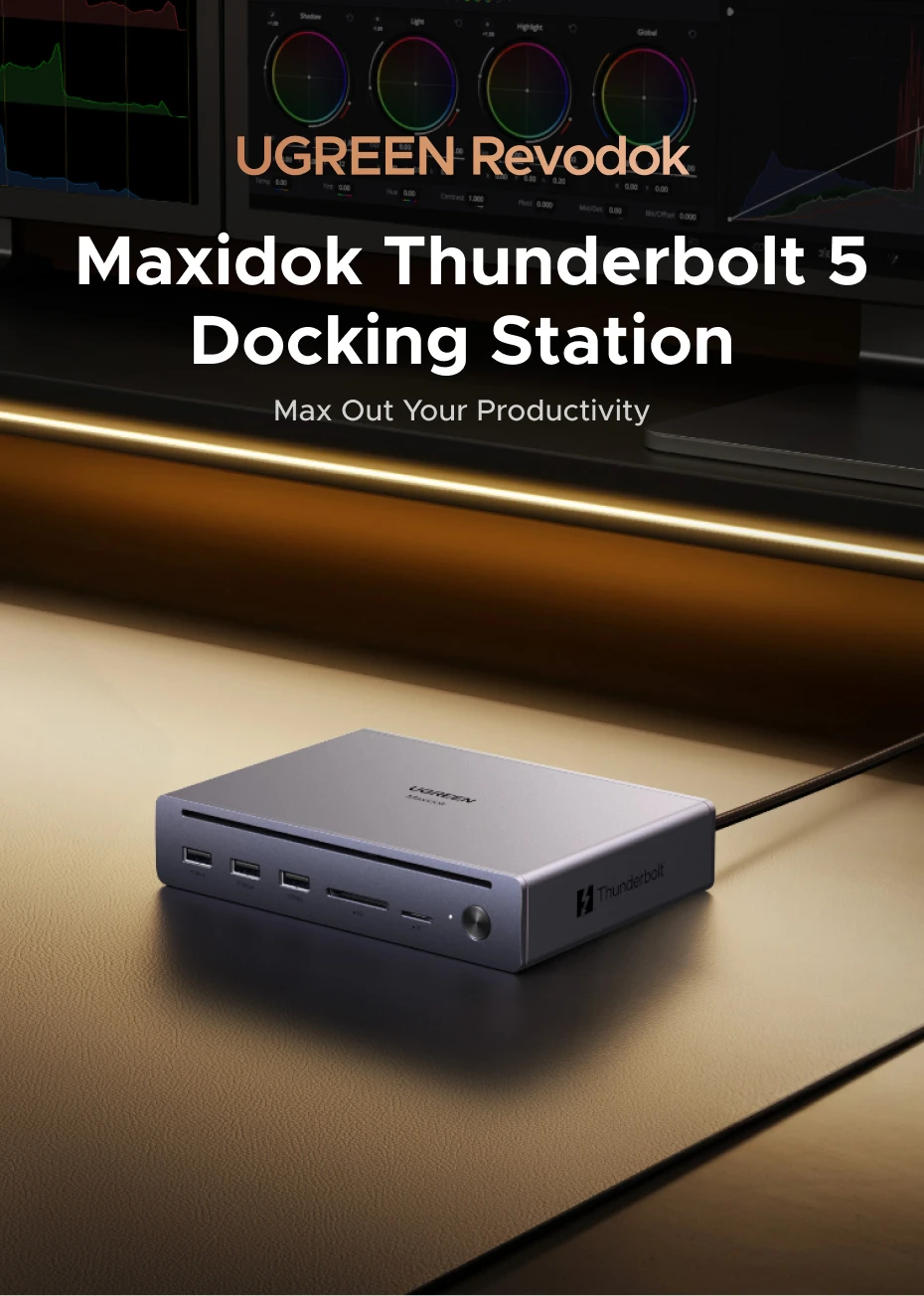

UGREEN Maxidok Thunderbolt 5 Docking Station 10-in-1 USB-C HUB 2xTBT5 140W 120Gbps 8K60Hz DP SD&TF Gigabit RJ45 for Laptop PC

SPECIFICATIONS

1xDC 5.5x2.5mm Input: Supports 100-240V wide voltage input. Includes a DC 24V/5.83A(140W) power adapter. Provides power to both the docking station and the connected host device.

1xDisplayPort: Compliant with DisplayPort 2.1, supporting HDCP 1.4/2.3, HDR, and DSC. Delivers resolutions up to 8K@60Hz, and is backward compatible with lower resolutions, including 4K@240/120/60Hz, 2560x1440@480/360/240/144/120/60Hz, and 1080P@480/360/240/144/120/60Hz. Designed for use with DisplayPort-enabled monitors, TVs, and other display devices.

1xMicro SD Port: Supports SD 3.0 standard with theoretical transfer speeds of up to 170MB/s. Supports simultaneous dual-card reading. Designed for use with Micro SD cards.

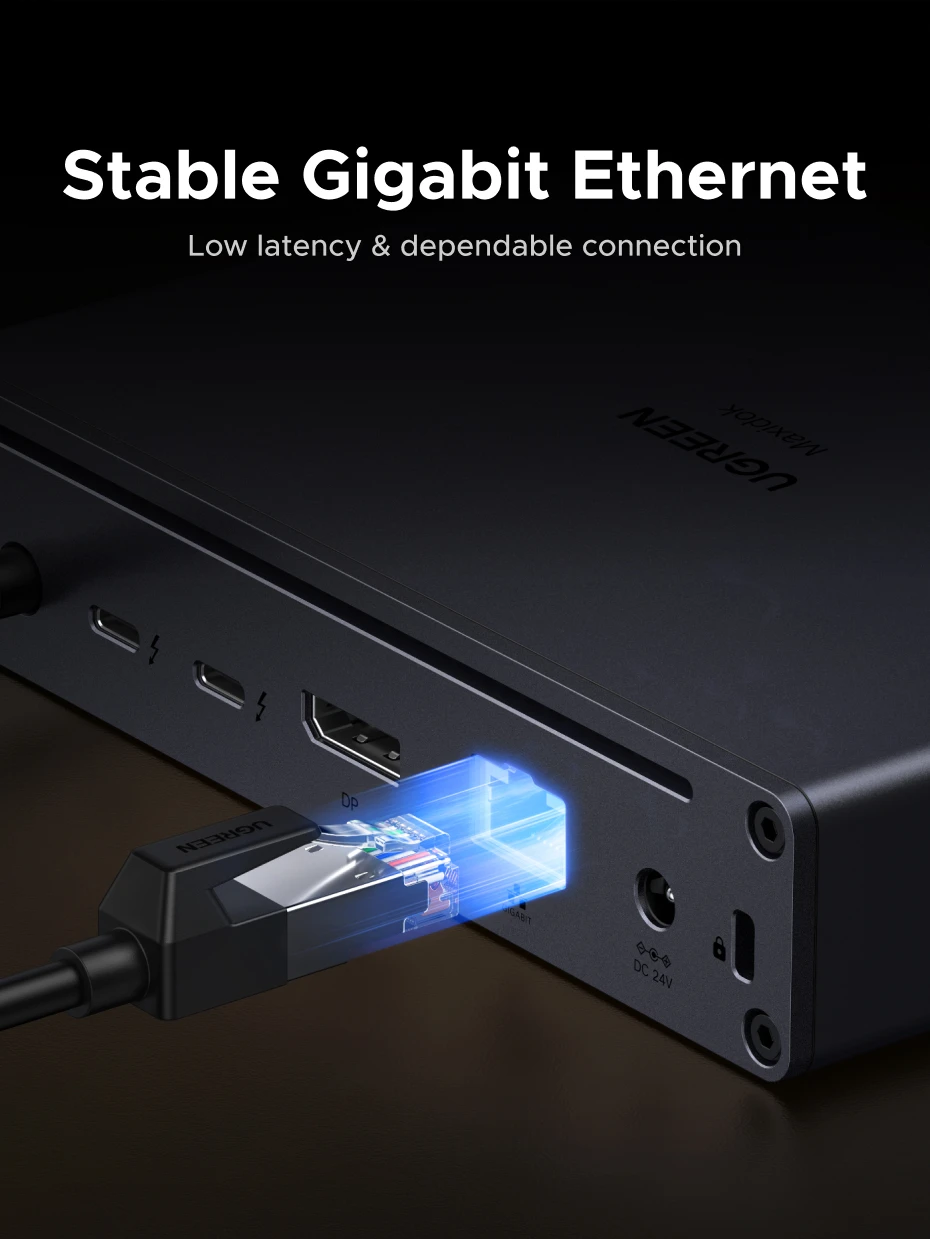

1xRJ45 Ports: 1000/100/10Mbps

1xSD Port: Supports SD 3.0 standard with theoretical transfer speeds of up to 170MB/s. Supports simultaneous dual-card reading. Designed for use with SD cards.

1xTBT5 Upstream Plug: Data transfer rates up to 80Gbps, with video bandwidth reaching up to 120Gbps.

2xTBT5 Downstream Ports: Compliant with the Thunderbolt 5 standard, delivering a total bandwidth of up to 80Gbps, with video bandwidth reaching up to 120Gbps. Backward compatible with USB4, Thunderbolt 4, and Thunderbolt 3. Supports daisy chaining for device expansion. Provides up to 5V/3A power output. PCIe bandwidth up to 64Gbps. Supports resolutions up to 8K@60Hz. Designed for use with host devices such as laptops and computers.

3xUSB3.2-A Ports: Compliant with USB 3.2 Gen 2, delivering data transfer speeds of up to 10Gbps. Backward compatible with USB 3.0, 2.0, and 1.1 standards. Does not support BC 1.2 charging. Suitable for connecting USB devices such as keyboards, mice, and external hard drives.

Brand Name: UGREEN

Built-in Cable Length: 0.8m

Button Function: Power Button: Turns all docking station functions on or off.

Certification: CE,FCC,RoHS

Compatible PC Devices: Laptop

Compatible Systems: Windows,MacOS

DC Power Plug: Includes EU, US, and UK plug types, all included in the package.

Display Output Modes: Windows: Supports MST (Multi-Stream Transport), up to 3 external displays Display modes: A+A+A+A, A+B+B+B, A+B+C+D (including the built-in screen + 3 external displays). Up to dual 8K@60Hz (2 displays). Up to triple 4K@144Hz (3 displays). macOS: Supports MST (Multi-Stream Transport), up to 2 external displays Display modes: A+A+A, A+B+B, A+B+C (including the built-in screen + 2 external displays). Up to dual 8K@60Hz (2 displays).

Dolby Vision & Dolby Atmos: Support

Funtion: Card Reader,RJ45,DP,USB-A,USB-C,Thunderbolt,Charging

High-concerned chemical: none

Interface Type: USB-C HUB

LED Indicator: Solid green when power is properly connected. Turns solid blue when a signal is detected.

Model Number: U712

Origin: Mainland China

Package: Yes

Ports: 10

Power Supply: Requires DC power (24V/5.83A, 140W included). Not compatible with PD chargers.

Standard: Thunderbolt5

Supported Cable: Thunderbolt 5 (TBT5): ≤ 2m, DisplayPort (DP): ≤ 5m (28AWG).

Supported Systems: Windows 11 (23H2) or later, macOS 14.5 or later. Other operating systems are not supported.

Variable Refresh Rate (VRR): Supports VRR, G-Sync, and FreeSync.

About this item:

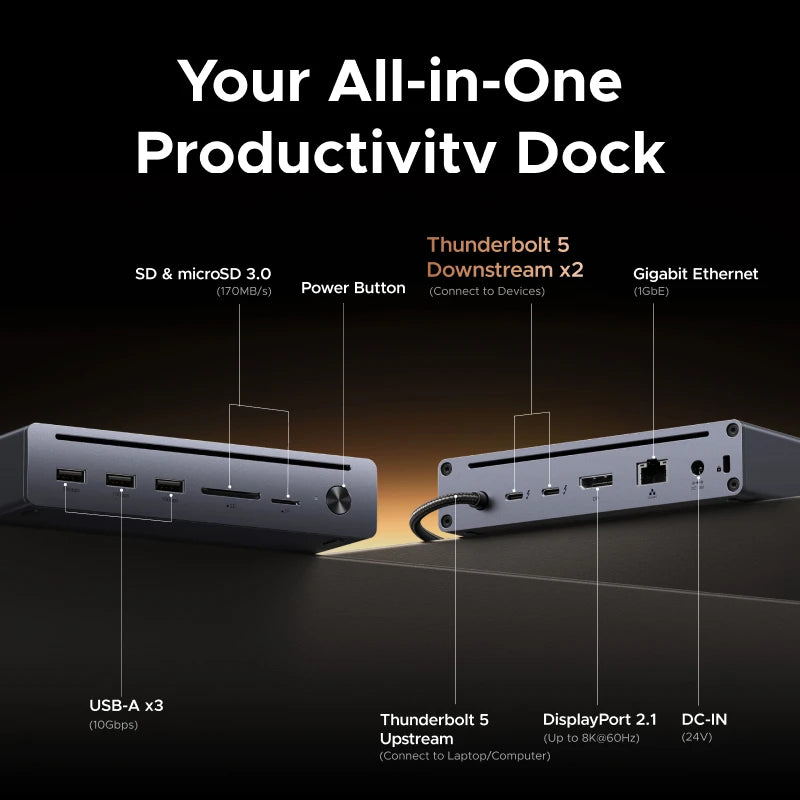

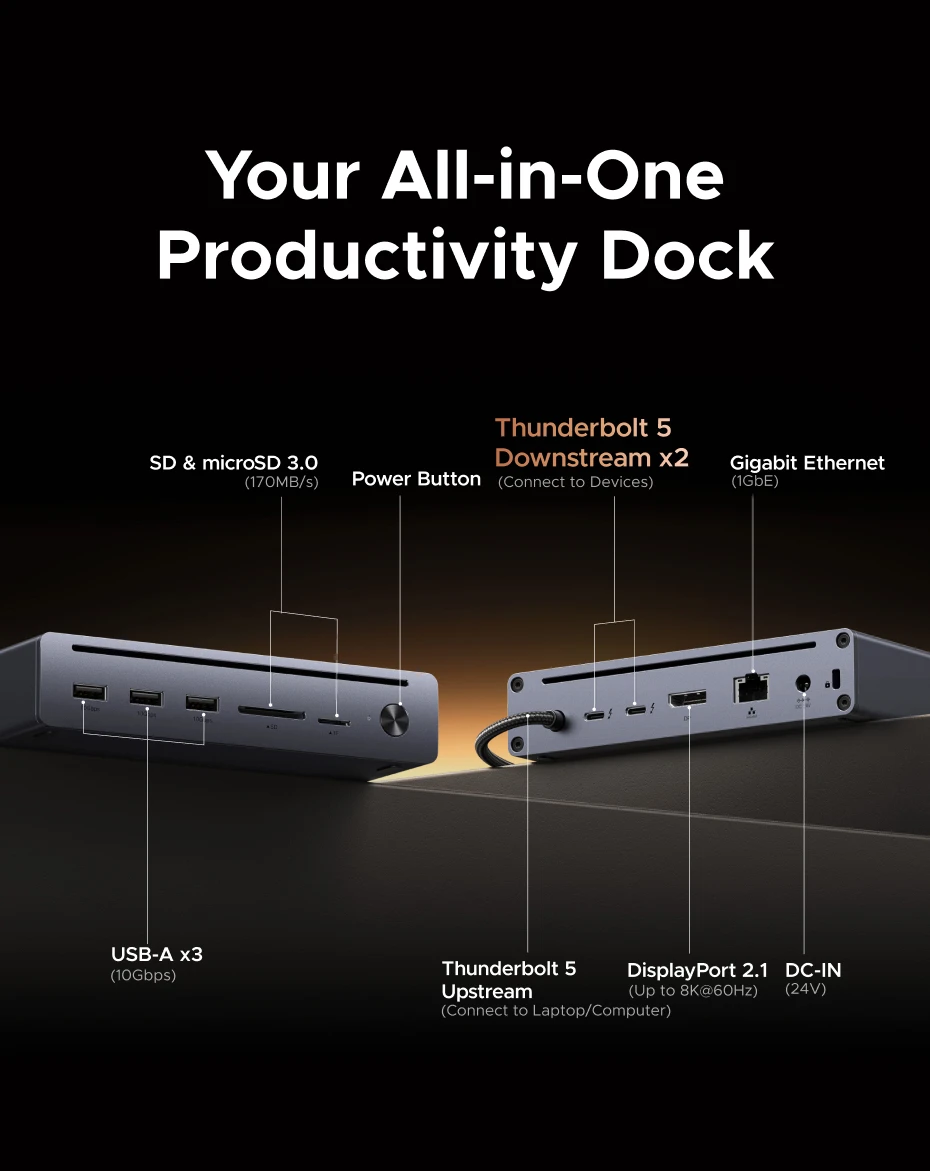

1. 10-in-1 Essential Connectivity: Equipped with 3× 10Gbps USB-A, SD/TF 3.0 dual card reader, Gigabit Ethernet, DP2.1, and 2× TBT5 downstream—covers all daily peripheral, networking, and display needs.

2. 120Gbps Thunderbolt 5 Speed: Intel-certified Thunderbolt 5 reaches 120Gbps uni-directional/80Gbps bi-directional speed, transferring a 6GB 4K video in about 1 second. Backward compatible with Thunderbolt 4/3 and USB4.

3. 8K Multi-Display for Demanding Workflows: Supports single 8K@60Hz, dual 6K@60Hz, or triple 4K@120Hz via DP2.1 and 2×TBT5. Whether you're editing video or debugging code, expand your workspace for seamless multitasking.

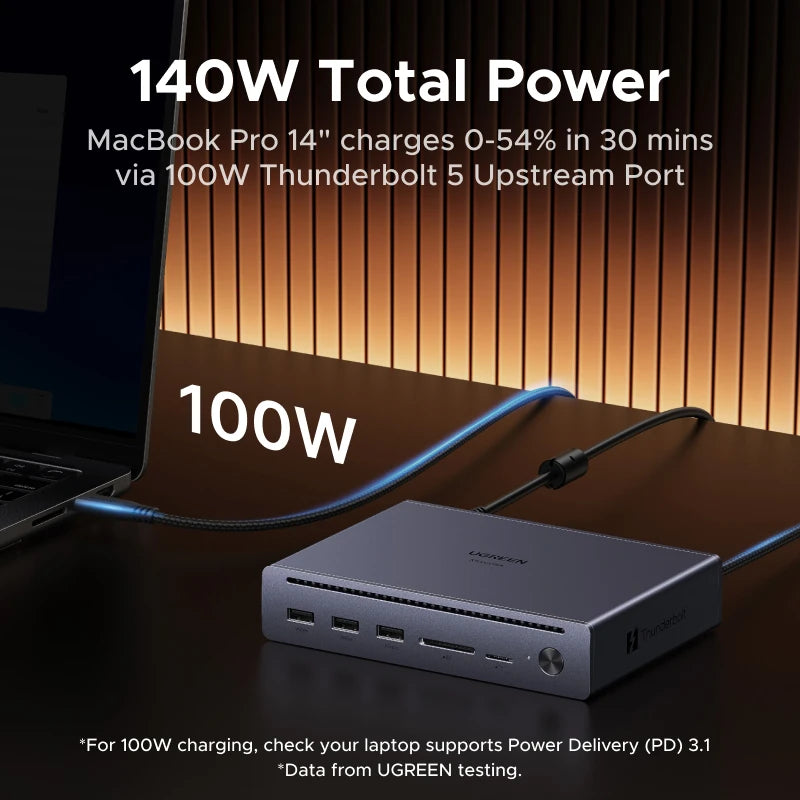

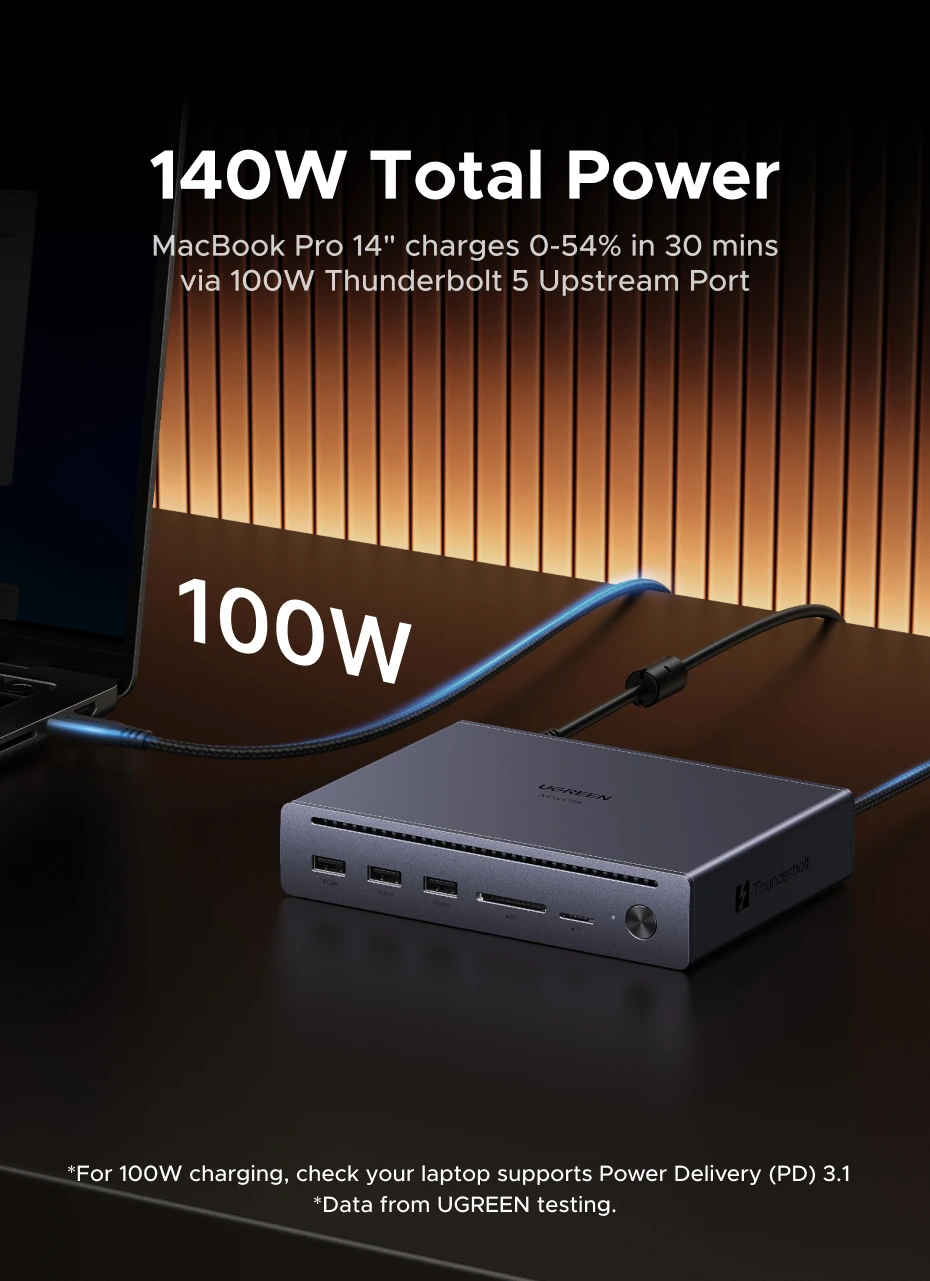

4. 140W Total Power: Provides up to 100W PD charging for power-hungry laptops like the 16-inch MacBook Pro, even at full load. Keeps your workflow smooth without battery interruptions.

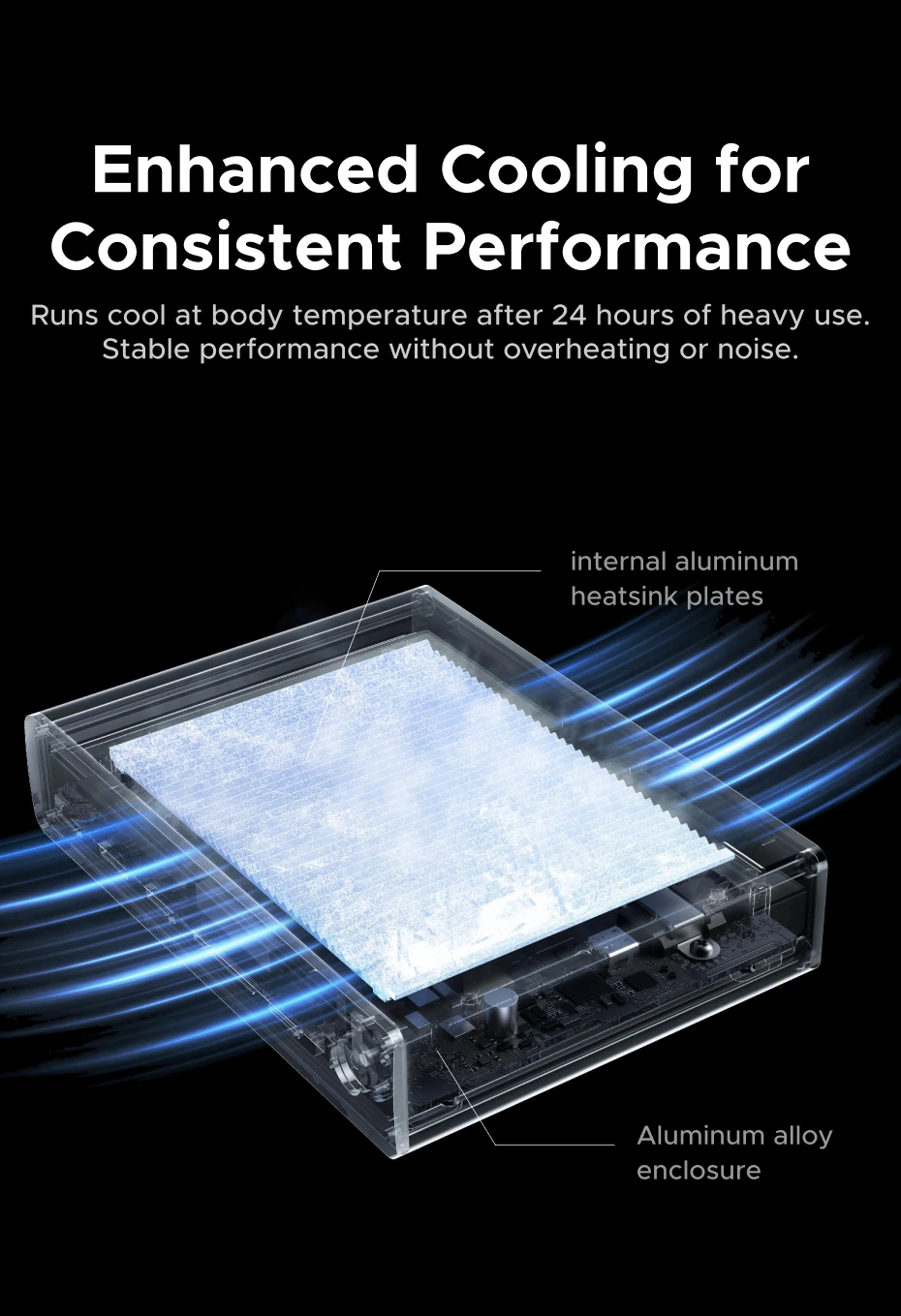

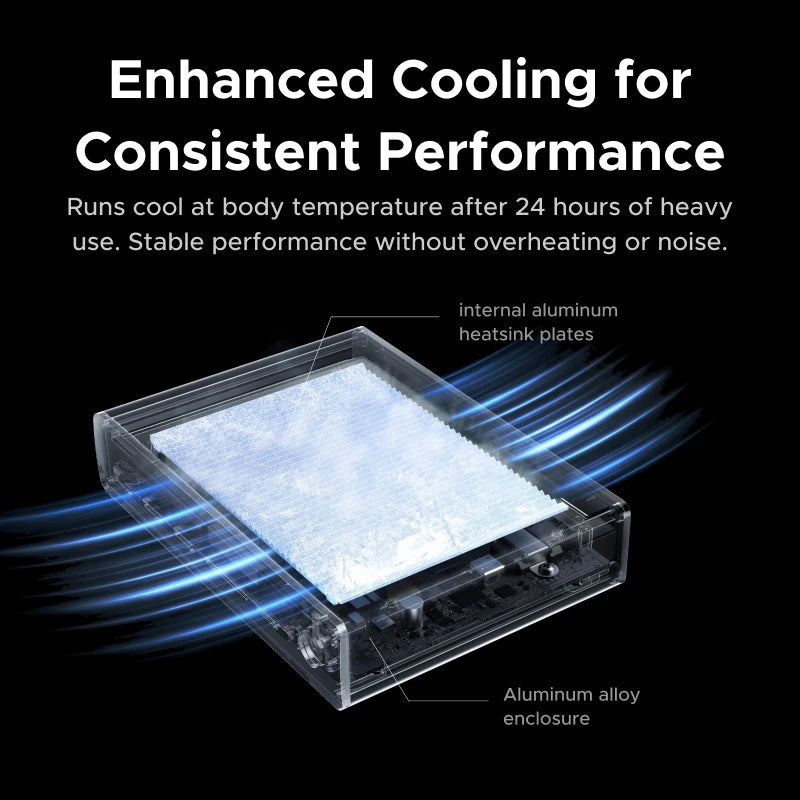

5. Efficient Thermal Design – Engineered with aluminum alloy construction and internal thermal management to maintain stable performance during extended use. Fanless design ensures silent operation, equipped with a security lock for enhanced safety.
