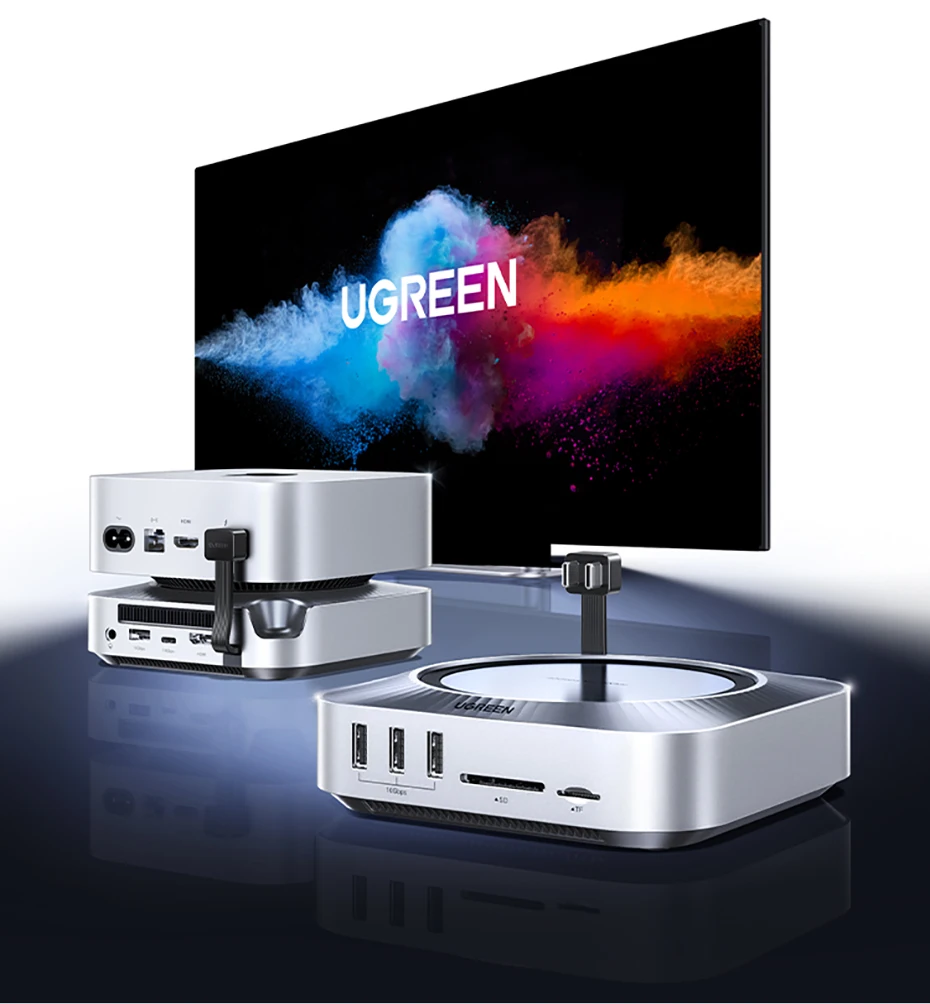

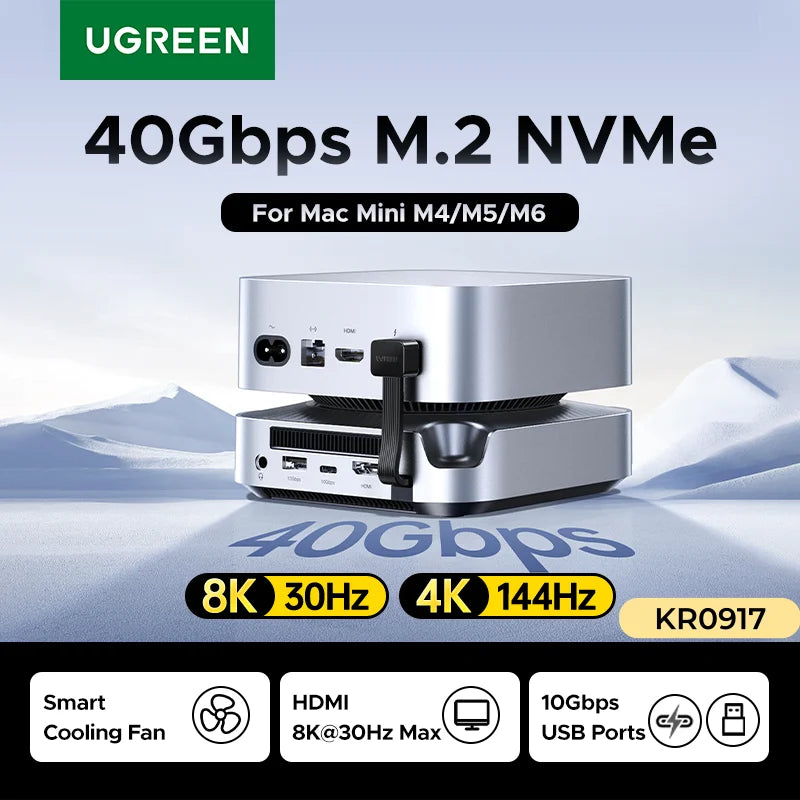

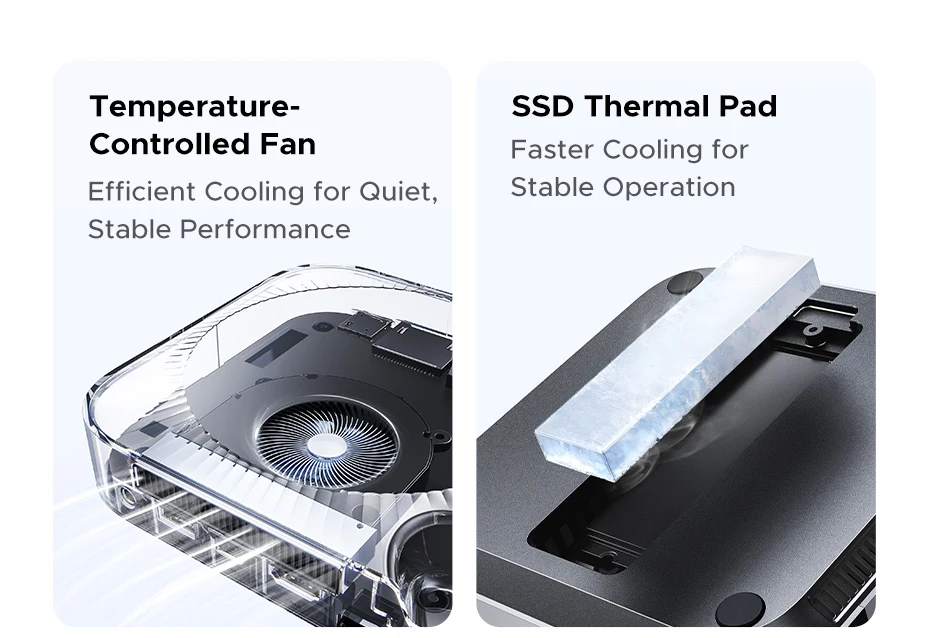

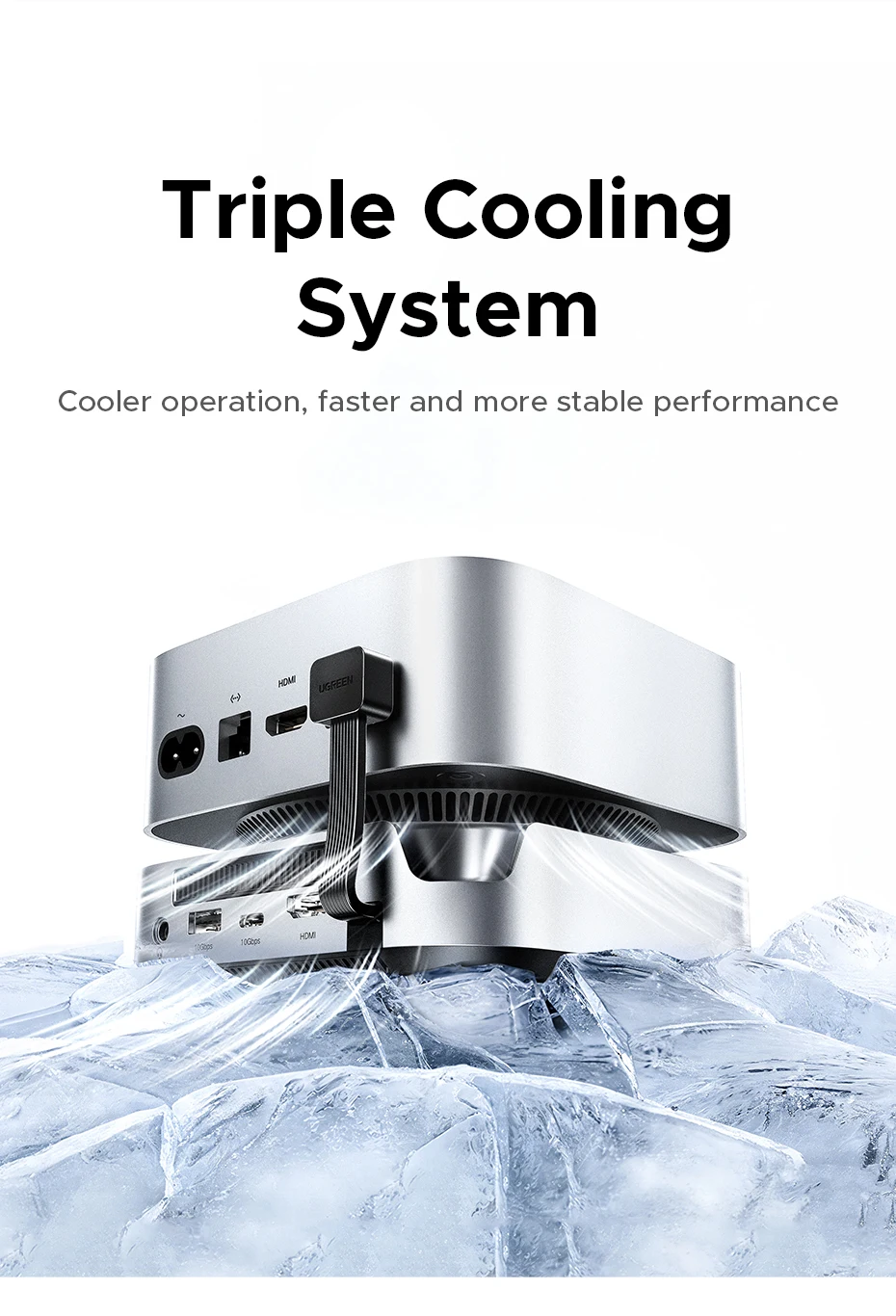

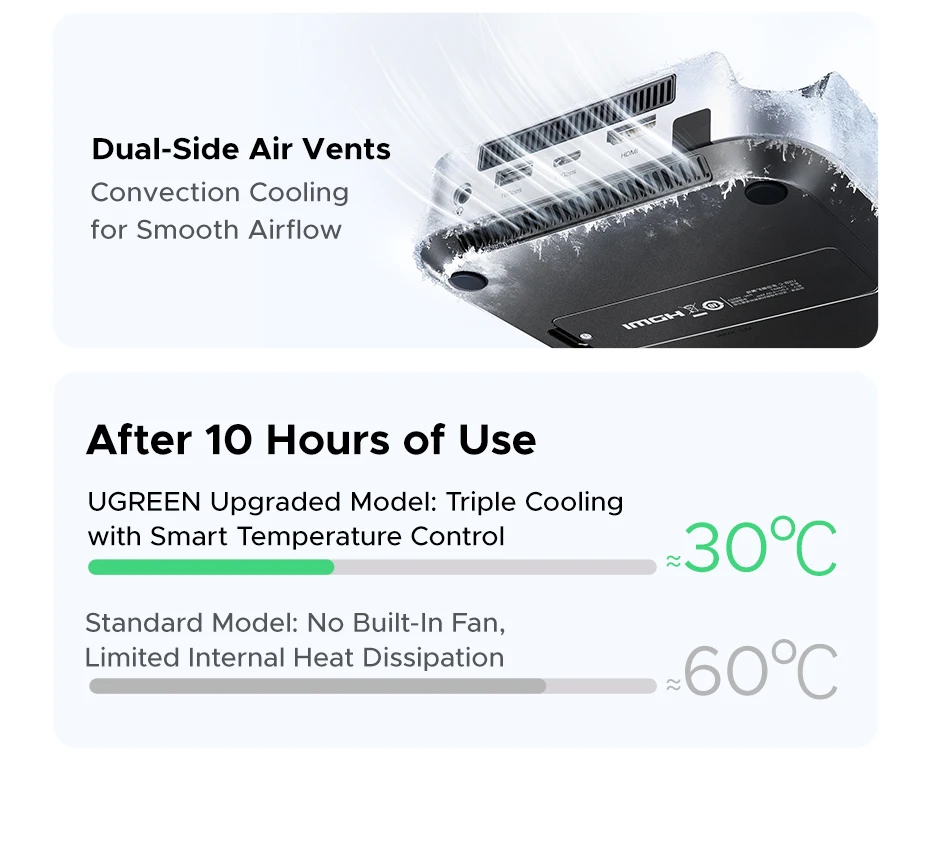

UGREEN 40Gbps Mac Mini Docking Station M6/M5 Pro/M4 Pro/M4 M.2 NVMe SSD Case 8K30Hz HDMI 10Gbps Data Ports SD&TF Built-in Fan

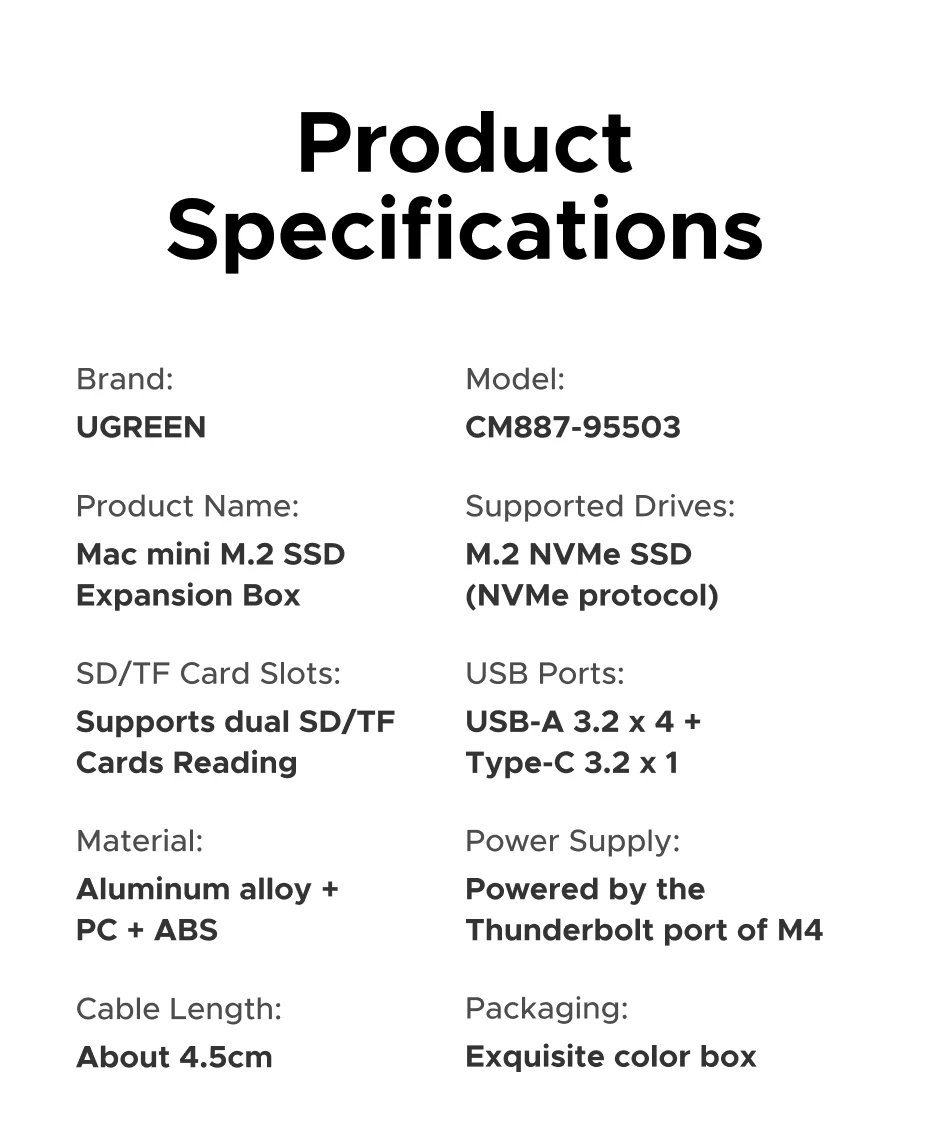

SPECIFICATIONS

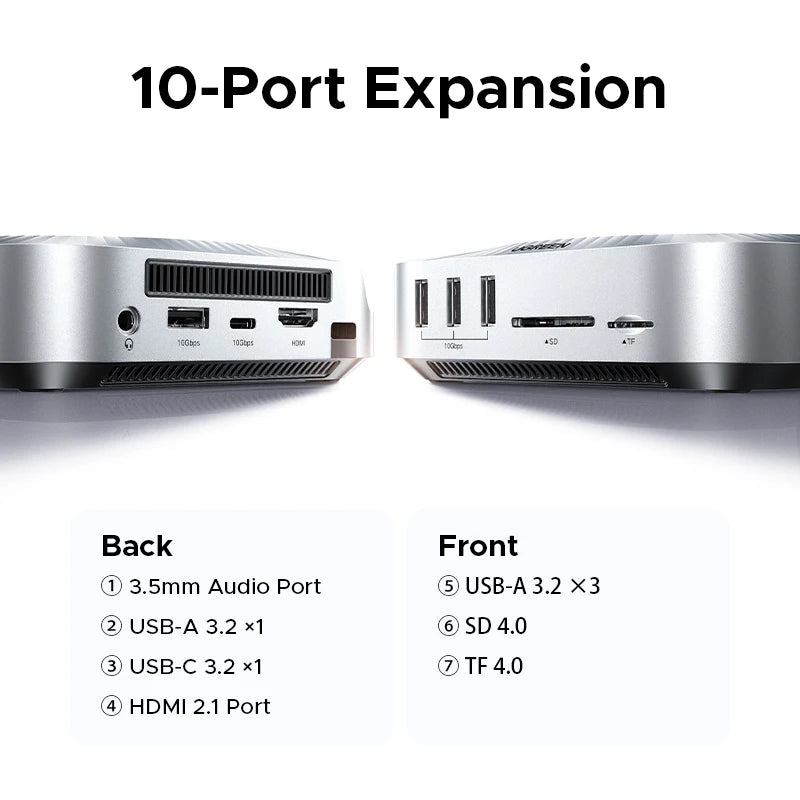

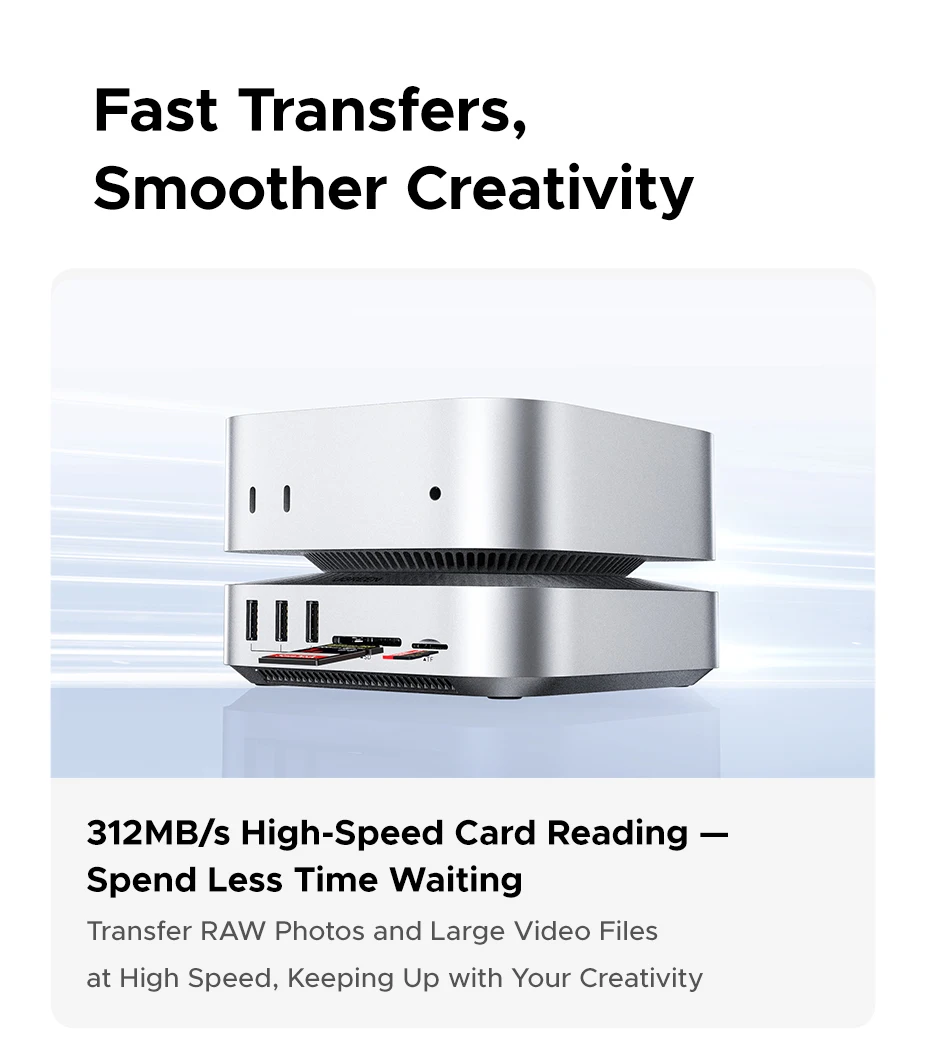

1xSD Card Slot: Used to connect SD cards, compliant with the SD 4.0 standard, with a maximum transfer rate of 312MB/s, and supports simultaneous read and write of two cards.

1xTF Card Slot: Used to connect TF cards, compliant with the SD 4.0 standard, with a maximum transfer rate of 312MB/s, and supports simultaneous read and write of two cards.

1xUSB-C Data Port: It complies with the USB 3.2 Gen2 standard, with a theoretical maximum transfer rate of 10Gbps, and is backward compatible with USB 3.0/2.0/1.1.

4xUSB-A Data Ports: It complies with the USB 3.2 Gen2 standard, with a theoretical maximum transfer rate of 10Gbps, and is backward compatible with USB 3.0/2.0/1.1.

Brand Name: UGREEN

Certification: CE,FCC,RoHS

Compatible Devices: Mac Mini M6/M5 Pro/M4 Pro/M4

Compatible PC Devices: Mac Mini

Compatible Systems: MacOS

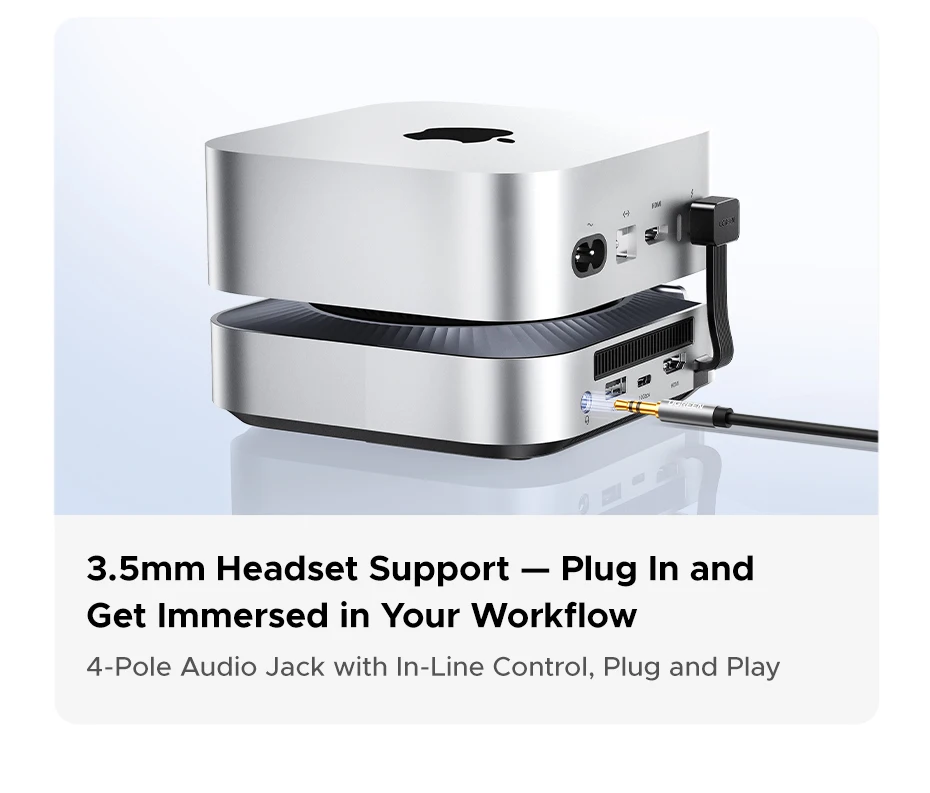

Funtion: Card Reader,3.5mm,USB-A,USB-C,HDMI-Compatible

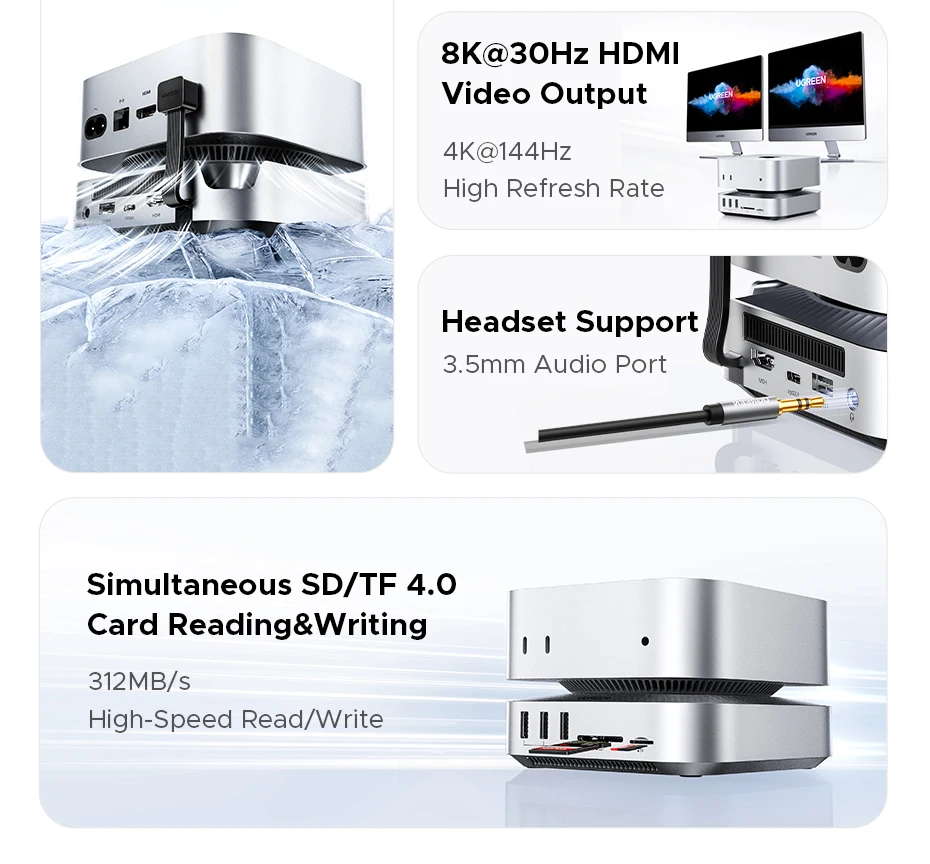

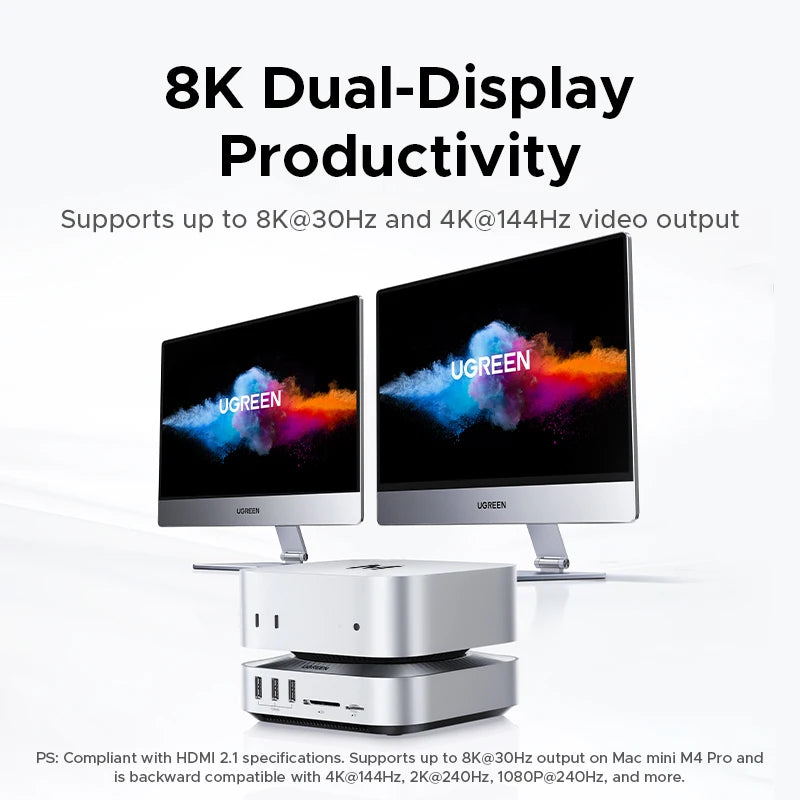

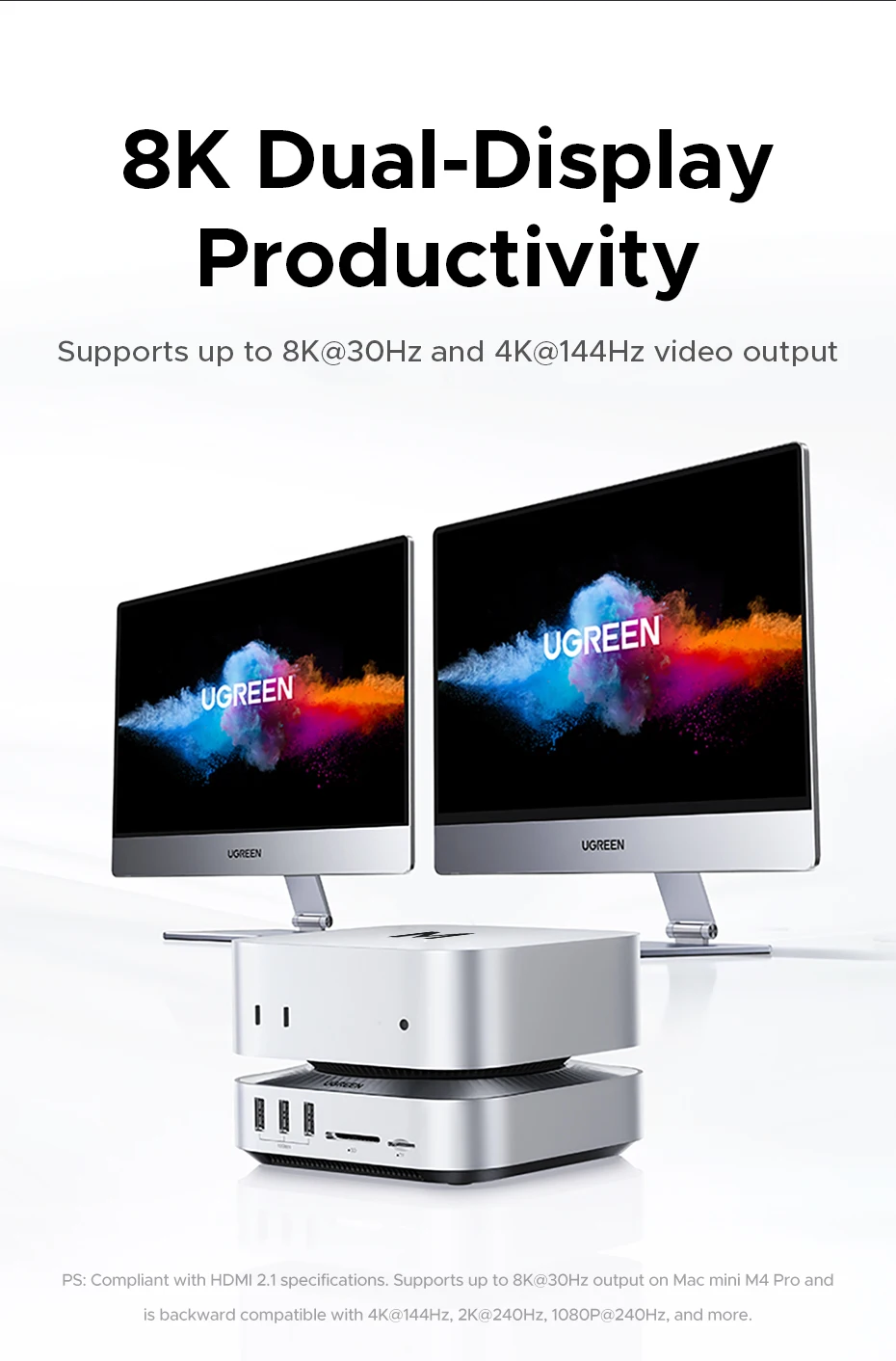

HDMI Port: Compliant with HDMI 2.1 specifications, it supports video resolution output up to 8K 30Hz, and is backward compatible with 4K 144Hz/120/60Hz, 2K 240/144/120/60Hz, 1080P 240/120/60Hz, 720P, 480P, etc. It supports HDCP/HDR, but does not support CEC/ARC/eARC, or DDC/CI.

High-concerned chemical: none

Input Plug: 2xUSB-C male connectors, One port is used for transferring video and USB data, and the other is for the PCIe hard drive, used to connect the host device (Mac mini). It complies with the DP 1.4 specification, supports video input at a maximum resolution of 8K 30Hz, and is backward compatible with lower resolutions; it complies with the USB 4.0 standard, with a theoretical maximum speed of 40Gbps, and is backward compatible with USB 3.2/3.0/2.0/1.1.

Interface Type: USB Type-C

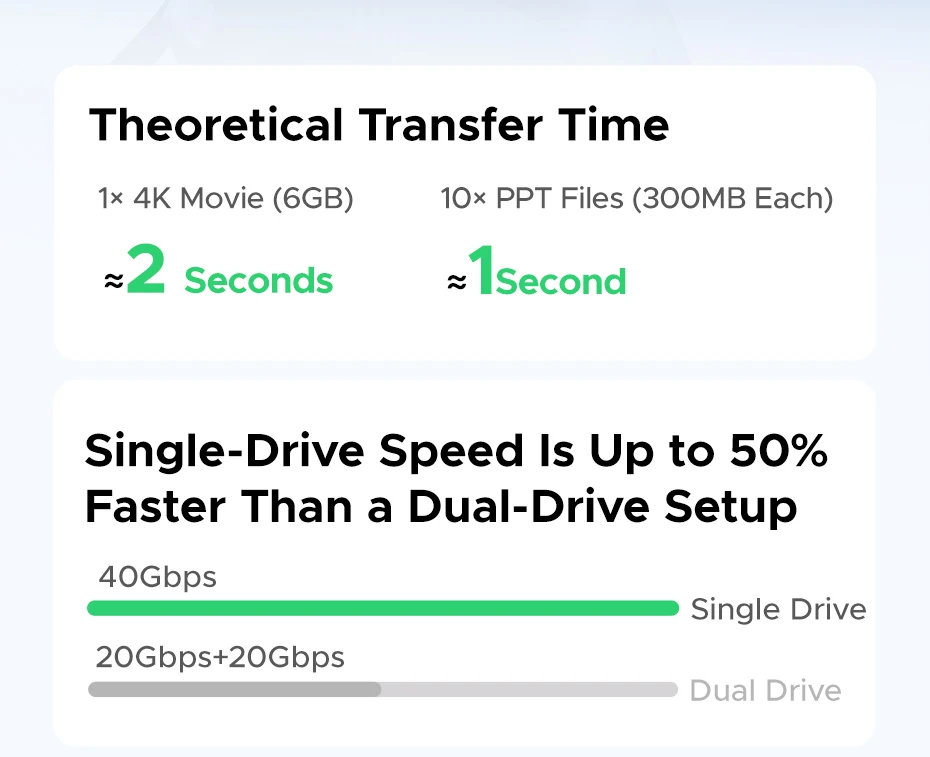

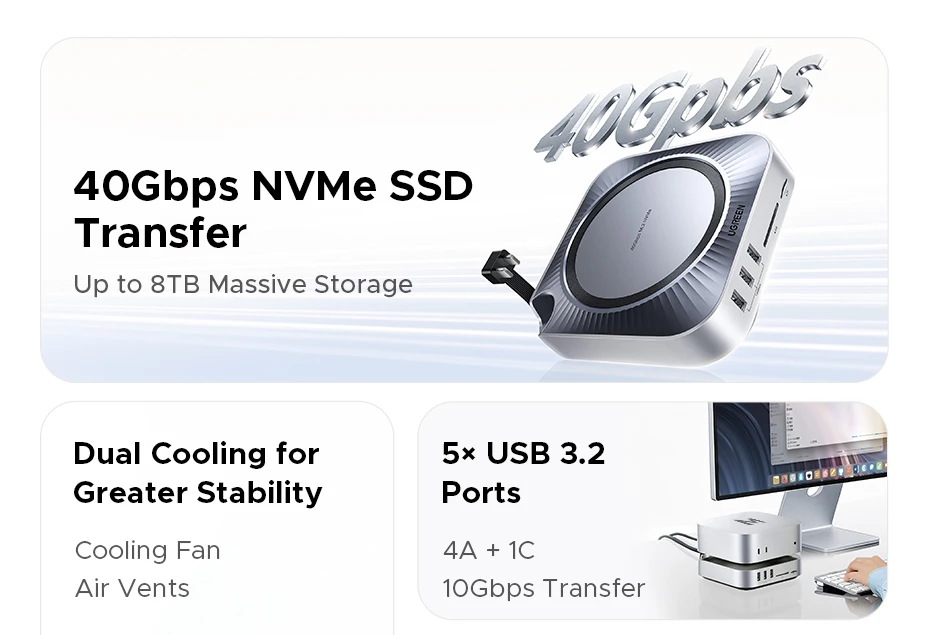

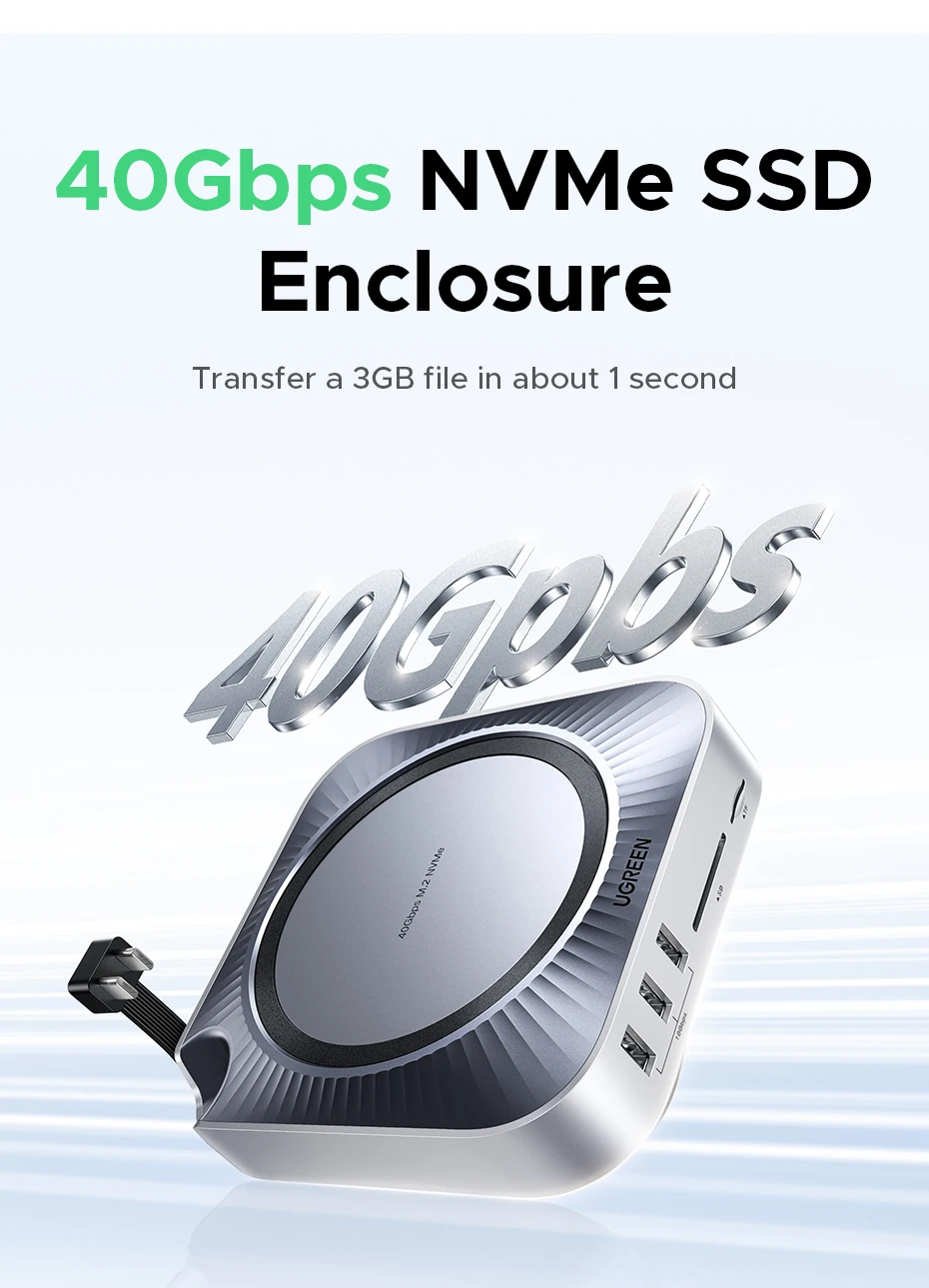

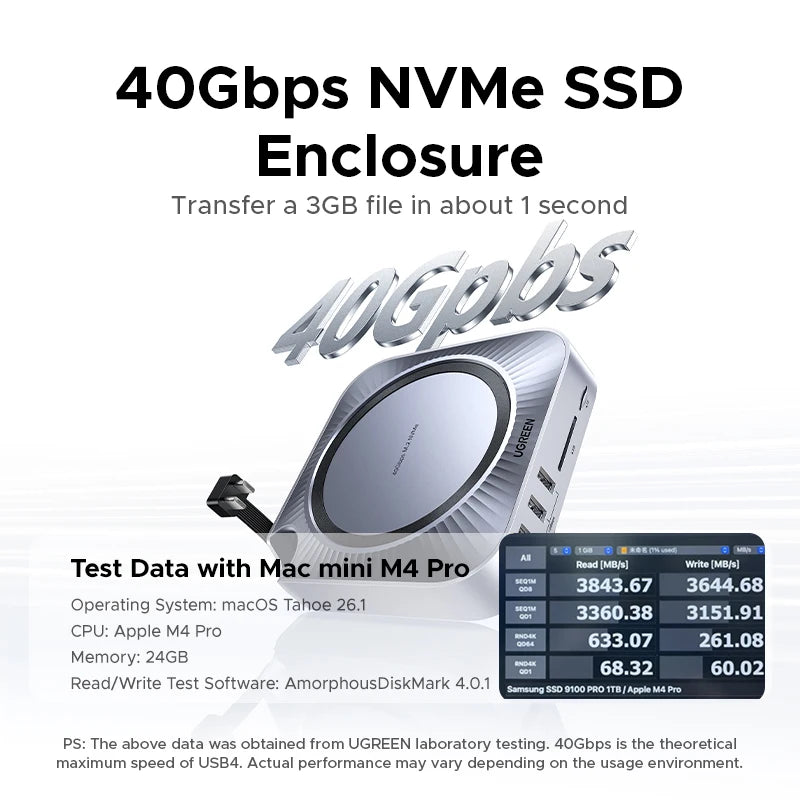

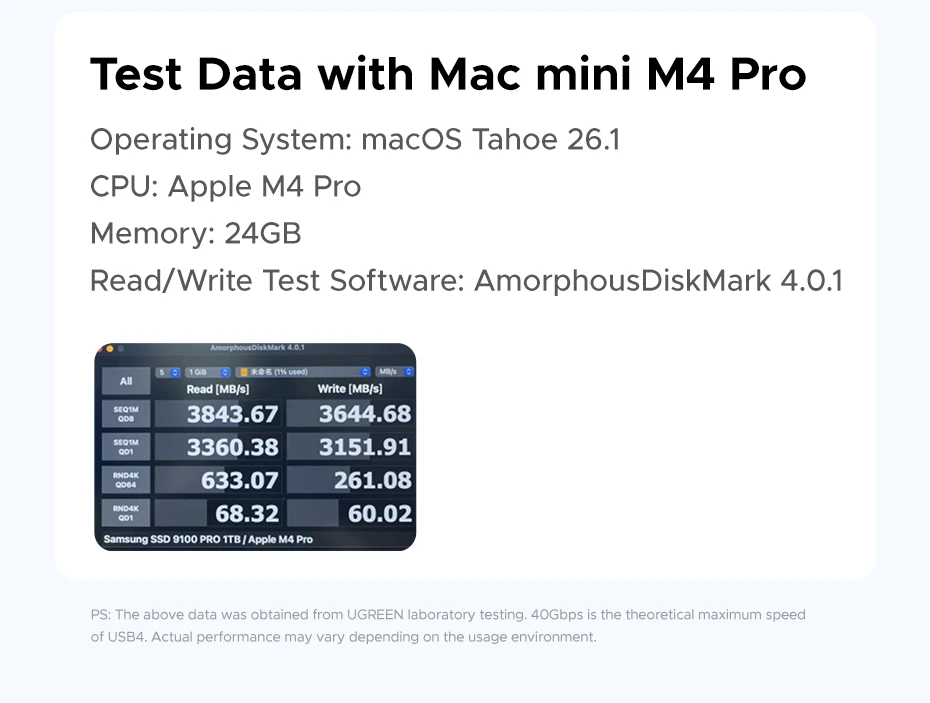

M.2 NVMe SSD Slot Transfer Speed: 40Gbps

Material: Plastic,Metal,others,aluminum

Model Number: CM887

Origin: Mainland China

Package: Yes

Plug Type: None

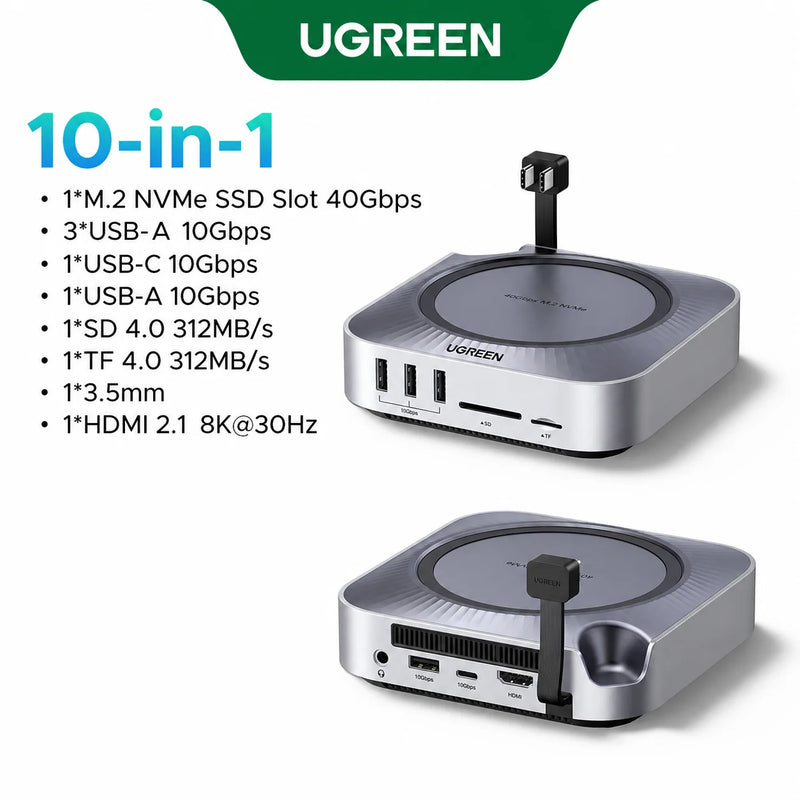

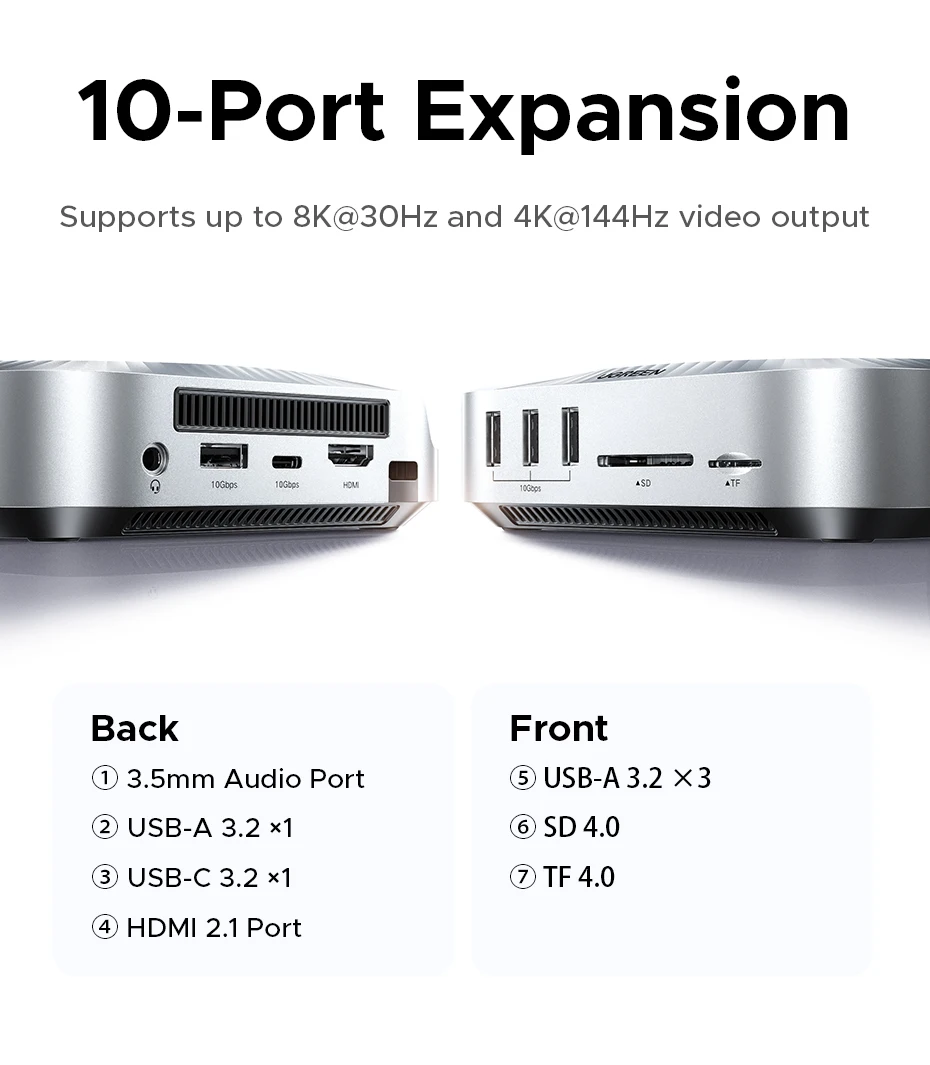

Ports: 10

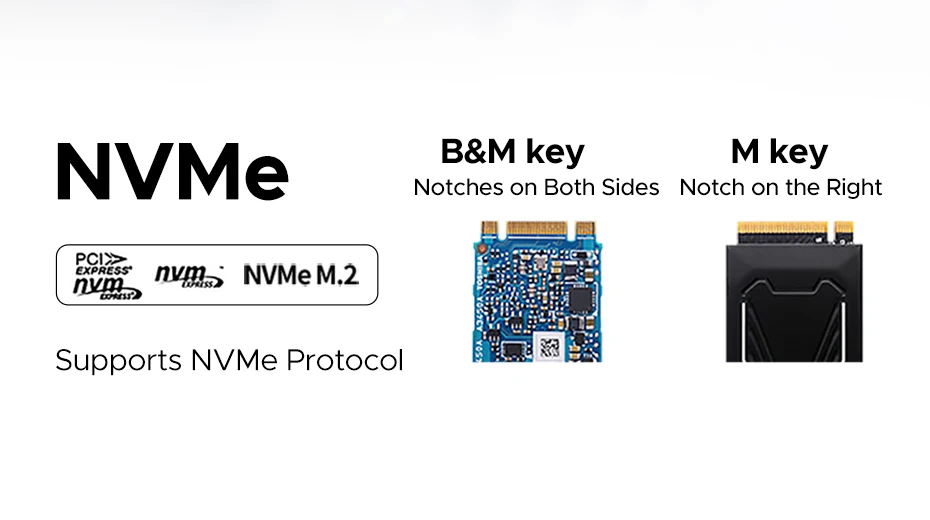

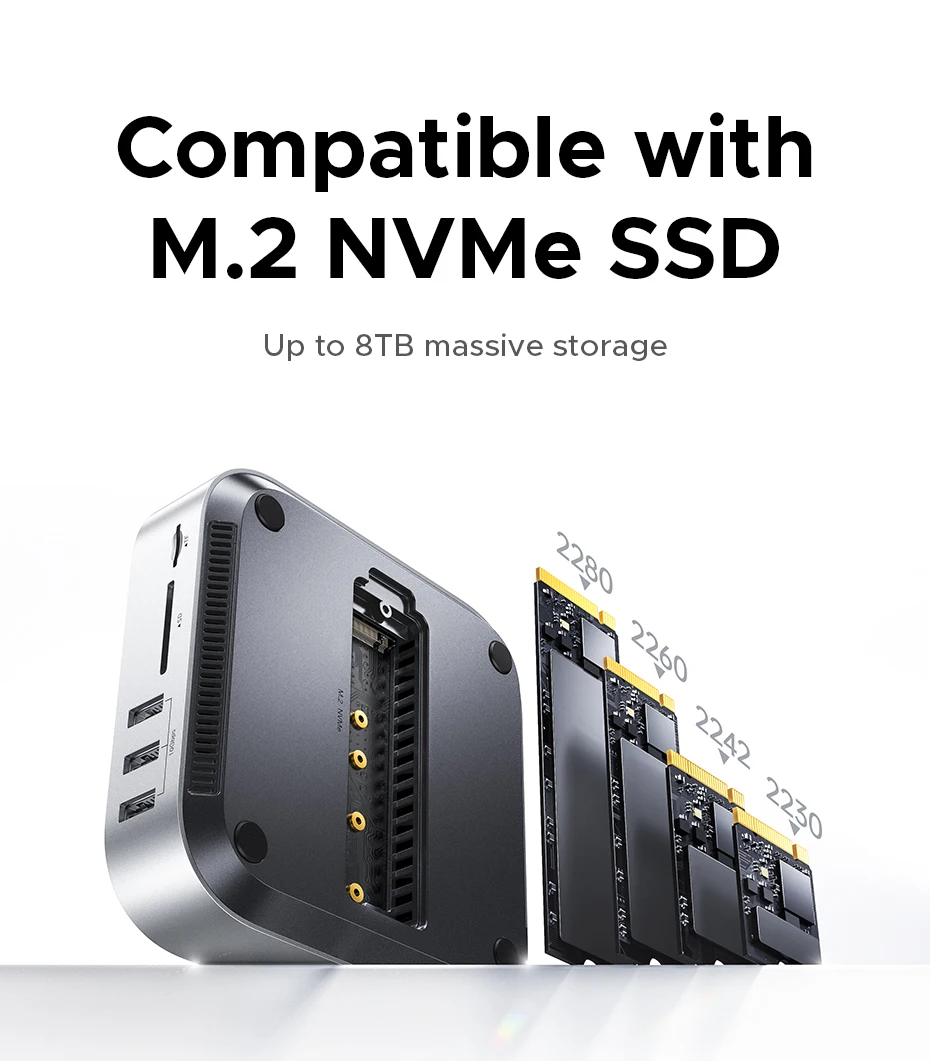

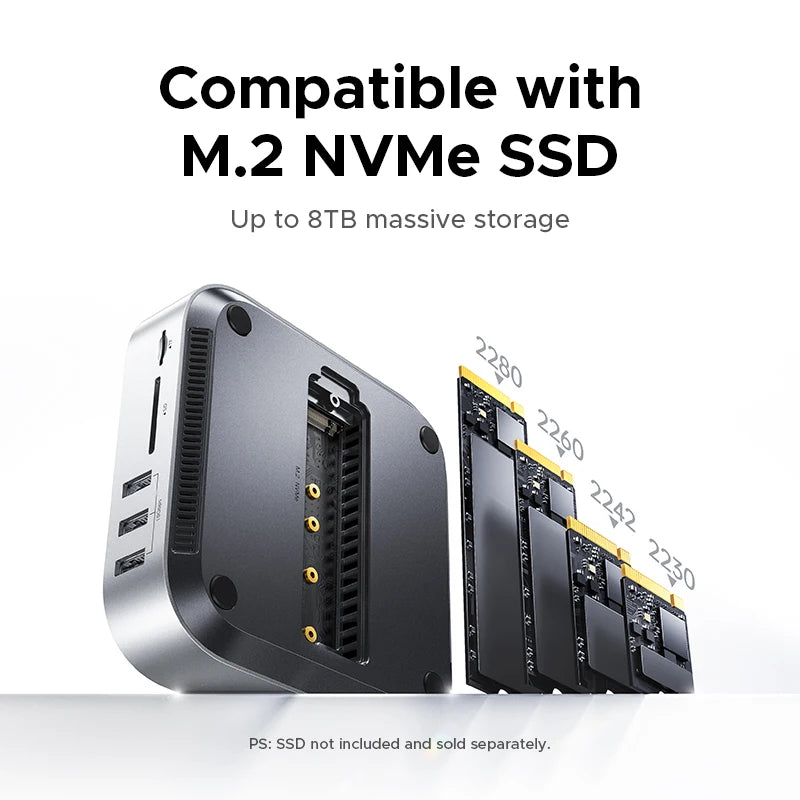

SSD/HDD Slot: M.2

Standard: USB 3.2 Gen2
