SPECIFICATIONS
Brand Name: UGREEN
Compatible PC Devices: Laptop
Compatible Systems: Windows
Funtion: 3.5mm,Card Reader,USB-A,RJ45,USB-C,Charging,HDMI-Compatible
High-concerned chemical: none
Interface Type: USB Type-C
Material: Metal,Plastic,others
Origin: Mainland China
Package: Yes
Plug Type: None

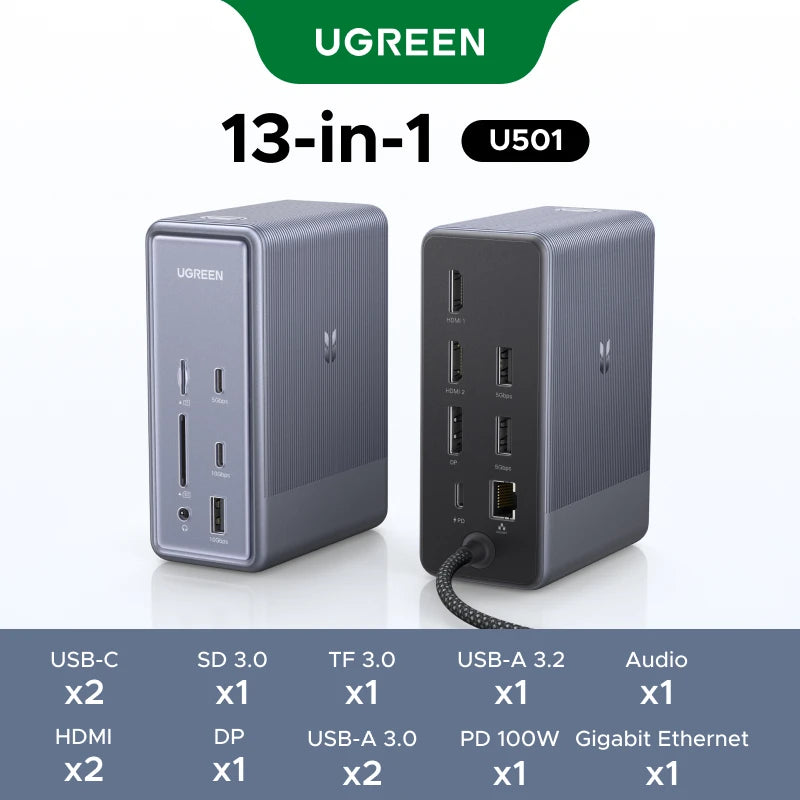

Ports: 13
Product Name: USB C HUB, USB HUB, Docking Station, USB Splitter
Standard: USB 3.2 Gen2
Input:
USB-C 3.2 Male (Host): Compliant with USB 3.2 standard, with a maximum total transfer rate of 10Gbps. Backward
compatible with USB 3.0/2.0/1.1 standards. Supports BC 1.2 fast charging protocol.
USB-C Female (PD Charging): Supports PD 3.1 fast charging protocol, with a maximum power input of 140W. No data
transfer function.
ย
Output:
2 ร HDMI Female: Compliant with HDMI 2.0 specifications, supporting resolutions up to 4K@60Hz and HDCP 1.4/2.3.
DP Female: Supports DP 1.4 standard, resolutions up to 4K@120Hz, HDCP 1.4/2.3, and HDR.
1 ร USB-A 3.2 Female: USB 3.2 Gen 2 standard, transfer speeds up to 10Gbps, backward compatible with USB 3.0/2.0/1.1
standards. Can connect USB devices such as mice, keyboards, USB flash drives, and hard drives.
1 ร USB-C 3.2 Female: USB 3.2 Gen 2 standard, transfer speeds up to 10Gbps, backward compatible with USB 3.0/2.0/1.1
standards. Can connect USB devices such as mice, keyboards, USB flash drives, and hard drives.
2 ร USB-A 3.0 / 1 ร USB-C 3.0 Female: USB 3.0 standard, transfer speeds up to 5Gbps, backward compatible with USB 2.0/1.
1 standards. Can connect USB devices such as mice, keyboards, USB flash drives, and hard drives.
RJ45 (2.5G) Female: 2.5Gbps transfer rate, backward compatible with 1000Mbps/100Mbps/10Mbps. Compliant with
networking standards, supporting IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, and IEEE 802.3bz protocols.
SD/TF Female: Supports SD 3.0 protocol, with a theoretical maximum transfer rate of 170MB/s. Supports simultaneous
reading of both cards, for connecting SD/TF cards.
3.5mm Audio Female: For connecting headphones and microphones (supports audio input/output).
Built-in Cable: 1m.
ย
Resolution and Refresh Rate of Each Display When Extending to Two or Three Displays
Windows supports three independent extended displays (MST technology), enabling three screens to display independent
content through a combination of dual HDMI and DP ports, improving efficiency for multitasking or professional design.
Mac supports multi-display mirroring (SST mode).
ย
โ Windows: Supports A+A+A+A, A+B+B+B, and A+B+C+D (including the laptop's built-in screen + three external monitors
).
Resolution: 2 External Monitors: Any two ports, 4K@60Hz; 3 External Monitors: HDMI 1 + HDMI 2 + DP, any two at 4K@60Hz
+ one at 4K@30Hz.
โก macOS: Supports A+A+A+A and A+B+B+B; does not support A+B+C+D (including the laptop's built-in screen + three
external monitors).
Resolution: With 2 or 3 external monitors, any two at 4K@60Hz + one at 4K@30Hz.
