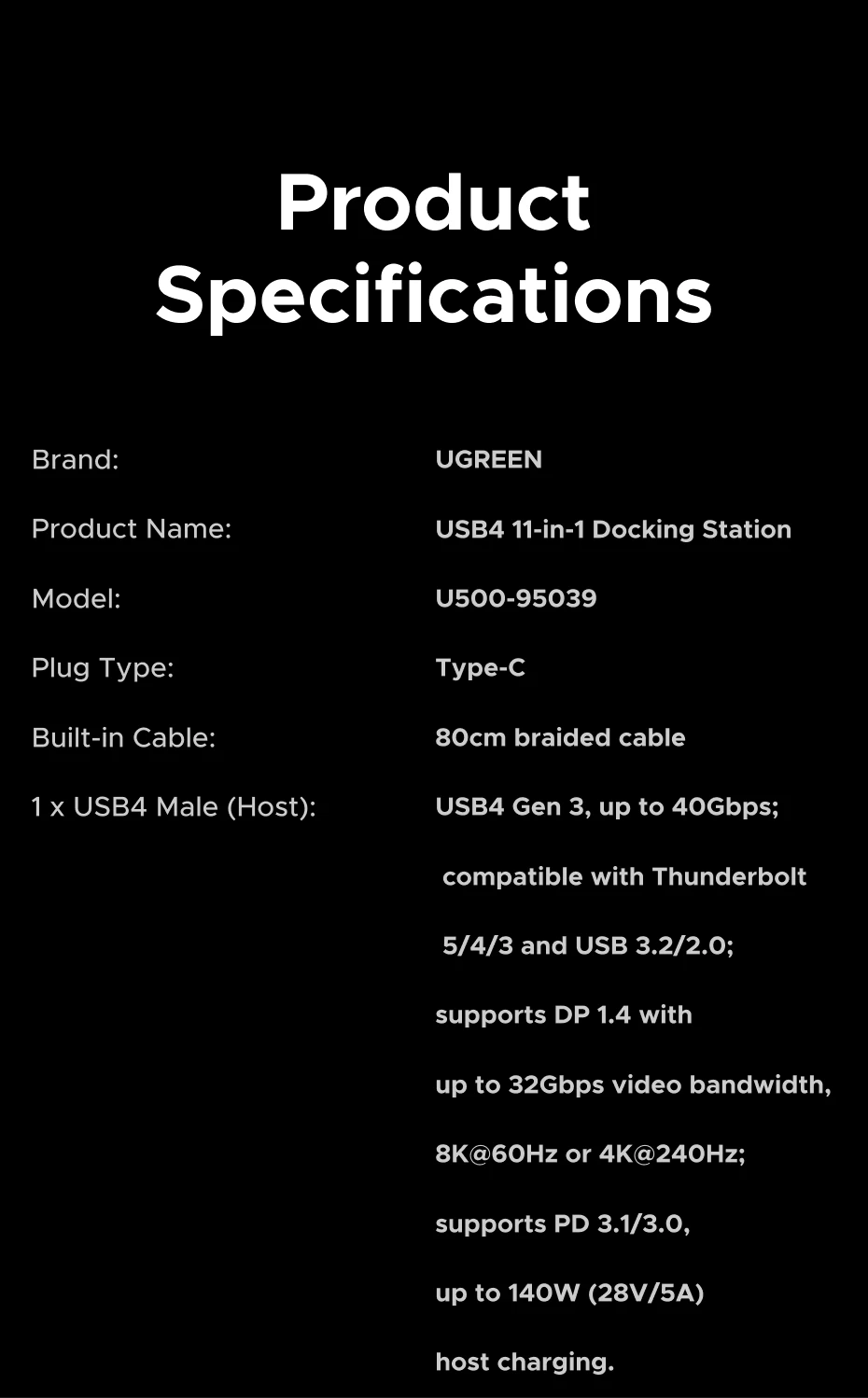

SPECIFICATIONS

1 x 3.5mm Audio Jack: Supports stereo audio output and mono microphone input. Compatible with 4-pole headsets and 3-pole headphones. Supports in-line controls. Used to connect headsets or speakers.

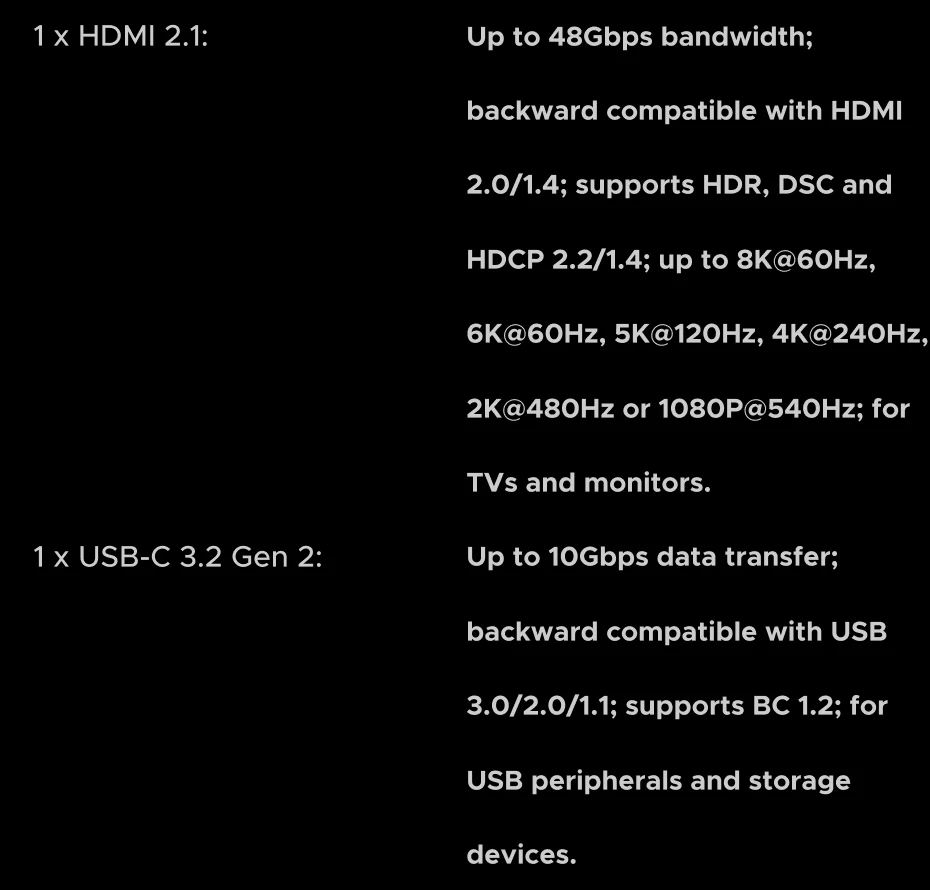

1 x HDMI Female: Compliant with HDMI 2.1 specifications, backward compatible with HDMI 2.0/1.4. Supports HDCP 2.2/1.4, HDR and DSC, with a theoretical transfer rate of 48Gbps. Supports resolutions up to 7680x4320@60Hz, backward compatible with 6K@60Hz, 5K@120/60Hz, 3840x2160@240/144/120/60Hz, 2560x1440@480/360/240/144/120/60Hz, 1080P@540/480/360/240/144/120/60Hz and other lower resolutions. Used to connect TVs or monitors.

1 x RJ45 Female: Supports 2.5Gbps transfer rate, backward compatible with 1000Mbps/100Mbps/10Mbps. Compliant with networking standards, supporting IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x and other network protocols. Used to connect routers and switches.

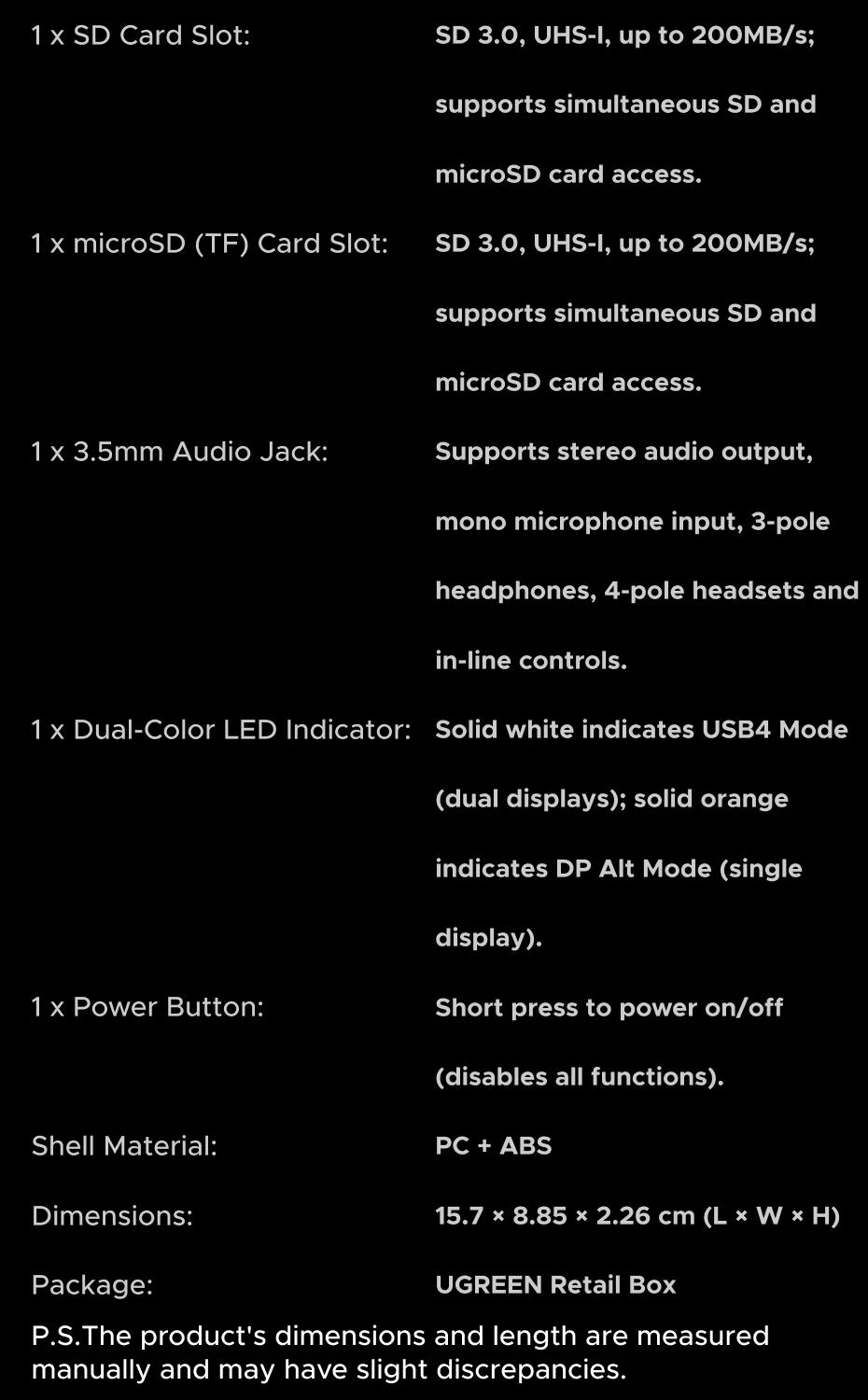

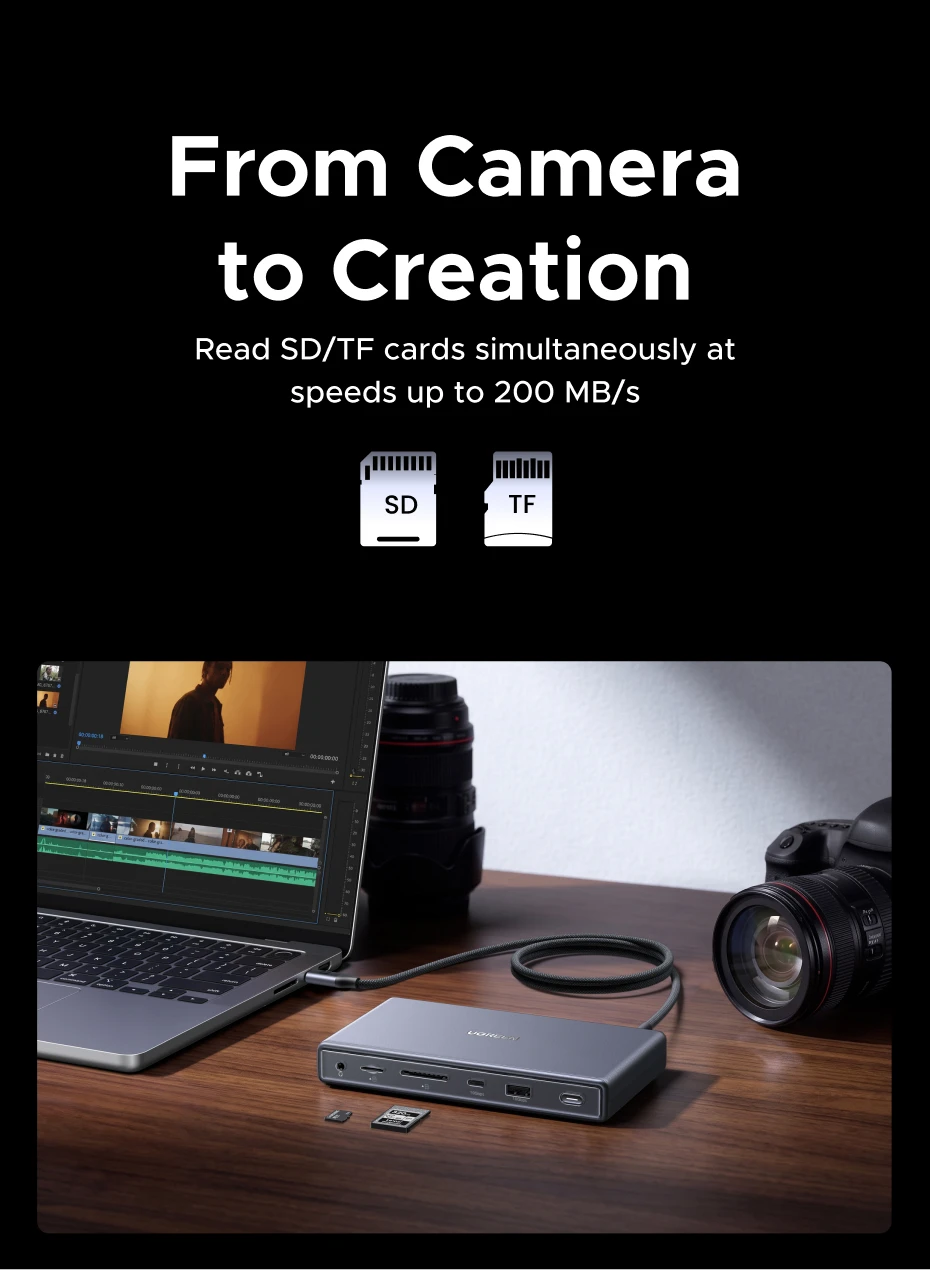

1 x SD Card Slot: Supports SD 3.0 protocol, compliant with UHS-I standard, with a theoretical maximum transfer rate of 200MB/s. Supports simultaneous reading of both cards. Used to connect SD cards.

1 x TF (microSD) Card Slot: Supports SD 3.0 protocol, compliant with UHS-I standard, with a theoretical maximum transfer rate of 200MB/s. Supports simultaneous reading of both cards. Used to connect TF (microSD) cards.

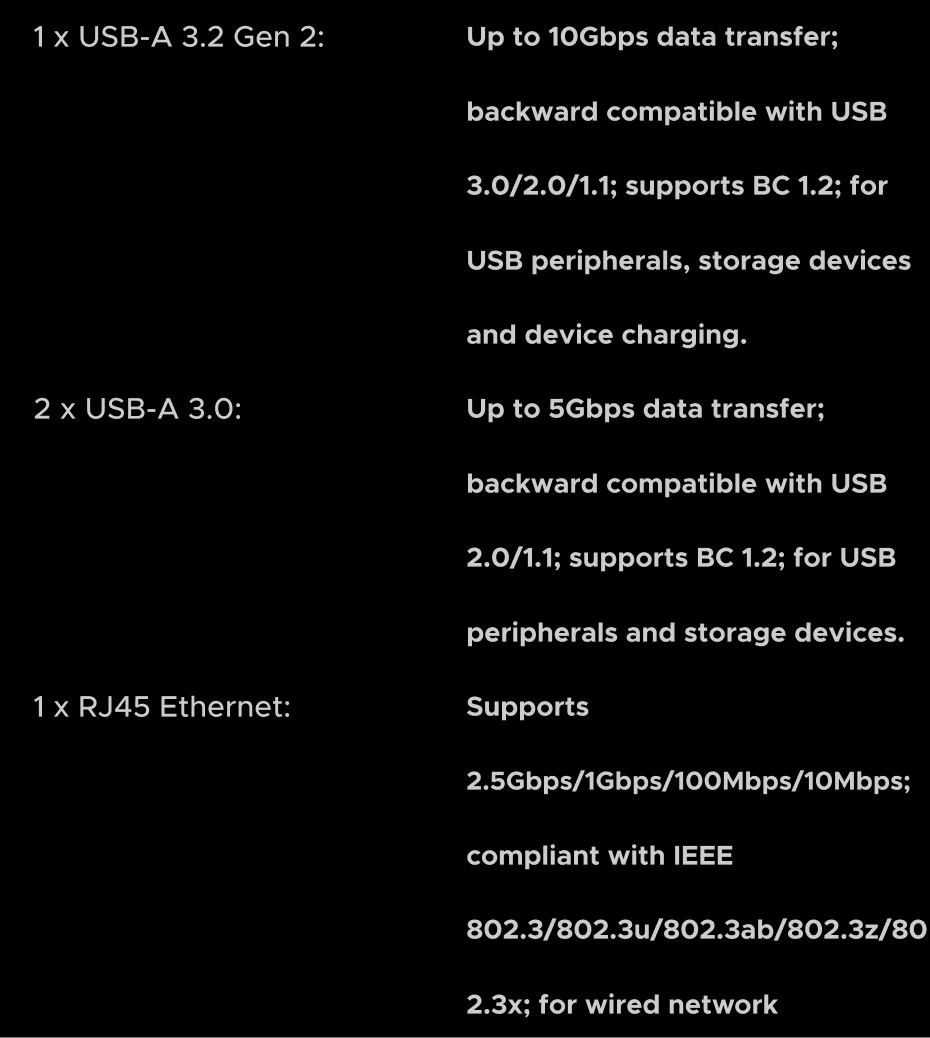

1 x USB-A 3.2 (10Gbps) Female: Compliant with USB 3.2 Gen 2 standard, with a theoretical maximum transfer rate of 10Gbps. Backward compatible with USB 3.0/2.0/1.1 and supports BC 1.2. Used for data transfer with USB devices such as mice, keyboards, USB flash drives, hard drives, speakers and cameras, or for charging mobile phones and other devices.

1 x USB-C 3.2 (10Gbps) Female: Compliant with USB 3.2 Gen 2 standard, with a theoretical maximum transfer rate of 10Gbps. Backward compatible with USB 3.0/2.0/1.1 and supports BC 1.2. Used for data transfer with USB devices such as mice, keyboards, USB flash drives, hard drives, speakers and cameras.

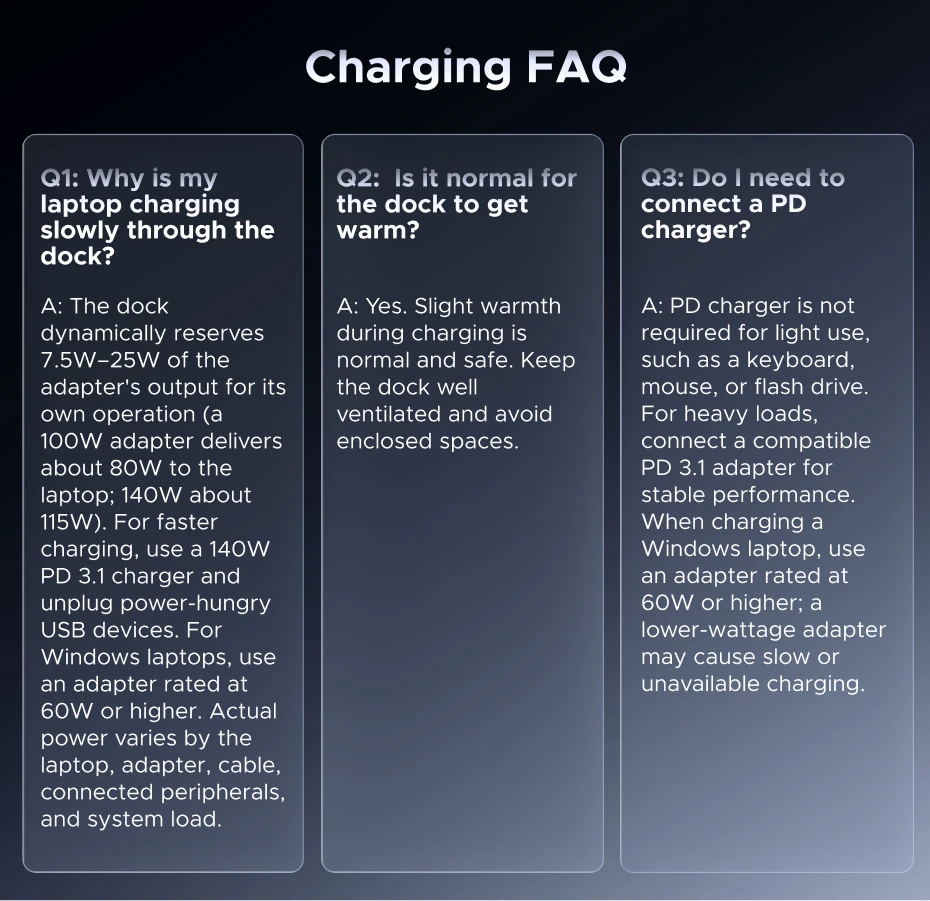

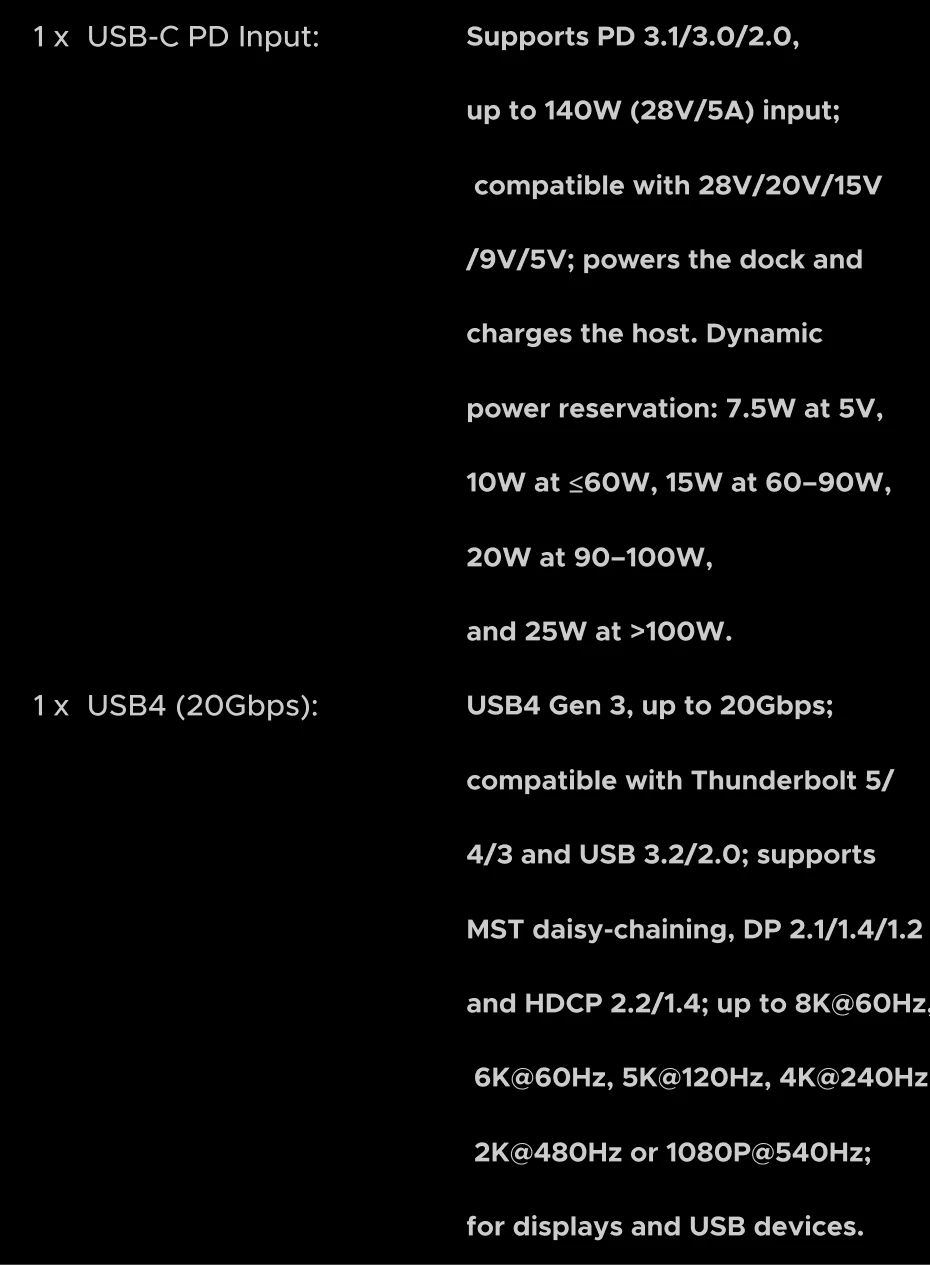

1 x USB-C Female (PD Input): Supports PD 3.1, backward compatible with PD 3.0/2.0, with a maximum power input of 140W (28V/5A). Compatible with 20V/15V/9V/5V. Used to connect a power adapter to power the docking station and charge the computer. Features dynamic power reservation: 7.5W at 5V; 10W when PD power ≤60W; 15W when 60W < PD power ≤90W; 20W when 90W < PD power ≤100W; 25W when PD power >100W.

1 x USB4 Female: Compliant with USB4 Gen 3 standard, with a theoretical maximum transfer rate of 20Gbps. Compatible with Thunderbolt 5/4 and backward compatible with Thunderbolt 3, USB 3.2/2.0 and other protocols. Supports daisy-chain (MST) expansion. Supports DP 2.1, backward compatible with DP 1.4/1.2, and HDCP 2.2/1.4. Supports resolutions up to 7680x4320@60Hz, backward compatible with 6K@60Hz, 5K@120/60Hz, 3840x2160@240/144/120/60Hz, 2560x1440@480/360/240/144/120/60Hz, 1080P@540/480/360/240/144/120/60Hz and other lower resolutions. Used to connect displays or USB devices.

1 x USB4 Male (Host): Compliant with USB4 Gen 3 standard, with a theoretical maximum transfer rate of 40Gbps. Compatible with Thunderbolt 5/4 and backward compatible with Thunderbolt 3, USB 3.2/2.0 and other protocols. Supports DP 1.4 with up to 32Gbps bandwidth, supporting video bandwidth for up to 8K@60Hz or 4K@240Hz. Supports PD 3.1, backward compatible with PD 3.0, providing up to 140W (28V/5A) charging power to the host device. Used to connect the host device (computer).

2 x USB-A 3.0 Female: Compliant with USB 3.0 standard, with a theoretical maximum transfer rate of 5Gbps. Backward compatible with USB 2.0/1.1 and supports BC 1.2. Used to connect devices such as mice, keyboards, hard drives and cameras.

Audio Formats: PCM, DTS, DTS-HD, Dolby TrueHD, Dolby Digital, Dolby Digital Plus, Dolby Atmos.

Audio Sampling Rate: 3.5mm Audio Port: Audio Output: Up to 24-bit/96kHz; Microphone Input: 16-bit/48kHz. USB4/HDMI Ports: Audio Output: Up to 24-bit/192kHz.

Brand Name: UGREEN

Built-in Cable: 80cm (including USB-C connector)

Certification: CE,FCC,RoHS

Compatible PC Devices: Laptop

Compatible Systems: Windows,MacOS,Linux

Dimensions: L157.7 x W88.5 x H22.65 mm

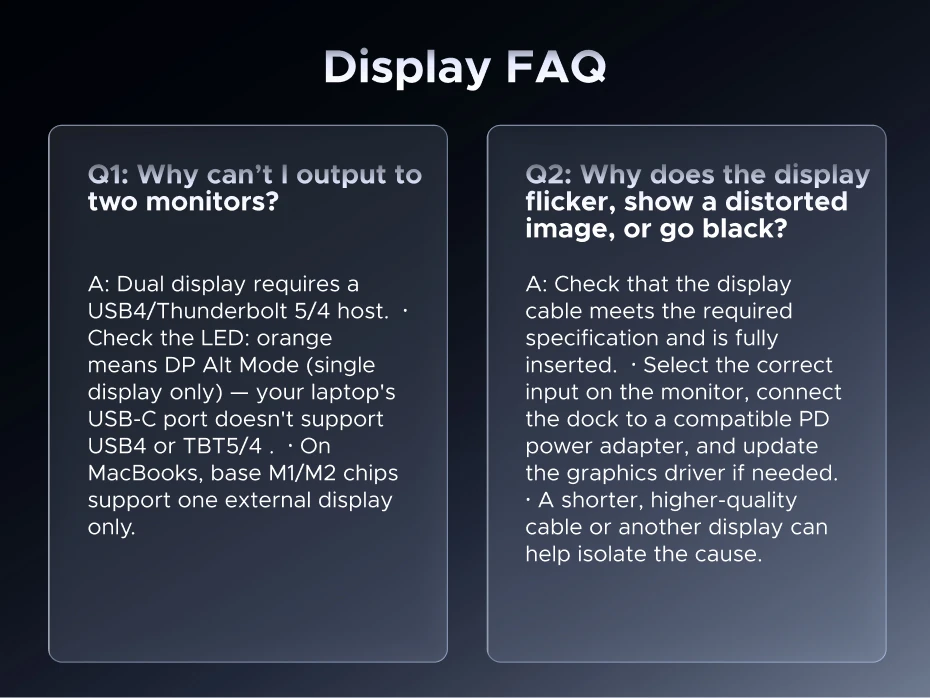

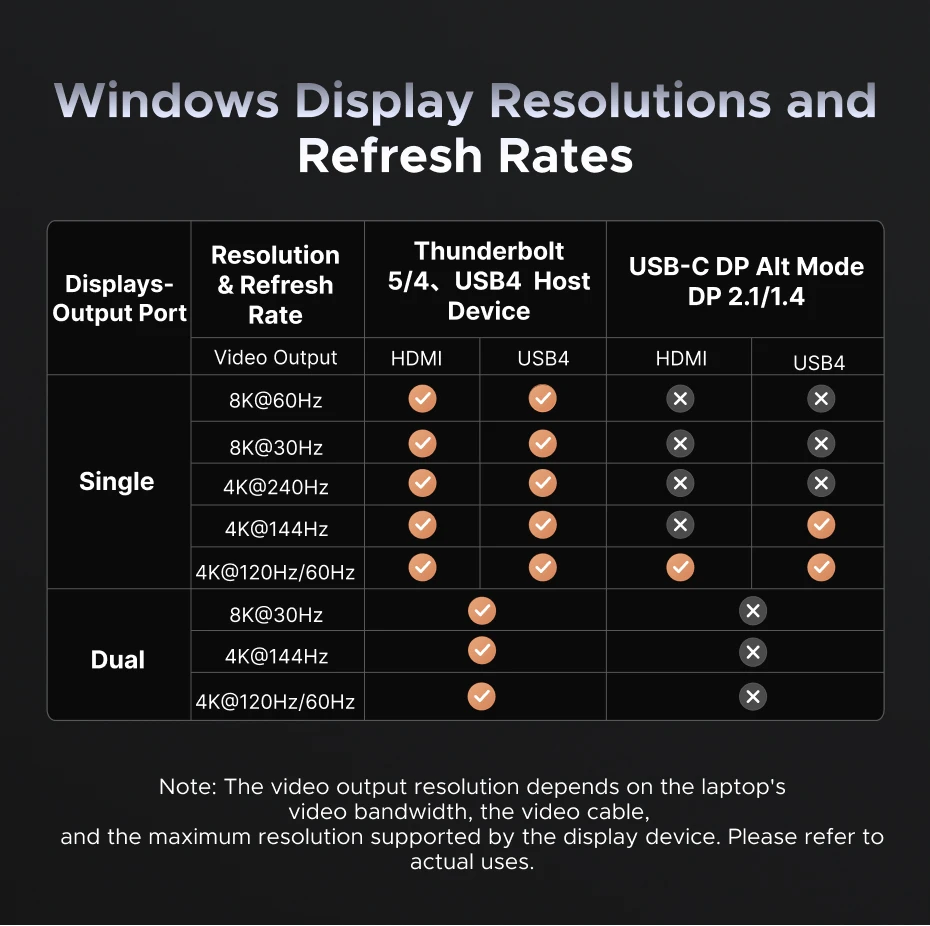

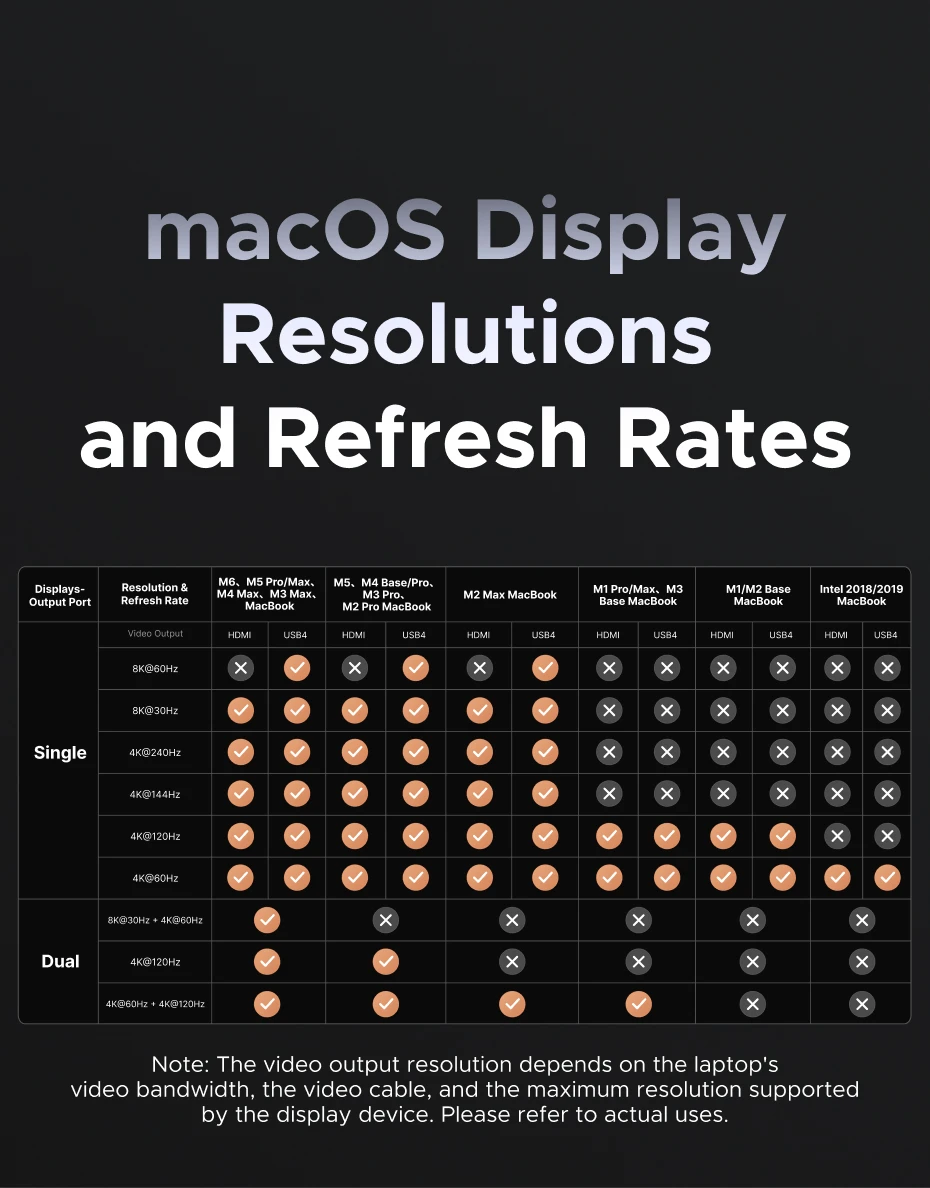

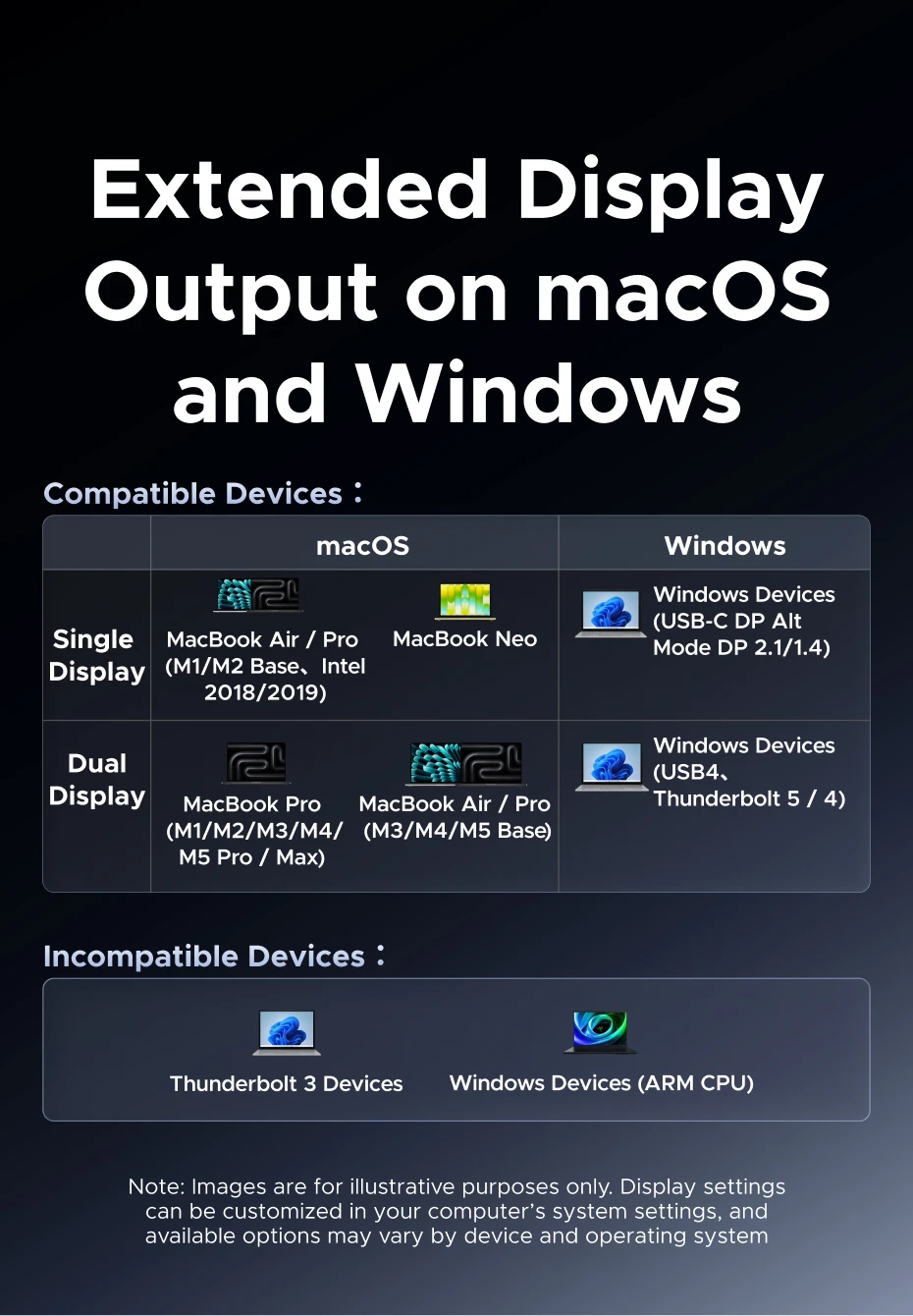

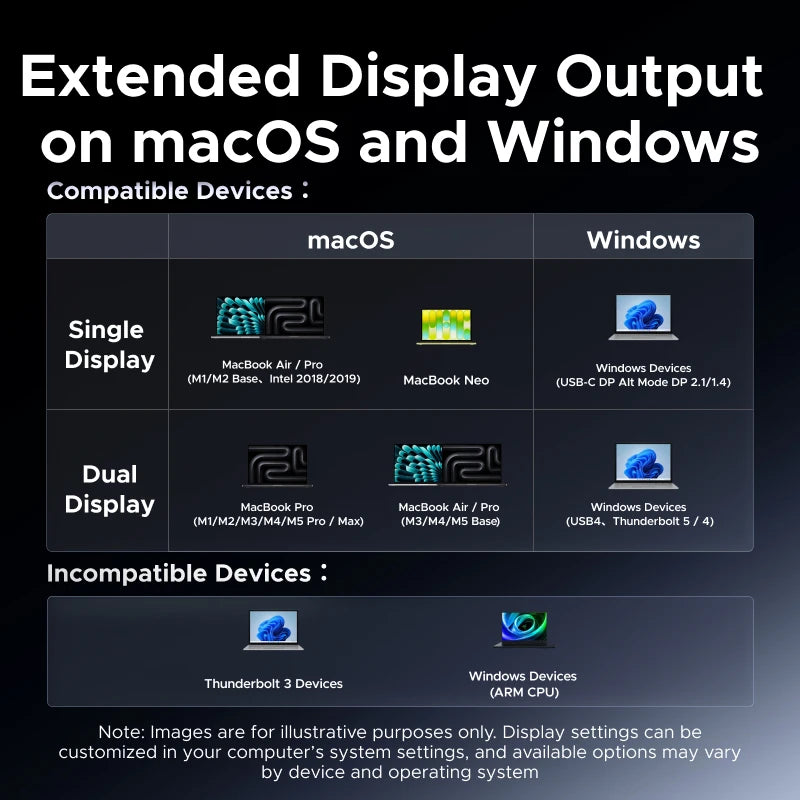

Display Output Modes: Windows: Supports MST, with up to 2 external displays. Supports A+A+A, A+B+B and A+B+C (including the computer's built-in display + 2 external monitors). Maximum resolution for a single display is 8K@60Hz (4K@240Hz). For dual displays, supports up to 2 x 8K@30Hz (Thunderbolt 5: Dual 4K@144Hz). macOS: Supports MST, with up to 2 external displays. Supports A+A+A, A+B+B and A+B+C (including the computer's built-in display + 2 external monitors). Maximum single-display resolution via USB4 is 8K@60Hz (4K@240Hz), while HDMI supports up to 8K@30Hz (4K@240Hz). For dual displays, supports up to 8K@30Hz + 4K@60Hz (Dual 4K@120Hz).

Dolby Vision / Dolby Atmos: Supported

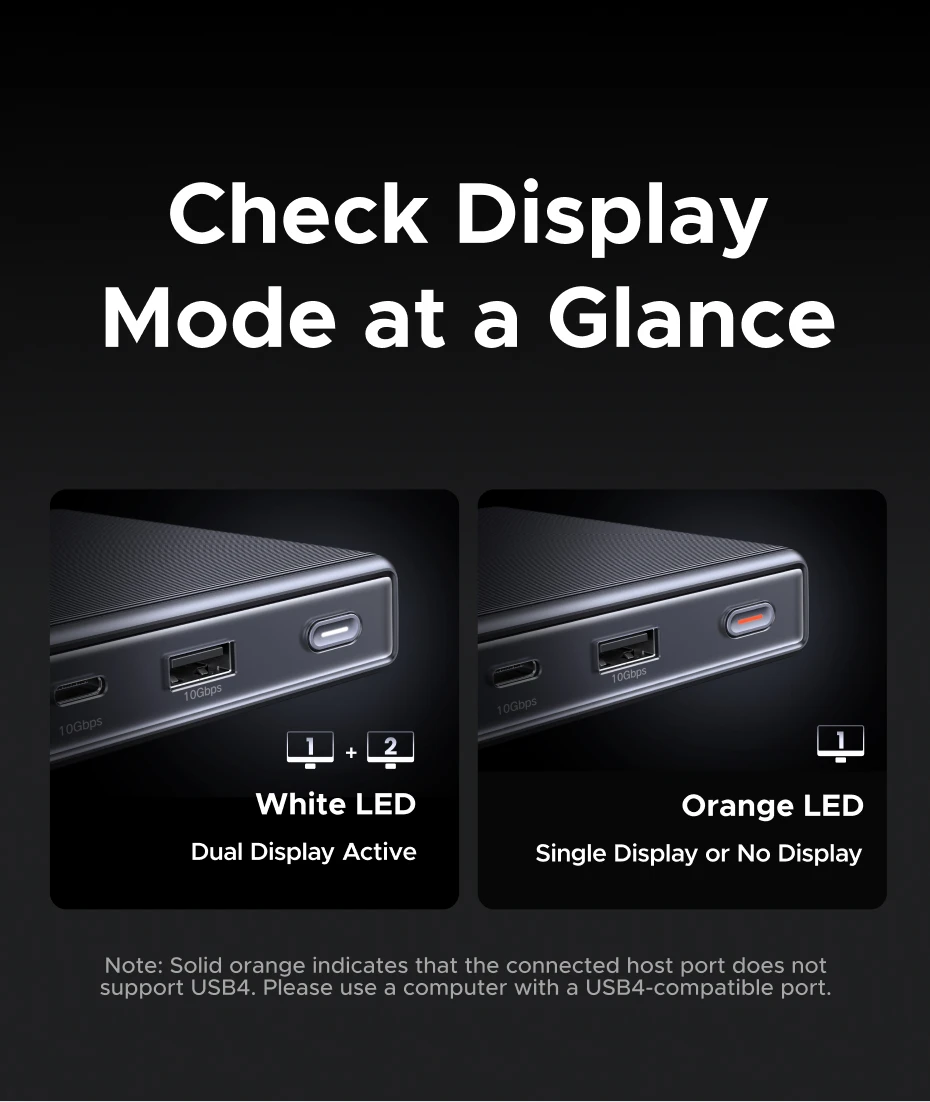

Dual-Color LED Indicator (Orange/White): Solid White: USB4 Mode (Dual Displays); Solid Orange: DP Alt Mode (Single Display).

Funtion: Card Reader,RJ45,USB-A,USB-C,Charging,HDMI-Compatible

Gaming Console Compatibility: Lenovo Legion Go S (Black), MSI Claw 8, Steam Deck OLED (Single Display Only), and ROG Ally (Single Display Only).

High-concerned chemical: none

Interface Type: USB-C HUB

Material: Plastic,Metal,others

Model Number: U500-65039

Origin: Mainland China

Package: Yes

Plug Type: None

Ports: 11

Power Button: Short press to power on/off (disables all functions).

Power Supply Requirements: Powered by the computer's USB-C port or an external PD charger. An external PD charger is required when the device is fully loaded; otherwise, the device cannot support the full load.

Product Material: Main Body: PC+ABS

Product Name: USB HUB, USB-C HUB, Docking Station, USB4 HUB, USB4 Docking, USB Splitter

System Compatibility: Windows 10/11 and later, macOS 11.4 and later, Linux (Ubuntu, Kylin, UnionTech UOS, etc.; Single Display Only).

Variable Refresh Rate: USB4 Port: Supports VRR/G-Sync; does not support FreeSync. HDMI Port: Does not support VRR/G-Sync/FreeSync.

Video Transmission Modes: Supports USB4 Mode, compatible with DP Alt Mode.

UGREEN 11-in-1 USB4 Docking Station Dual Monitor 4K@120Hz for MacBook USB4 20Gbps HDMI 2.5GbE USB-A&C SD/TF Audio 115W Charging C-DP Cable,Compatible with Thunderbolt 4 Laptops (No Charger)

About this item:

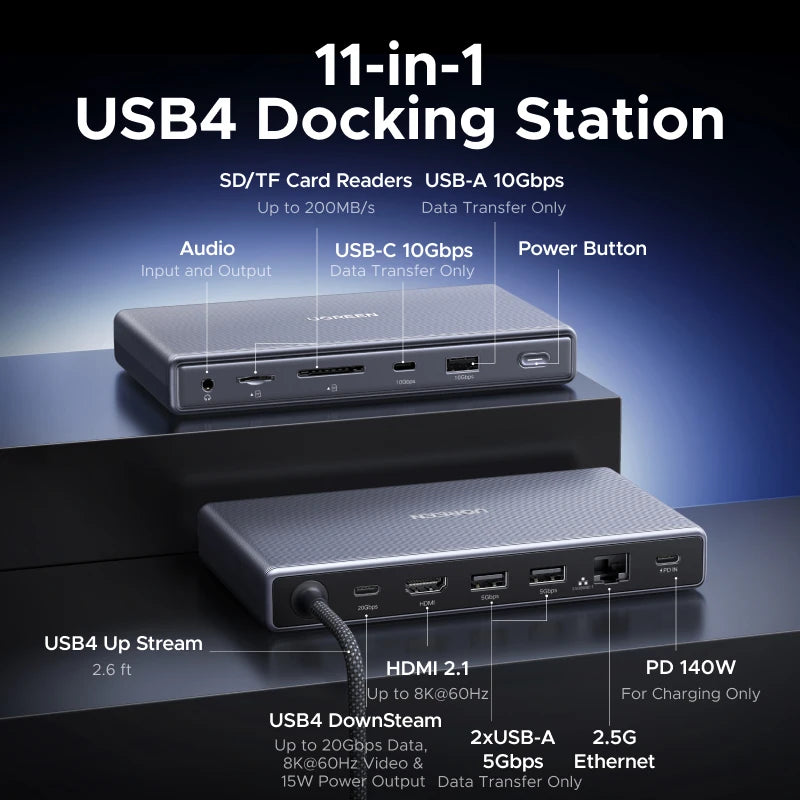

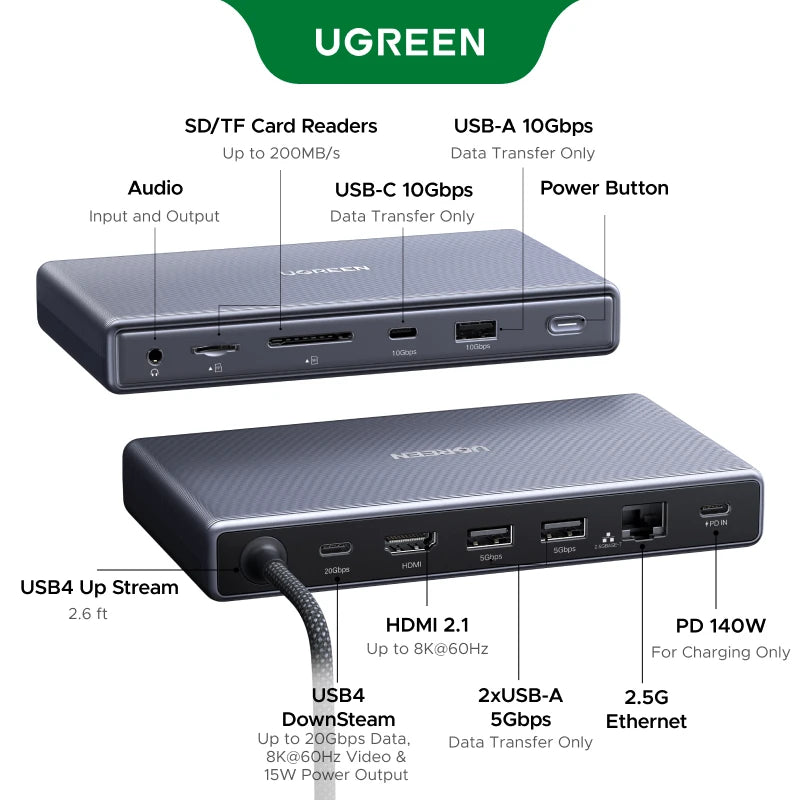

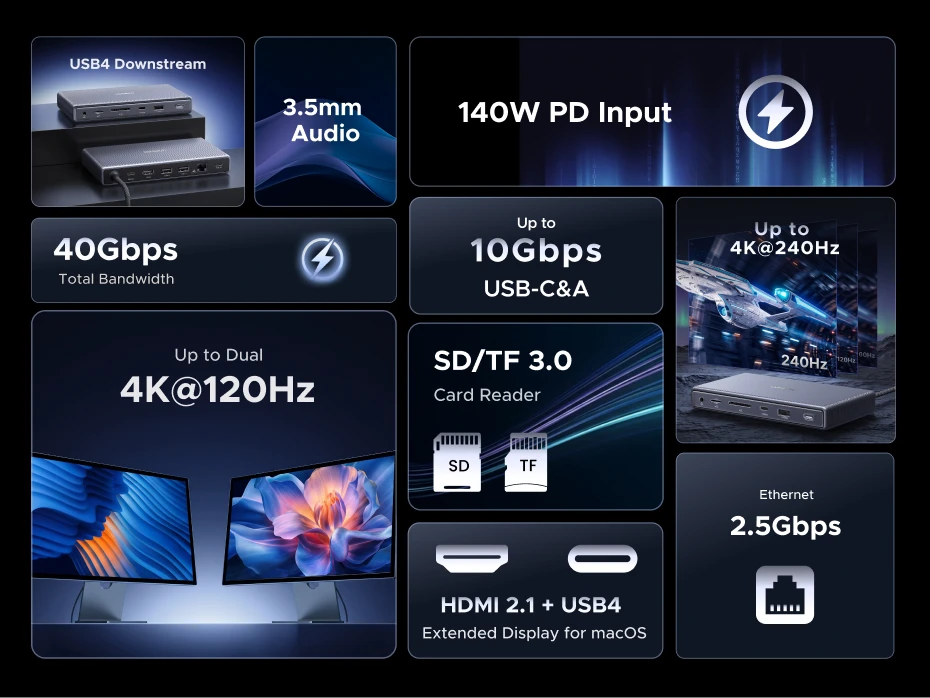

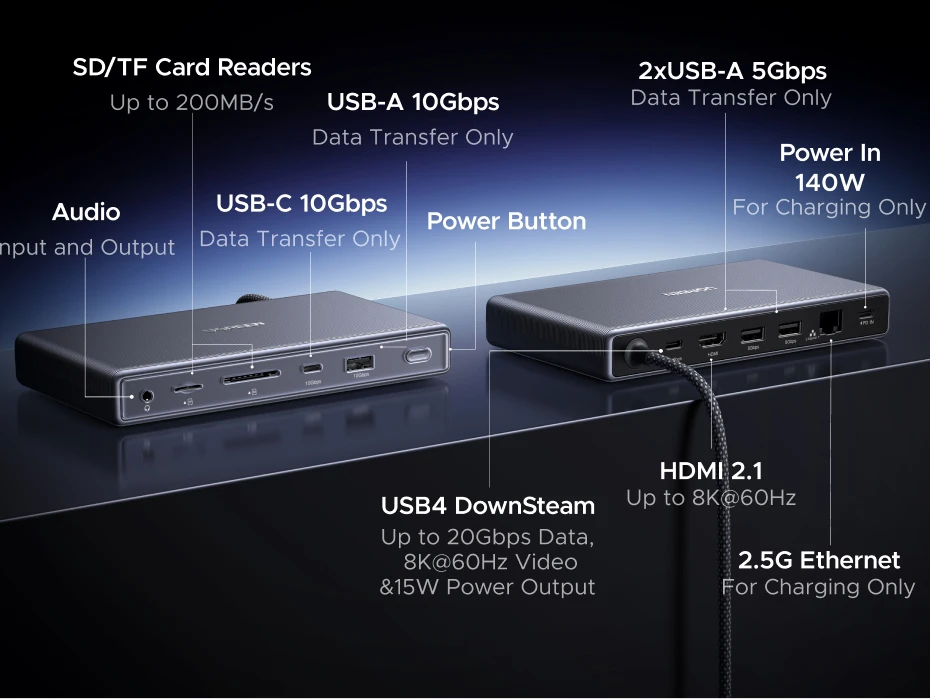

1. 11-in-1 USB4 Dock: Connect your entire workstation through one dock, including a downstream USB4 port with up to 20Gbps data transfer and video output up to 4K@240Hz or 8K@60Hz, an HDMI port, 2.5Gbps Ethernet, 2x10Gbps USB-A/C data ports, 2x5Gbps USB-A ports, SD and microSD (TF) card readers supporting up to 200MB/s, and a 3.5mm headset jack.

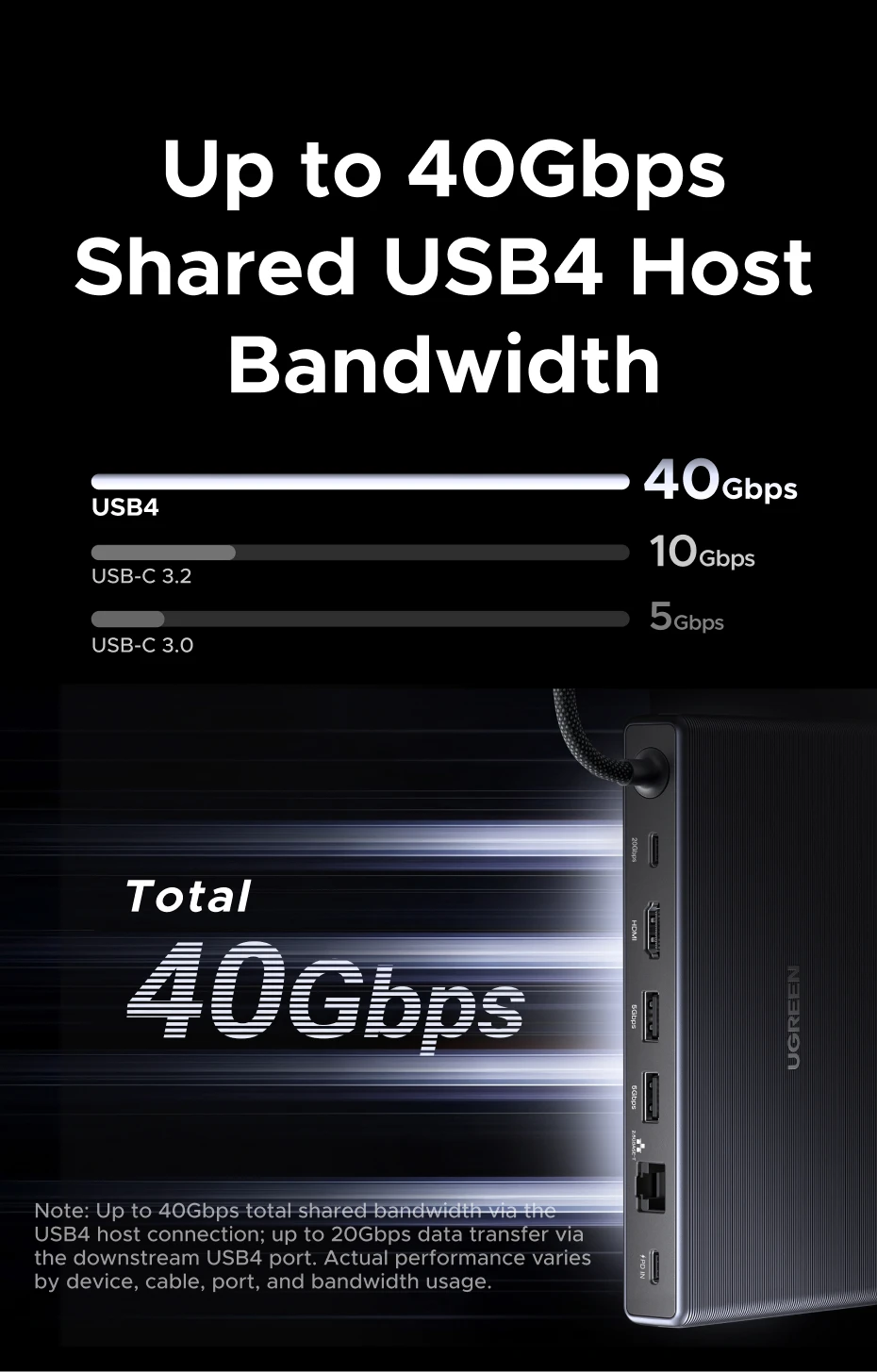

2. 40Gbps USB4 Total Bandwidth: The USB4 host connection supports up to 40Gbps of shared bandwidth for fast file transfers, external storage, and creative workflows. The downstream USB4 port supports data transfer speeds of up to 20Gbps. Actual performance varies by device, cable, port, and storage performance.

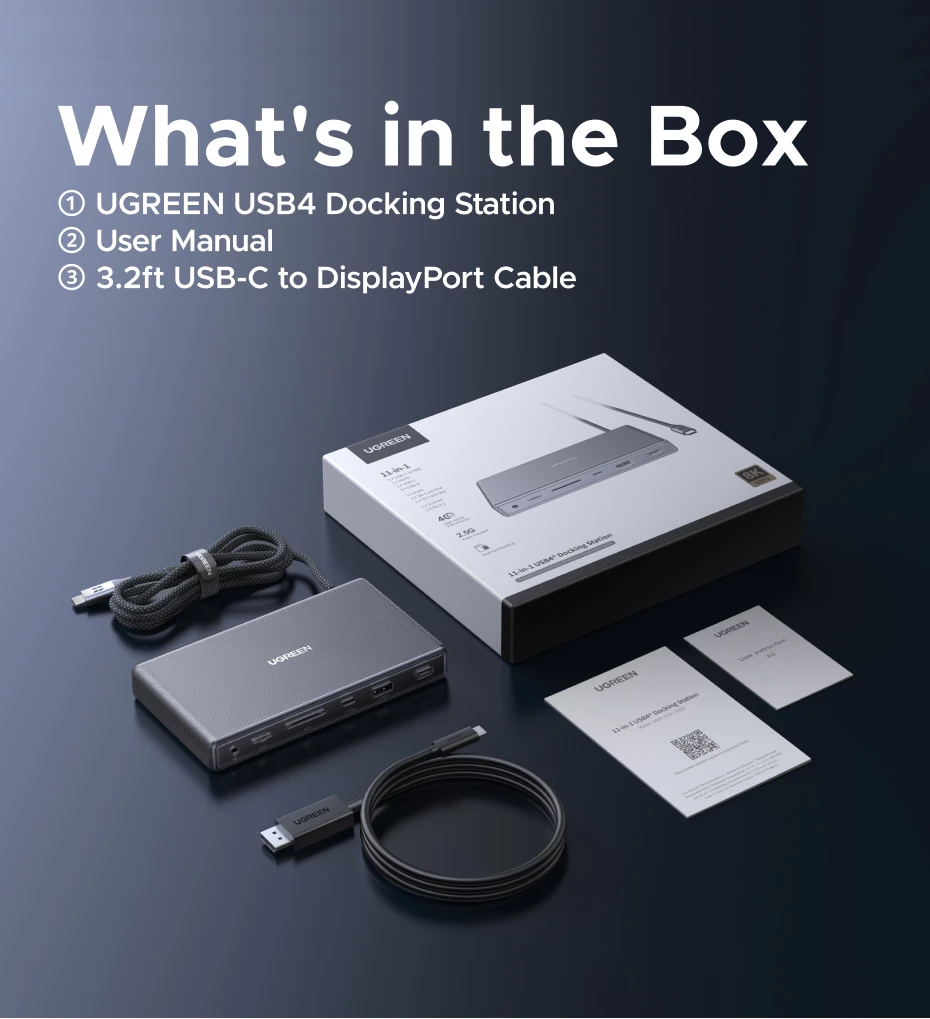

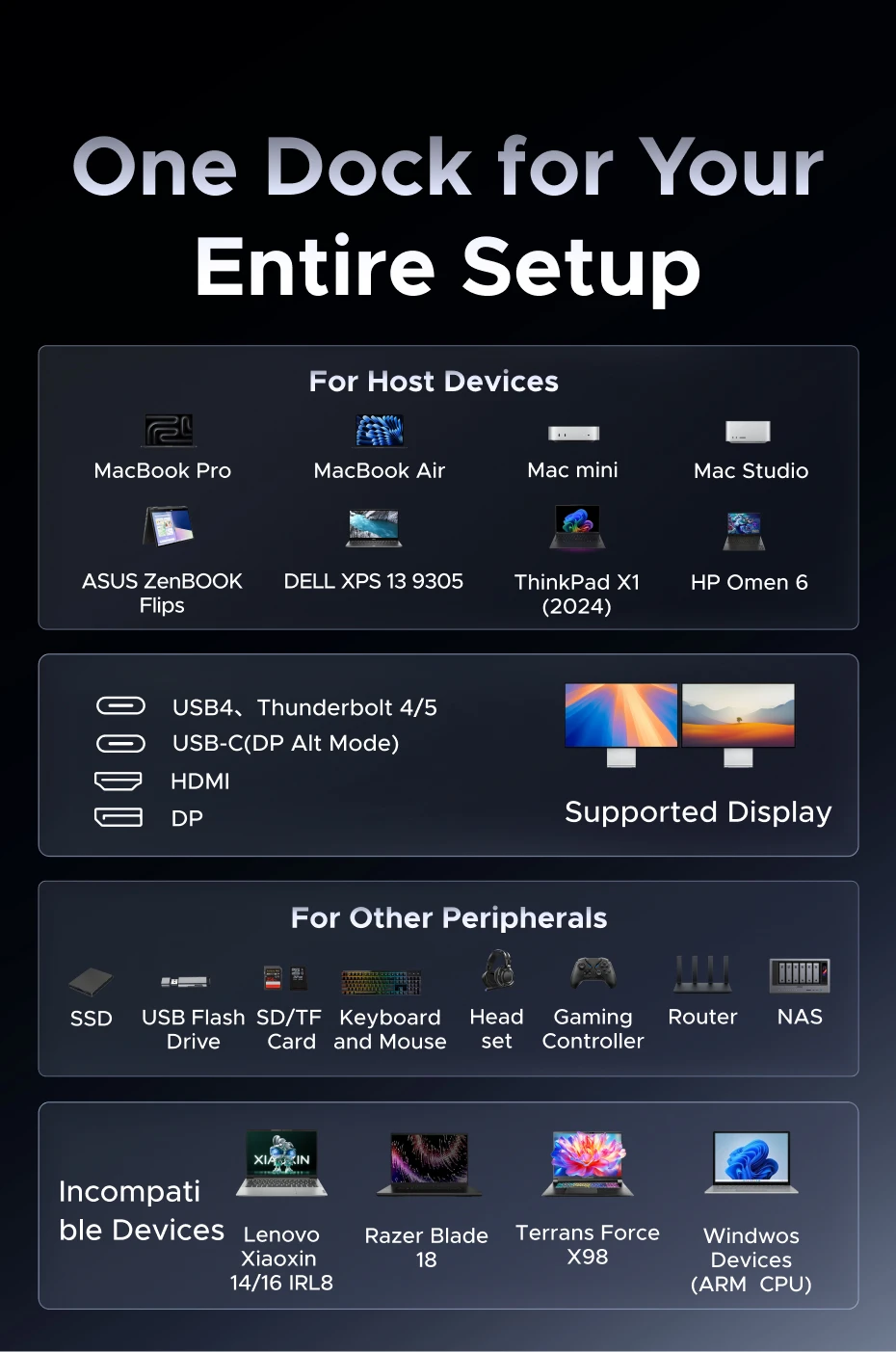

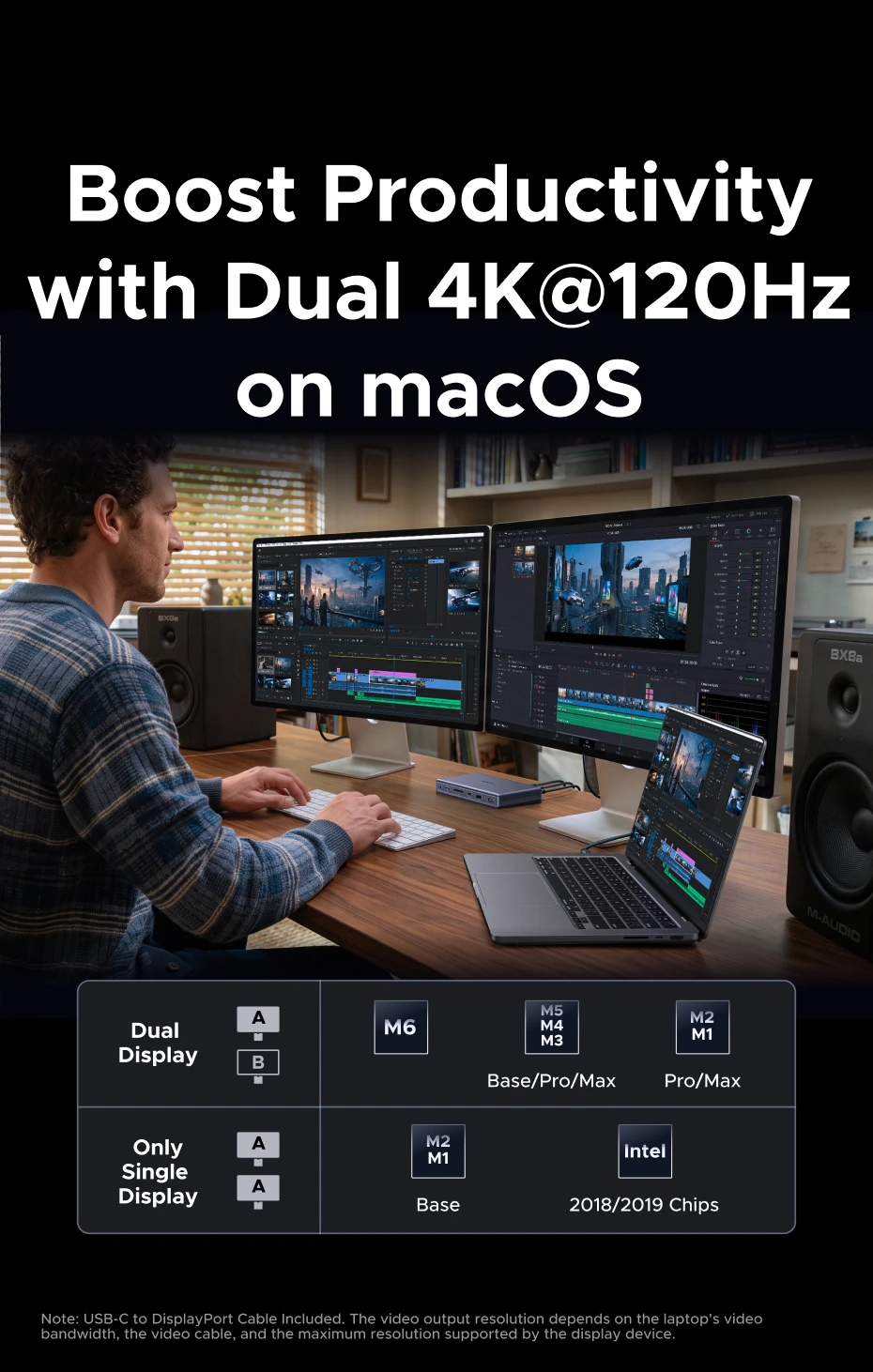

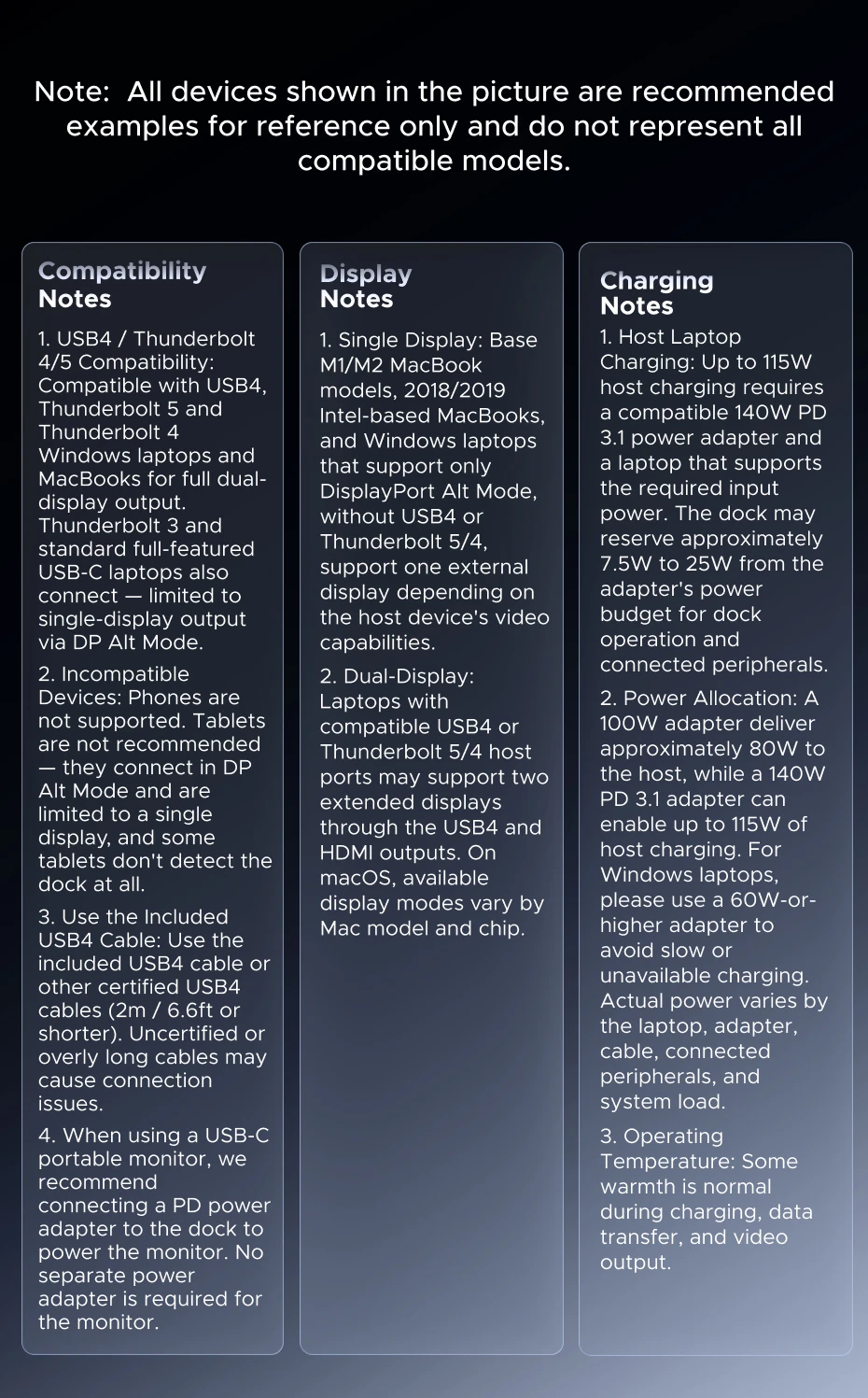

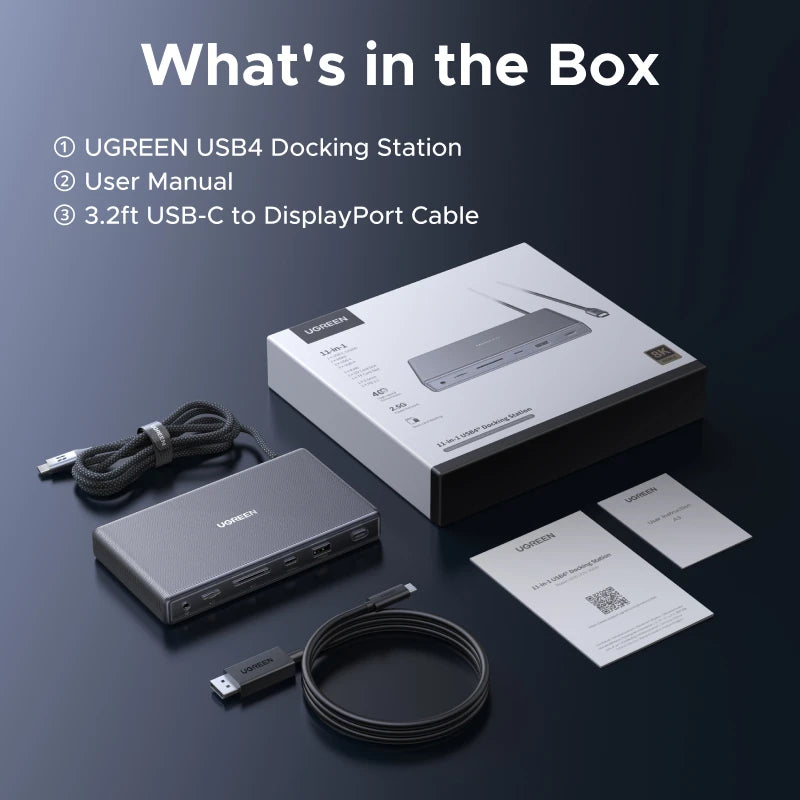

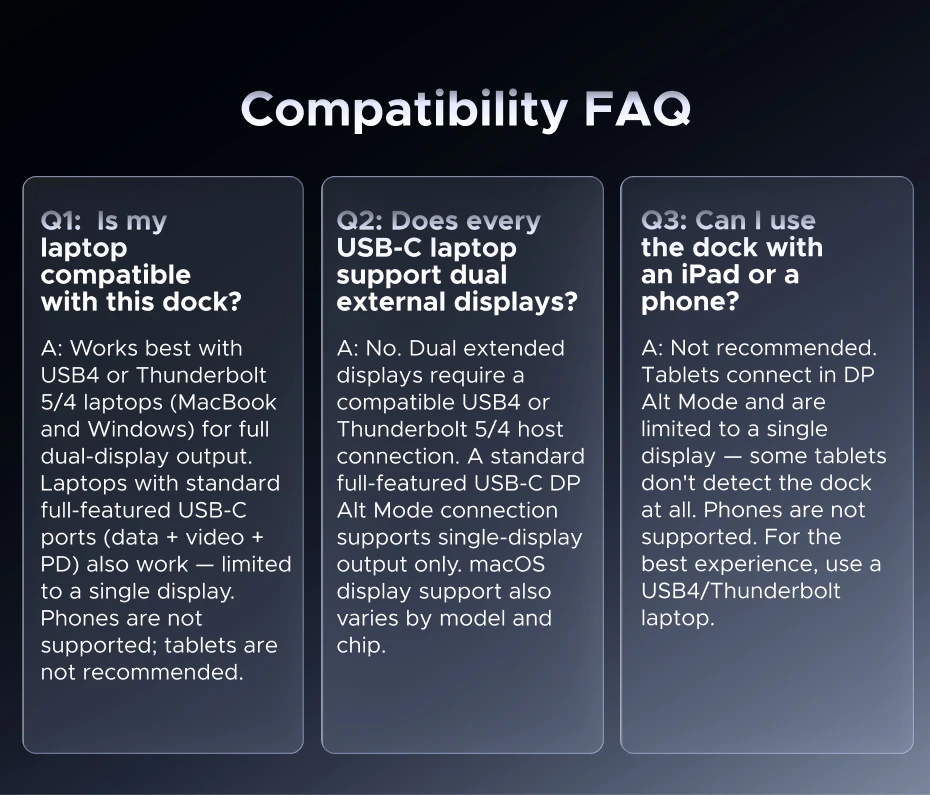

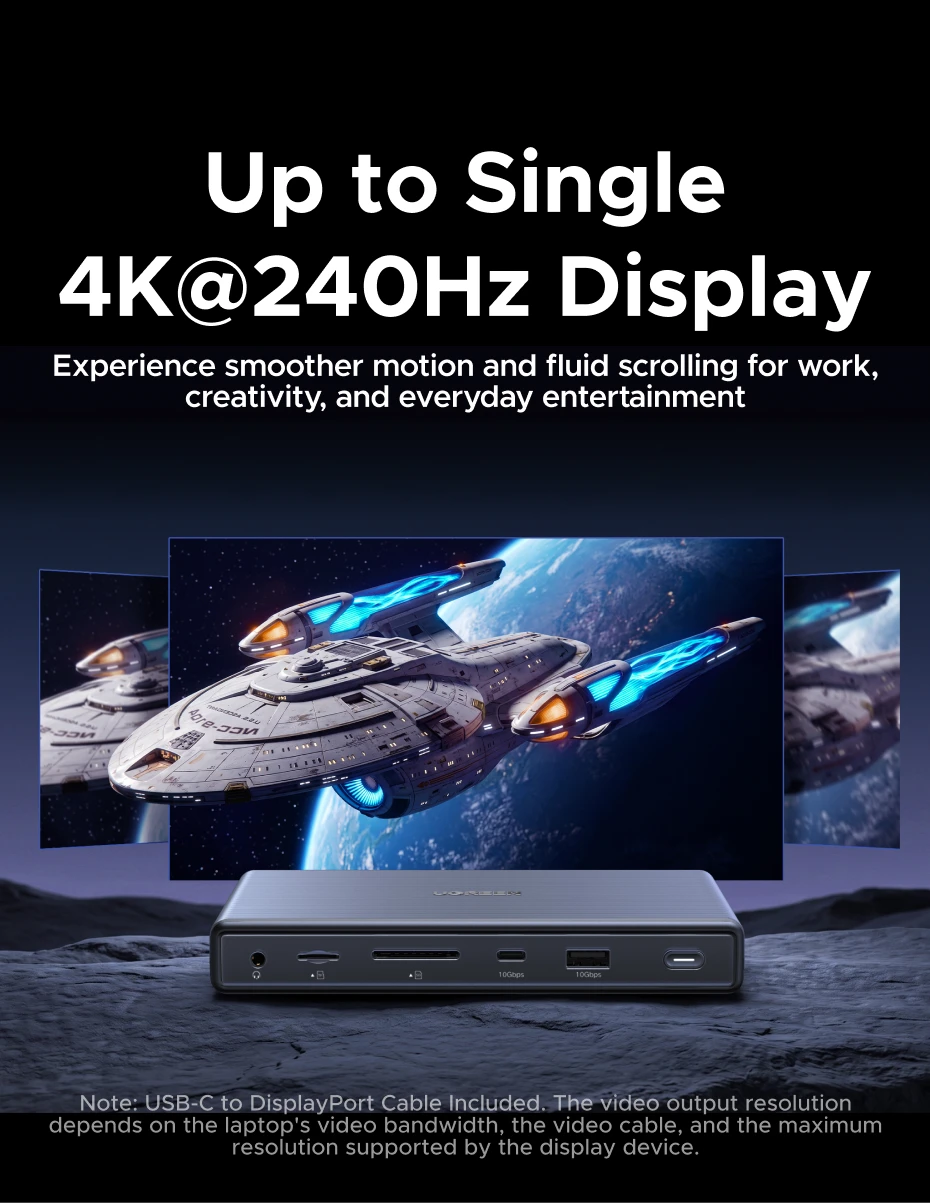

3. Single or Dual 4K Displays: Connect up to a single 4K@240Hz display or dual 4K@120Hz displays for detailed visuals and an expanded workspace. An additional USB-C to DisplayPort cable is included. Available display modes vary by host device, operating system, cable, and monitor. Note: Not compatible with Thunderbolt 3 devices, Windows laptops with ARM-based processors, Lenovo Xiaoxin 14/16 IRL8, Razer Blade 18, Terrans Force X98, Microsoft Surface and Snapdragon-Based Windows Laptops.

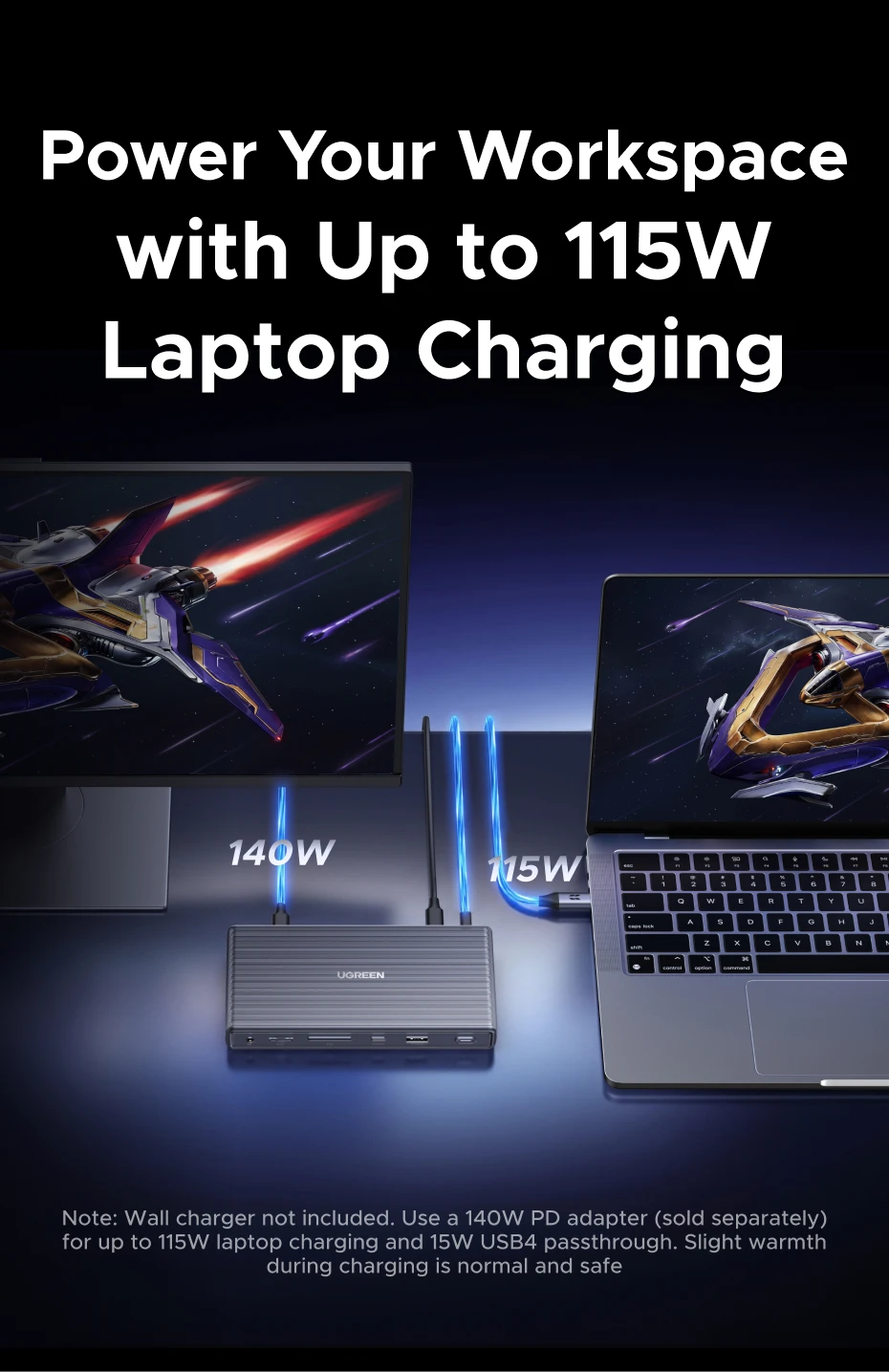

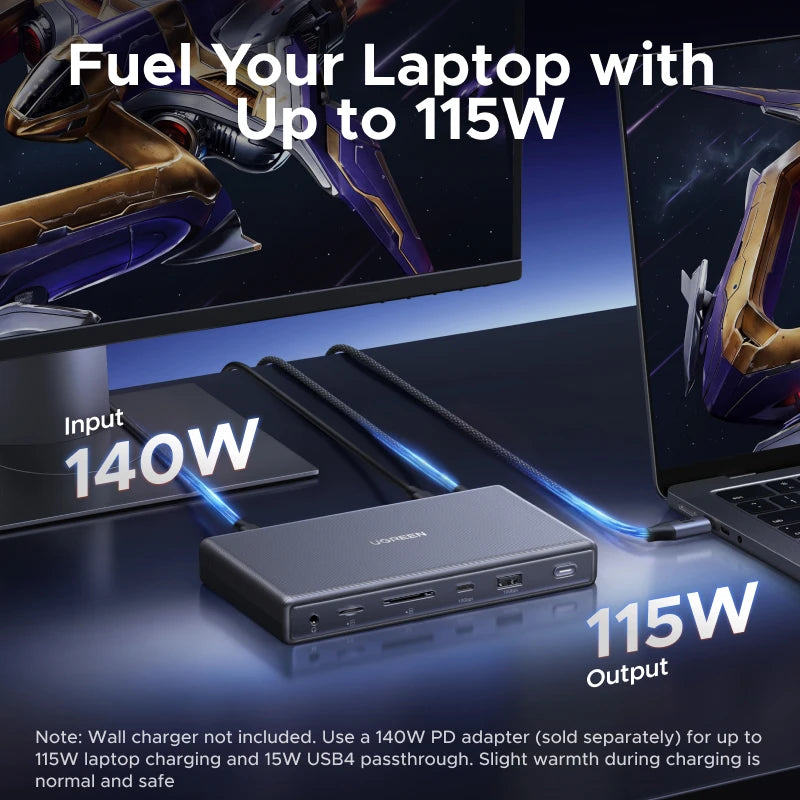

4. Up to 115W Host Charging: Pair the dock with a compatible 140W PD 3.1 power adapter (sold separately) to provide up to 115W of charging to your laptop. The downstream USB4 port supports up to 15W for compatible peripherals, helping you stay connected while keeping your device powered.

5. Power Button and Broad Compatibility: Press the power button to disconnect or reconnect data, video and host charging. Designed for compatible macOS computers; available functions and display modes may vary by device and operating system.
