SPECIFICATIONS

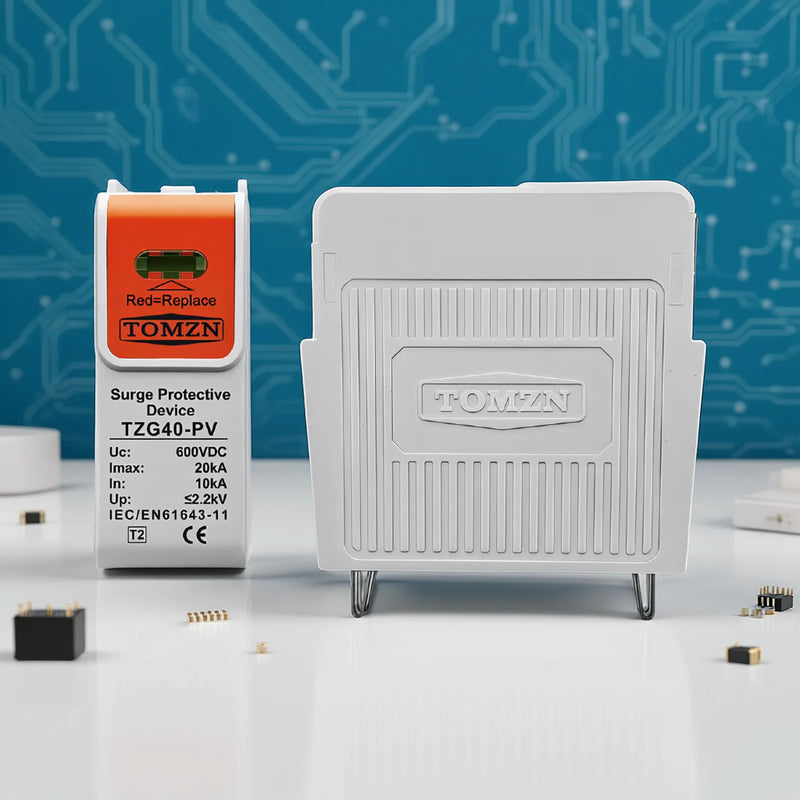

Name: TZG40 PV Discharge Tube Surge Protective Device (SPD) Replacement Module, AC/DC 255-420VAC & 500-1500VDC, 10/20/30kA – Household
Brand: TOMZN
SKU: 1005012097786406-DC 500V-20-40kA
Price: 2.78 USD
Availability: InStock

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Model Number: TZG40-B/C/D/PV

Origin: Mainland China

Type: Mini,Circuit breaker

is_customized: Yes

Product Introduction

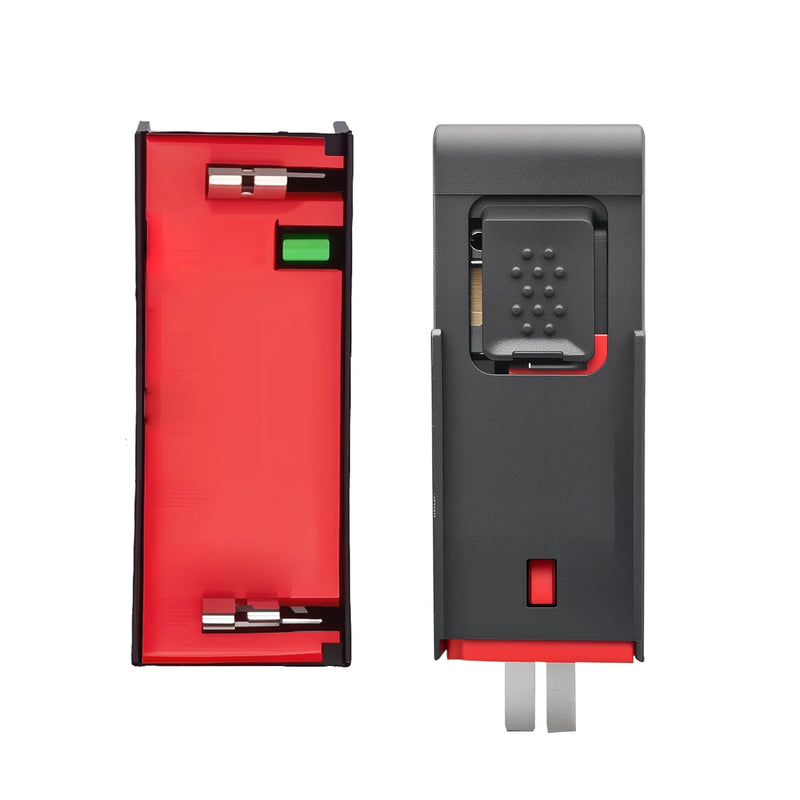

The TZG40 Series replacement modules are designed for use in compatible surge protective devices (SPDs), offering flexible voltage and current ratings for both AC and DC applications. Available in types B, C, D, and PV, these modules support DC voltages from 500V to 1500V, AC voltages of 275V, 385V, or 420V, as well as an NPE (Neutral-to-Earth) version. Rated discharge currents range from 10-20kA to 30-60kA depending on the model. A built-in visual indicator turns red when the module has degraded and requires replacement. Note: These modules are not compatible with the TOV1 series surge protectors, and the NPE module is intended exclusively for NPE-type SPDs.

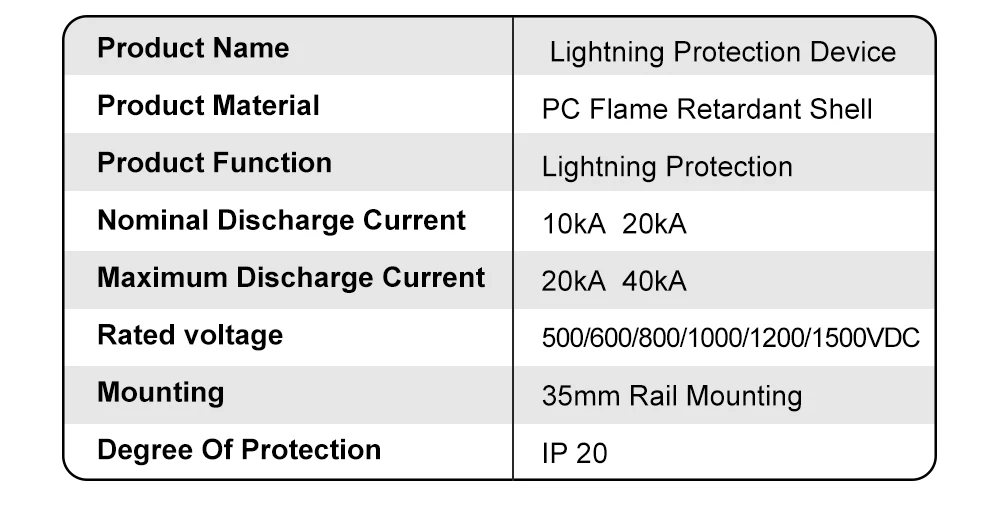

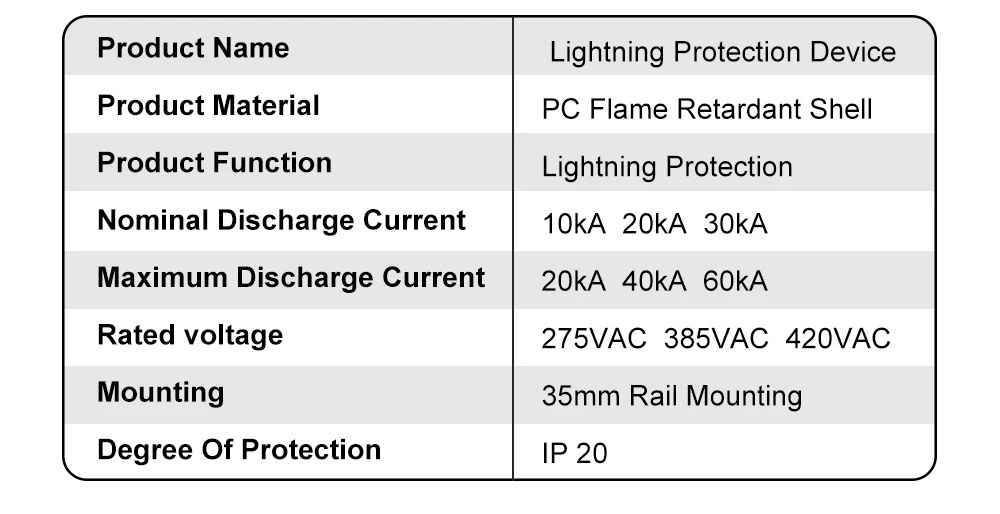

Product Data Sheet

Product series: TZG40

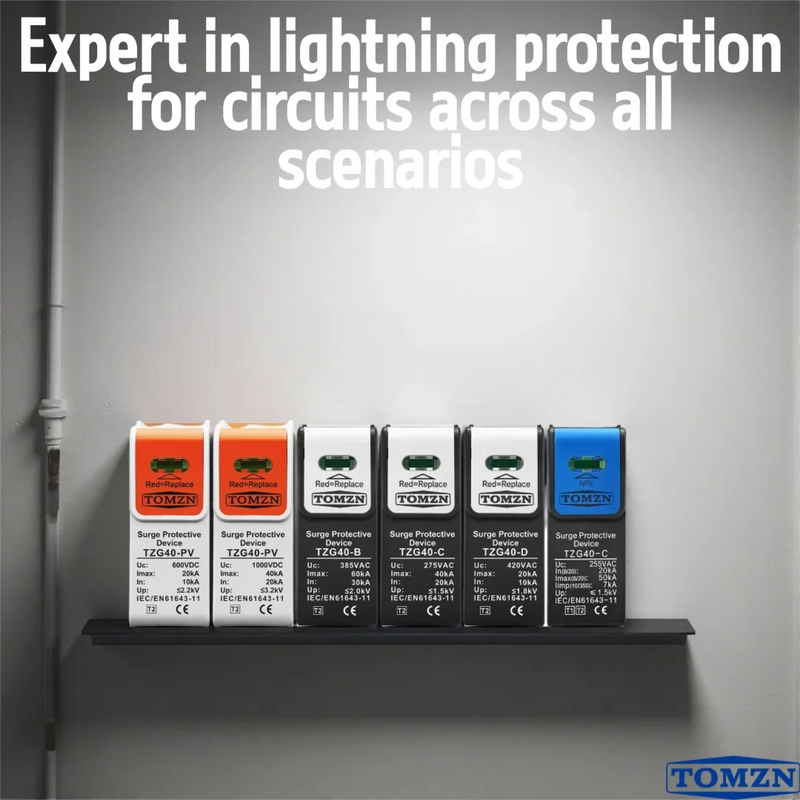

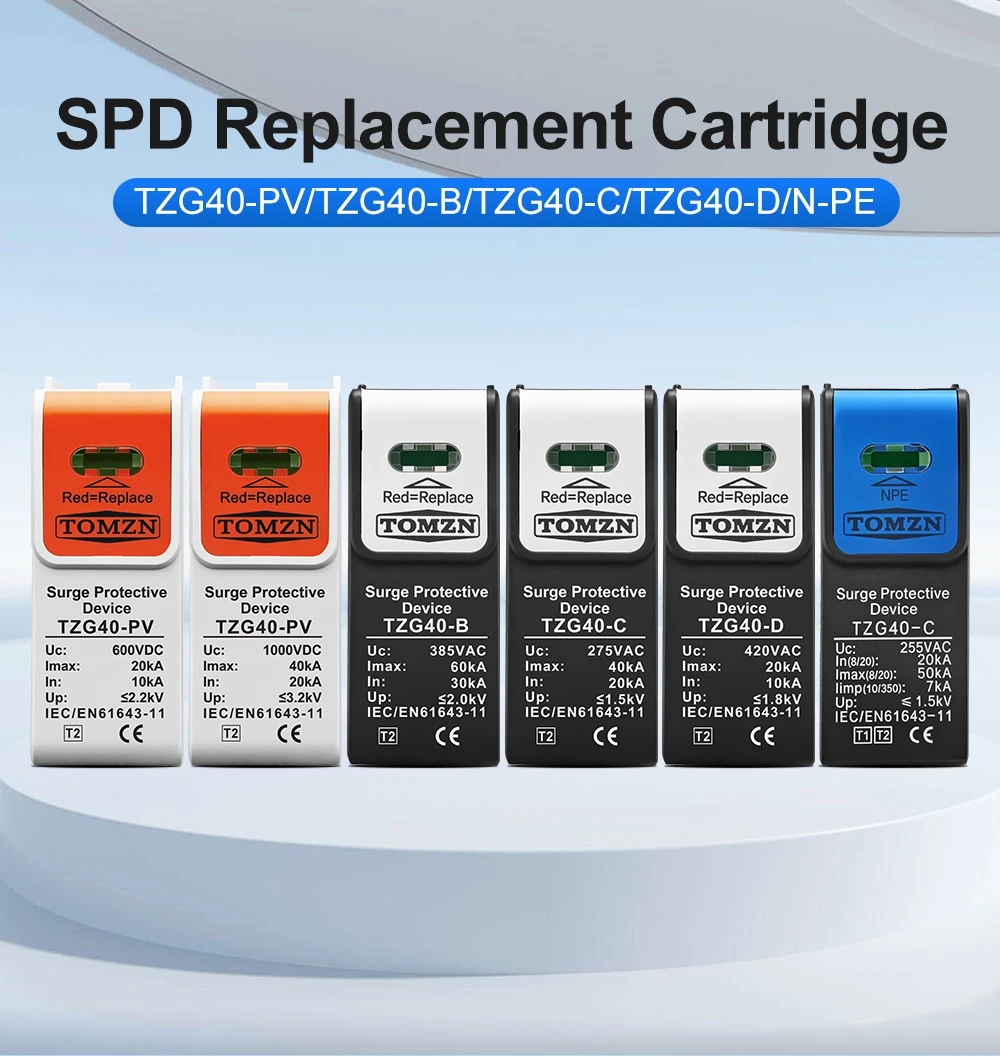

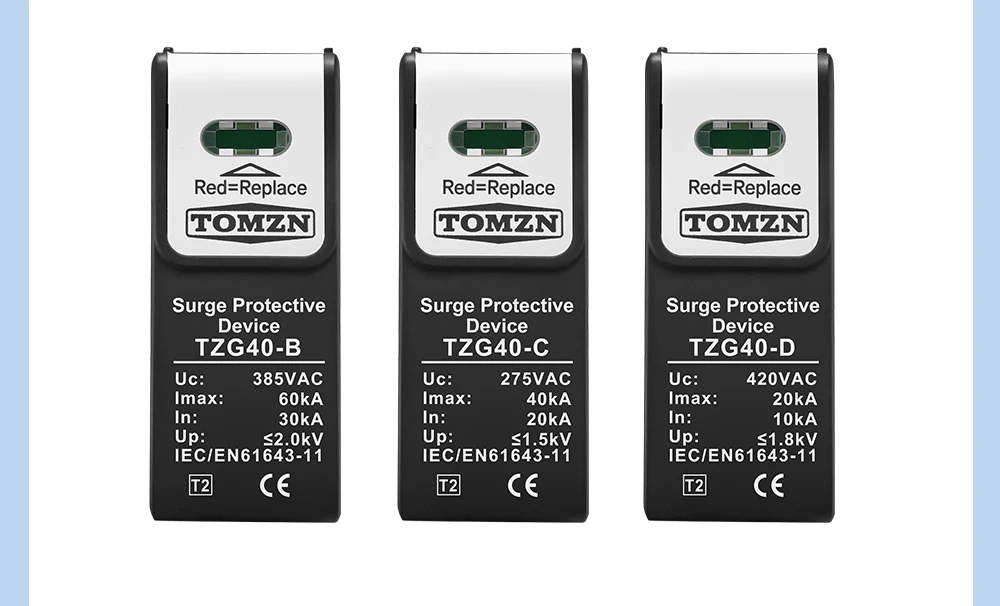

Types: B, C, D, PV
Application: AC/DC replacement module
Rated DC voltages: 500V, 600V, 800V, 1000V, 1200V, 1500V
Rated AC voltages: 275V, 385V, 420V, NPE
Rated current (discharge) options: 10-20kA, 20-40kA, 30-60kA, 20-50kA

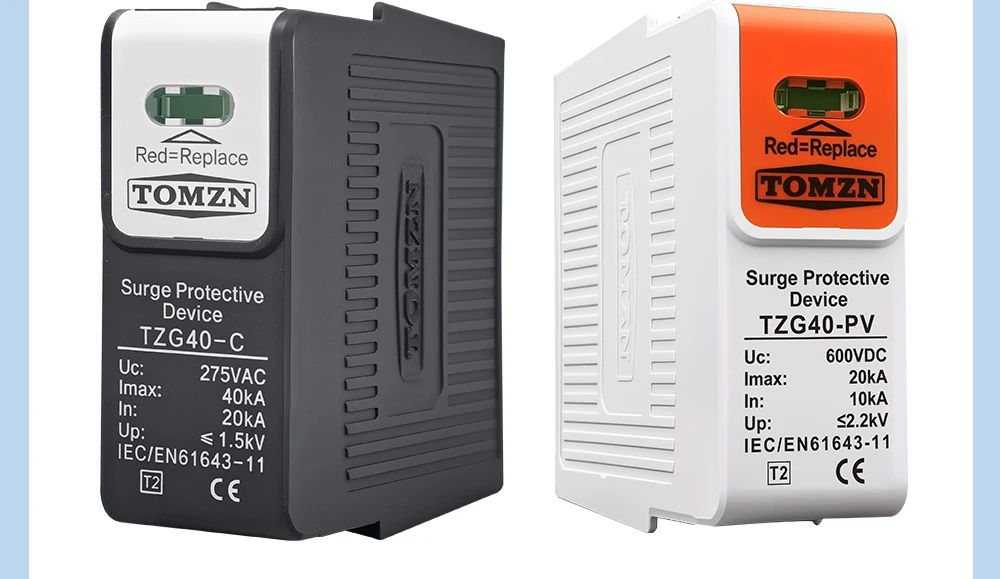

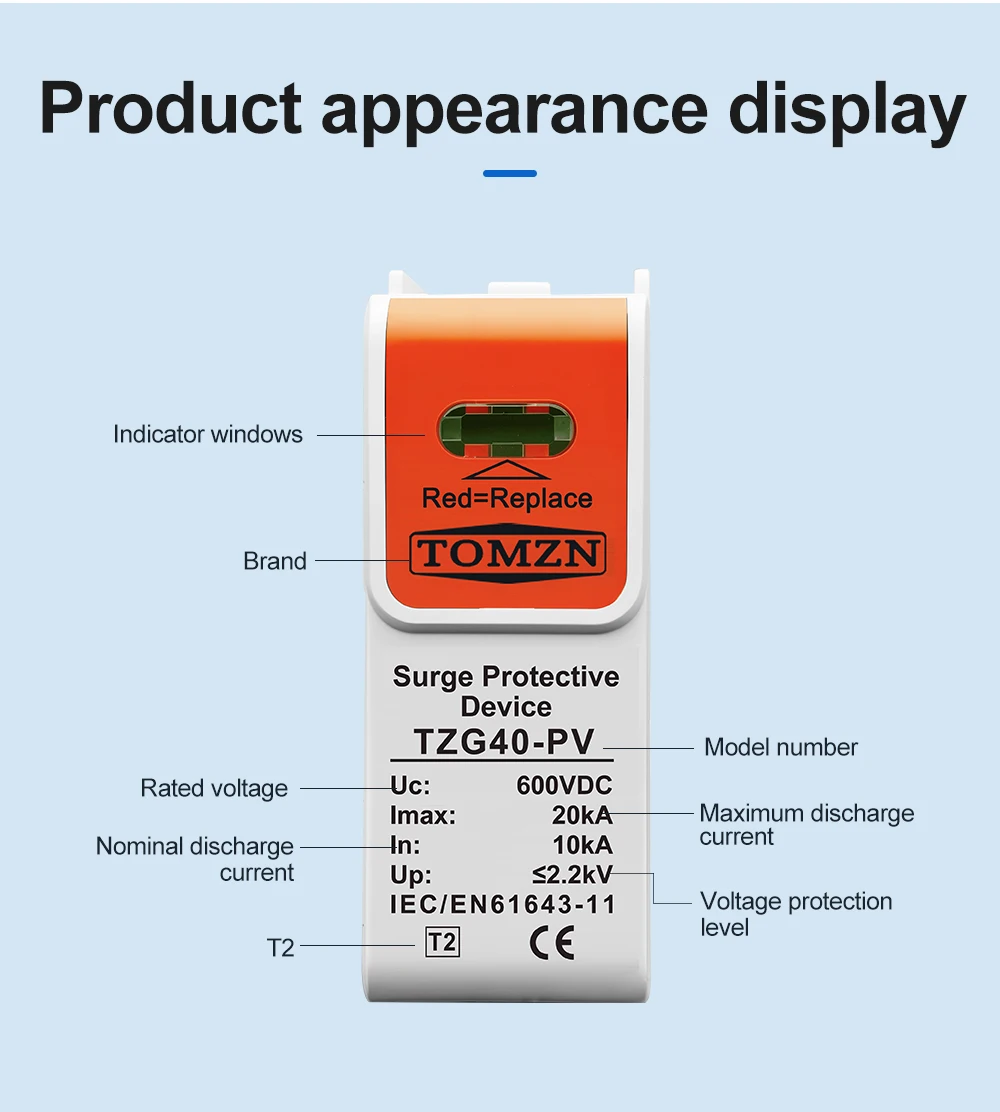

Indicator: Red when module needs replacement
Compatibility: Not for TOV1 series surge protectors
NPE module usage: Only for NPE surge protectors
