SPECIFICATIONS

Name: TOMZN Zigbee 63A 1P+N WIFI Smart Switch Energy Meter Kwh Metering Monitoring Circuit Breaker Timer Relay MCB TUYA Smartlife
Brand: TOMZN
SKU: 1005006180900723-20A-TOB9Z-M Metering
Price: 12.72 USD
Availability: InStock

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: Yes

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: Yes

Model Number: TOB9Z-VAP

Origin: Mainland China

TOB9-63M: Metering

TOB9-63T: No metering

Type: WIFI circuit breakers,Circuit breaker

Notice:

This device work with SMART LIFE APP/ TUYA APP Zigbee gateway.

Wiring: Power must enter from the top and must be Live line + Neutral Line (L+N). Live line + Live line (L+L) cannot be used.

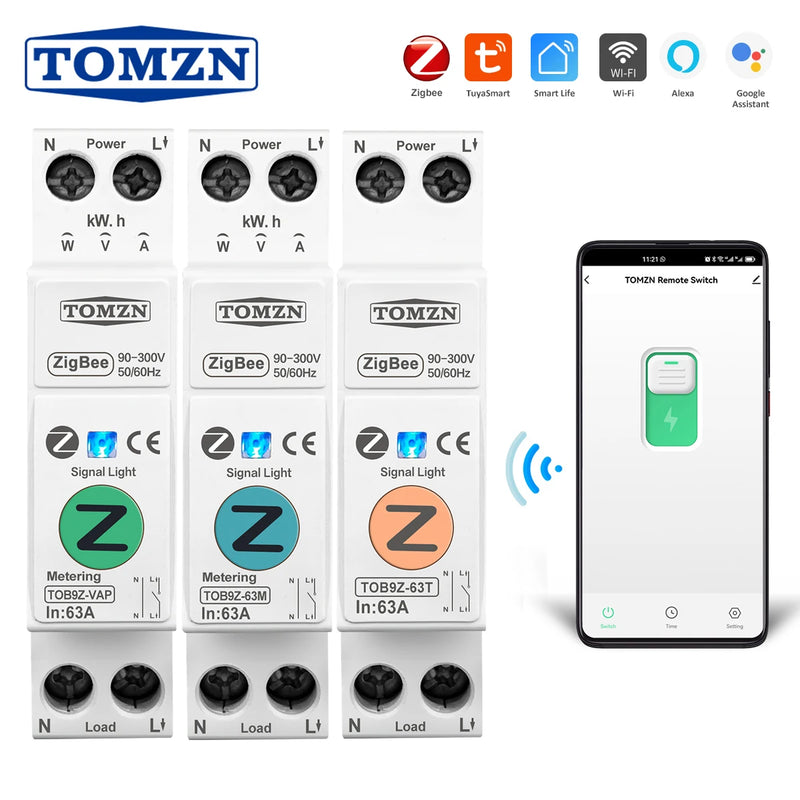

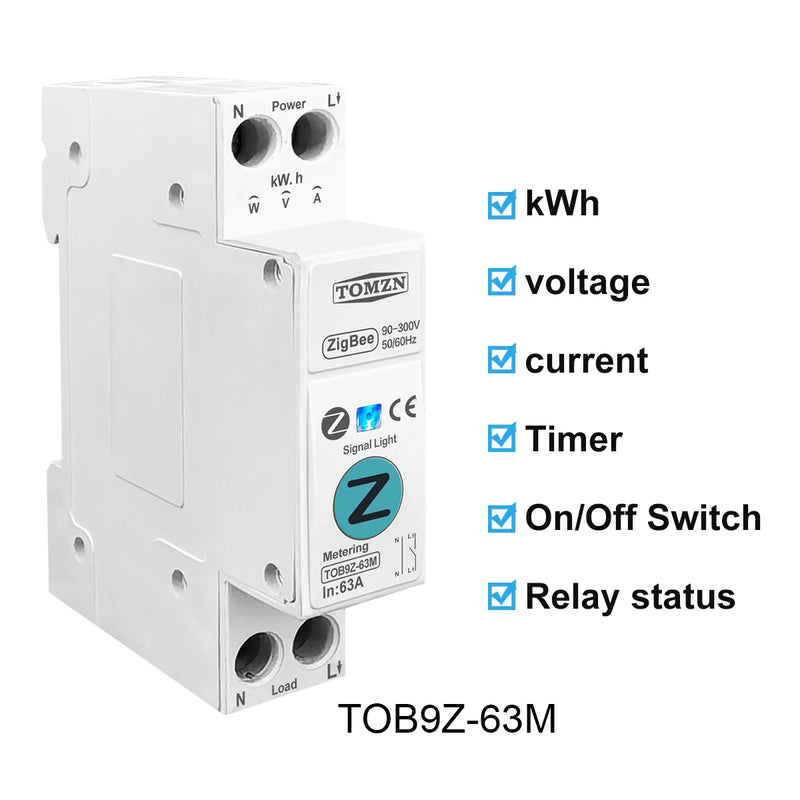

TOB9Z-63M Metering

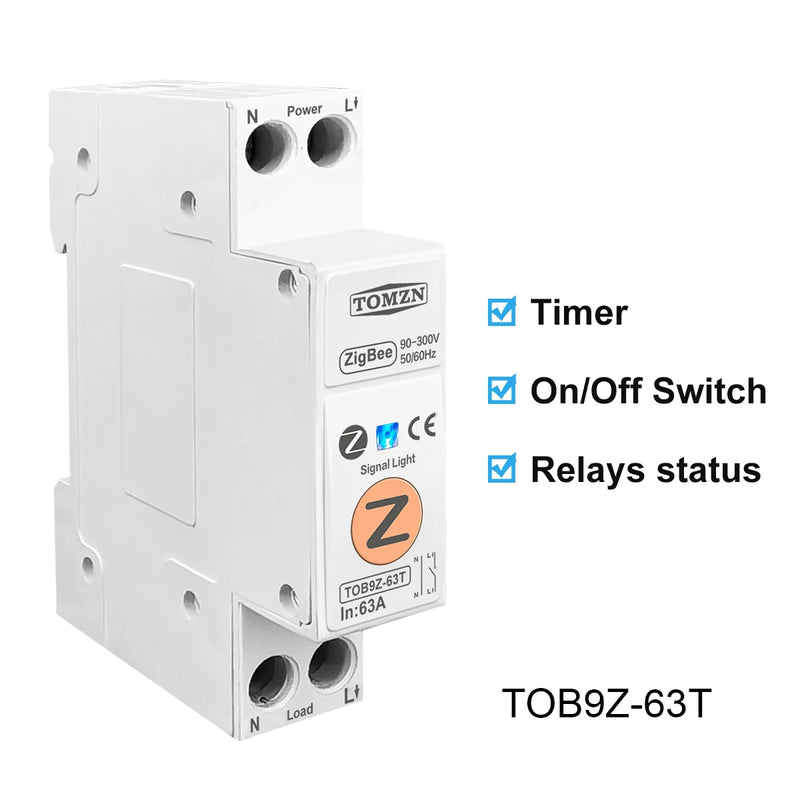

TOB9Z-63T No metering

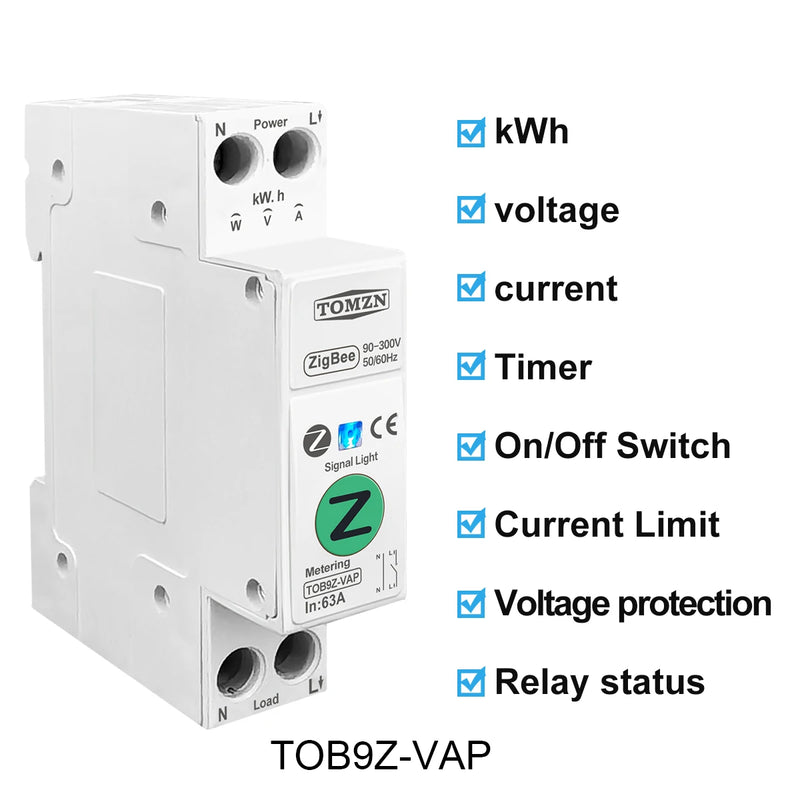

TOB9Z-VAP Metering, voltage currrent and power protection

Function:

TOB9Z-63T Function	TOB9Z-63M Function	TOB9Z-VAP Function
Remote on/off	Remote on/off	Remote on/off
Time control function	Time control function	Time control function
Relay last status	Relay last status	Relay last status
	Voltmeter	Voltmeter
	Ammeter	Ammeter
	Power meter	Power meter
	Active power	Active power
		Over voltage protection
		Under voltage protection
		Over current protection
		Over power protection
