Product Introduction

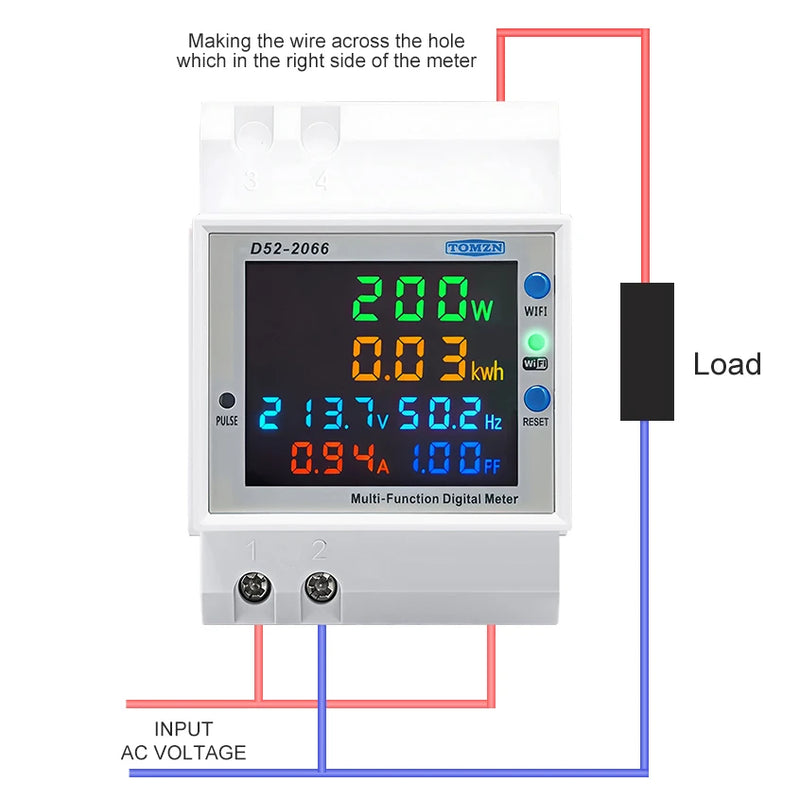

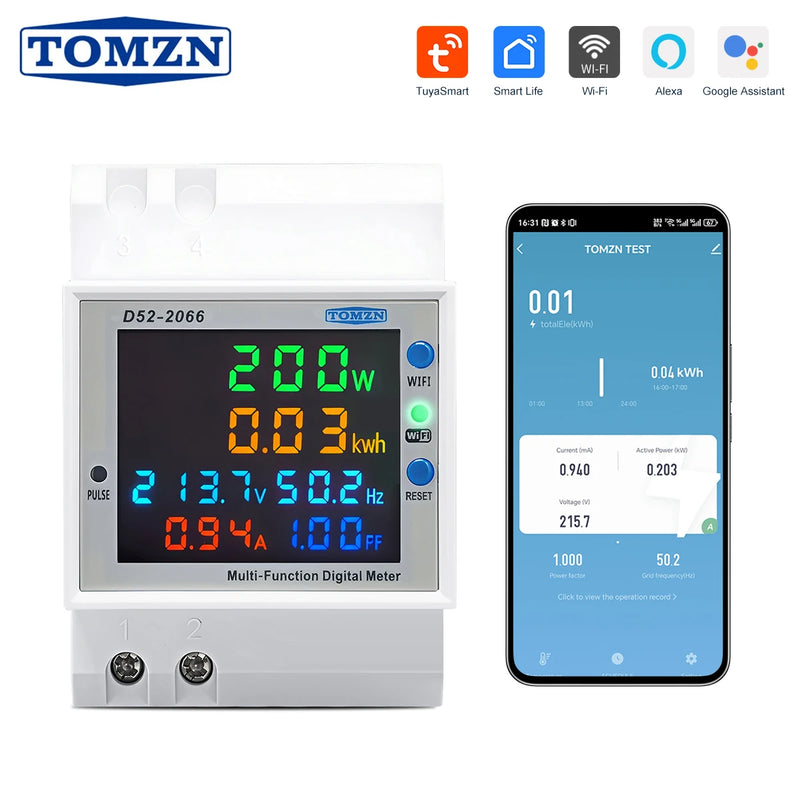

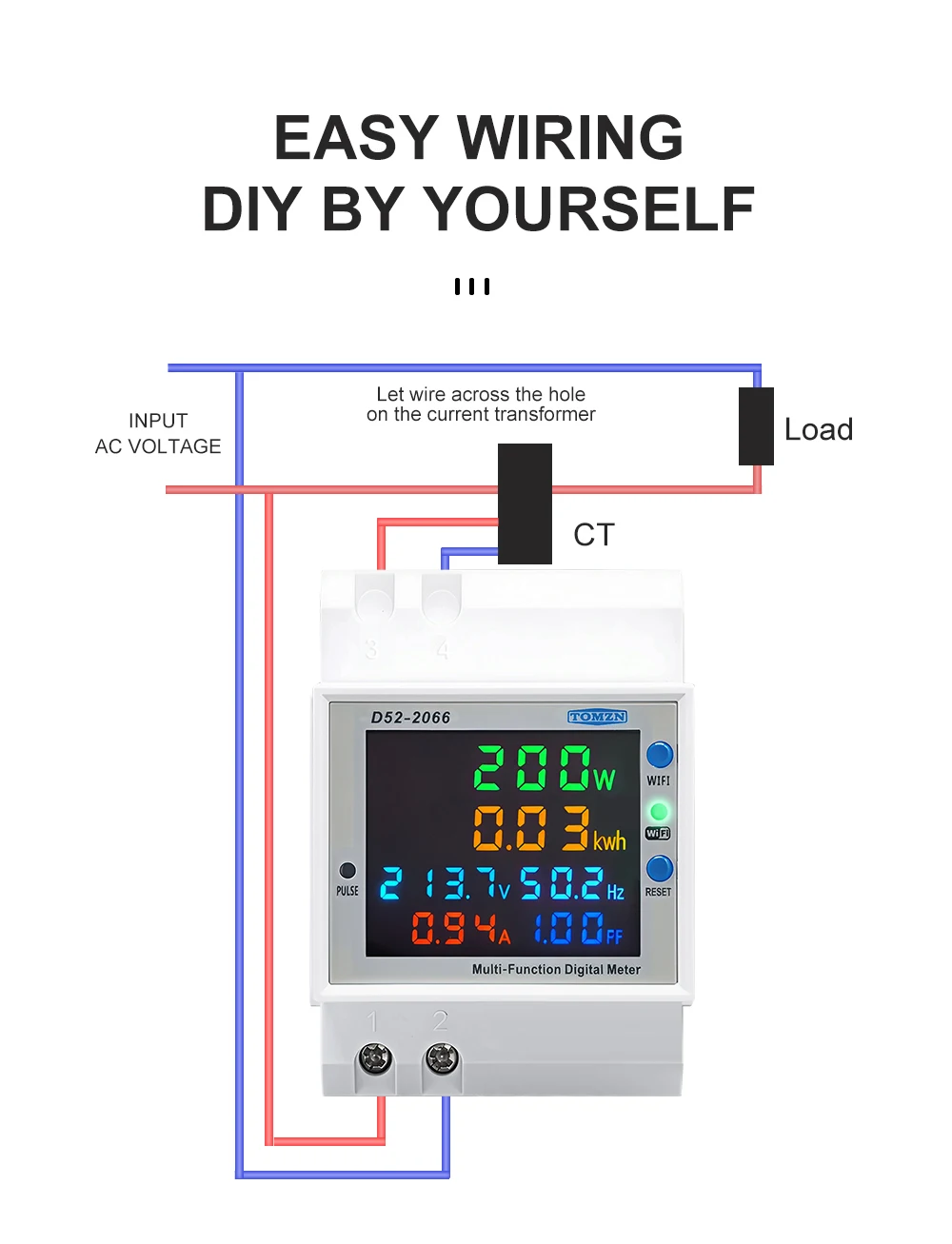

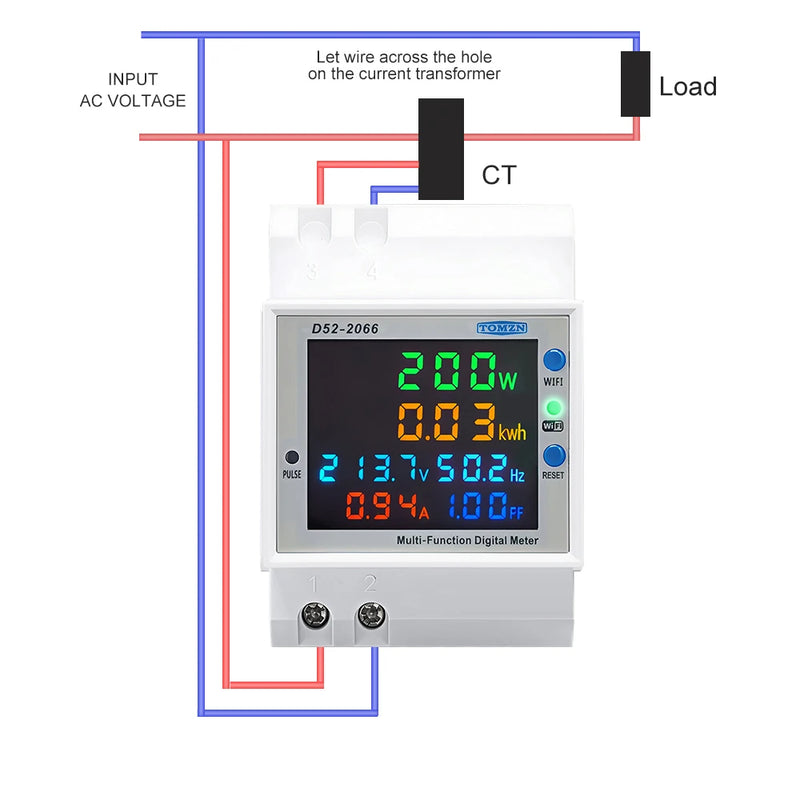

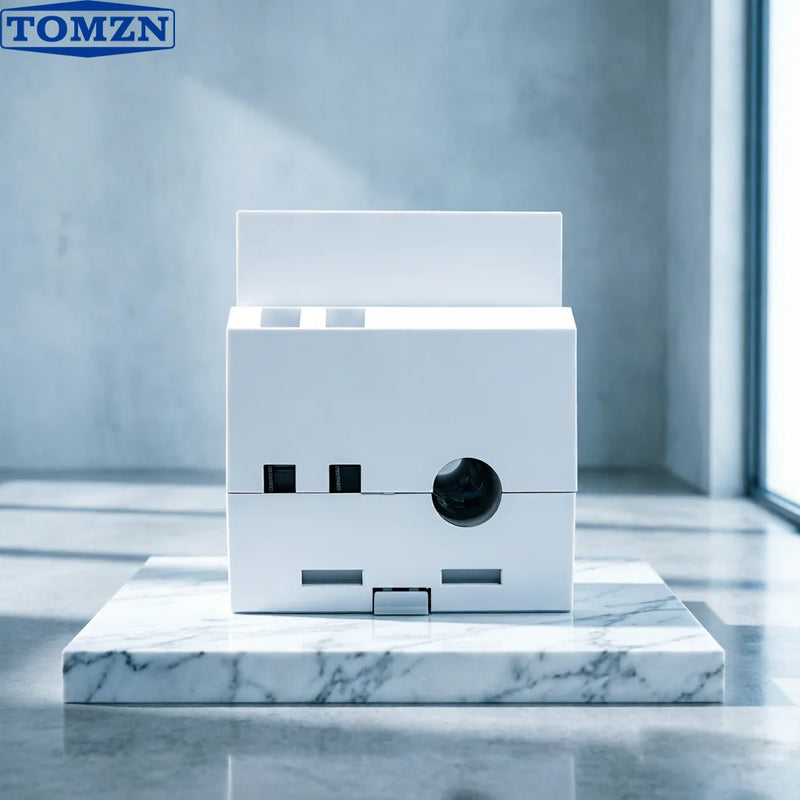

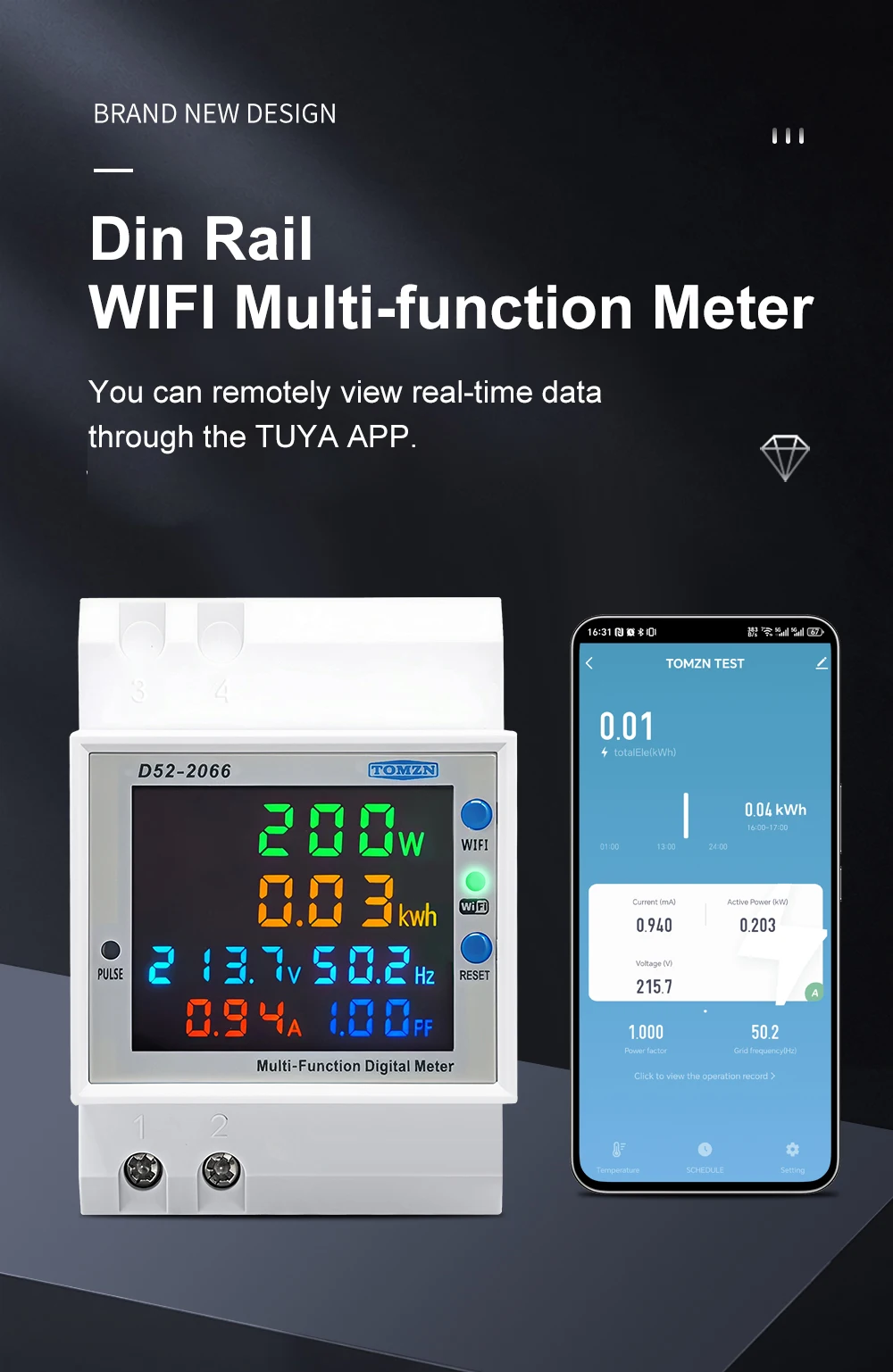

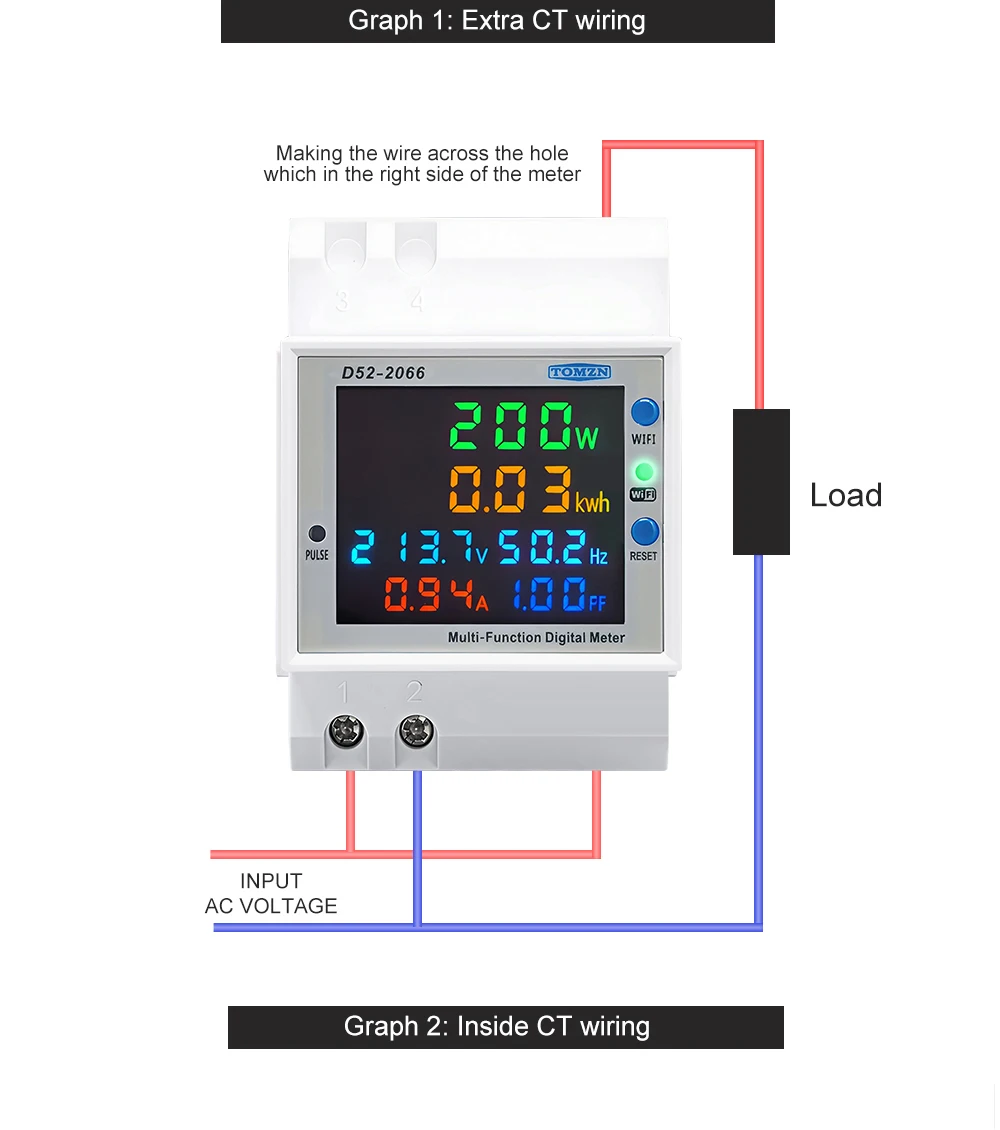

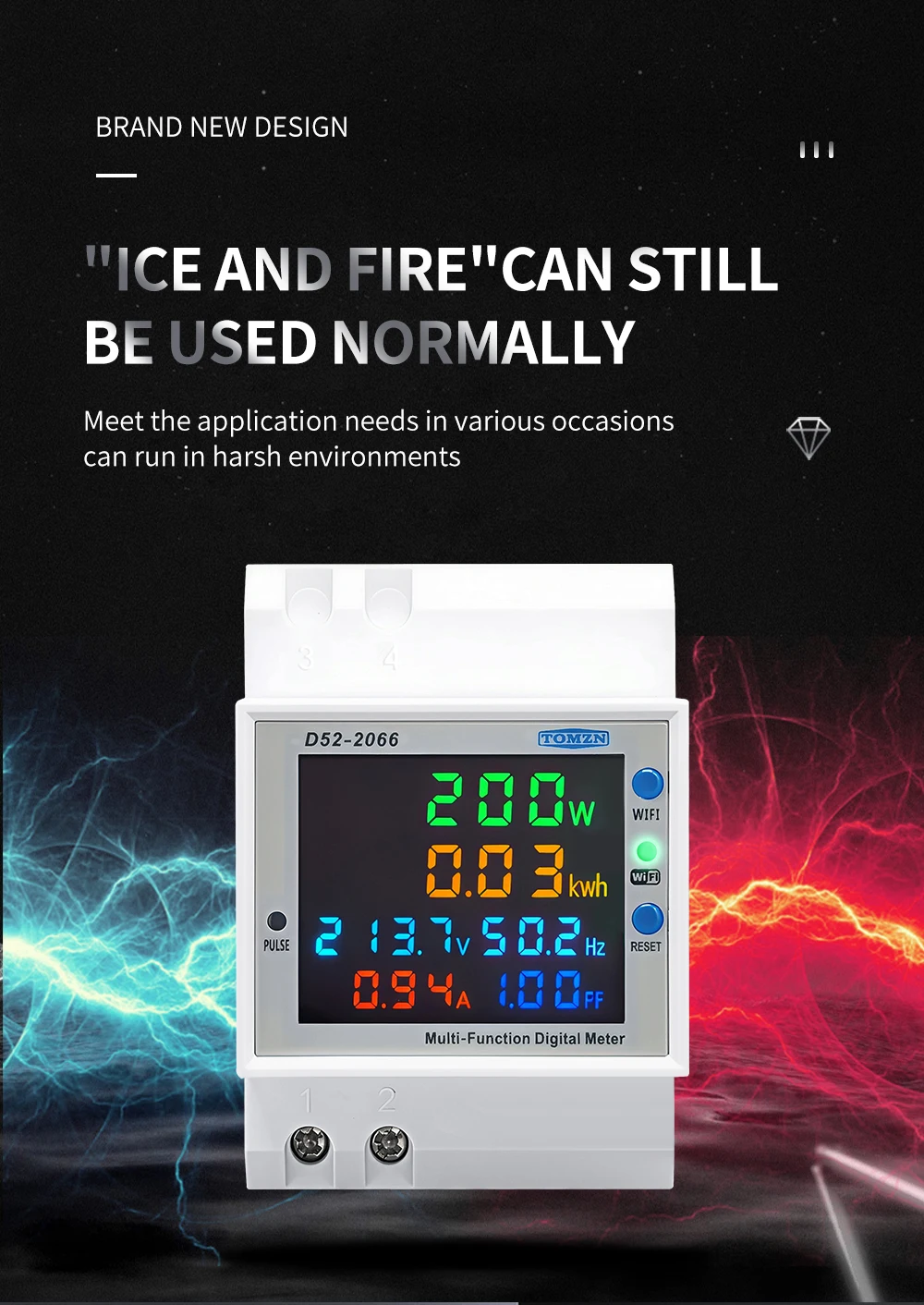

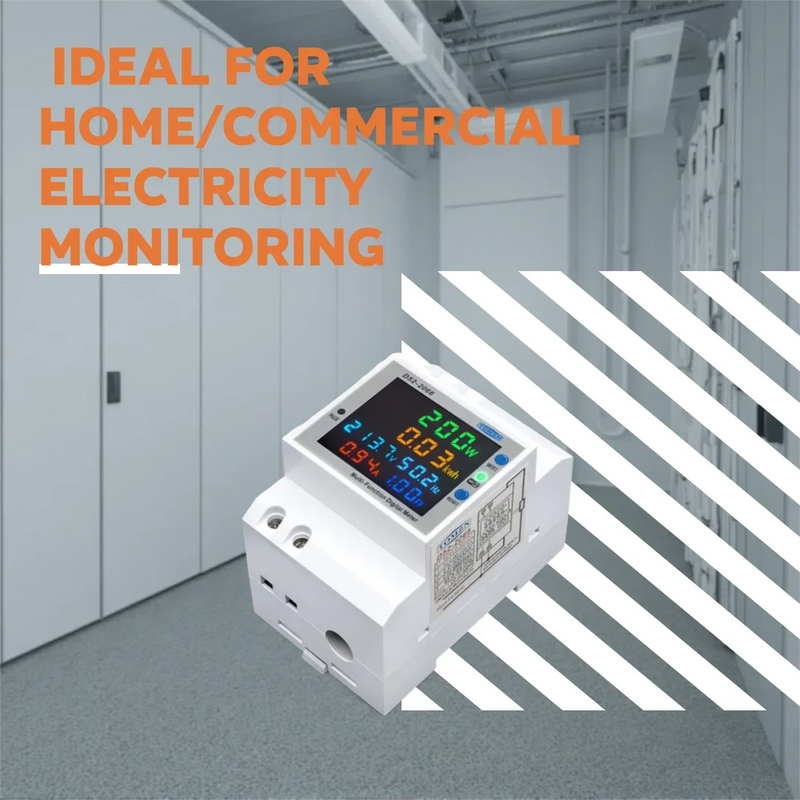

The WIFI Smart 6IN1 Meter (Model D52-2066) is a DIN-rail multifunctional digital meter designed for comprehensive AC power monitoring. It simultaneously measures AC voltage, AC current, active power, power factor, frequency, and electric energy, displaying all parameters on a colorful, full-view, high-definition LCD screen. With built-in WiFi connectivity, the meter can be controlled remotely via the TUYA App or Smartlife App, allowing users to view real-time measurement data from anywhere. The meter supports both internal and external current transformer connections, offering flexibility for various installation scenarios. Its compact DIN-rail design ensures easy integration into distribution panels, making it an ideal solution for residential, commercial, and industrial energy monitoring applications.

Product Data Sheet

Model: D52-2066

Type: WIFI Smart 6IN1 Multifunction Meter

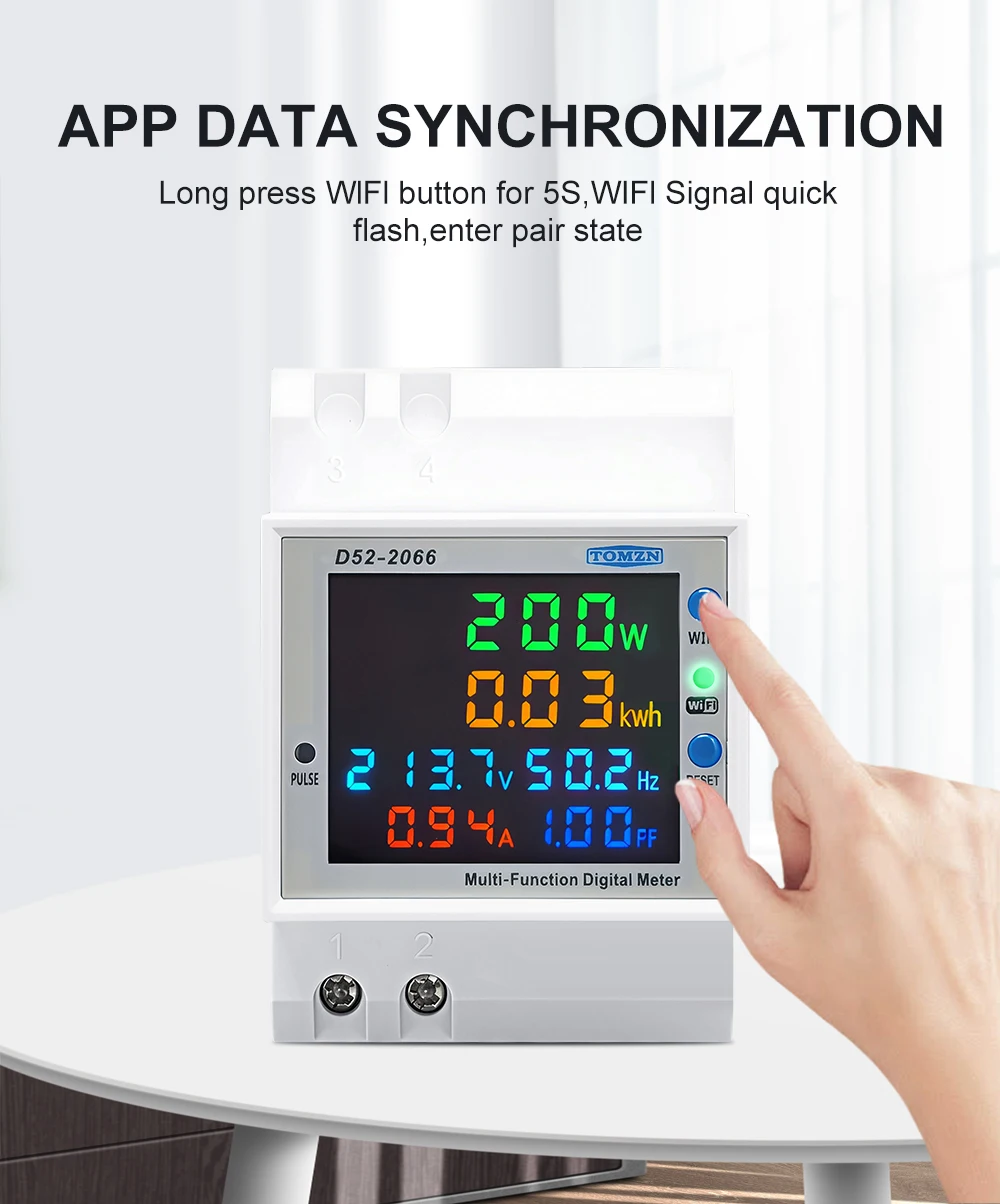

Compatible Apps: TUYA App / Smartlife App

Accuracy: ±1% ±2 words

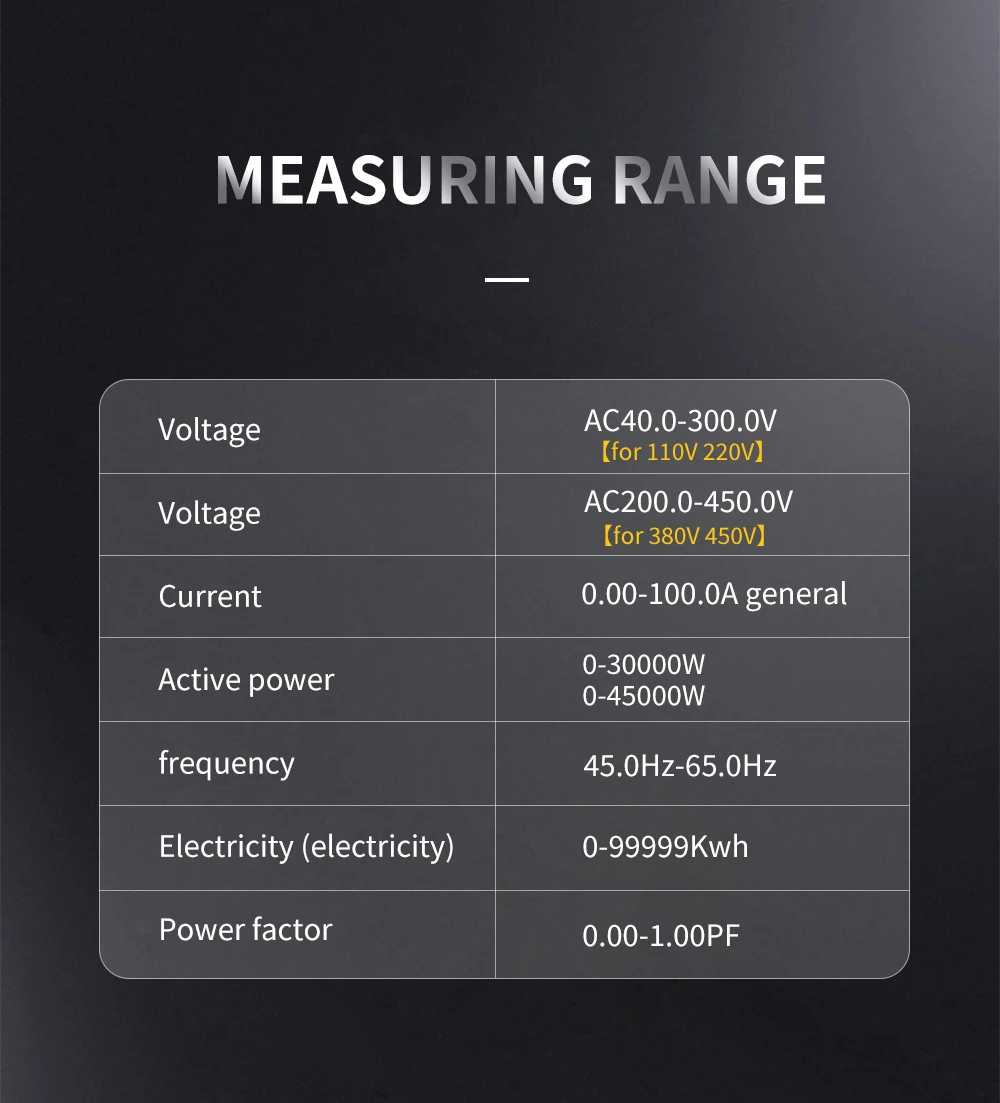

Voltage Range: AC 40.0–300.0V

Current Range: AC 0–100.0A (resolution: 0.01A)

Frequency Range: 45.0–65.0Hz

Power Factor Range: 0.00–1.00 PF

Active Power Range: 0–450,000W (resolution: 0.1W for 0–9999.9W; 1W for ≥10,000W)

Electric Energy Range: 0–99,999 kWh (resolution: 0.01 kWh for 0–999.99 kWh; 0.1 kWh for 1000.0–9999.9 kWh; 1 kWh for ≥10,000 kWh)

Update Speed: 2 times per second

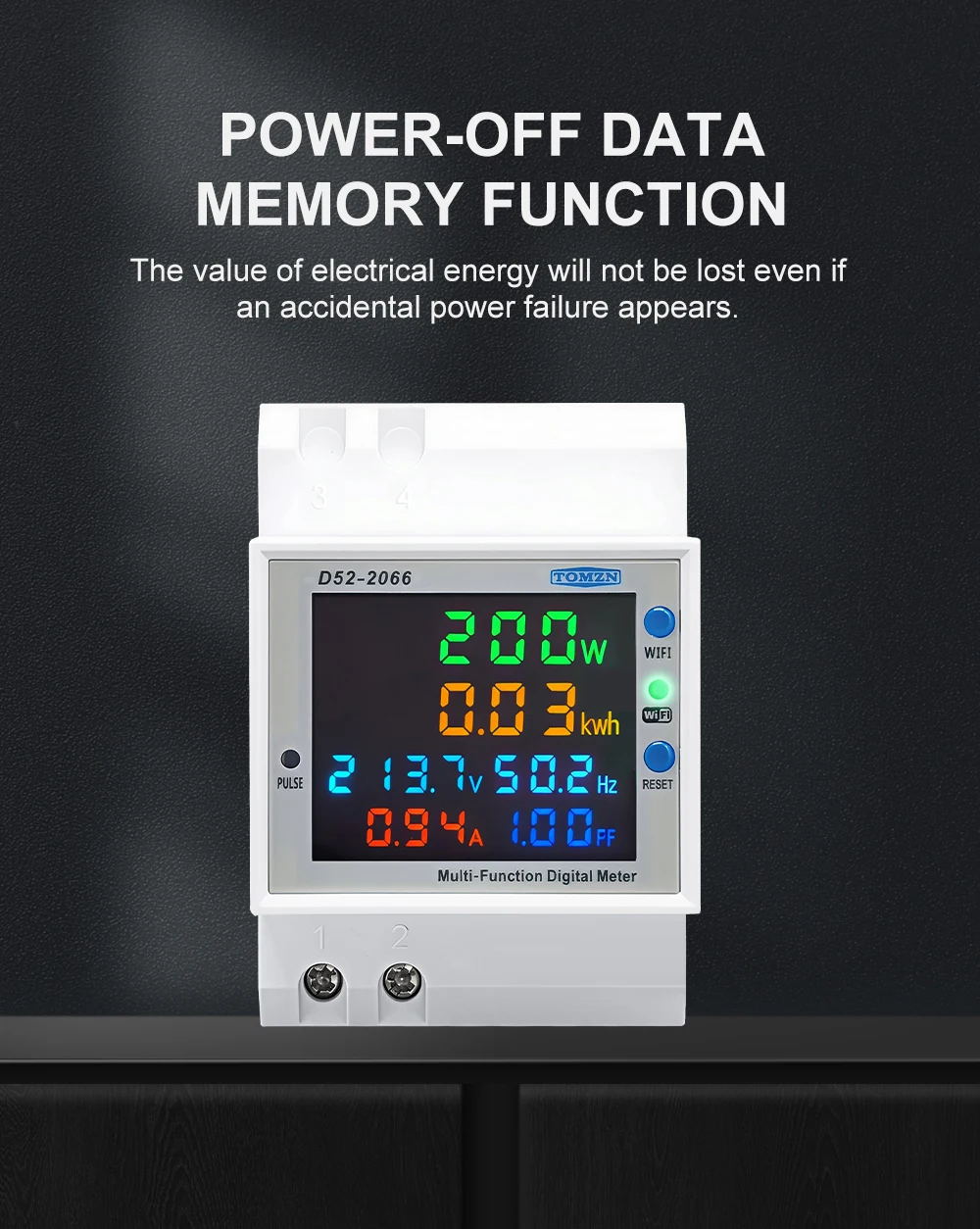

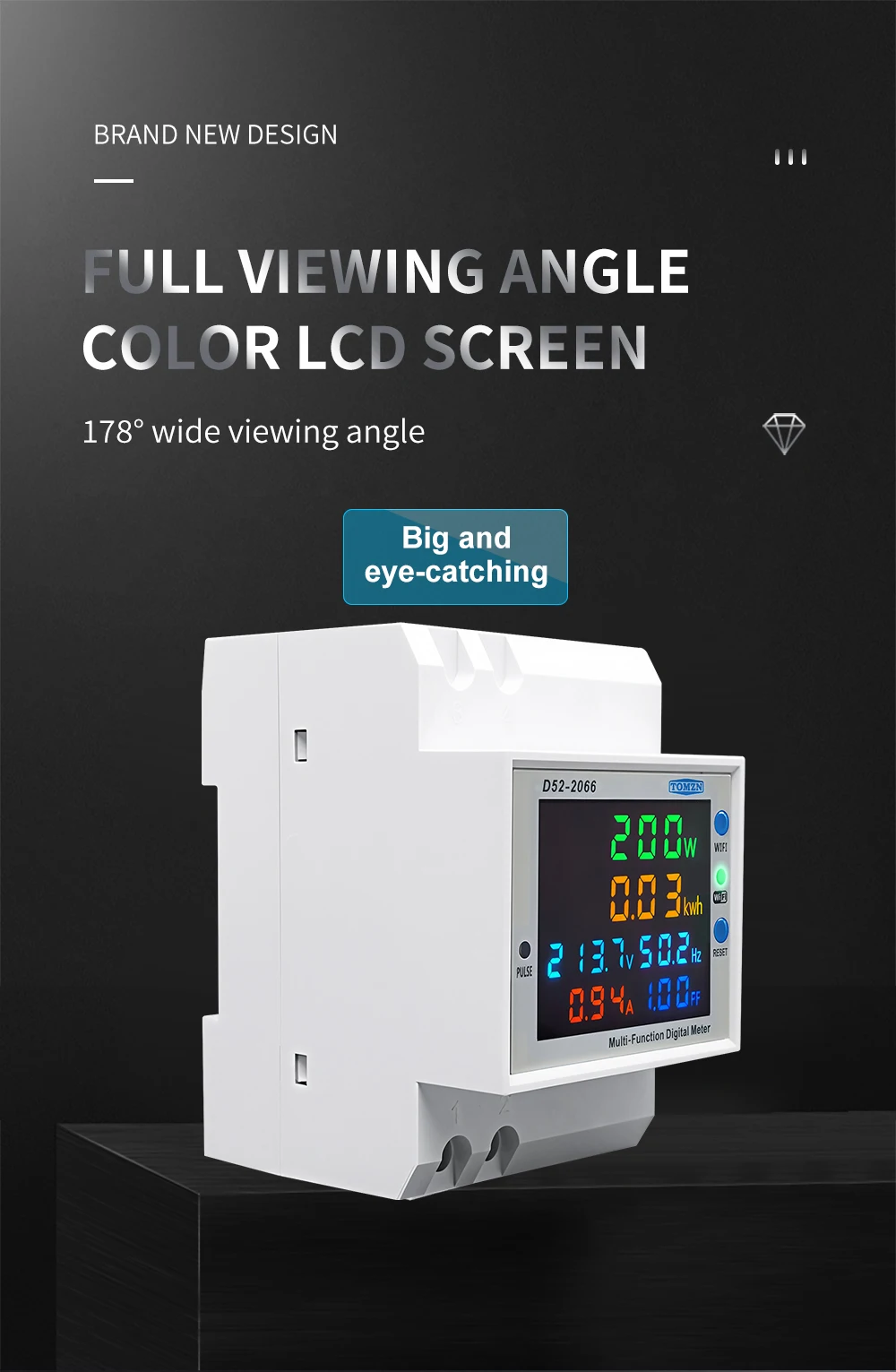

Display: Colorful, full-view, high-definition LCD

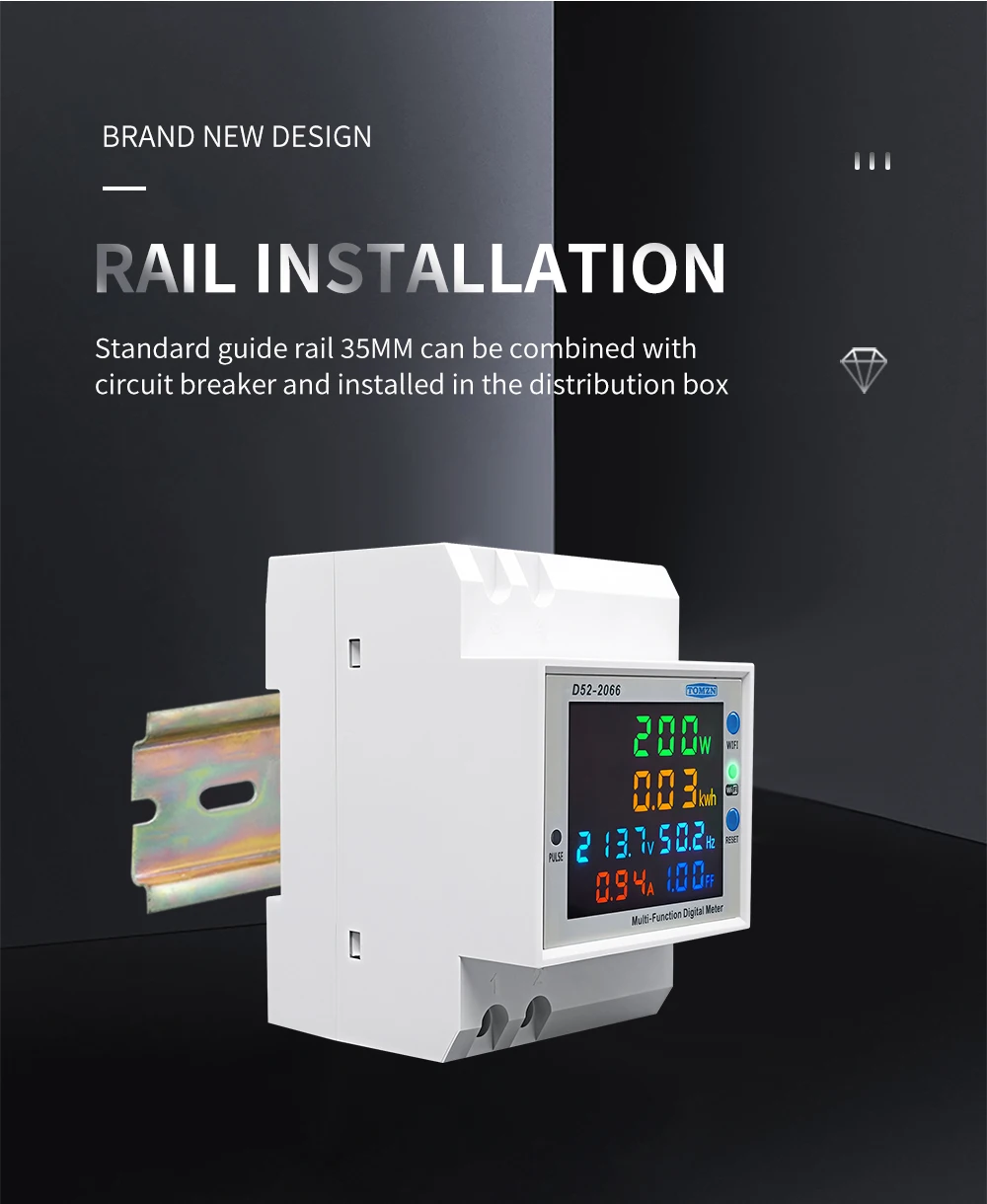

Installation: DIN Rail

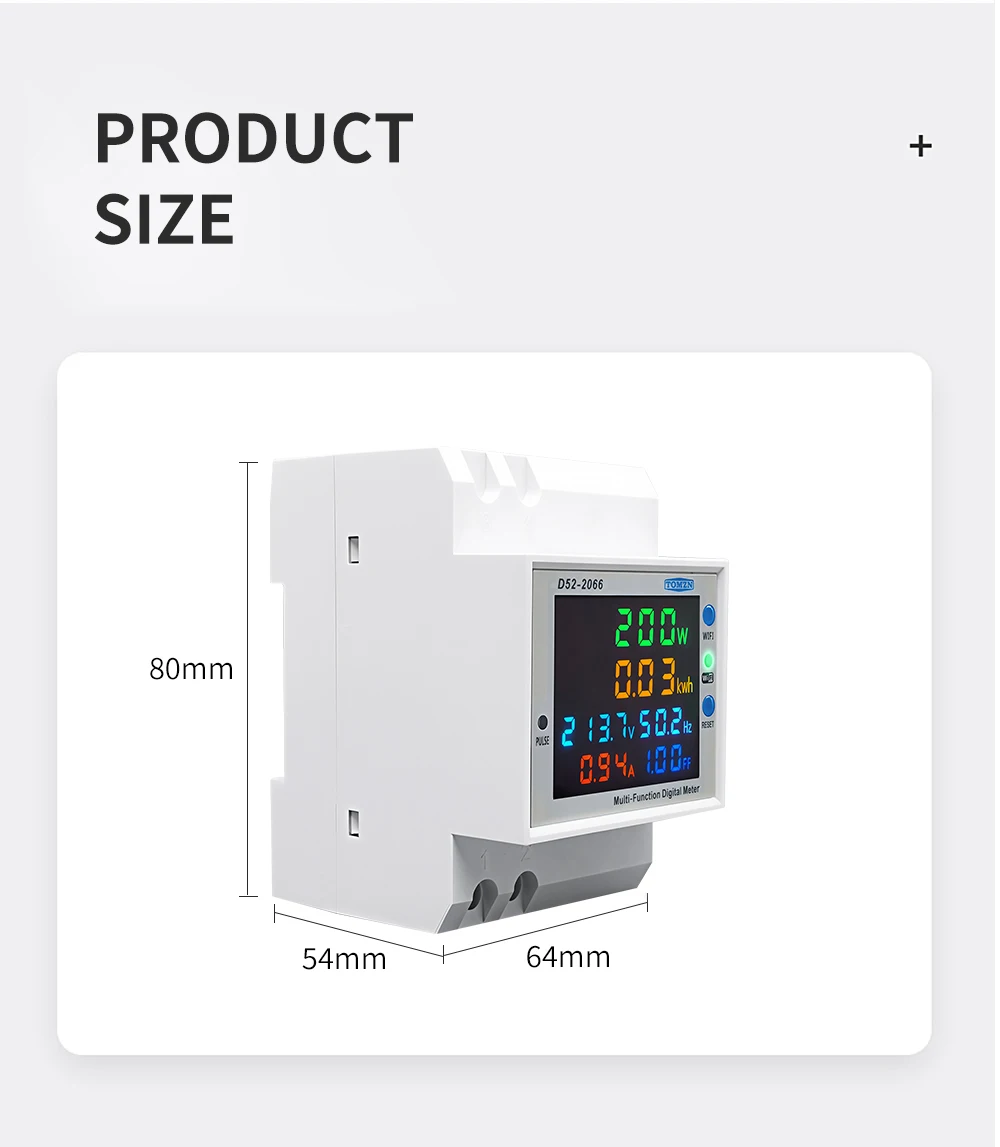

Dimensions: 54 × 80 × 64 mm

Application: AC 45–65Hz mains power monitoring only
