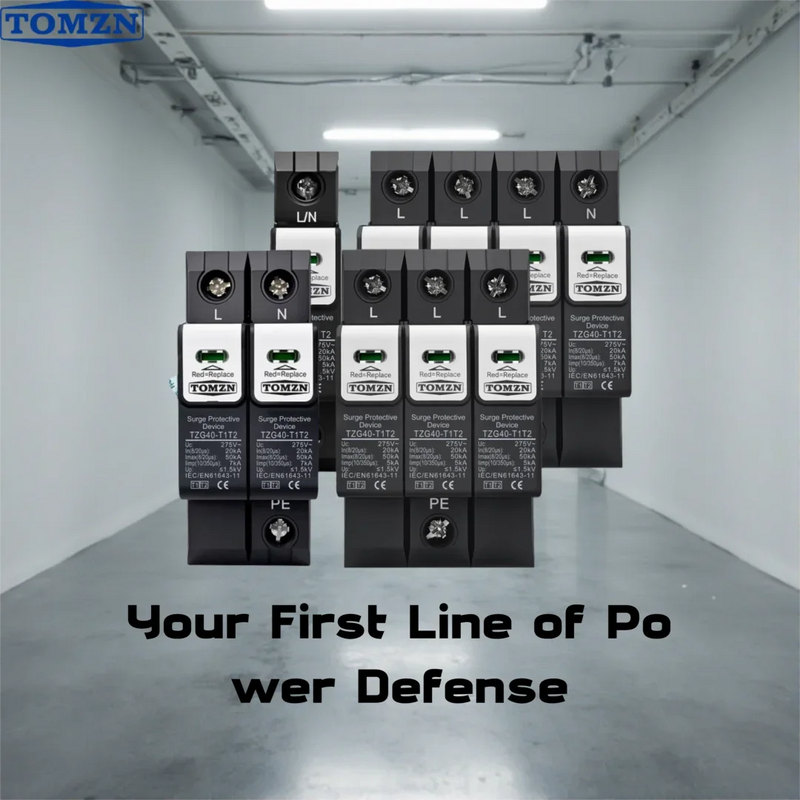

Product Introduction

The TZG40-T1T2 is a high-performance surge protective device that integrates both Type 1 (T1) and Type 2 (T2) protection into a single compact unit, delivering comprehensive defense against direct lightning strikes and induced surge voltages. Designed for installation at the main distribution board, it safely dissipates high-energy lightning impulse currents (Iimp) while effectively limiting transient overvoltages, ensuring seamless protection across multiple threat levels. With a robust surge handling capacity of up to 50kA (Imax) and flexible pole configurations (1P to 4P), this device is suitable for a wide range of power distribution systems. Compliant with IEC/EN 61643-11 standards, the TZG40-T1T2 offers reliable and space-saving protection for residential, commercial, and industrial applications. Customization options, including alternative voltage or current ratings and RS485 communication functionality, are available upon request.

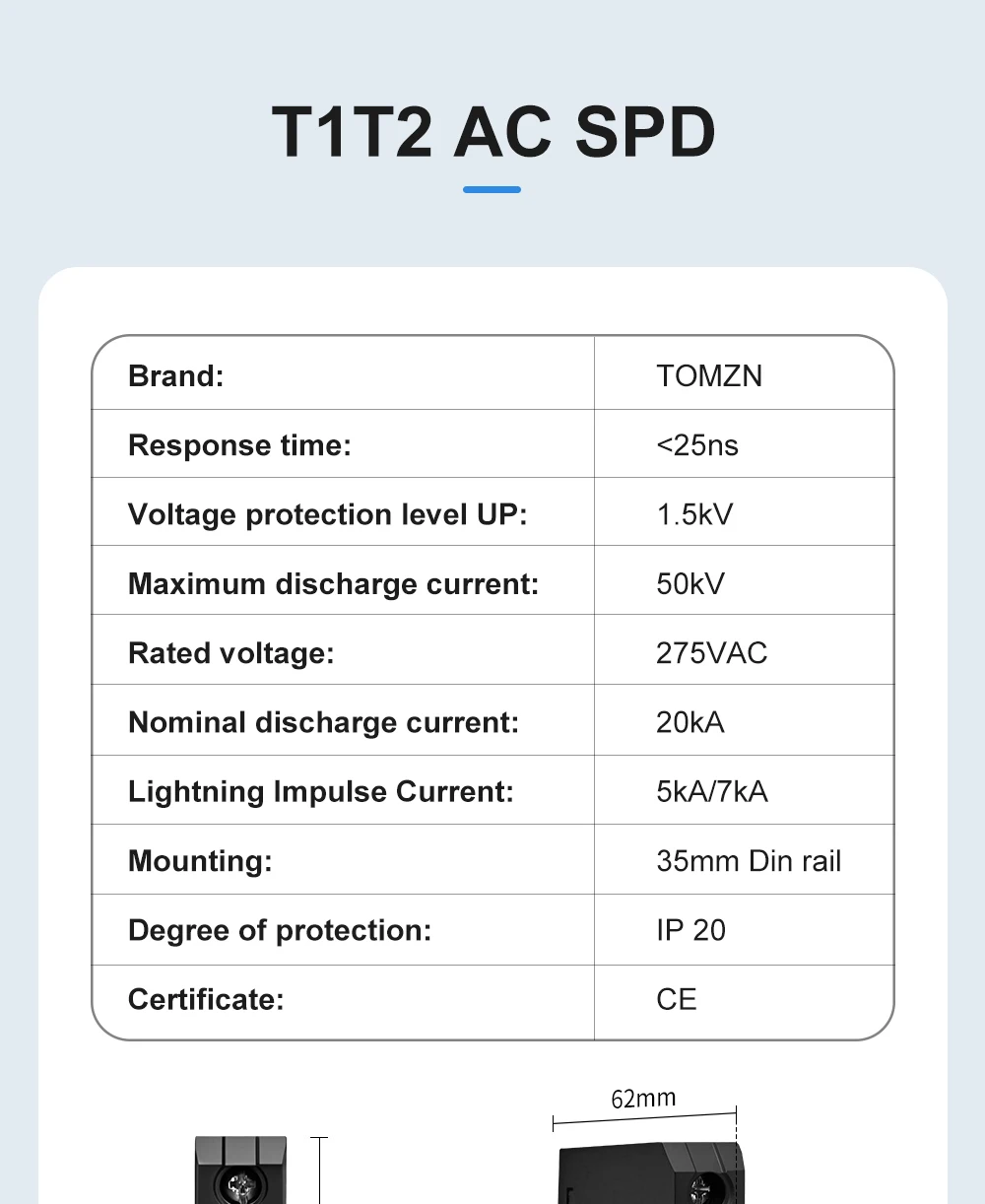

Product Data Sheet

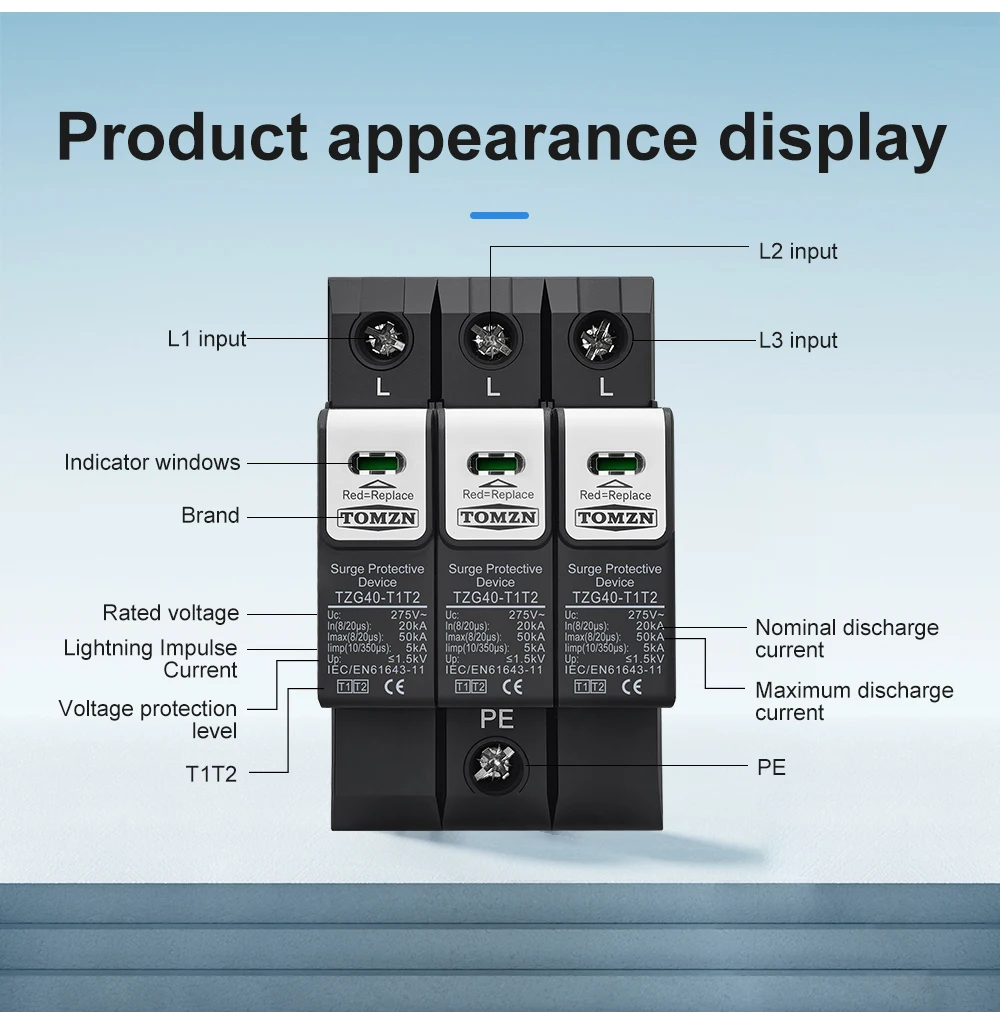

Model: TZG40-T1T2

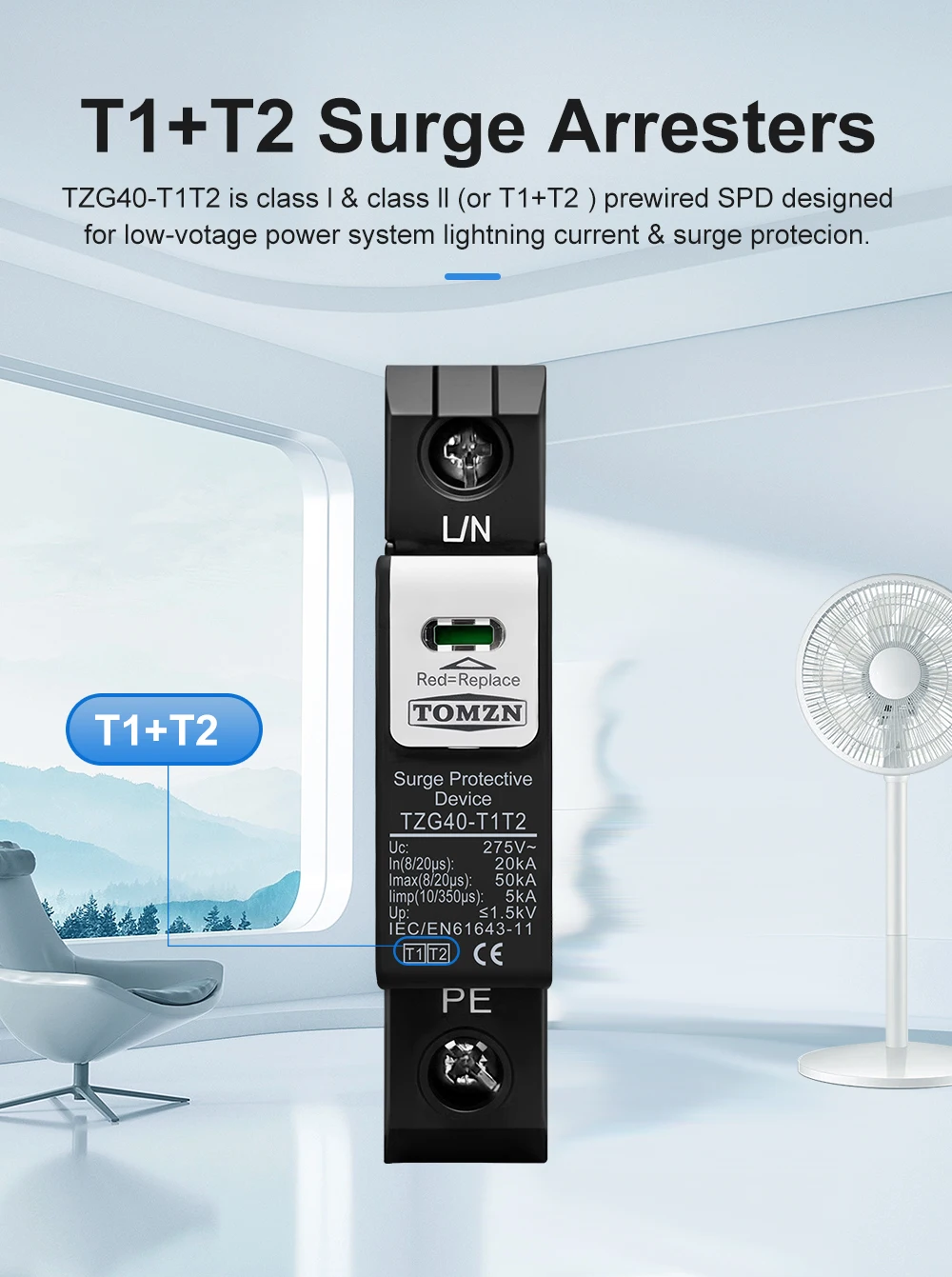

Type: T1+T2 (Integrated Type 1 and Type 2)

Standard: IEC/EN 61643-11

Rated Voltage: 275V / 385V AC

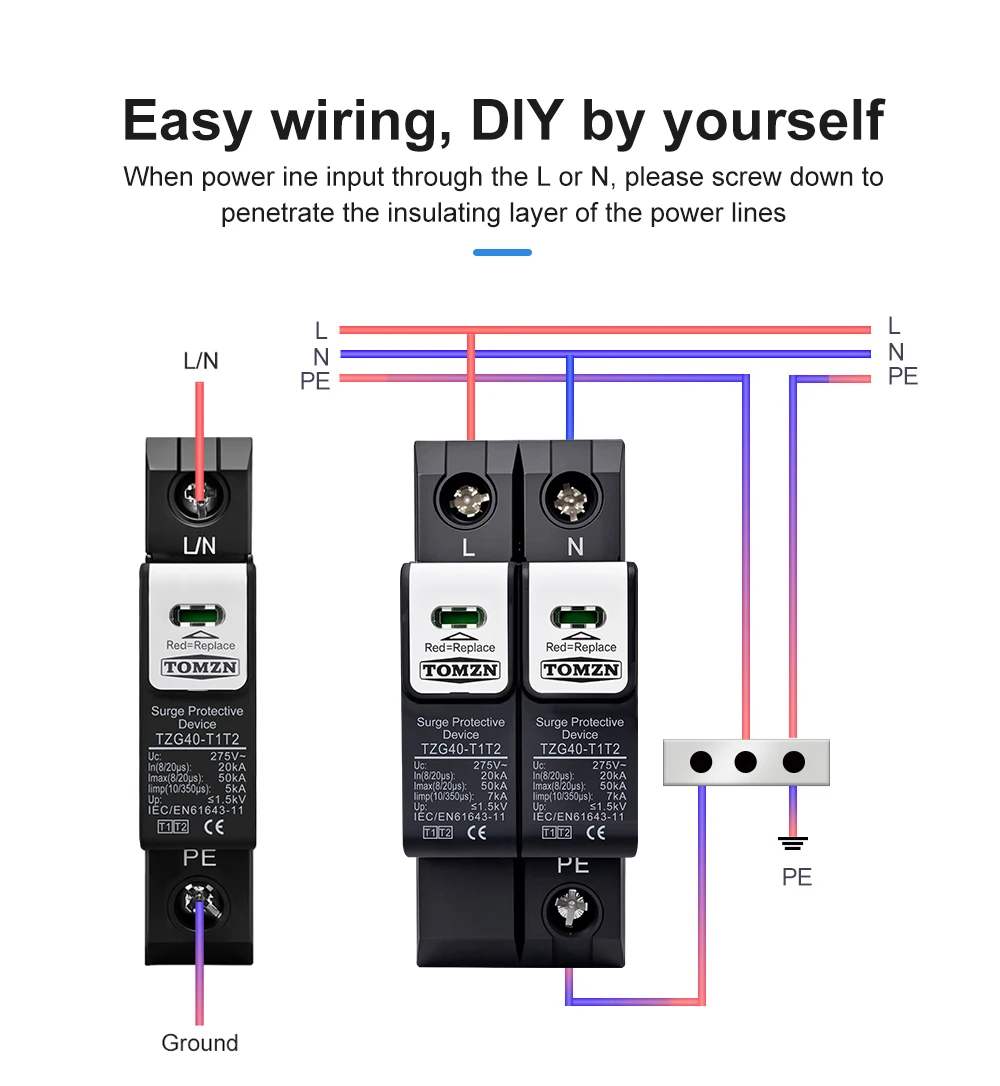

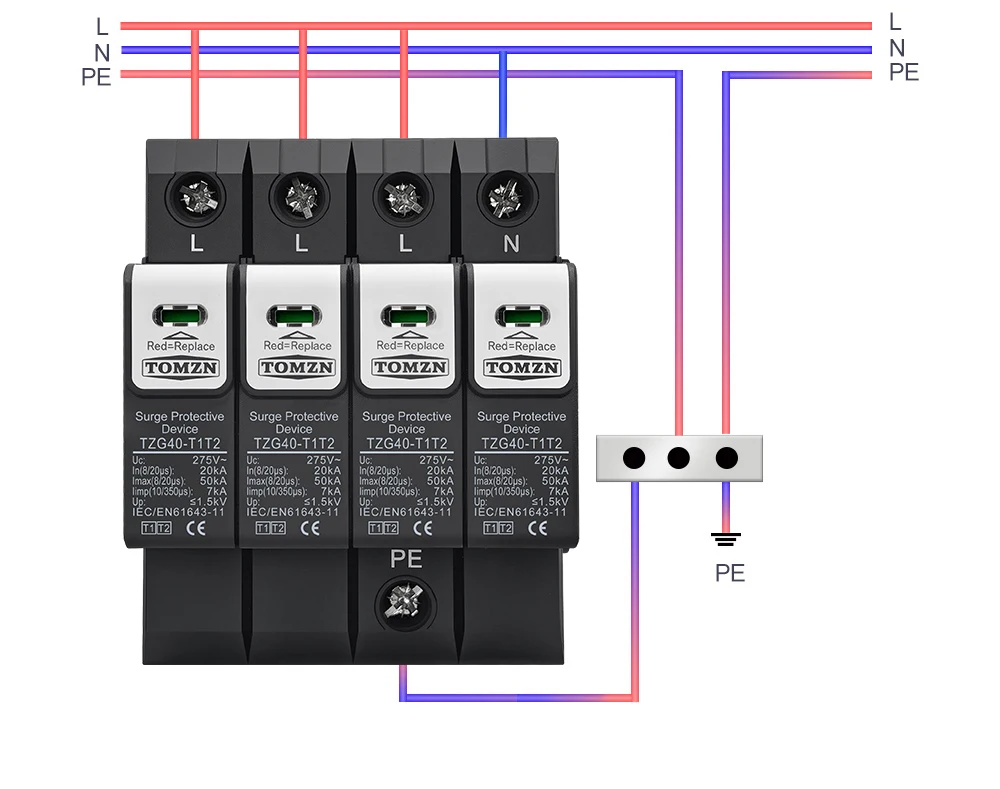

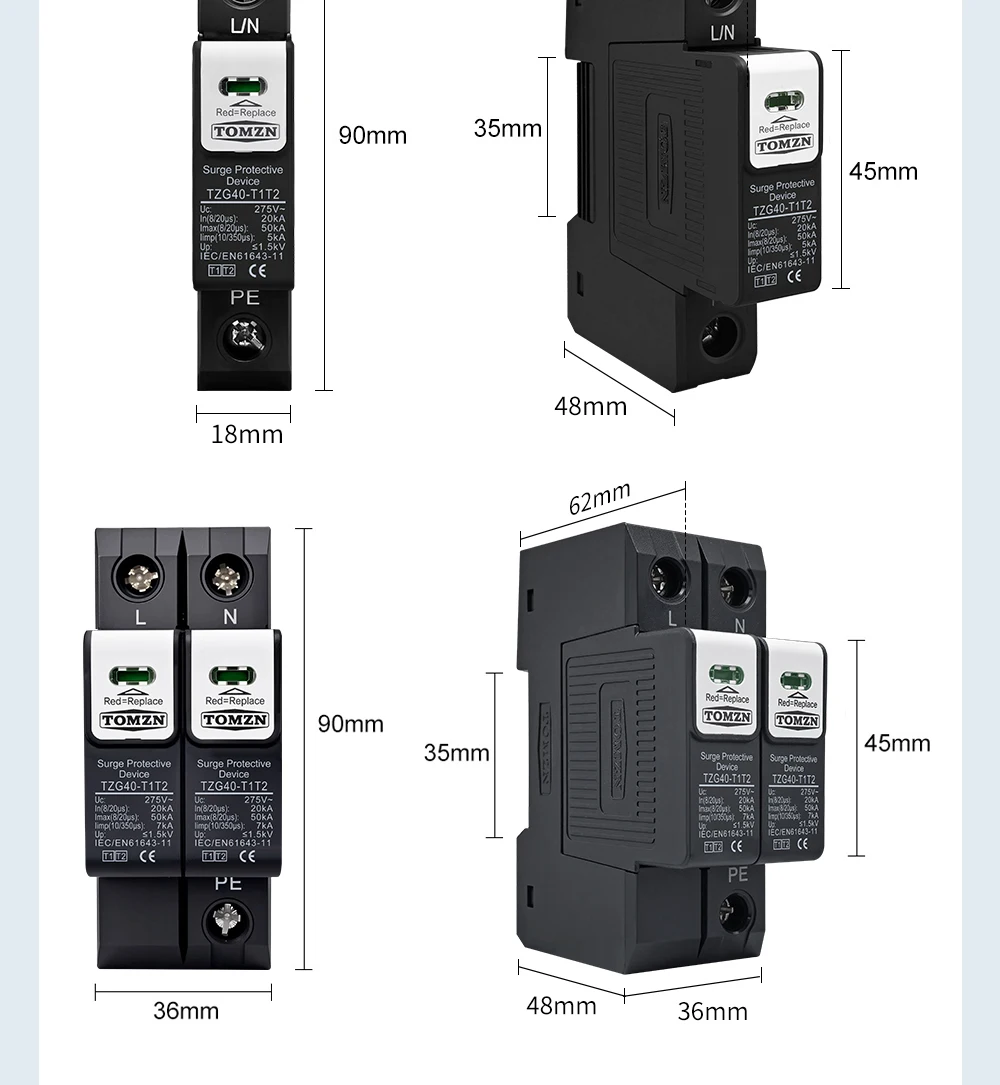

Poles: 1P, 2P, 3P, 4P

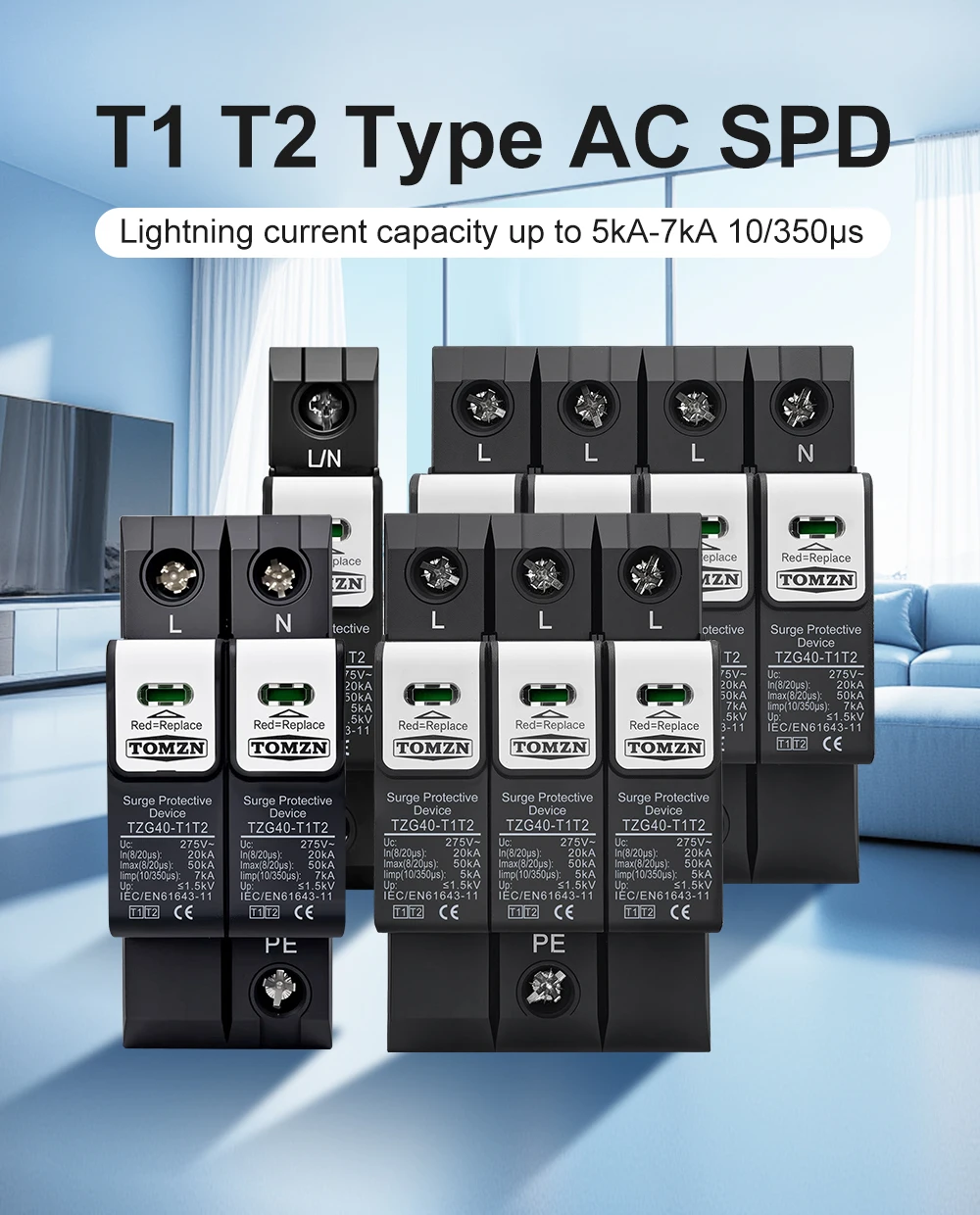

Lightning Impulse Current (Iimp): 7kA (10/350μs)

Nominal Discharge Current (In): 20kA (8/20μs)

Maximum Discharge Current (Imax): 50kA (8/20μs)

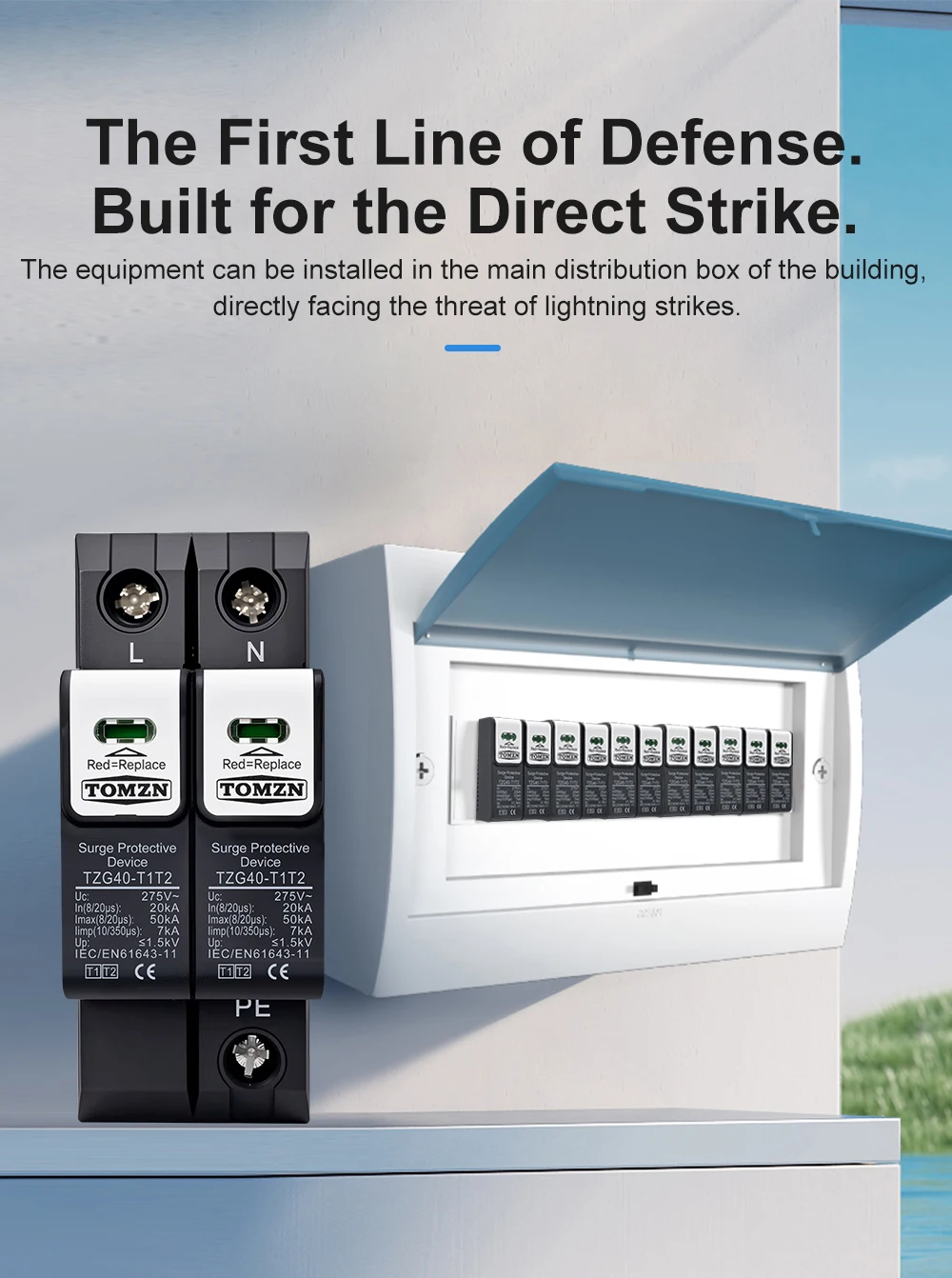

Application: Main distribution board

Customization: Available for special voltage/current ratings, RS485 communication, and other requirements upon request
