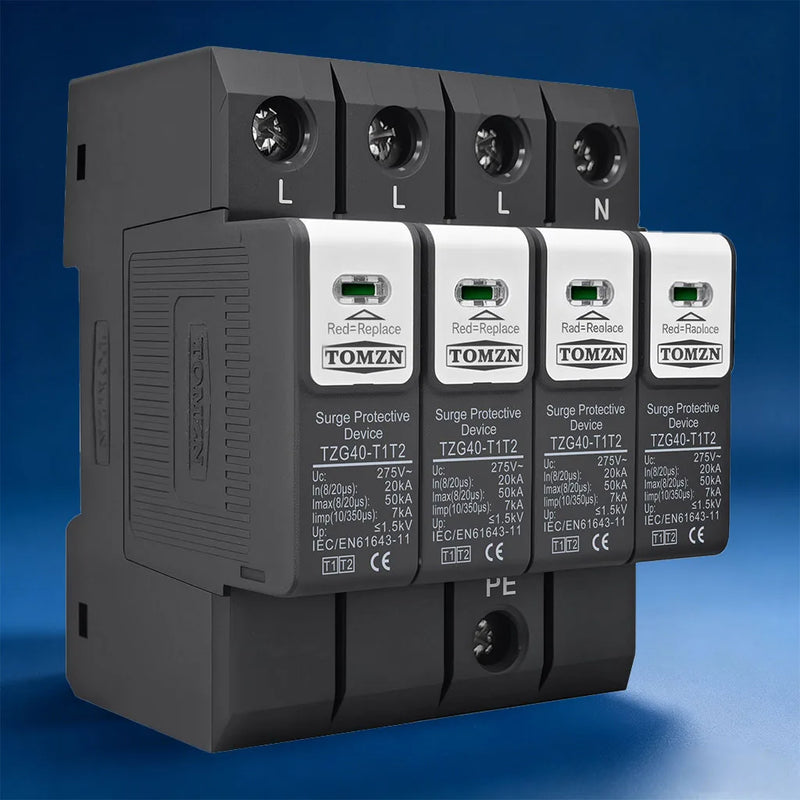

TOMZN TZG40-T1/T2 New Type Pluggable DIN Rail SPD AC 275V/385V 8/20μs 20–50kA 10/350μs 7kA Surge Protective Device for Lightning

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Iimp: 7kA

Imax: 50kA

In: 20kA

Is Smart Device: no

Model Number: TZG40-T1T2

Number of Poles: 1P 2P 3P 4P

Origin: Mainland China

Rated Voltage: 220/380V,AC275V 385V

Standard: IEC/EN61643-11

Type: Surge protective device,Circuit breaker,T1T2

is_customized: Yes

Product Introduction

The TZG40-T1T2 is a high-performance surge protective device that integrates both Type 1 (T1) and Type 2 (T2) protection into a single compact unit, delivering comprehensive defense against direct lightning strikes and induced surge voltages. Designed for installation at the main distribution board, it safely dissipates high-energy lightning impulse currents (Iimp) while effectively limiting transient overvoltages, ensuring seamless protection across multiple threat levels. With a robust surge handling capacity of up to 50kA (Imax) and flexible pole configurations (1P to 4P), this device is suitable for a wide range of power distribution systems. Compliant with IEC/EN 61643-11 standards, the TZG40-T1T2 offers reliable and space-saving protection for residential, commercial, and industrial applications. Customization options, including alternative voltage or current ratings and RS485 communication functionality, are available upon request.

Product Data Sheet

Model: TZG40-T1T2

Type: T1+T2 (Integrated Type 1 and Type 2)

Standard: IEC/EN 61643-11

Rated Voltage: 275V / 385V AC

Poles: 1P, 2P, 3P, 4P

Lightning Impulse Current (Iimp): 7kA (10/350μs)

Nominal Discharge Current (In): 20kA (8/20μs)

Maximum Discharge Current (Imax): 50kA (8/20μs)

Application: Main distribution board

Customization: Available for special voltage/current ratings, RS485 communication, and other requirements upon request
