SPECIFICATIONS

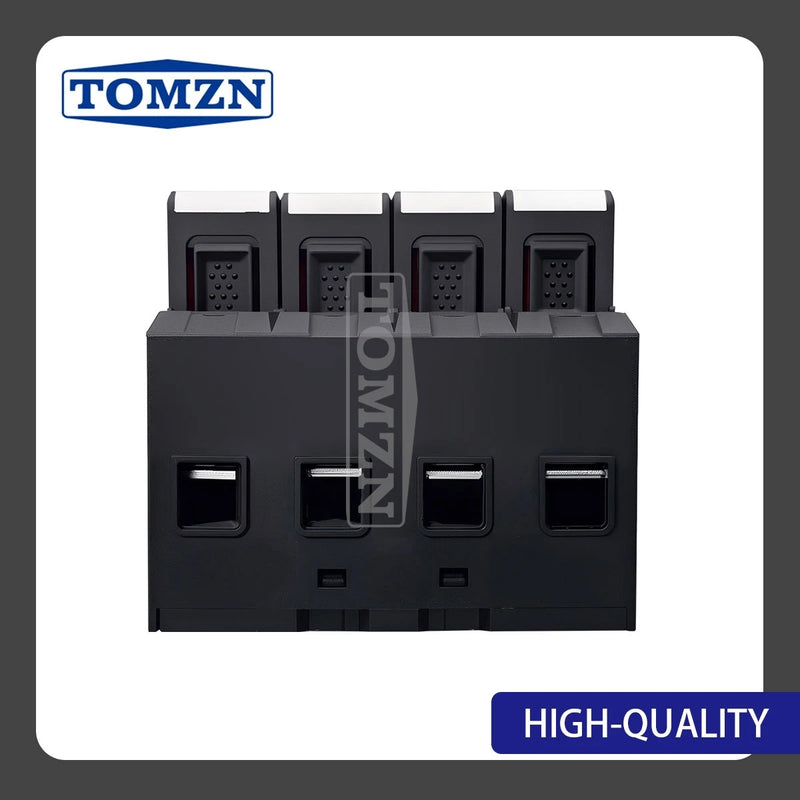

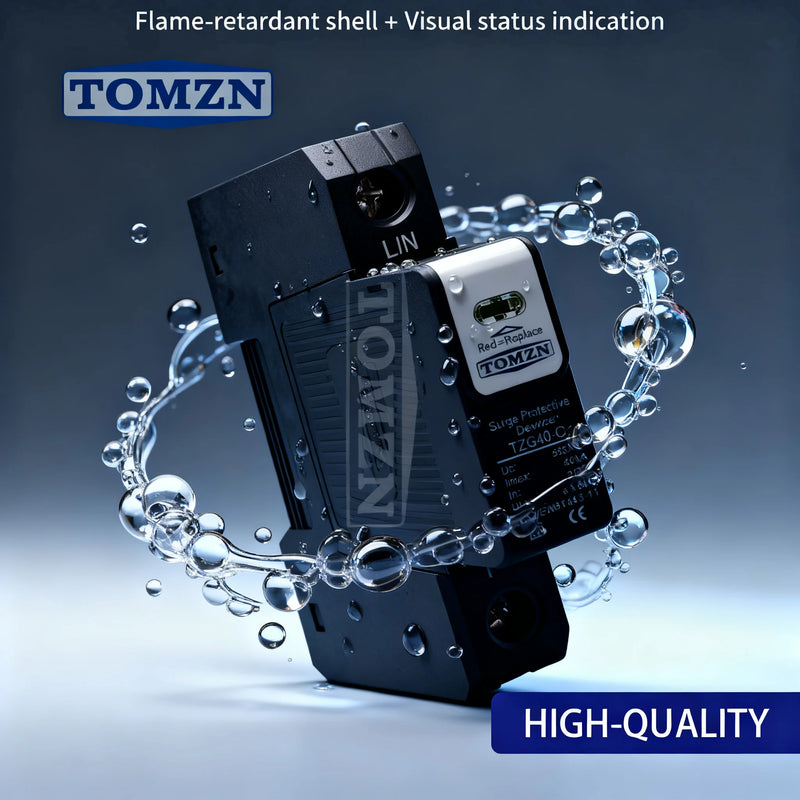

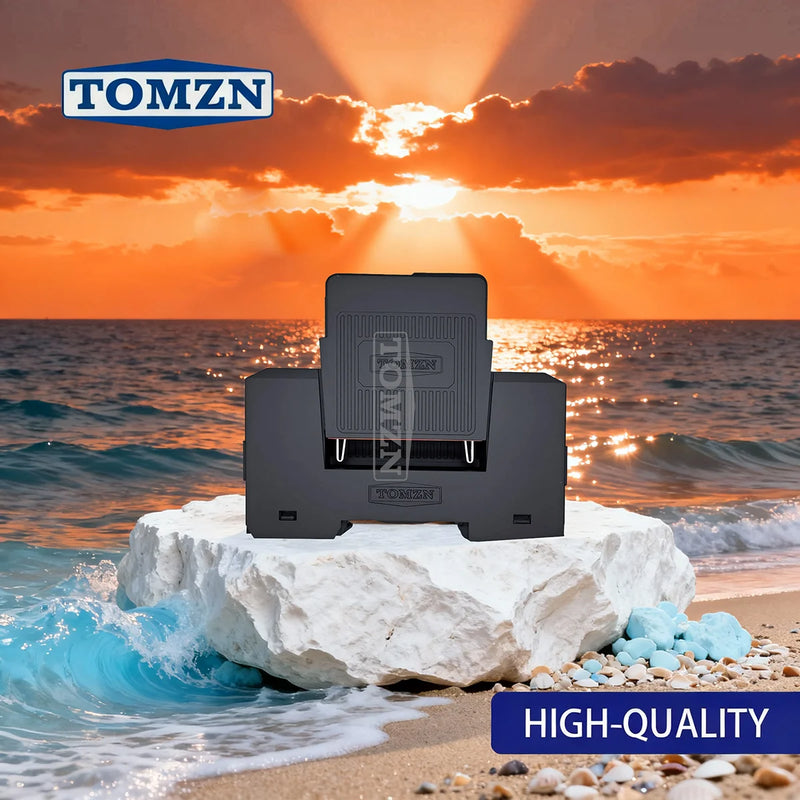

Name: TOMZN TZG40-B/C/D DIN Rail SPD Pluggable, 1P-4P, PA66, 110-220V AC, 10/20/30kA, T2, for Office/PC Lightning Protection
Brand: TOMZN
SKU: 1005012264979826-420V AC 20-40kA-2P
Price: 9.76 USD
Availability: InStock

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Imax: 20kA 40kA 60kA

In: 10kA 20kA 30kA

Is Smart Device: no

Model Number: TZG40-B/C/D

Origin: Mainland China

Rated Voltage: 220/380V,275V/385V/420V AC

Standard: IEC/EN61643-11

Type: Surge protective device,Circuit breaker,T2

is_customized: Yes

Product Introduction

The TZG40-B/C/D series surge protective devices (SPDs) are advanced shielded surge protectors featuring a newly designed tripping mechanism that enables efficient and rapid surge absorption. Available in 1P, 2P, 3P, and 4P configurations, these Type 2 SPDs are suitable for AC power circuits operating at 110V or 220V, with rated voltages of 275V, 385V, or 420V. They offer nominal discharge current (In) options of 10kA, 20kA, or 30kA, and corresponding maximum discharge current (Imax) ratings of 20kA, 40kA, or 60kA. Fully compliant with IEC/EN 61643-11, the TZG40 series provides reliable protection for household appliances and other sensitive equipment against lightning surges and transient overvoltages.

Product Data Sheet

Product series: TZG40-B/C/D

Type: T2 shielded surge protector

Poles: 1P, 2P, 3P, 4P

Standard: IEC/EN 61643-11

Rated voltage (AC): 275V / 385V / 420V

Nominal discharge current (In): 10kA / 20kA / 30kA

Maximum discharge current (Imax): 20kA / 40kA / 60kA

Application: AC power circuits (110V or 220V systems), household appliance protection

Key feature: Advanced tripping mechanism for efficient surge absorption
