Product Introduction

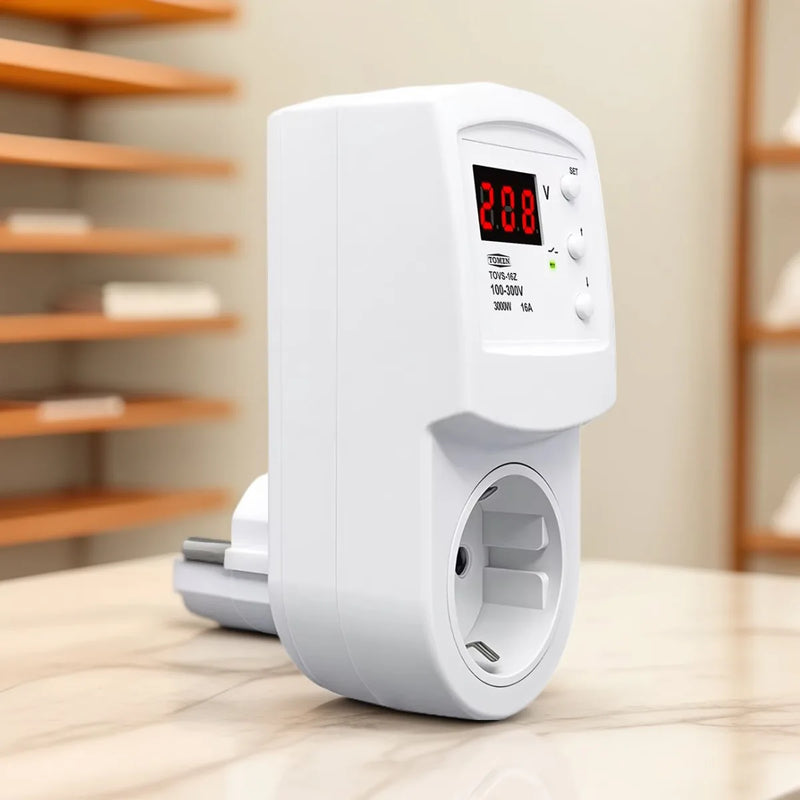

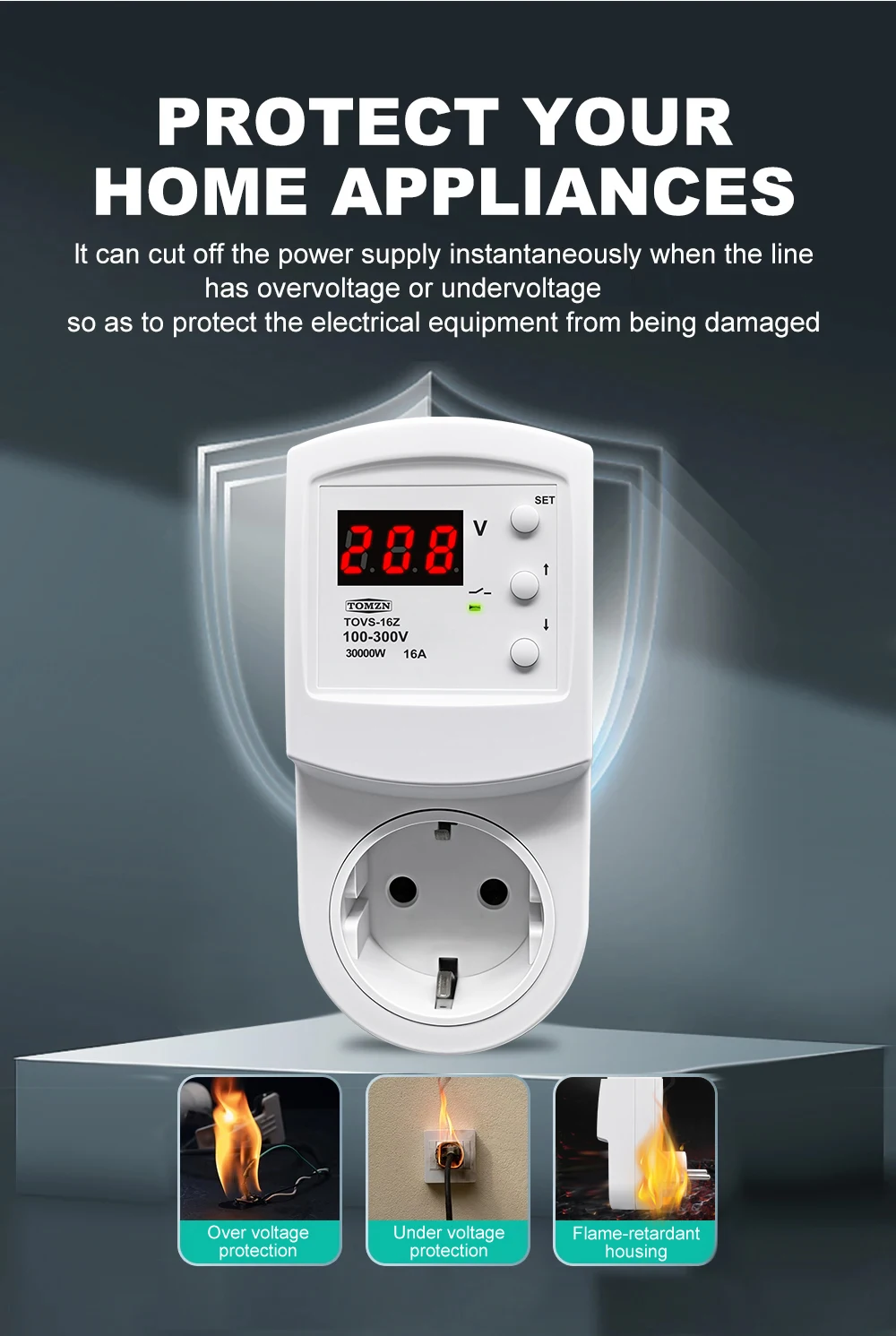

The TOVS-16Z is a compact voltage monitoring and protection device designed for AC 100–300V systems with a maximum load current of 16A. It combines real-time voltage measurement with adjustable overvoltage and undervoltage protection to safeguard connected equipment from abnormal power conditions. Key features include automatic recovery after fault conditions, a clear voltage display, and user‑adjustable voltage calibration (±9.5%). Protection thresholds, action times, and recovery delays are fully configurable, allowing precise adaptation to different applications. With a robust electromechanical life of 100,000 operations and low power consumption under 2W, the TOVS-16Z delivers reliable and intelligent voltage monitoring and protection.

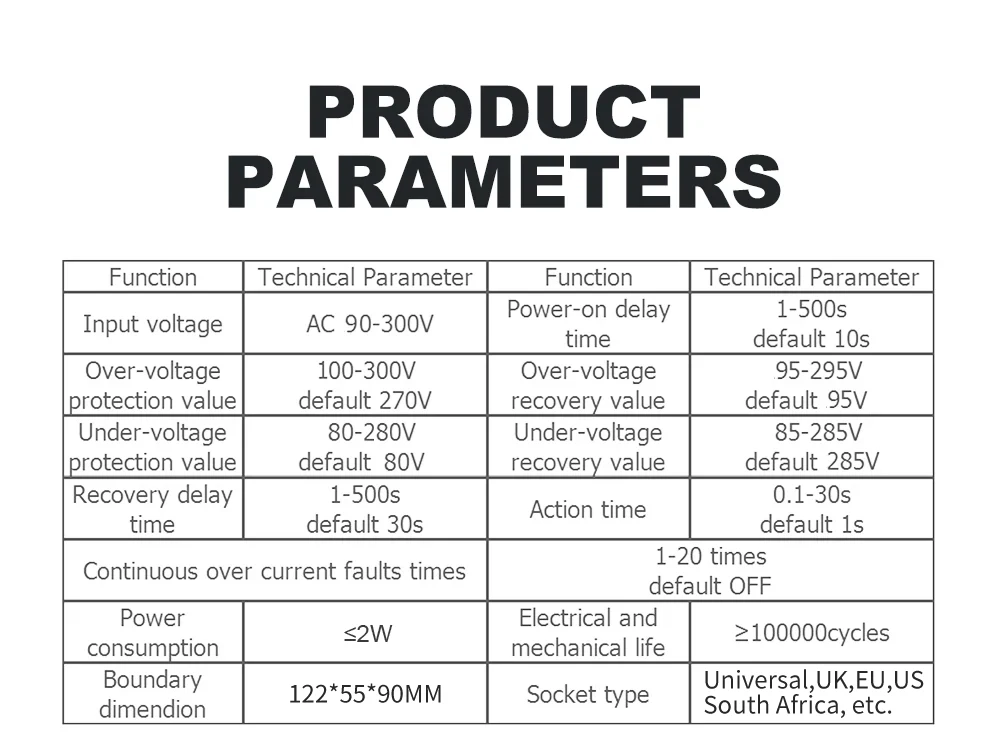

Product Data Sheet

Model number: TOVS-16Z
Power supply: 100-300V AC
Max. load current: 16A

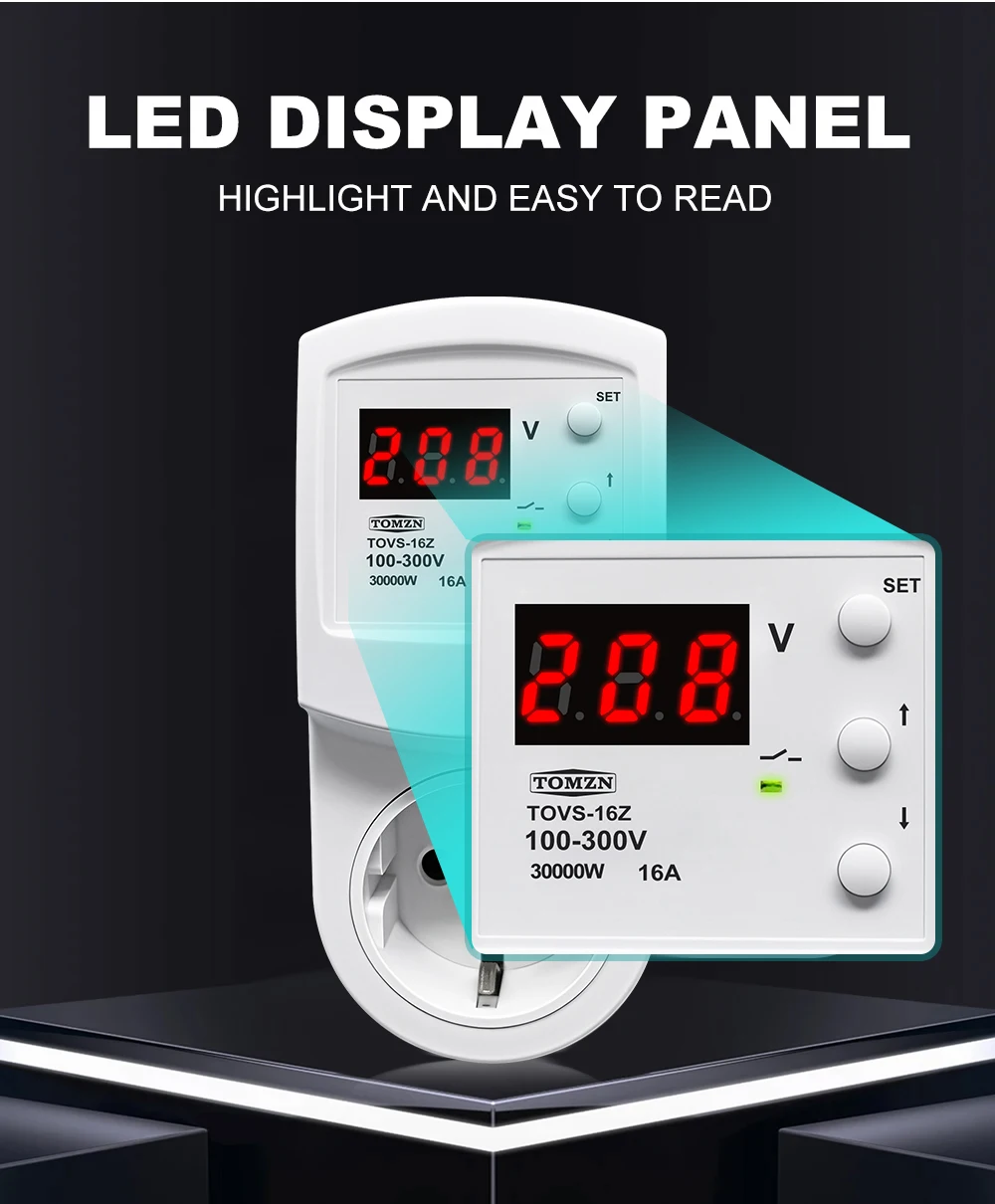

Voltage measurement: Yes (display)

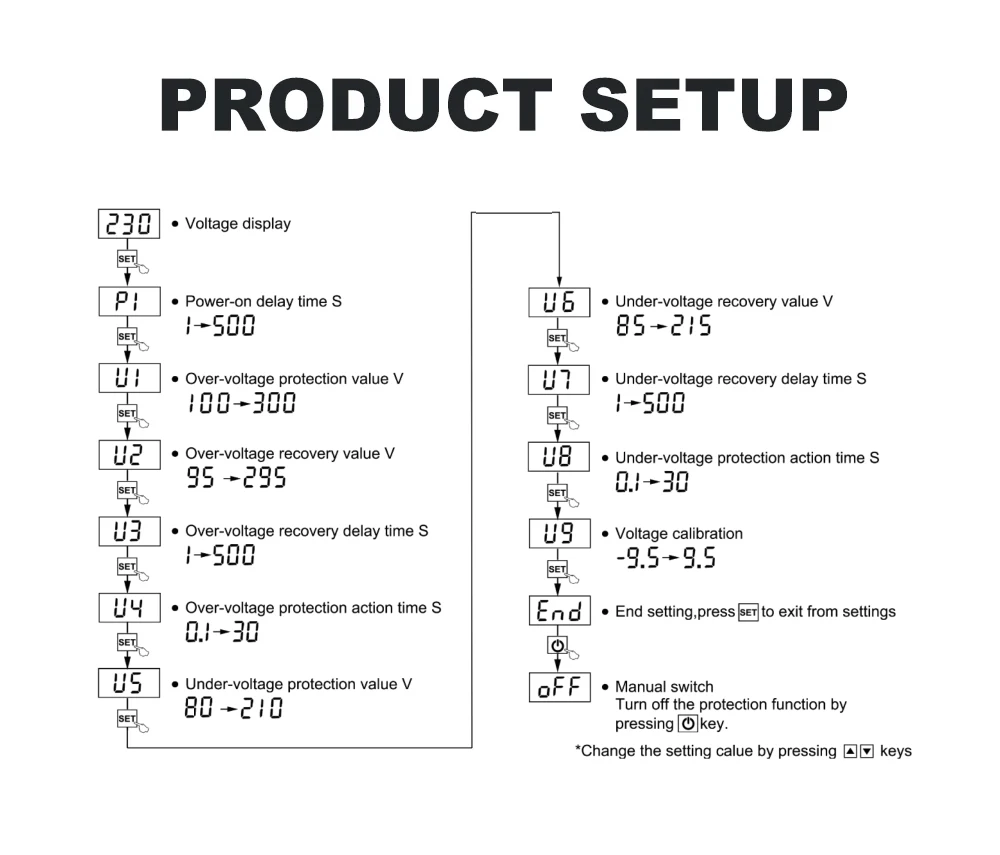

Overvoltage protection value range: 100-300V (default: 270V)
Overvoltage recovery voltage range: 95-295V (default: 265V)
Overvoltage protection action time: 0.1-30s (default: 1s)
Overvoltage recovery delay time: 1-500s (default: 30s)
Undervoltage protection value range: 80-280V (default: 80V)
Undervoltage recovery voltage range: 85-285V (default: 285V)
Undervoltage protection action time: 0.1-30s (default: 1s)
Undervoltage recovery delay time: 1-500s (default: 30s)
Power-on delay time: 1-500s (default: 10s)
Voltage calibration: ±9.5% adjustable
Power consumption: <2W
Electromechanical life: 100,000 times
