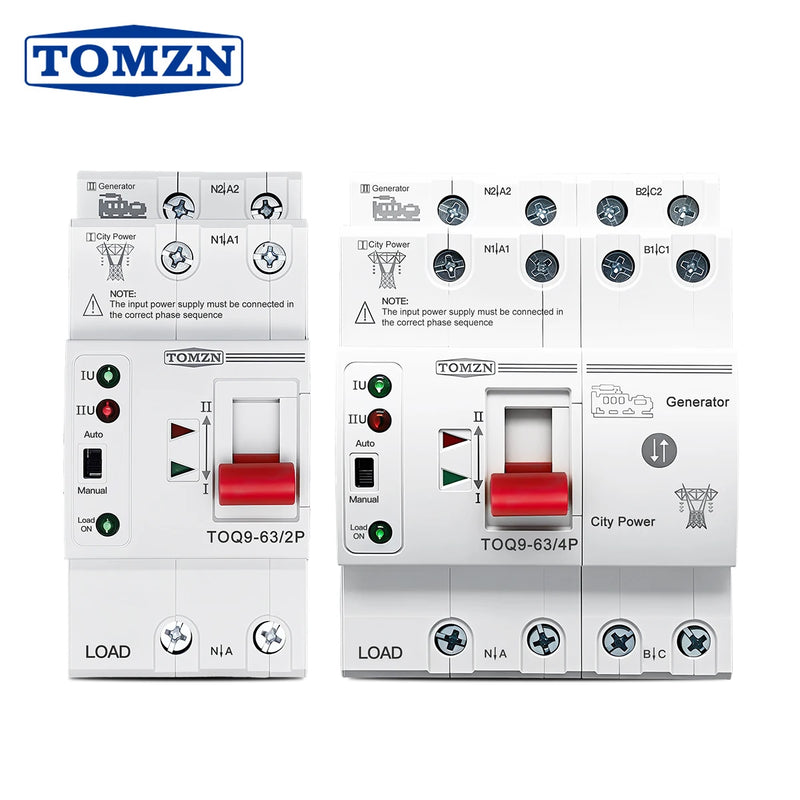

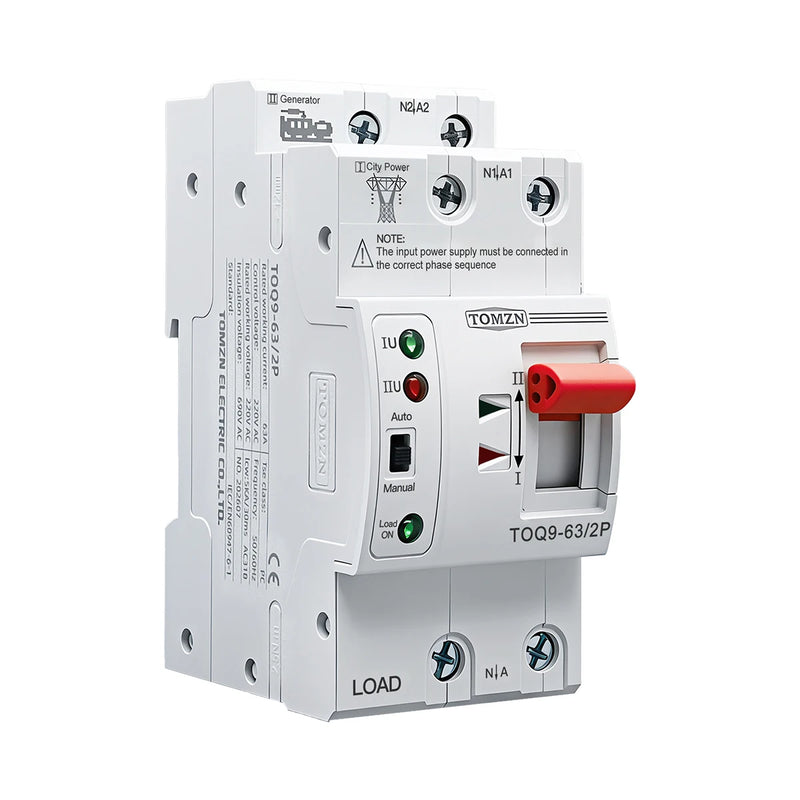

TOQ9-63/2P, TOQ9-63/4P

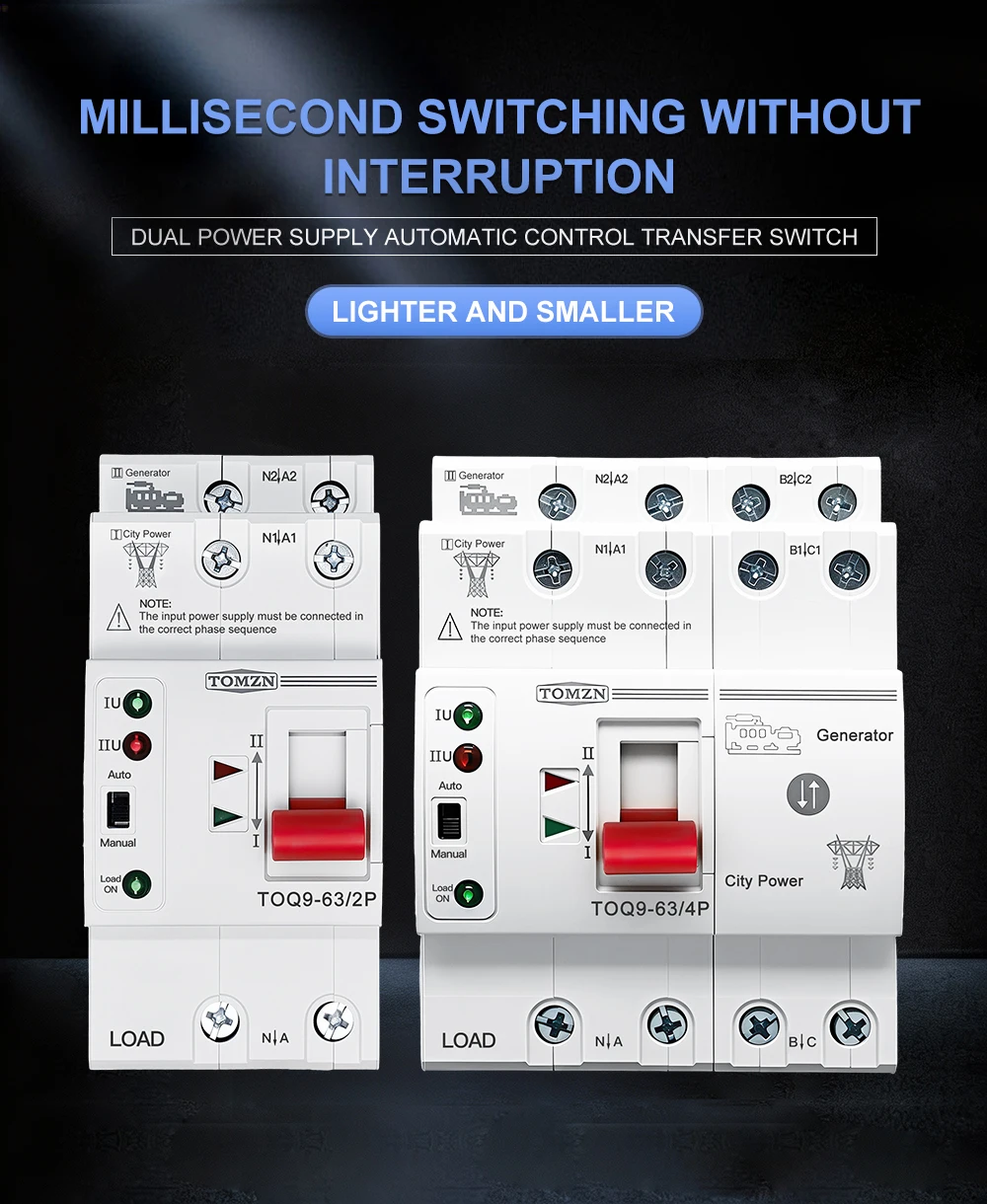

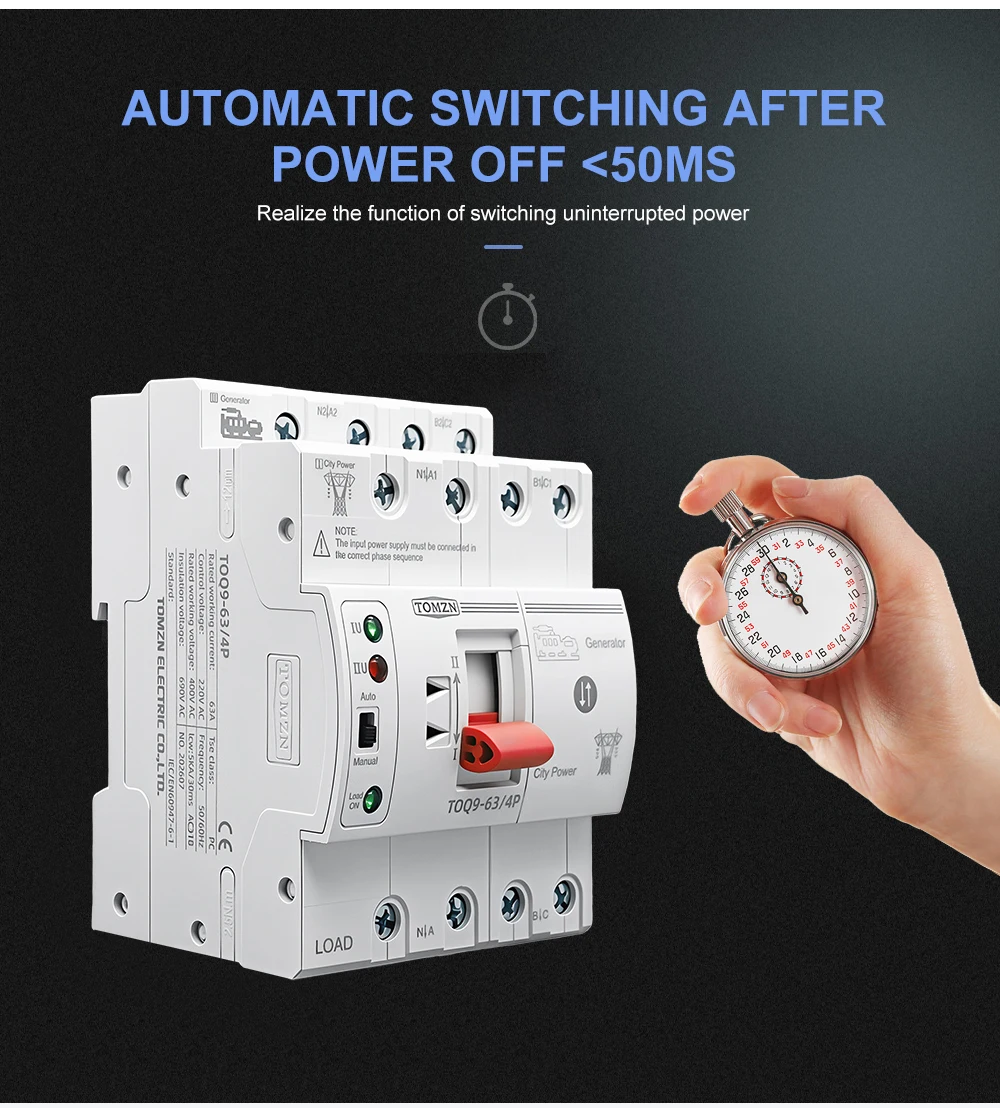

Dual power switch. PC level, Switch less than 50ms, no Interrupt.

General

  This Series Household Automatic Transfer Switch (ATS) is the latest microhousehold power transfer switch independently developed and manufactured by ourcompany. As a PC-grade infrequent switching device with a two-stage structure, it issuitable for AC distribution systems rated at 50/60Hz and 10-80A.Primarily designed tomonitor the status of user power sources, it instantly transfers the load to thealternative power source upon detecting an abnormality in one circuit. The switchincorporates mechanical and electrical dual interlock mechanisms, preventing thesimultaneous closure of both power sources. This ensures continuous, reliable, andsafe power supply.

Product features

1.Case grade:80

2.Rated insulation voltage Ui:690V

3.Rated impulse withstand voltage:8kV

4.PC class:can be switched on an loaded without generating short-circuit current

5.Rated short-circuit current Iq:50kA

6.Short circuit protection device (fuse):RT 16-00-63A

7.Rated control voltage Us:AC220V 50Hz

8.Normal working conditions: 85%Us-110%Us

9.Auxiliary circuit:AC220V 50Hz le=5A

10.Contactor change-over time:<50ms

11.Operation change-over time:<50ms

12.Return change-over time:<50ms

13.Power off time:<50ms

14.Mechanical life:≥5000 Times

15.Electrical life:≥1500 Times

16.Usage category:AC-31B

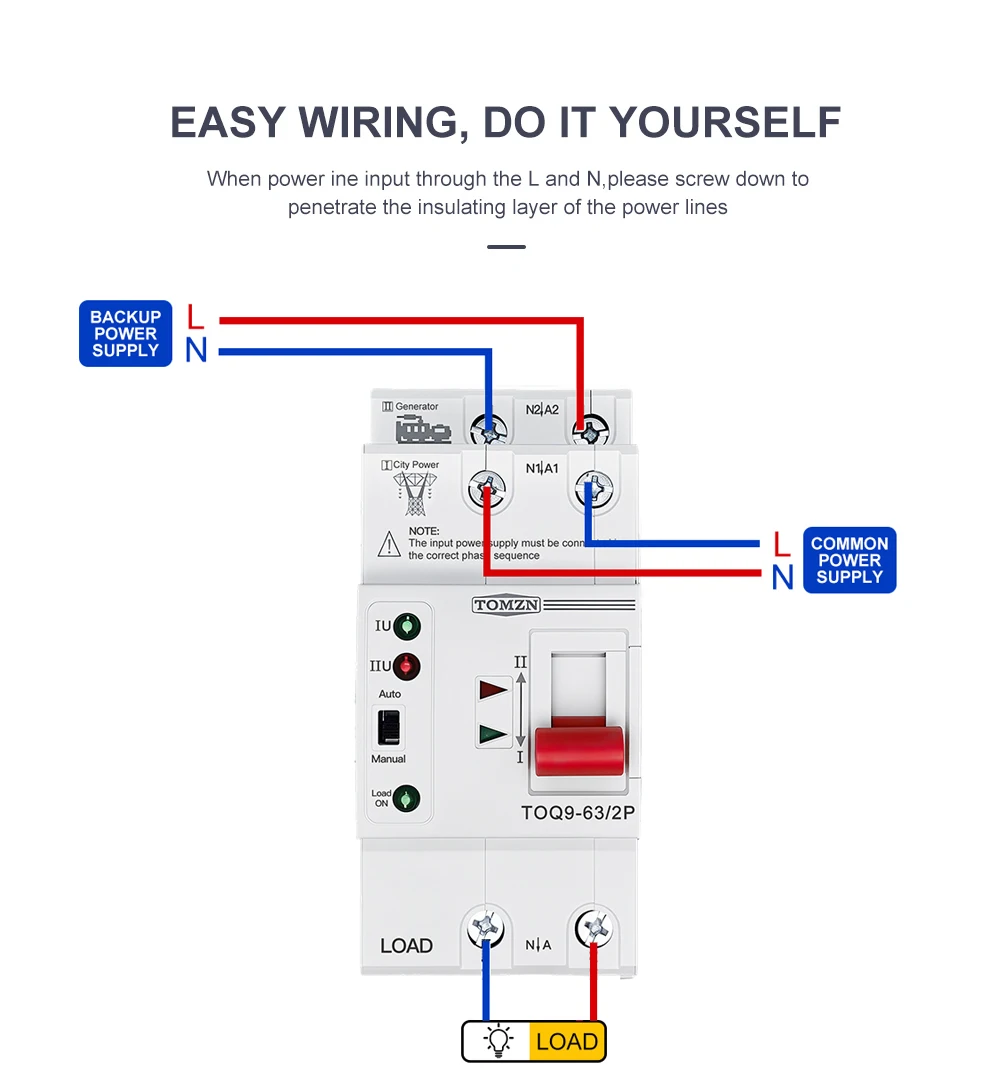

Noted: the product works with L+N 220-240V 50-60Hz
