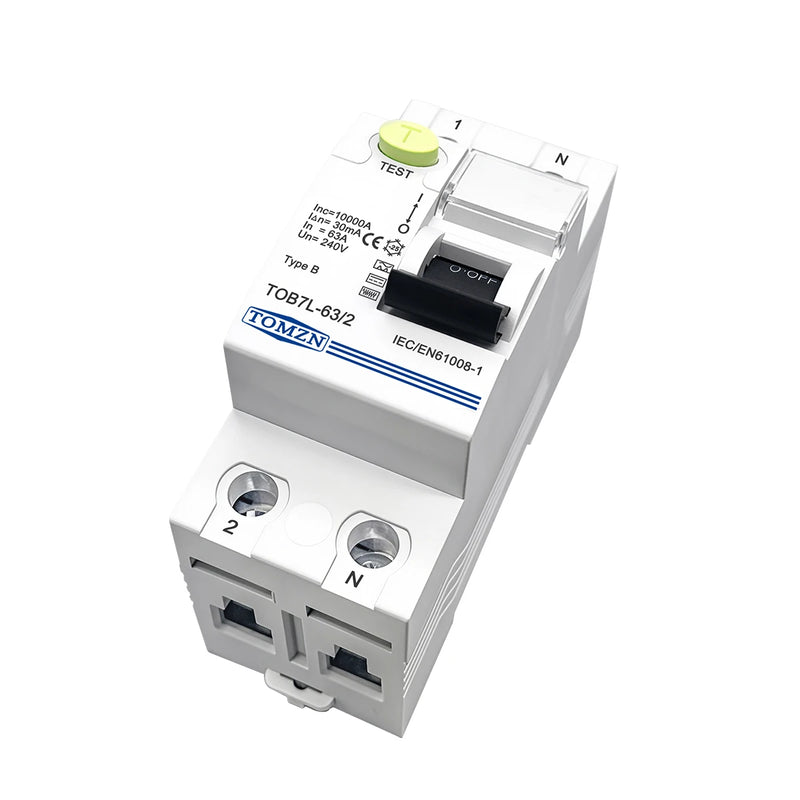

TOMZN TOB7L Type B RCCB 2P 63A 30/100/300mA Single Phase | Electromagnetic Leakage Breaker | DIN Rail

Name: TOMZN TOB7L Type B RCCB 2P 63A 30/100/300mA Single Phase | Electromagnetic Leakage Breaker | DIN Rail
Brand: TOMZN
SKU: 1005011949142756-B Type 30mA-2P AC230V 40A
Price: 47.52 USD
Availability: InStock

by ដោយ TOMZN

All prices exclude shipping Customs and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន គយ និងពន្ធទេ។

Choose language

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE,RoHS

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Leakage current: 30mA 100mA 300mA

Model Number: TOB7L-63 2P

Origin: Mainland China

Pole: 2P

Rated Voltage: 220V

Rated current: 40A/63A

Type: Mini,RCD,B type

is_customized: Yes

Product Introduction

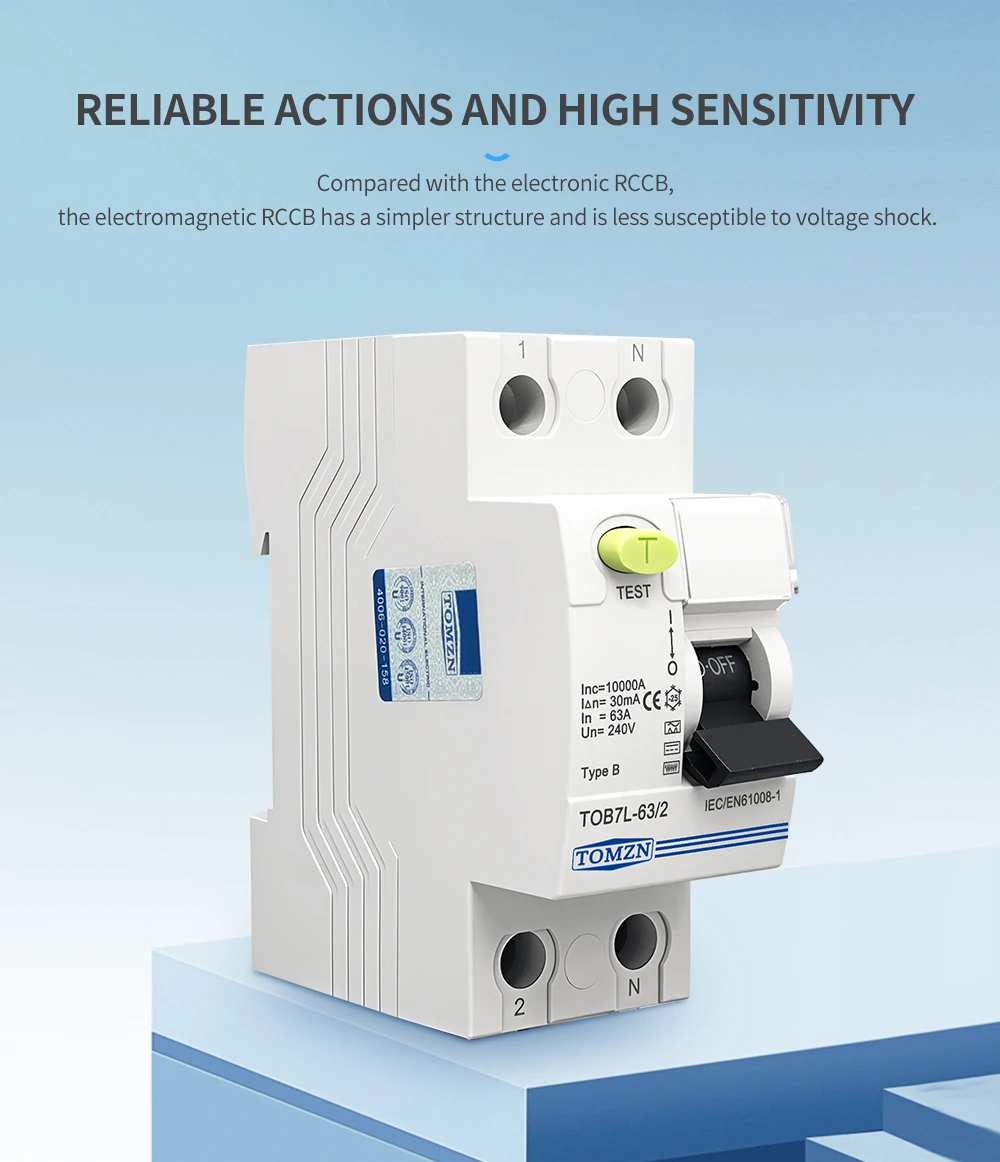

The TOB7L-63 Series is a high-performance range of electromagnetic Residual Current Circuit Breakers (RCCBs) designed to provide reliable and fail-safe earth leakage protection for industrial, commercial, and premium residential applications. Built around a voltage-independent electromagnetic tripping mechanism, these devices ensure continuous operation even in the event of a neutral fault, as they do not rely on an auxiliary power supply. Compliant with IEC 61008-1 and GB/T 16916.1 standards, the TOB7L-63 Series delivers uncompromised safety and durability in a compact DIN rail format.

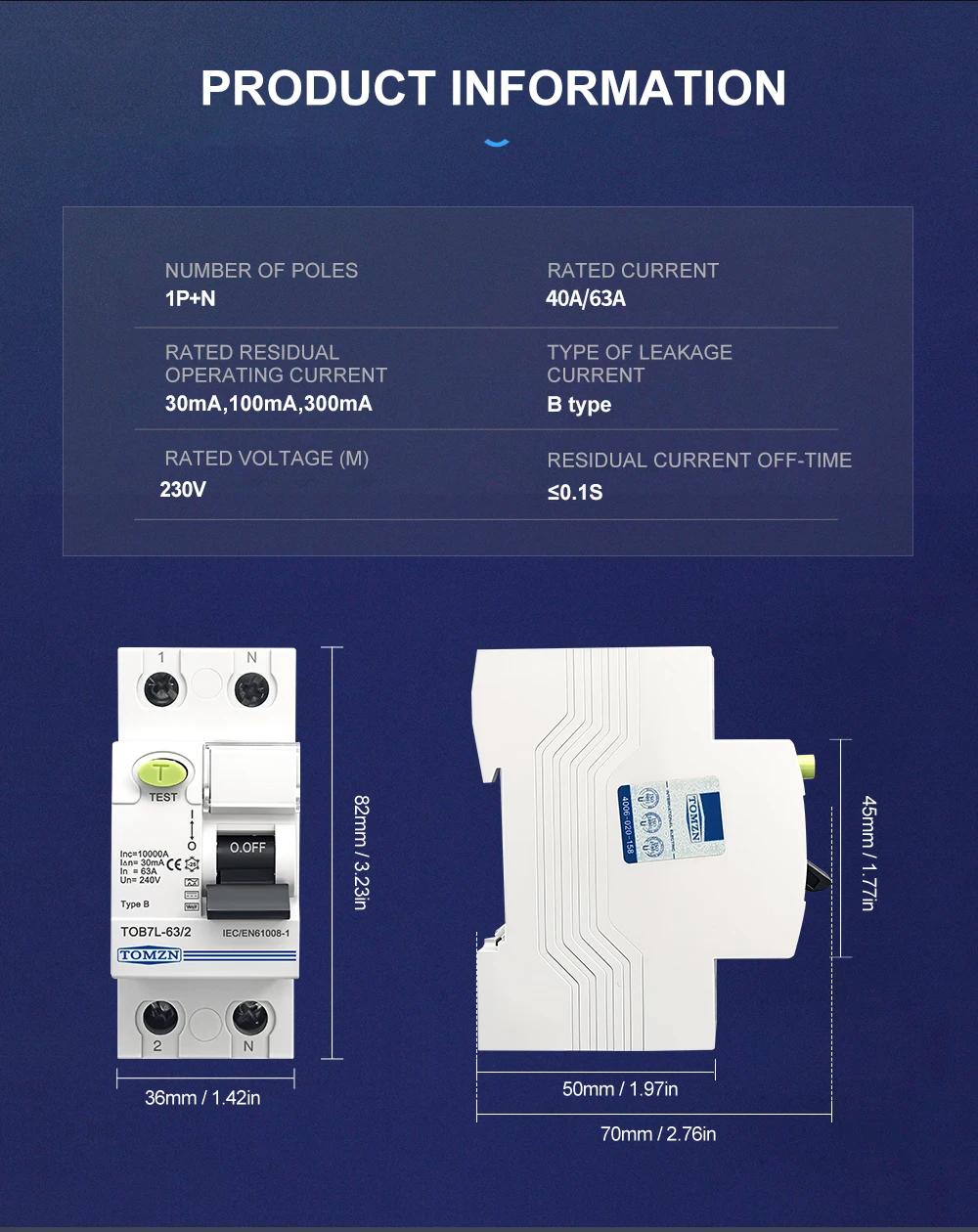

Product Data Sheet

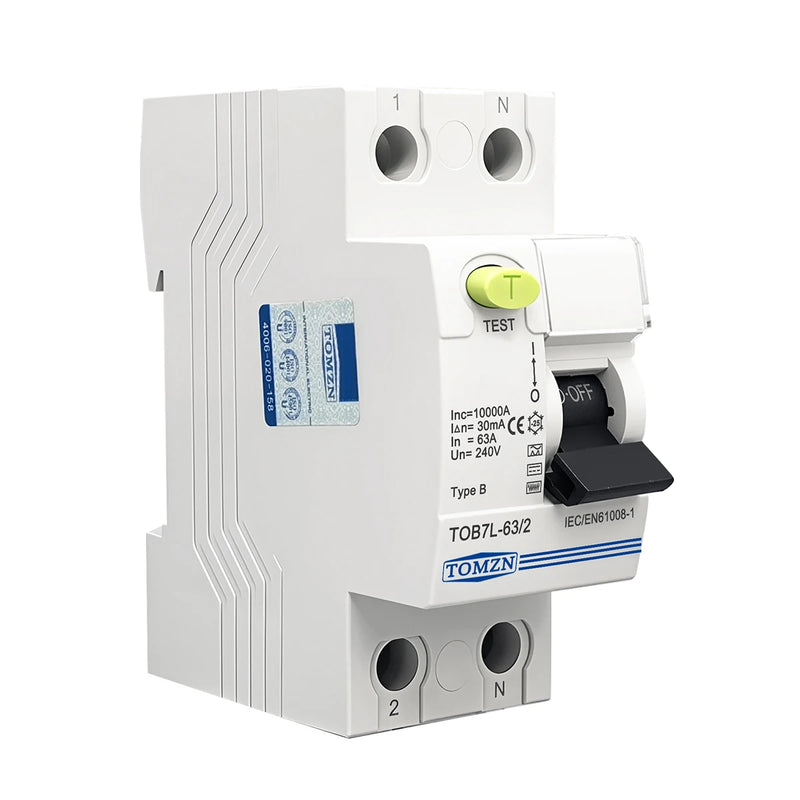

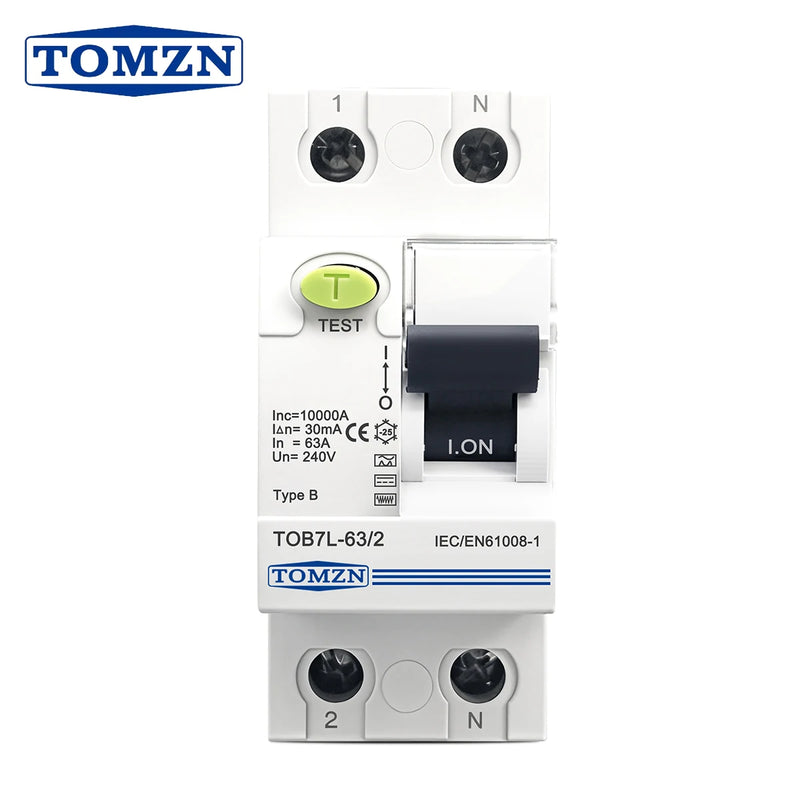

Product Model: TOB7L-63

Product Type: Electromagnetic Residual Current Circuit Breaker (RCCB)

Standards Compliance: IEC 61008-1, GB/T 16916.1

Rated Current (In): 40A, 63A

Rated Operational Voltage (Ue): 230V AC

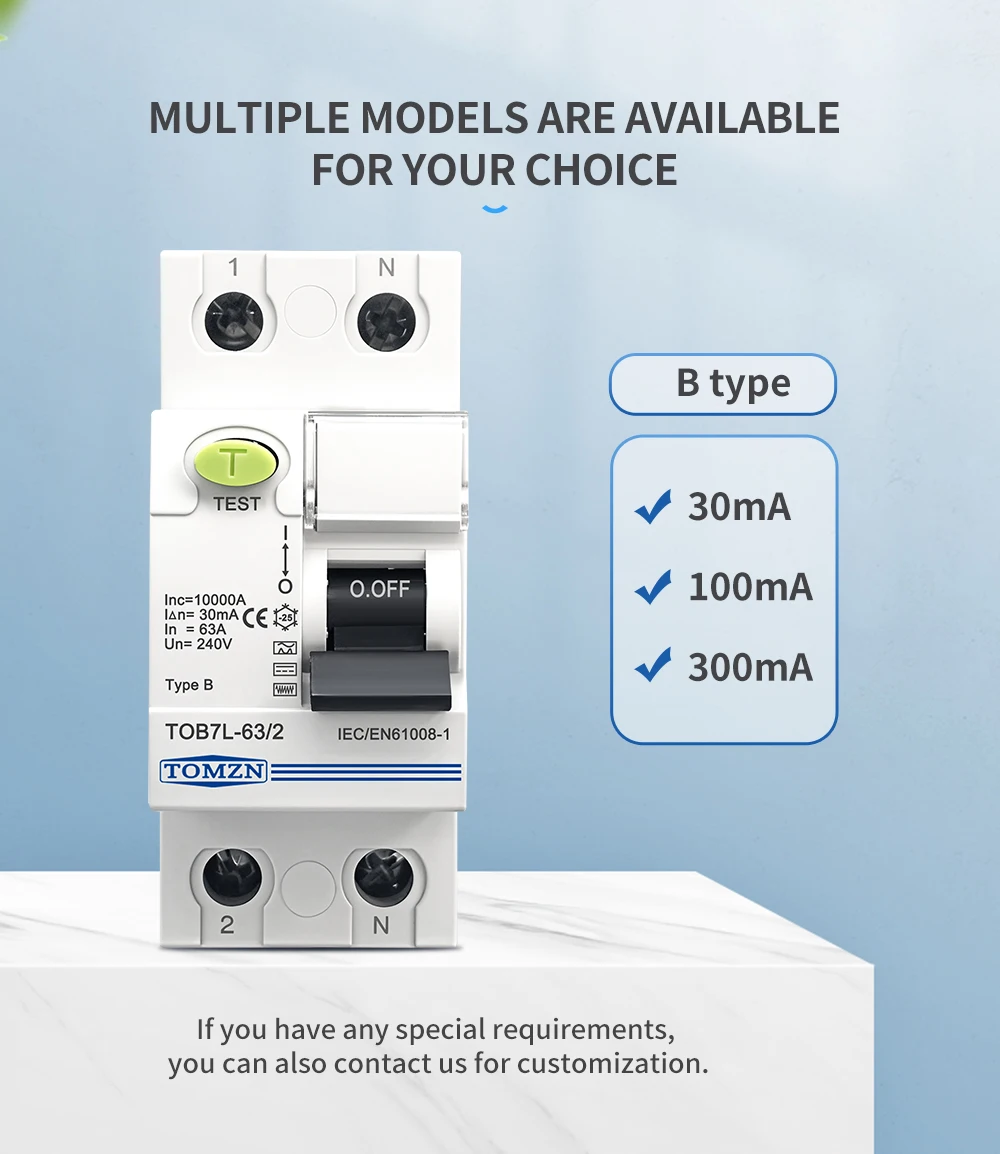

Rated Residual Current (IΔn): 30mA, 100mA, 300mA

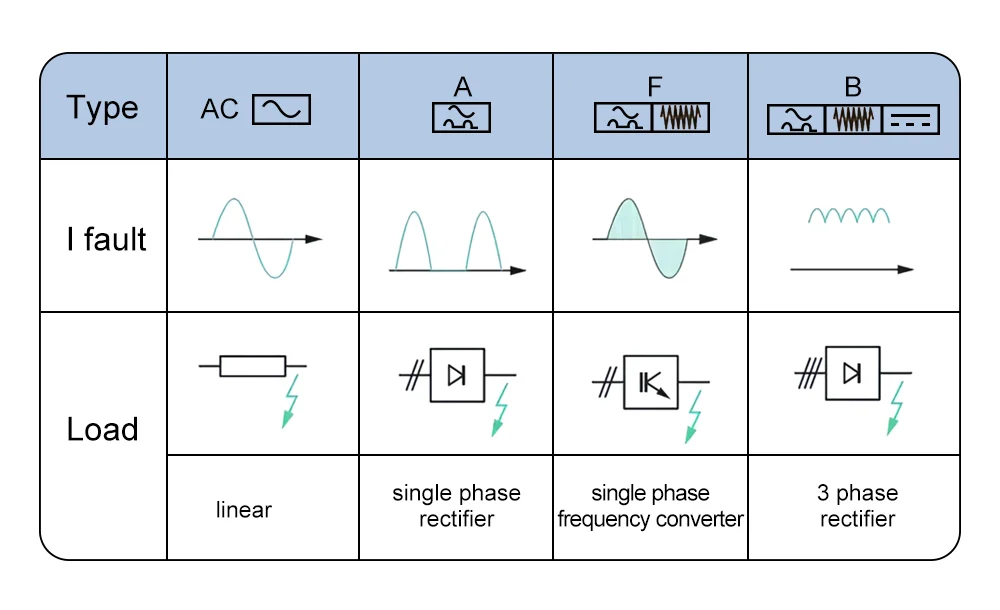

Residual Current Type: Type B

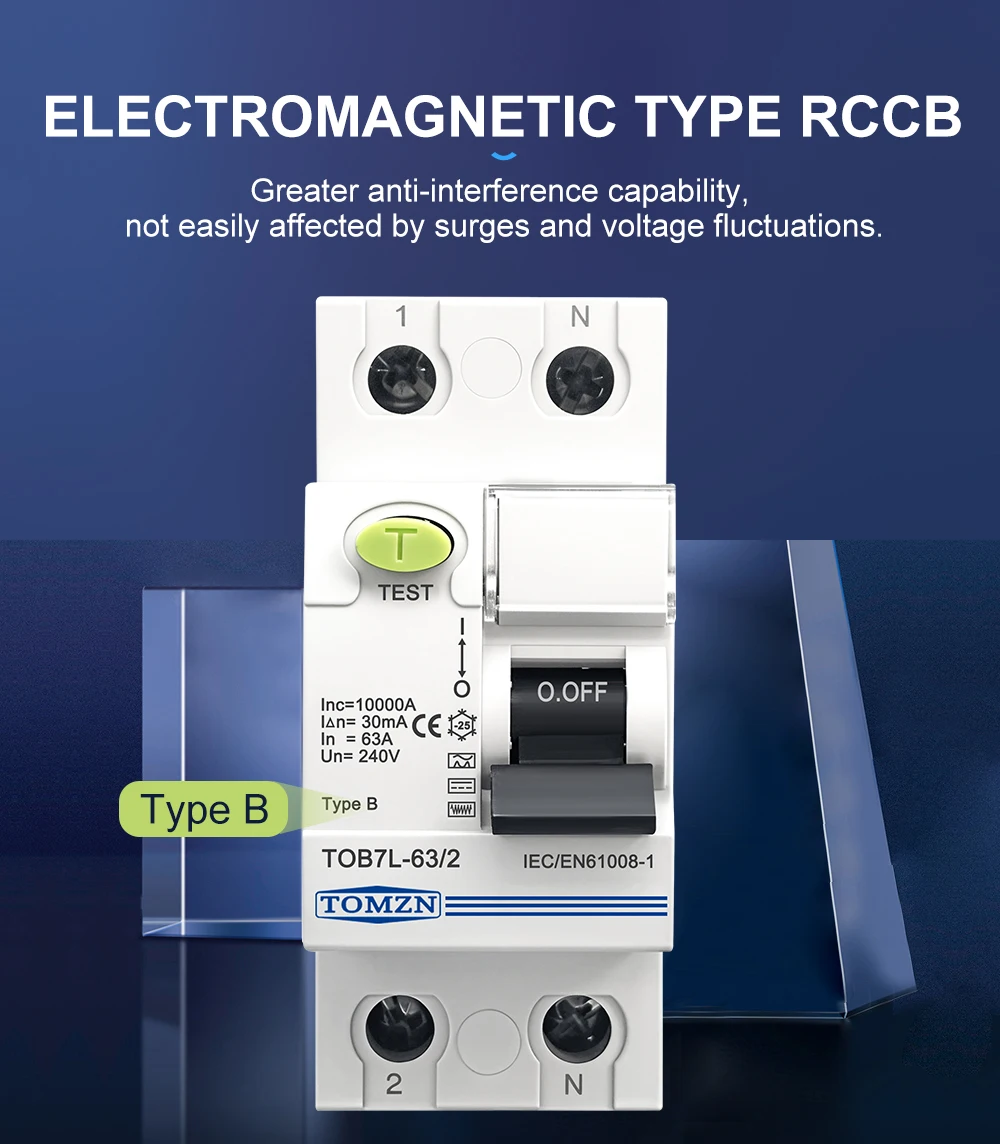

Tripping Principle: Electromagnetic (voltage-independent)

Electrical Link Option: Y-link, O-link

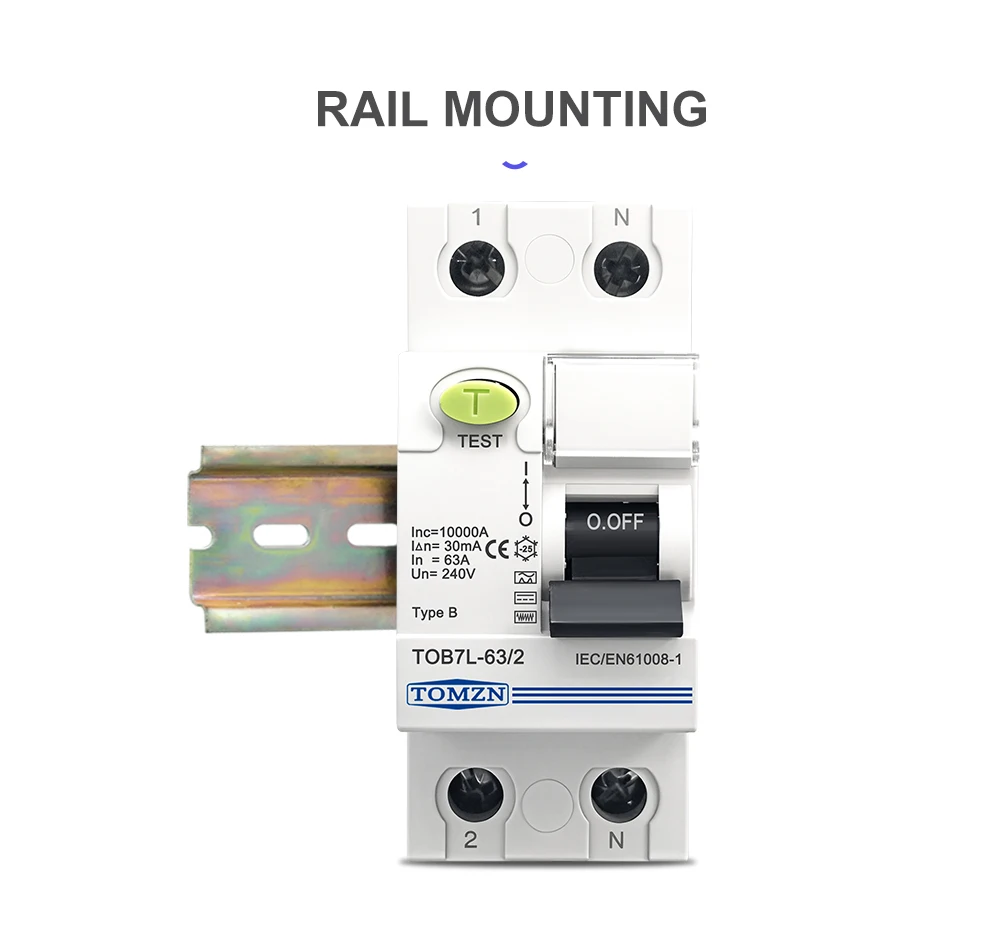

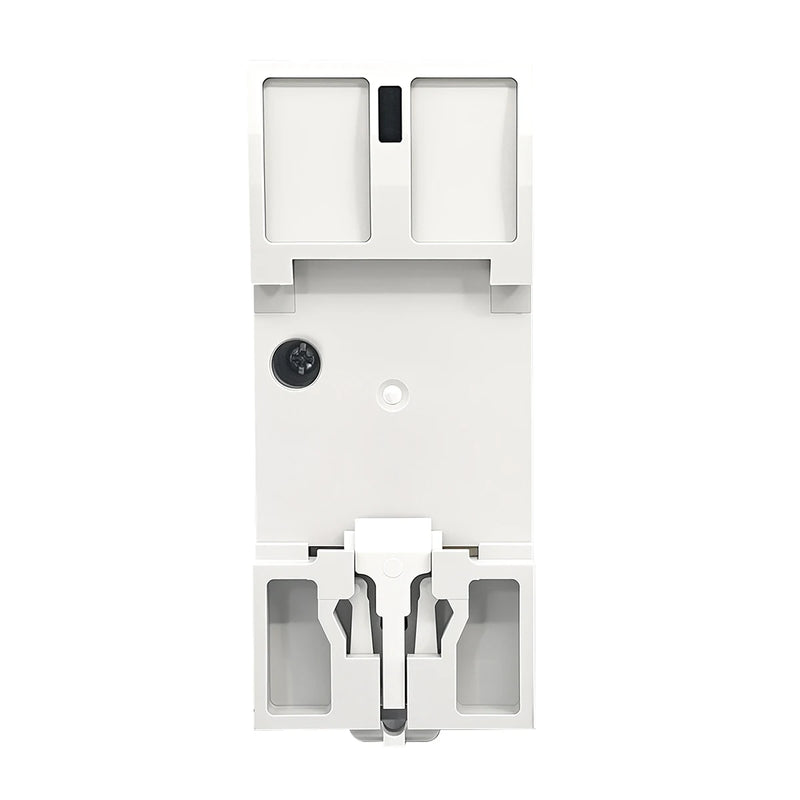

Mounting: 35mm DIN rail

Note: This product is an RCCB and does not provide overload or short-circuit protection.
