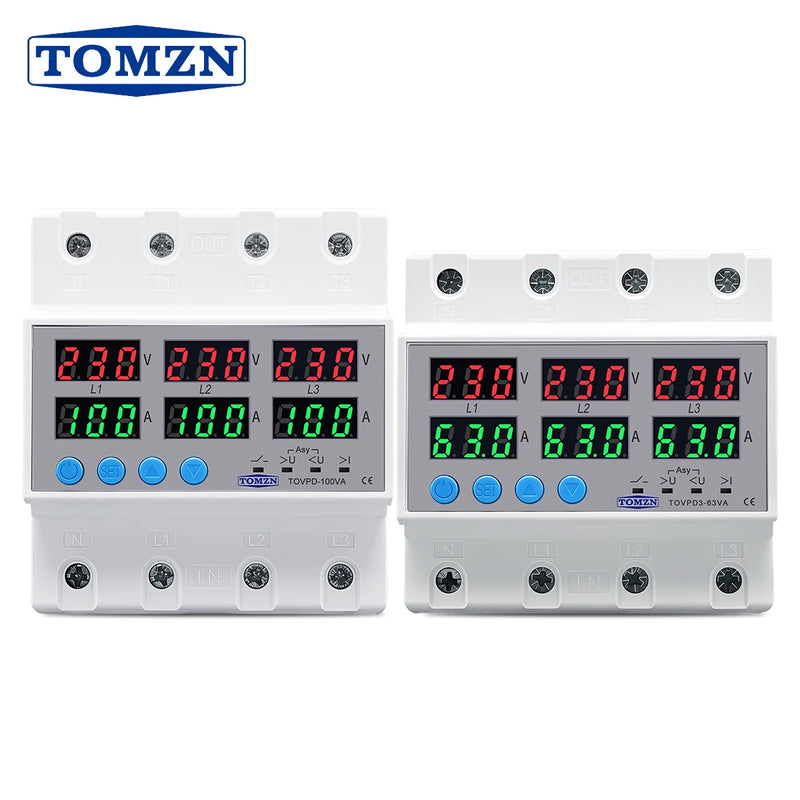

DARAHUB TOMZN Three Phase 4 Wires 3P+N 63A 100A Adjustable Ampere Protector Self Recovery Auto Reconnect Voltage Protection Relay

$0.00 - $0.00

$0.00

$24.56

$21.96 - $24.56

$24.56

Availability:

11989 in stock, ready to be shipped

Availability:

11889 in stock, ready to be shipped

Availability:

11963 in stock, ready to be shipped

Availability:

11985 in stock, ready to be shipped

Quantity

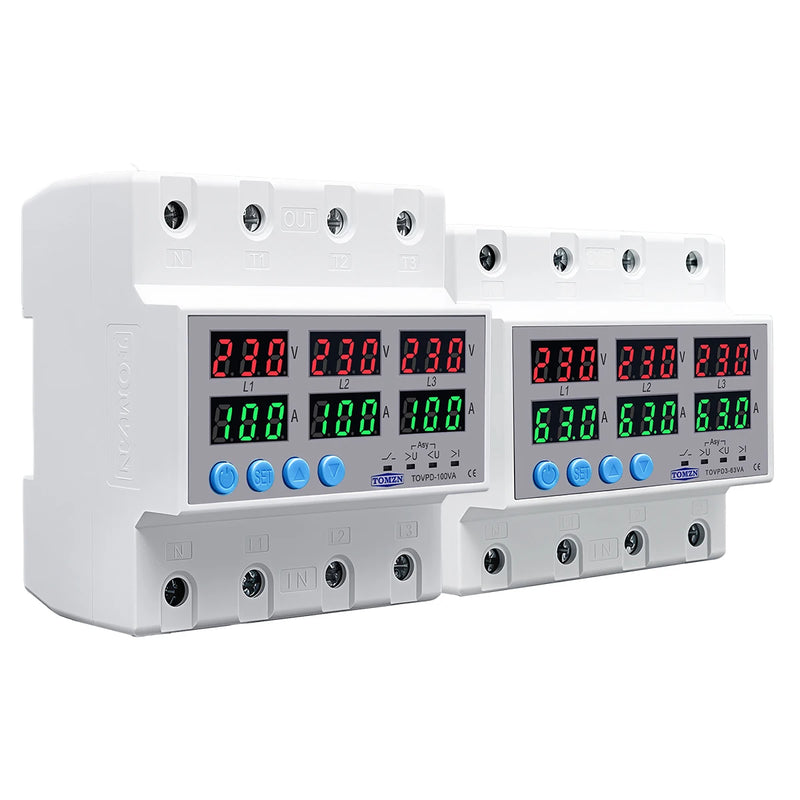

TOMZN Three Phase 4 Wires 3P+N 63A 100A Adjustable Ampere Protector Self Recovery Auto Reconnect Voltage Protection Relay

Name: TOMZN Three Phase 4 Wires 3P+N 63A 100A Adjustable Ampere Protector Self Recovery Auto Reconnect Voltage Protection Relay
Brand: TOMZN
SKU: 1005001553096449-100A without N 380V
Price: 24.56 USD
Availability: InStock

by ដោយ TOMZN

All prices exclude shipping and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន និងពន្ធទេ។

Choose language

TOMZN Three Phase 4 Wires 3P+N 63A 100A Adjustable Ampere Protector Self Recovery Auto Reconnect Voltage Protection Relay

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Model Number: TOVPD3-63VA

Origin: Mainland China

Type: Voltage protector,Voltage relay

is_customized: Yes

Please noted:

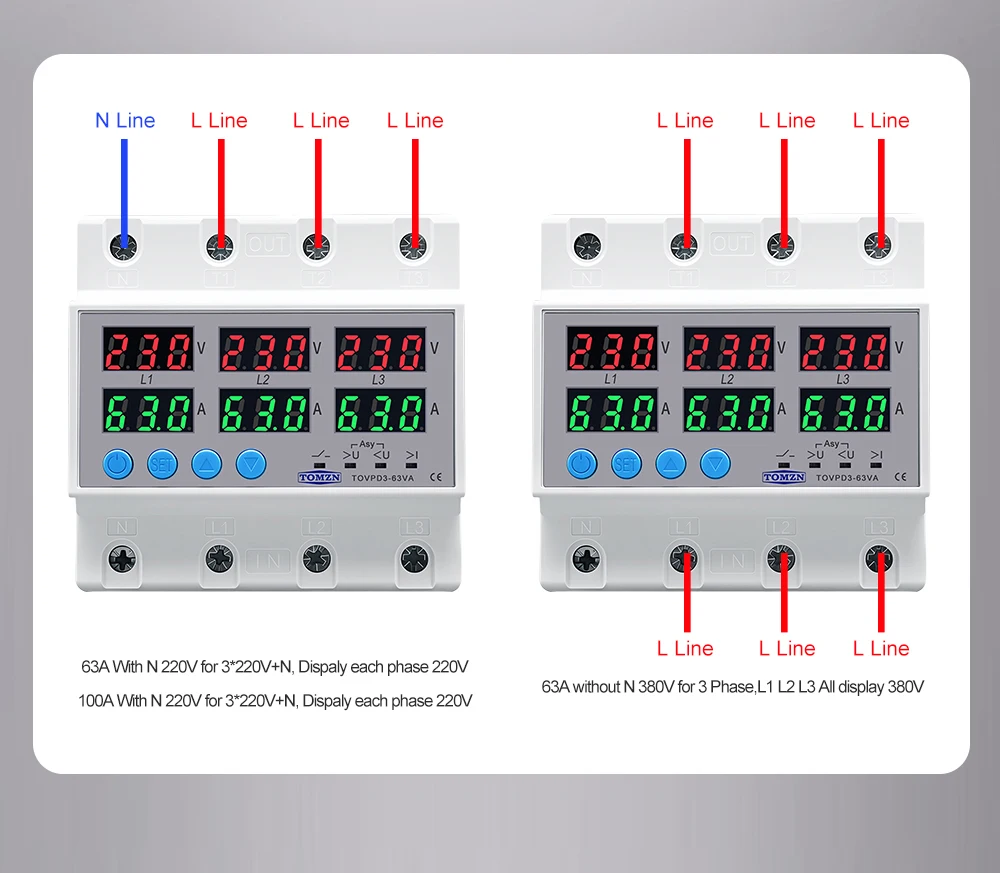

63A With N 220V for 3*220V+N, Dispaly each phase 220V

63A without N 380V for 3 Phase, L1 L2 L3 All display 380V

100A With N 220V for 3*220V+N, Dispaly each phase 220V

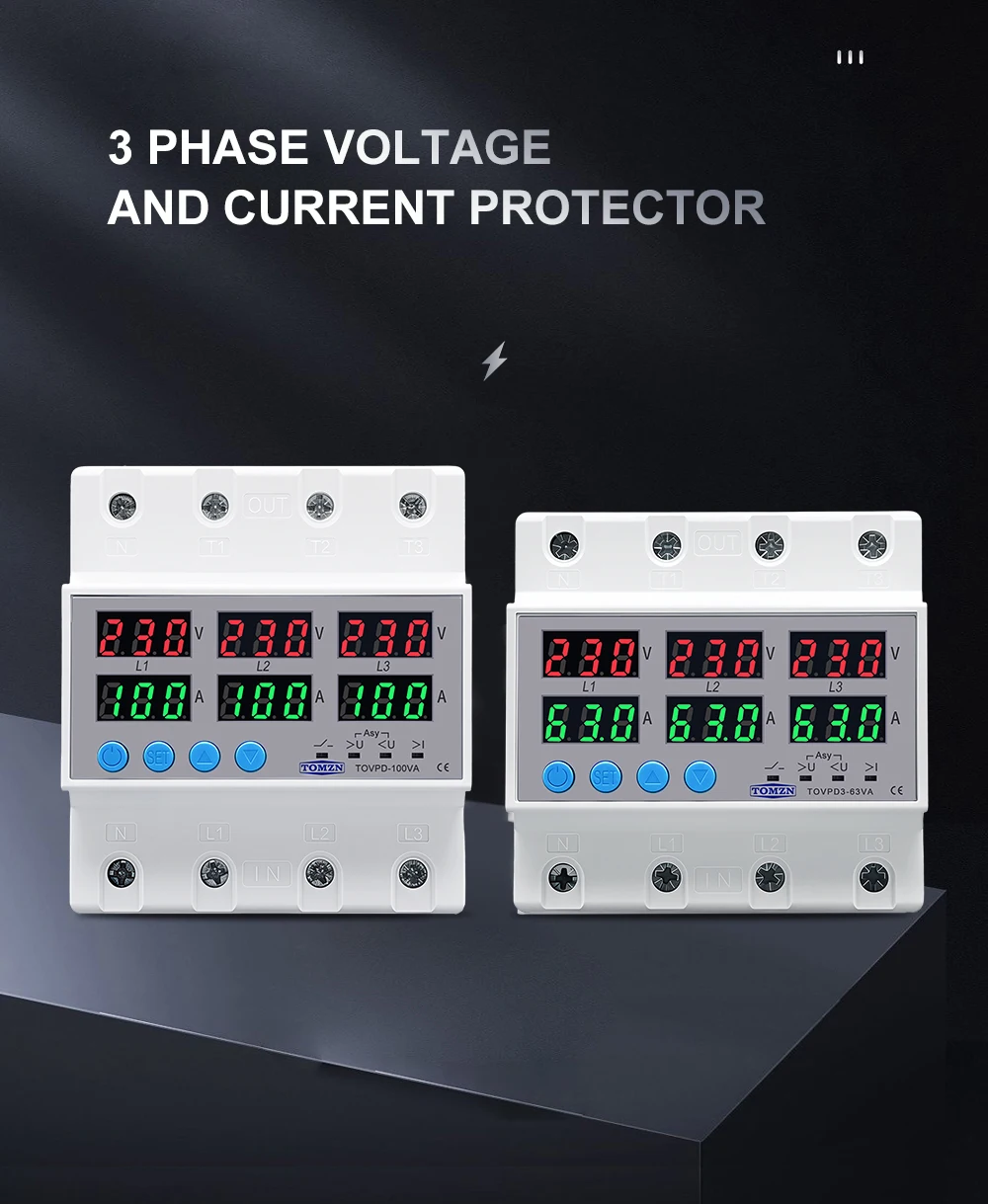

Three phase Voltage Current Relay Protector 63A 60A 100A 220V 3P+N Over Under Voltage Relay Current limiter adjustable

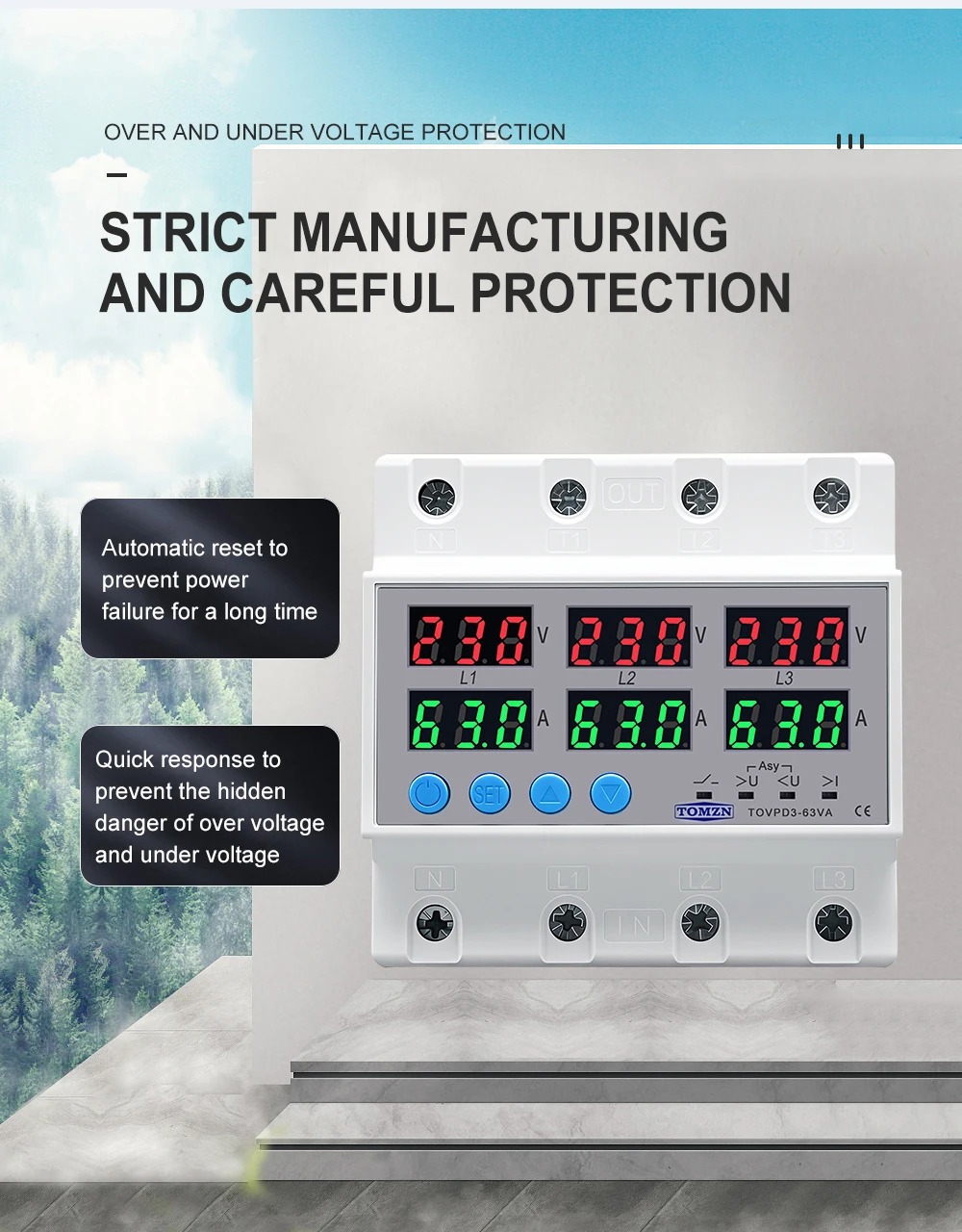

1.Over-voltage protection: Adjustable
2.Under-voltage protection: Adjustable

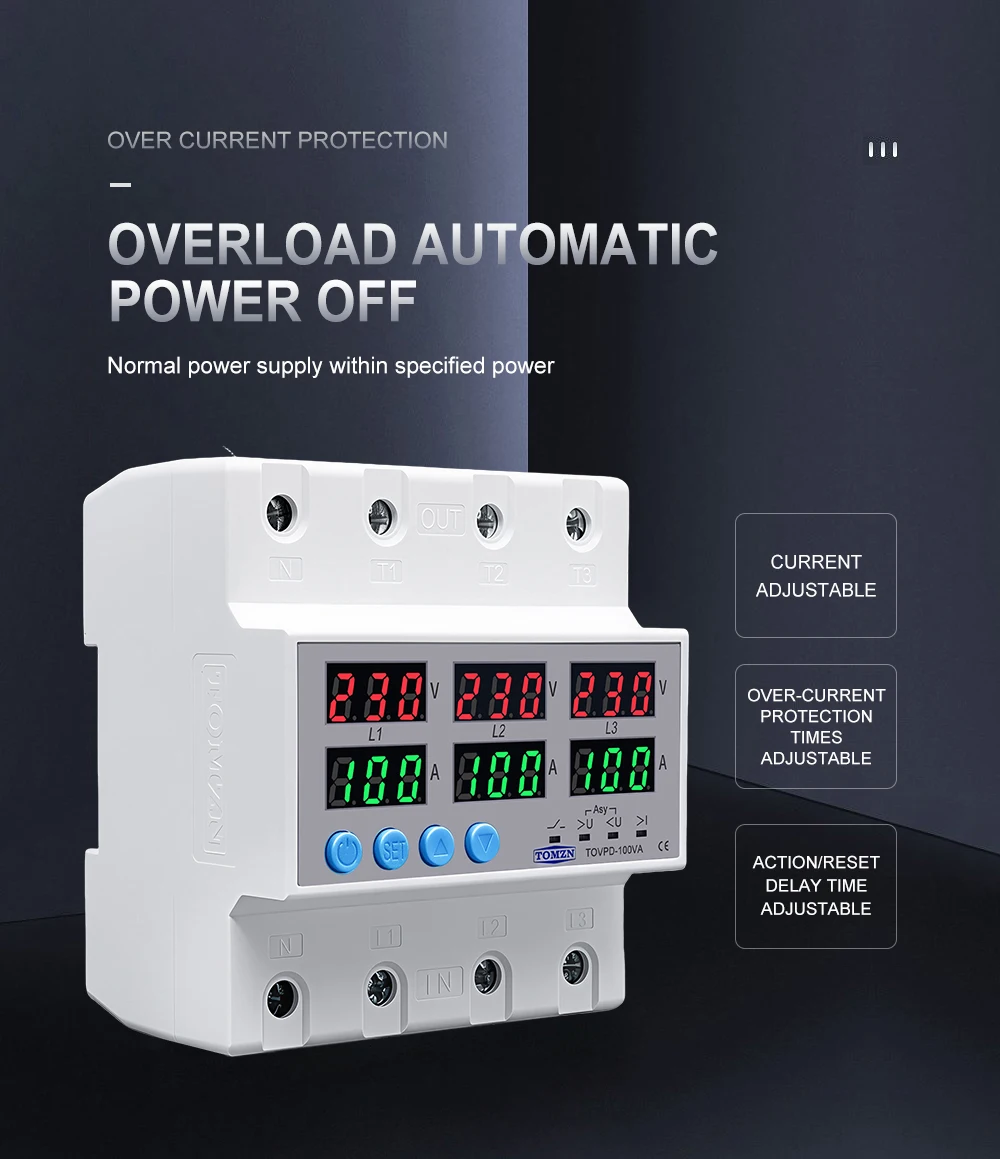

3.Over-Current protection: Adjustable
4. Asymmetry protection
5.Phase squence protection
6. Active time and reconnect time adjsutable

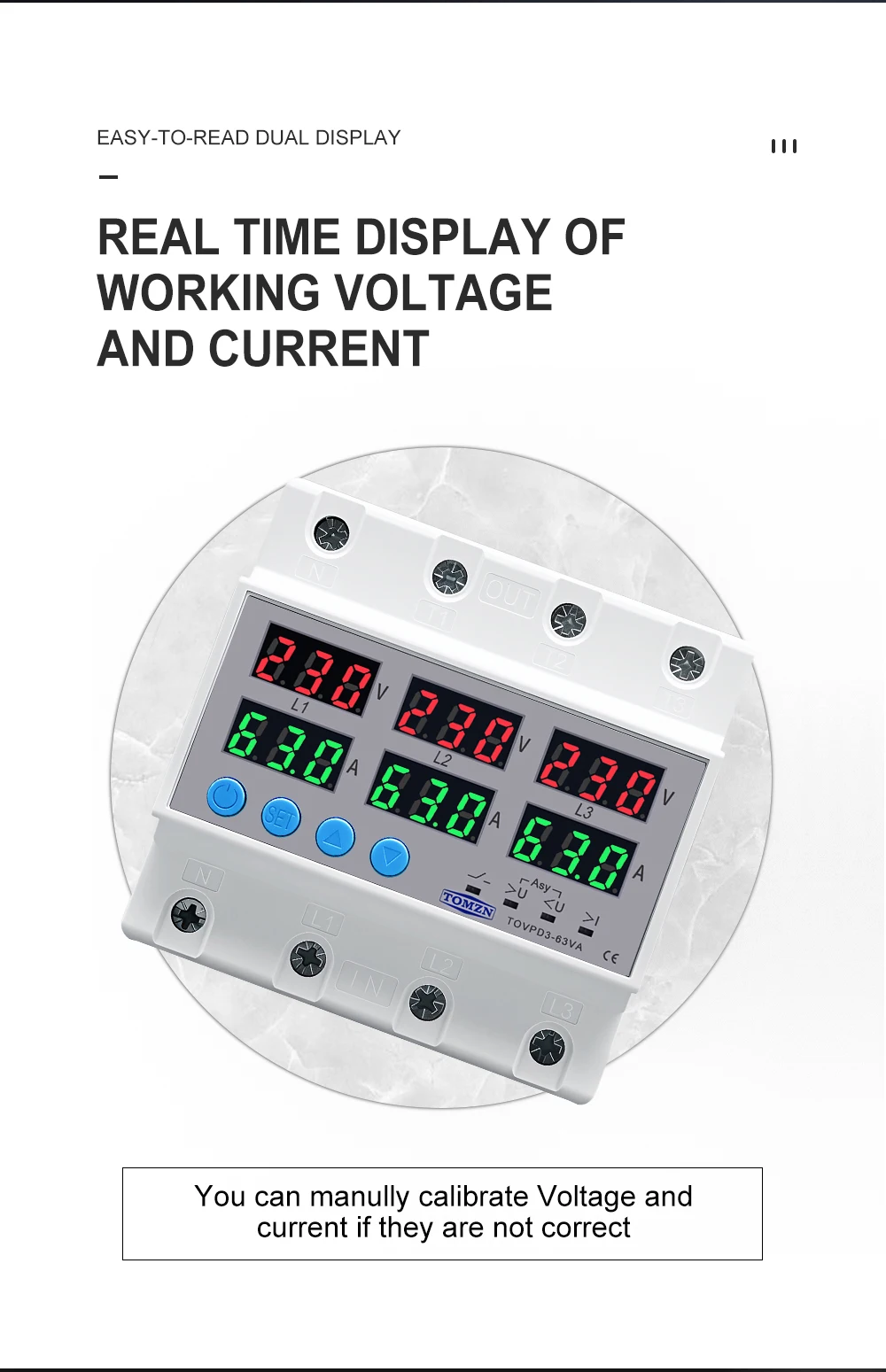

7. Voltage and current can be manually calibrated

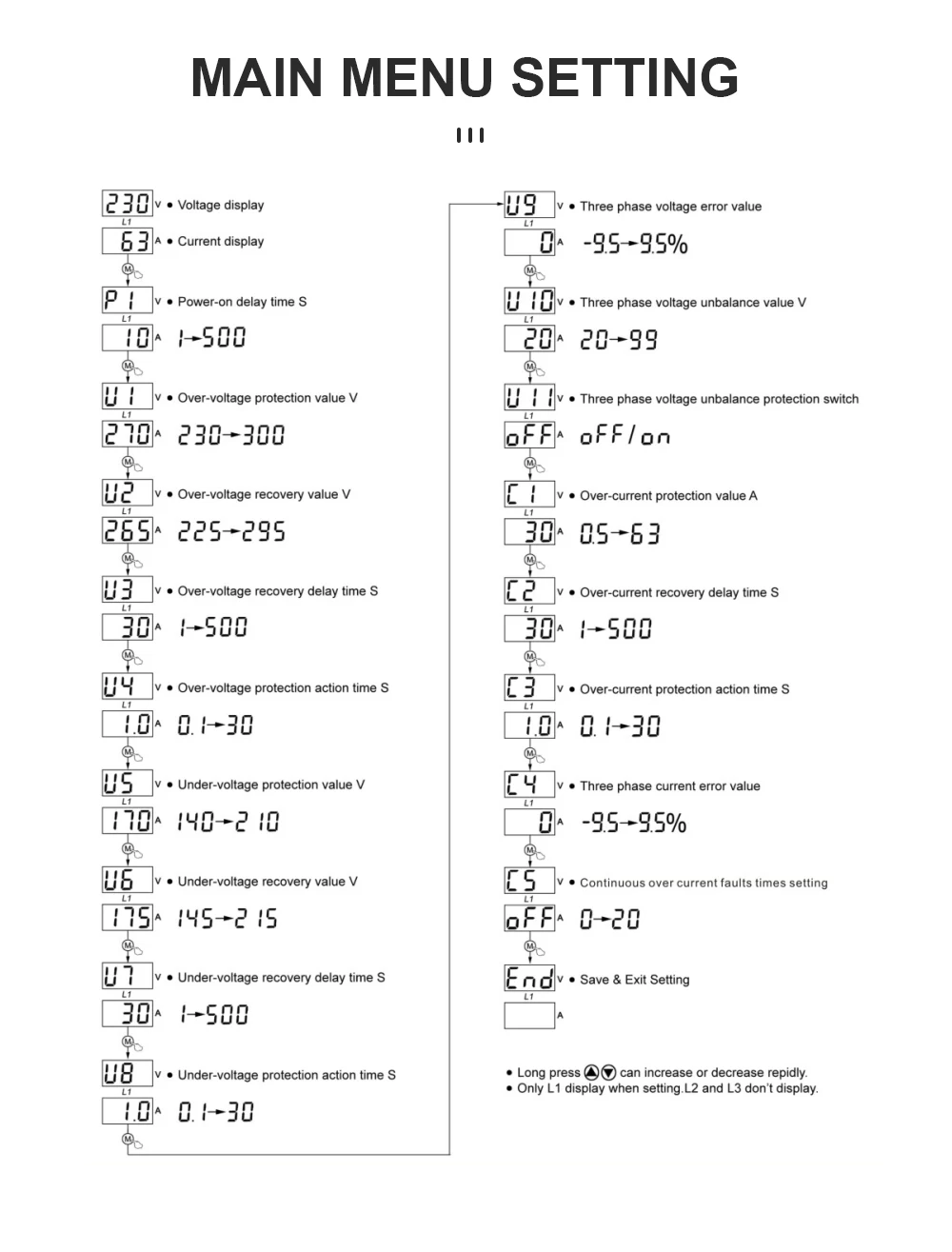

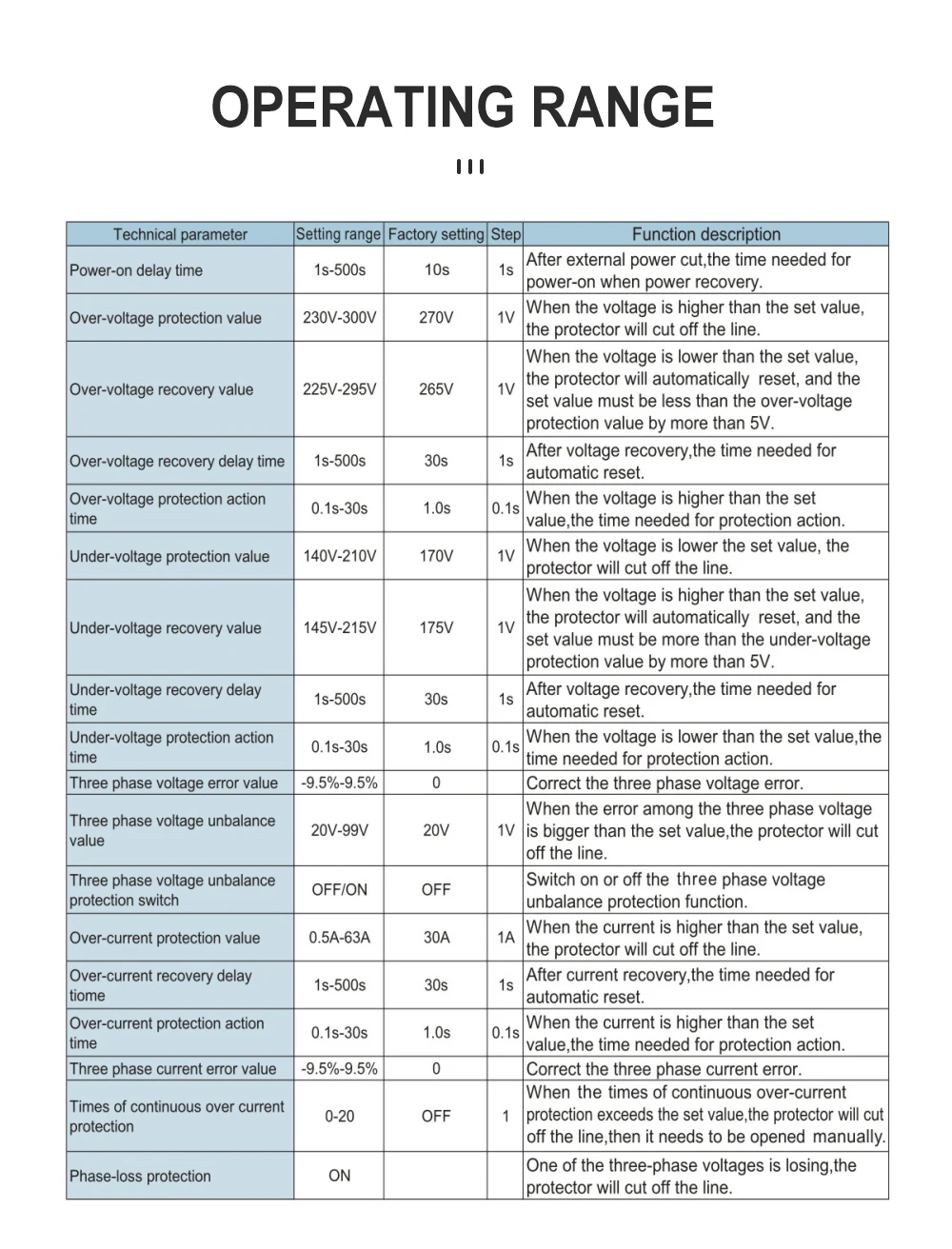

Code	Parameter	Value
P1	Power On Time	1-500S
U1	Over Voltage	230-300V
U2	Recovery Voltage	220-295V
U3	Recovery Time	1-500S
U4	Power Off delay Time	0.1-30S
U5	Under Voltage	140-210V
U6	Recovery Voltage	145-215V
U7	Recovery Time	1-500S
U8	Power Off delay Time	0.1-30S
U9	Voltage Deviation	-9.5 to 9.5%
U10	Asymmetry	20-99V
U11	Phase squence protect	on/off
C1	Over Current	3-63A
C2	Recovery Time	1-500S
C3	Power Off delay Time	0.1-30S
C4	Current Deviation	-9.5 to 9.5%
C5	Continues Over Current Times	1-20 off
