IEC-inlet General Purpose Series

Features and benefits

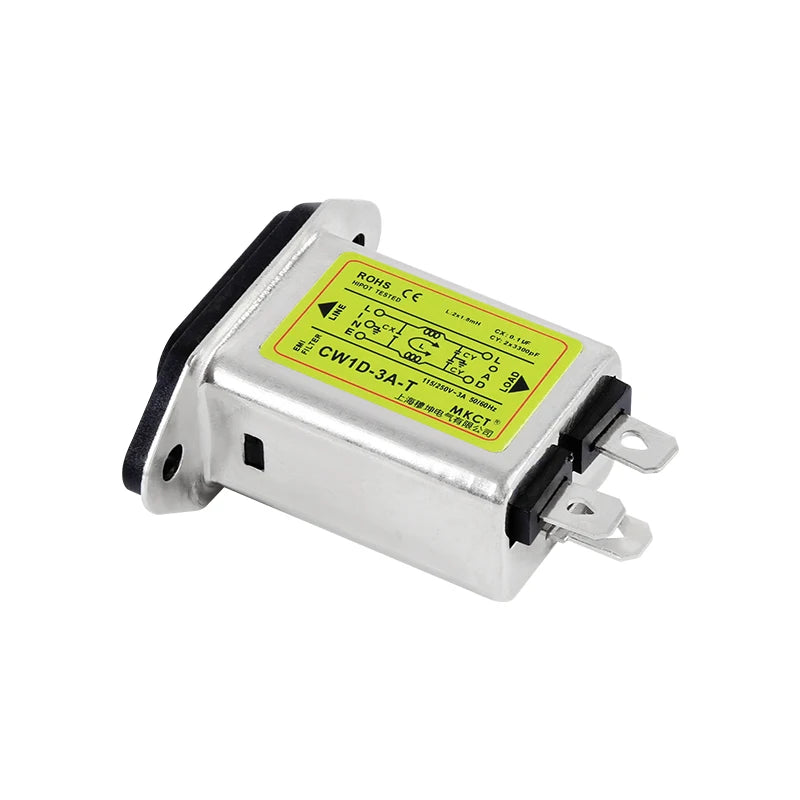

Small size,IEC-inlet power entry filter

For measuring and mini-electronic instruments

Good performance of interference suppression

Typical applications

Industrial electronic equipment

Medical and commercial equipments

Office and testing equipments

Technical specifications

Maximum continuous operating voltage:250VAC

Operating frequency:50/60Hz

Rated currents:1A-10A@40°Max.

High potential test voltage(1 min):Line to Line 1500VDC/Line to Ground 1500VAC

Operation and storage temperature range:-25°~+85°(25/085/21)

The suffix ”T” represents Insert commection.

**

Maximum leakage under normal operating conditions,note:if the neutral line is interrupted, worst case leakage could reach twice this level.

Electrical schematics

Typical filter attenuation

Per CISPR 17/50Ω system [——Common mode;-----Differential mode ]

Dimensions[All dimensions in mm]
