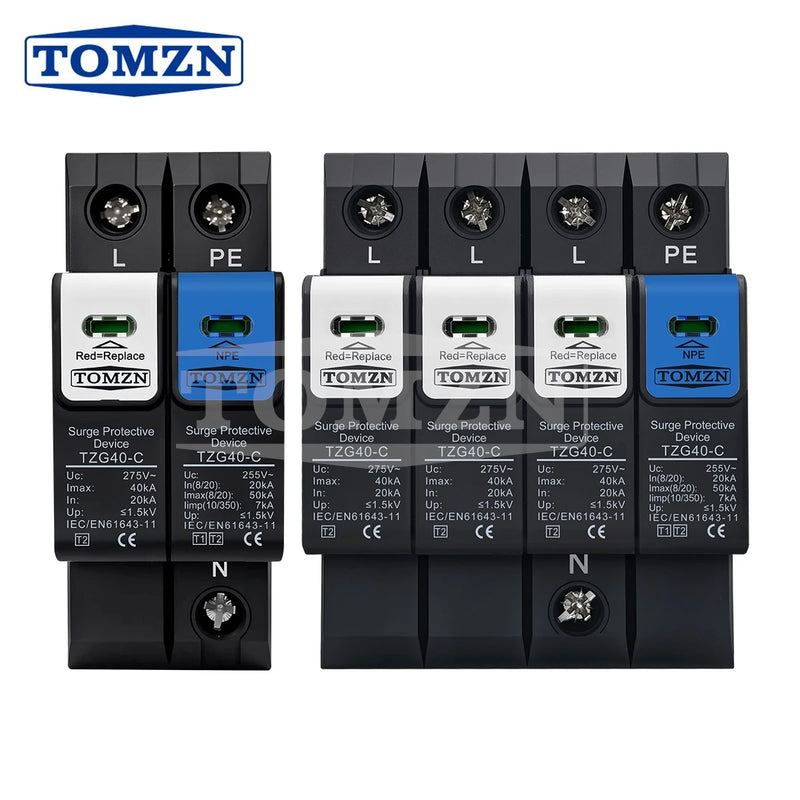

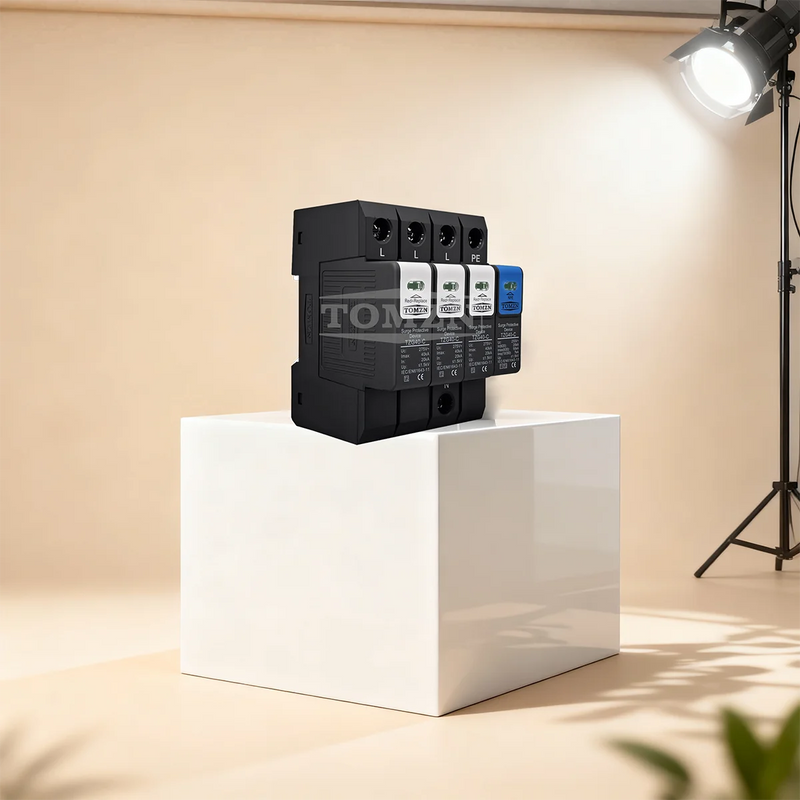

ឧបករណ៍ការពារការកើនឡើង TOMZN N-PE SPD 1P+NPE & 3P+NPE, បំពង់បញ្ចេញ 20-50kA, 230V/380V AC, ស្រោមការពារអណ្តាតភ្លើង T1+T2 ដែលអាចដោតបាន

ឧបករណ៍ការពារការកើនឡើង TOMZN N-PE SPD 1P+NPE & 3P+NPE, បំពង់បញ្ចេញ 20-50kA, 230V/380V AC, ស្រោមការពារអណ្តាតភ្លើង T1+T2 ដែលអាចដោតបាន

Name: ឧបករណ៍ការពារការកើនឡើង TOMZN N-PE SPD 1P+NPE & 3P+NPE, បំពង់បញ្ចេញ 20-50kA, 230V/380V AC, ស្រោមការពារអណ្តាតភ្លើង T1+T2 ដែលអាចដោតបាន
Brand: TOMZN
SKU: 1005012265141294-275V 20-50kA-1P NPE
Price: 24.25 USD
Availability: InStock

by ដោយ TOMZN

$0.00 - $0.00

$0.00

$24.25

$24.25 - $40.50

$24.25

Availability:

10968 in stock, ready to be shipped

Availability:

10994 in stock, ready to be shipped

Availability:

10965 in stock, ready to be shipped

Availability:

10975 in stock, ready to be shipped

Quantity

ឧបករណ៍ការពារការកើនឡើង TOMZN N-PE SPD 1P+NPE & 3P+NPE, បំពង់បញ្ចេញ 20-50kA, 230V/380V AC, ស្រោមការពារអណ្តាតភ្លើង T1+T2 ដែលអាចដោតបាន

All prices exclude shipping Customs and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន គយ និងពន្ធទេ។

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Model Number: TZG40-B/C/D NPE series

Origin: Mainland China

Rated Voltage: 220/380V

Type: Surge protective device,Circuit breaker

is_customized: Yes

Product Introduction

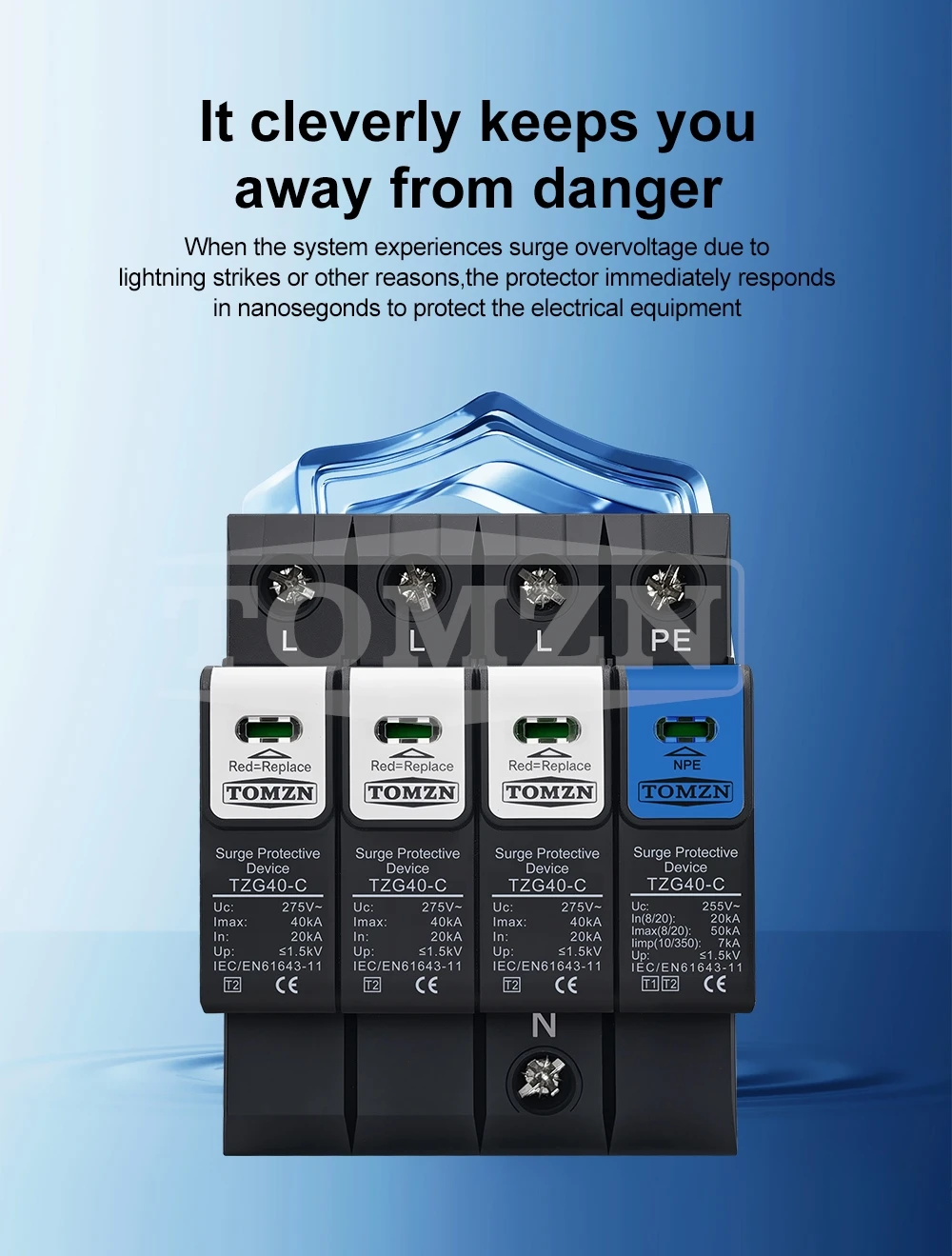

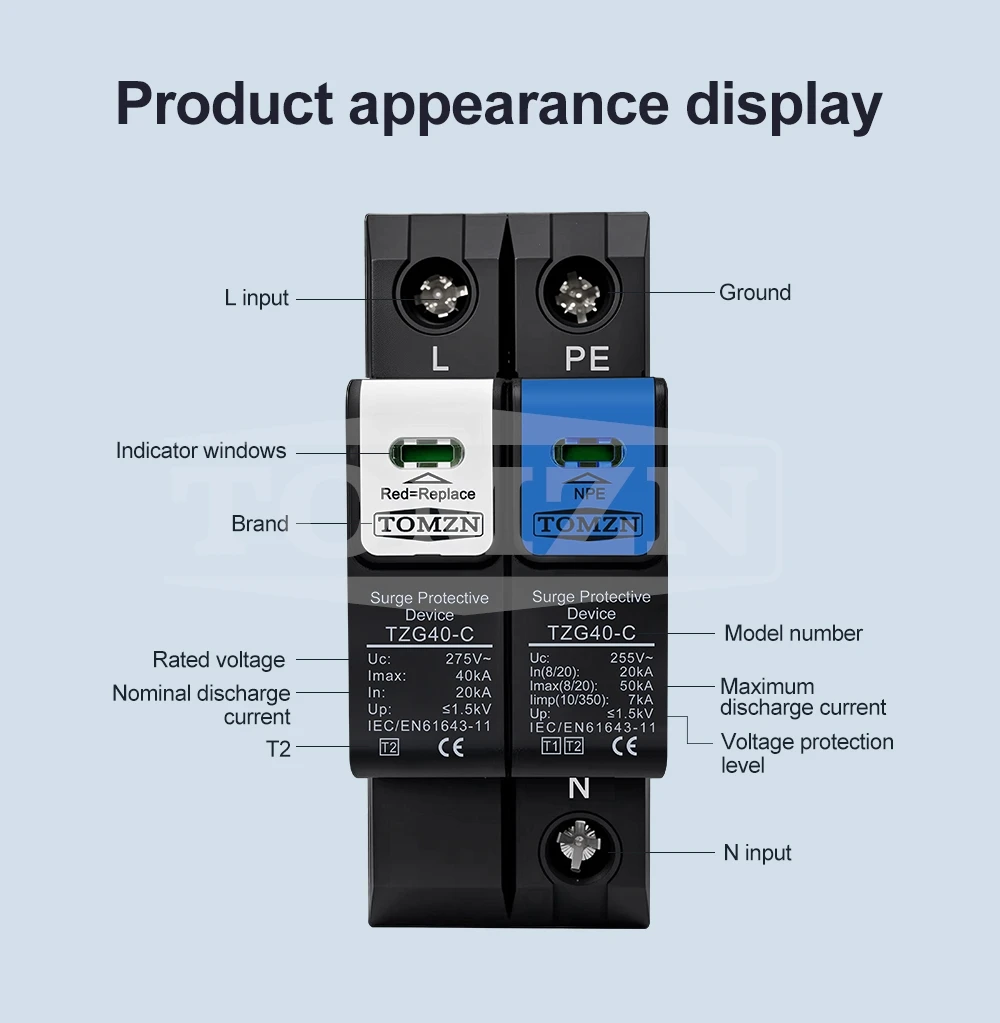

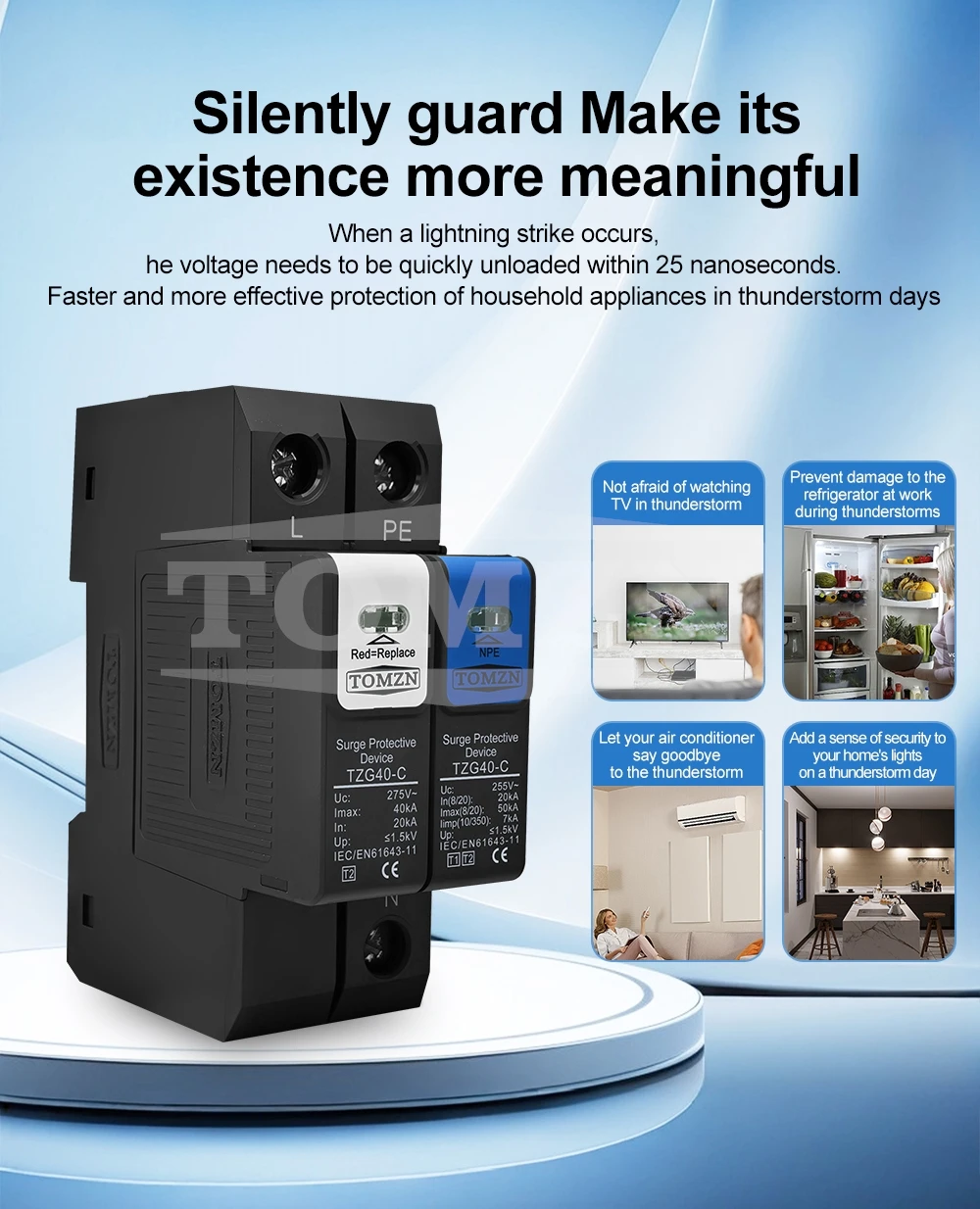

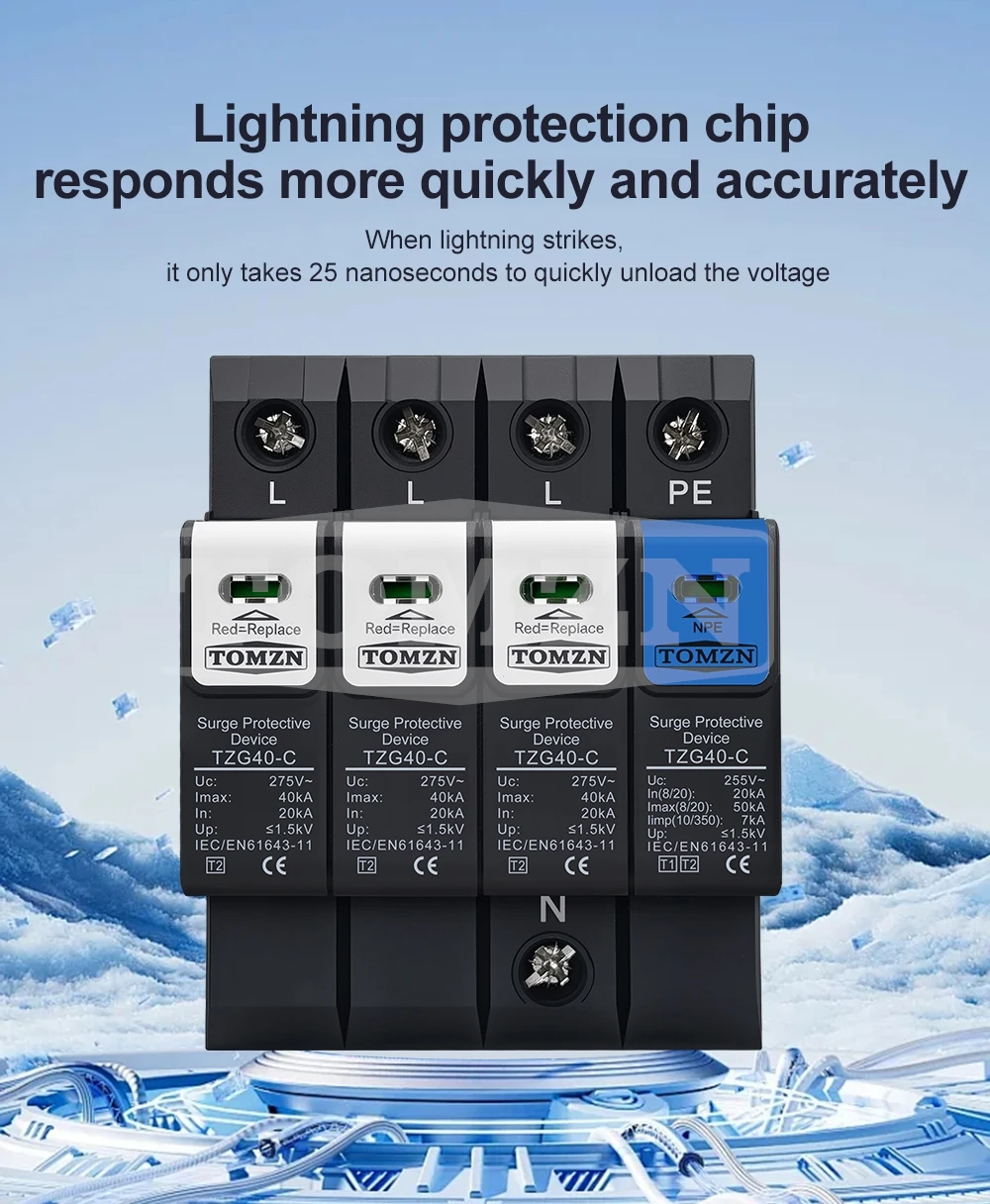

The TOMZN TZG40-C N-PE series surge protective device (SPD) is designed for low-voltage AC power systems, complying with IEC/EN 61643-11 standards. It protects power lines and connected equipment from overvoltage and transient surges. Available in 1P+NPE and 3P+NPE configurations with rated AC voltages of 275V or 385V and a discharge current rating of 20-50kA. Key features include high discharge capacity, fast response time, low residual voltage, double thermal disconnection for enhanced safety, and a visual status indicator (green: normal, red: replace module). The NPE model incorporates a discharge tube between N and PE. Optional remote signaling interfaces are available upon request. DIN rail mounting ensures easy installation.

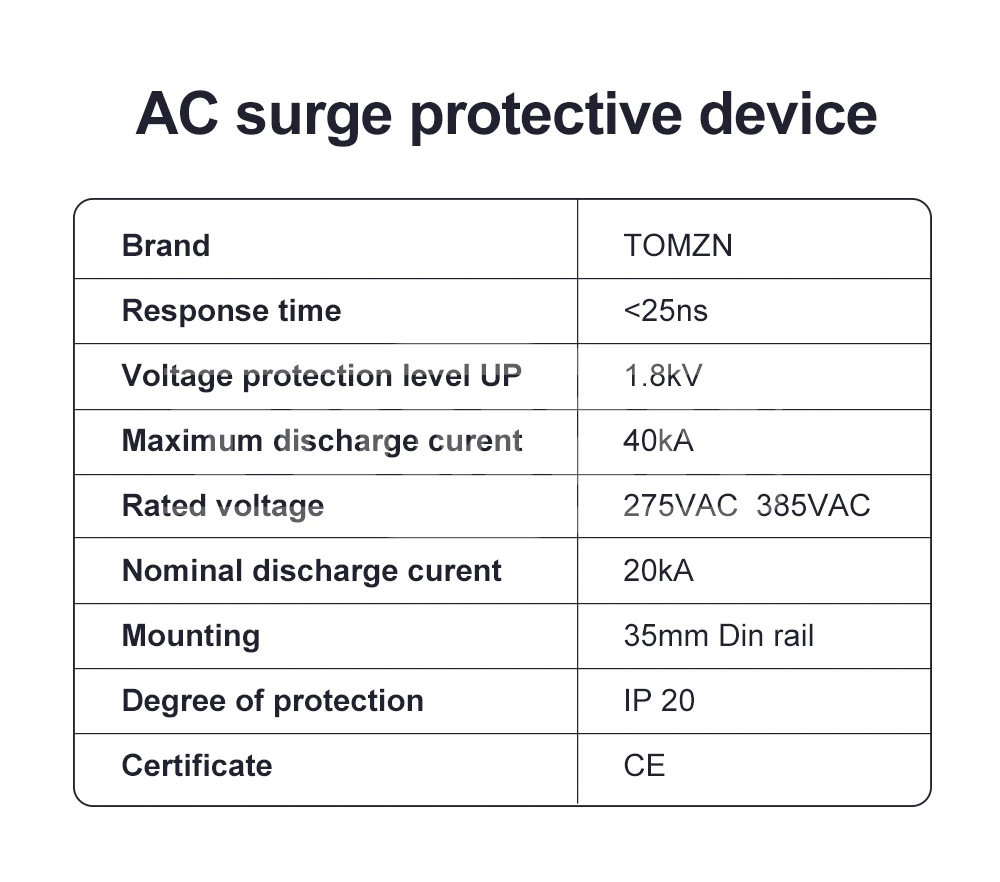

Product Data Sheet

Product series: TZG40-C N-PE

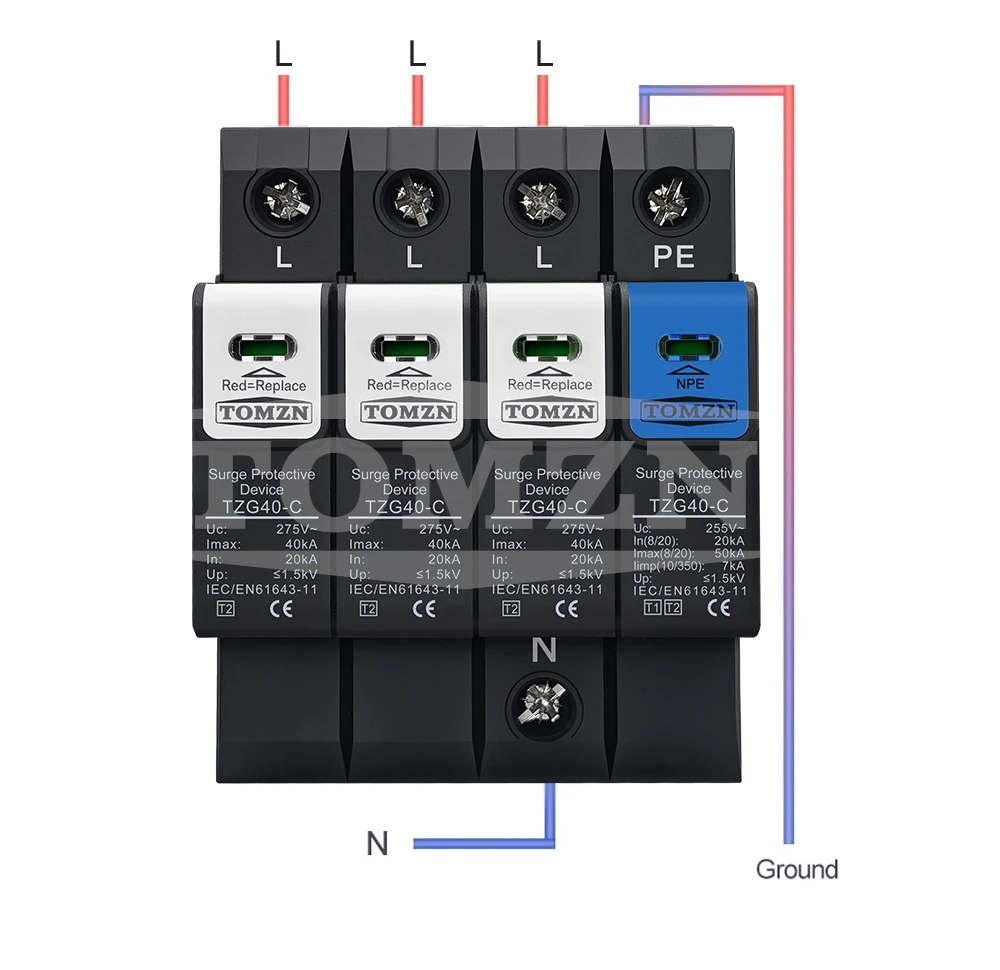

Configuration: 1P+NPE / 3P+NPE

Standard: IEC/EN 61643-11

Rated AC voltage: 275V or 385V

Discharge current rating: 20-50kA

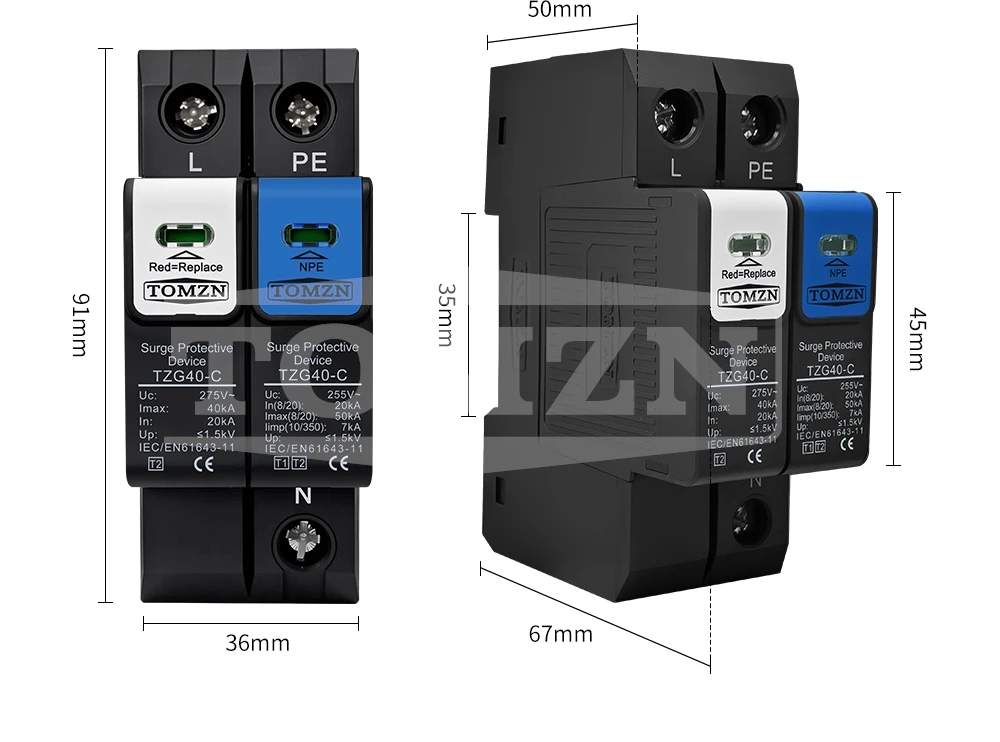

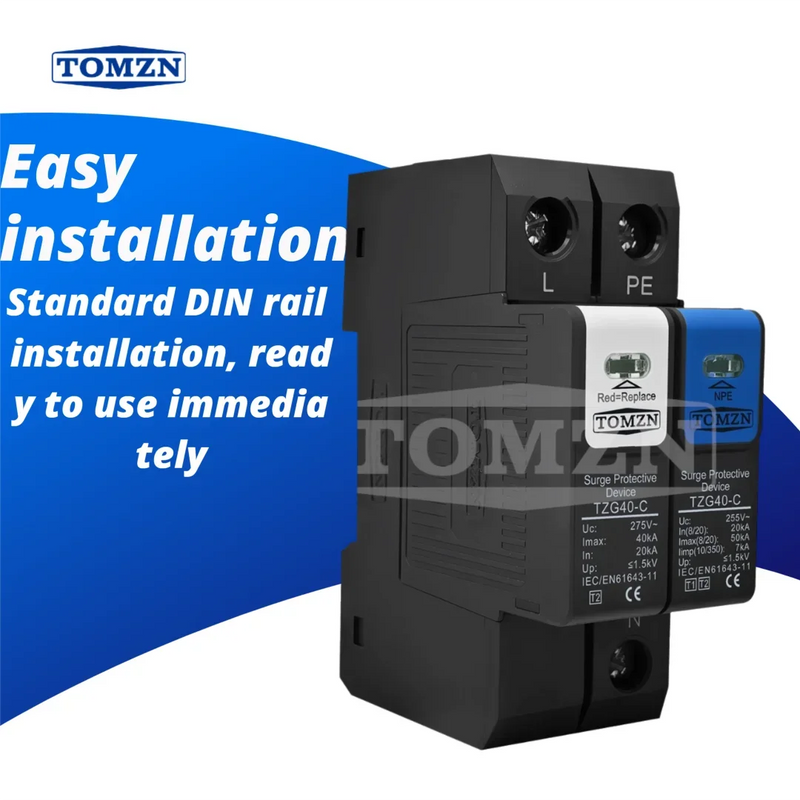

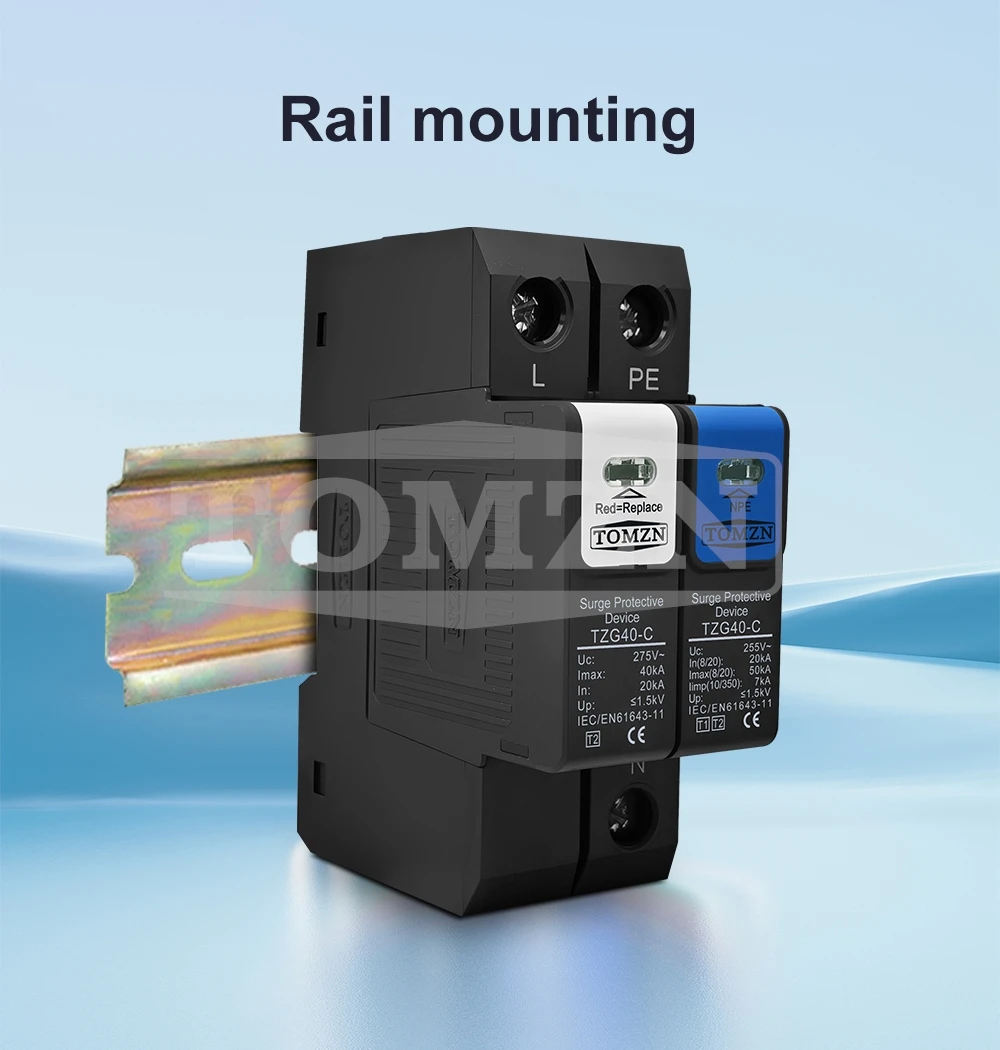

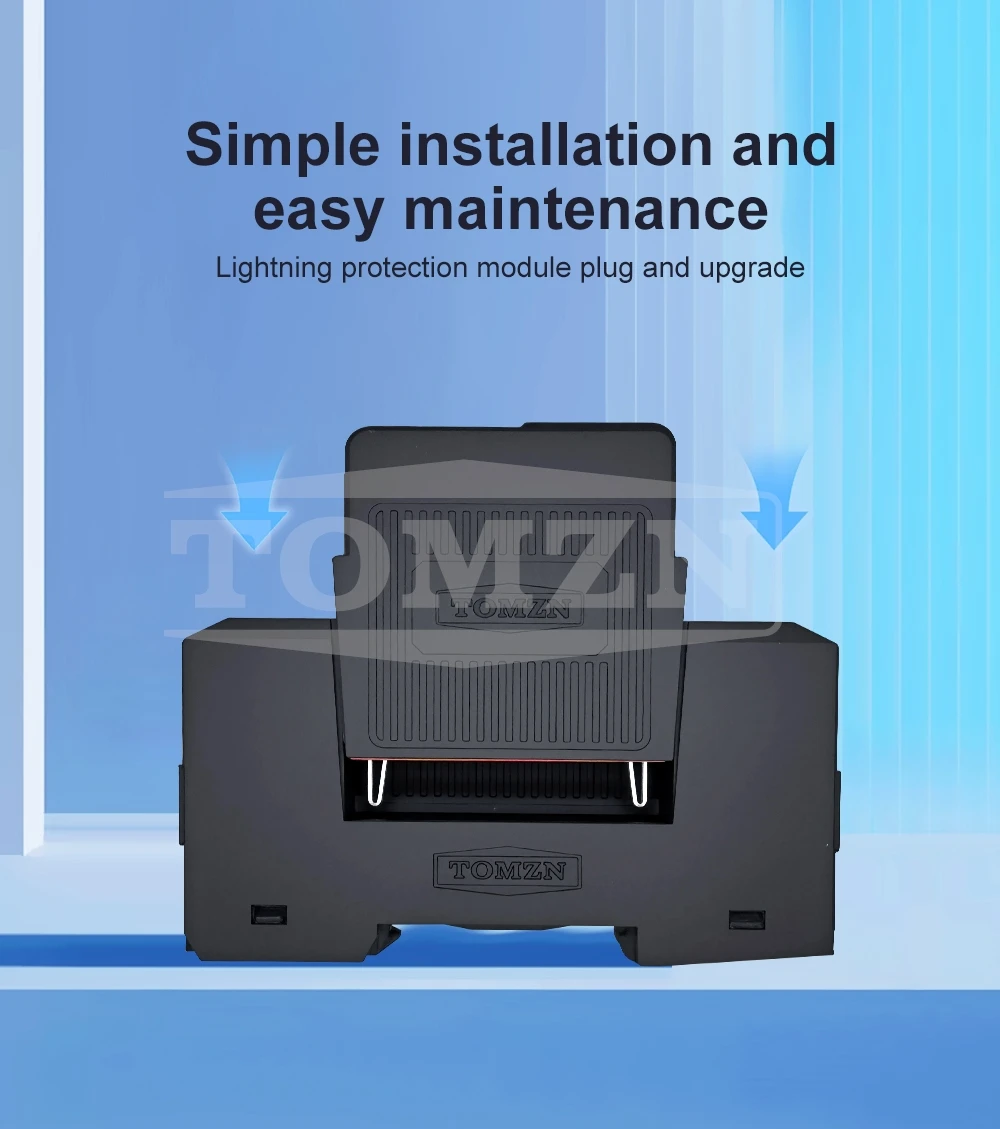

Mounting: DIN rail

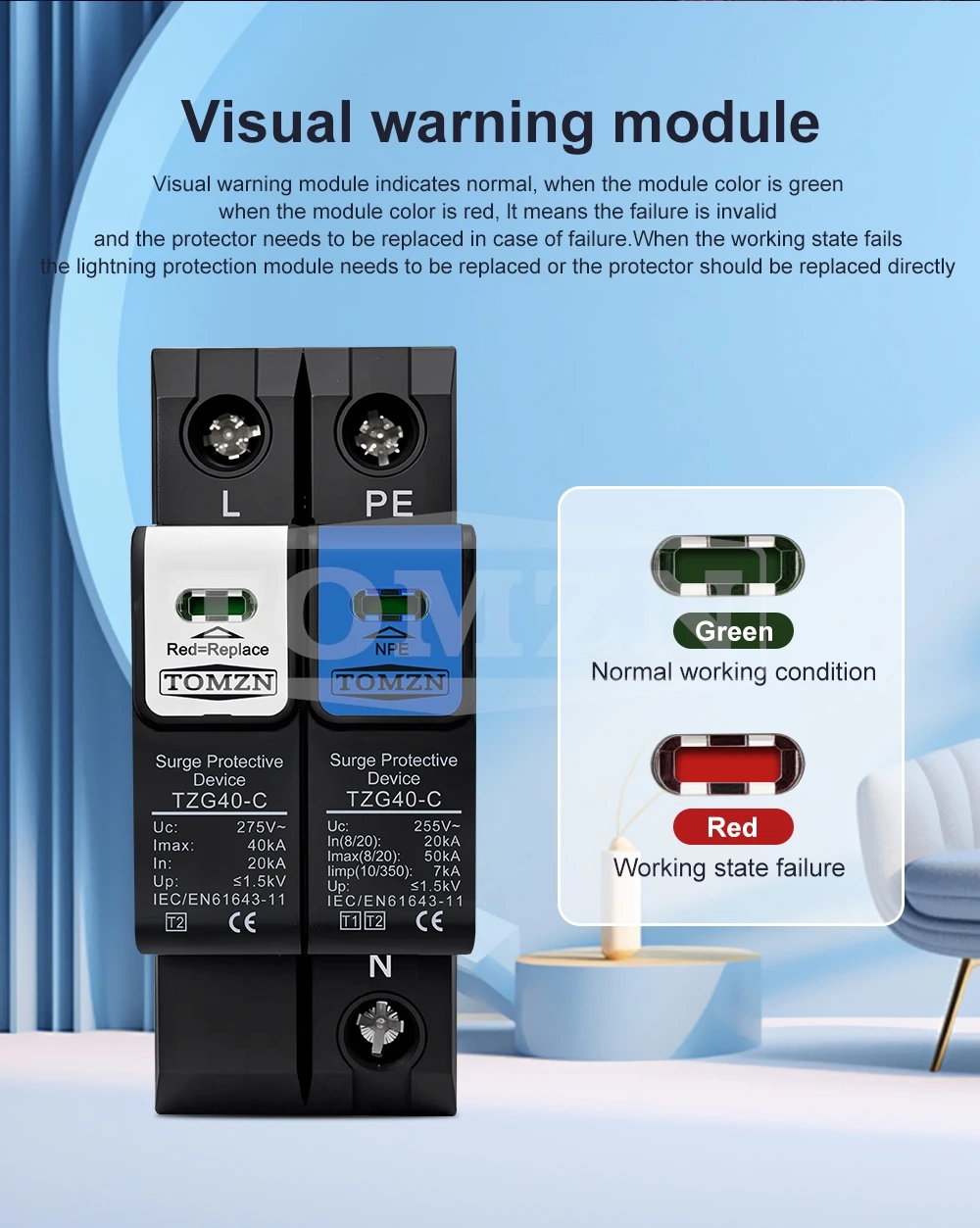

Status indicator: Green (normal), red (module needs replacement)

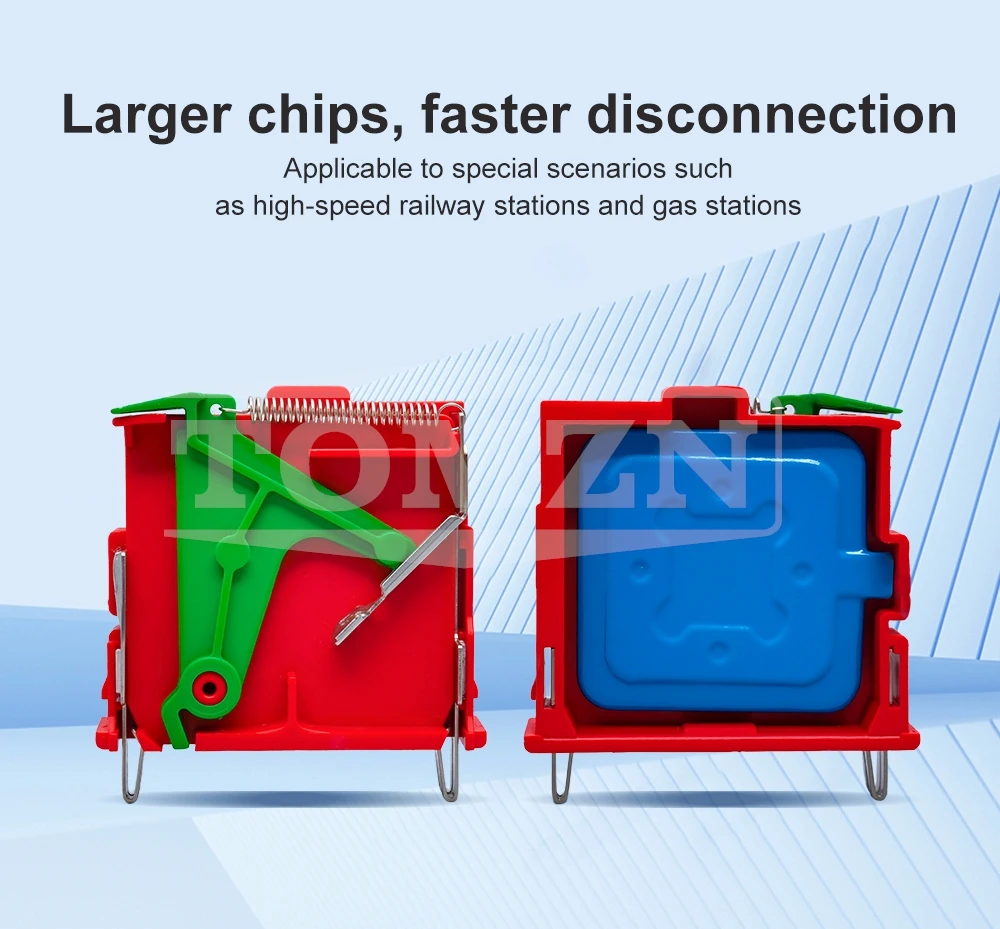

Thermal disconnection: Double thermal disconnection devices

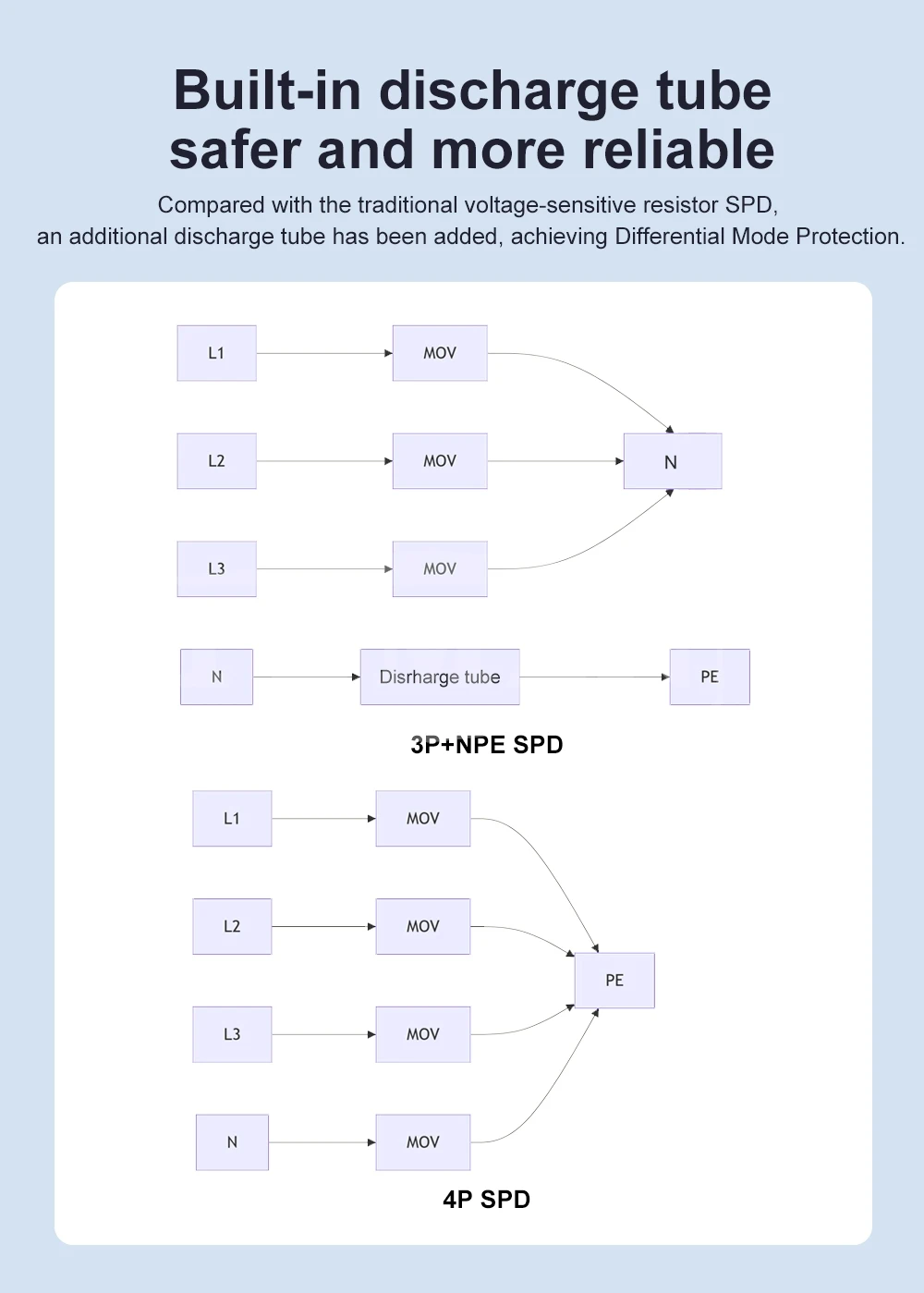

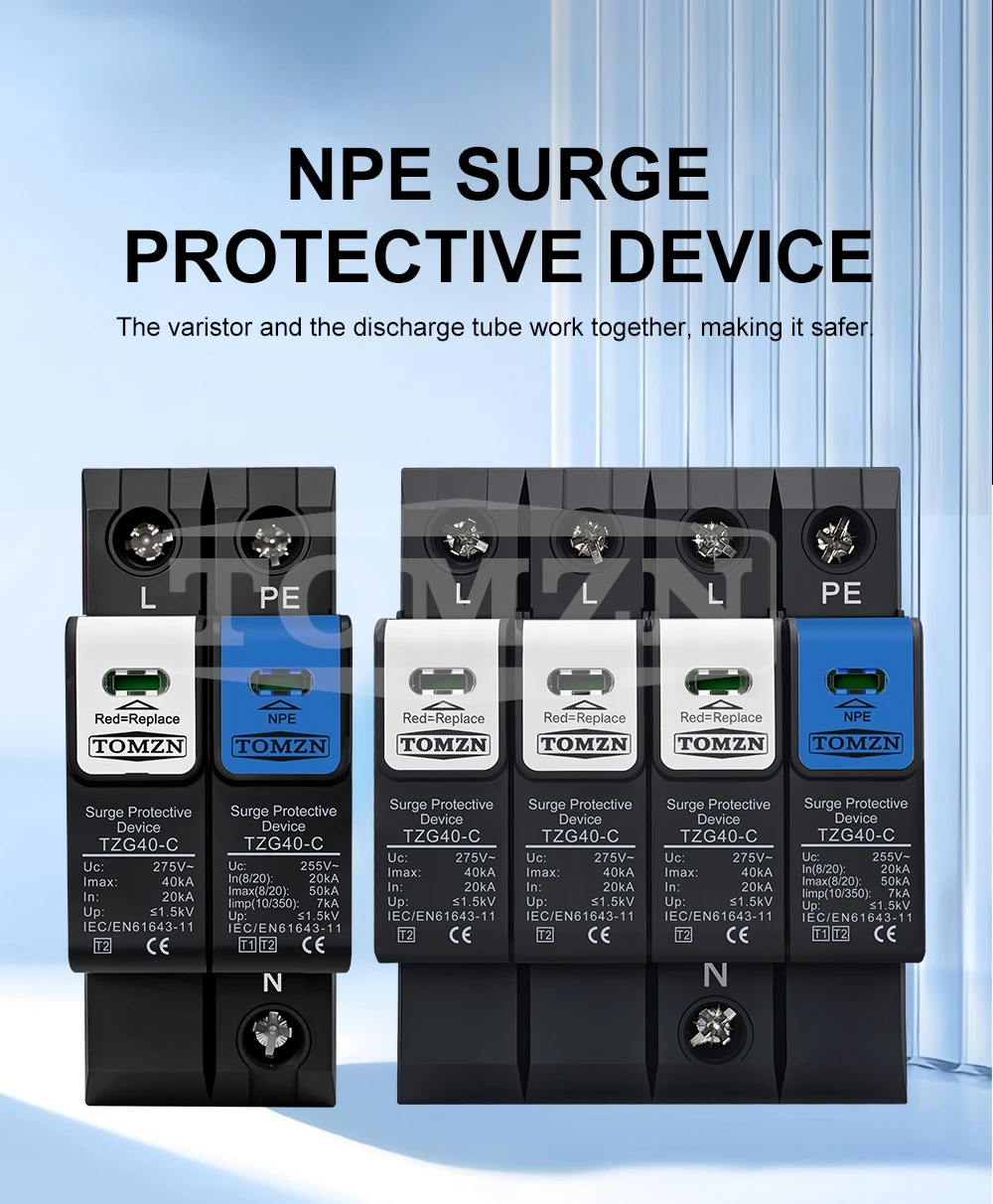

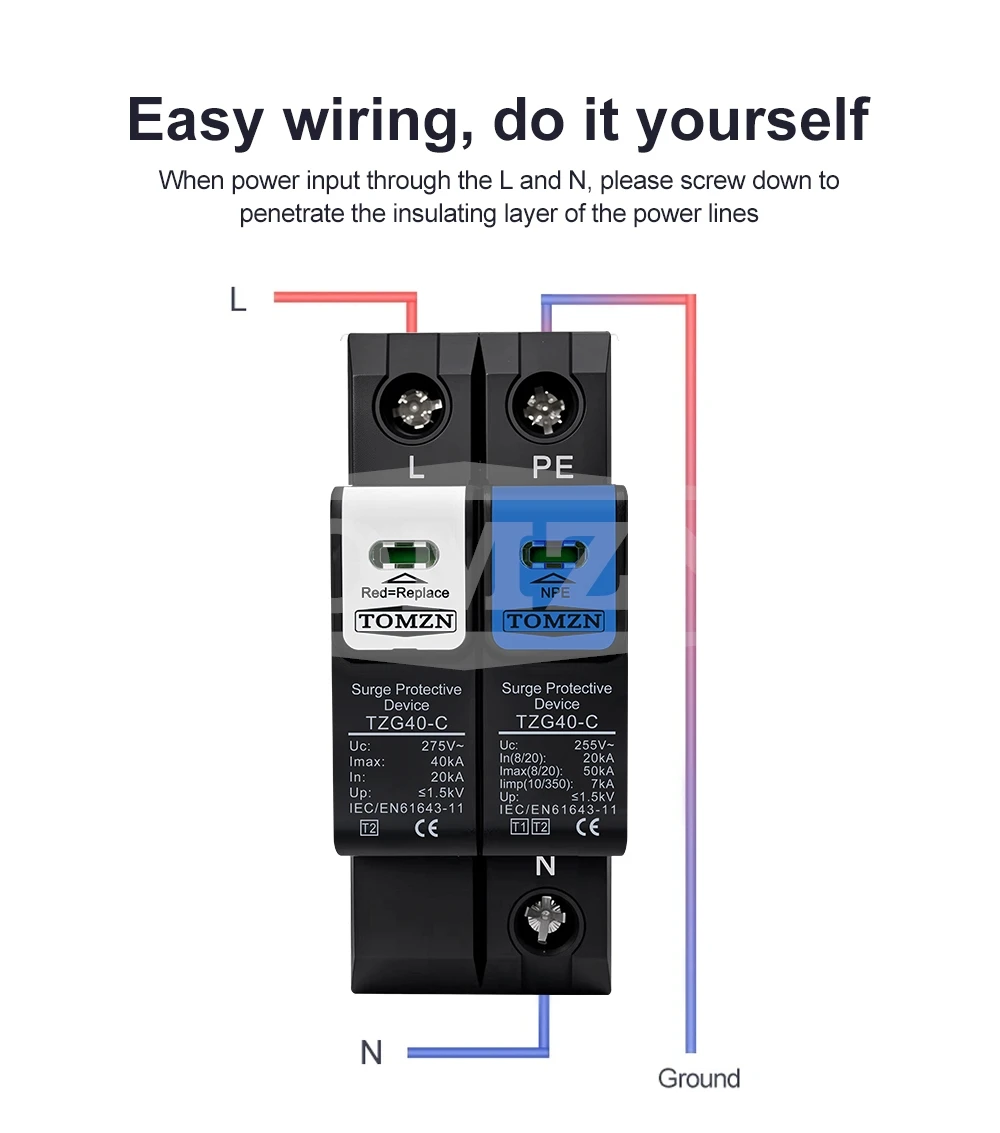

NPE model feature: Discharge tube between N and PE

Customization: Remote signaling interface available on request
