Product Introduction

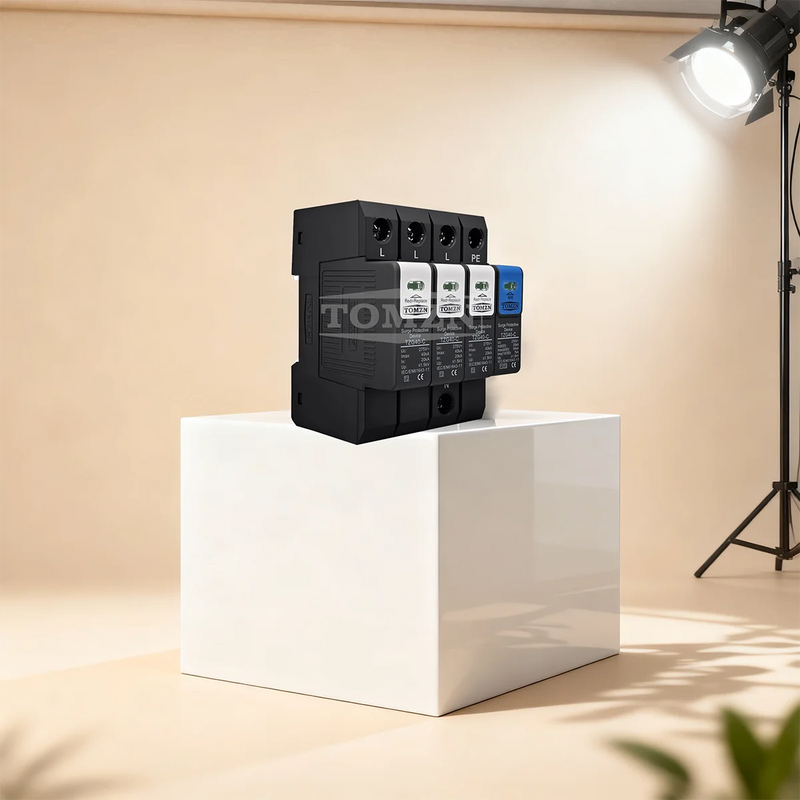

The TOMZN TZG40-C N-PE series surge protective device (SPD) is designed for low-voltage AC power systems, complying with IEC/EN 61643-11 standards. It provides robust protection against overvoltage and transient voltage surges, safeguarding sensitive equipment. Available in 1P+NPE and 3P+NPE configurations, with rated AC voltages of 275V or 385V and a discharge current rating of 20-50kA. Key features include a high discharge capacity, fast response time, DIN rail mounting, double thermal disconnection for enhanced reliability, and a visual status indicator (green for normal, red for defect requiring module replacement). The NPE model incorporates a discharge tube between the N and PE sections. Customization options such as remote signaling interfaces are available upon request.

Product Data Sheet

Product series: TZG40-C N-PE

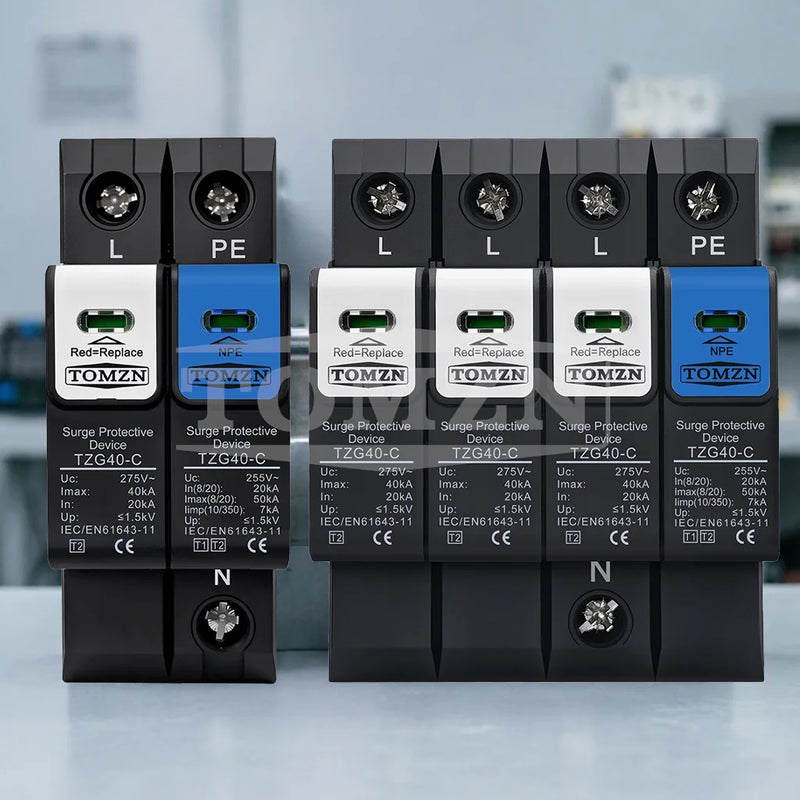

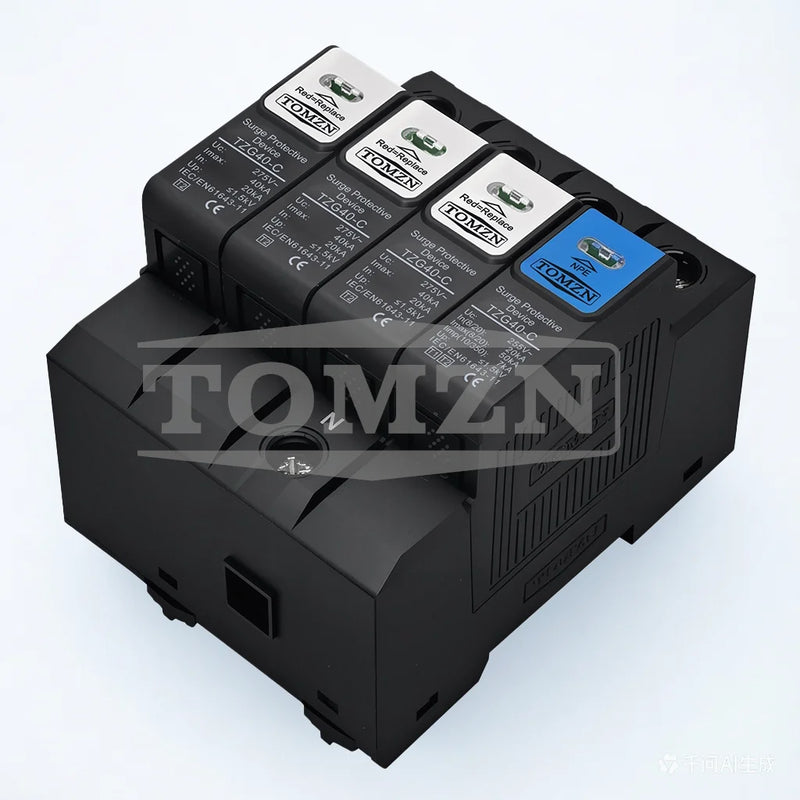

Model type: 1P+NPE / 3P+NPE

Standard: IEC/EN 61643-11

Rated AC voltage: 275V or 385V

Discharge current rating: 20-50kA

Application: AC power line protection

Features: High discharge capacity, fast response, double thermal disconnection

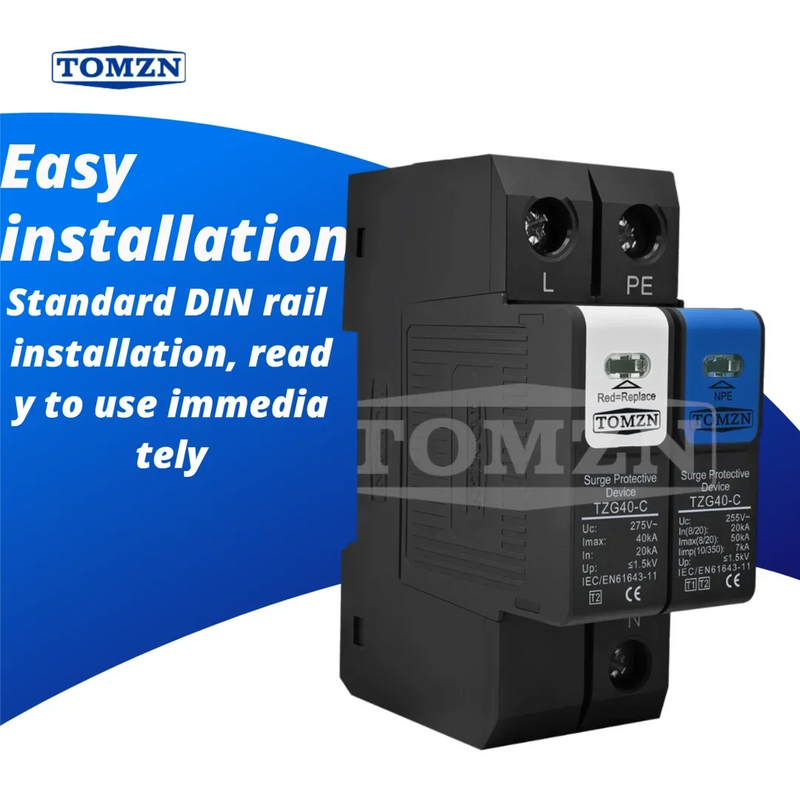

Installation: DIN rail

Status indicator: Green (normal), Red (defect – replace module)

NPE feature: Discharge tube between N and PE

Customization: Remote signaling interface available on request
