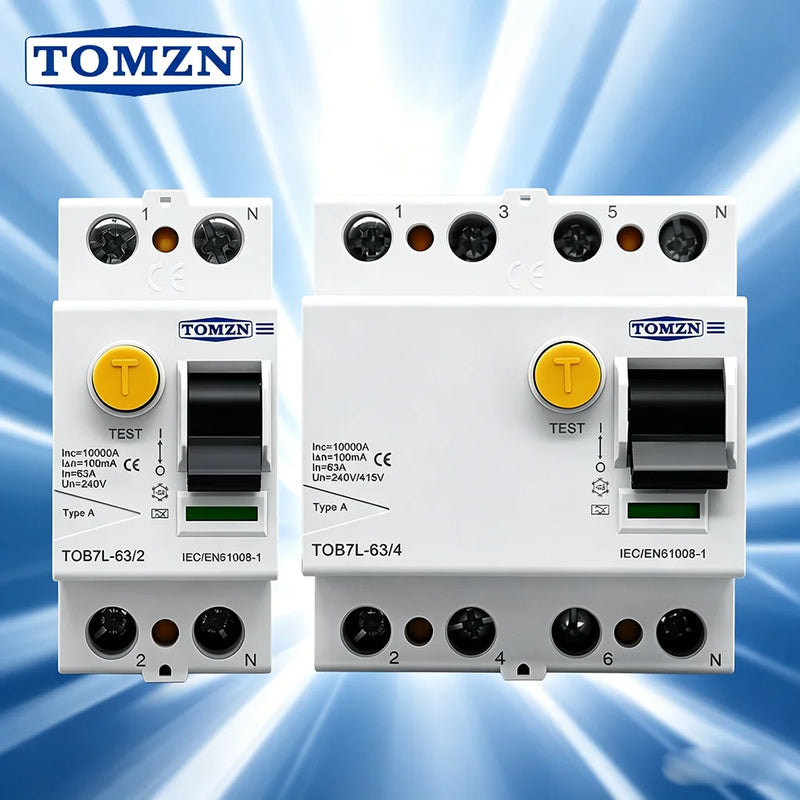

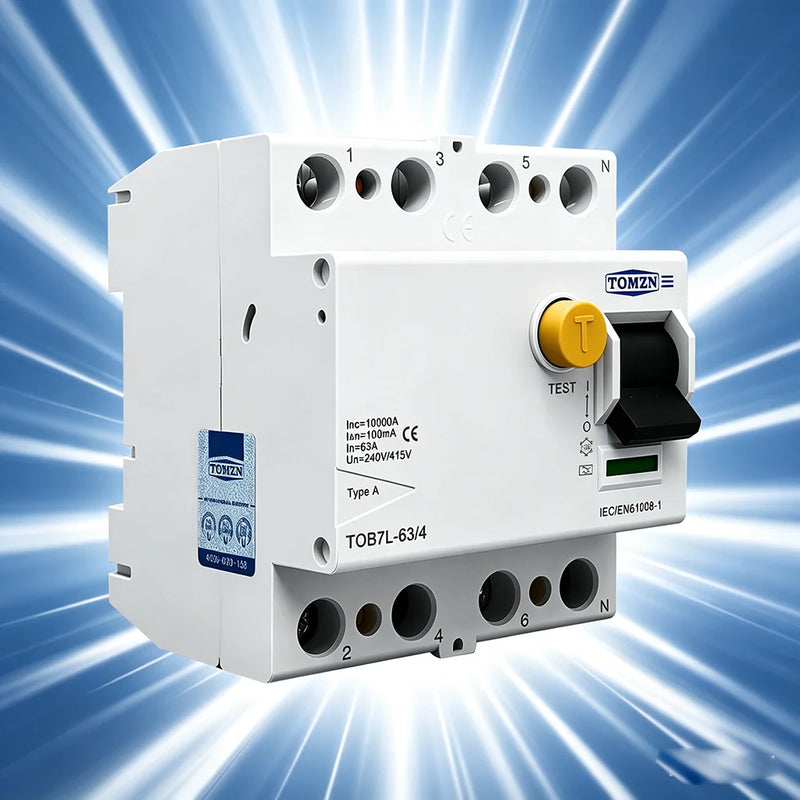

TOMZN Electromagnetic RCCB Residual Current Breaker – A/AC/B/F Type, 2P/4P, 40A/63A, 30/100/300mA, Anti-Electric Shock

Name: TOMZN Electromagnetic RCCB Residual Current Breaker – A/AC/B/F Type, 2P/4P, 40A/63A, 30/100/300mA, Anti-Electric Shock
Brand: TOMZN
SKU: 1005012133745221-AC Type 30mA-2P 230V AC 63A
Price: 12.56 USD
Availability: InStock

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Leakage current: 30mA 100mA 300mA

Model Number: TOB7L-63

Origin: Mainland China

Pole: 2P/4P

Rated Voltage: 220/380V

Rated current: 40A/63A

Type: Mini,RCD,A type/B type/F type/AC type

is_customized: Yes

Product Introduction

The TOB7L-63 Series is a premium line of Electromagnetic Residual Current Circuit Breakers (RCCB) designed to deliver uncompromising safety for industrial, commercial, and high-end residential electrical installations. Featuring a pure electromagnetic core, this voltage-independent device ensures fail-safe operation, providing reliable earth leakage protection even in the event of a neutral fault without requiring an auxiliary power supply. The series offers flexible configuration options, including multiple rated currents, residual current sensitivities, and selectable residual current types (AC, A, F, B) to suit diverse application requirements. With standard DIN rail mounting and compliance to IEC 61008-1, the TOB7L-63 Series delivers robust and dependable protection where safety is paramount.

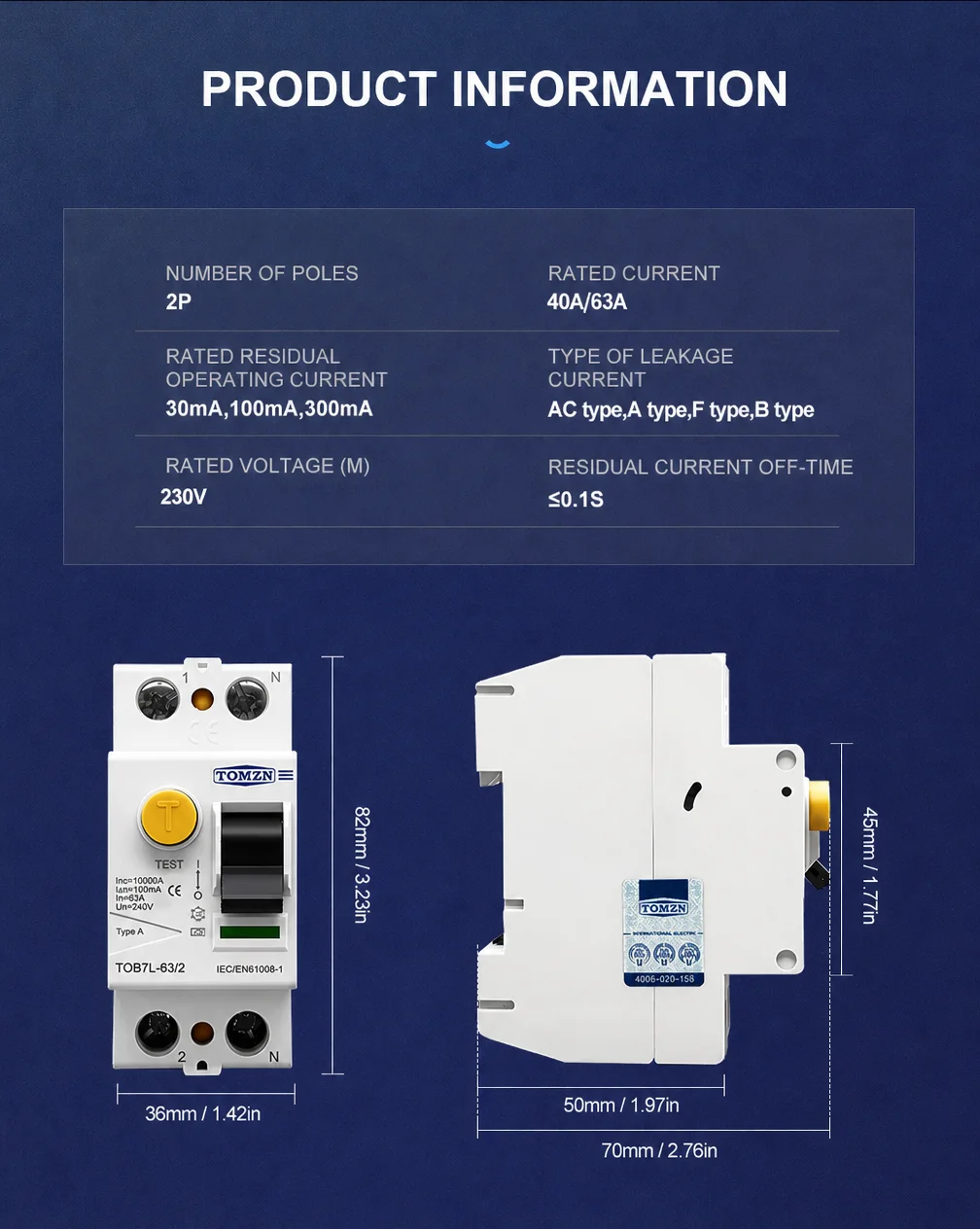

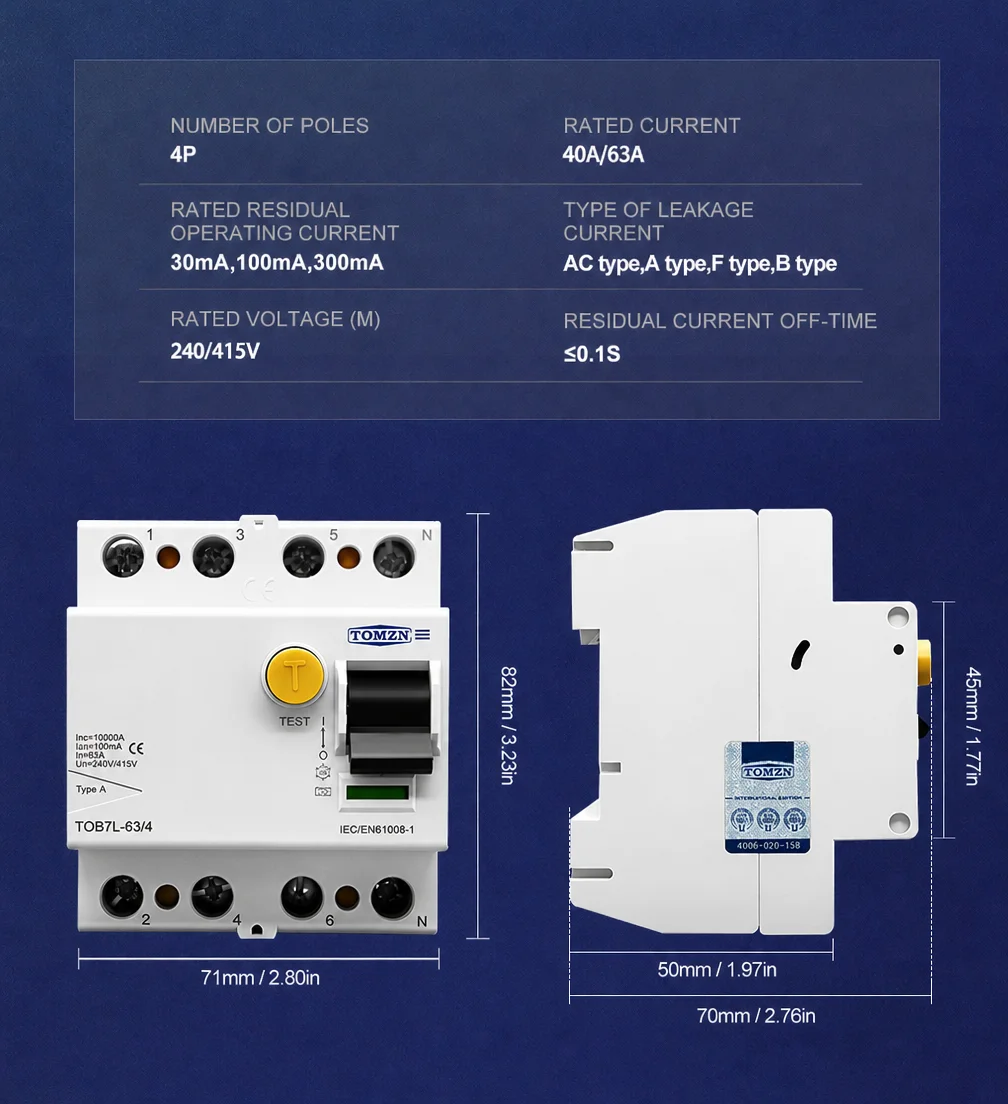

Product Data Sheet

Product Model: TOB7L-63 Series

Product Type: Electromagnetic Residual Current Circuit Breaker (RCCB)

Standard Compliance: IEC 61008-1, GB/T 16916.1

Rated Current (In): 40A, 63A

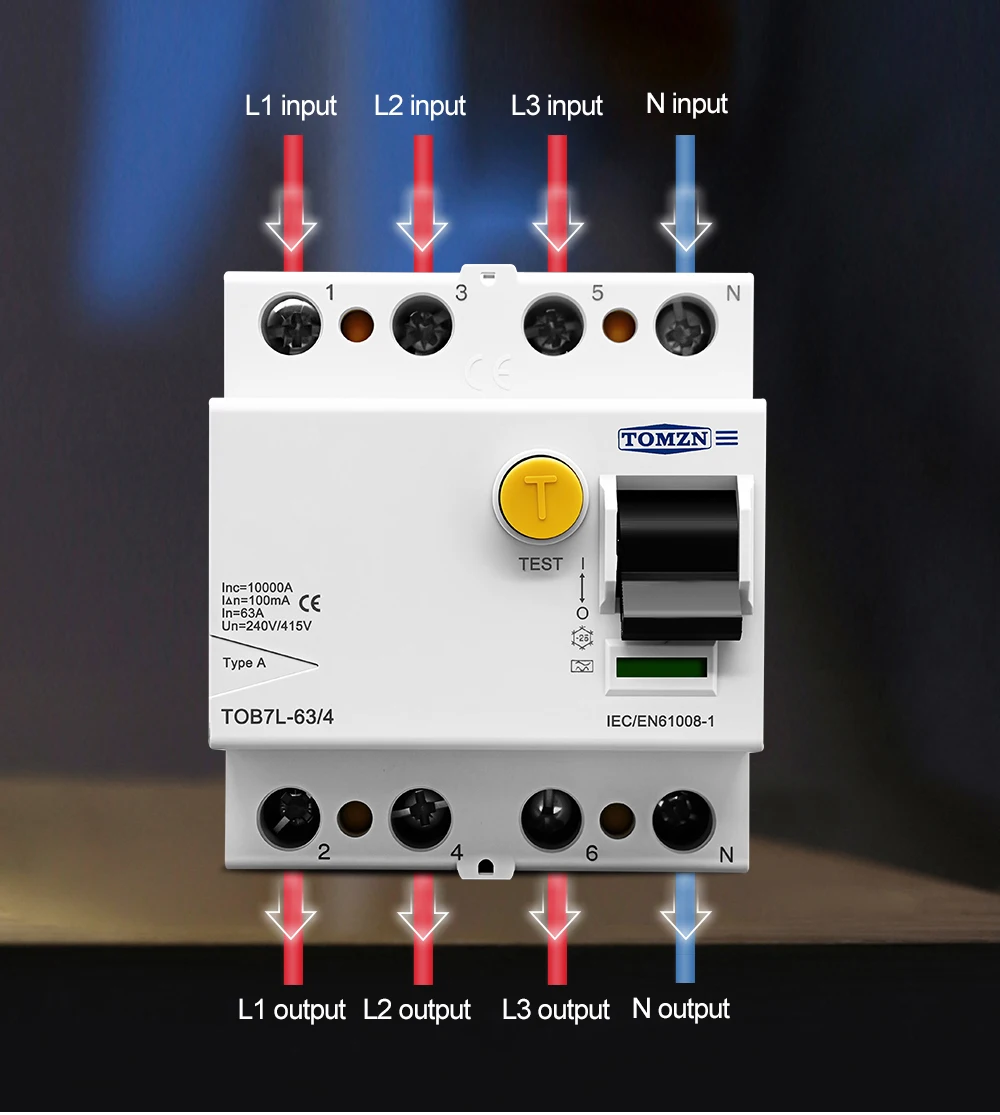

Rated Operational Voltage (Ue): 230V AC (2P) / 400V AC (4P)

Rated Residual Current (IΔn): 30mA, 100mA, 300mA

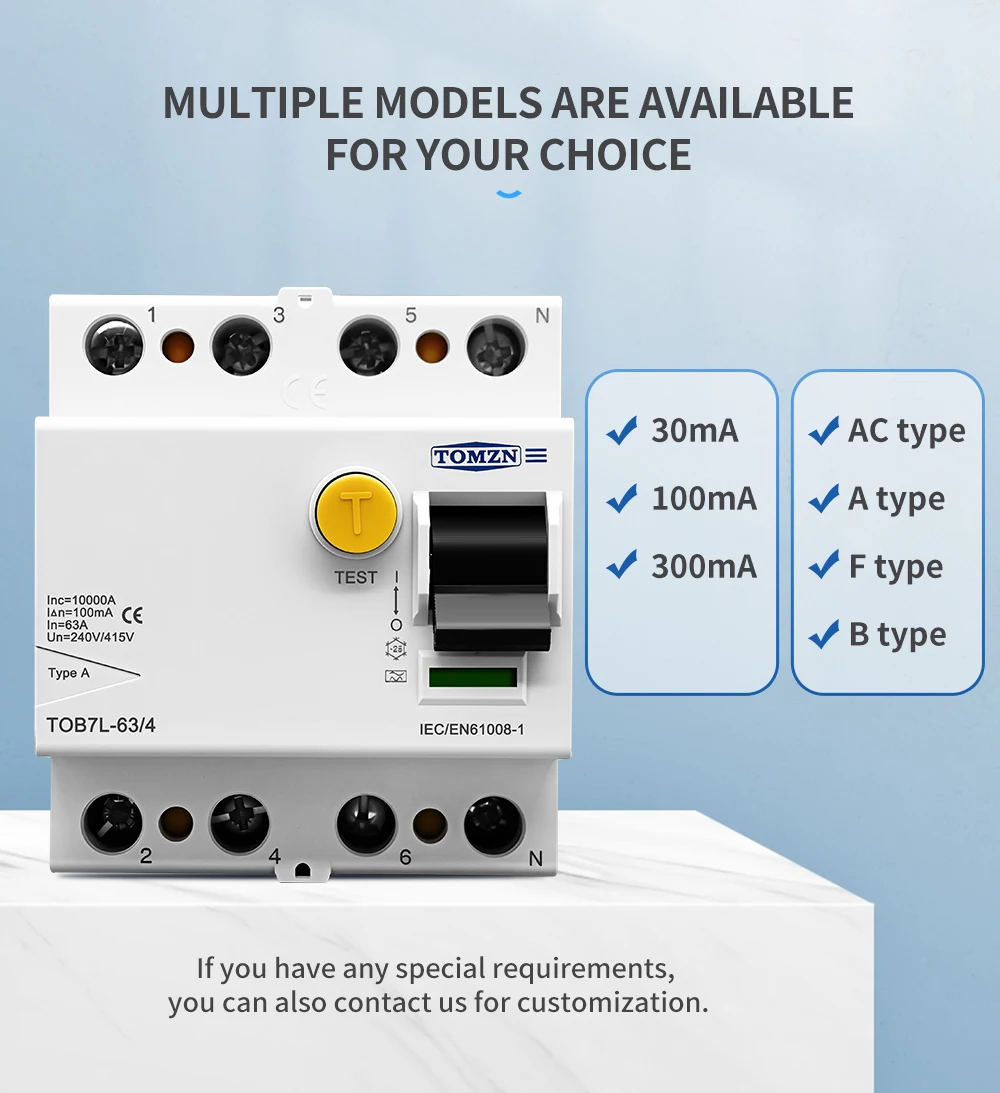

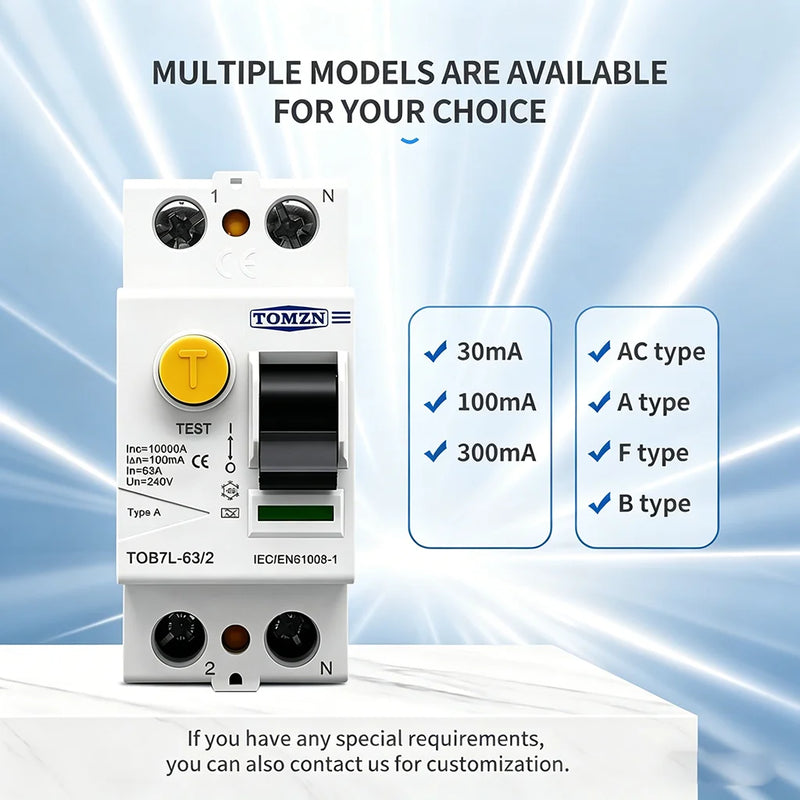

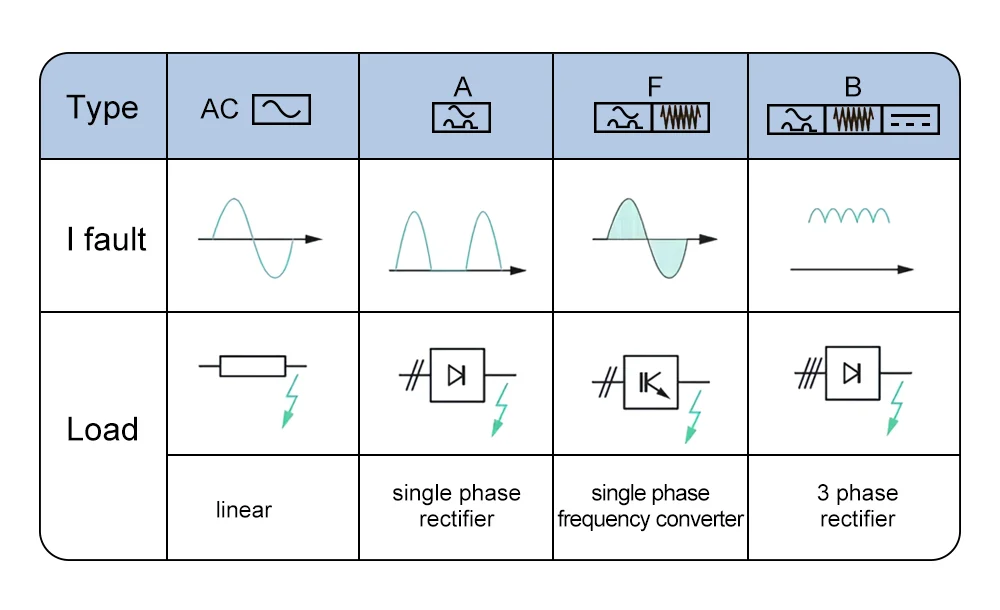

Residual Current Type: AC Type, A Type, F Type, B Type (selectable)

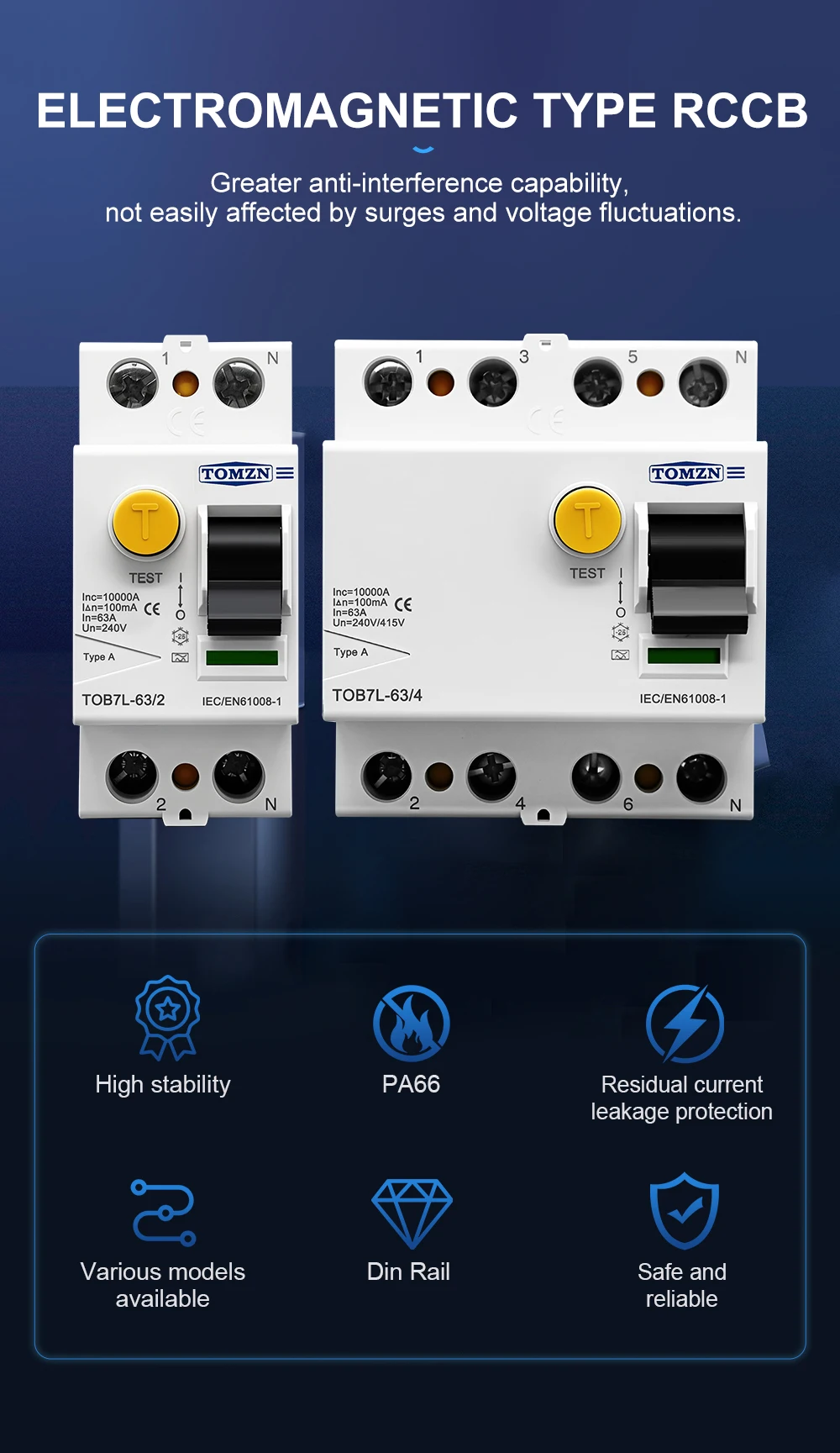

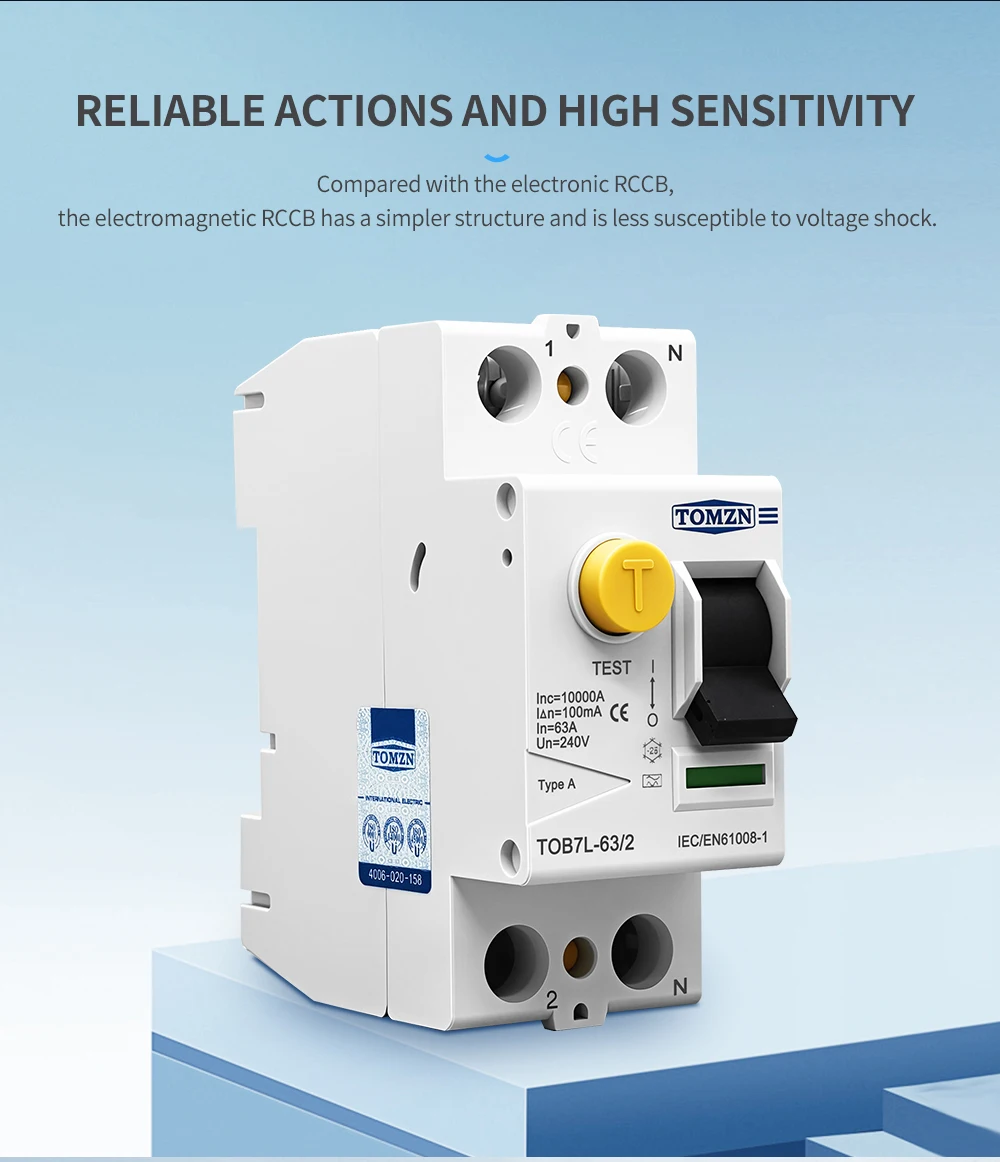

Tripping Principle: Electromagnetic (voltage-independent)

Electrical Link Option: Y-link, O-link

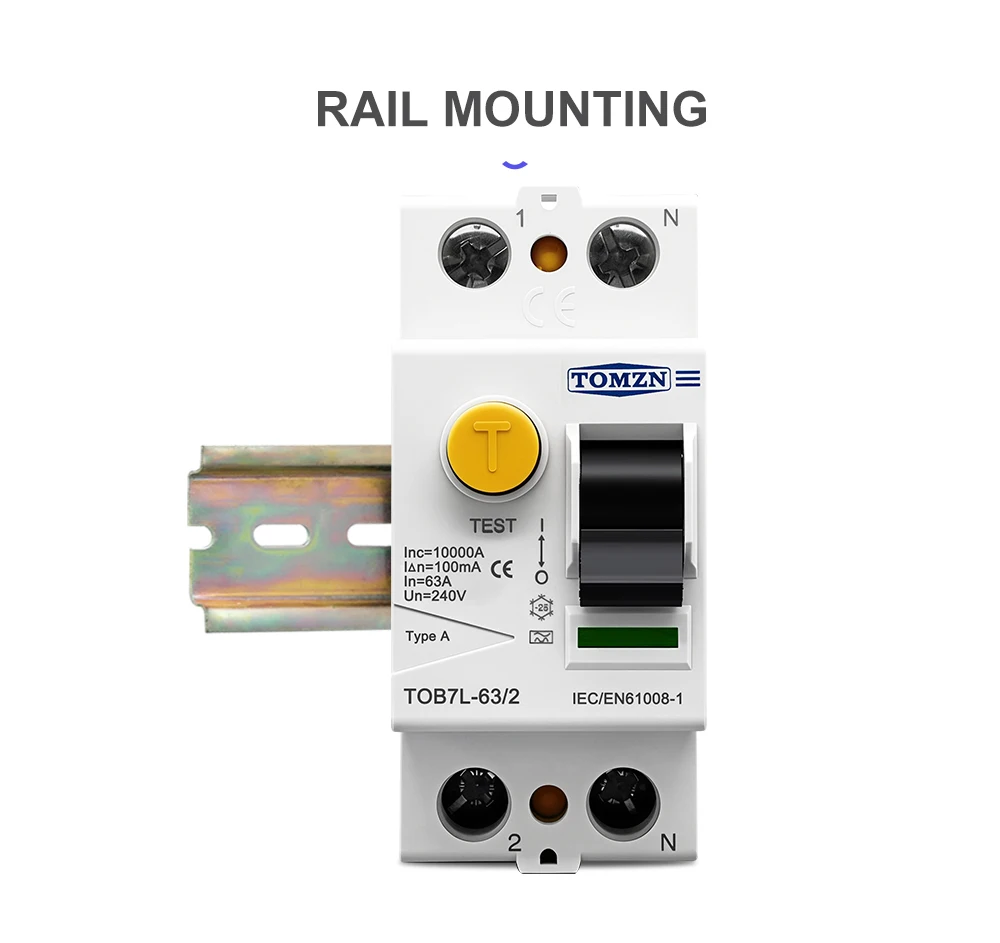

Mounting: Standard DIN Rail

Note: This product is an RCCB and does not provide overload or short-circuit protection
