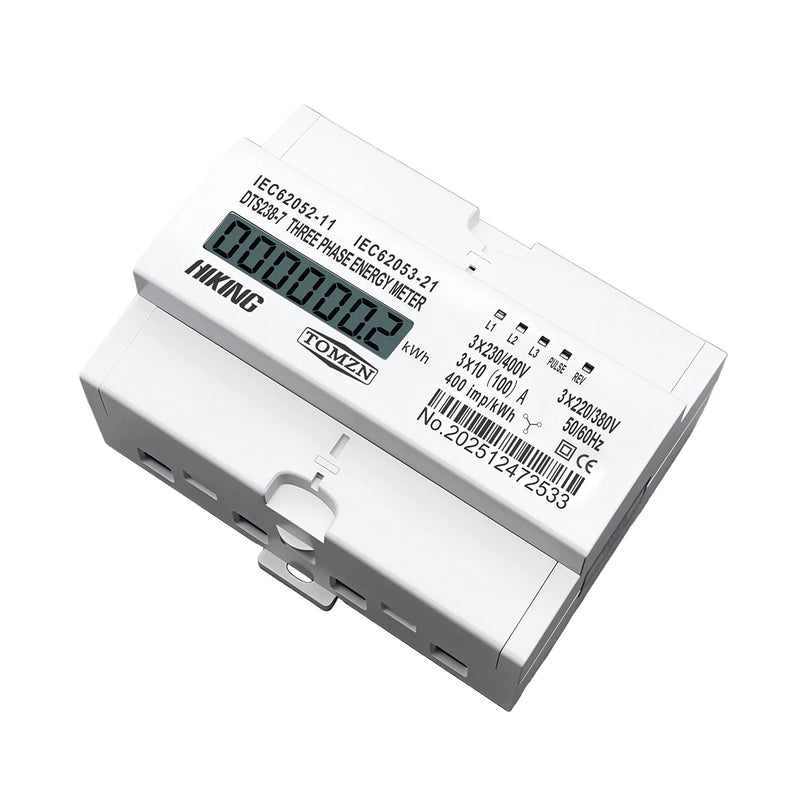

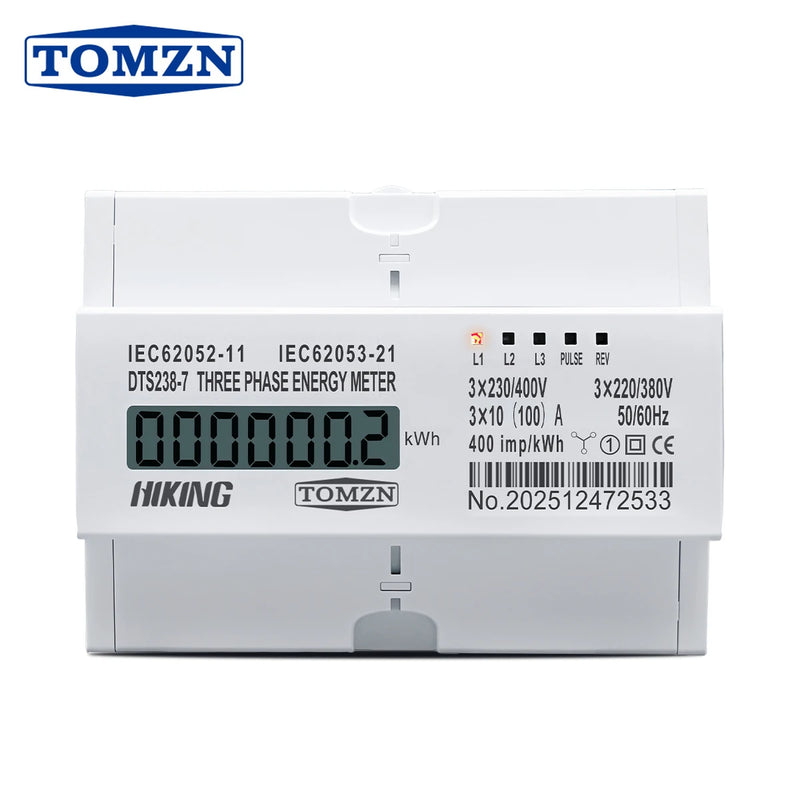

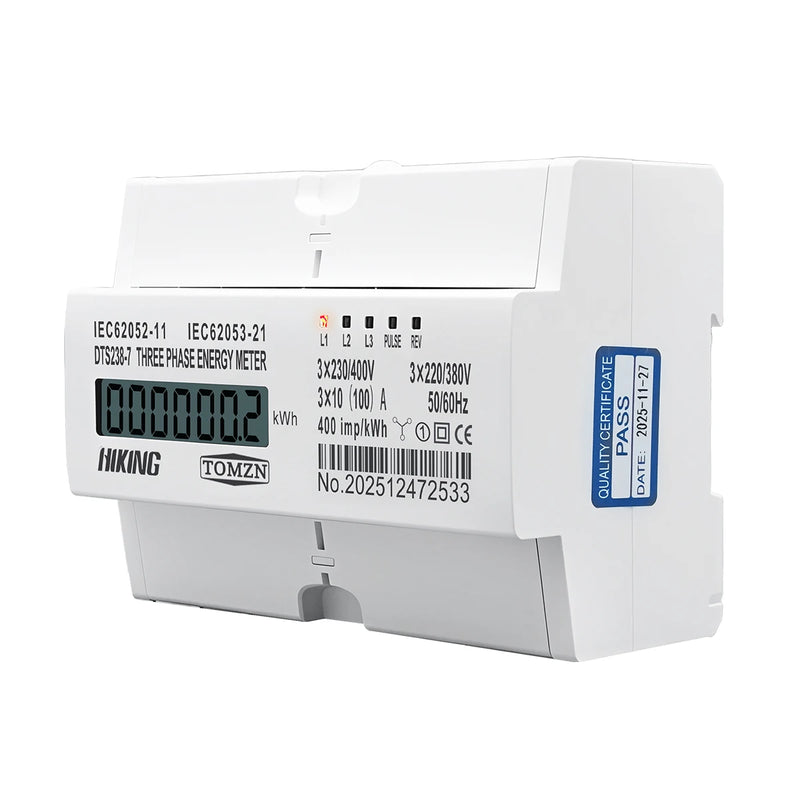

TOMZN DTS238-7 3 Phase Energy meter 3*230V 400V 10-100A 50Hz 60Hz 35mm DIN Rail kWh Measurement High-current 6+1

Name: TOMZN DTS238-7 3 Phase Energy meter 3*230V 400V 10-100A 50Hz 60Hz 35mm DIN Rail kWh Measurement High-current 6+1
Brand: TOMZN
SKU: 1005012186243584-3X230V 100A
Price: 41.45 USD
Availability: InStock

by ដោយ TOMZN

All prices exclude shipping Customs and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន គយ និងពន្ធទេ។

Choose language

TOMZN DTS238-7 3 Phase Energy meter 3*230V 400V 10-100A 50Hz 60Hz 35mm DIN Rail kWh Measurement High-current 6+1

SPECIFICATIONS

Accuracy Class: class 1

Battery Included: no

Brand Name: TOMZN

Certification: CE

DIY Supplies: Electrical

Dimensions: 125*97*64mm

High-concerned chemical: none

Max Operating Current: 100A - 119A

Measuring Energy Range: 999999.99

Model Number: DTS238-7

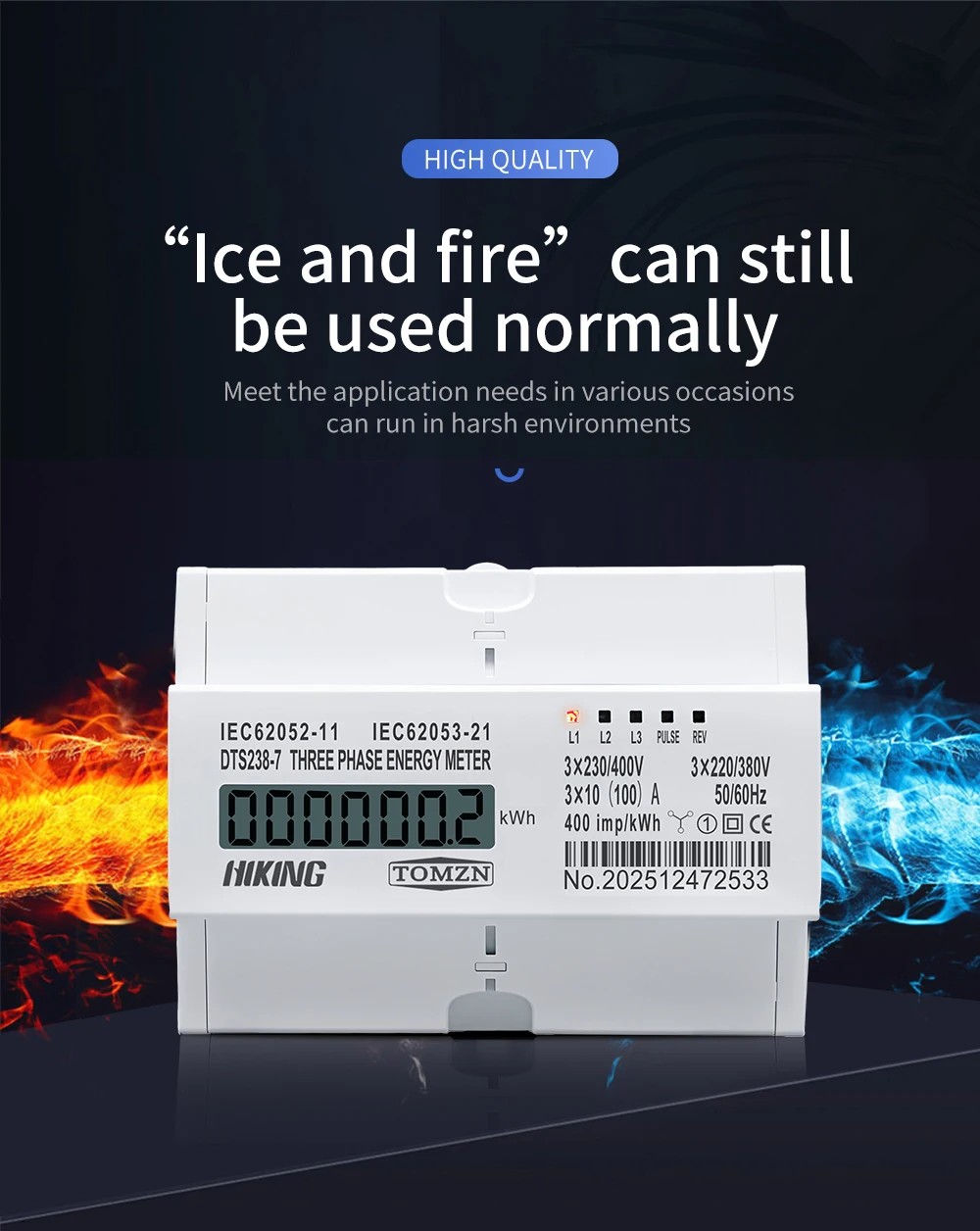

Operating Temperature: -25-70℃

Origin: Mainland China

Power Source: AC

Power Supply: AC

Rated Voltage: 220V

Semi-finishedproduct: No

Product Introduction

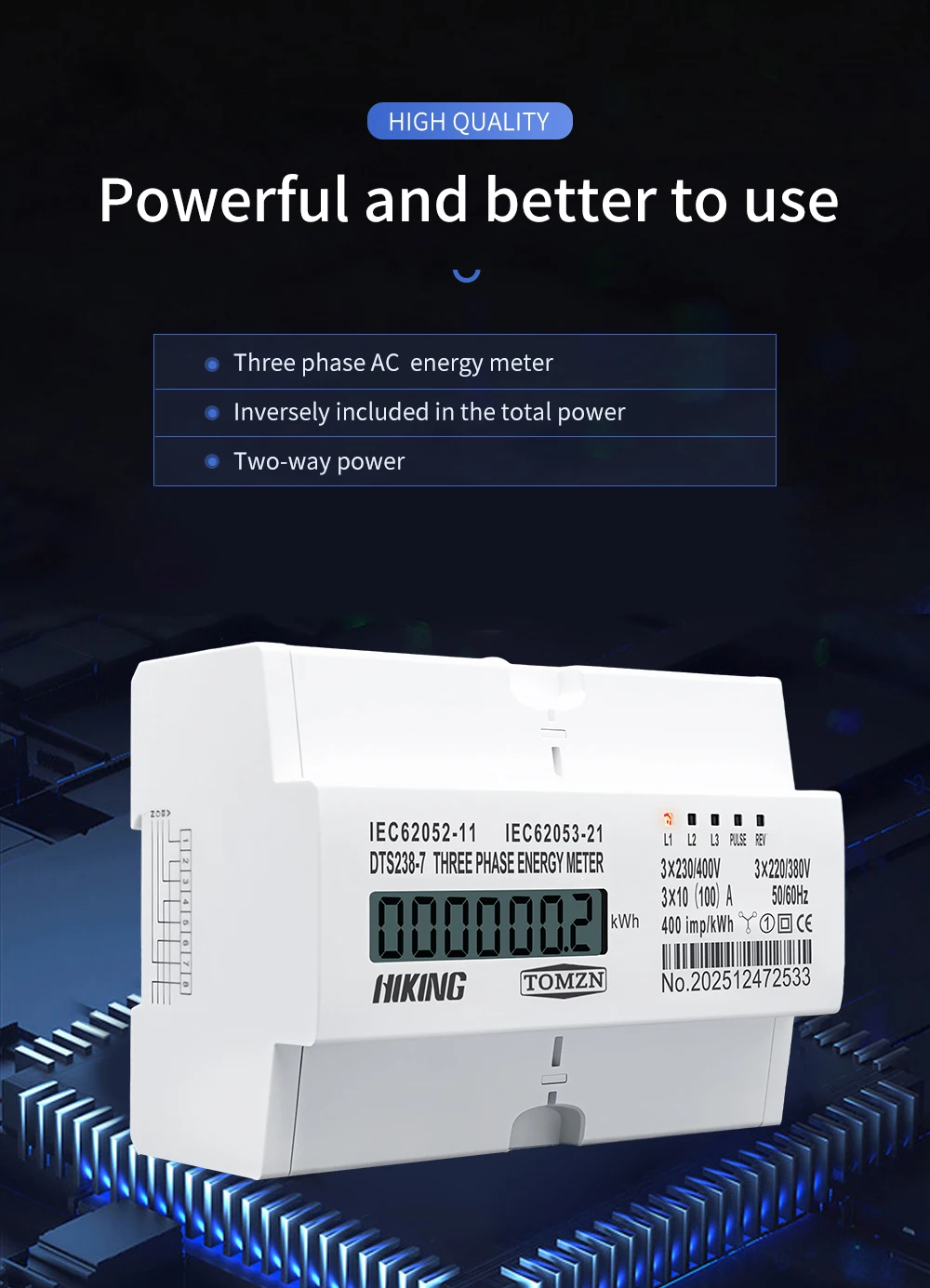

Static three-phase four-wire energy meter for active energy, adopting advanced large-scale integrated circuit (IC) and SMT manufacturing technology. Features include: bi-directional or unidirectional energy measurement, wide voltage range, anti-tamper design, high accuracy and reliability, large overload capability, low self-consumption, small volume, and light weight.

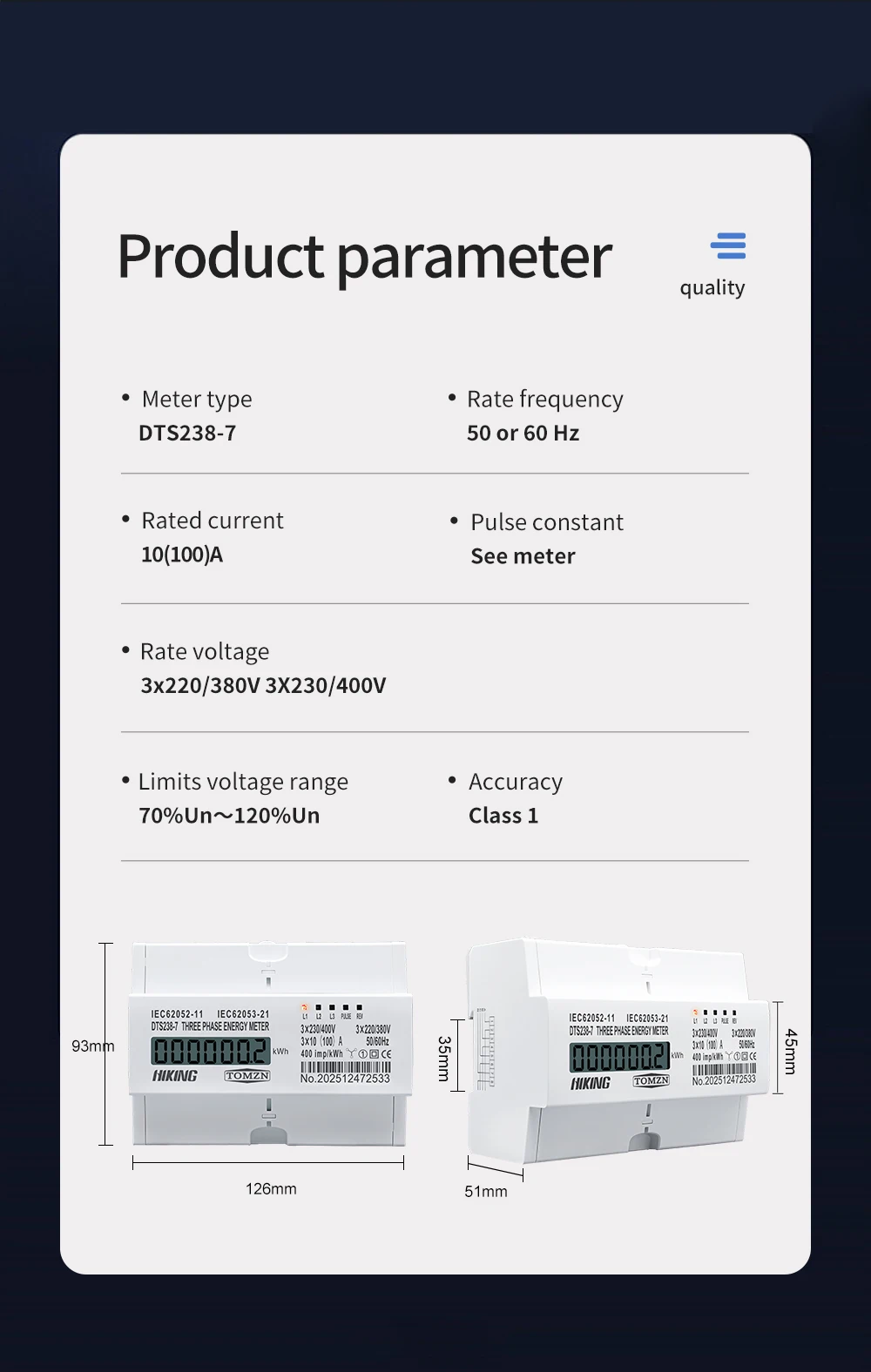

Product Data Sheet

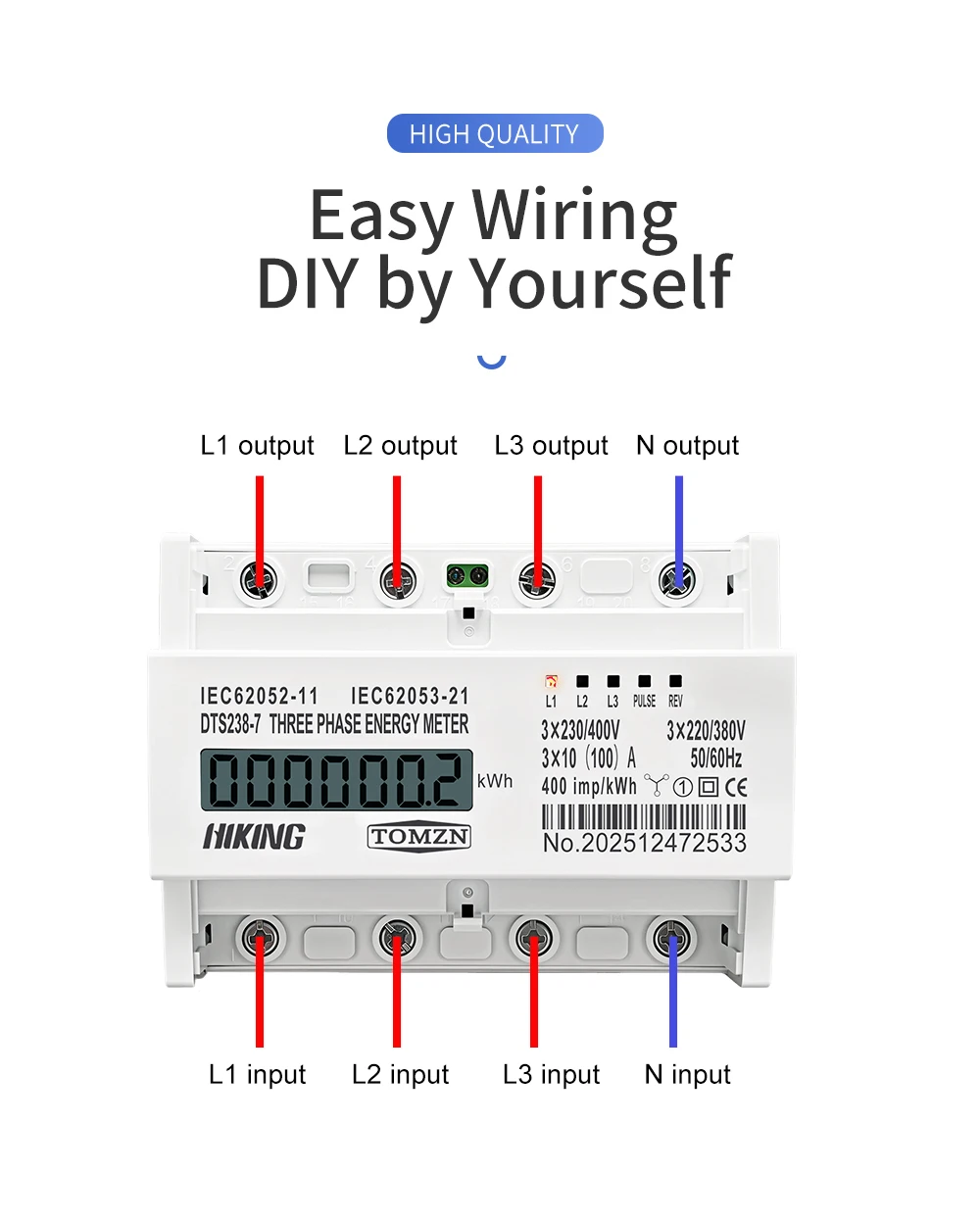

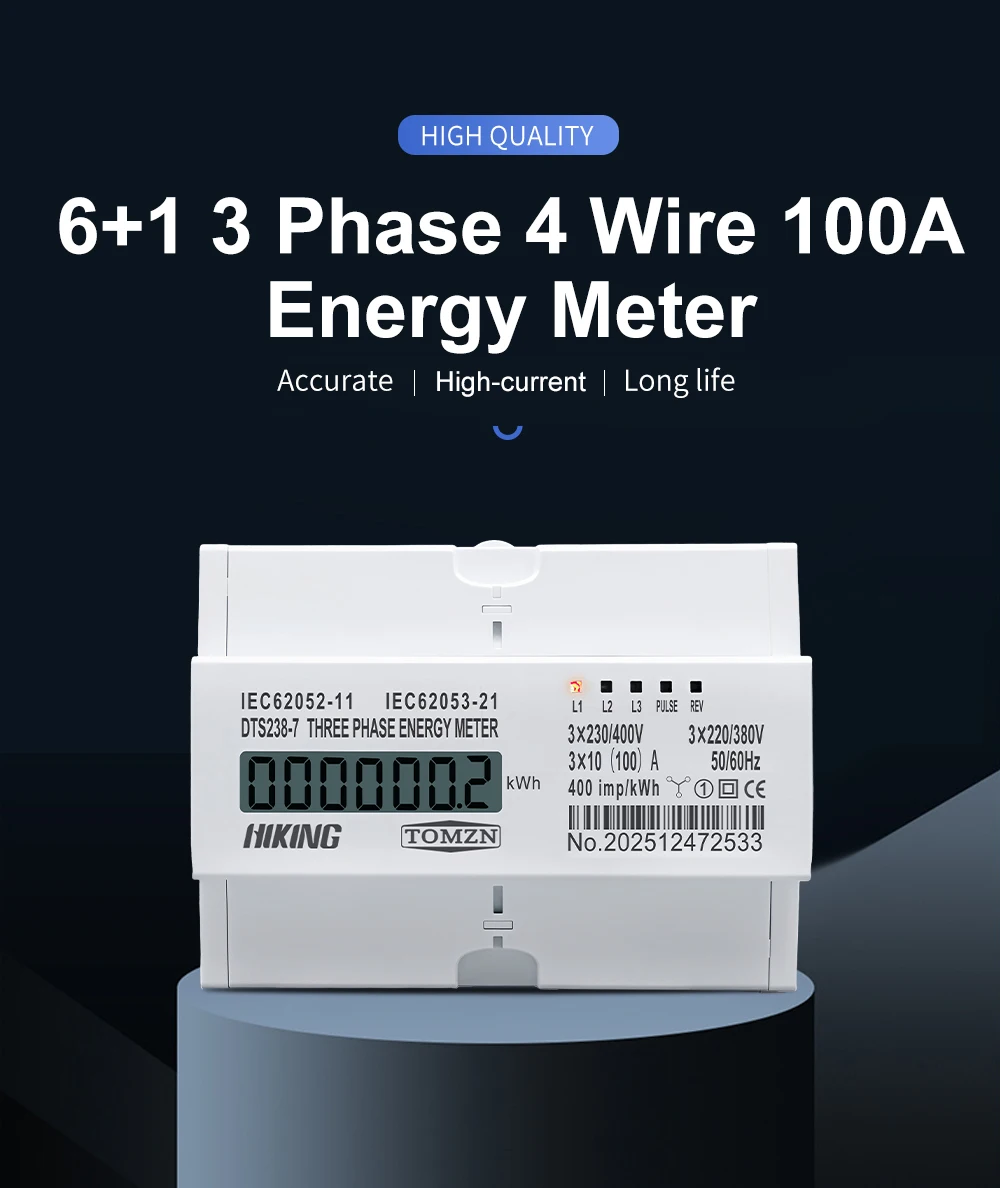

Meter type: Three-phase four-wire
Rated frequency: 50 or 60 Hz
Rated current: 10(100)A
Rated voltage: 3×230/400V
Normal voltage range: 90% Un – 110% Un
Limits voltage range: 70% Un – 120% Un
Accuracy: Class 1
Pulse constant: See meter
