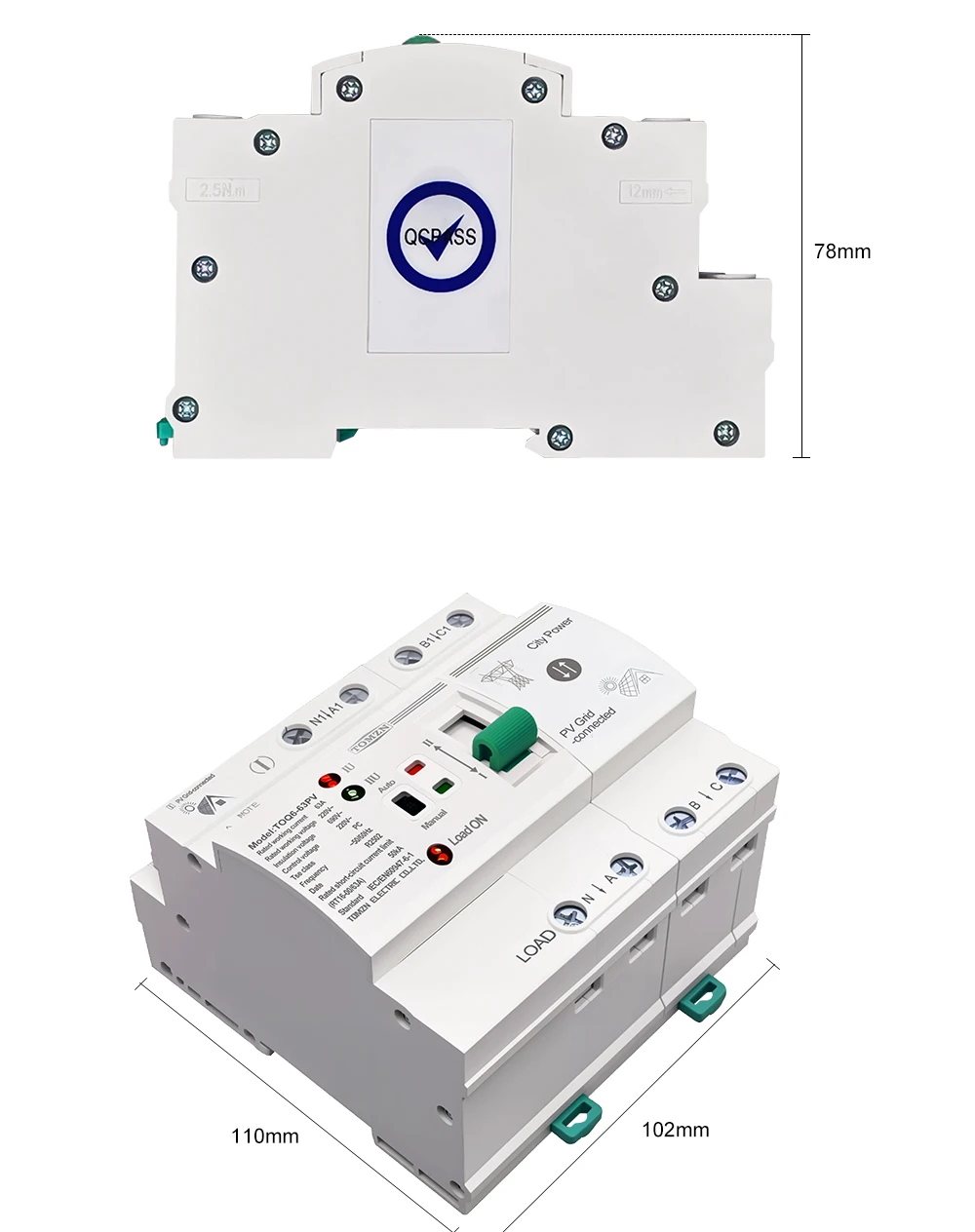

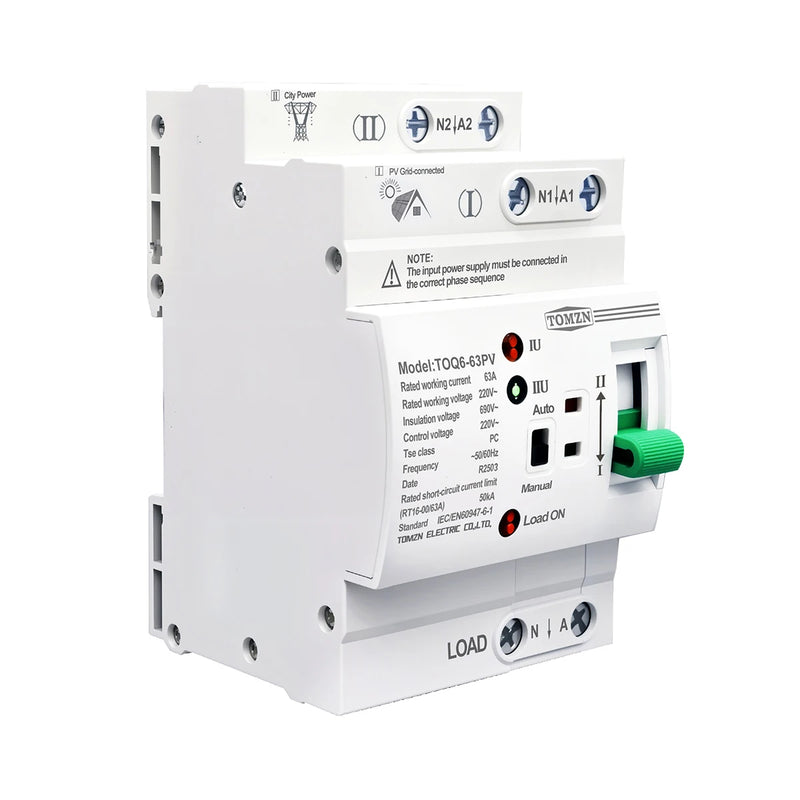

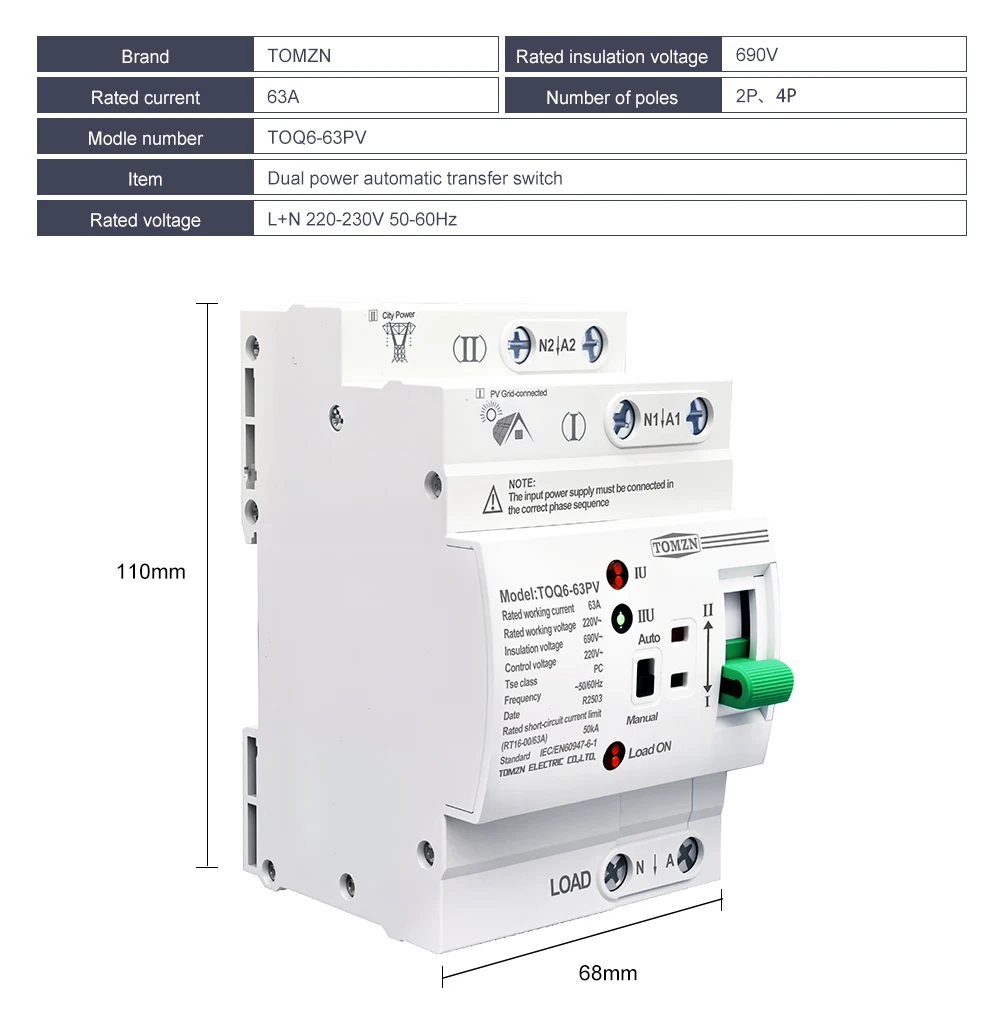

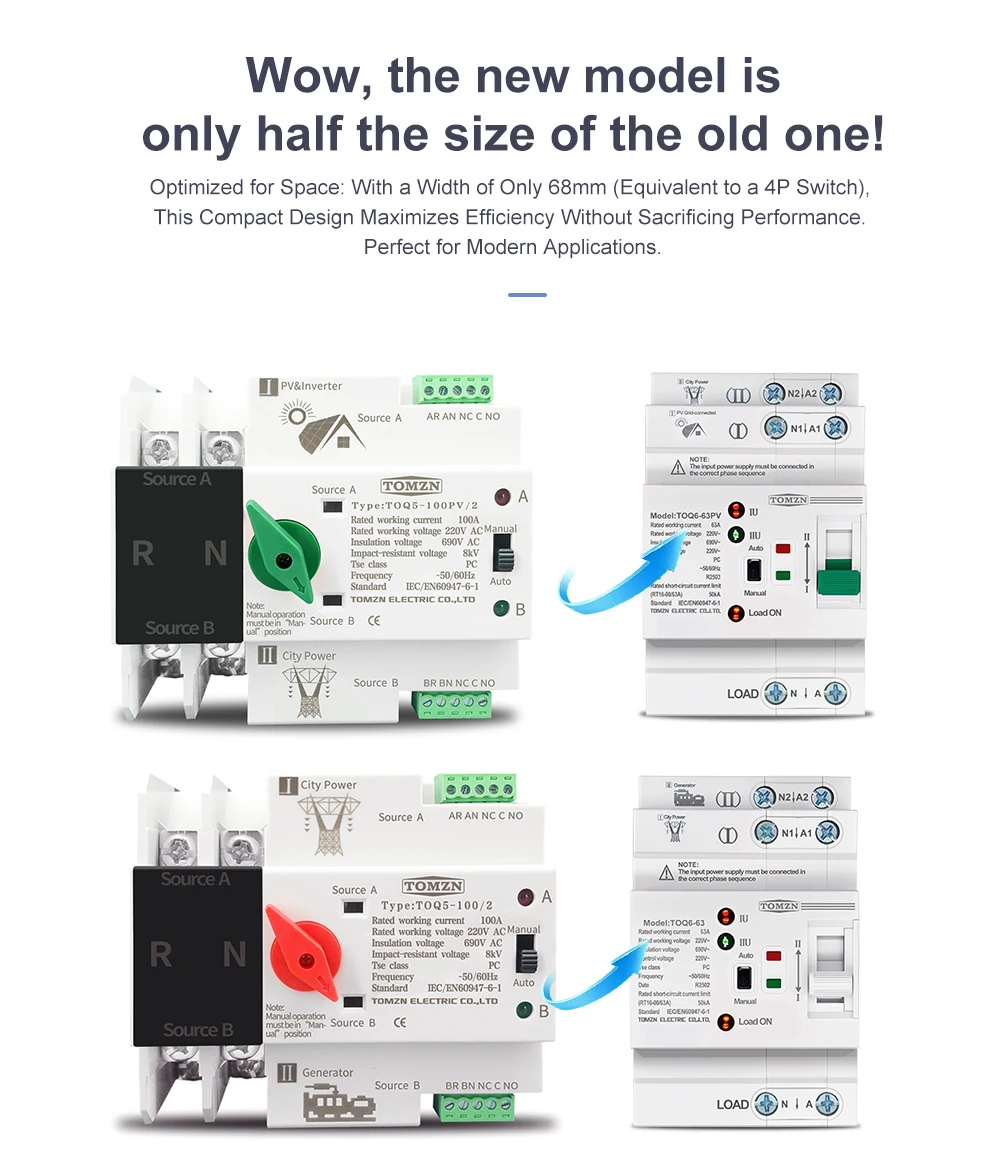

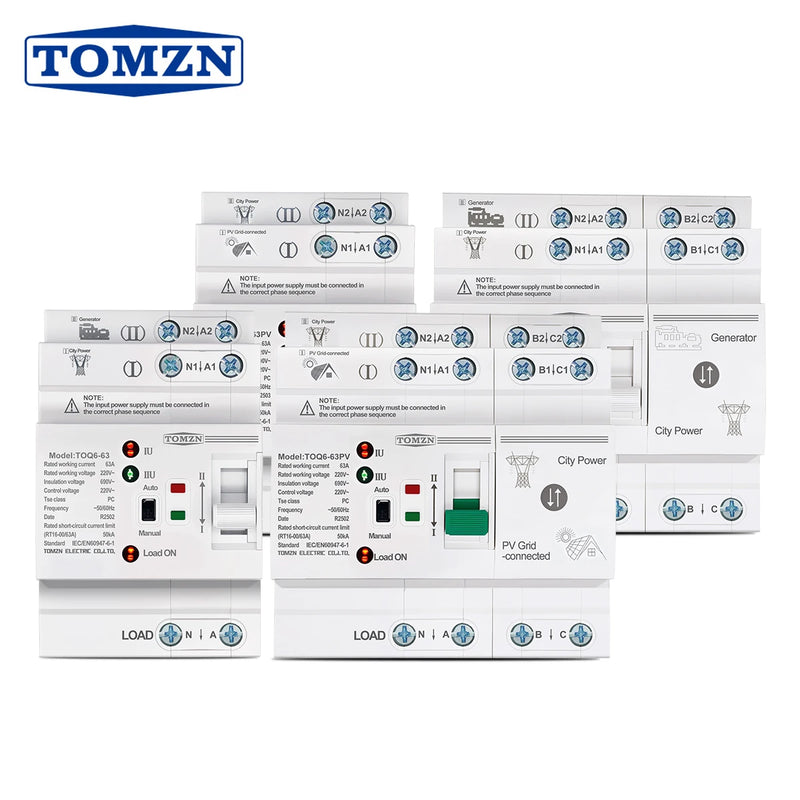

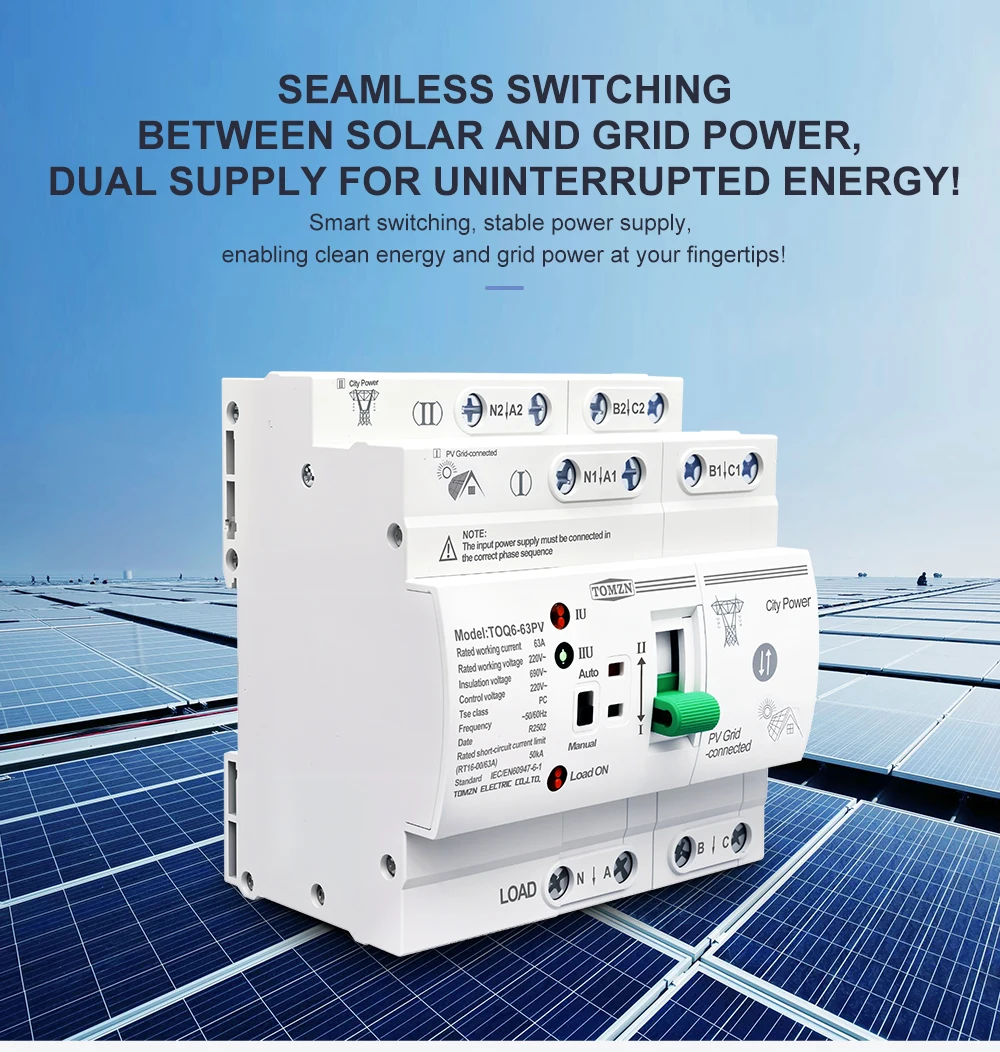

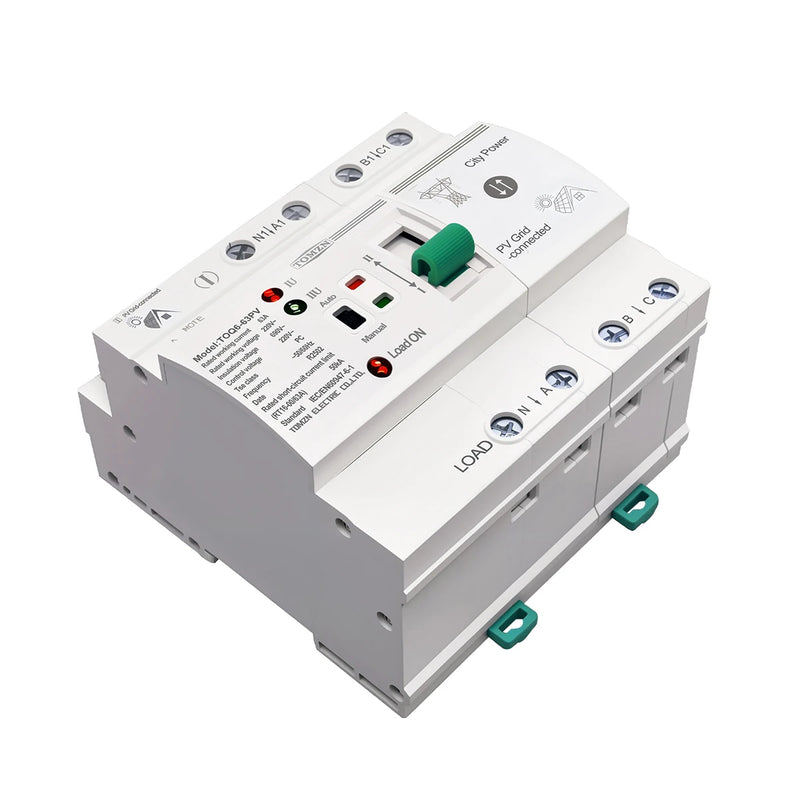

TOQ6-63/2P PV,TOQ6-63/4P PV

Small dual power switch. PC level, Switch less than 50ms, no Interrupt.
Only for PV system and Inverter.

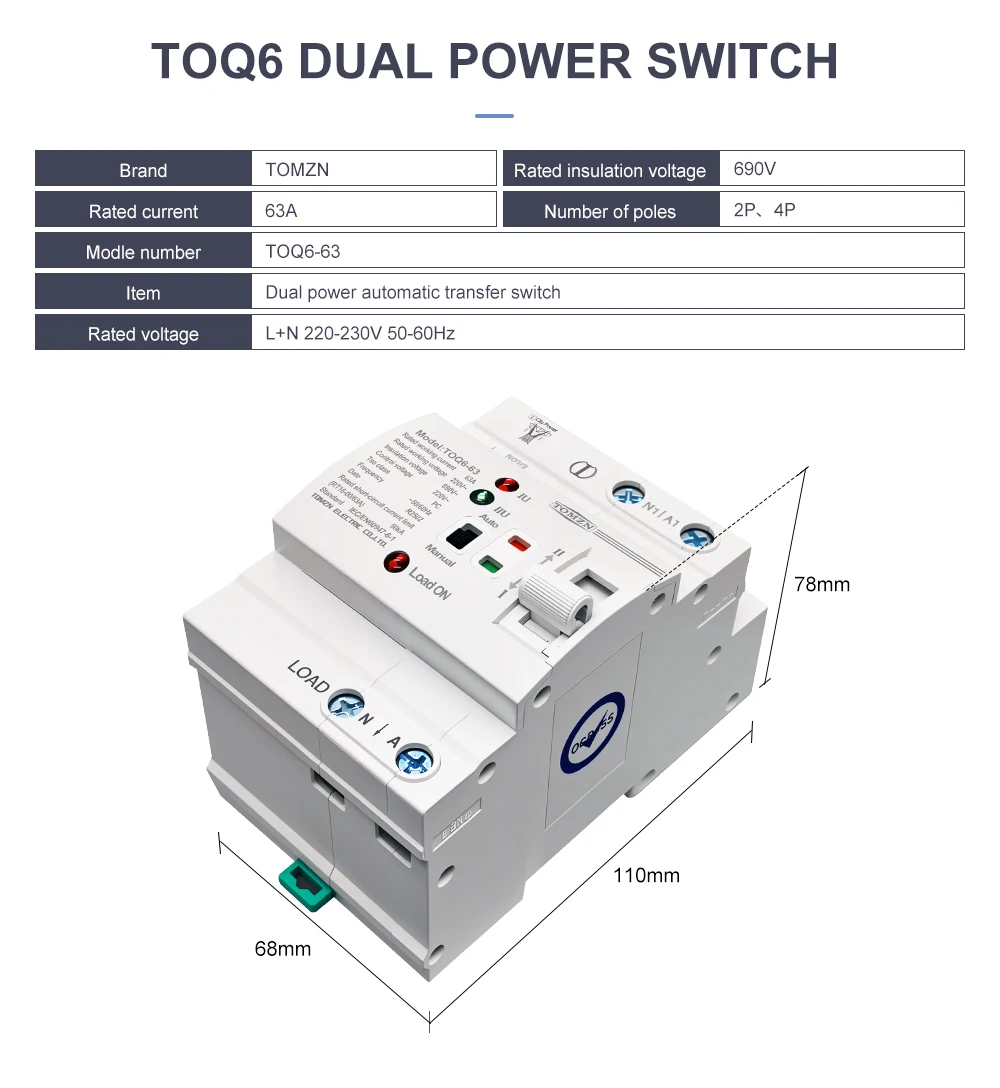

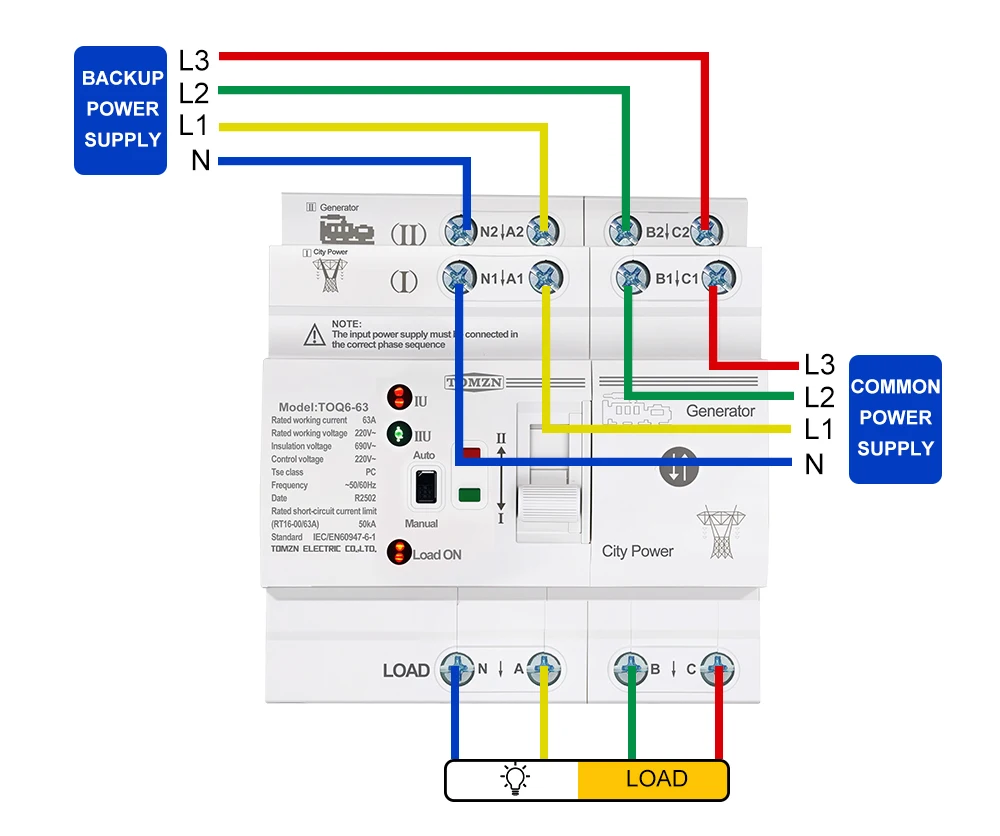

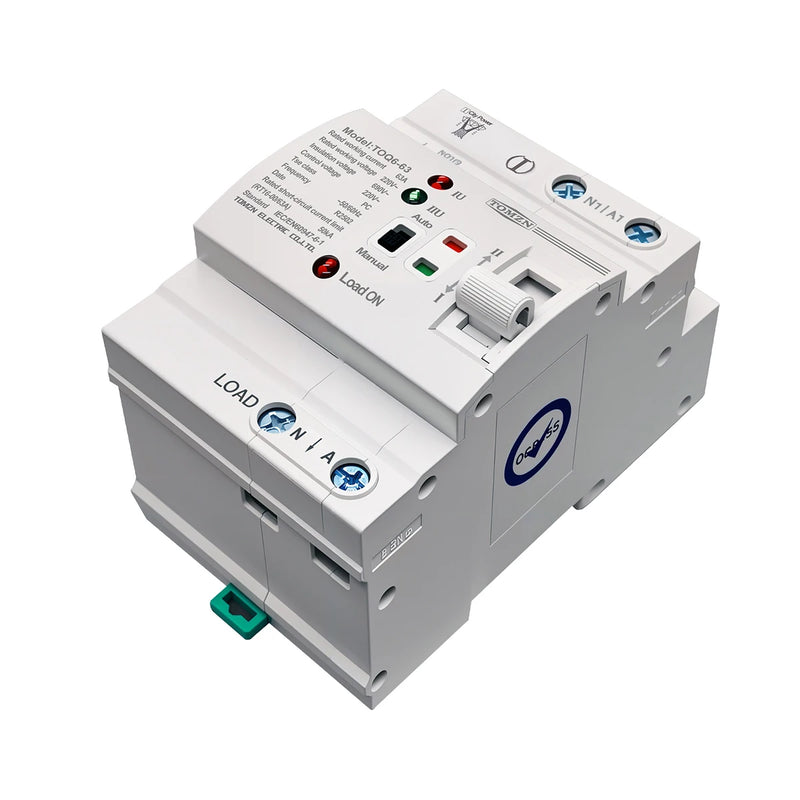

TOQ6-63/2P,TOQ6-63/4P

Dual power switch. PC level, Switch less than 50ms, no Interrupt.
Only for city power and Generator, not for PV system and Inverter.

1.Case grade:80

2.Rated insulation voltage Ui:690V

3.Rated impulse withstand voltage:8kV

4.PC class:can be switched on an loaded without generating short-circuit current

5.Rated short-circuit current Iq:50kA

6.Short circuit protection device (fuse):RT 16-00-63A

7.Rated control voltage Us:AC220V 50Hz

8.Normal working conditions: 85%Us-110%Us

9.Auxiliary circuit:AC220V 50Hz le=5A

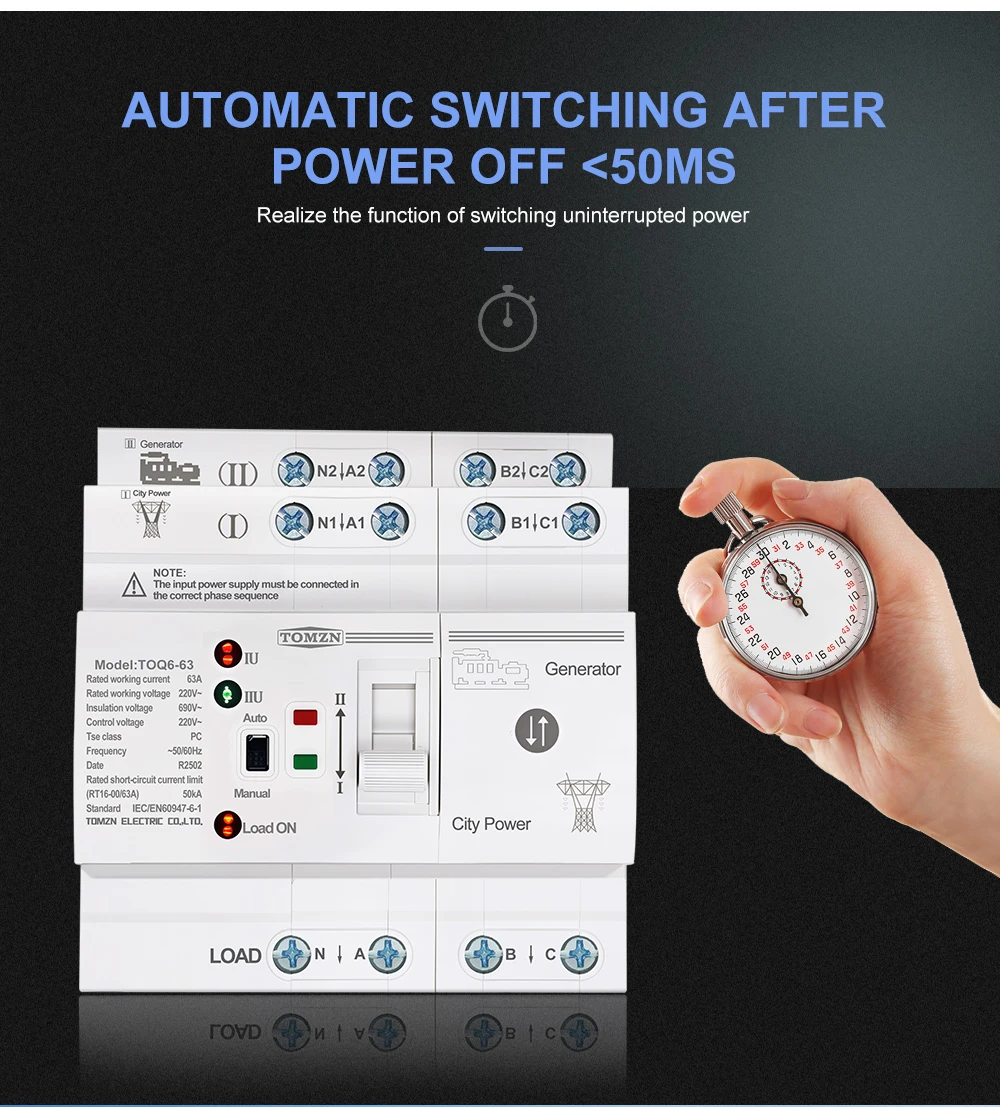

10.Contactor change-over time:<50ms

11.Operation change-over time:<50ms

12.Return change-over time:<50ms

13.Power off time:<50ms

14.Mechanical life:≥5000 Times

15.Electrical life:≥1500 Times

16.Usage category:AC-31B

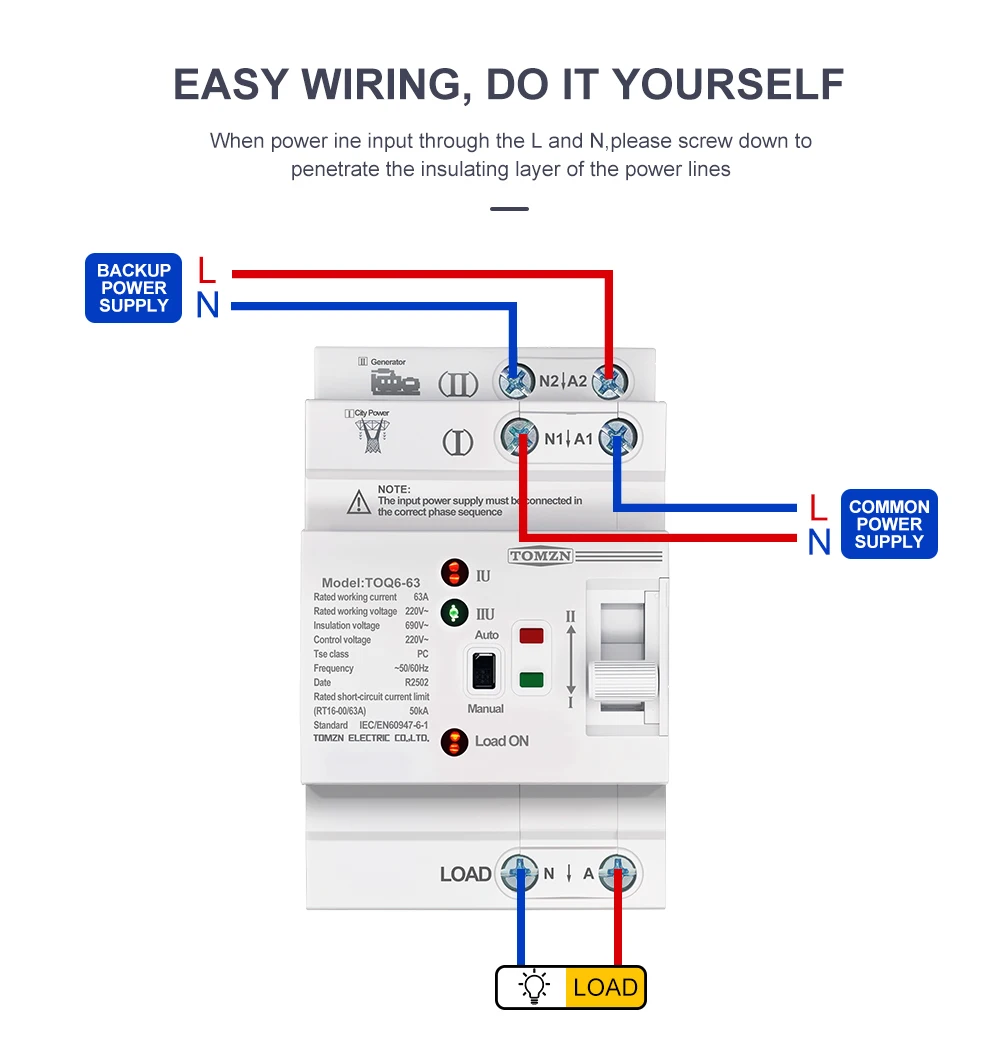

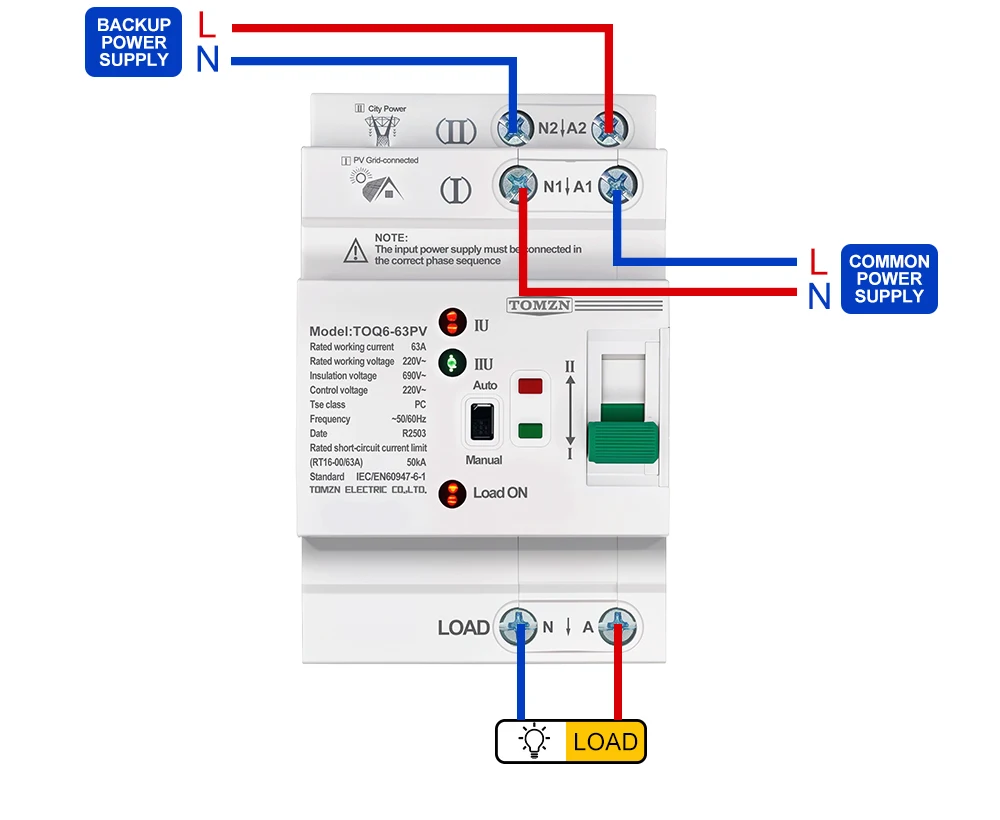

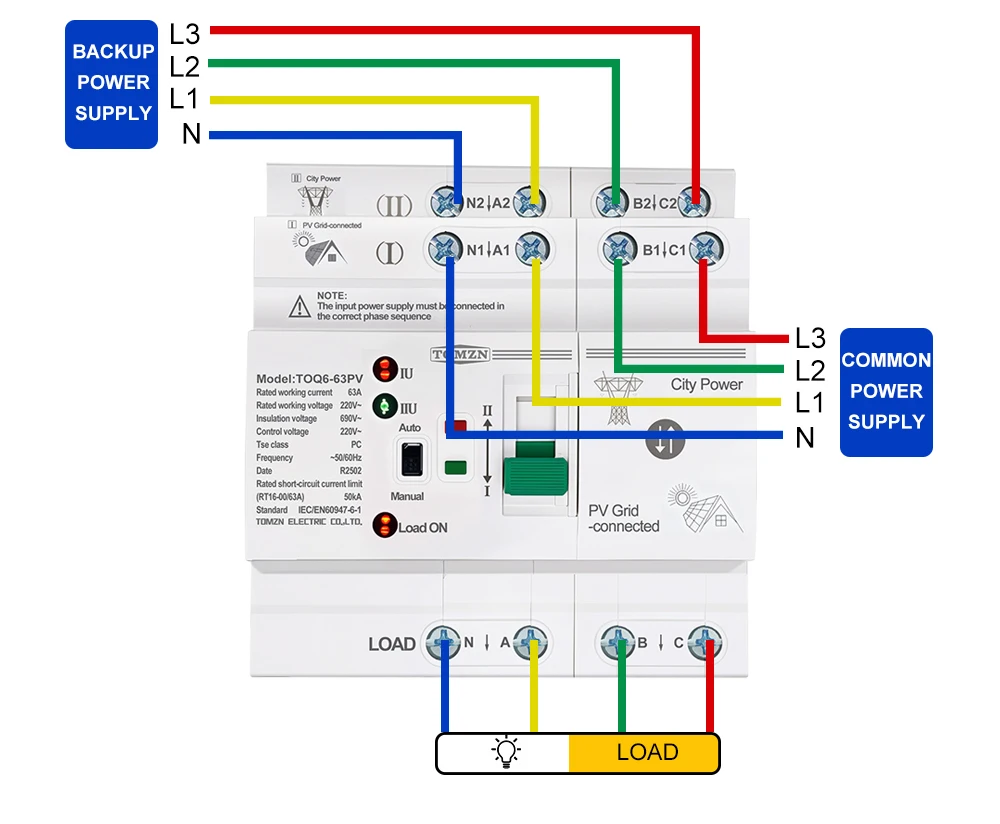

Noted: the product works with L+N 220-240V 50-60Hz.
