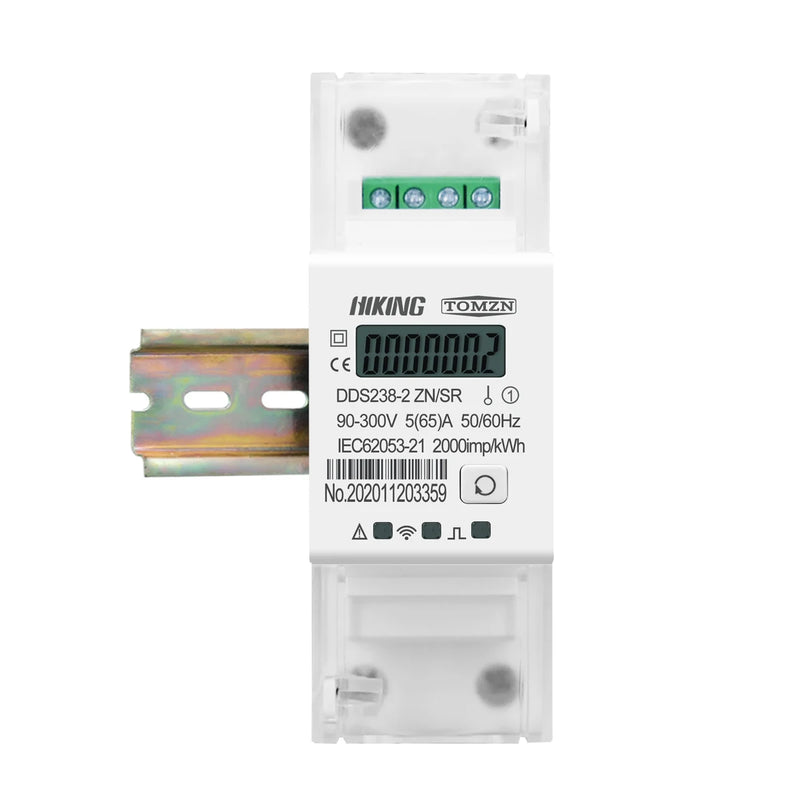

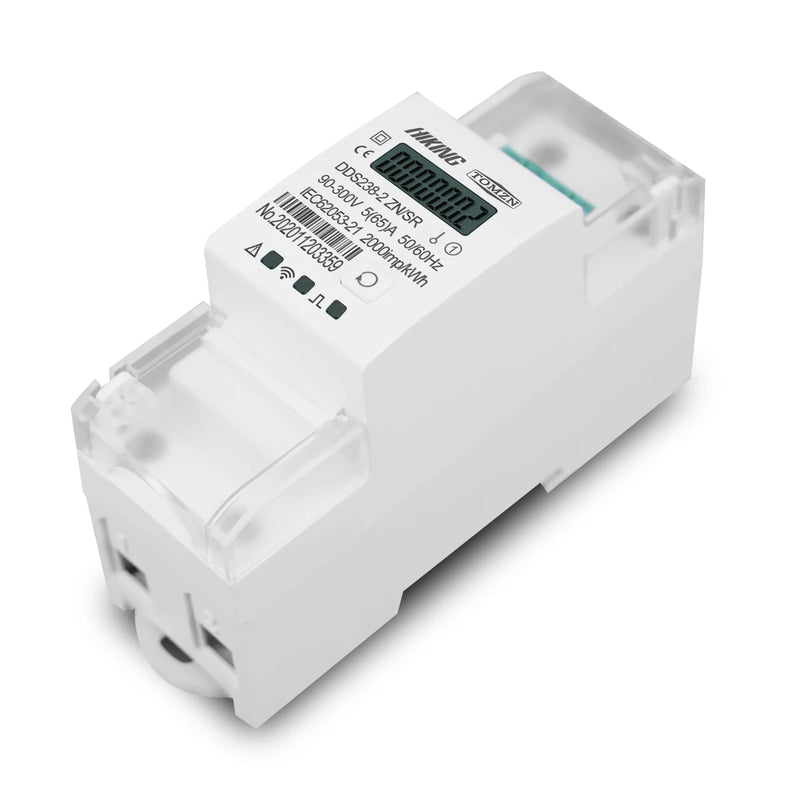

TOMZN Din Rail Single Phase Multi Function Energy Meter 90-300V KWh MODBUS-RUT Watt Hour Meter Remote Control ON/OFF by RS485 65
TOMZN Din Rail Single Phase Multi Function Energy Meter 90-300V KWh MODBUS-RUT Watt Hour Meter Remote Control ON/OFF by RS485 65
TOMZN Din Rail Single Phase Multi Function Energy Meter 90-300V KWh MODBUS-RUT Watt Hour Meter Remote Control ON/OFF by RS485 65
TOMZN Din Rail Single Phase Multi Function Energy Meter 90-300V KWh MODBUS-RUT Watt Hour Meter Remote Control ON/OFF by RS485 65
TOMZN Din Rail Single Phase Multi Function Energy Meter 90-300V KWh MODBUS-RUT Watt Hour Meter Remote Control ON/OFF by RS485 65
TOMZN Din Rail Single Phase Multi Function Energy Meter 90-300V KWh MODBUS-RUT Watt Hour Meter Remote Control ON/OFF by RS485 65
$0.00 - $0.00
$0.00
$24.27
$24.27 - $24.27
$24.27
Availability:
9529 in stock, ready to be shipped
Default Title: Default Title

TOMZN Din Rail Single Phase Multi Function Energy Meter 90-300V KWh MODBUS-RUT Watt Hour Meter Remote Control ON/OFF by RS485 65

by αžŠαŸ„αž™ TOMZN

All prices exclude shipping Customs and taxes. αžαž˜αŸ’αž›αŸƒαž‘αžΆαŸ†αž„αž’αžŸαŸ‹αž˜αž·αž“αžšαž½αž˜αž”αž‰αŸ’αž…αžΌαž›αžαŸ’αž›αŸƒαžŠαžΉαž€αž‡αž‰αŸ’αž‡αžΌαž“ αž‚αž™ αž“αž·αž„αž–αž“αŸ’αž’αž‘αŸαŸ”

Choose language

SPECIFICATIONS

Accuracy Class: CLASS 1

Battery Included: no

Brand Name: TOMZN

Certification: CE

DIY Supplies: Electrical

Display Type: Digital Only

High-concerned chemical: none

MAX Current: 65A

Measuring Energy Range: 0-999999.9

Model Number: DDS238-2 ZNSR

Operating Temperature: -25 to 75

Origin: Mainland China

Output Voltage: 90-300V

Phase: Single-phase

Power Supply: AC

Semi-finishedproduct: No

Start current: 20mA

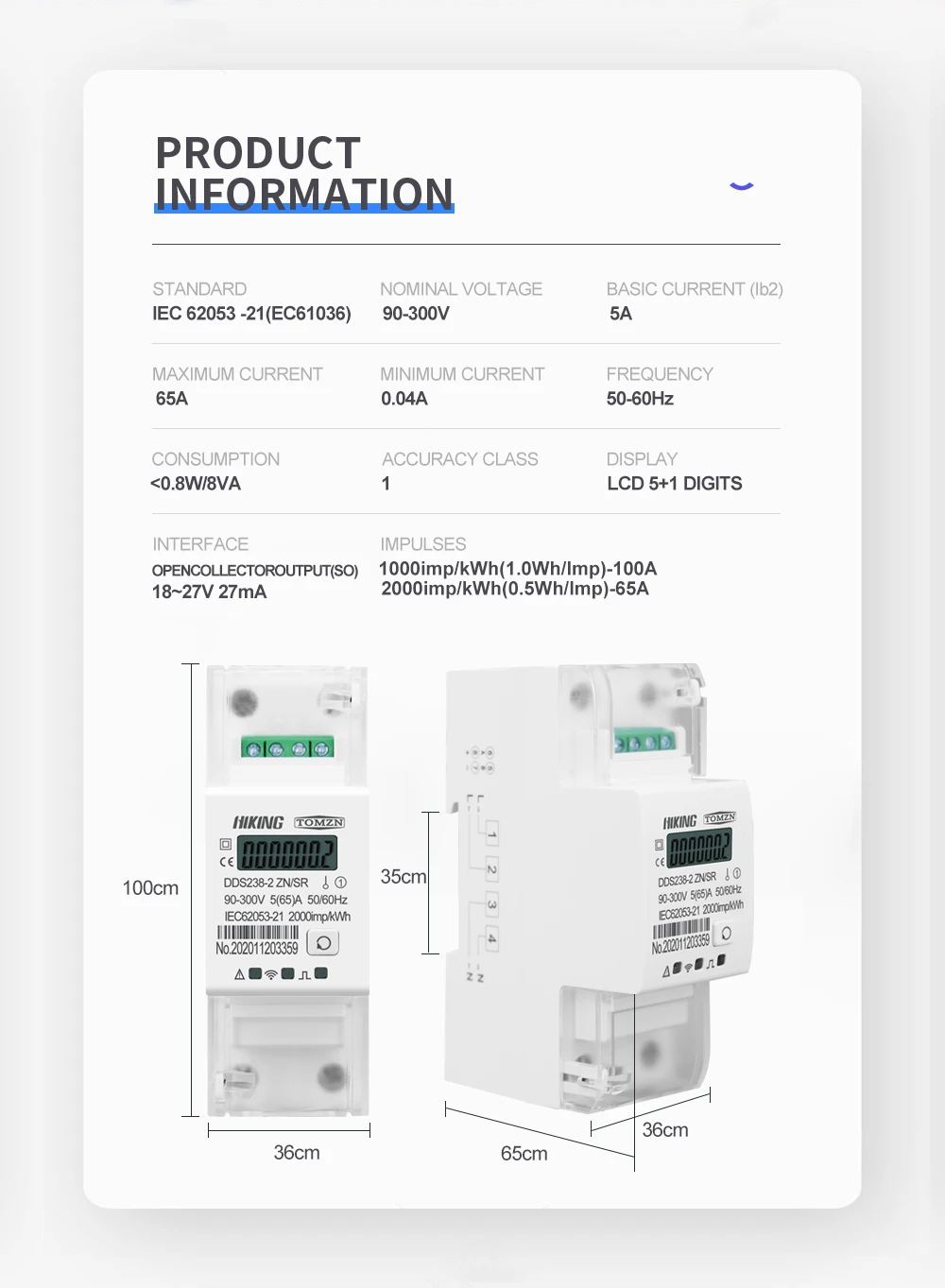

Technical specification

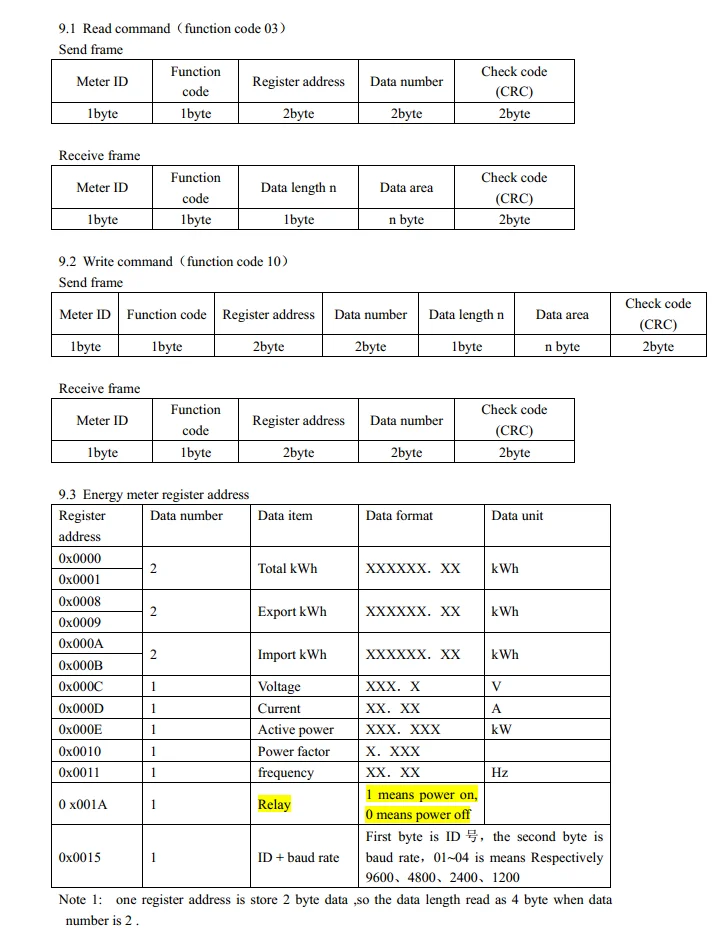

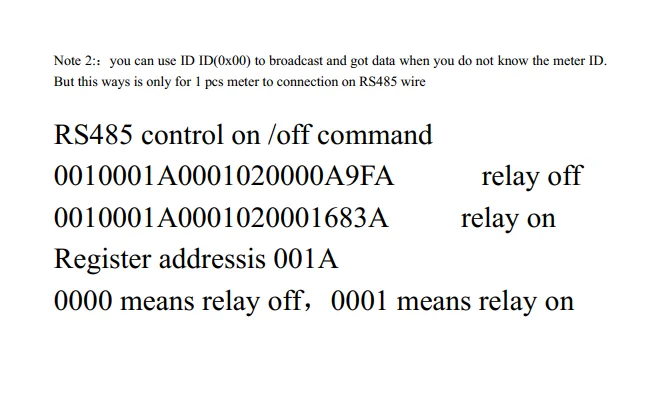

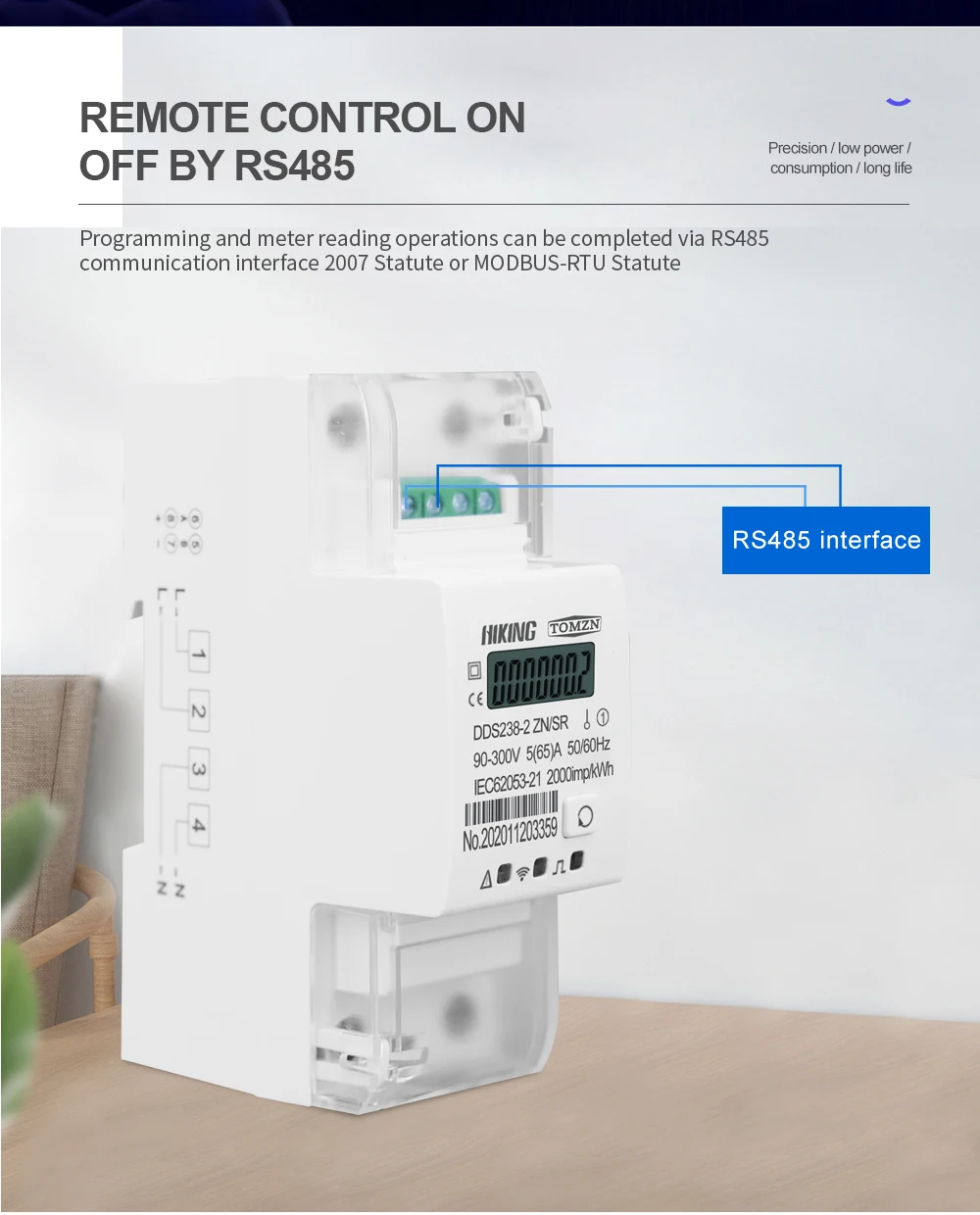

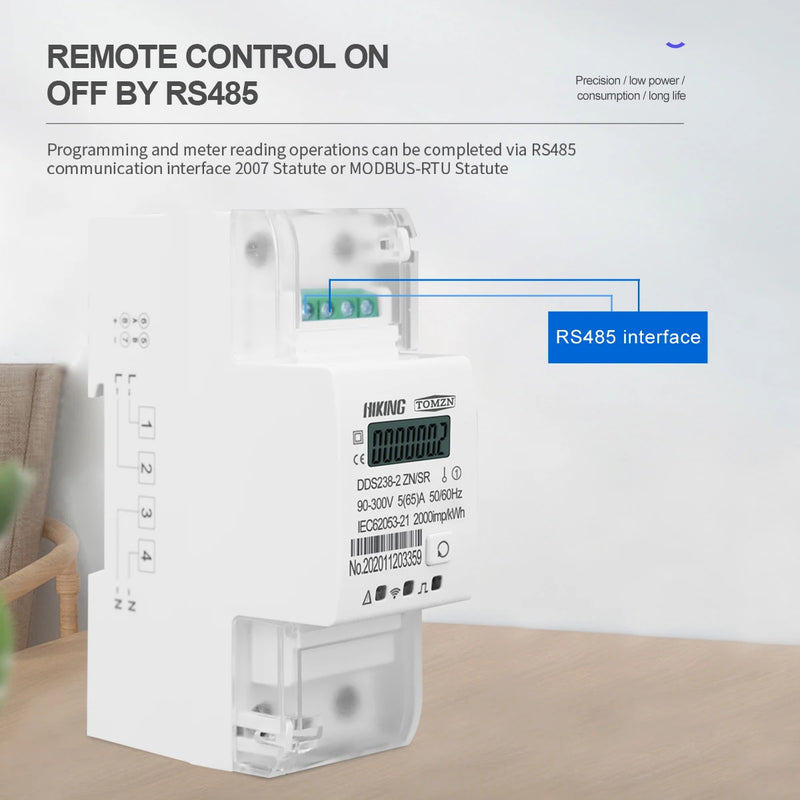

Remote control ON/OFF by Rs485(this meter don't have wifi function)

Working voltage: 90-300V 50/60Hz
Start current: 20mA

MAx current: 65A

Comsumption<2w/8VA

Isolation and withstand voltage： 450V

Accuracy class: 1

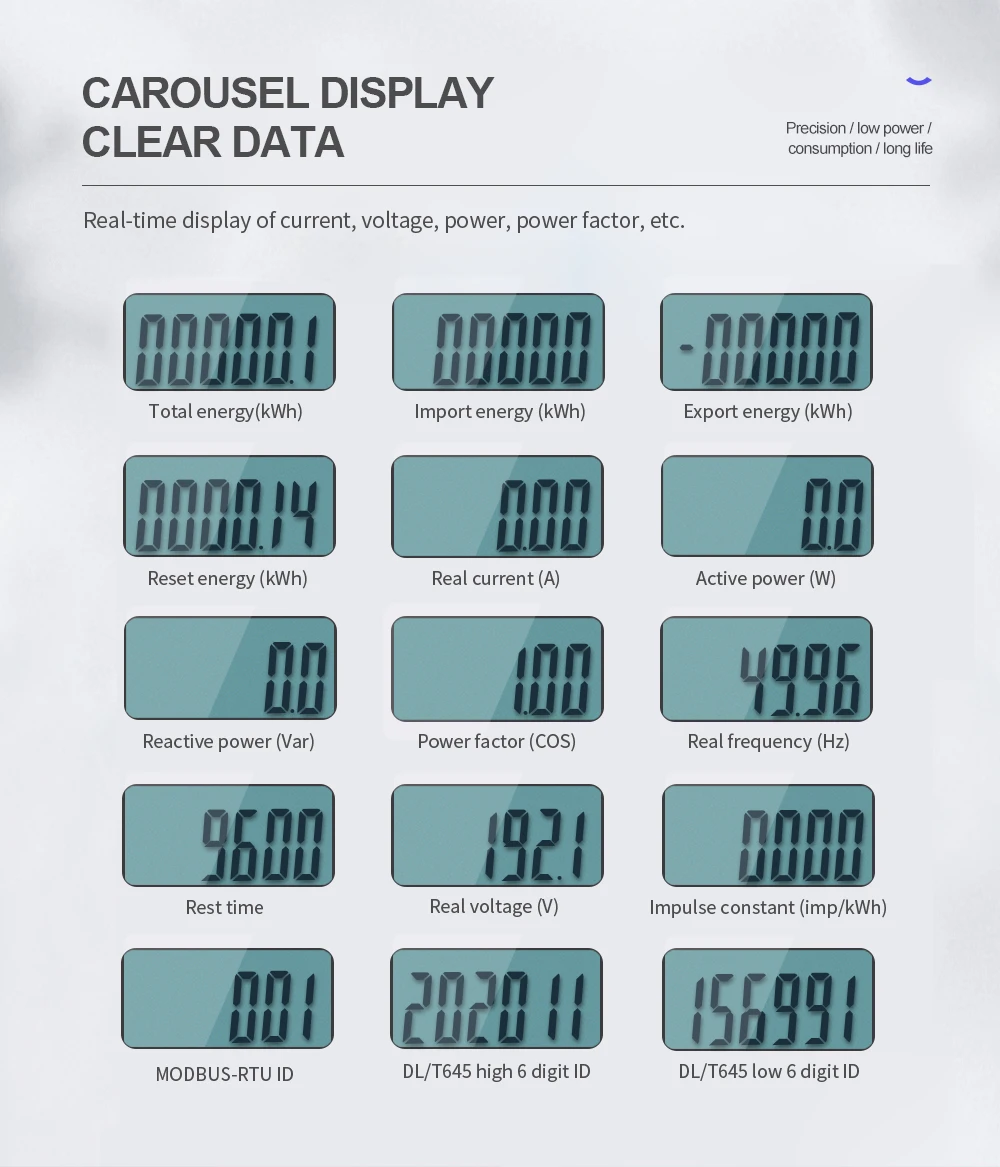

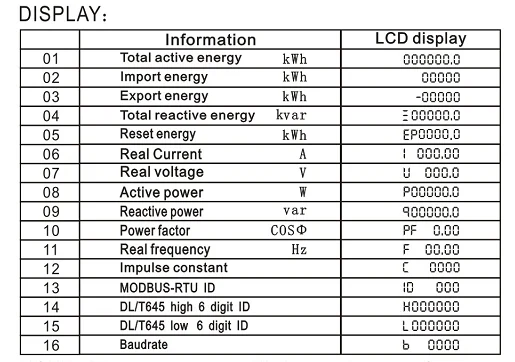

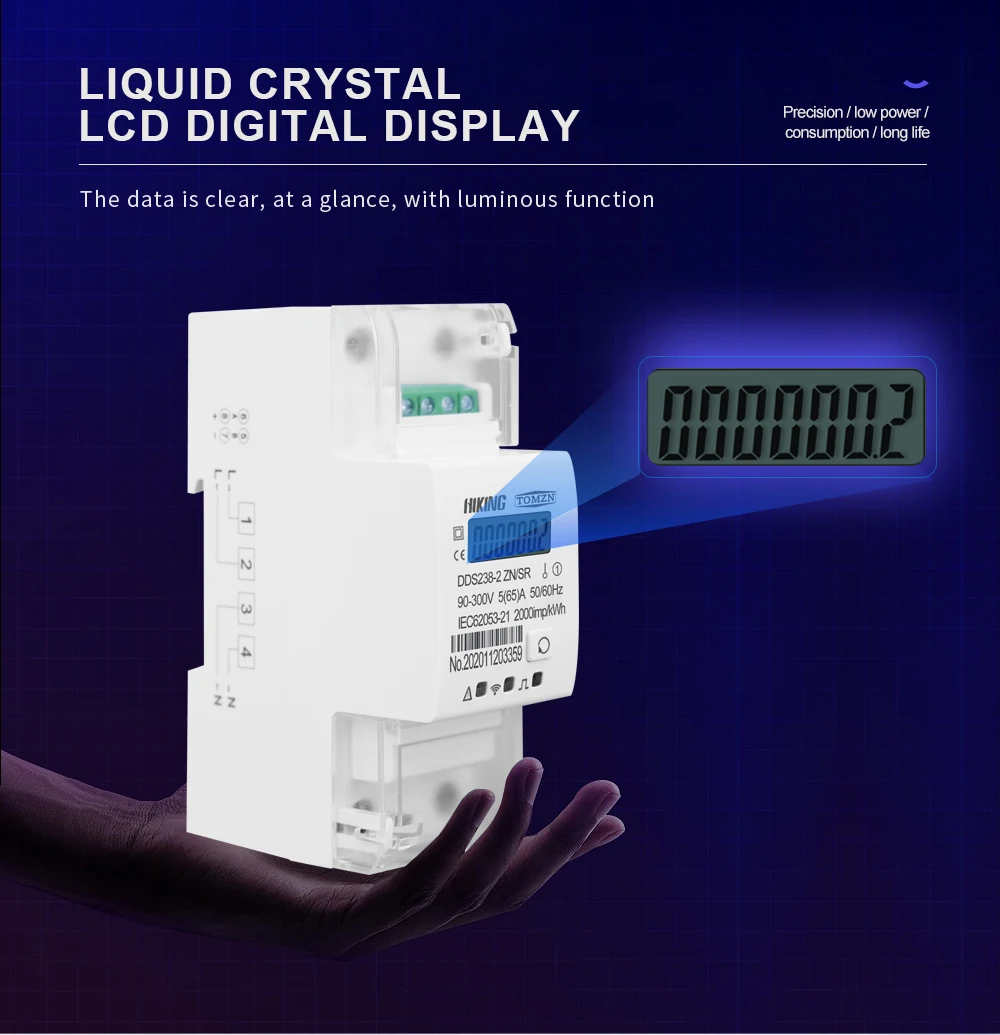

Display: LCD 6+1 digits

Interface OPEN COLLECTOR OUTPUT(S0) 18-27V 27mA

Impulses: 2000imp/kWh (0.5Wh/Imp)-65A

Working temperature: -25 to 70Β°c

PINK: Normal operation Flashing rate proportional to load

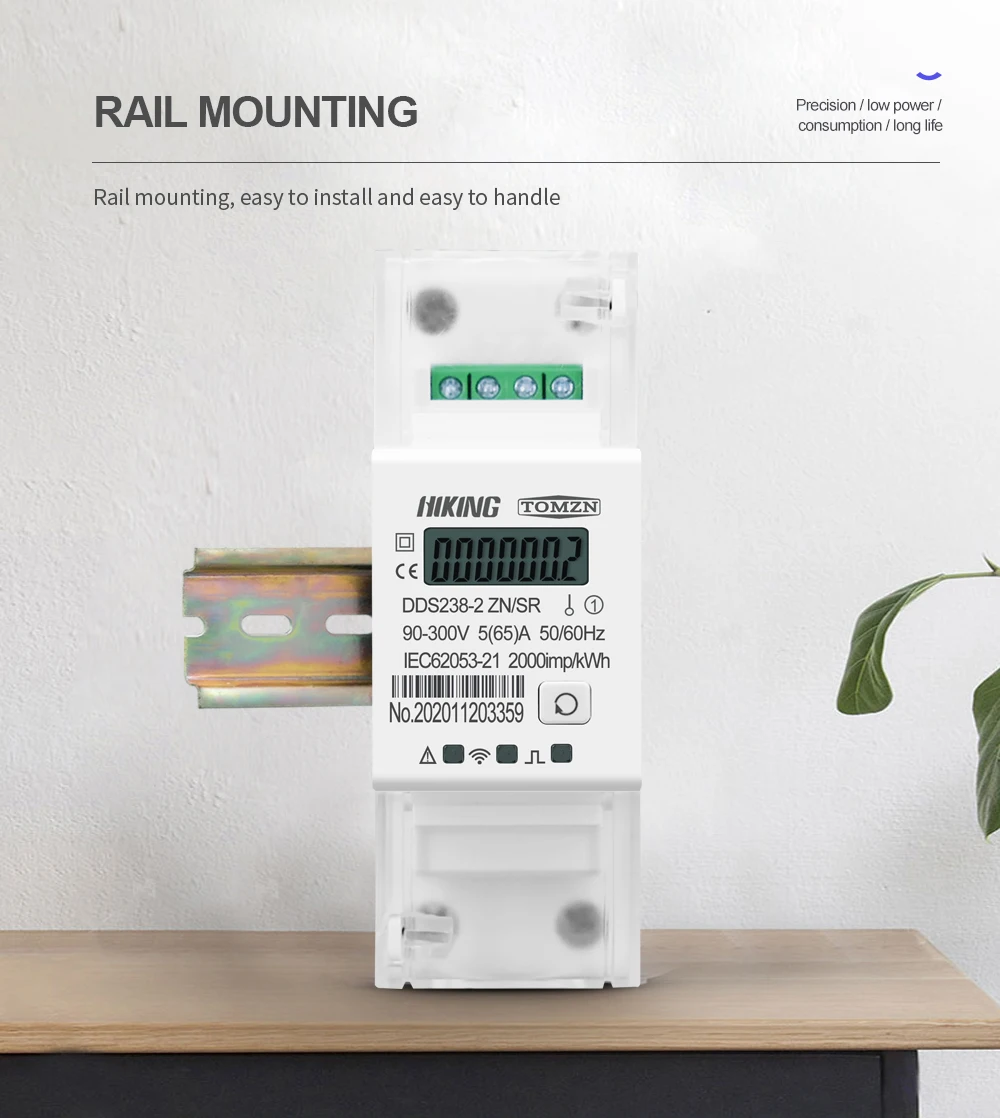

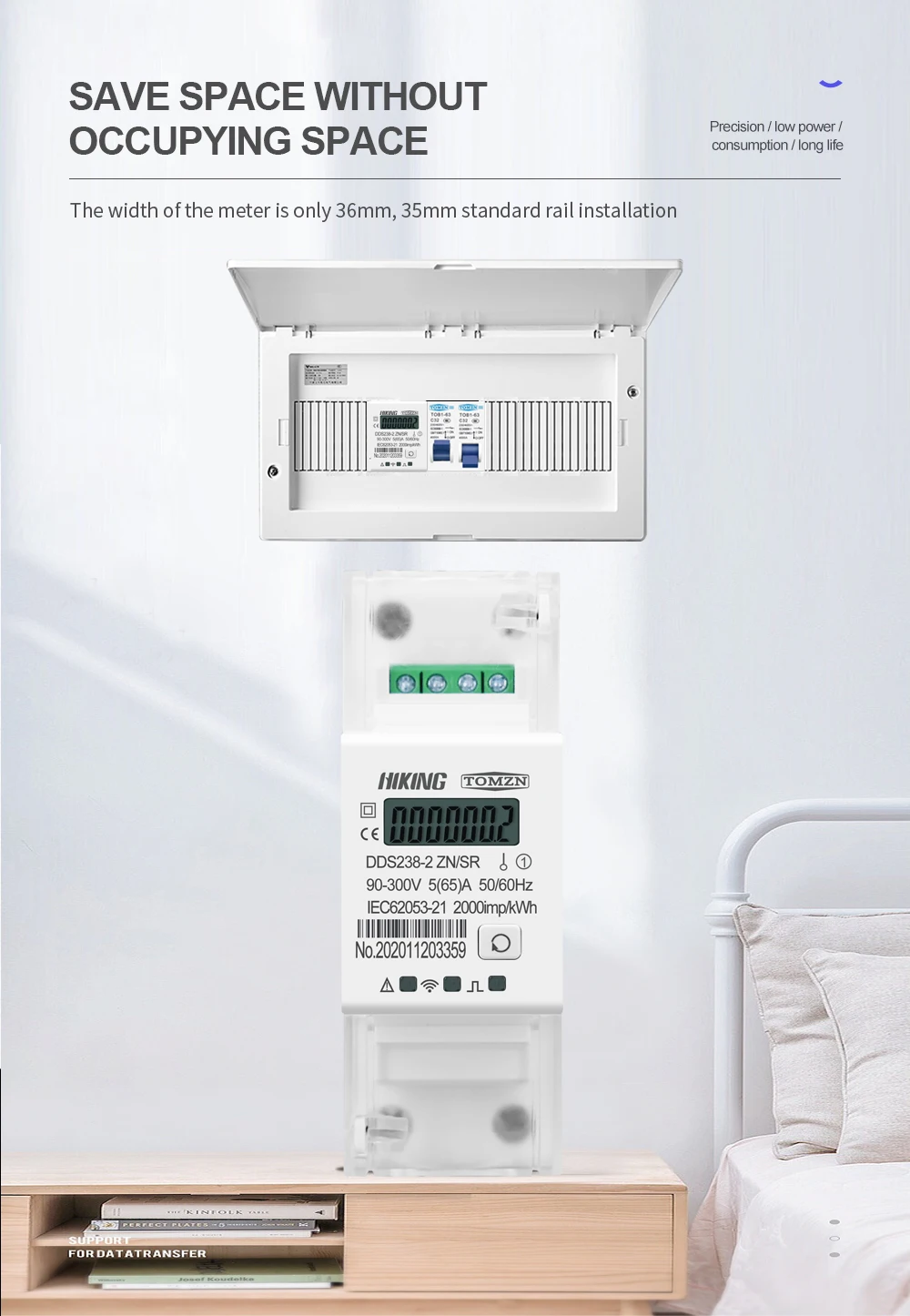

Installation: Din rail 35mm

Protection: IP20
