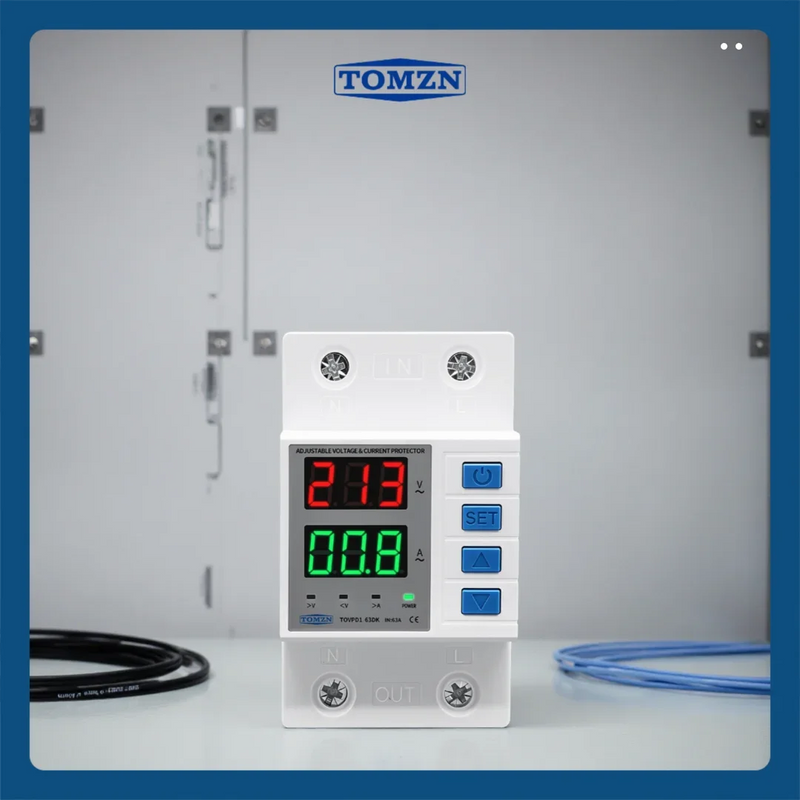

Product Introduction

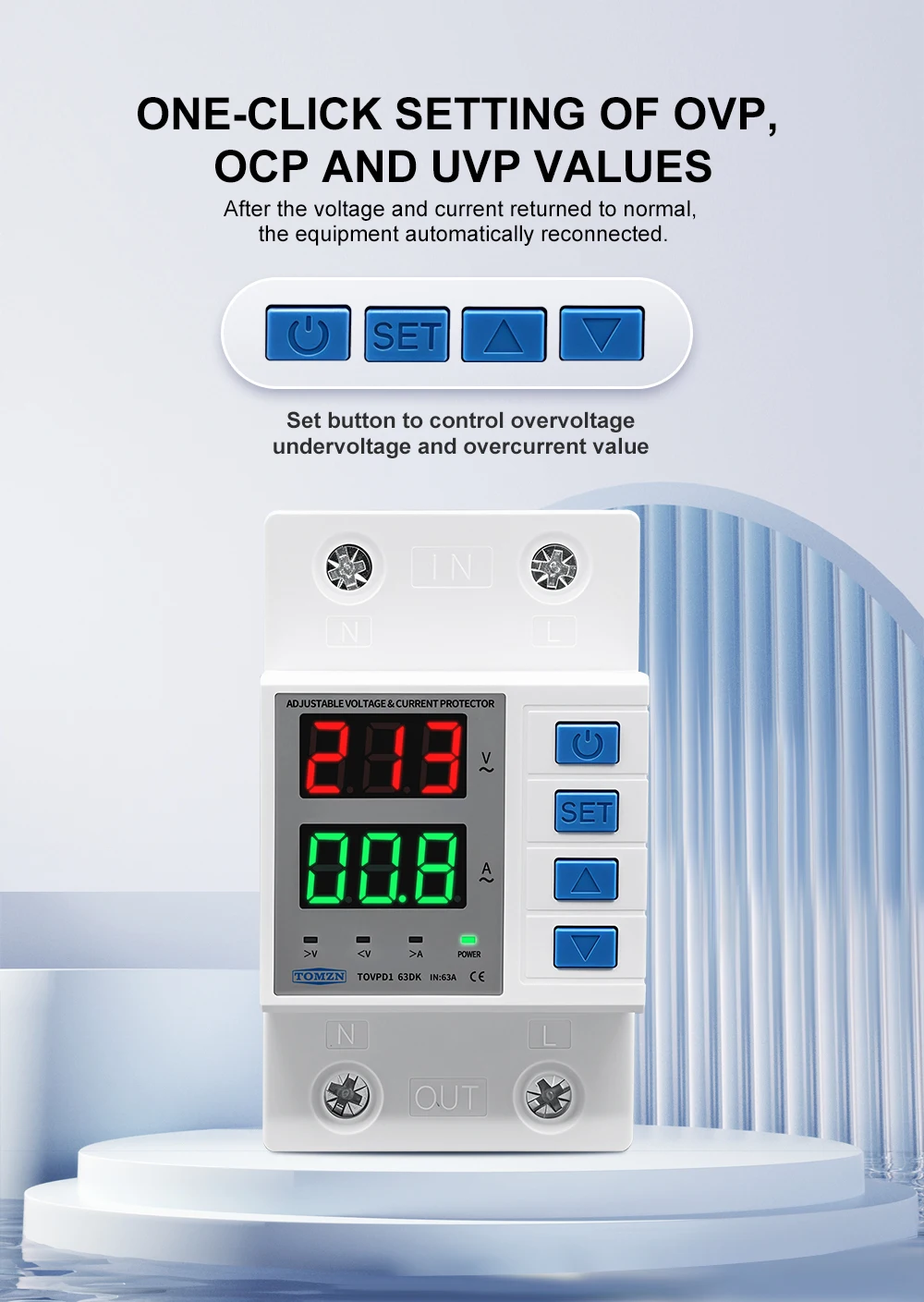

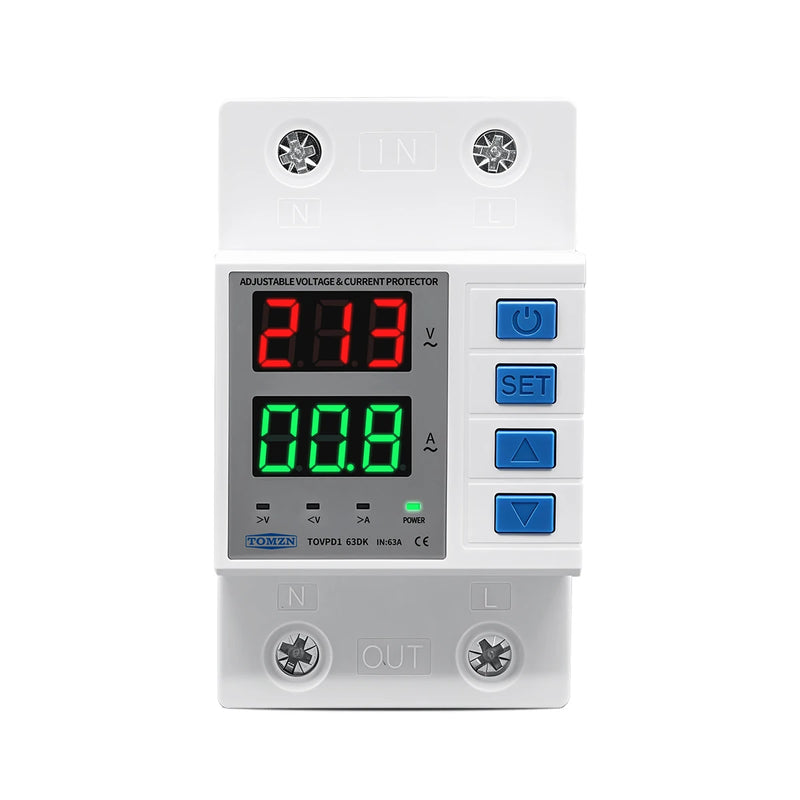

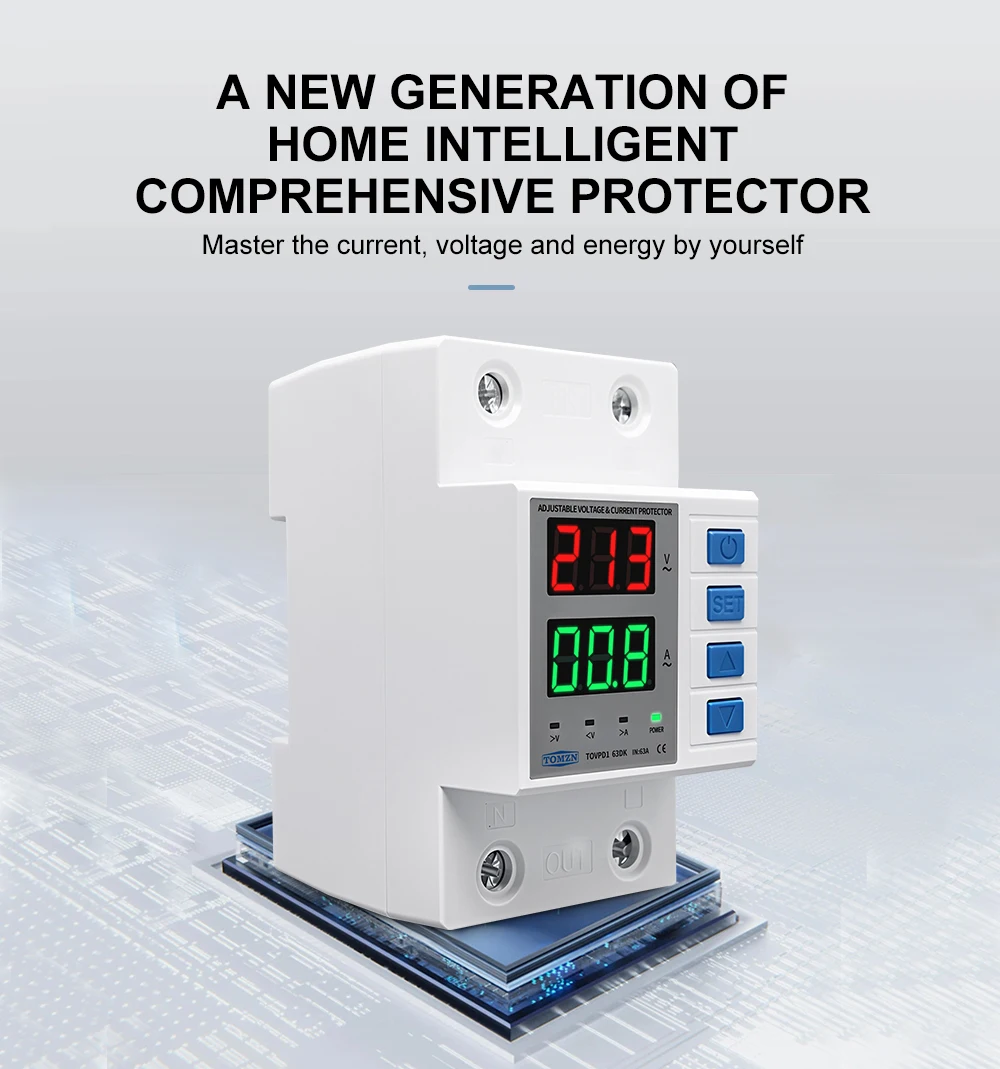

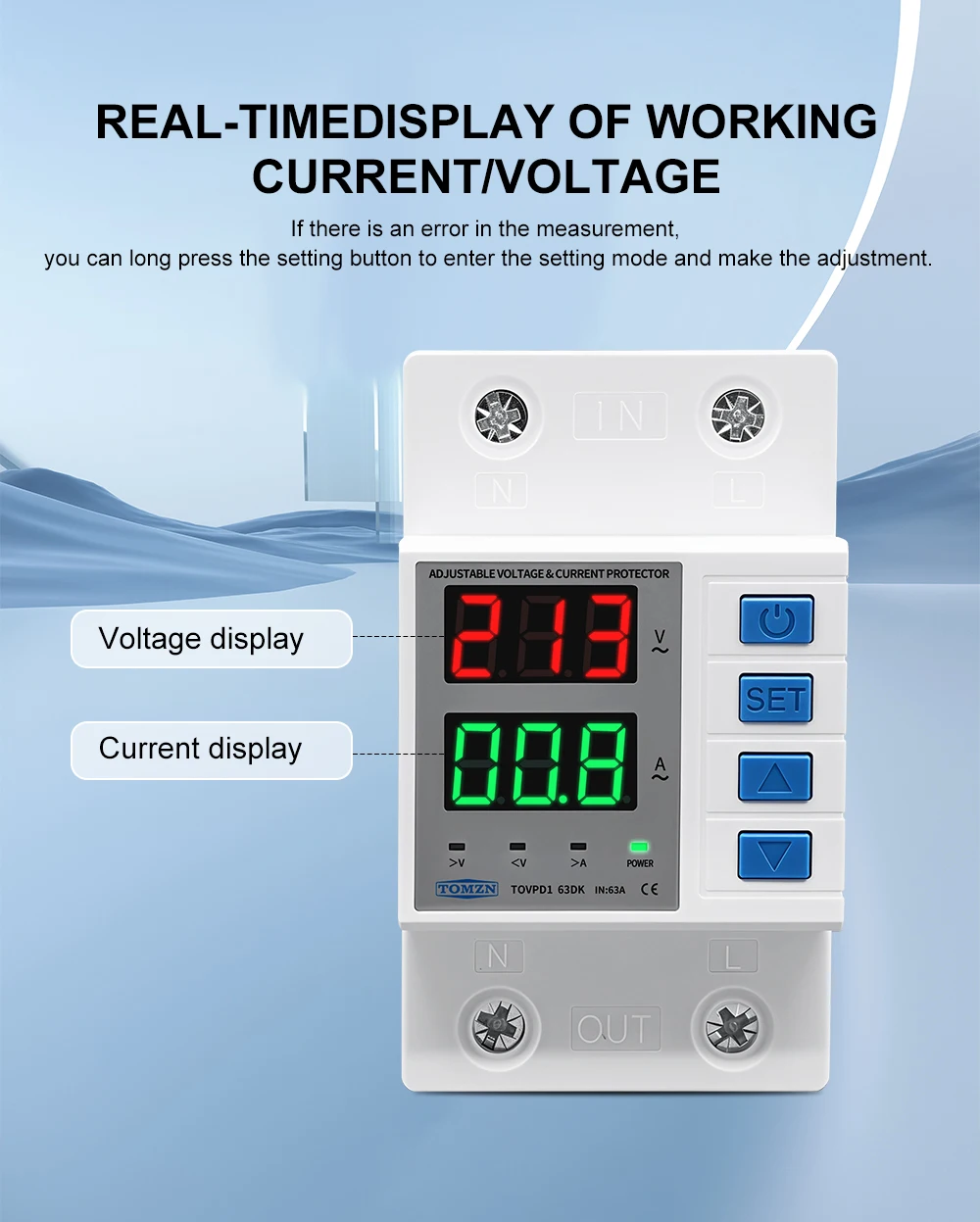

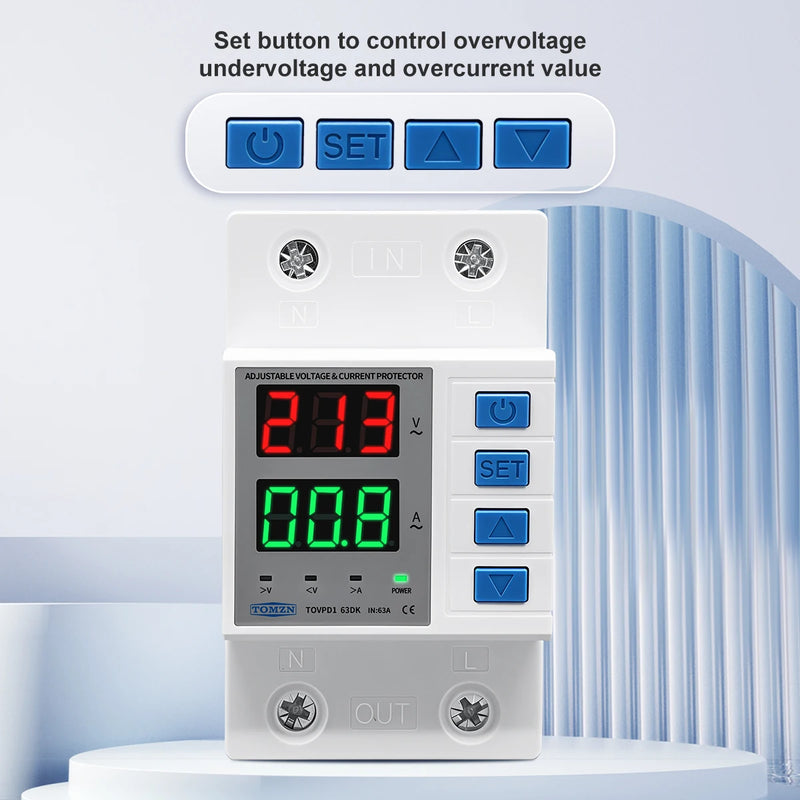

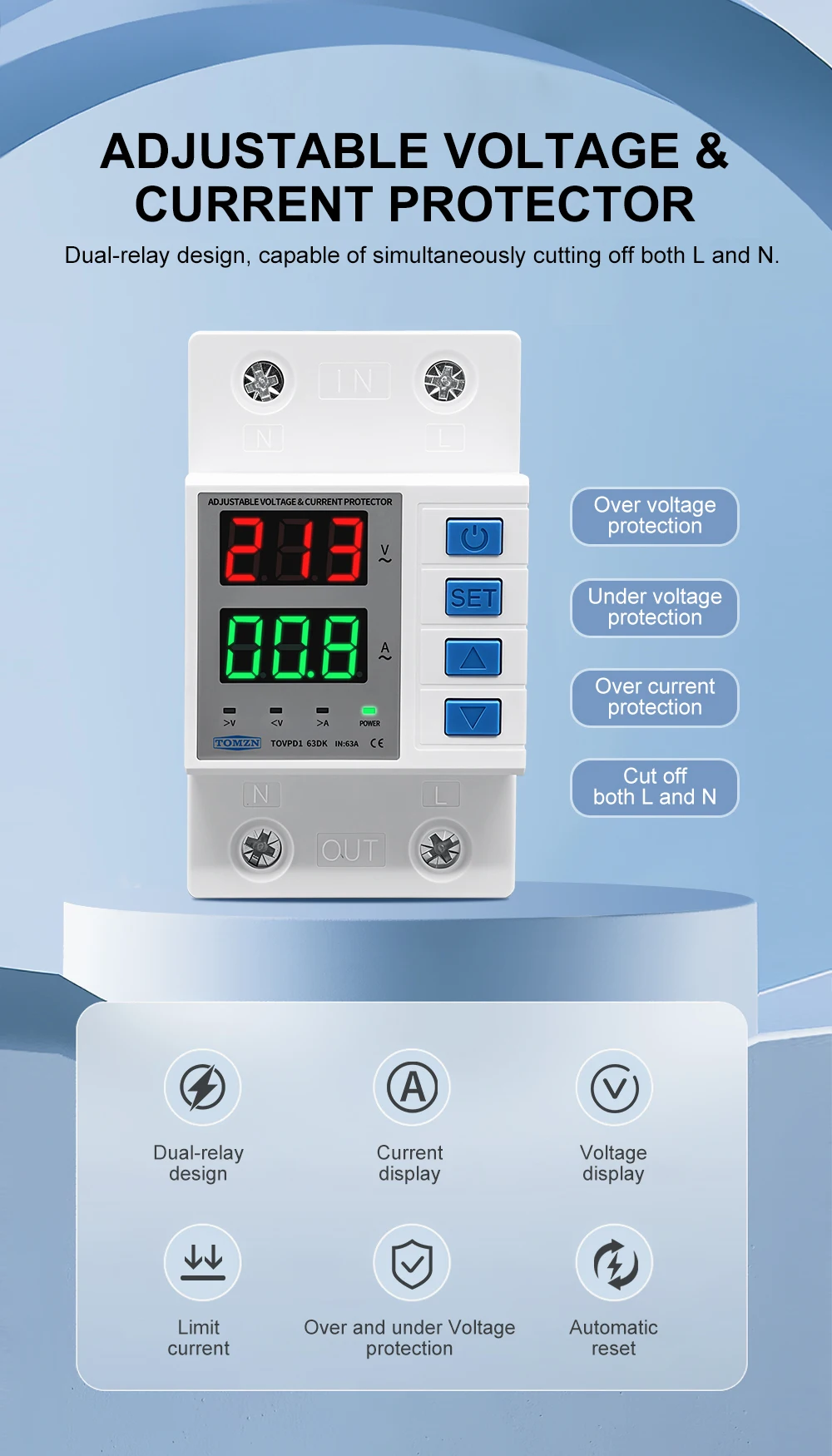

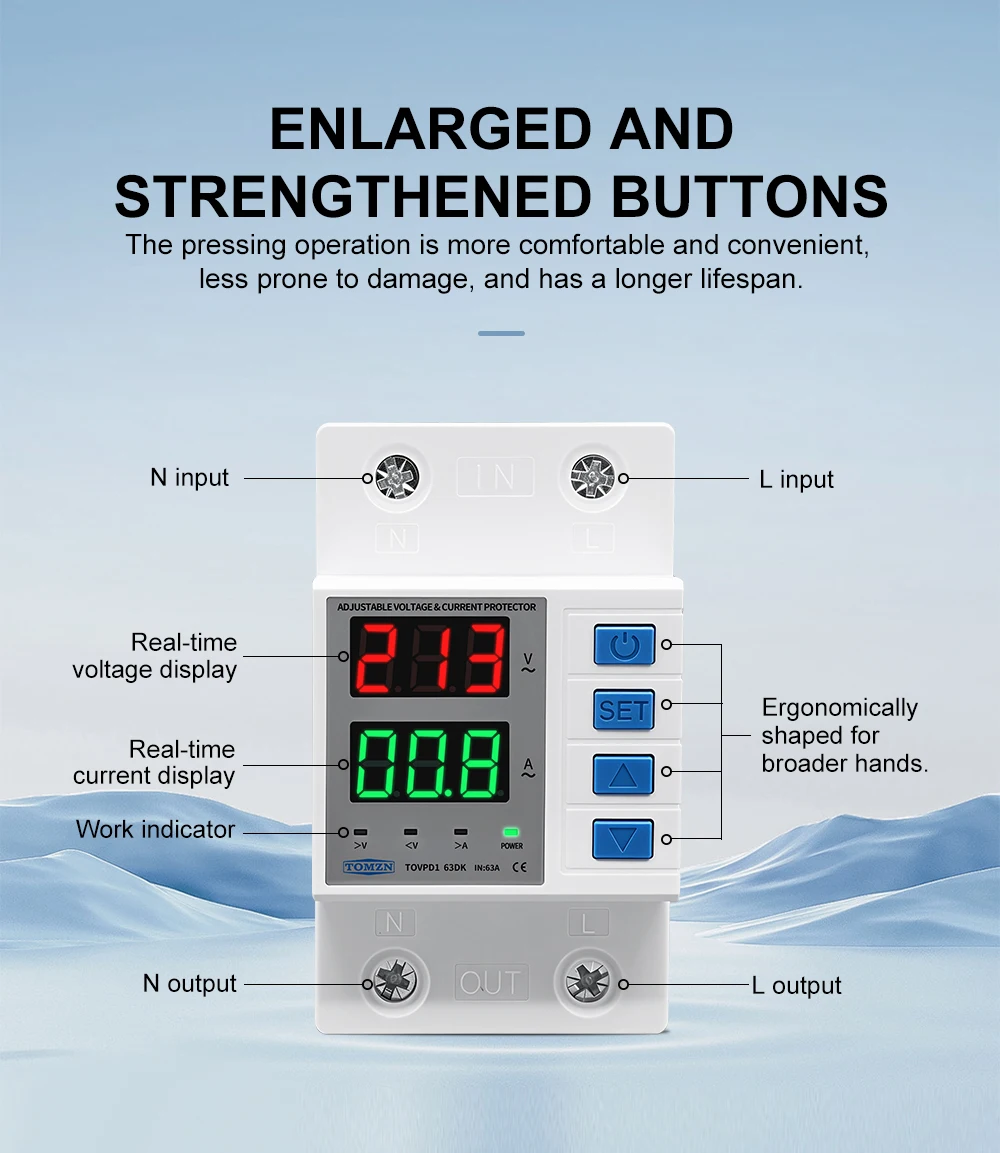

The TOVPD1-63DK is an intelligent protector that integrates over-voltage, under-voltage, and over-current protection into a single compact unit. When a fault occurs, it simultaneously disconnects both the live (L) and neutral (N) wires, ensuring complete isolation and enhanced safety for connected electrical equipment. All protection thresholds are user-adjustable, allowing customization to match local grid conditions. The device features real-time voltage and current display, voltage calibration (±9.5% adjustable), automatic recovery after fault clearance, fault inquiry, and factory reset functionality. Designed for 35mm DIN rail mounting, the TOVPD1-63DK delivers reliable, flexible, and intelligent protection for residential and commercial electrical installations.

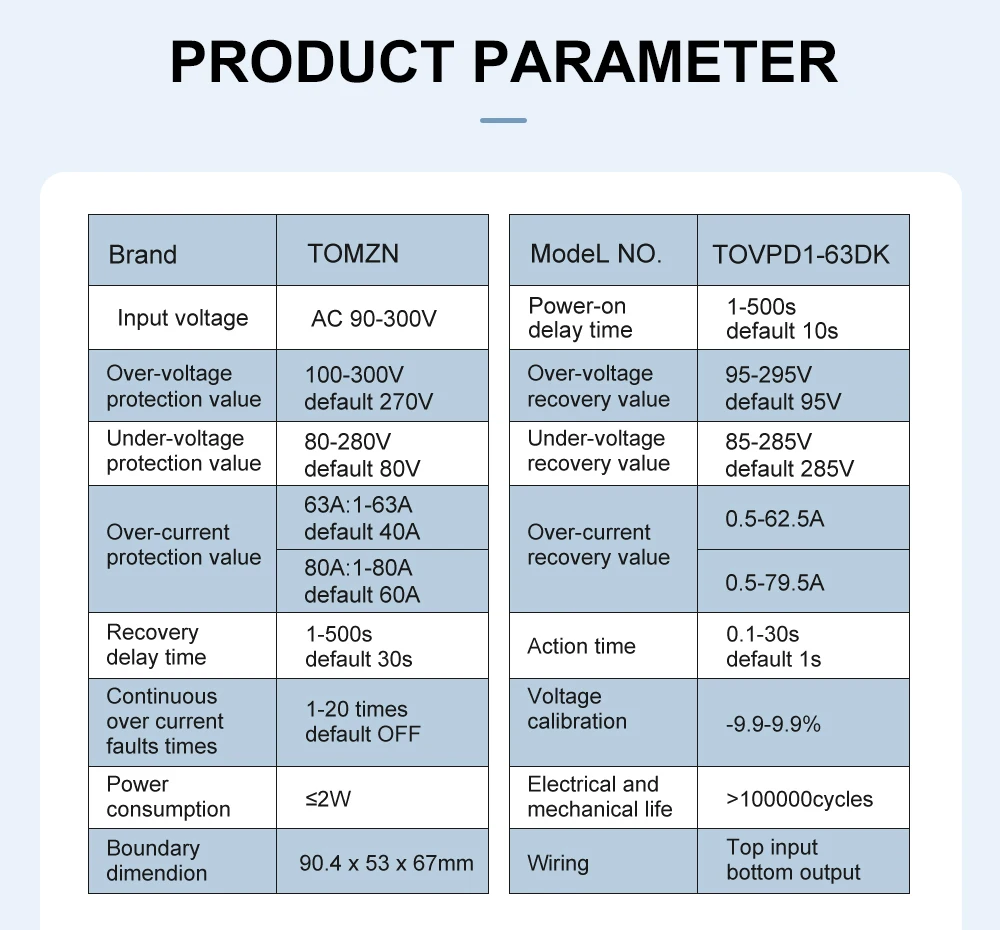

Product Data Sheet

Product model: TOVPD1-63DK

Protection functions: Over-voltage, under-voltage, over-current

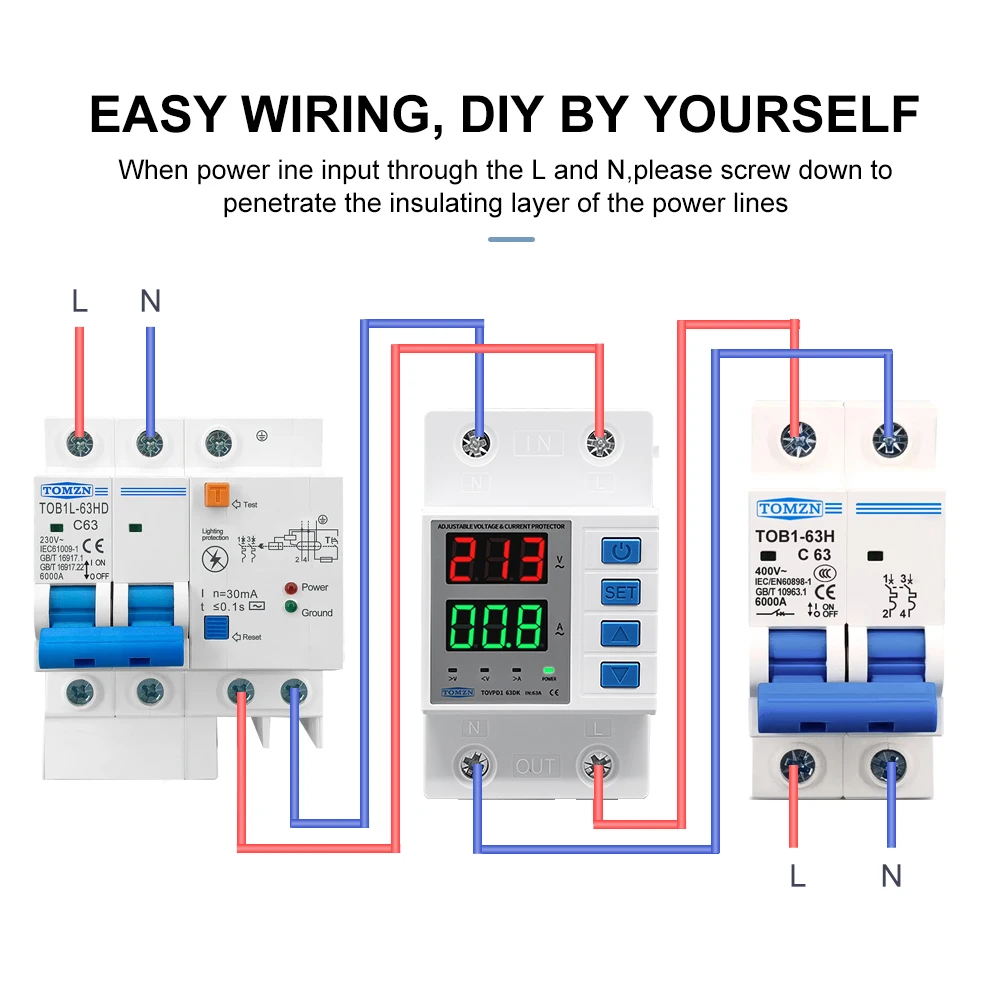

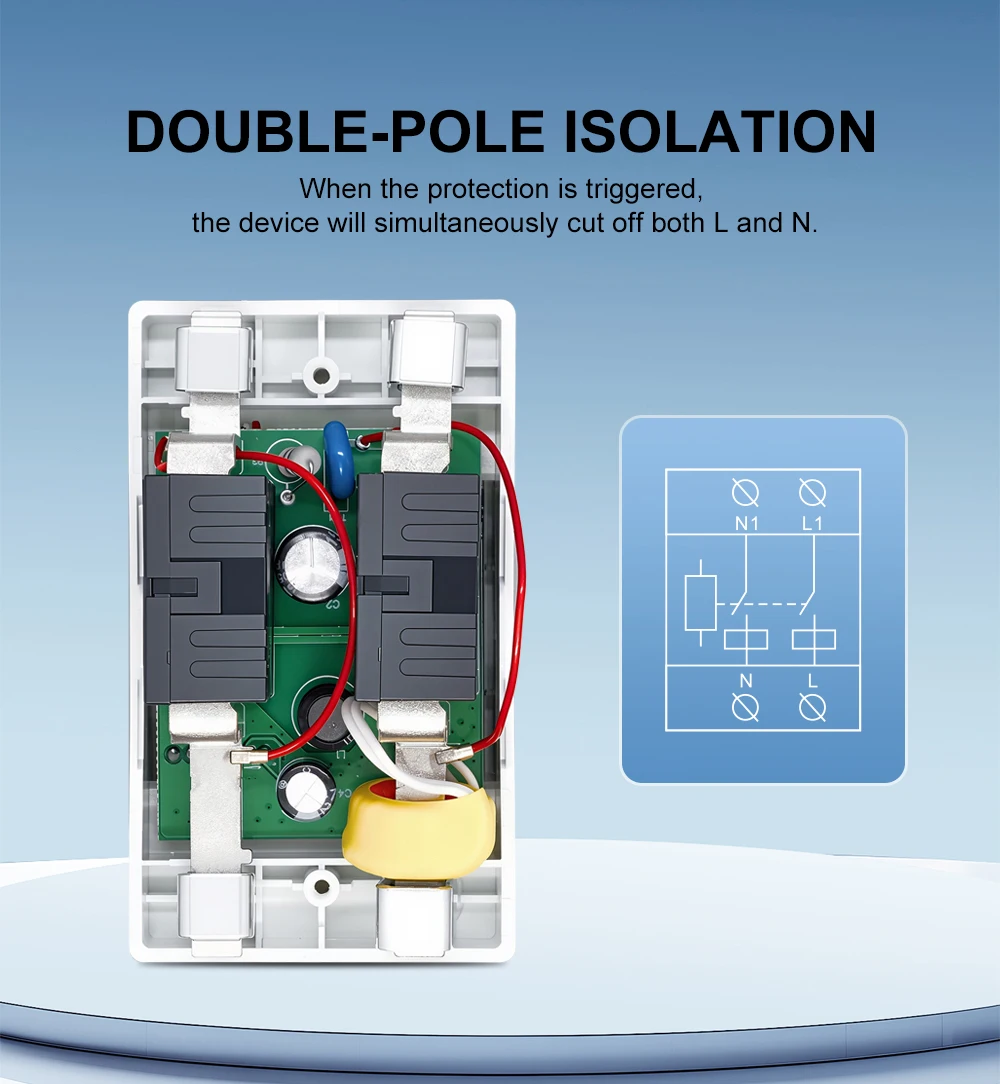

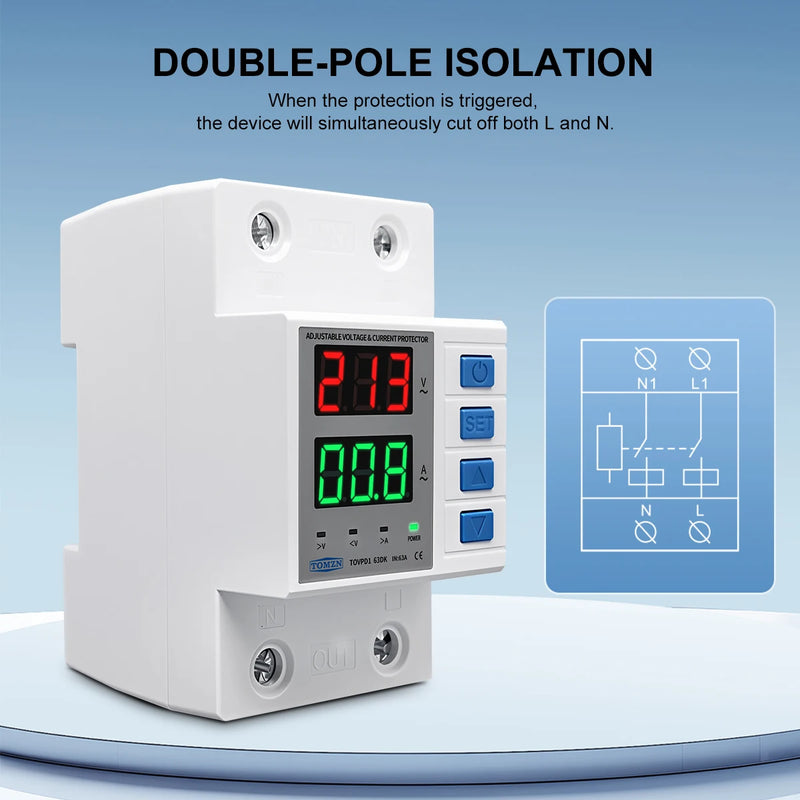

Neutral disconnection: Yes (cuts both L and N)

Power supply: 110V / 230V AC, 50/60Hz

Max. load current: 1-63A adjustable (default: 63A)

Over-voltage protection value range: 100-300V (default: 270V)

Over-voltage recovery voltage range: 95-295V (default: 95V)

Over-voltage protection action time: 0.1-30s (default: 1s)

Over-voltage recovery delay time: 1-500s (default: 30s)

Under-voltage protection value range: 80-280V (default: 80V)

Under-voltage recovery voltage range: 85-285V (default: 285V)

Under-voltage protection action time: 0.1-30s (default: 1s)

Under-voltage recovery delay time: 1-500s (default: 30s)

Over-current adjustment range: 1-63A (default: 40A)

Over-current action time range: 0.1-30s (default: 1s)

Over-current recovery delay time: 1-500s (default: 30s)

Power-on delay time: 1-500s (default: 10s)

Voltage calibration: ±9.5% adjustable

Fault inquiry: Press UP button for >12s

Factory reset: Press DOWN button for >6s

Power consumption: <2W

Electromechanical life: 100,000 times

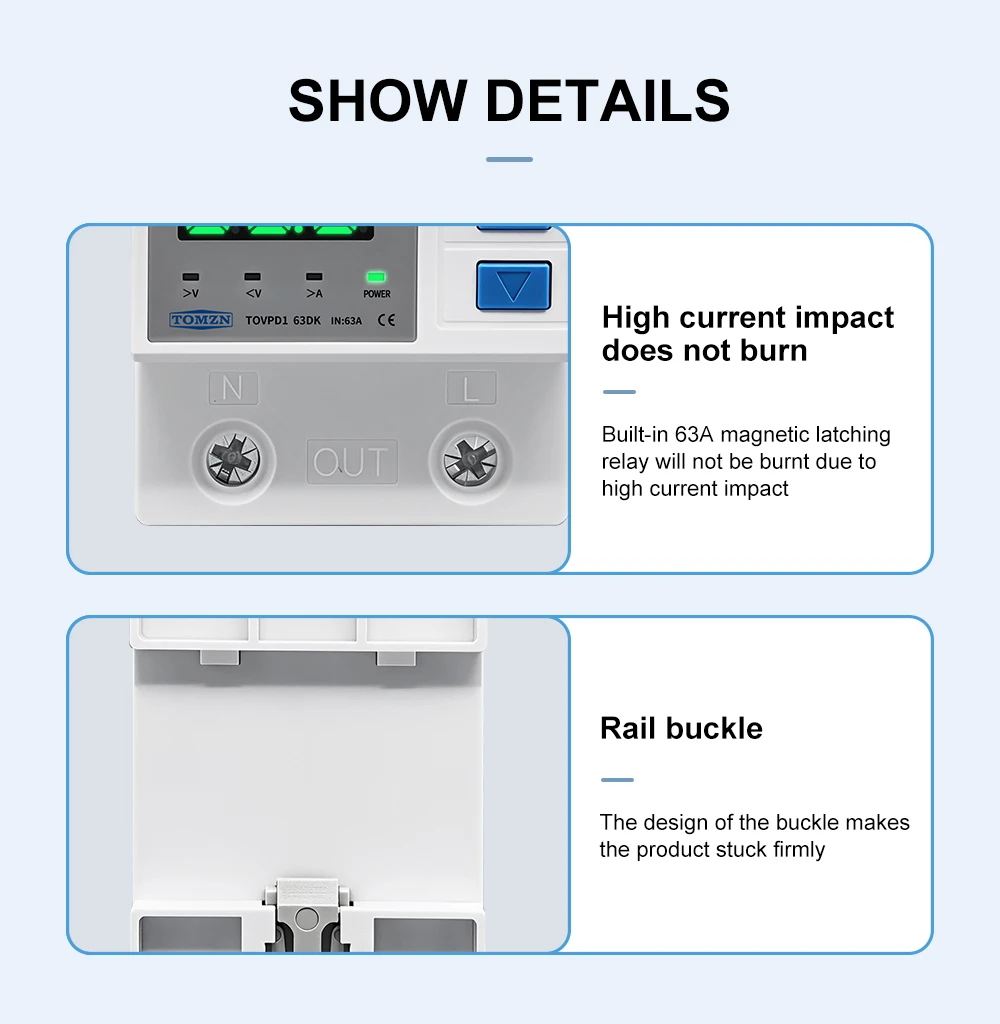

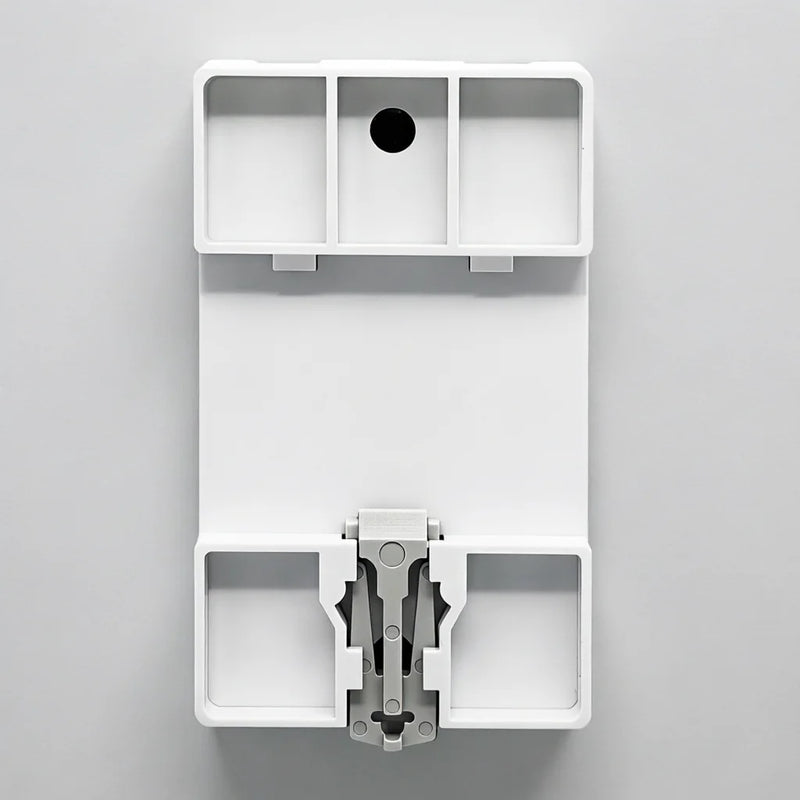

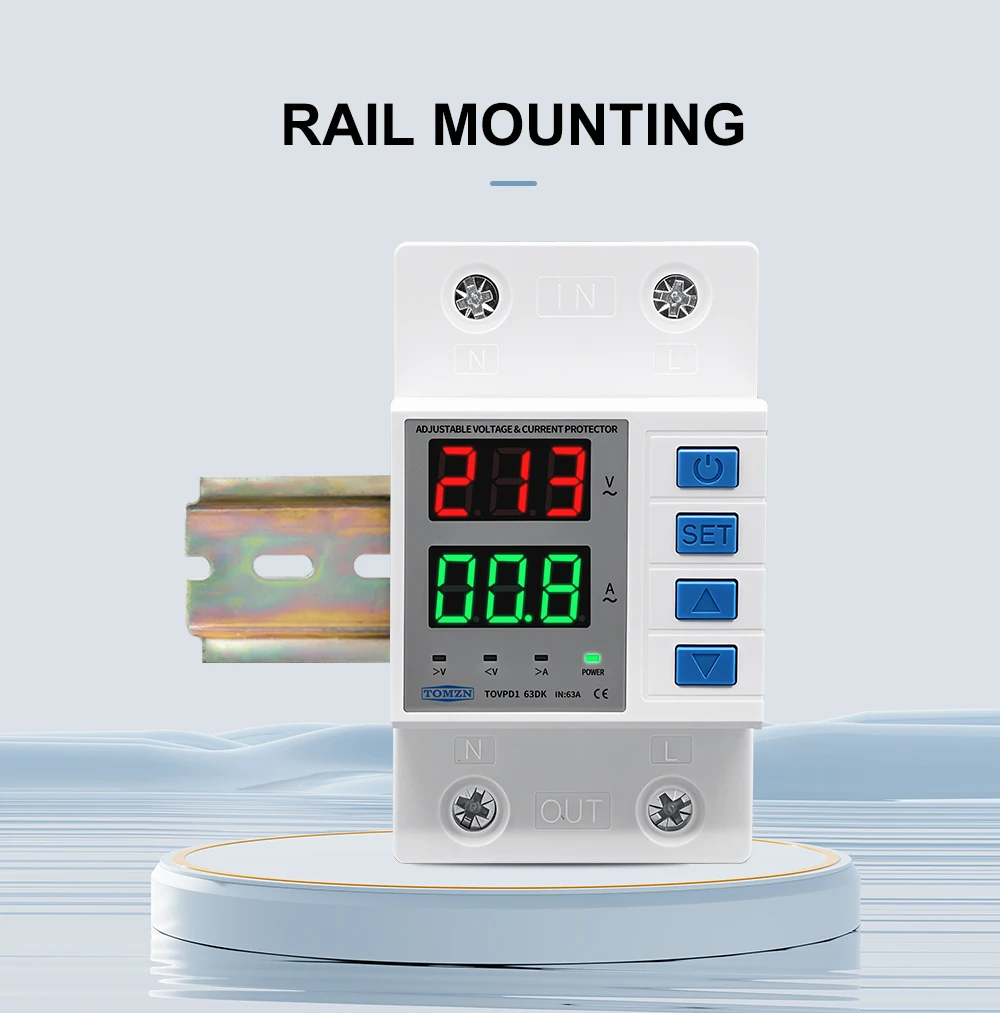

Installation: 35mm DIN rail
