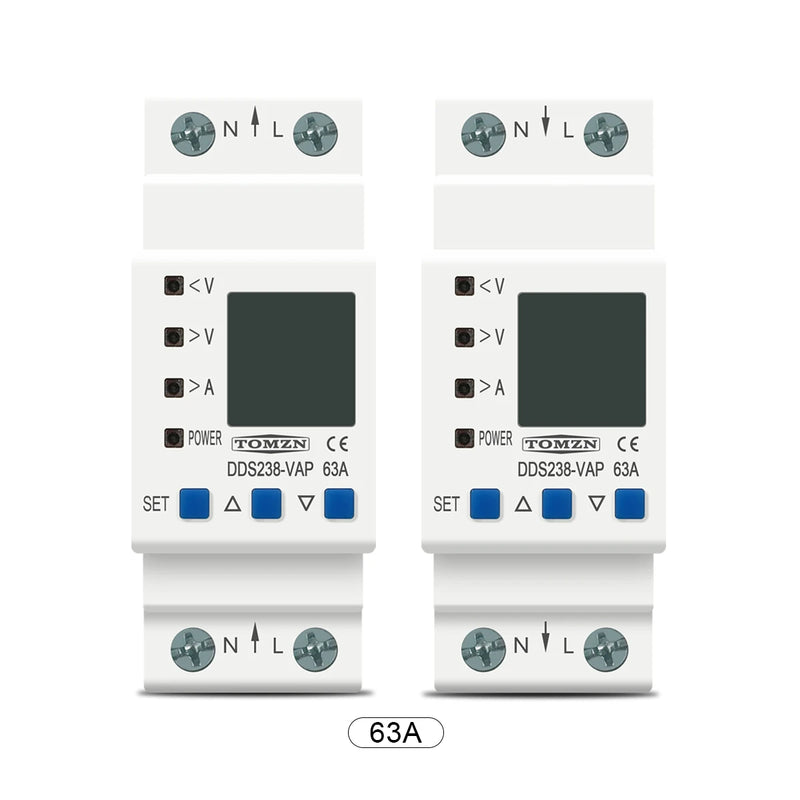

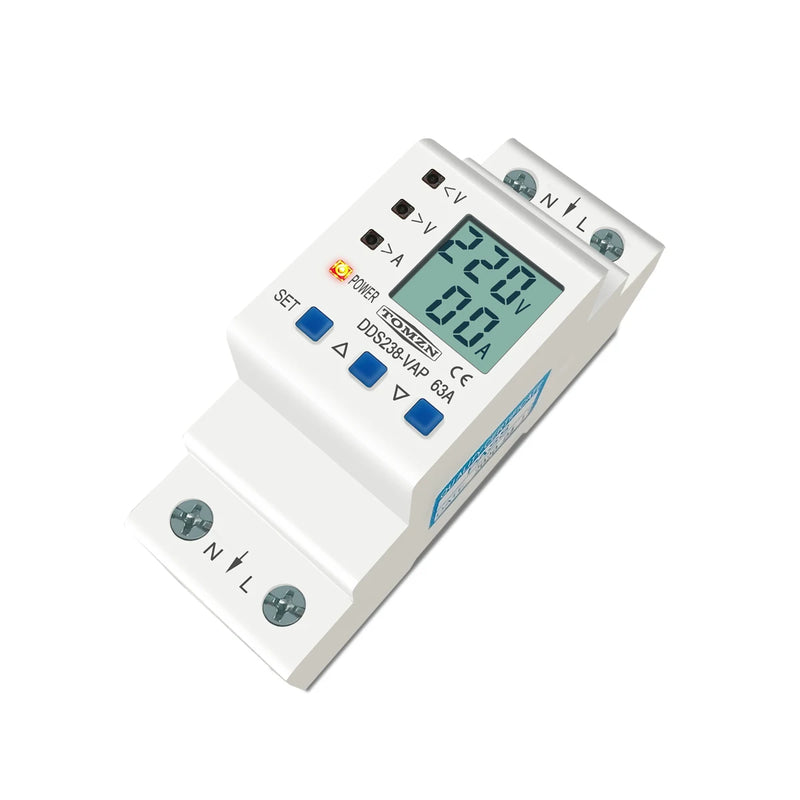

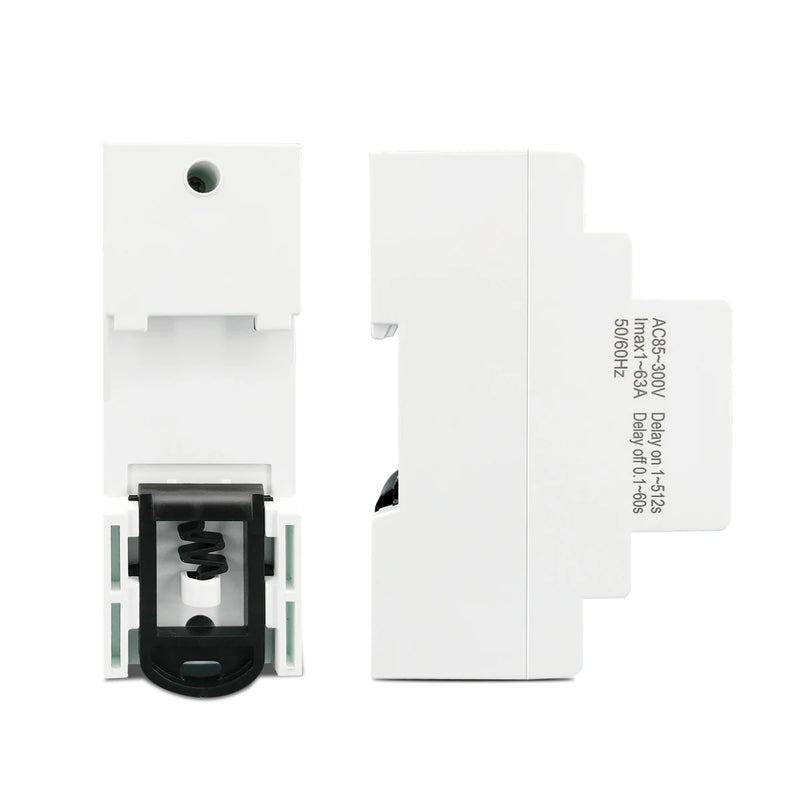

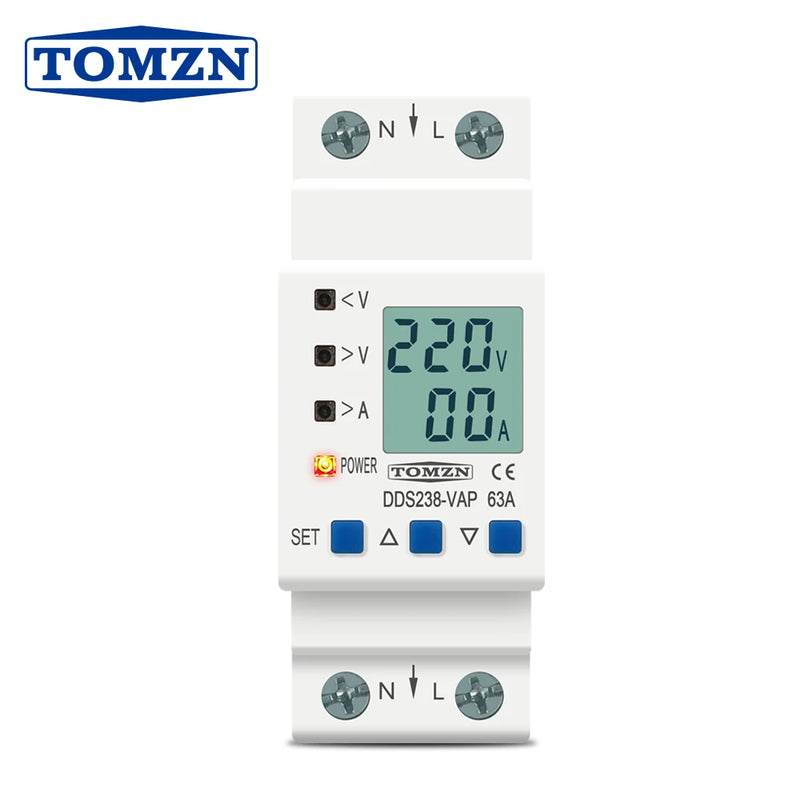

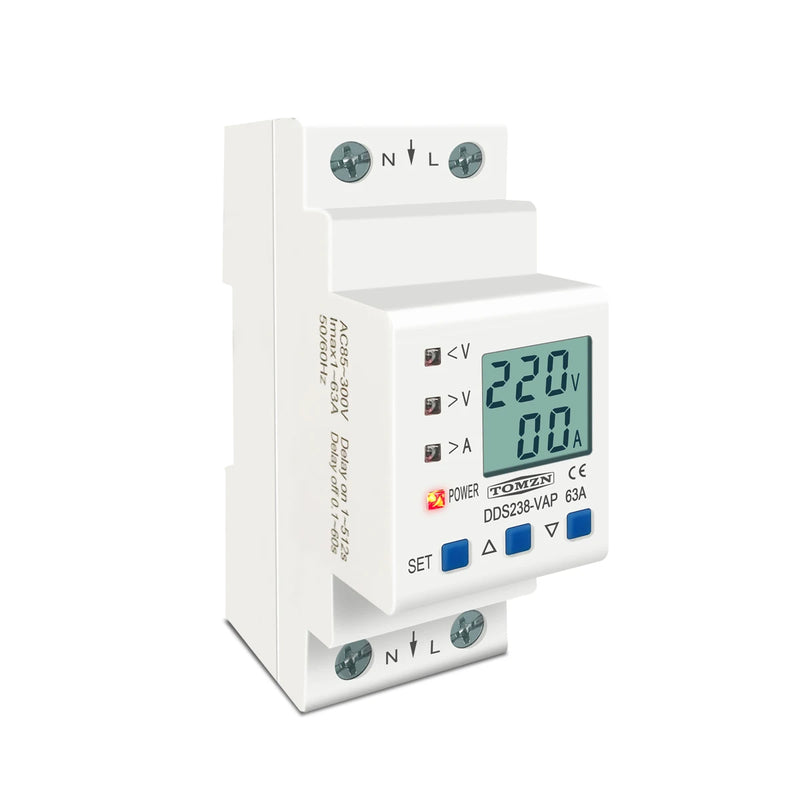

TOMZN Din Rail Adjustable Over Under Voltage Protective Relay Protector Current Limit Protection Voltmeter Kwh 63A 80A 110V 230V

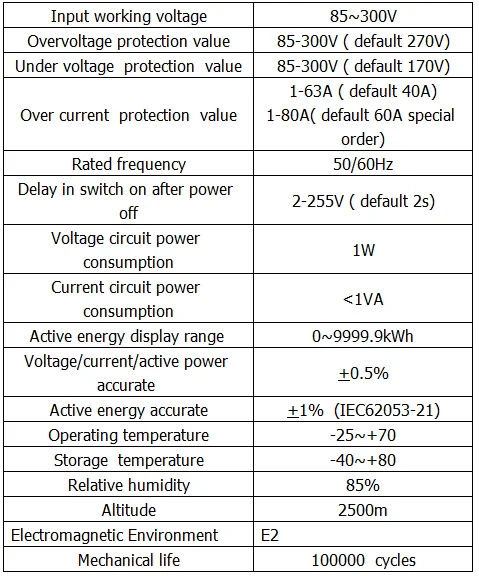

SPECIFICATIONS
Active time range: 0.1-60s
Brand Name: TOMZN
Certification: CE
Delay off time range: 1-512s
Delay on time range: 2-255s
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: DDS238-VAP
Origin: Mainland China
Over current protection range: 1-63A ( default 40A) or 80A
Overvoltage protection range: 85-300V ( default 270V)
Type: Mini
Under voltage protection range: 85-300V ( default 170V)
is_customized: Yes
1. AC 85-300V 50/60HZ
2. Over current protection, over voltage protection, under voltage protection can disable one , two or three of them.
3. the device have lightning protection for itself.
4. Voltage and Current Accuracy 0.5%
5. Its own power consumption <0.5W
6. Can be manually and automatically reconnect.
7. Can set the delay on and delay off time
8. Can be used as a normal switch
9. Can be used as a cycle switch. Remarks The product does not have a battery. If the external power supply is out of power, the cycle time starts from 0.
10. Electricity metering accuracy Class 1
11. Backlight mode is optional, convenient for user scene selection
12. Malignant load identification limit (pure resistive load), for apartments Rental housing restrictions Fast heat Electromagnetic Kettle Electric rice cooker and other resistive high-power equipment.
