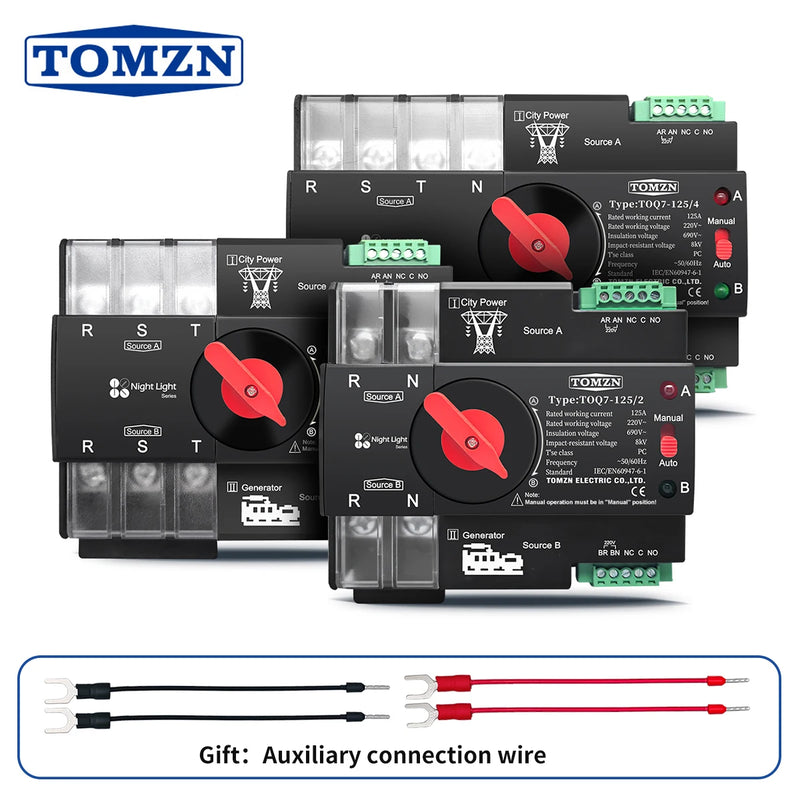

TOQ7 Series dual power automatic transfer device

2P/3P/4P 220VAC 63A/100A/125A

Generator/PV to city power

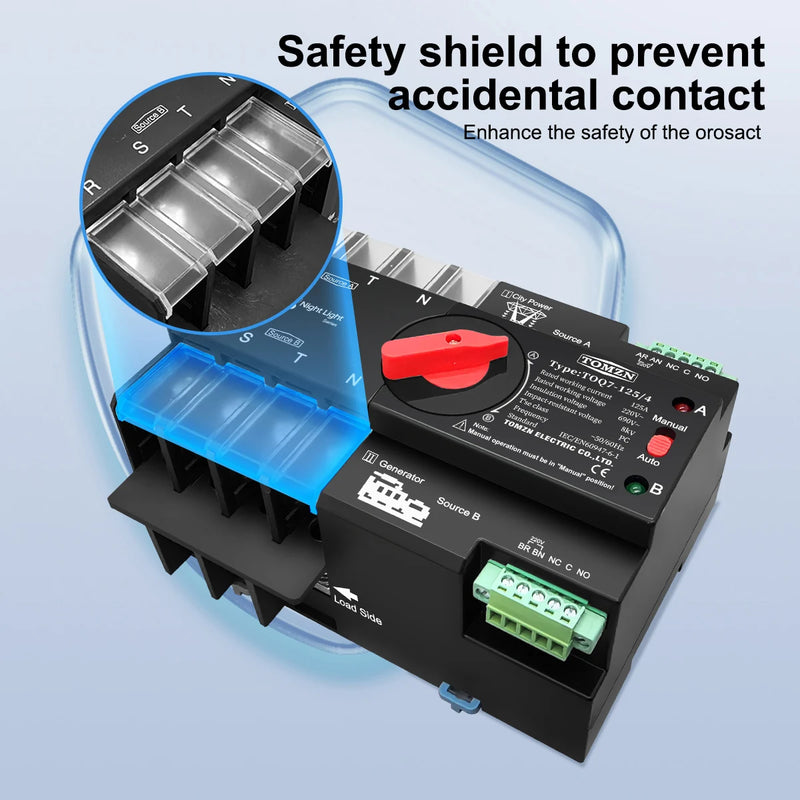

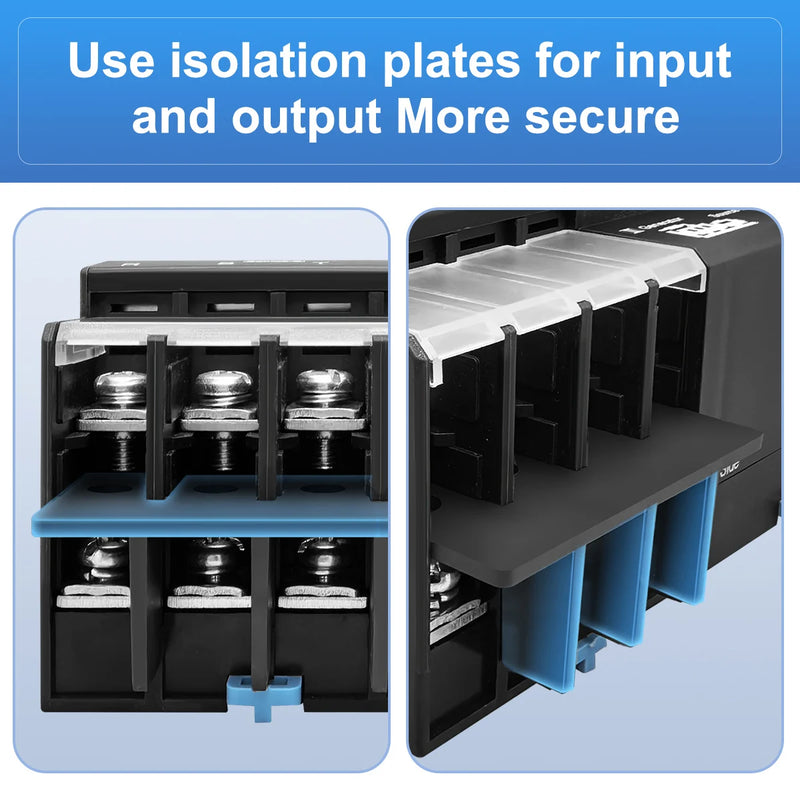

Package upgrade, less prone to damage!

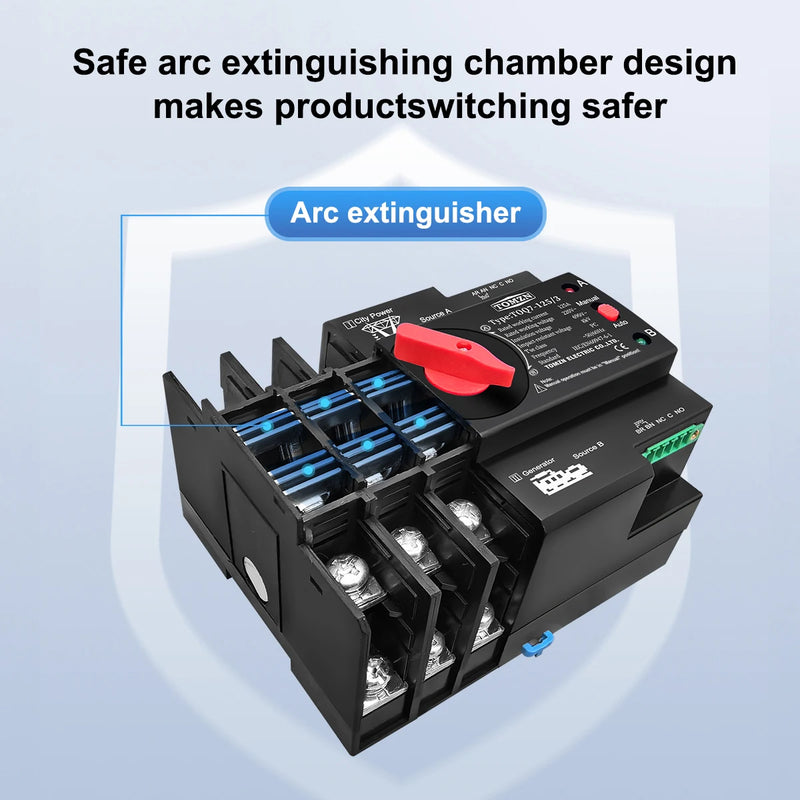

General

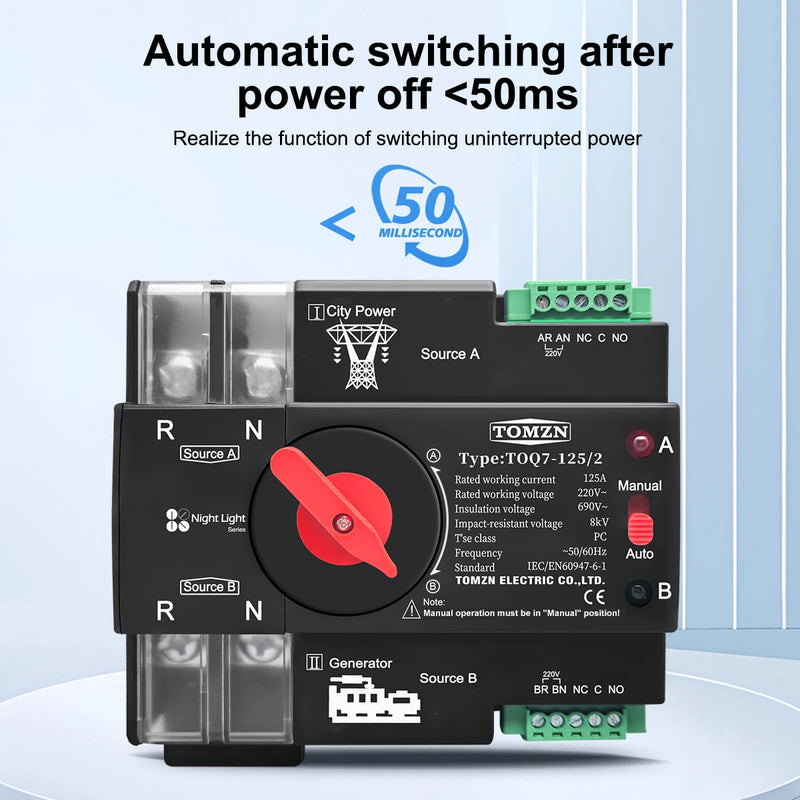

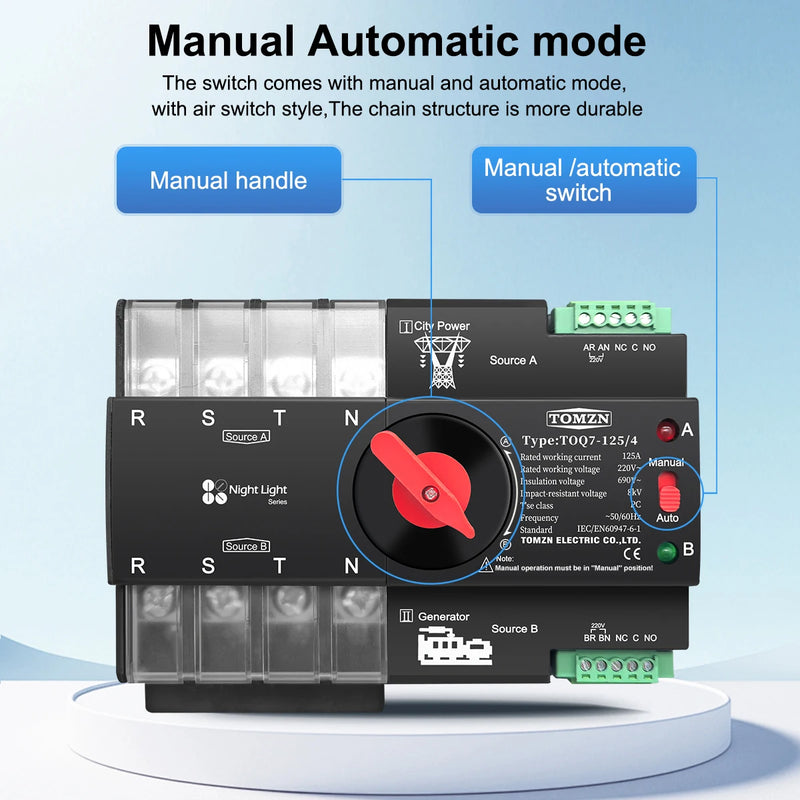

TOQ7 is a newly developed miniaturehousehold power switch,which is mainly used to test whether themain power supply or standby power supply is normal.When thenormal power supply is abnormal,the standby power supply startsto work immediately,which ensures the continuity,reliability and safetyof power supply.This product is specially designed for householdrail installation and is specially used for PZ30 distribution box.The dual power automatic switch is suitable for emergencypower supply systems with 50 or 60Hz and rated 400V AC.ATS hasthe characteristics of solid structure,reliable conversion,convenientinstallation and maintenance and long service life.lt is widely usedin various occasions where power failure cannot be sustained,ancan be operated by electricity or manually.ATS is composed of TSE and controller.According toIEC/EN60947-6-1、GB/T14048.11,Part 6-1.multifunctional equipment and switchgear is formulated.lt can beseen that ATS is the most qualified low-voltage switchgear andcontrol device.

Specification

Rated voltage Ue: AC400V 50/60Hz

Insulation voltage Ui: AC690V,50/60Hz

Rated current: 63A 100A 125A

Classification: PC class: can be manufactured and withstood
without short circuit current

Electrical life: 2000 times

Mechanical life: 5000 times

Rated short circuitcurrent lq: 50kA

Short circuit protection
device (fuse): RT16-00-63A

Rated impulsewithstand voltage: 8kV

Control circuit:

Rated control voltage Us: AC110V or 220V 50/60Hz

Normal working conditions:85-110%Us

Auxiliary circuit:

2 relays, each with two sets of contact converter

Contact capacity:AC110V or 220V 50/60Hz le=5y

Conversion time ofcontactor: <50ms

Operation conversiontime: <50ms

Retum conversion time: <50ms

Power off time: <50ms

Noted:

1.The product works with L+N 220-230V 50-60Hz.

2.The WIFI chip is powered by source A. When source A loses power, the product cannot switch via eWeLink.

3.Power-on State: After enabling this function, the device can perform automatic switching just like a normal ATS. However, when source A is powered on, the pointer of the ATS points to source B. And if source B loses power at this time, source B cannot switch to source A.
