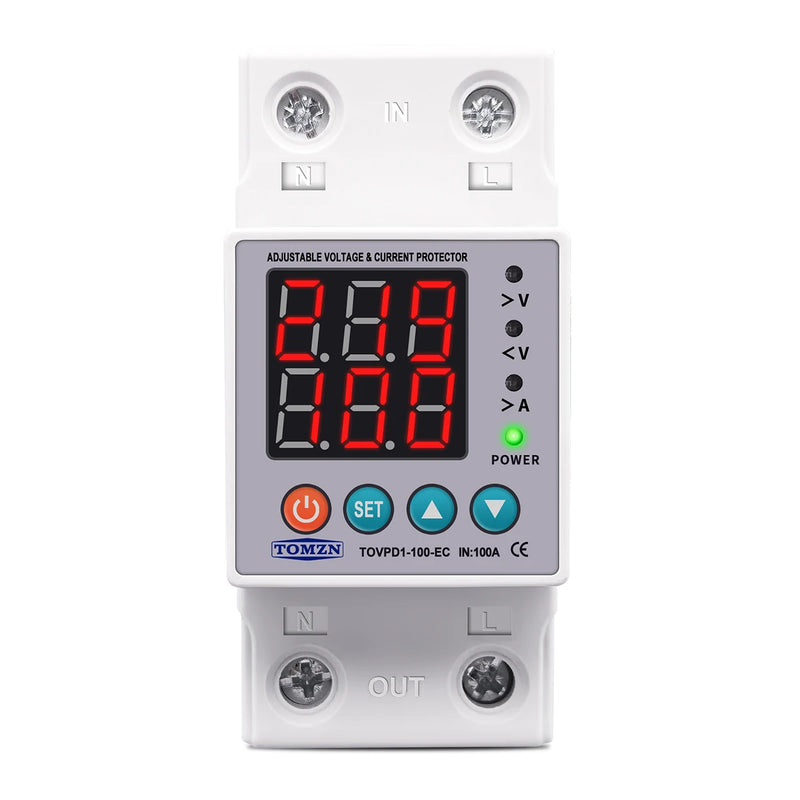

TOMZN Din Rail 230V 100A Adjustable Over Under Voltage Protective Device Protector Relay Monitor Current Limit Protection

TOMZN Din Rail 230V 100A Adjustable Over Under Voltage Protective Device Protector Relay Monitor Current Limit Protection

TOMZN Din Rail 230V 100A Adjustable Over Under Voltage Protective Device Protector Relay Monitor Current Limit Protection

TOMZN Din Rail 230V 100A Adjustable Over Under Voltage Protective Device Protector Relay Monitor Current Limit Protection

TOMZN Din Rail 230V 100A Adjustable Over Under Voltage Protective Device Protector Relay Monitor Current Limit Protection

TOMZN Din Rail 230V 100A Adjustable Over Under Voltage Protective Device Protector Relay Monitor Current Limit Protection

$0.00 - $0.00

$0.00

$8.65

$8.65 - $8.65

$8.65

Availability:

8839 in stock, ready to be shipped

Quantity

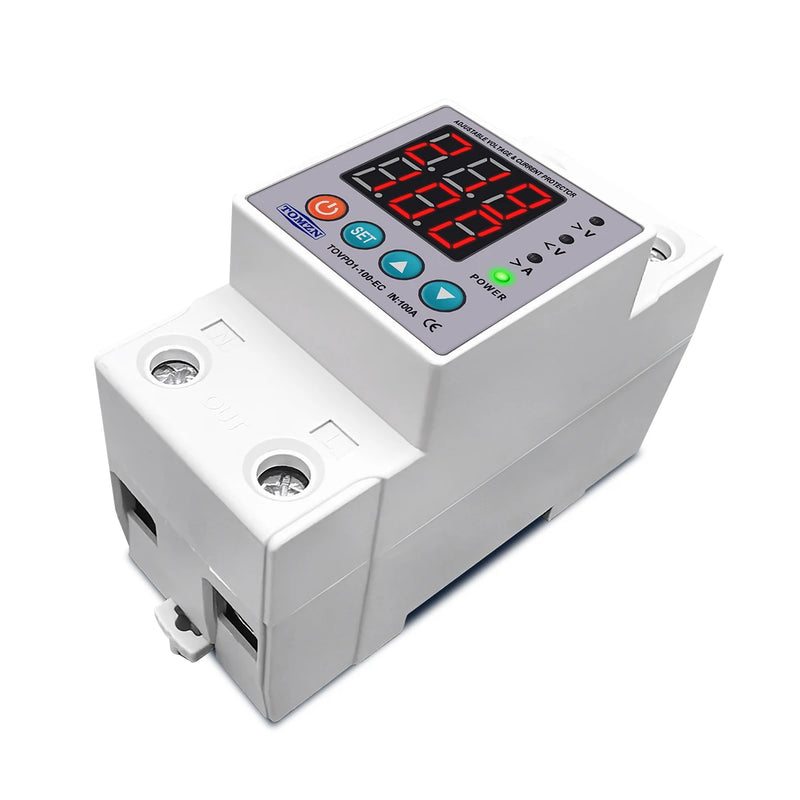

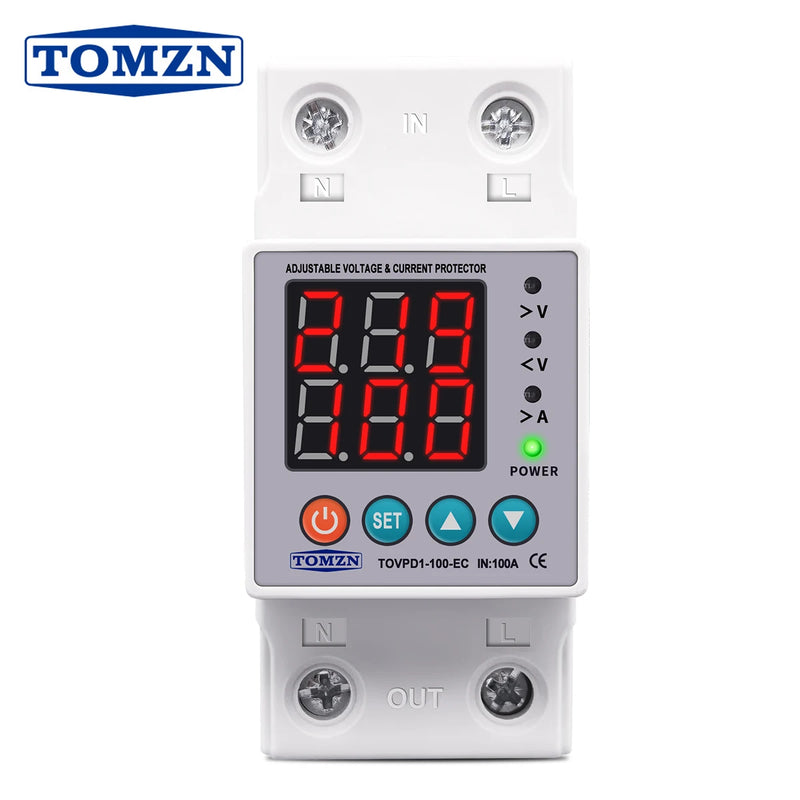

TOMZN Din Rail 230V 100A Adjustable Over Under Voltage Protective Device Protector Relay Monitor Current Limit Protection

by ដោយ TOMZN

All prices exclude shipping Customs and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន គយ និងពន្ធទេ។

Choose language

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: TOVPD1-100-EC

Origin: Mainland China

Type: Voltage protector

is_customized: Yes

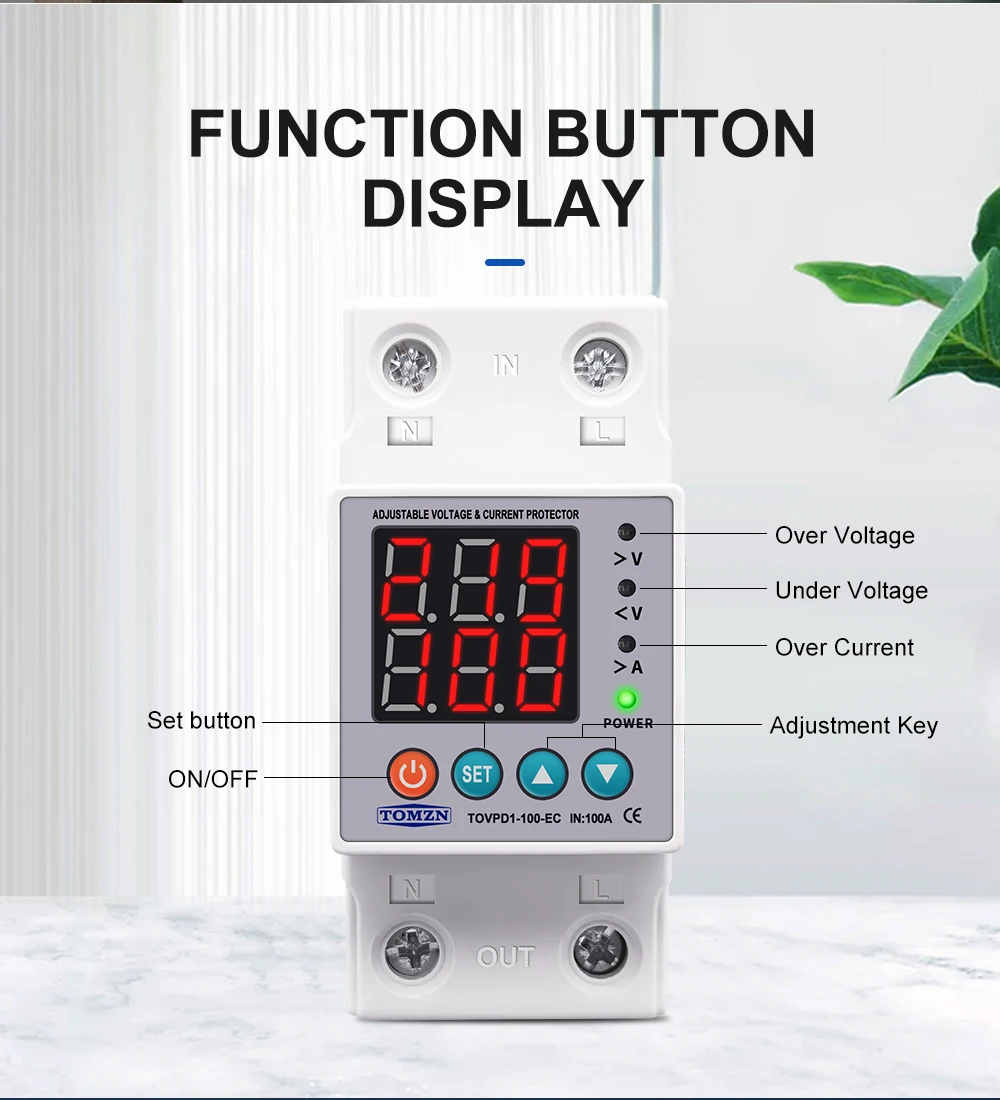

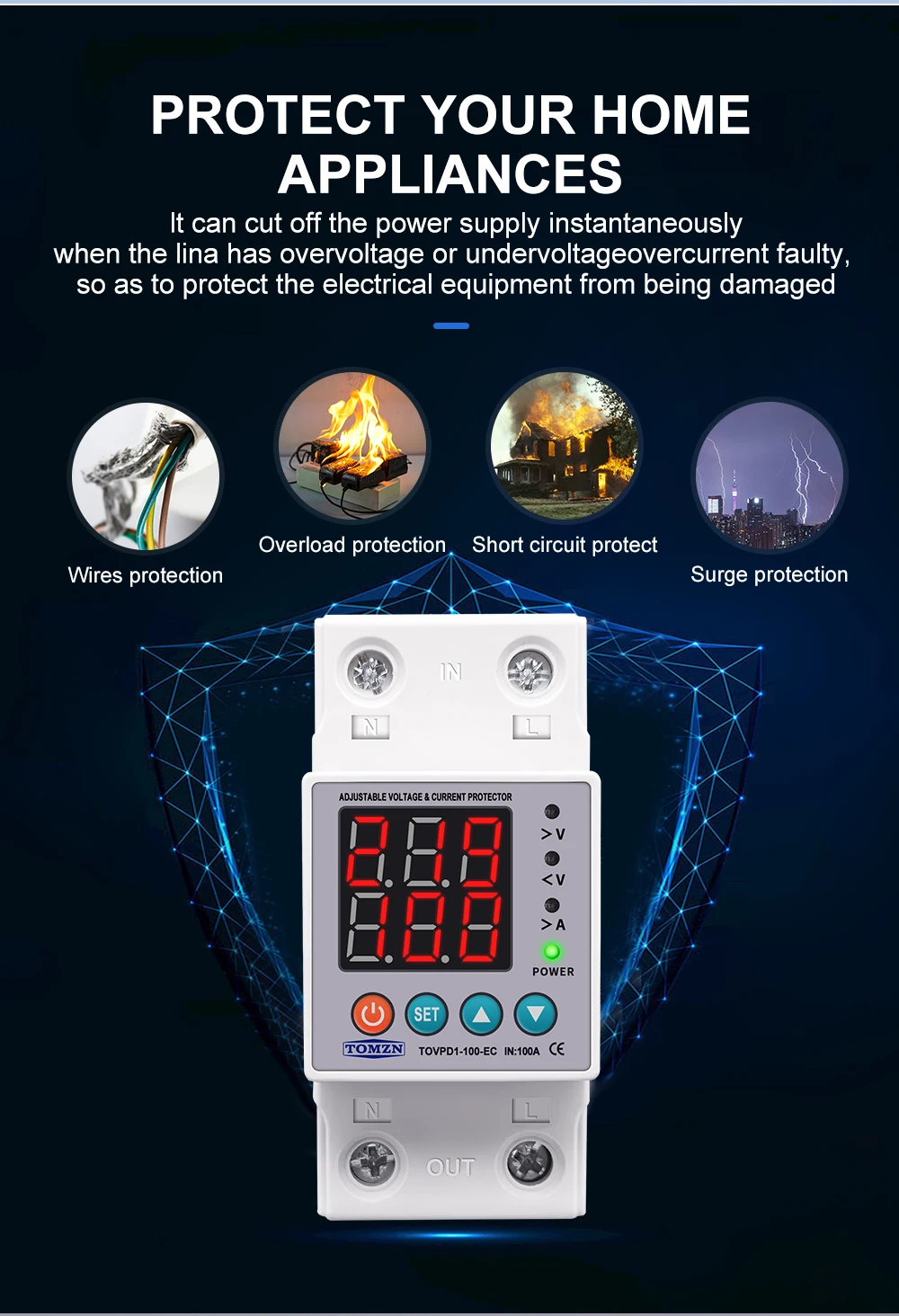

Functions:

1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4.Automatic recovery

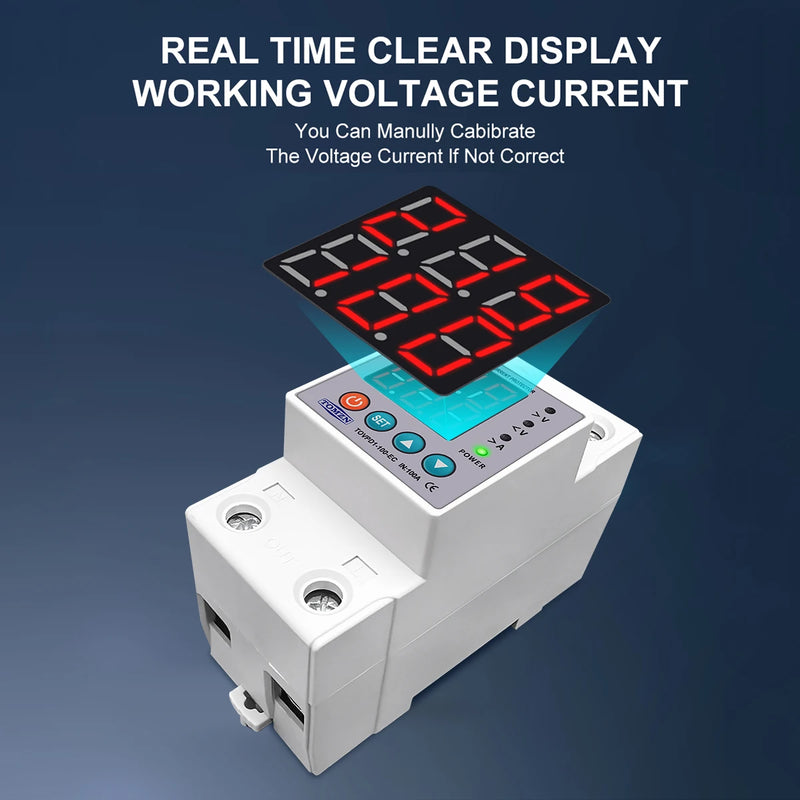

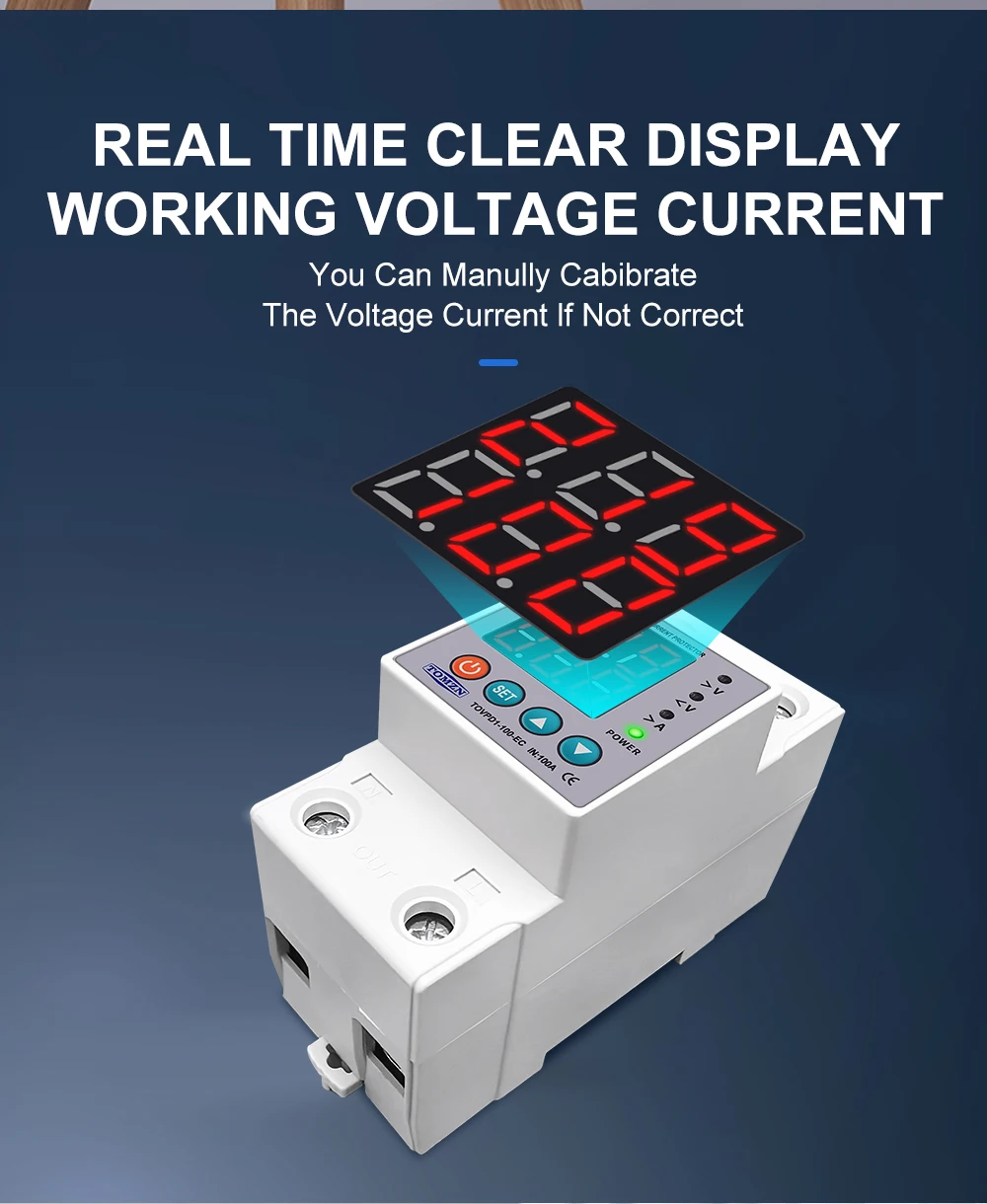

5.Voltage display(voltage measurement)

6.Current display (current measurement)

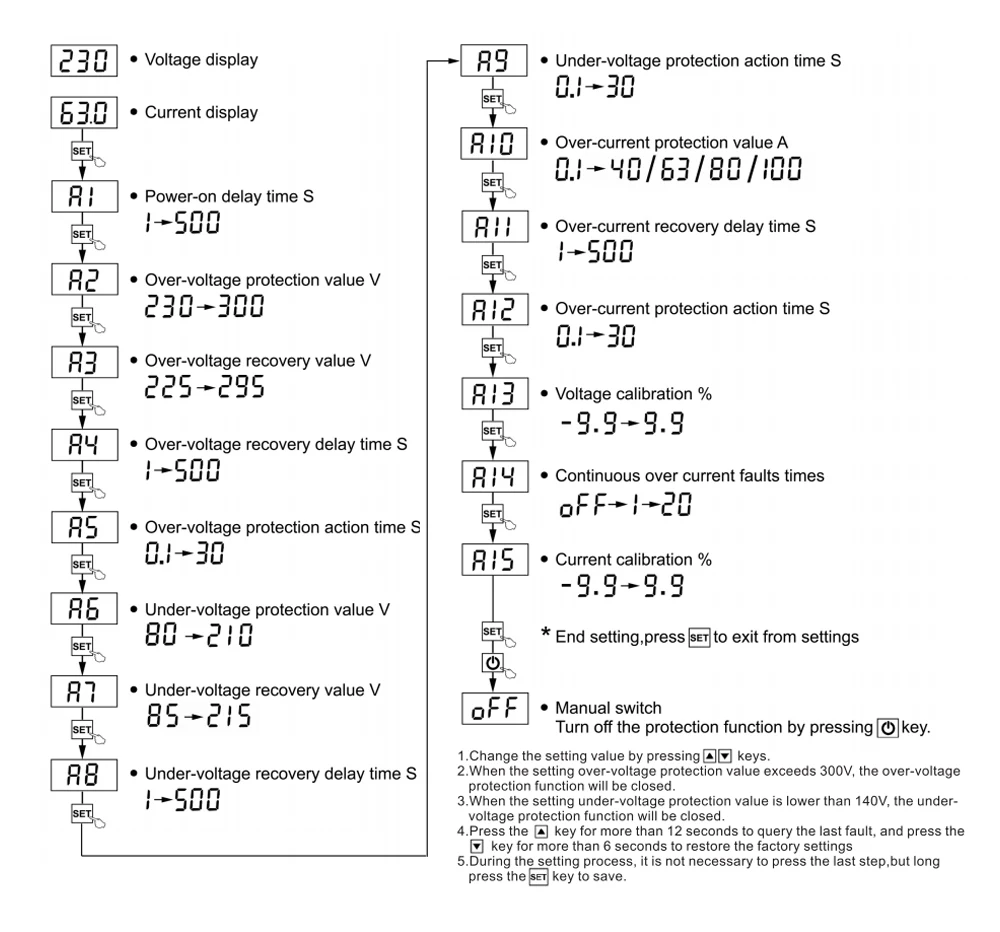

7. Voltage calibration: Voltage +-10% adjustable. A13

8. Restore factory settings: press the down button for more than 12s

9.Fault inquiry: Press the UP button from more than 12S

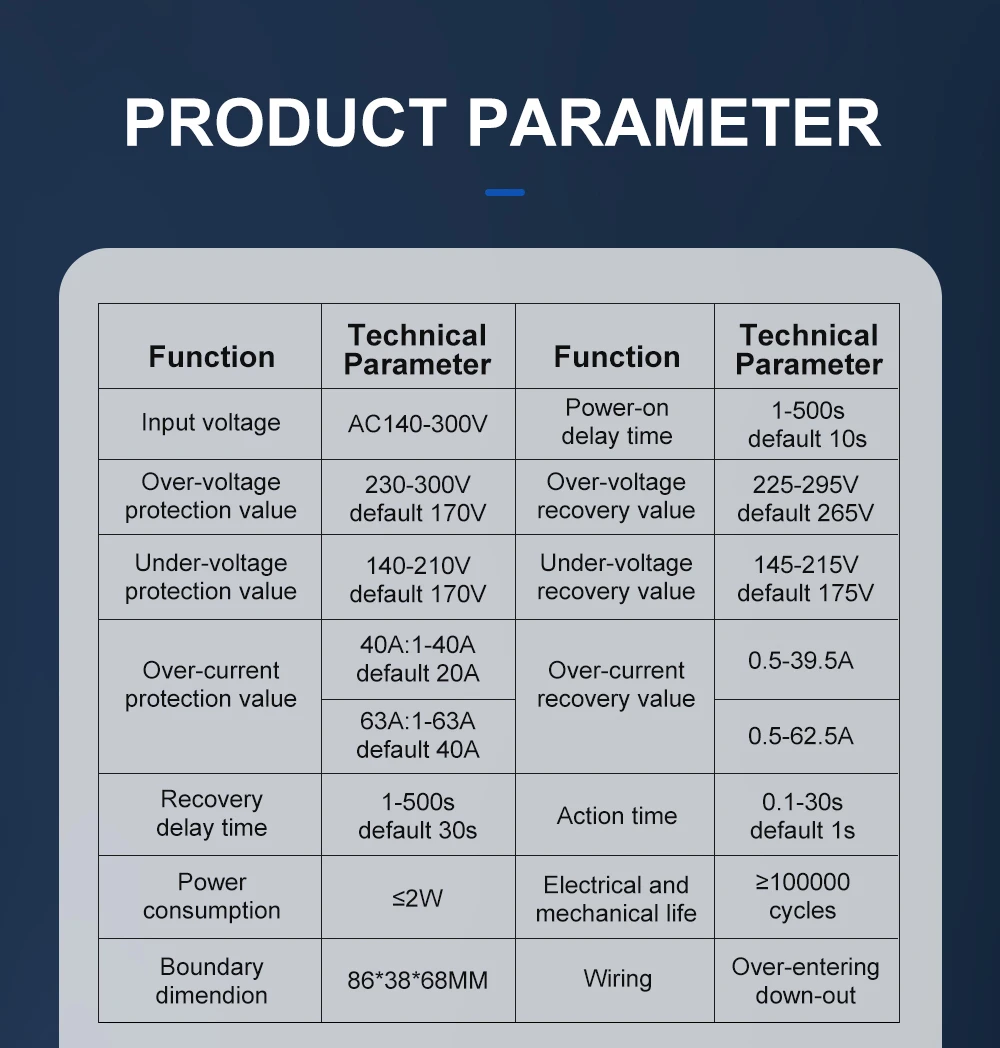

Product Parameters:

1.Model number:TOVPD1-100-EC

2.Power supply:220VAC 50/60Hz

3.Max.Loading power:100A

4.Over-voltage protection value range:230V~300~OFF(default:270V)

Over-voltage recovery voltage range:225V--295V(default:250V)

Over-voltage protection action time:0.1s~30s(default value:0.5s)

Over-voltage recovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V --OFF(default:170V)

Under-voltage recovery voltage range:145V--215V (default:190V)

Under-voltage protection action time:0.1s~30s(default:0.5s)

Under-voltage recovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-100A

Over-current action range:0.1~30 second (default:0.5s)

Over-currentrecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~500s(default:10s)

9.Power consumption : <2W

10.Electric machinery life : 100,000 times

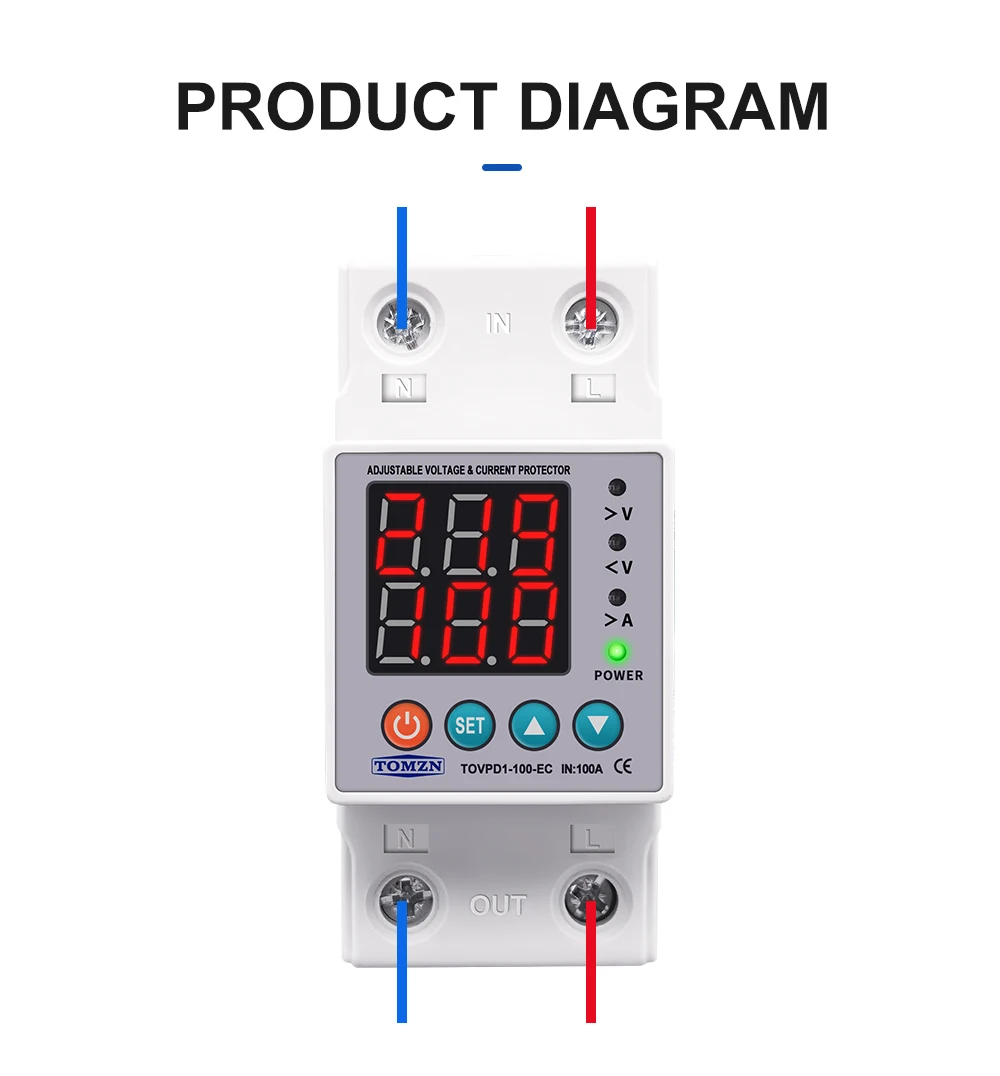

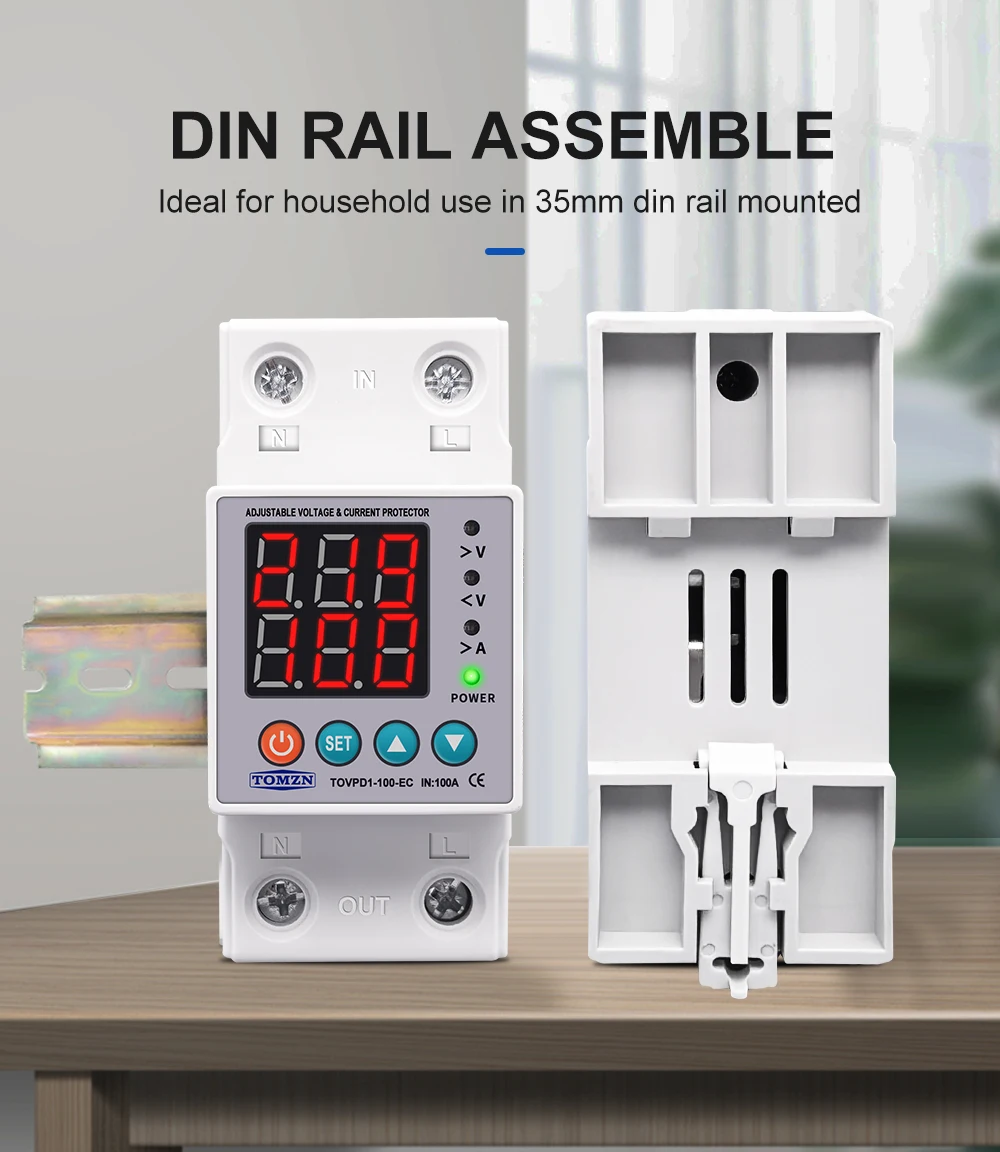

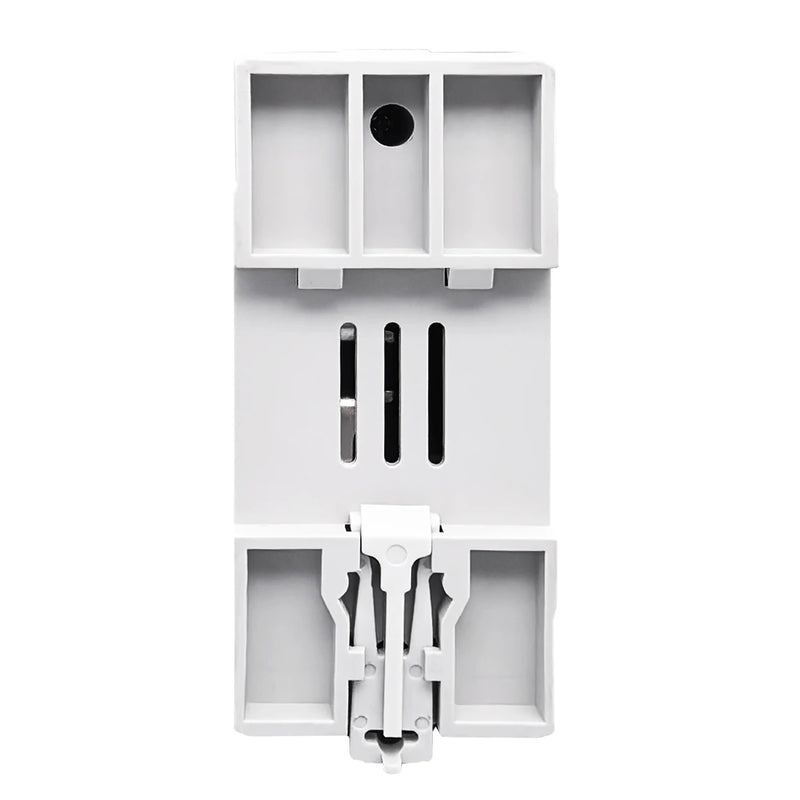

11.Installation:35mm DIN rail
