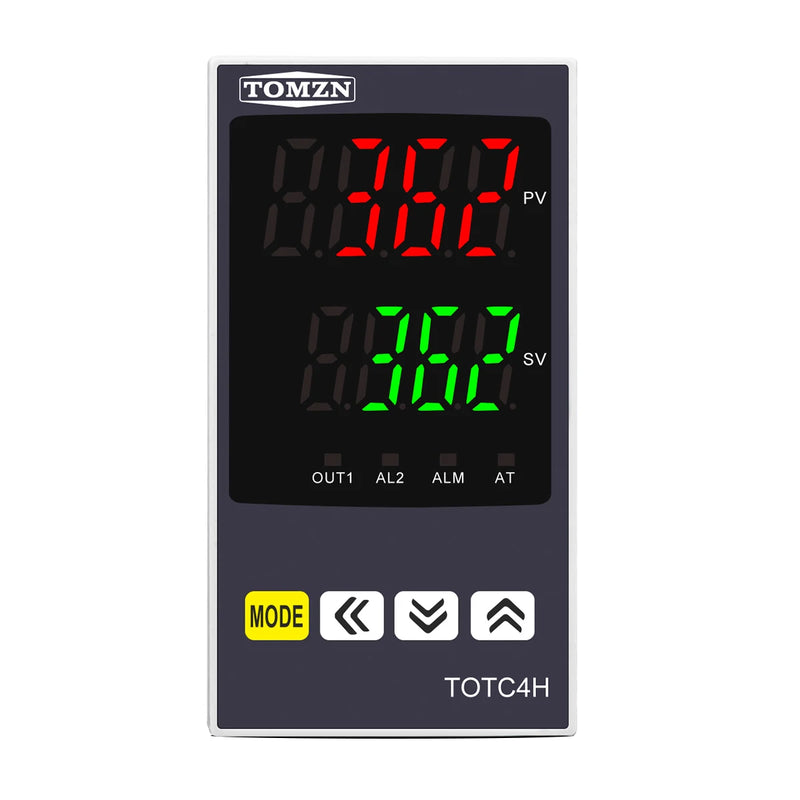

TOMZN Digital PID Temperature Controller – SSR Relay Output, Universal Input,110V/230V AC Thermostat/Regulator

Name: TOMZN Digital PID Temperature Controller – SSR Relay Output, Universal Input,110V/230V AC Thermostat/Regulator
Brand: TOMZN
SKU: 1005012323984212-TOTC4H
Price: 15.67 USD
Availability: InStock

by ដោយ TOMZN

All prices exclude shipping and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន និងពន្ធទេ។

Choose language

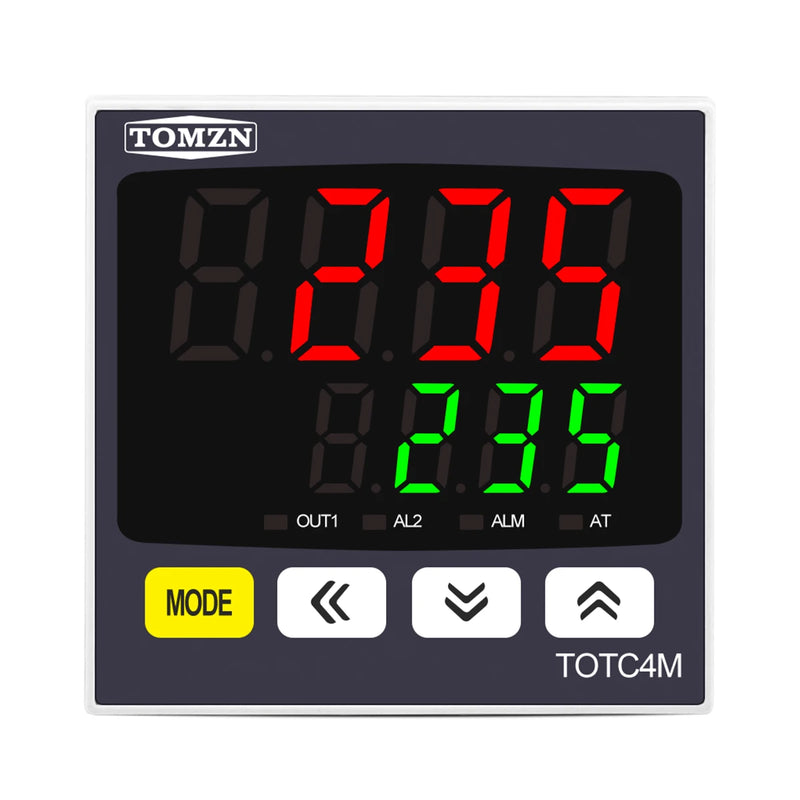

TOMZN Digital PID Temperature Controller – SSR Relay Output, Universal Input,110V/230V AC Thermostat/Regulator

SPECIFICATIONS

Battery Included: no

Brand Name: TOMZN

Certification: CE

Display Size: 1.9 Inches & Under

Electronic: No

High-concerned chemical: none

Is Smart Device: no

Max Measuring Temperature: 120°C & Above

Measure Type: K

Model Number: TOTC

Origin: Mainland China

Power Type: None

Semi-finishedproduct: No

Style: Wall Hanging

Theory: Temperature Controller

Type: K

Use: Household

Product Introduction

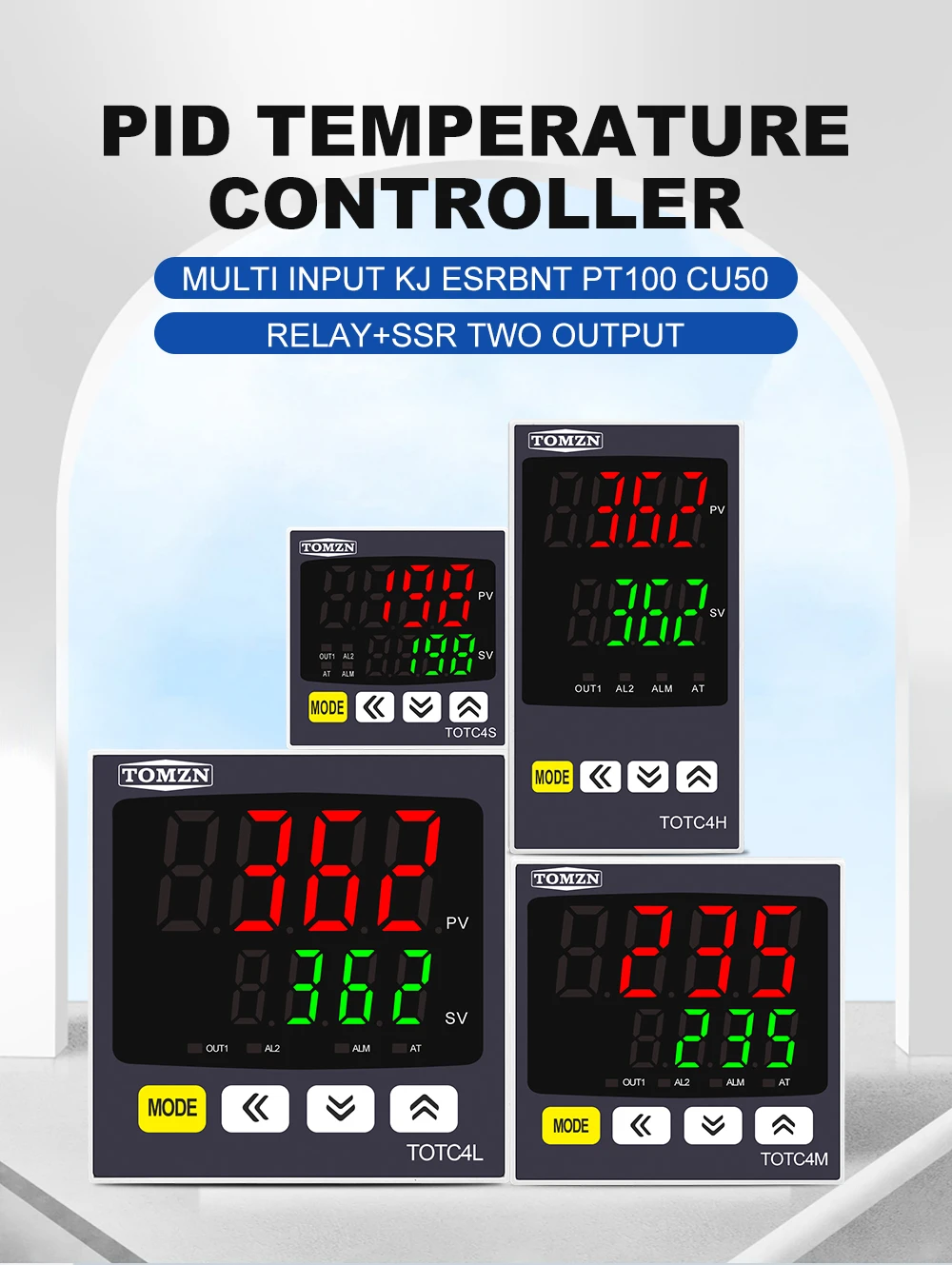

The TOTC series is a compact PID temperature controller designed for applications requiring precise and stable temperature control with rapid response. Featuring a 100 ms high-speed sampling rate and an advanced PID algorithm, it ensures accurate regulation in a streamlined, space-saving enclosure—achieving a 38% reduction in depth compared to previous models. The controller offers flexible dual output modes, supporting either relay or SSR drive via the SSRP function. Its clear wide display includes SV/PV deviation indication for easy monitoring, while delivering a high accuracy of ±0.5%FS±1°C. Ideal for industrial environments, the TOTC series combines performance, reliability, and enhanced visibility in a compact form factor.

Product Data Sheet

Model number: TOTC series

Accuracy: ±0.5%FS±1°C

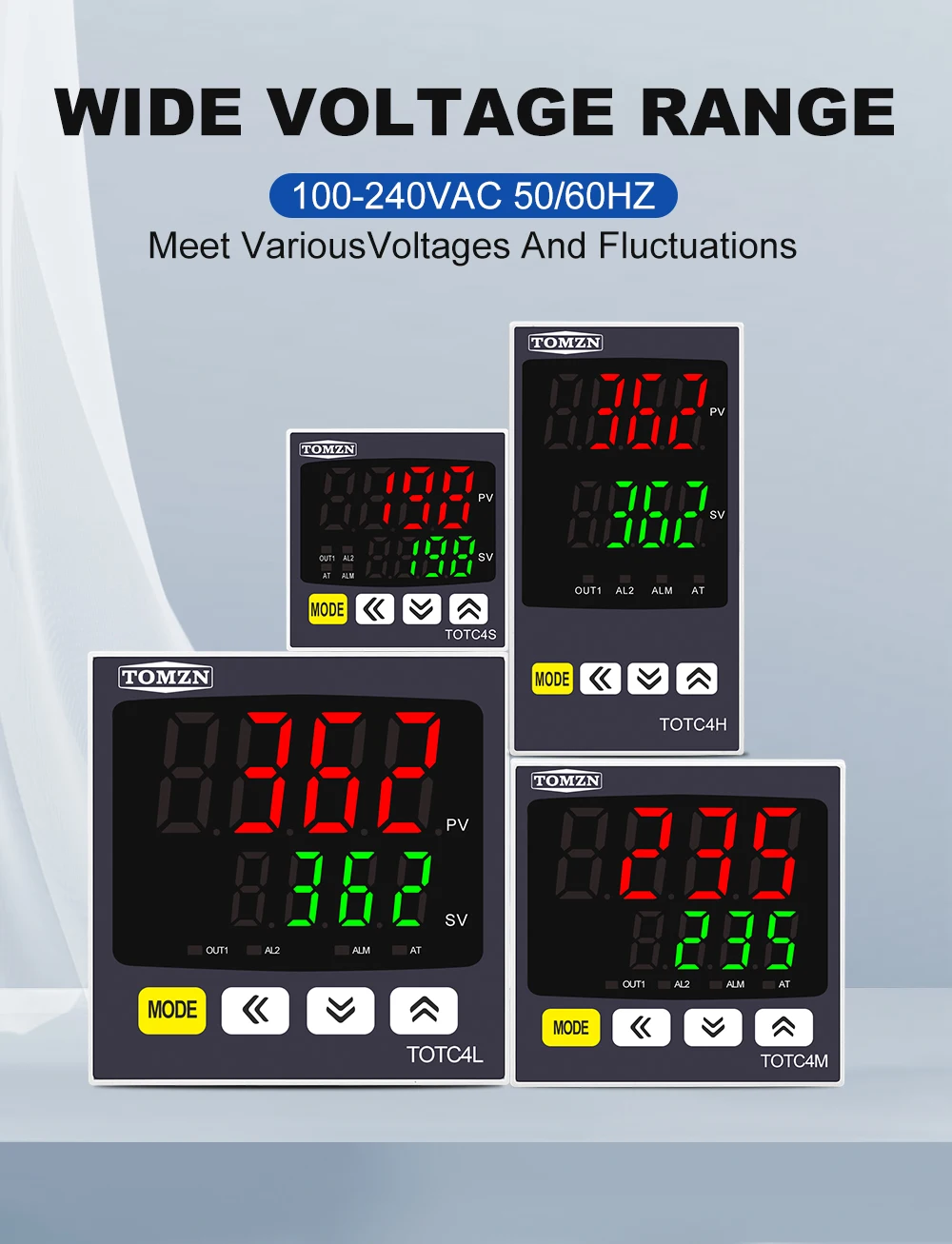

Supply voltage: 100-240V

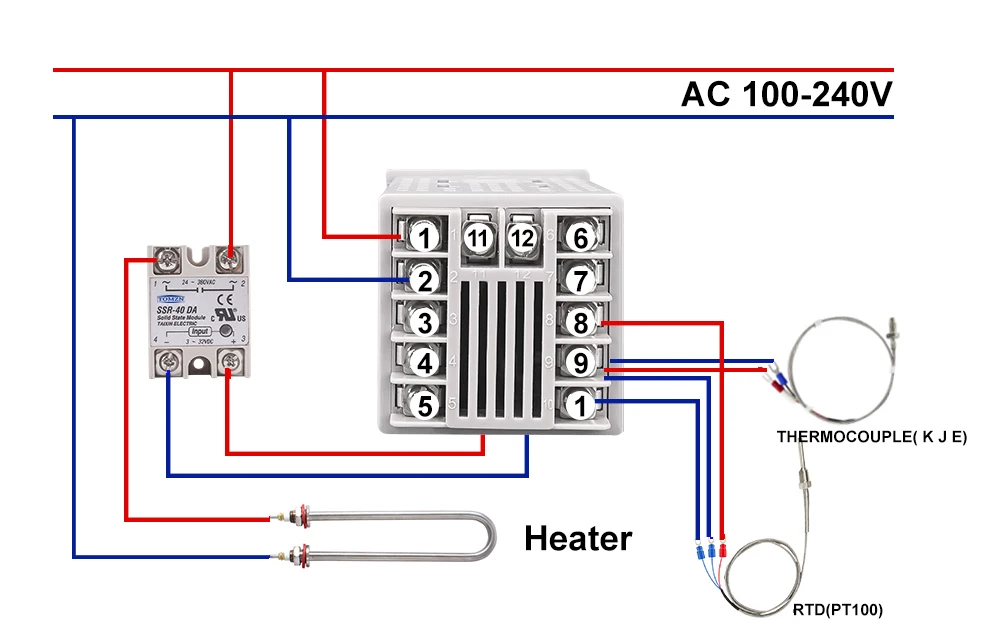

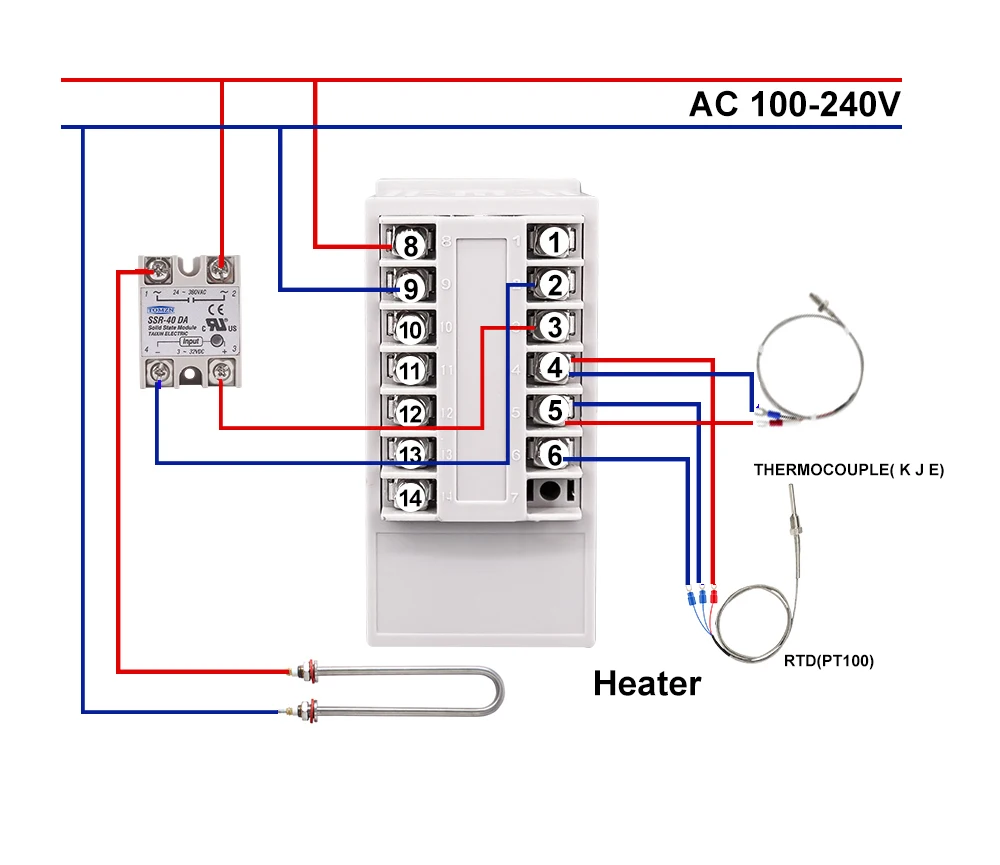

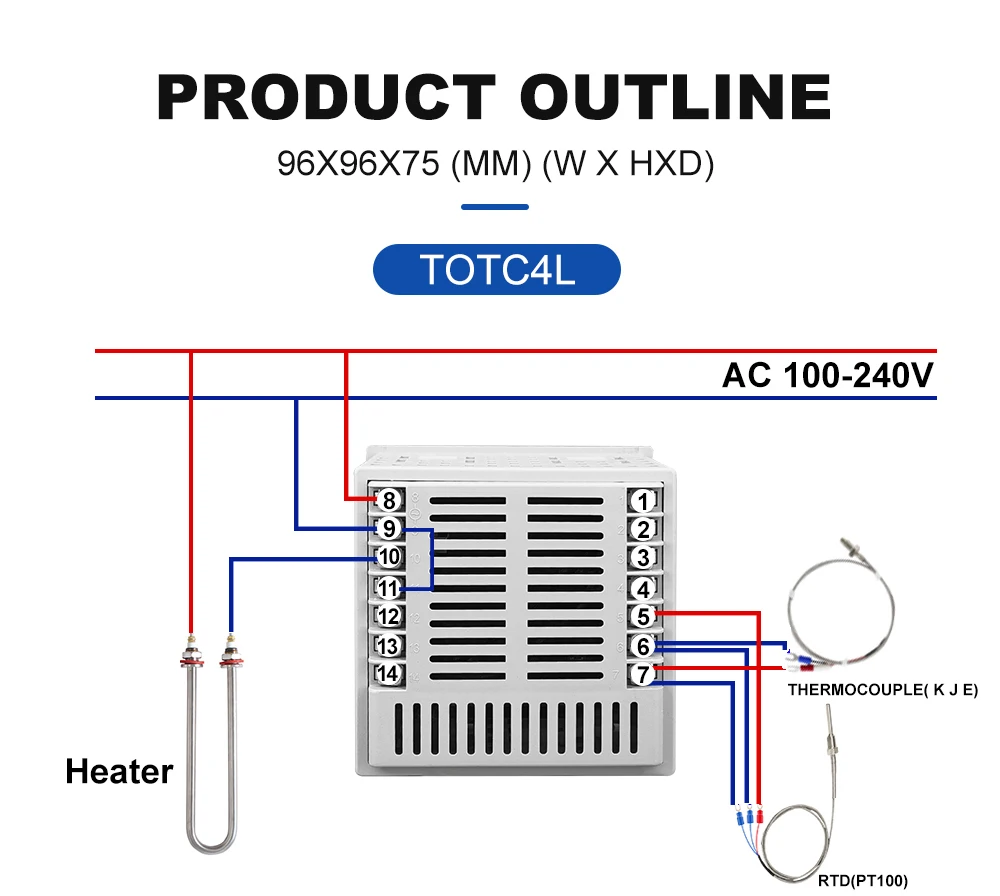

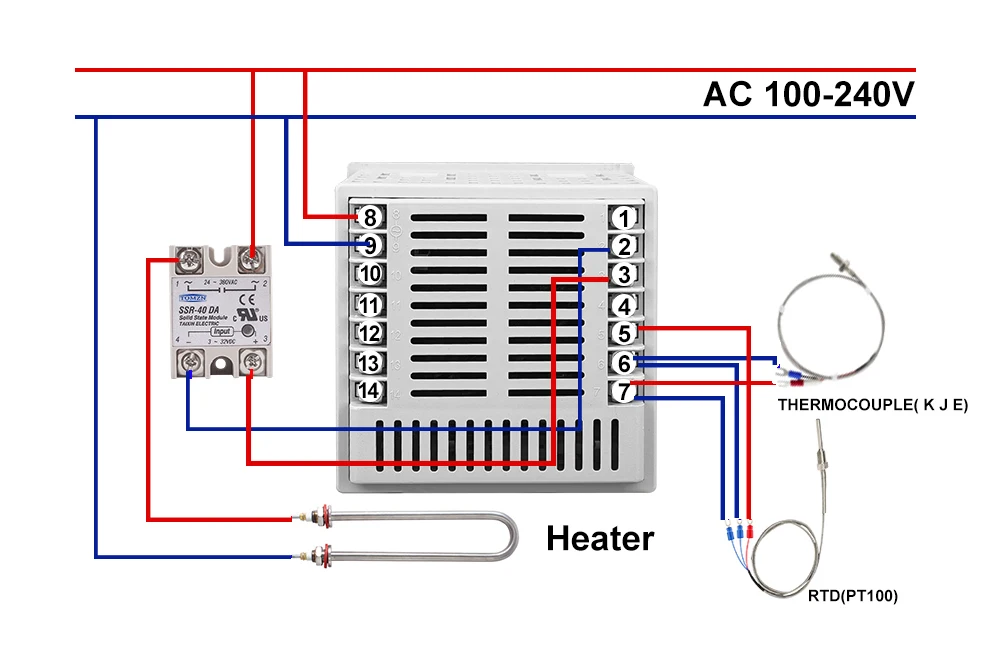

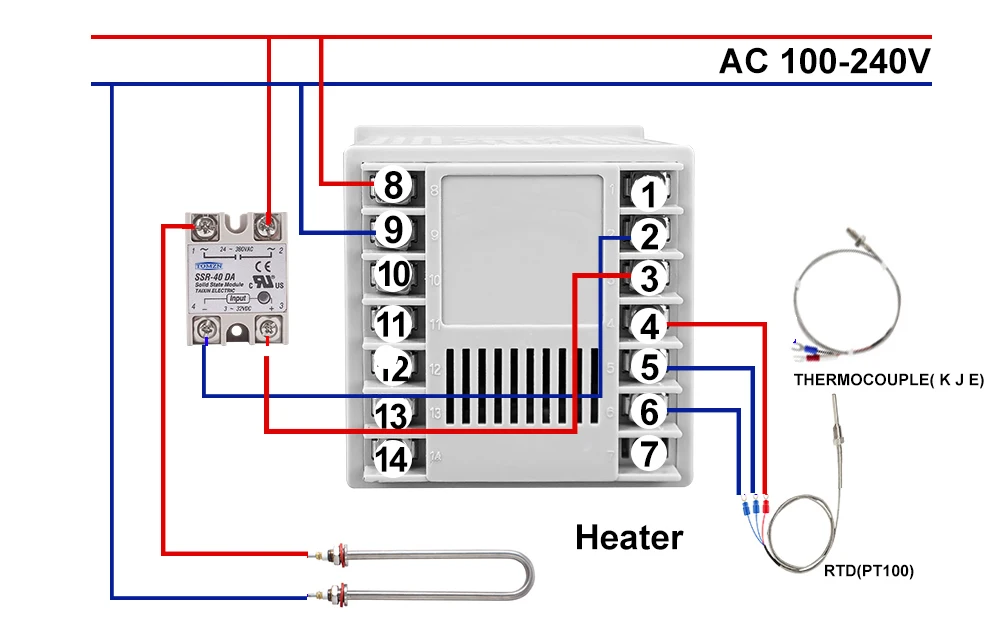

Output types: Electromagnetic relay + SSR

Power consumption: AC100-240V: under 10VA

Control method: PID, or ON/OFF

Setting method: Touch switch

Indication method: 8-segment 4-digit display and LED indication

Operating temperature: -10 to 50°C

Operating humidity: 35-85% RH max, non-condensing

Alias name: TOTC series PID temperature controller, intelligent temperature controller
