SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Input voltage: DC 500V 600V 800V 1000V 1200V 1500V

Is Smart Device: no

Max. Discharge Current: 20kA 40kA

Model Number: TZG40-PV

Nominal Discharge Current: 10kA 20kA

Origin: Mainland China

Type: Other

is_customized: Yes

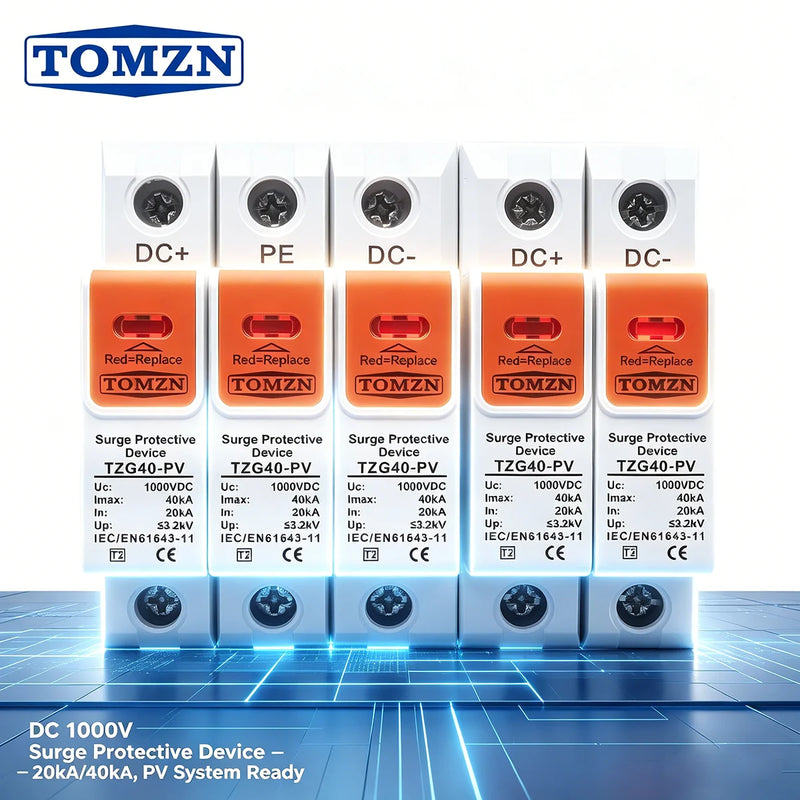

Product Introduction

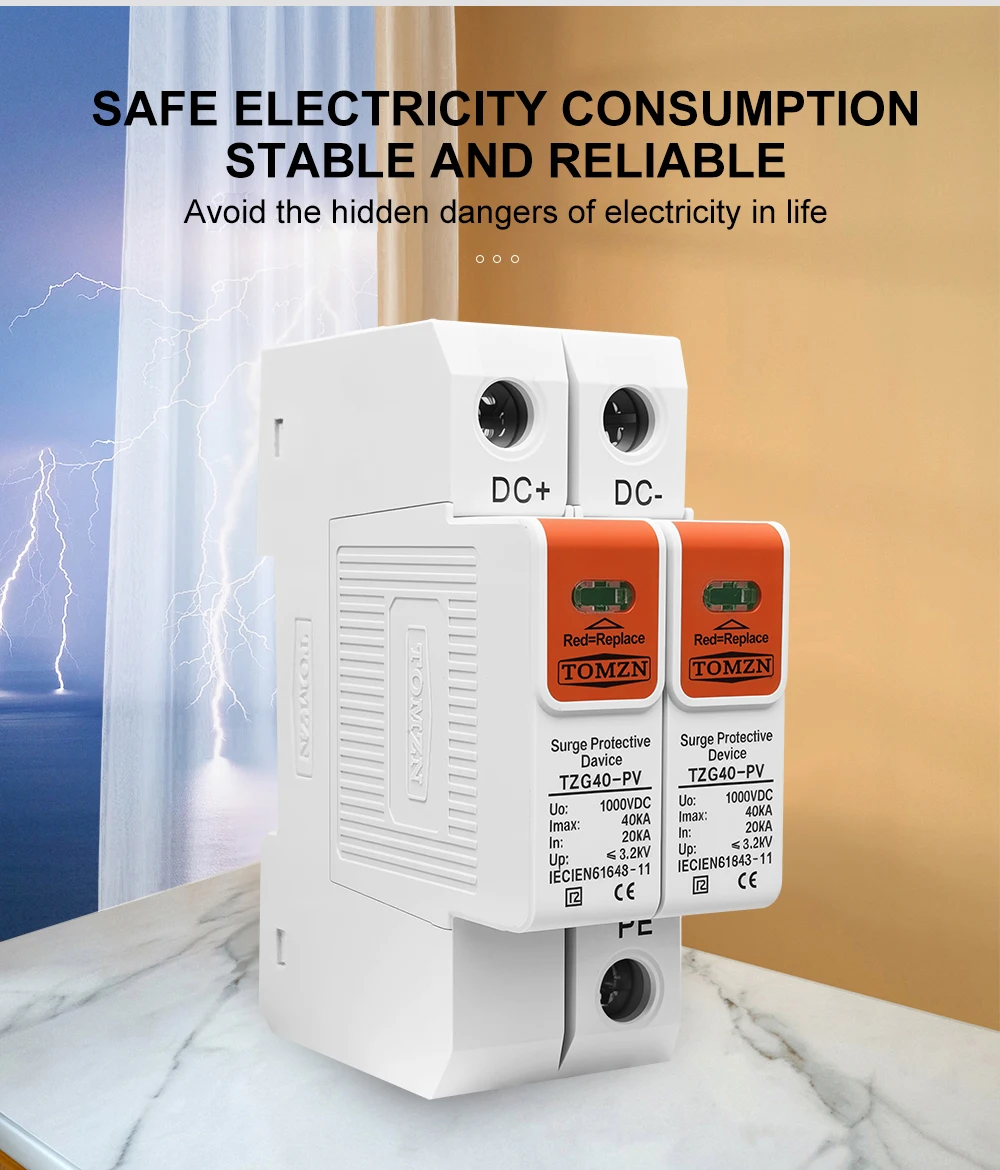

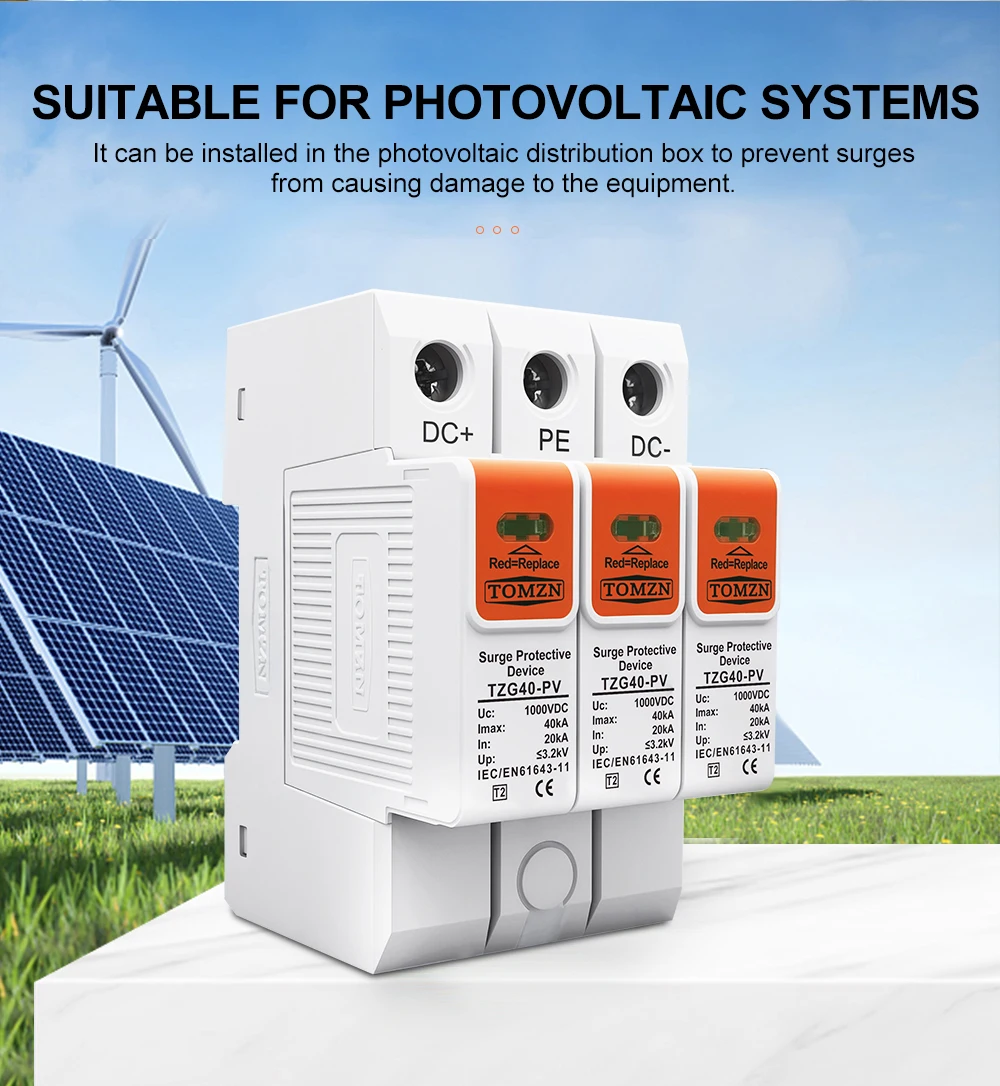

This DC surge protective device (SPD) is designed to protect electrical systems and on-load electrical apparatus from damage caused by lightning strikes and instantaneous over-voltages. Available in 2-pole or 3-pole configurations, it supports a wide range of DC voltage ratings from 500V to 1500V, making it suitable for photovoltaic (PV) systems, battery storage, and industrial DC power supplies. With a nominal discharge current of 10-20kA and maximum discharge current of 20-40kA, it provides robust transient over-voltage protection while ensuring fast response and low residual voltage. Ideal for outdoor and indoor DC power distribution applications.

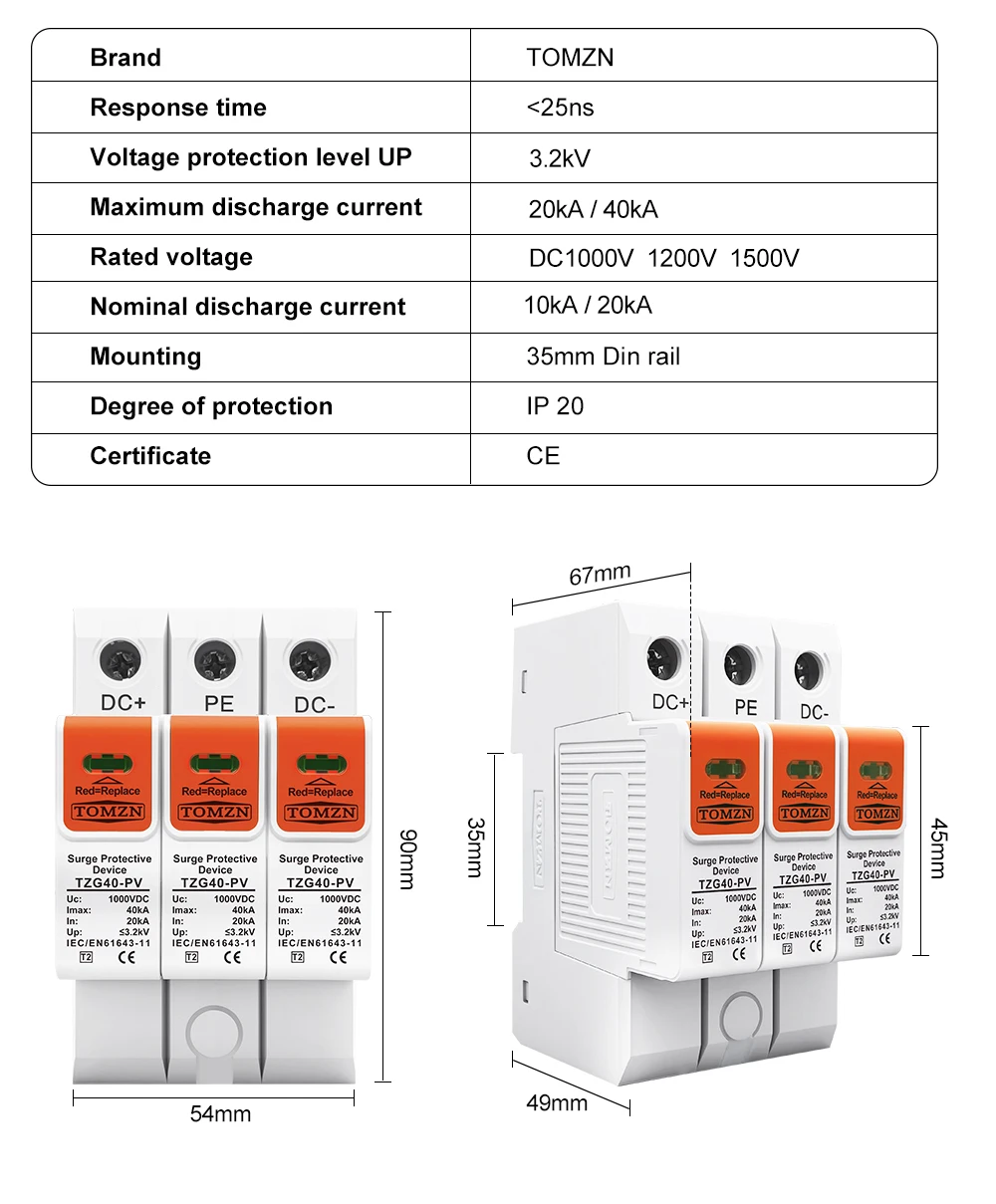

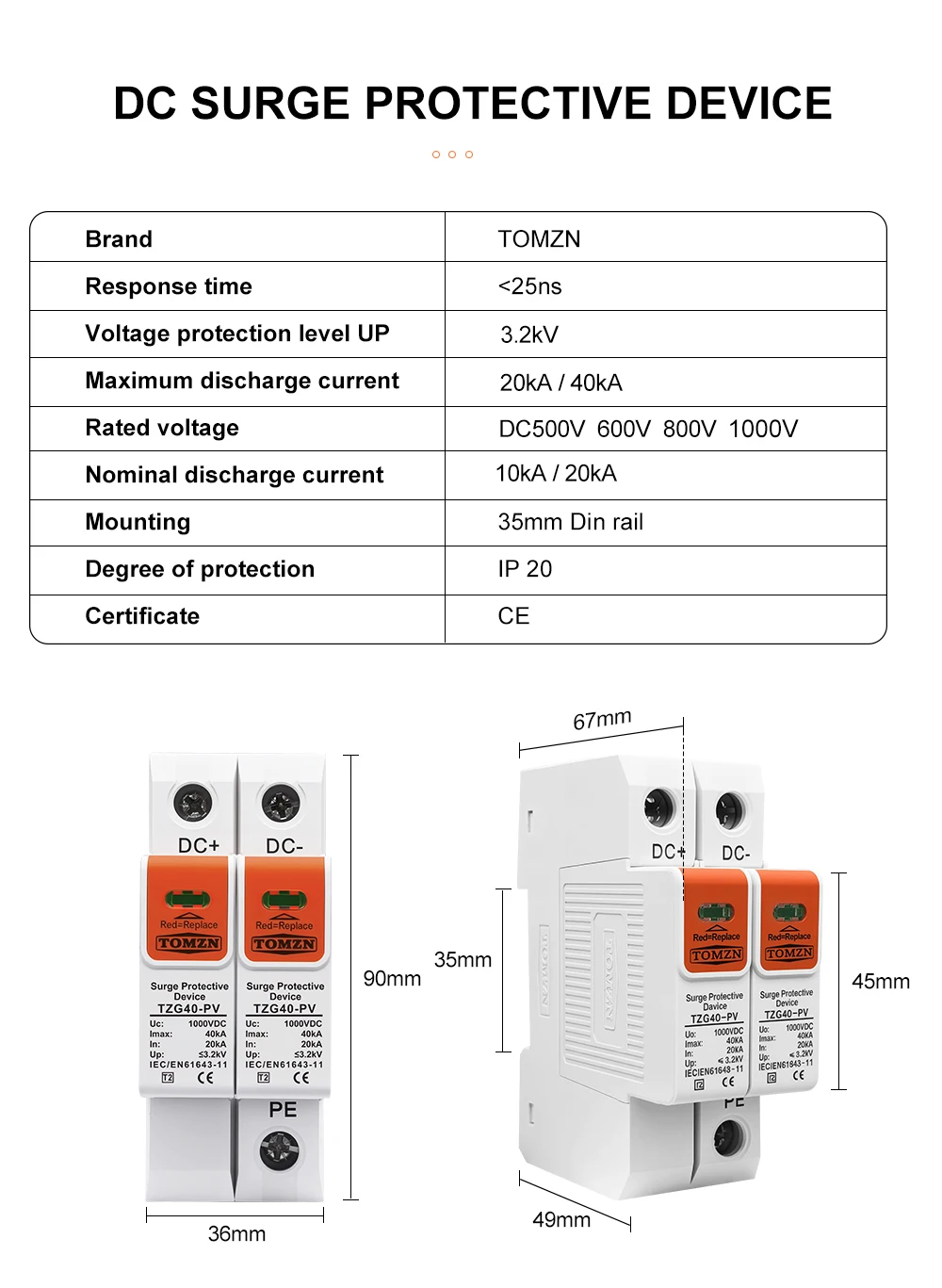

Product Data Sheet

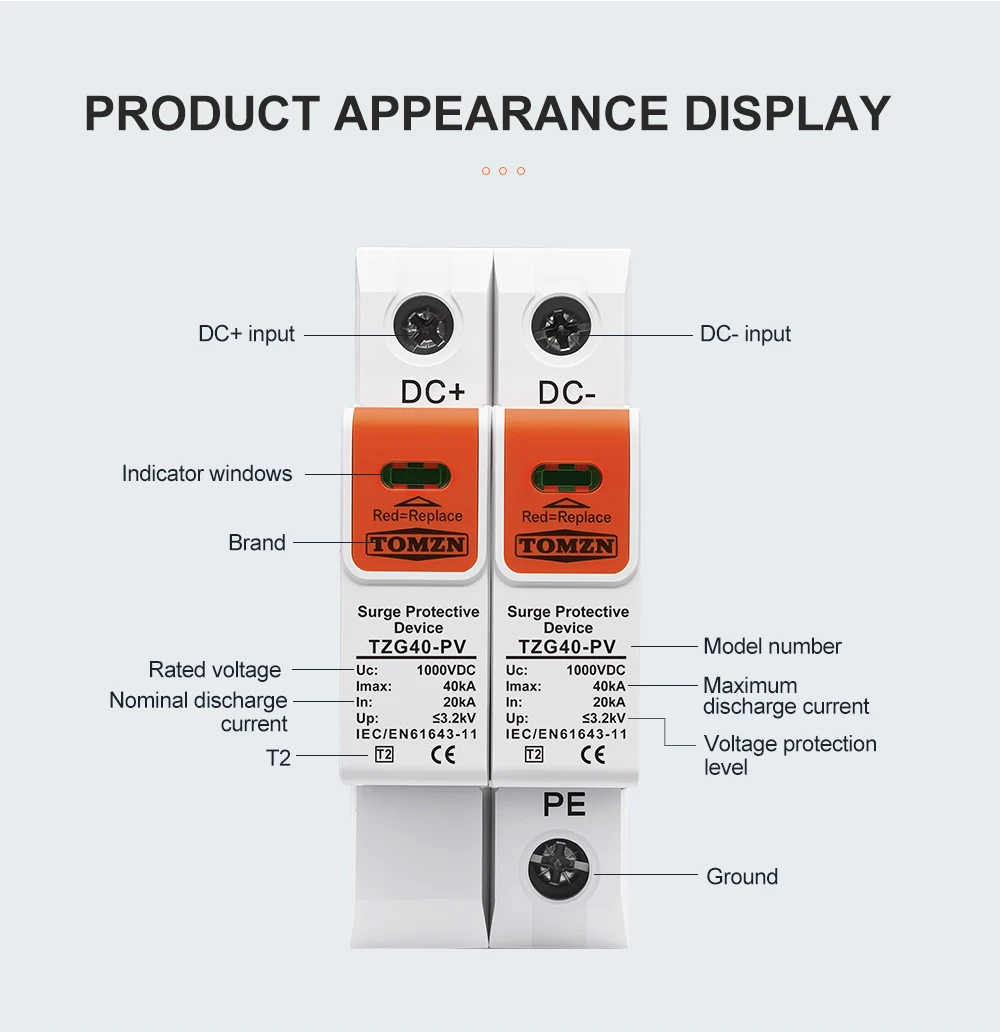

Product type: DC Surge Protective Device (SPD)

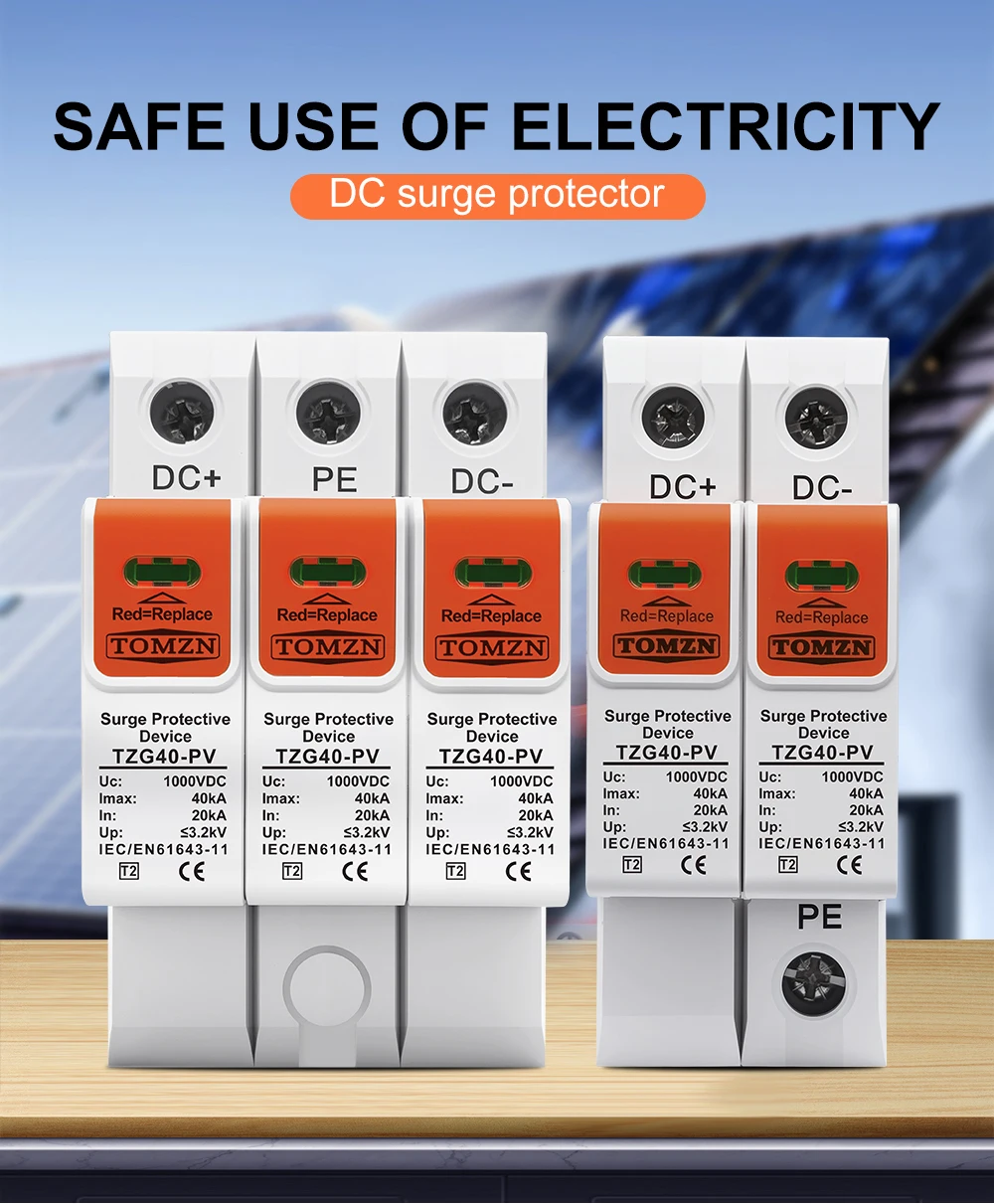

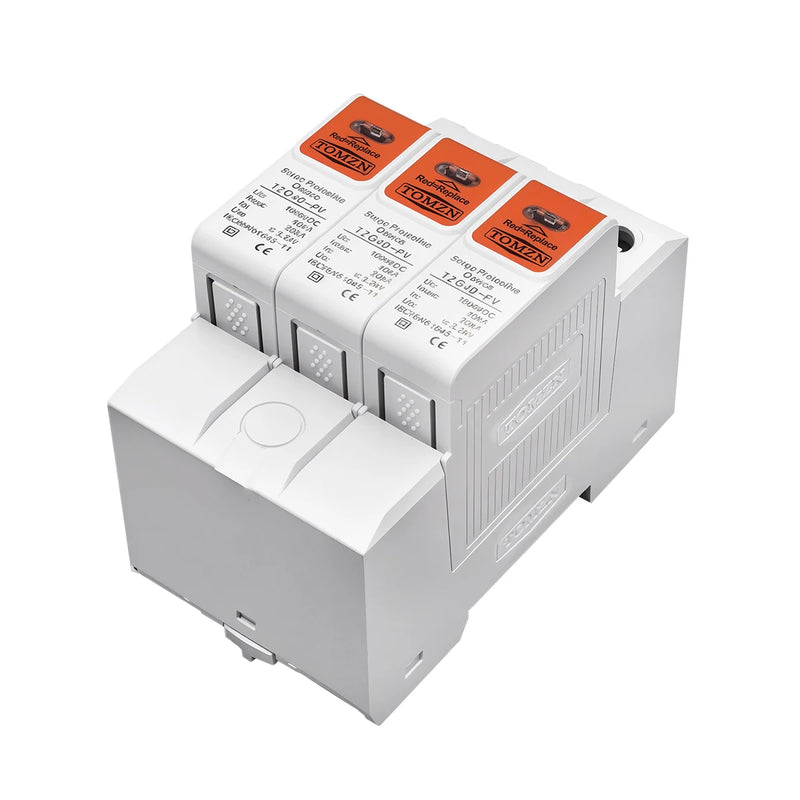

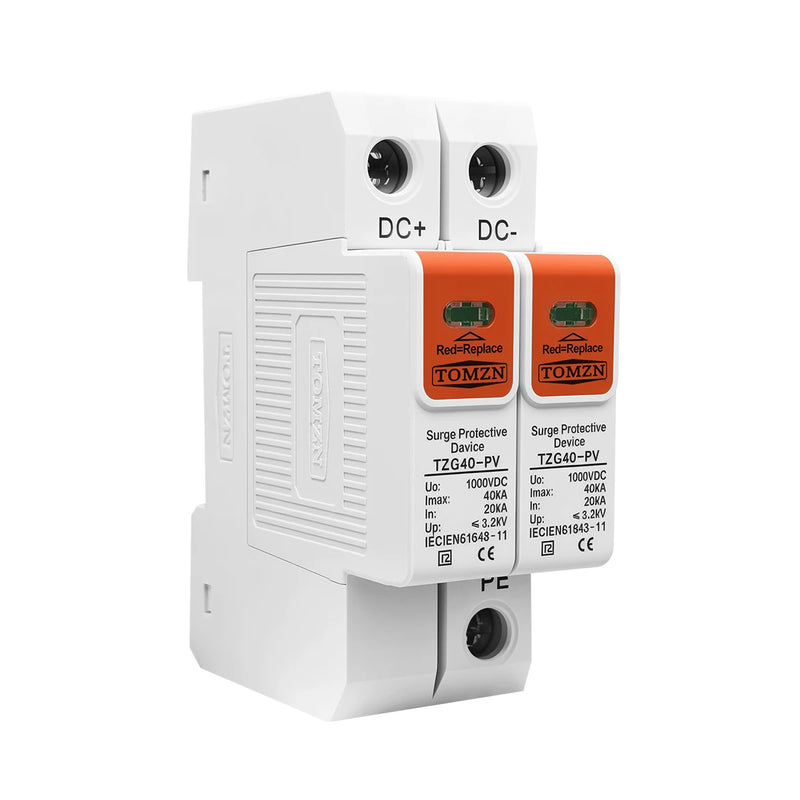

Number of poles: 2P or 3P

Rated DC voltage options: 500V, 600V, 800V, 1000V, 1200V, 1500V

Nominal discharge current (In): 10-20kA

Maximum discharge current (Imax): 20-40kA

Application: Protection of electrical systems and on-load apparatus from lightning and transient over-voltage

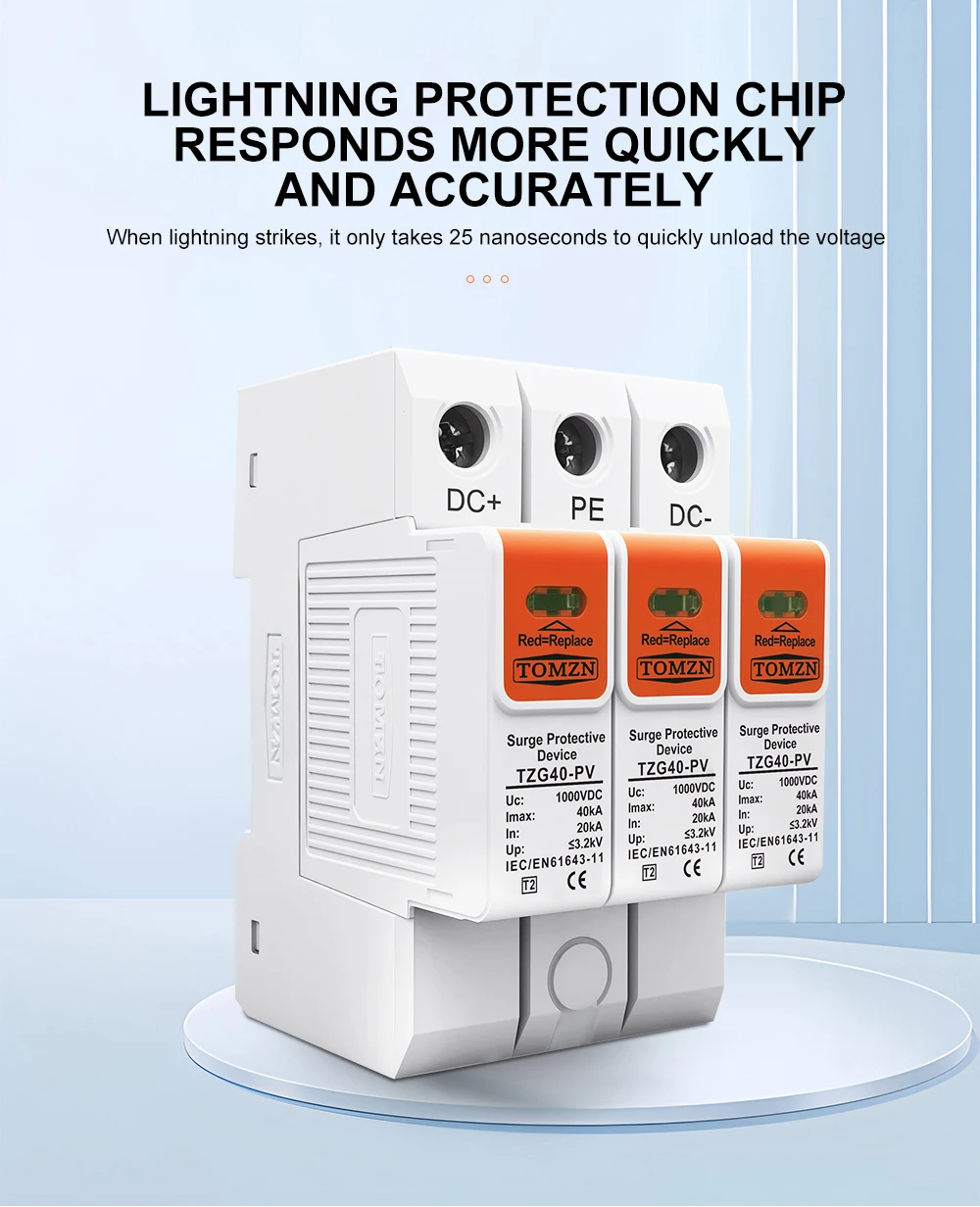

Response time: <25ns

Mounting: 35mm DIN rail

Compliance: IEC/EN 61643-11
