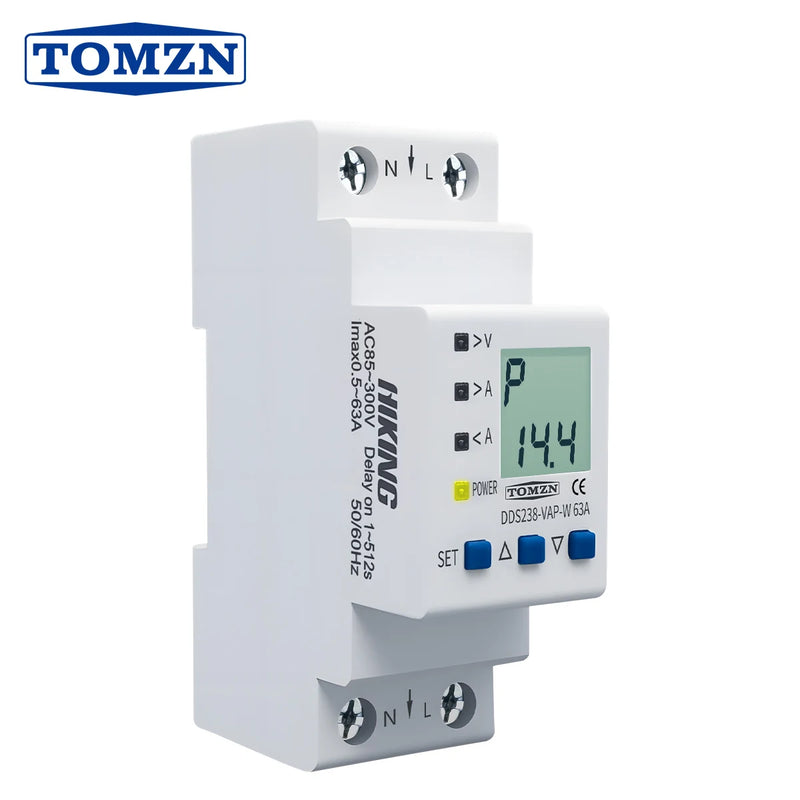

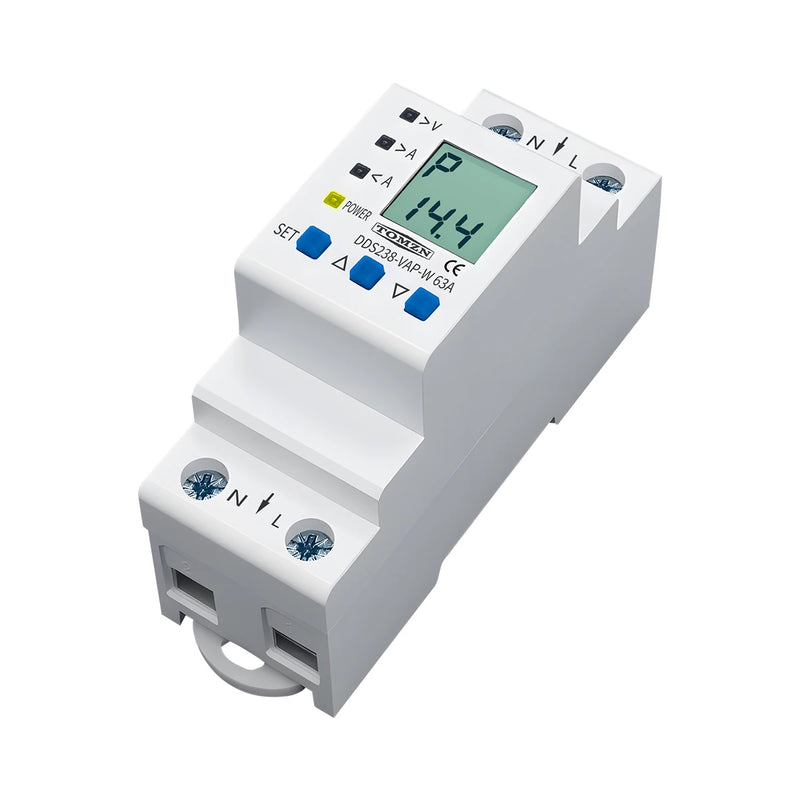

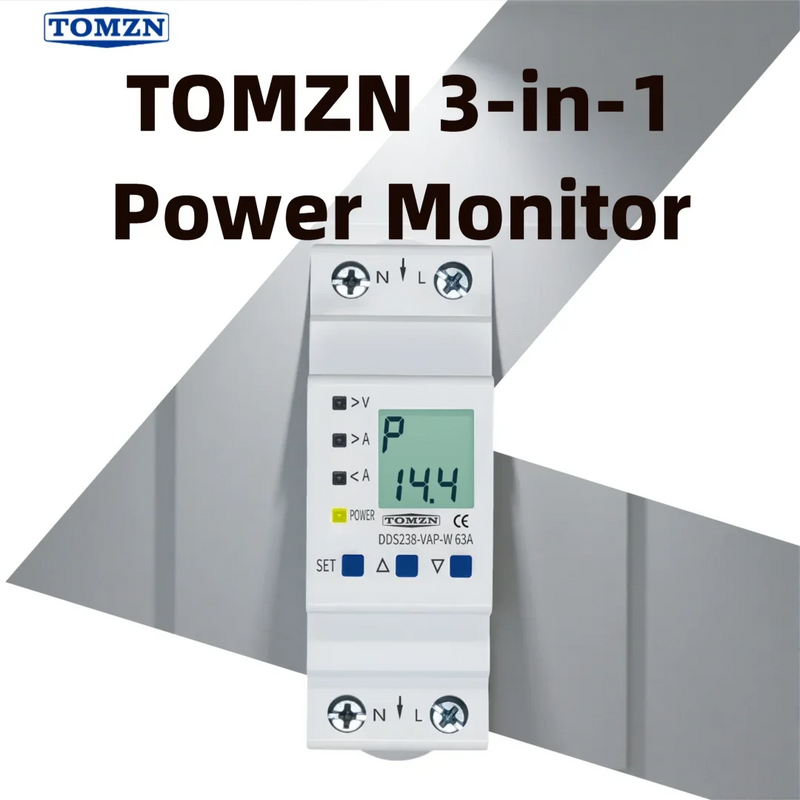

TOMZN Adjustable Overvoltage Undercurrent Protector Relay 63A 110230V V-I-kW-kWh Multi-Function Display | Water Level Control
SPECIFICATIONS
Active time range: 0.1-60s
Brand Name: TOMZN
Certification: CE
Delay off time range: 1-512s
Delay on time range: 2-255s
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Is Smart Device: no
Model Number: DDS238-VAP-W
Origin: Mainland China
Over current protection range: 1-63A ( default 40A)
Overvoltage protection range: 85-300V ( default 270V)
Rated frequency: 50/60Hz
Type: Mini,Voltage relay
Under voltage protection range: 85-300V ( default 170V)
is_customized: Yes
Product Introduction

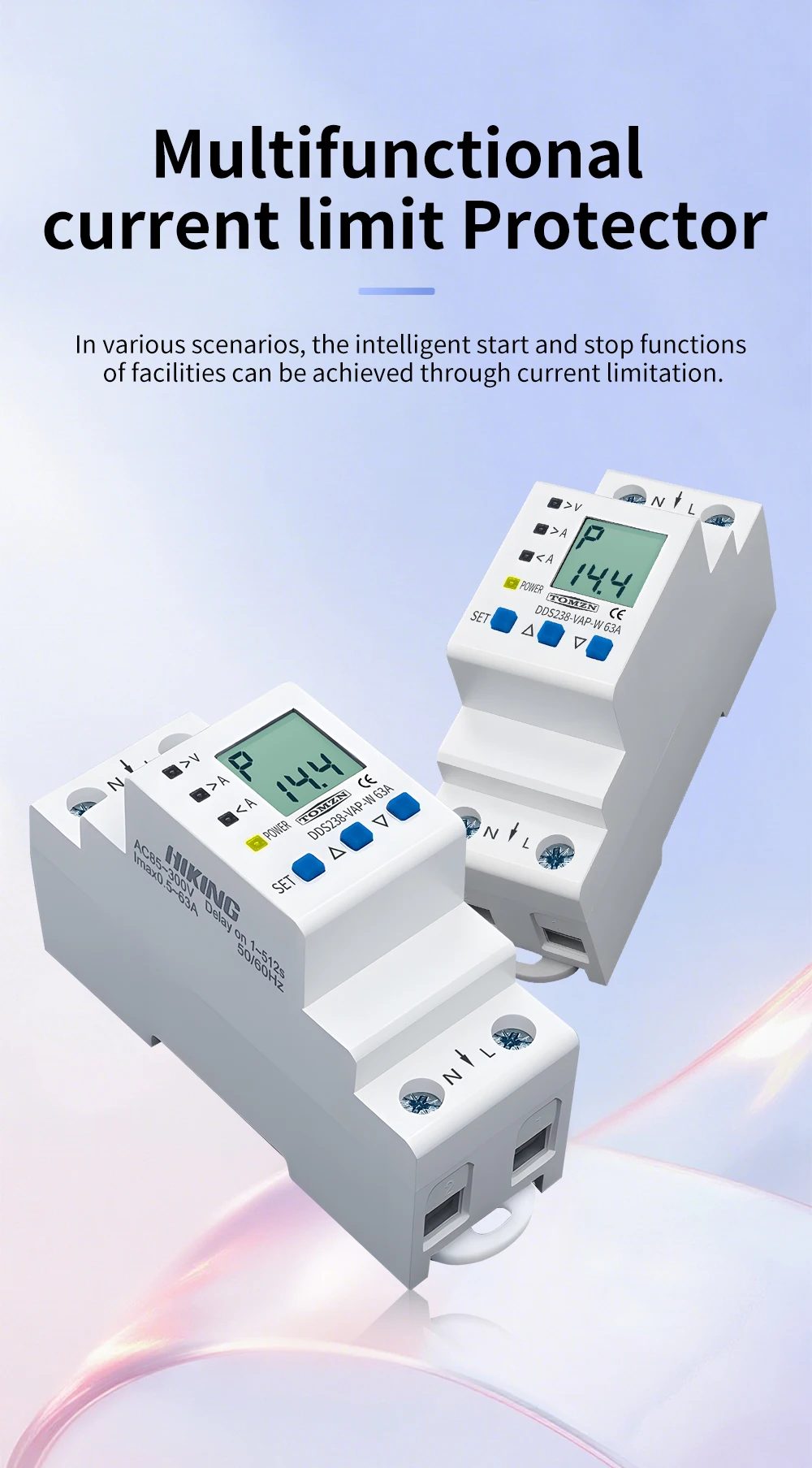

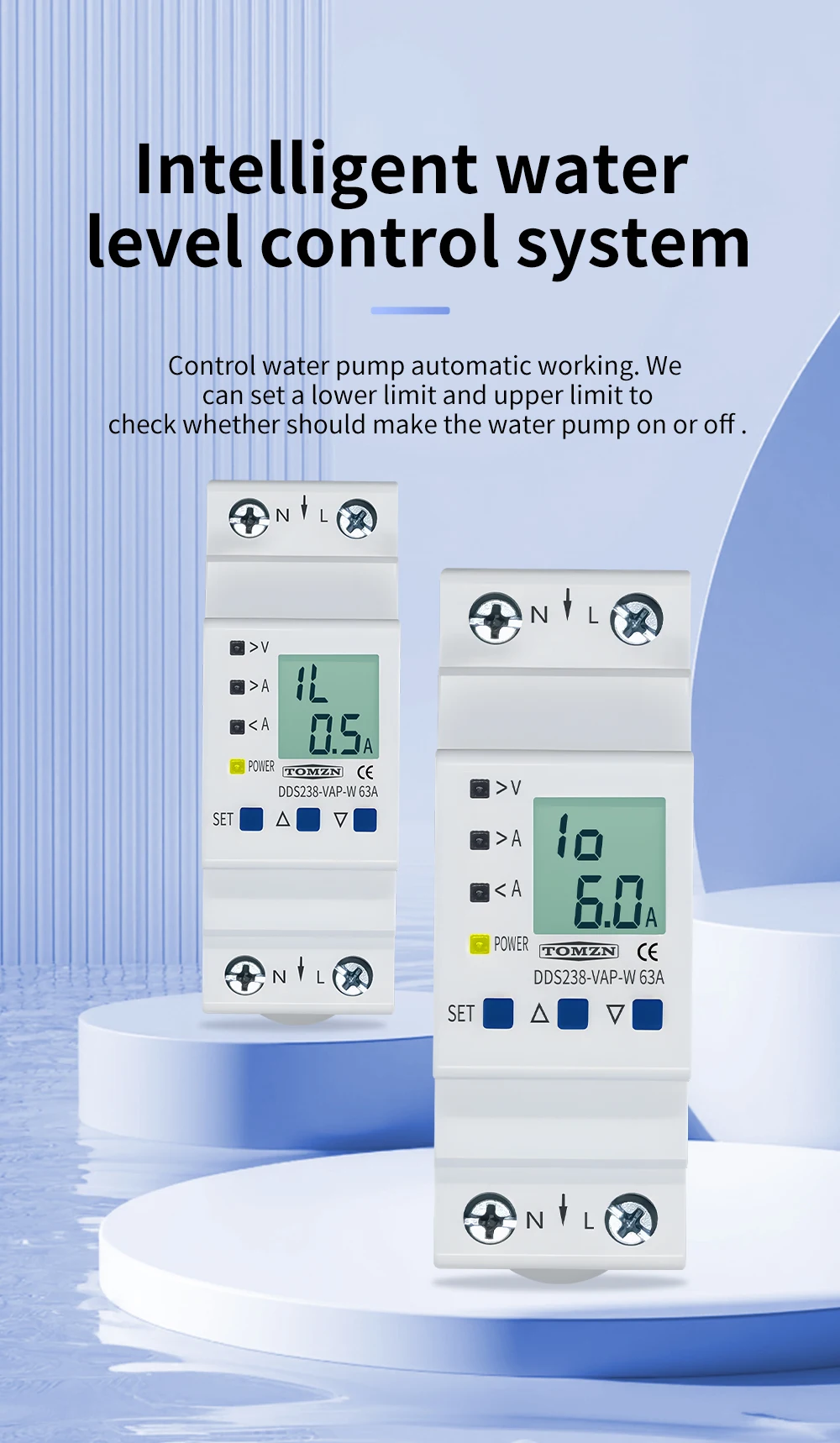

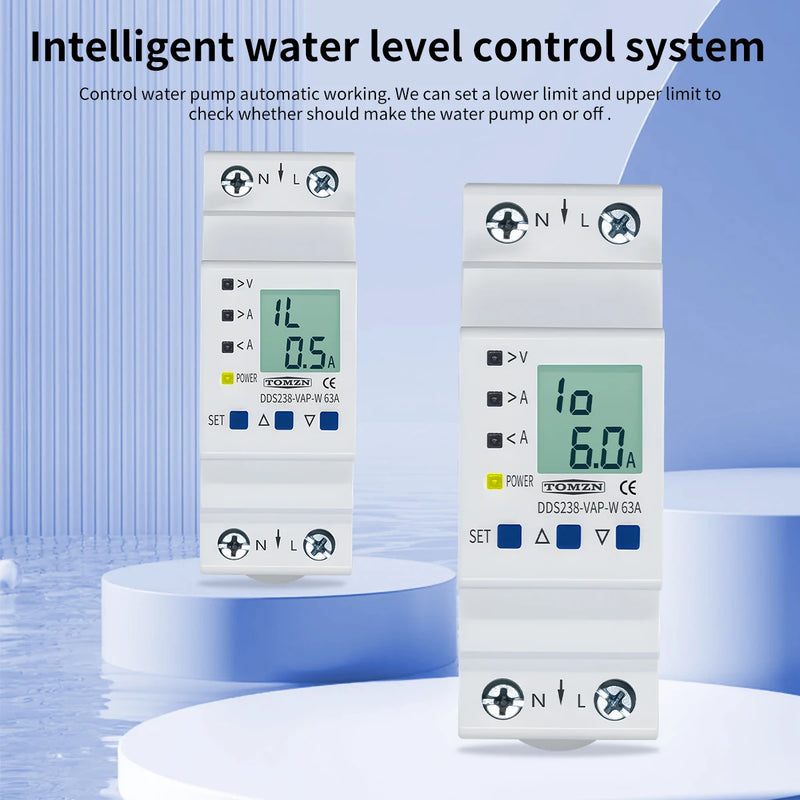

The DDS238-VAP is a single-phase two-wire AC active energy meter with integrated water pump protection functions. Designed for automatic pump control, it monitors overvoltage, overcurrent, and undercurrent conditions (note: undervoltage protection is not included). The device automatically cuts off the water pump when the water tower is full (current rises) or when the pipe runs dry (current drops), helping to reduce water waste and prevent pump motor overheating due to prolonged operation. It features a backlit LCD displaying total active energy (kWh), real-time current (A), voltage (V), and active power (W). Additional functions include built-in lightning protection, adjustable overvoltage and current limits, delay power-on, selectable auto or manual reclosing modes, programmable pump recycle time, and load disconnection on power failure. With high accuracy (Class 1 for energy), wide operating temperature range, and mechanical life of β₯100,000 cycles, the DDS238-VAP is a reliable solution for water pump management and energy measurement.

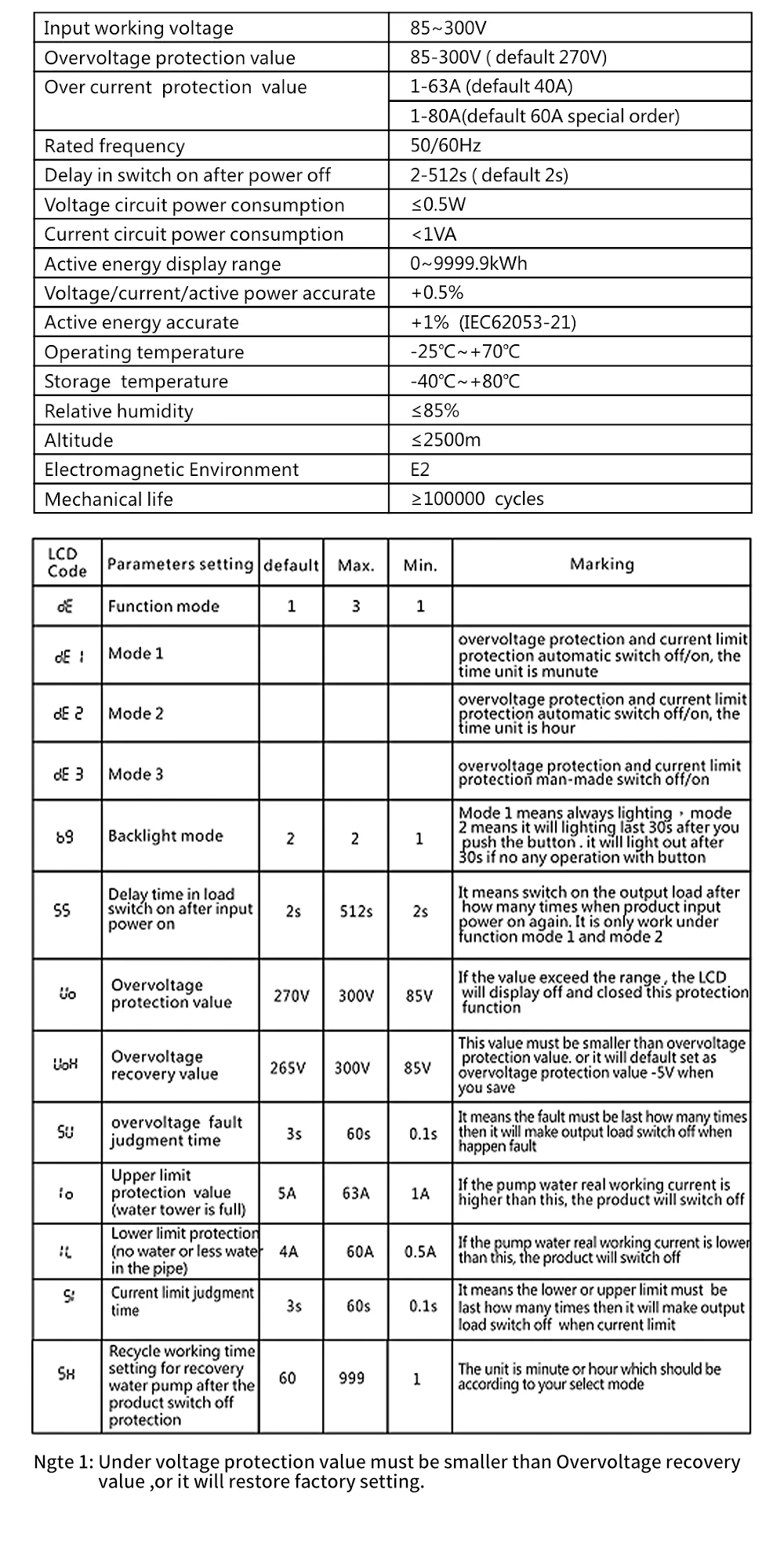

Product Data Sheet
Model number: DDS238-VAP (Water pump protective device)
Type: Single-phase two-wire AC active energy meter with pump control
Input working voltage: 85-300V AC
Rated frequency: 50/60Hz
Maximum current: 63A
Overvoltage protection value: 85-300V (default: 270V)
Overcurrent protection (current limit): 1-63A (default: 40A)
Undercurrent protection: Yes (for dry pipe detection)
Undervoltage protection: No
Delay switch-on after power-off: 2-255s (default: 2s)
Voltage circuit power consumption: β€1W
Current circuit power consumption: <1VA
Active energy display range: 0-9999.9 kWh

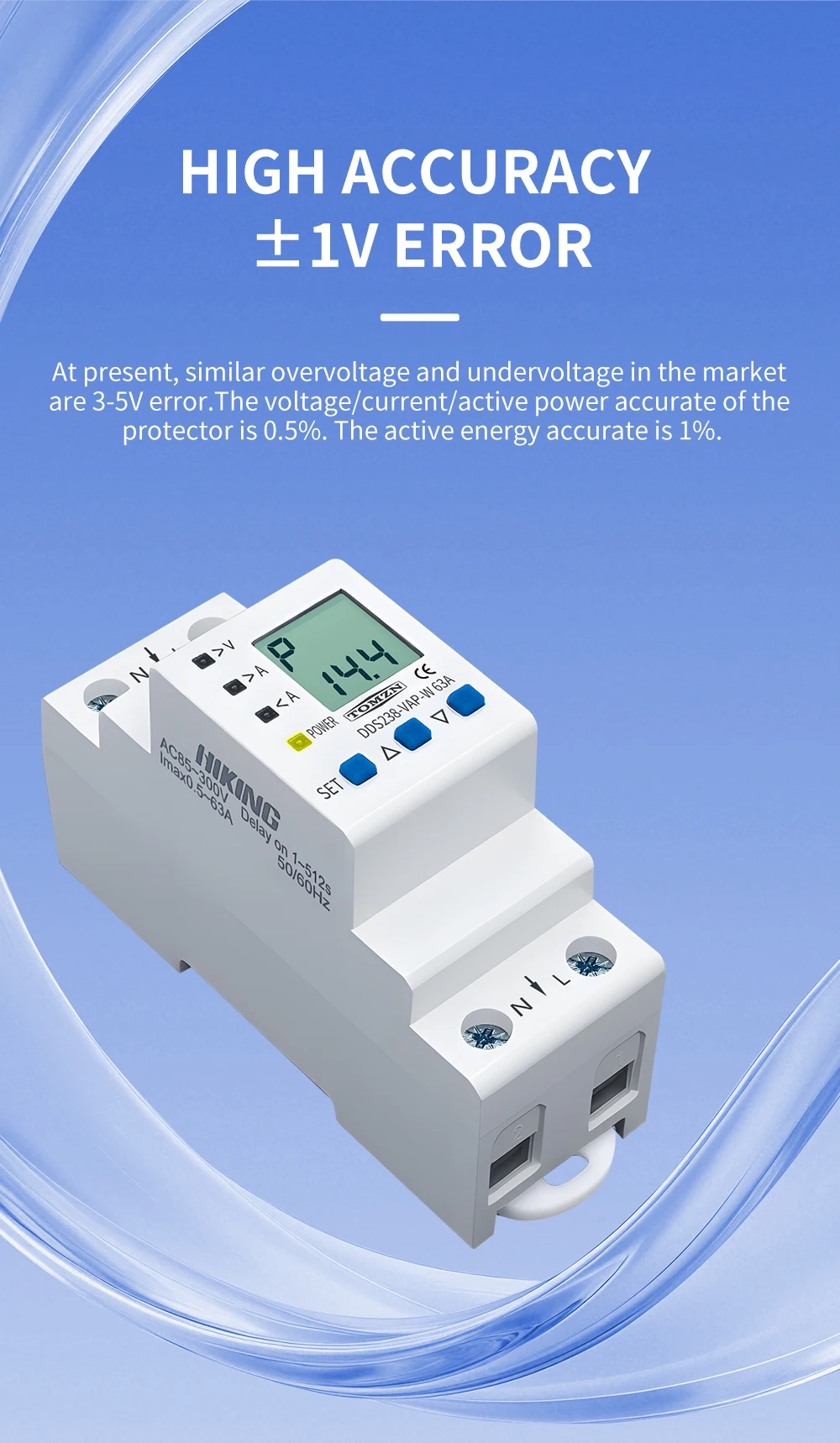

Voltage/current/active power accuracy: 0.50%
Active energy accuracy: Β±1% (IEC62053-21)

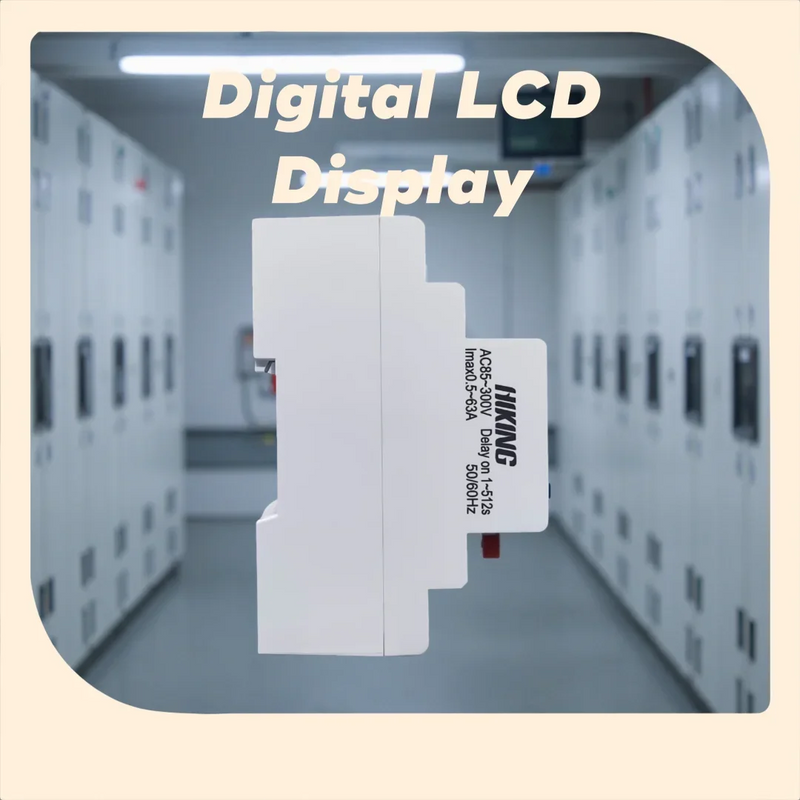

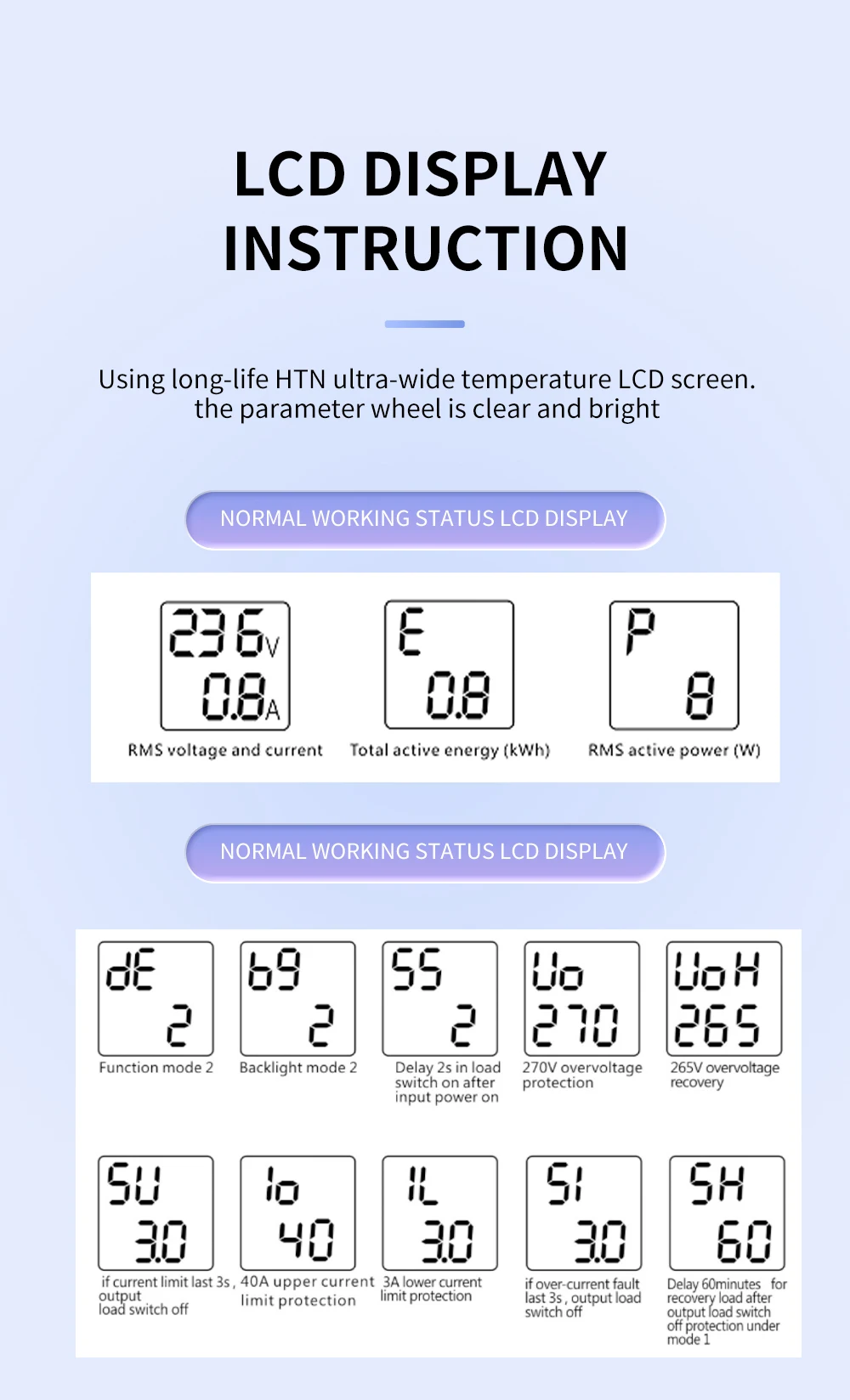

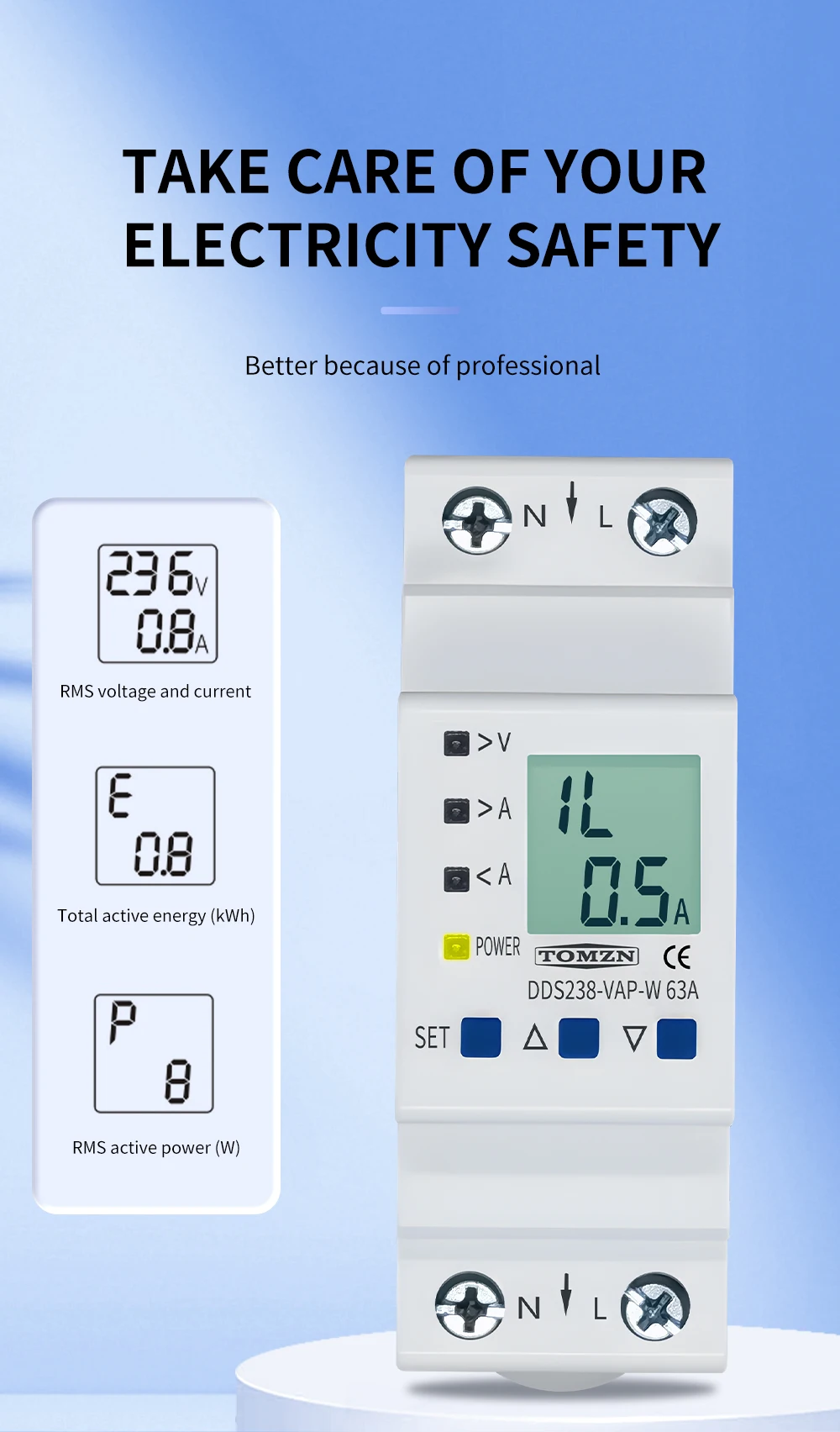

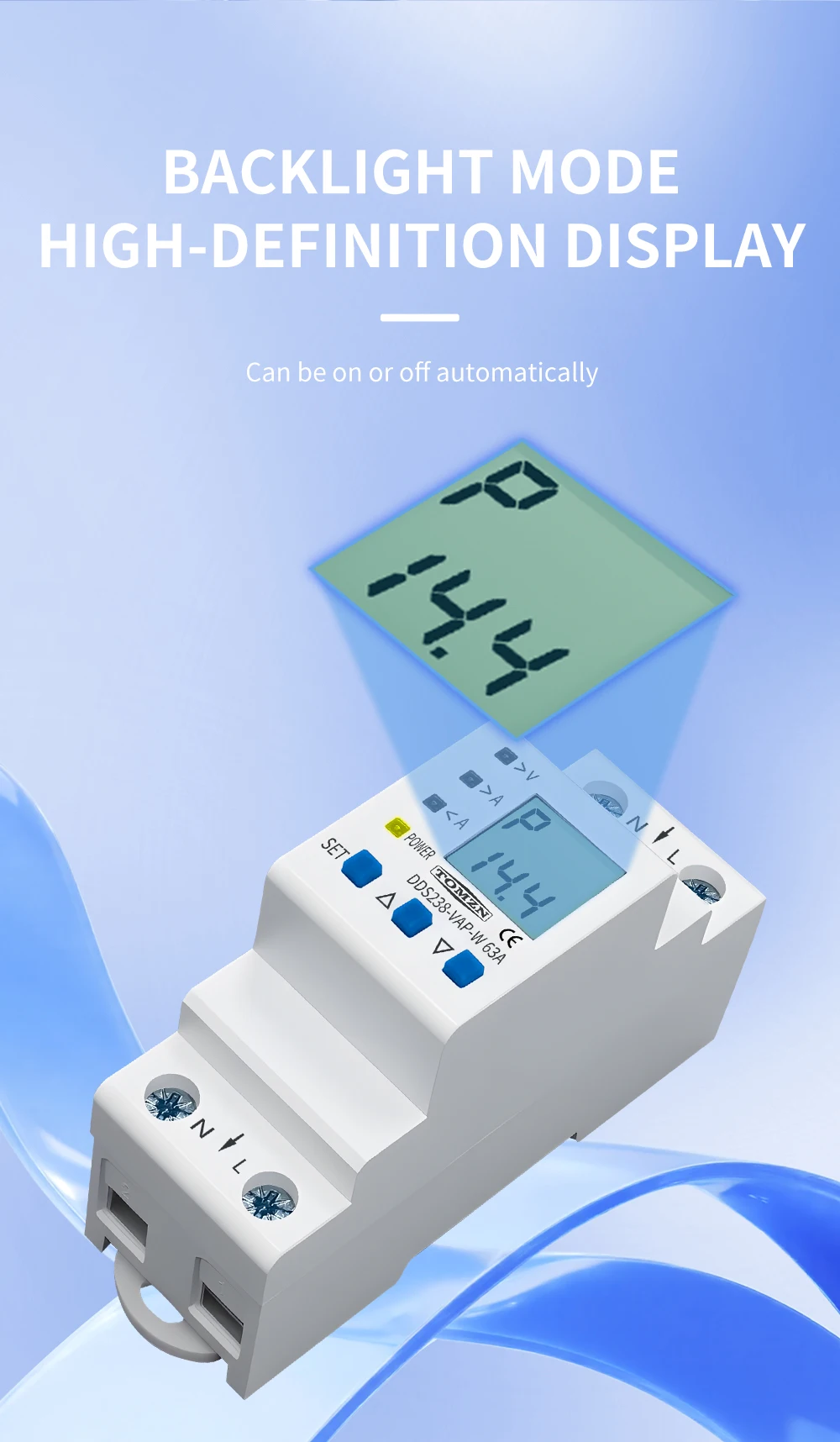

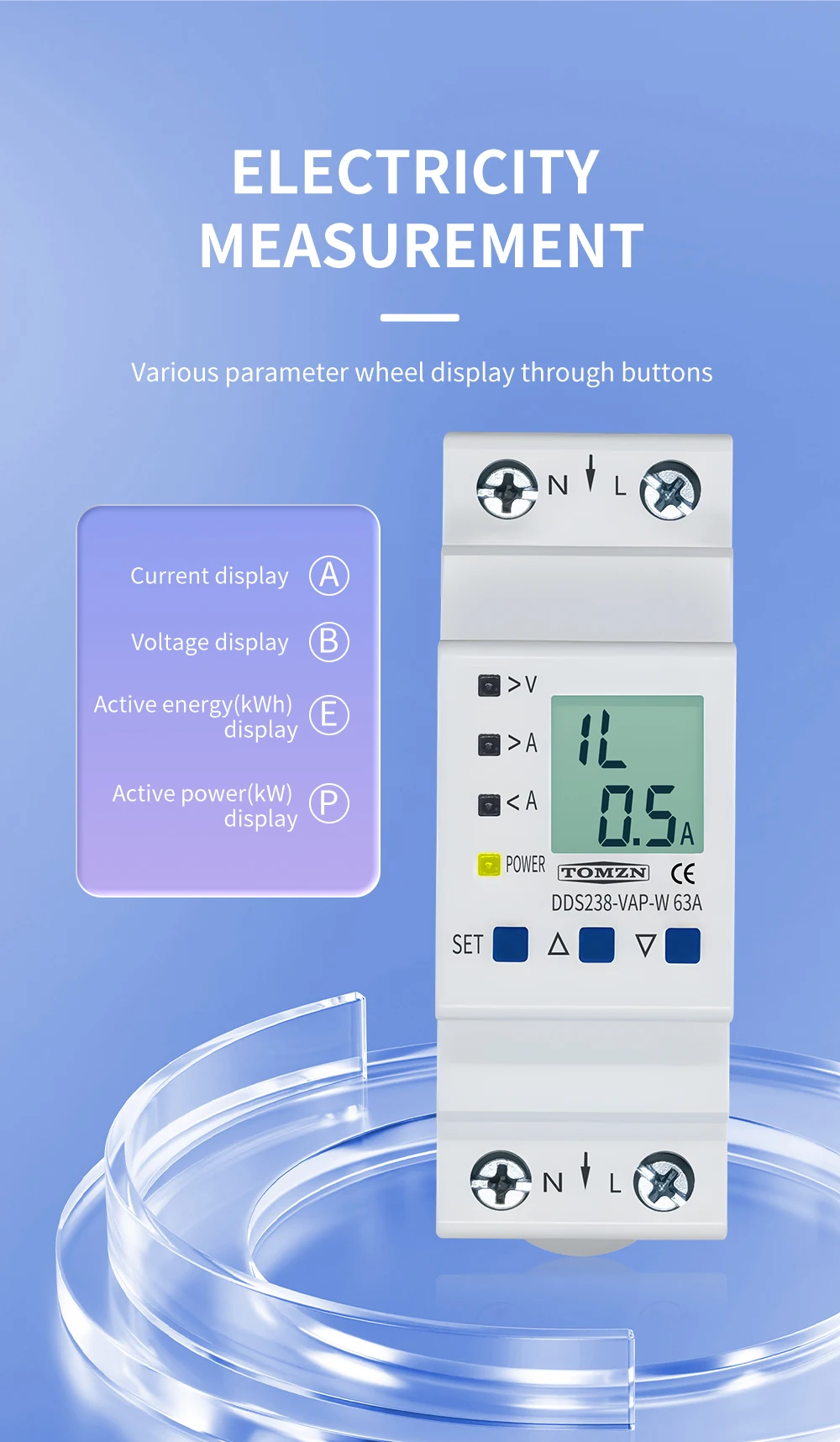

Display: LCD with backlight (kWh, A, V, W)

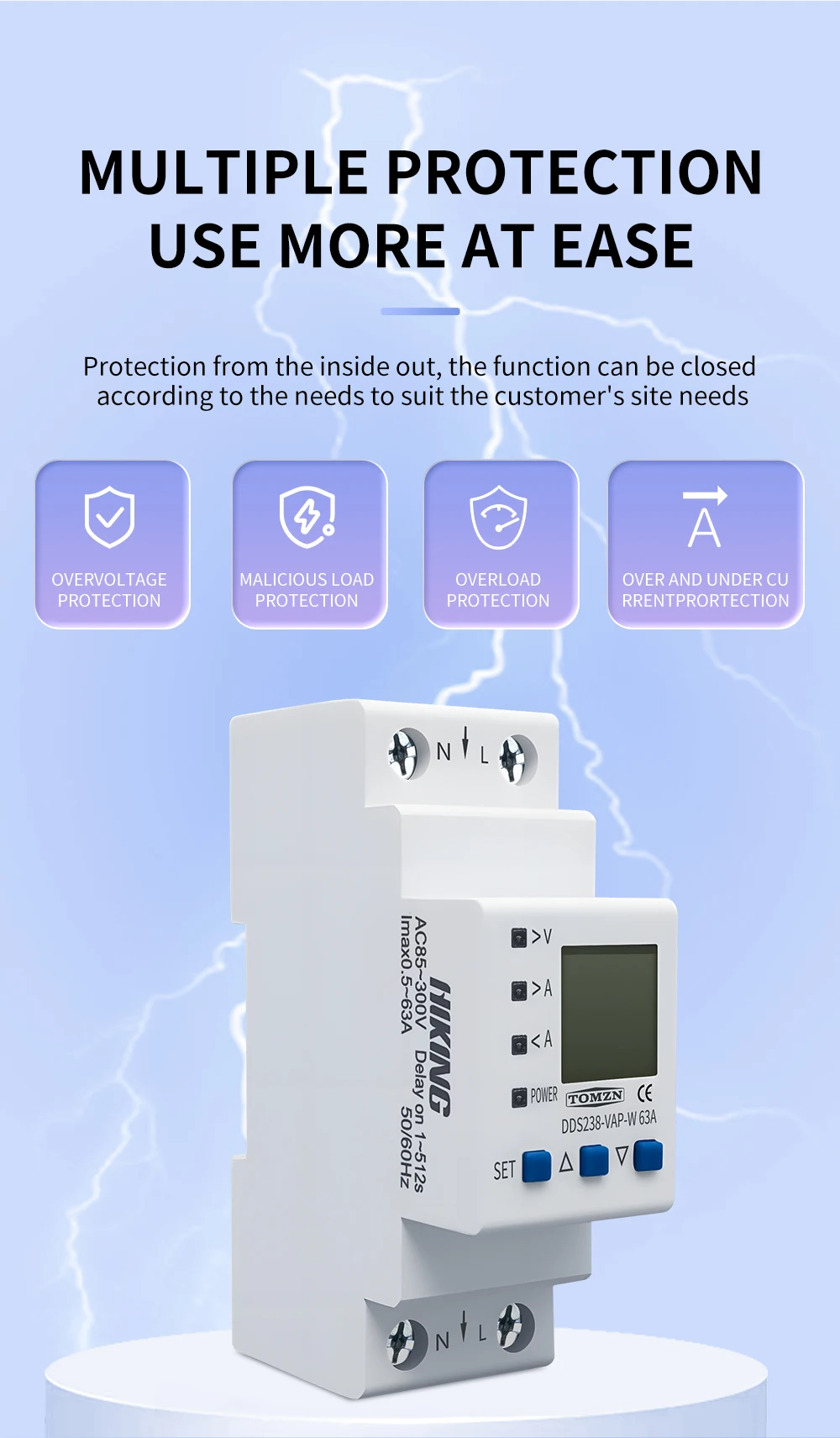

Protection functions: Overvoltage, overcurrent, undercurrent, lightning protection
Pump control mode: Auto-reclosing or manual-reclosing selectable

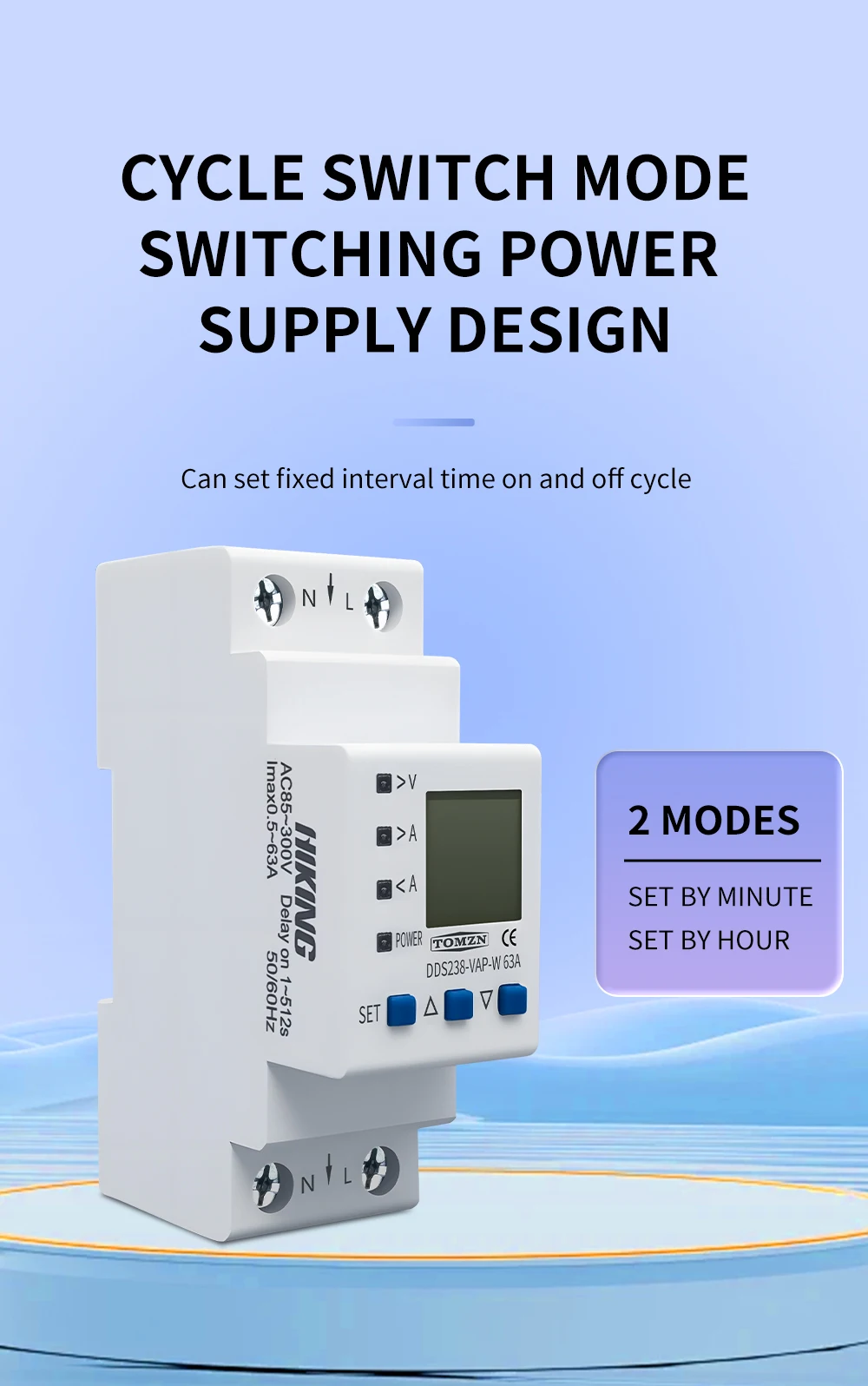

Pump recycle working time: Programmable

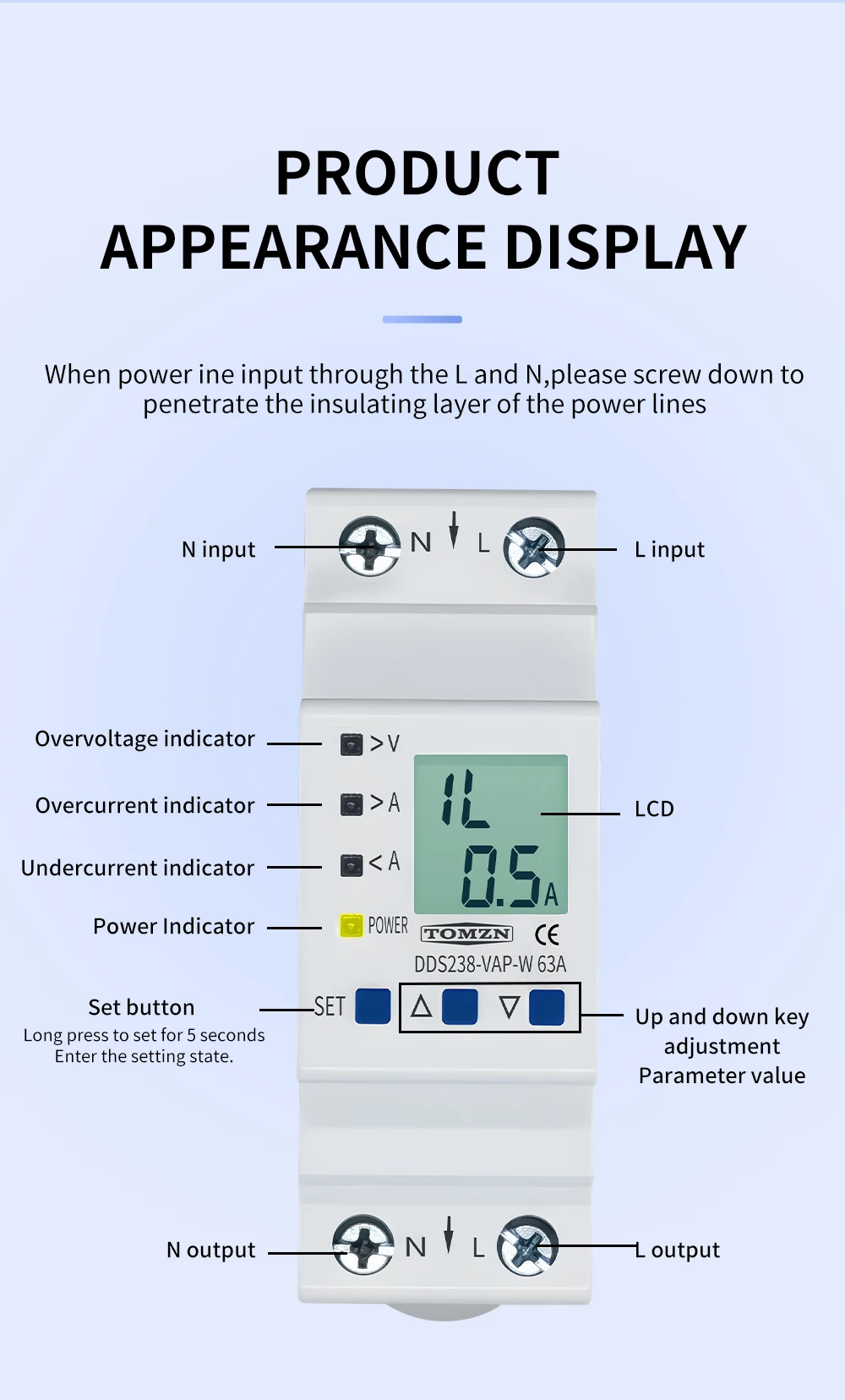

Indicators: Overvoltage, upper/lower current limit, power
Load status on power failure: Disconnected
Operating temperature: -25Β°C to +70Β°C
Storage temperature: -40Β°C to +80Β°C
Relative humidity: β€85%
Altitude: β€2500m
Electromagnetic environment: E2
Mechanical life: β₯100,000 cycles
