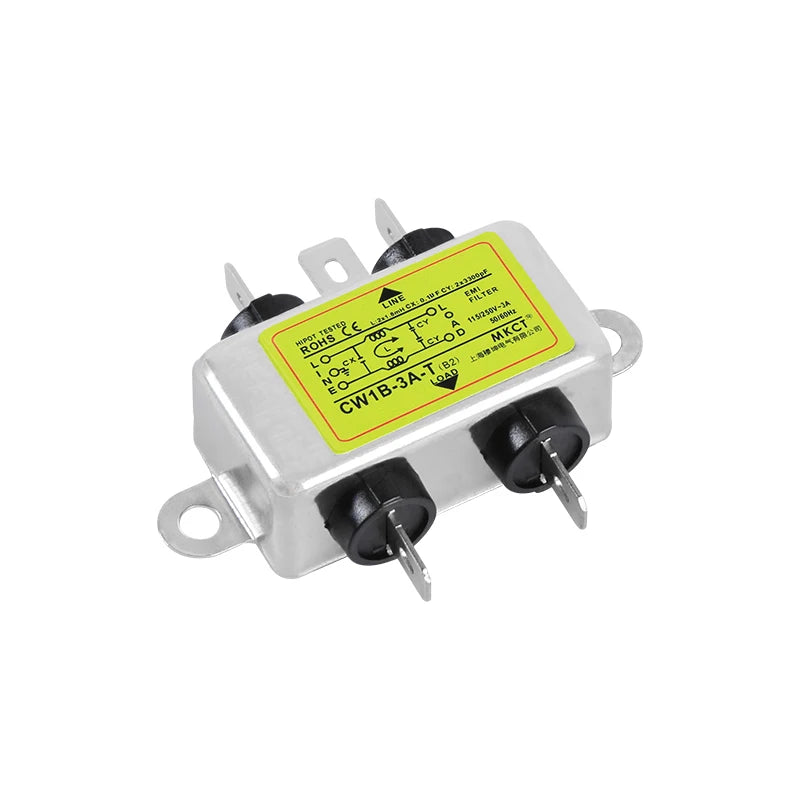

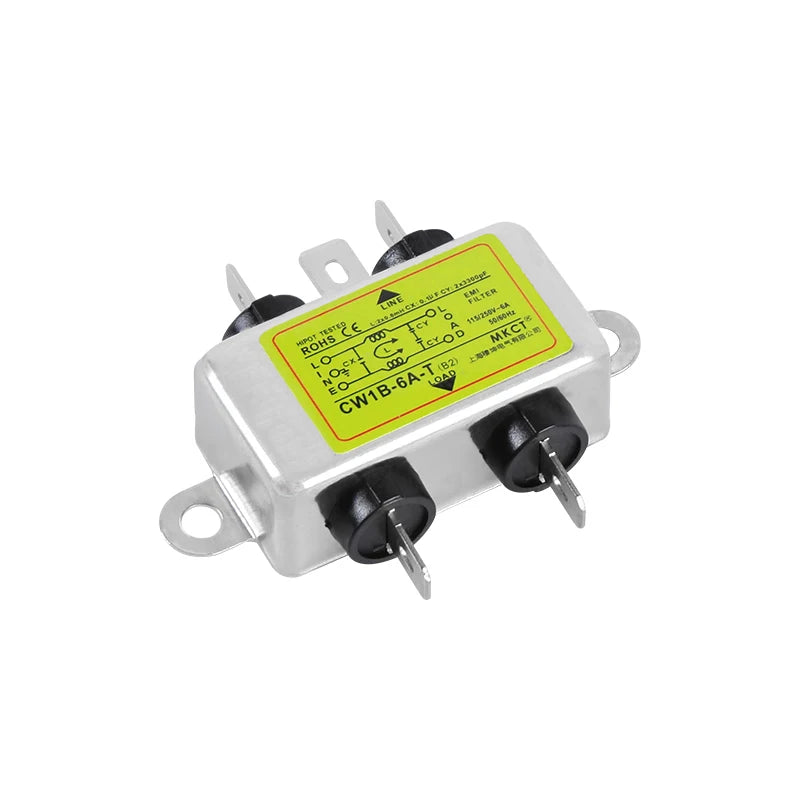

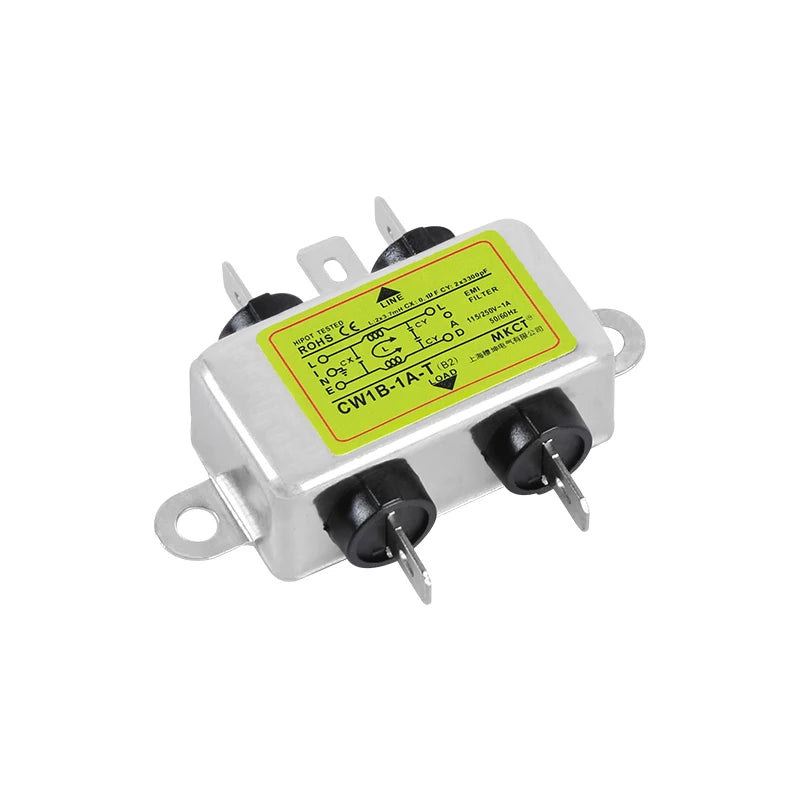

Insert connection Single-Phase General Purpose Series

Features and benefits

Small size,Fast and easy chassis mounting

Various terminal connection styles

Good conducted attenuation performance,applied toenvironment required low interference suppression

Typical applications

Electrical and electronic equipment

Medical and household equipment

Automation,datacom and electronic data processing equipment

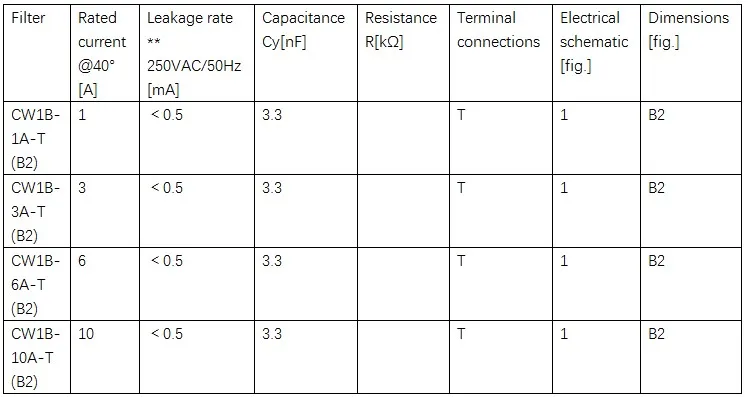

Technical specifications

Maximum continuous operating voltage:250VAC

Operating frequency:50/60Hz

Rated currents:1A-10A@40°Max.

High potential test voltage(1 min):Line to Line 1500VDC/Line to Ground 1500VAC

Operation and storage temperature range:-25°~+85°(25/085/21)

*

The suffix ”T” represents Insert commection.

**

Maximum leakage under normal operating conditions,note:if the neutral line is interrupted, worst case leakage could reach twice this level.

Electrical schematics

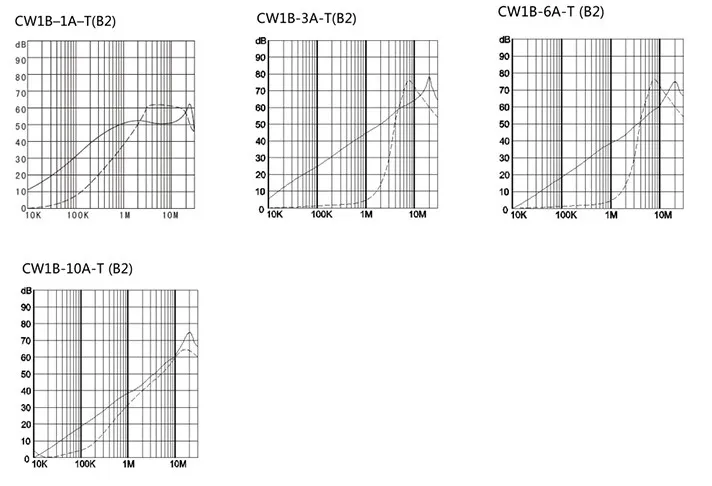

Typical filter attenuation

Per CISPR 17/50Ω system [——Common mode;-----Differential mode ]

Dimensions[All dimensions in mm]

Connections style “T”
