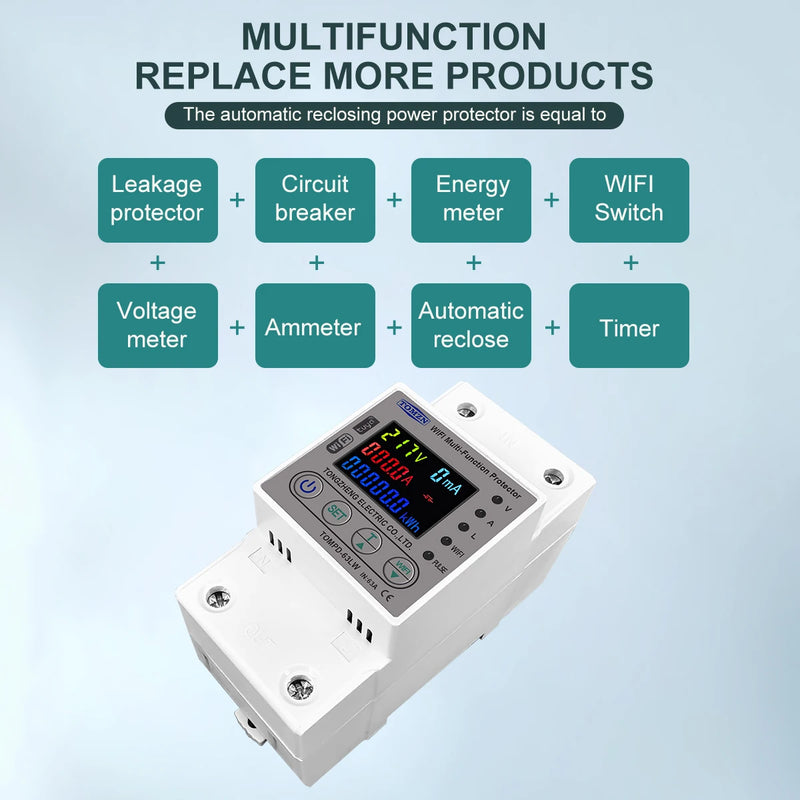

TOMZN 63A WIFI Smart Switch TUYA Energy Meter Kwh Metering Circuit Breaker Timer with Voltage Current and Leakage Protection
SPECIFICATIONS
Brand Name: TOMZN
Certification: CE
Does it include a Battery?: No
Does it include wireless functionality?: Yes
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Is Smart Device: Yes
Model Number: TOMPD-63LW
Origin: Mainland China
Over current protection: YES
Over voltage protection: YES
Rated Voltage: 220V
Type: Mini,Circuit breaker
Under voltage protection: YES
is_customized: Yes
Feature
The product can cut off L and N both.

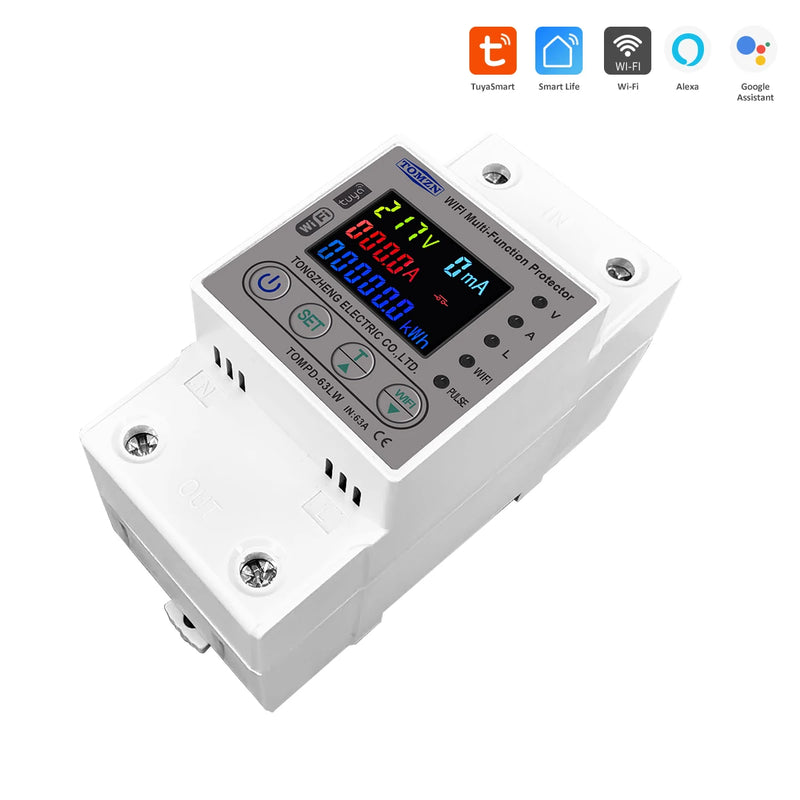

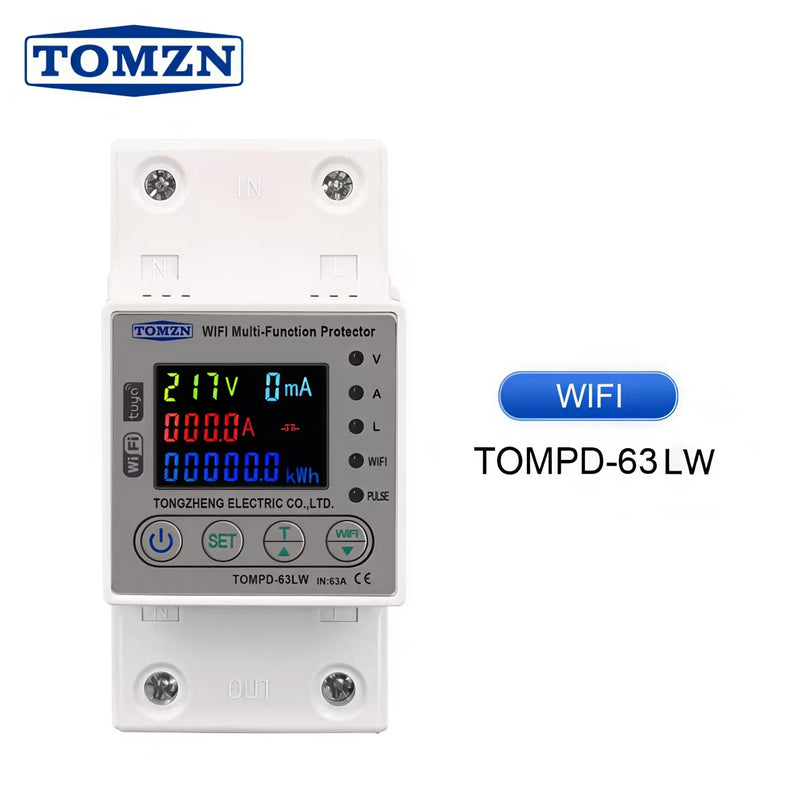

TOMPD-63LW WIFI Type

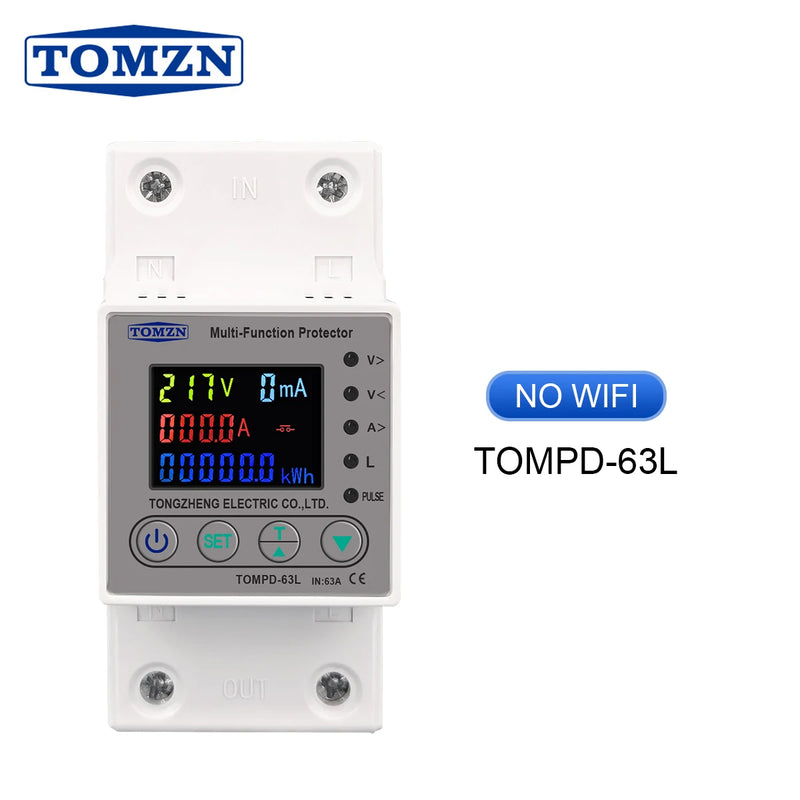

TOMPD-63LΒ No WIFI type

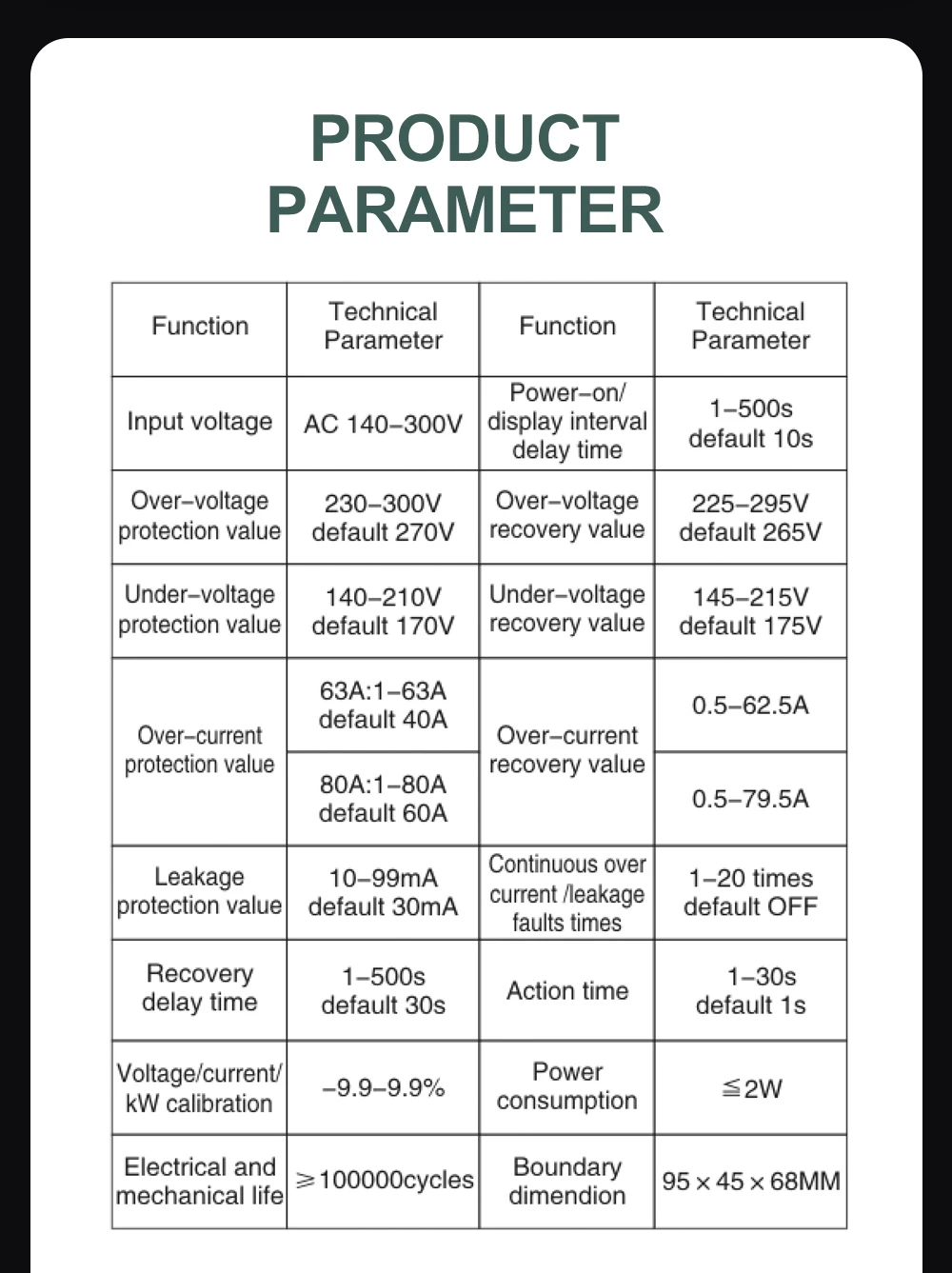

Rated voltage: 230V; Frequency: 50Hz/60H
1.Remote control ON/OFF at anytime from anywhere by phone.

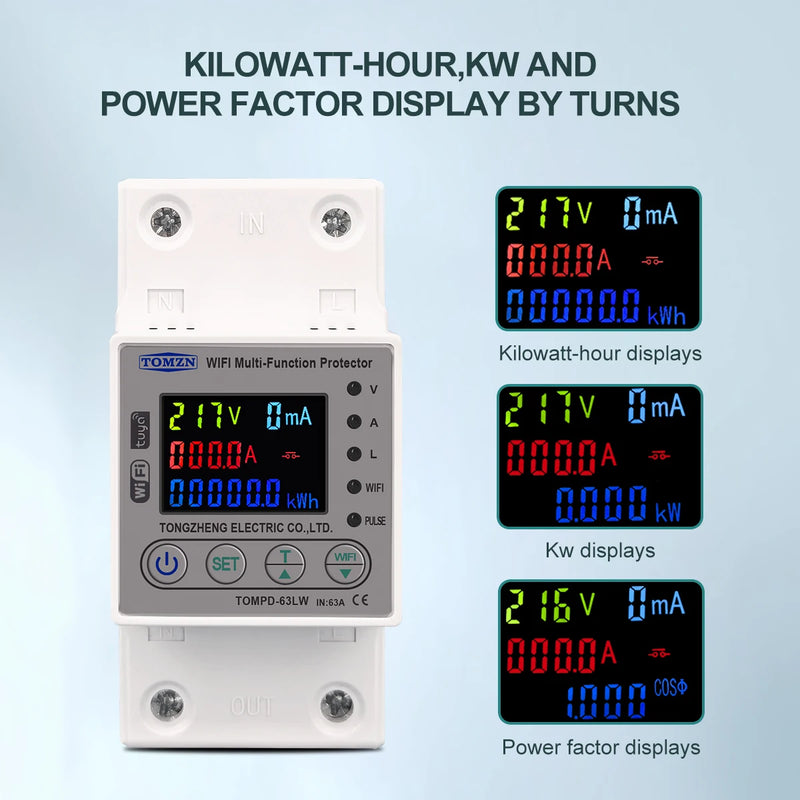

2.Review current ,voltage, leakage current, total kWh on phone
3. Timer function in smartlife TUYA app
4.Can set over voltage/under voltage/over current /leakage current in app or can set these by manual
5.UnderΒ voltage protection 140V-210V (adjustable) (default: 170V)
6.Over voltage protecitonΒ 225V-295V (adjustable) (default: 265)
7.Over current protectionΒ 1A-63A (adjustable) (default: 40A)
8.Reconnect time (delay on time): 1s-500s (default: 30s)
9.Voltage/current/kW calibration: -9.9%-9.9%
10.Action time: 1-30s (detault 1s)
11. power consumption less than 2W
Note:This meter Only supports 2.4G Wireless Network,Β NOT for 5G
