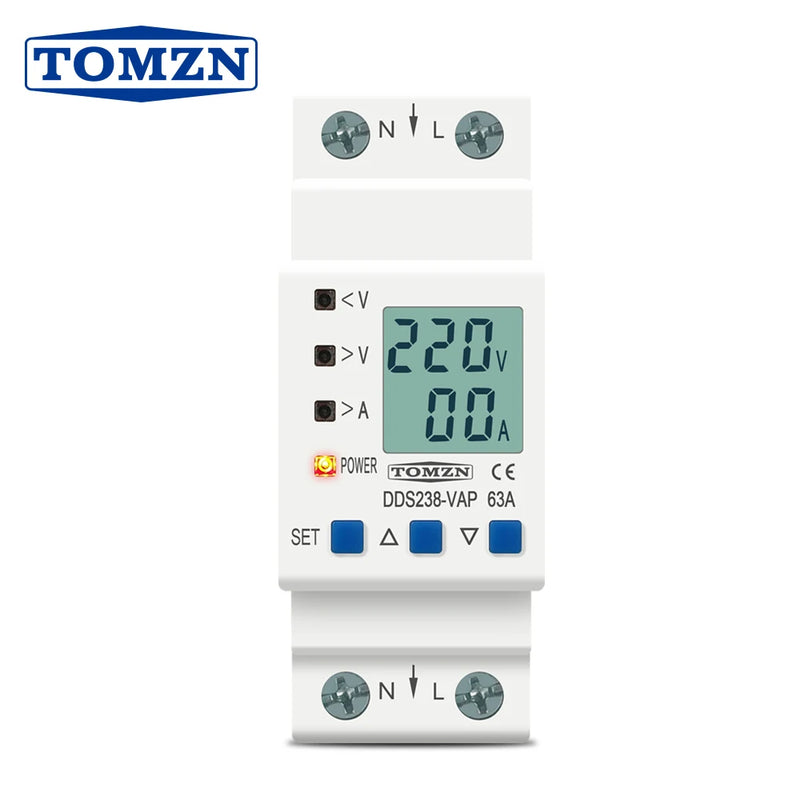

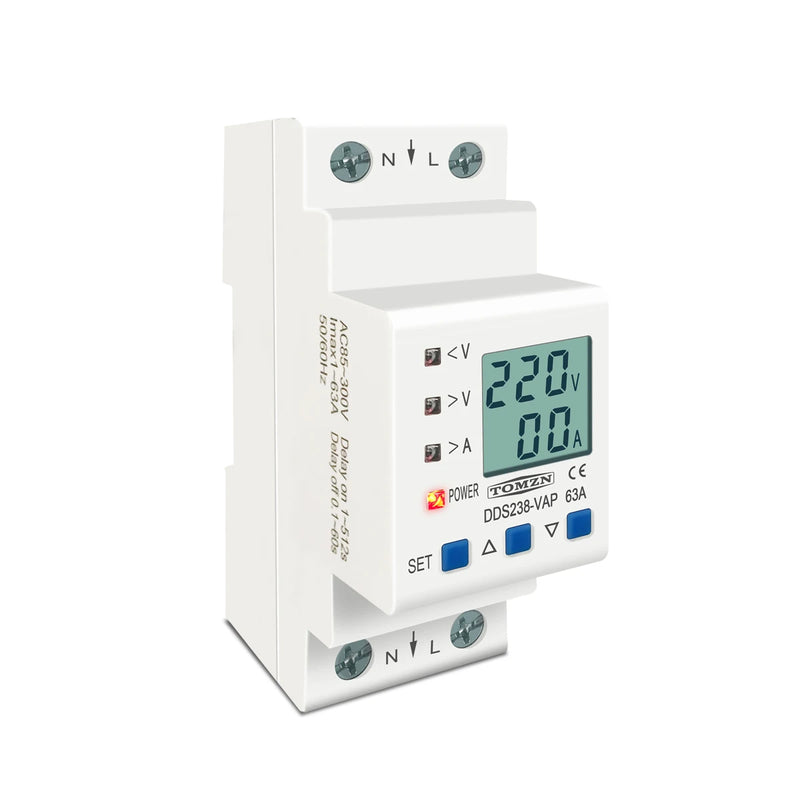

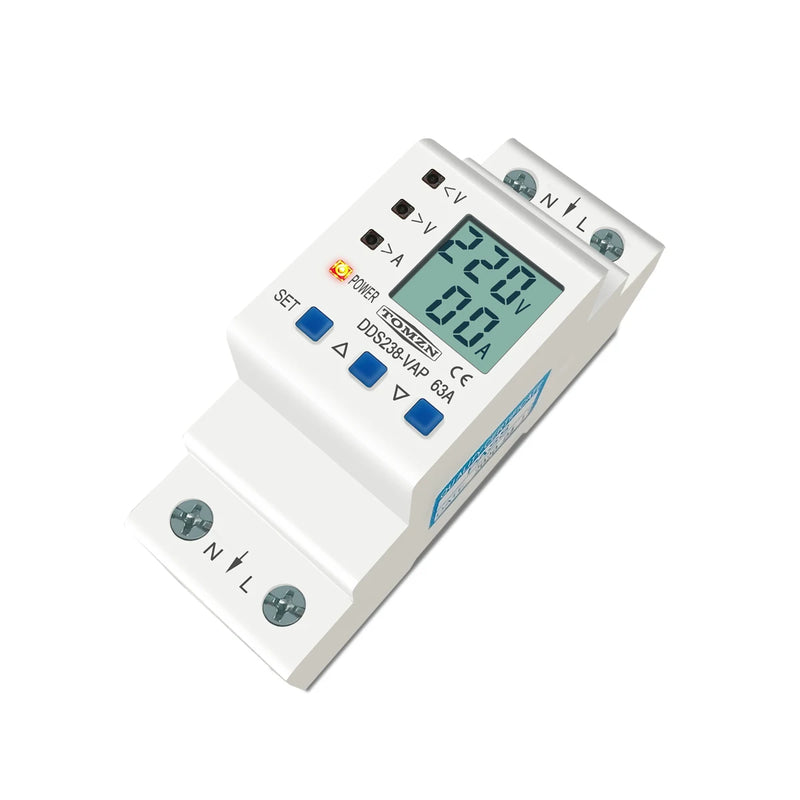

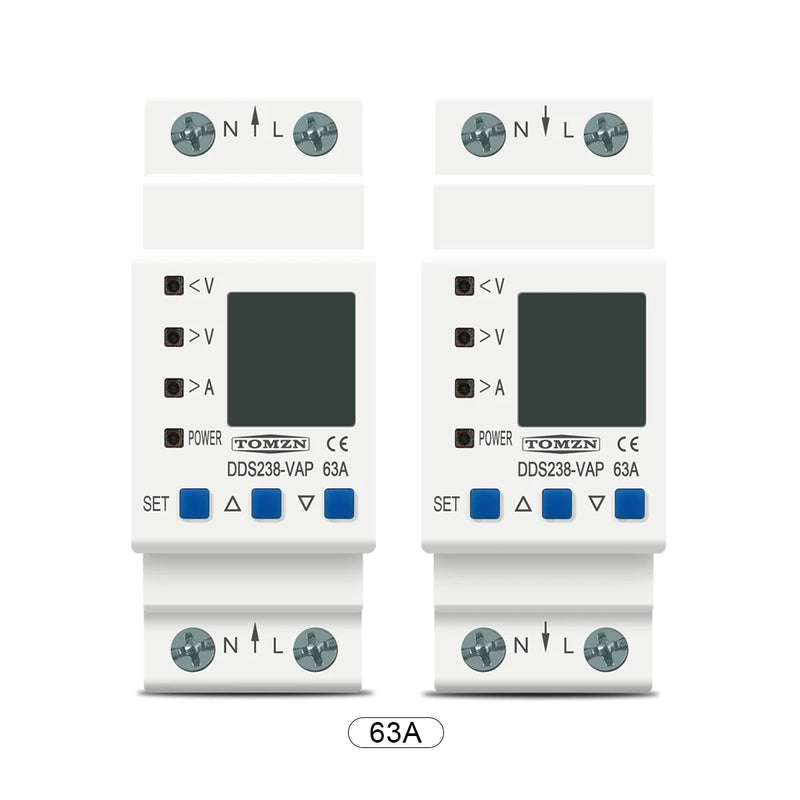

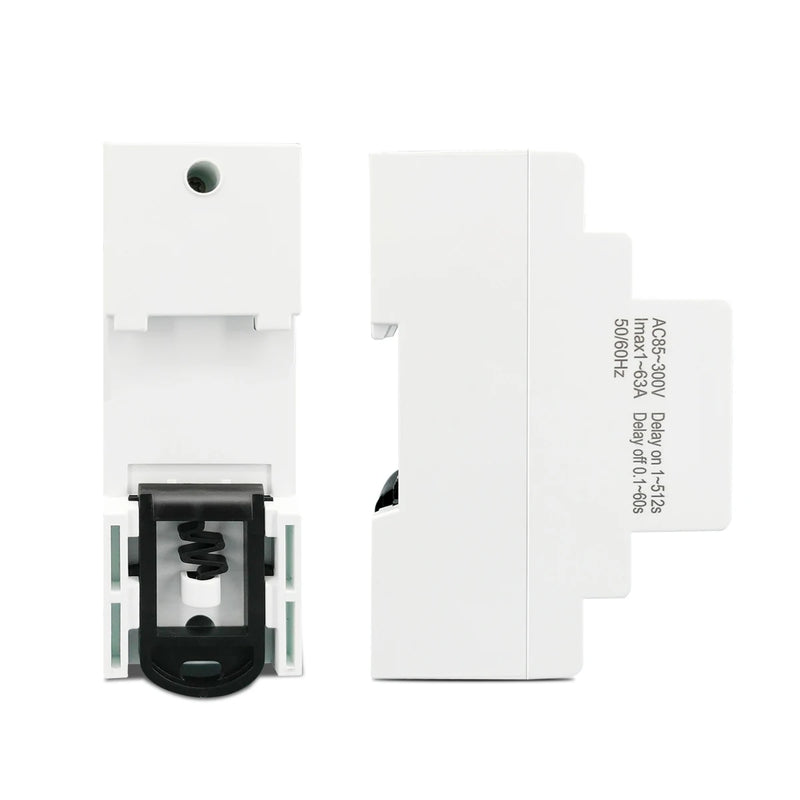

TOMZN 63A 80A 110V 230V DIN Rail Adjustable Over Under Voltage Protective Device Protector Current Limit Protection KWh

Name: TOMZN 63A 80A 110V 230V DIN Rail Adjustable Over Under Voltage Protective Device Protector Current Limit Protection KWh
Brand: TOMZN

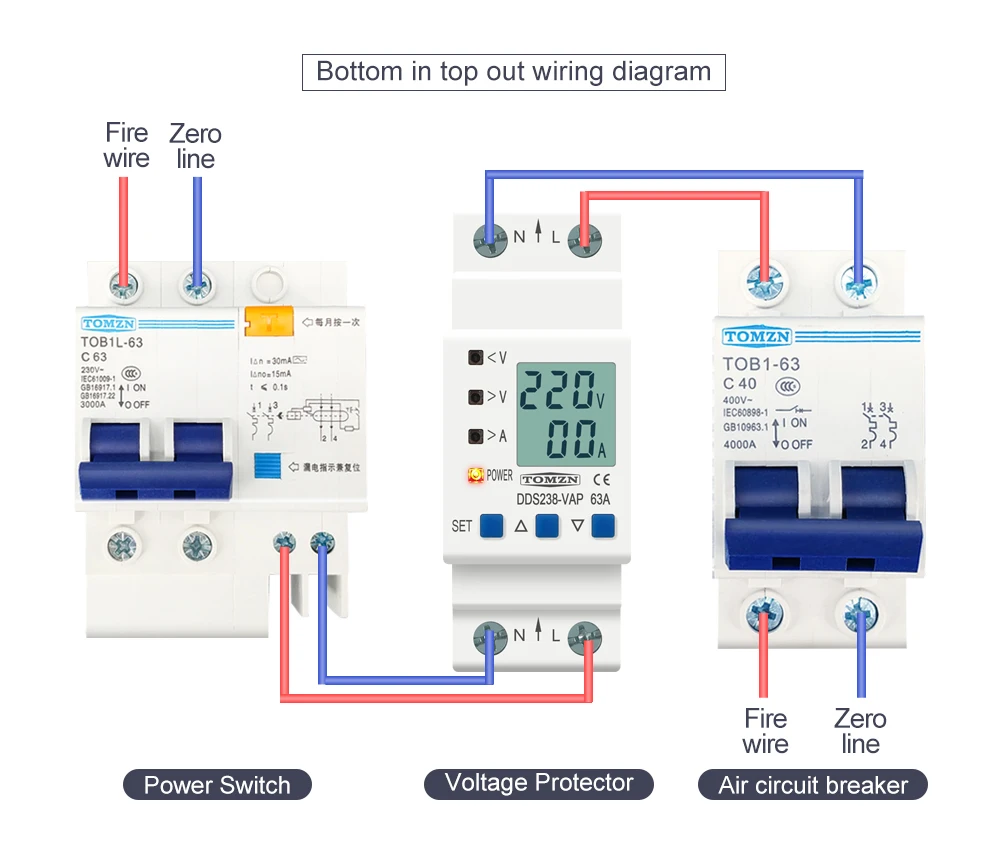

SKU: 1005006158552685-80A Bottom input
Price: 15.53 USD
Availability: InStock

by ដោយ TOMZN

All prices exclude shipping and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន និងពន្ធទេ។

Choose language

TOMZN 63A 80A 110V 230V DIN Rail Adjustable Over Under Voltage Protective Device Protector Current Limit Protection KWh

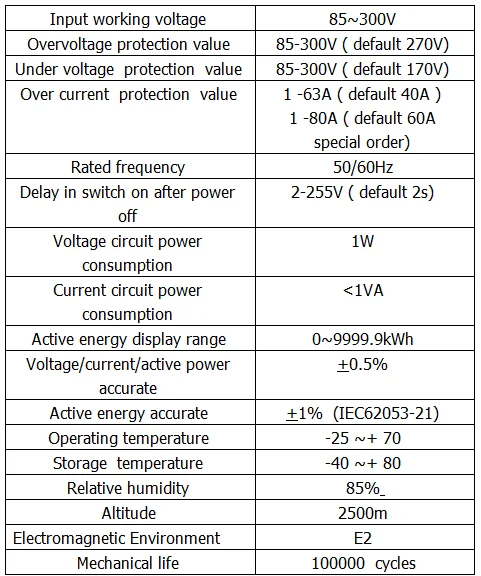

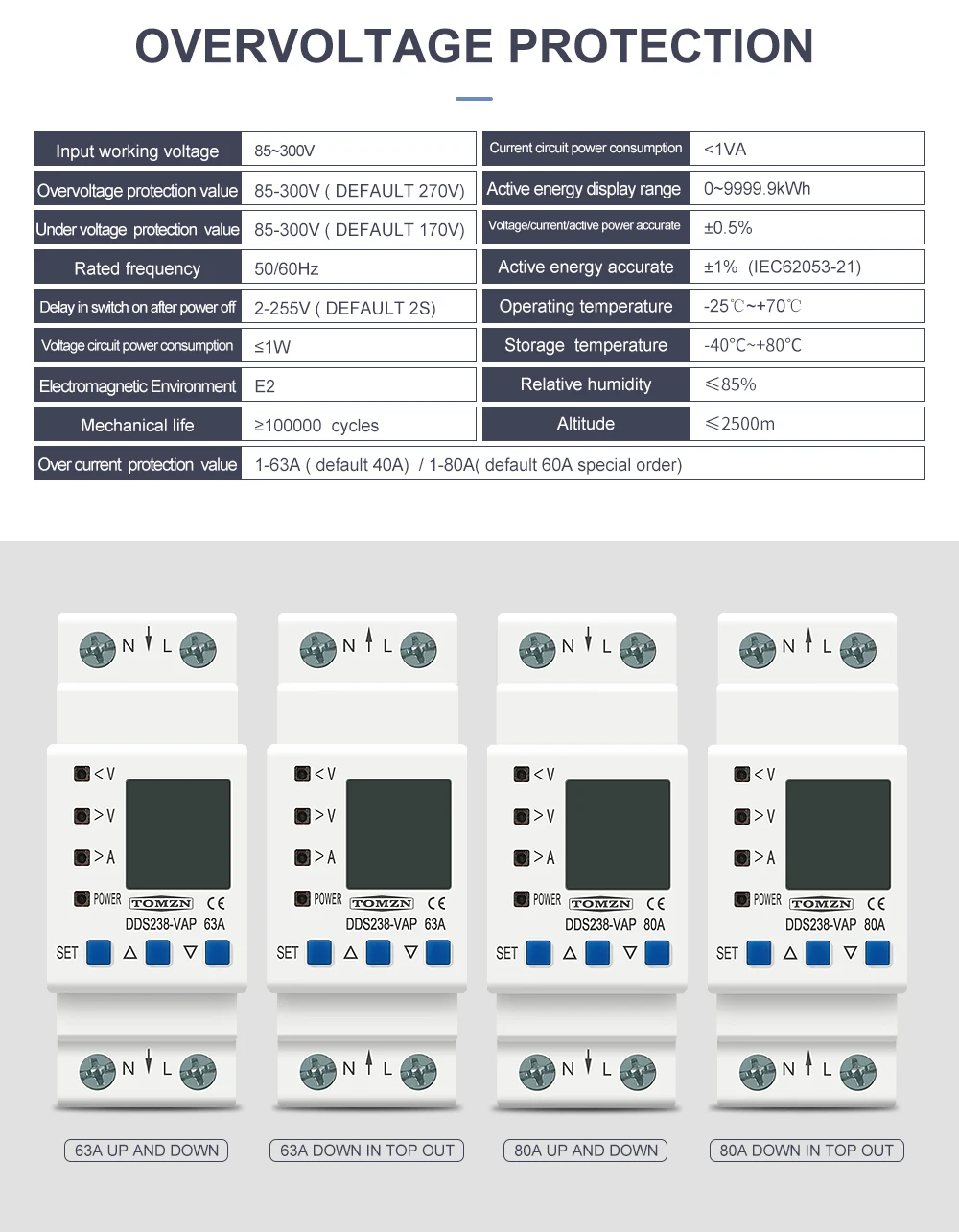

SPECIFICATIONS

Active time range: 0.1-60s

Brand Name: TOMZN

Certification: CE

Delay off time range: 1-512s

Delay on time range: 2-255s

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: DDS238-VAP

Origin: Mainland China

Over current protection range: 1-63A ( default 40A) or 80A

Overvoltage protection range: 85-300V ( default 270V)

Type: Mini

Under voltage protection range: 85-300V ( default 170V)

is_customized: Yes

1. AC 85-300V 50/60HZ

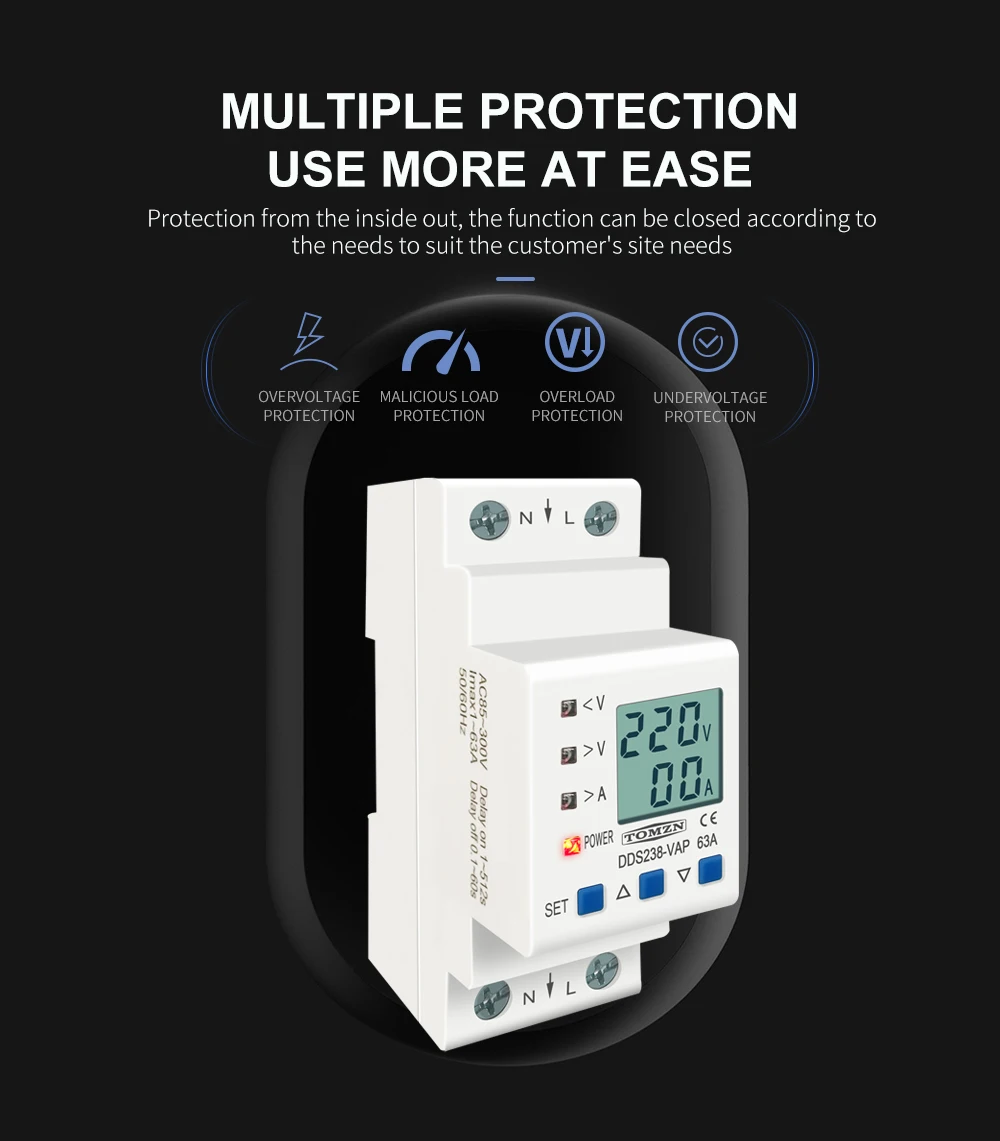

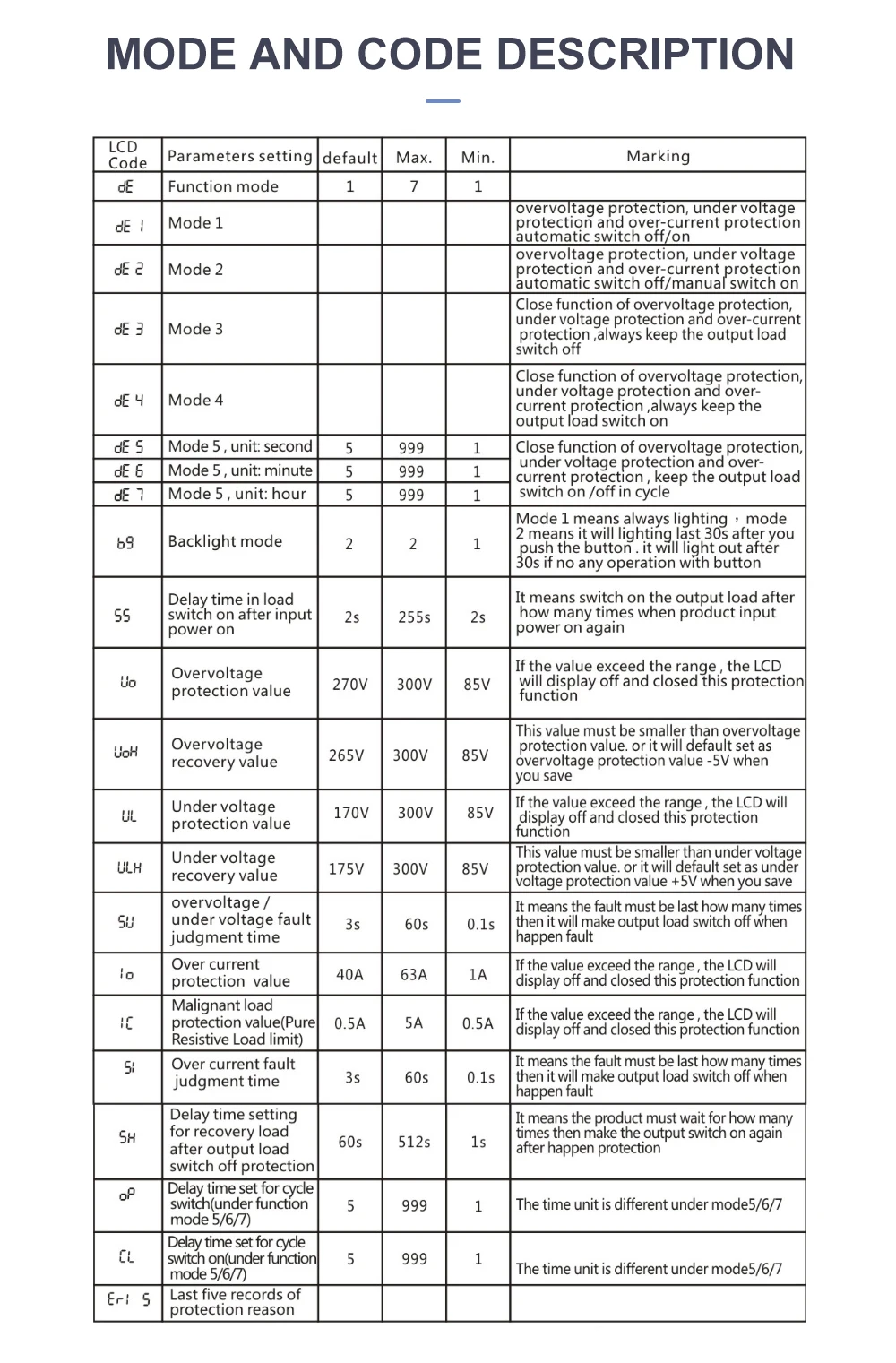

2. Over current protection, over voltage protection, under voltage protection can disable one , two or three of them.

3. the device have lightning protection for itself.

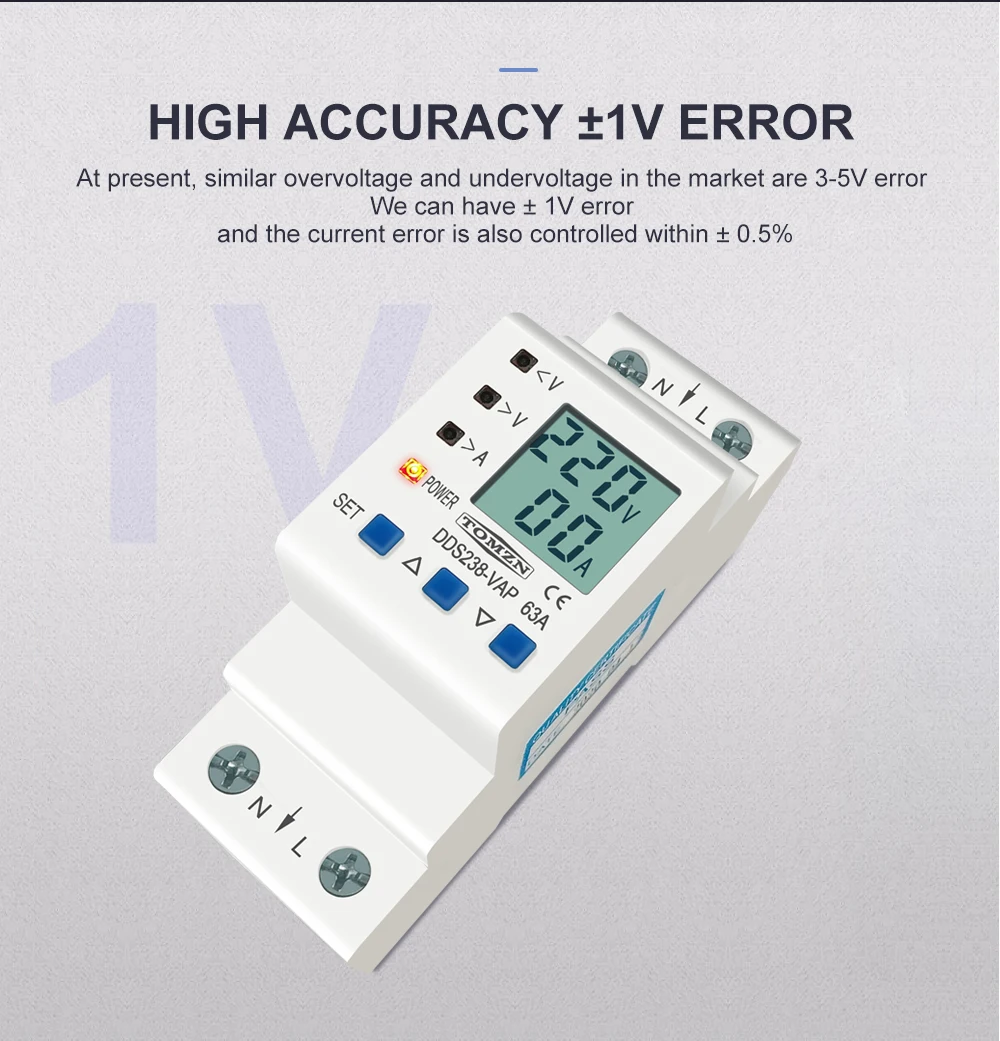

4. Voltage and Current Accuracy 0.5%

5. Its own power consumption <0.5W

6. Can be manually and automatically reconnect.

7. Can set the delay on and delay off time

8. Can be used as a normal switch

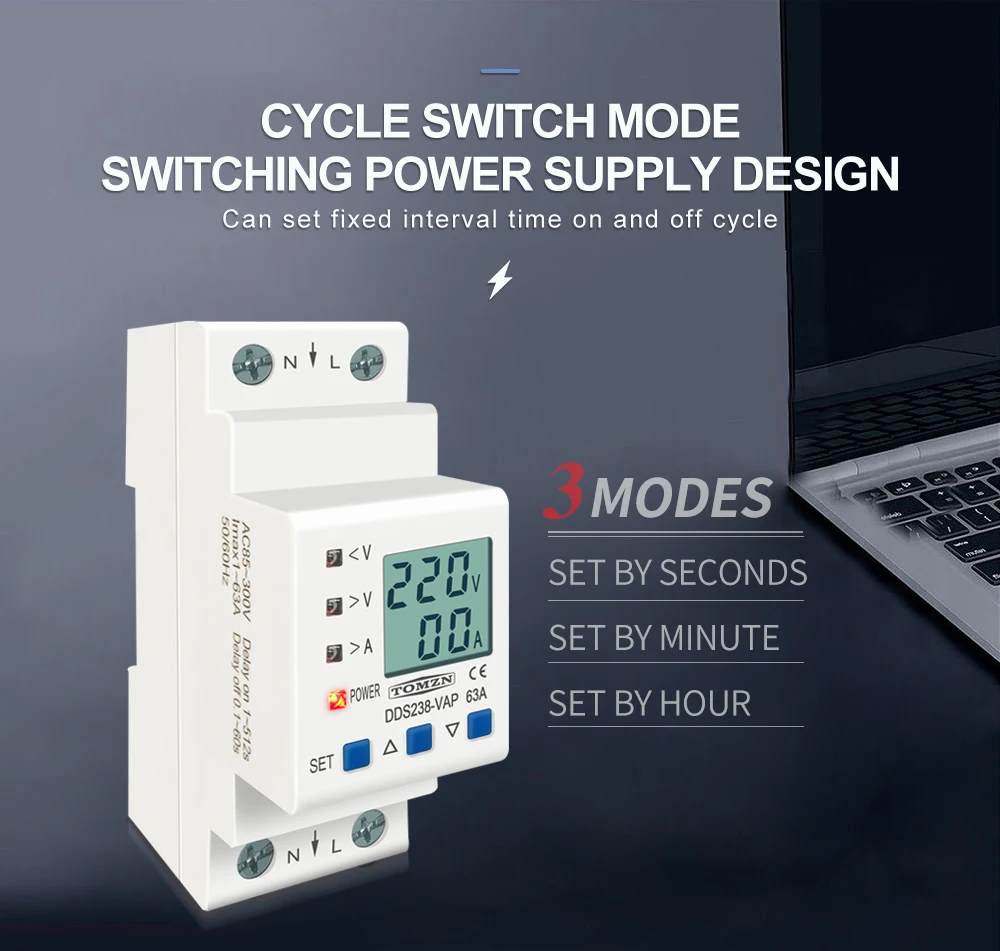

9. Can be used as a cycle switch. Remarks The product does not have a battery. If the external power supply is out of power, the cycle time starts from 0.

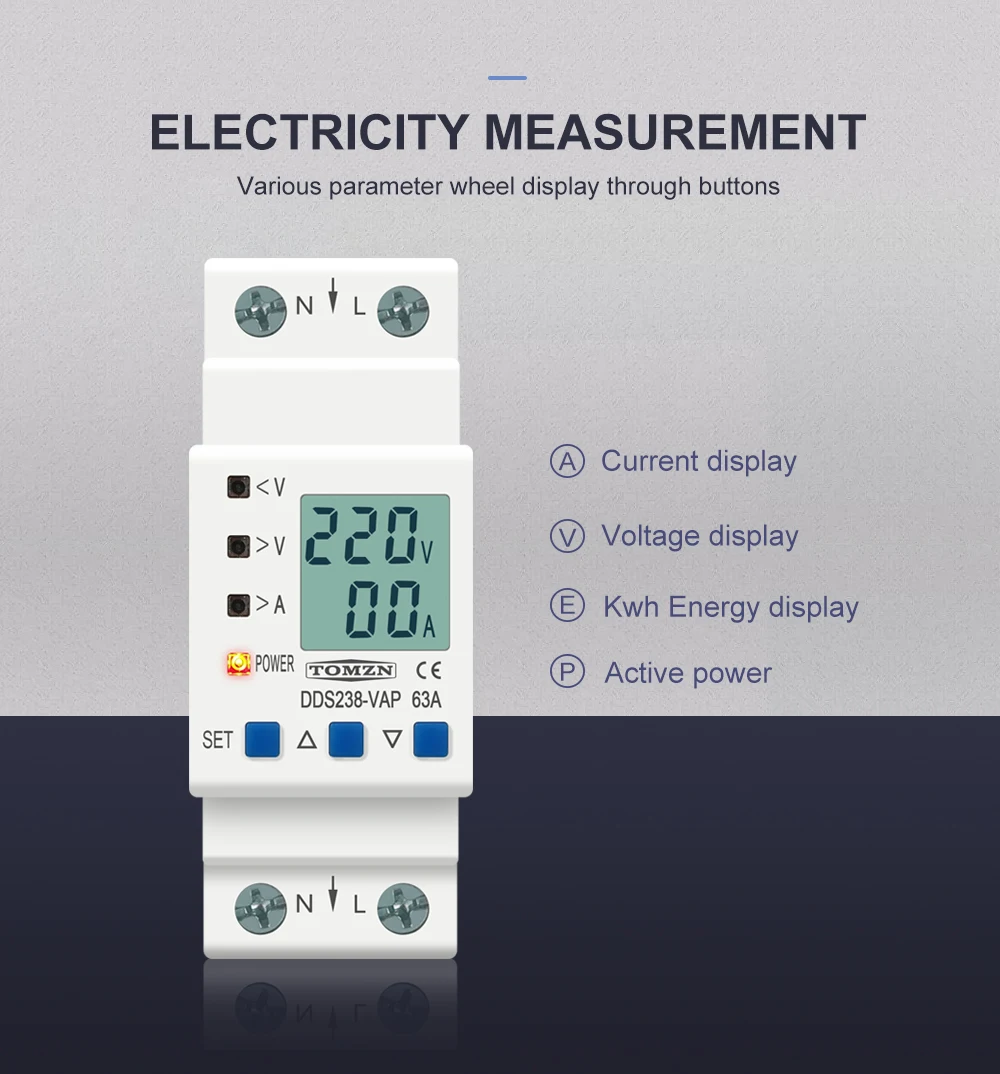

10. Electricity metering accuracy Class 1

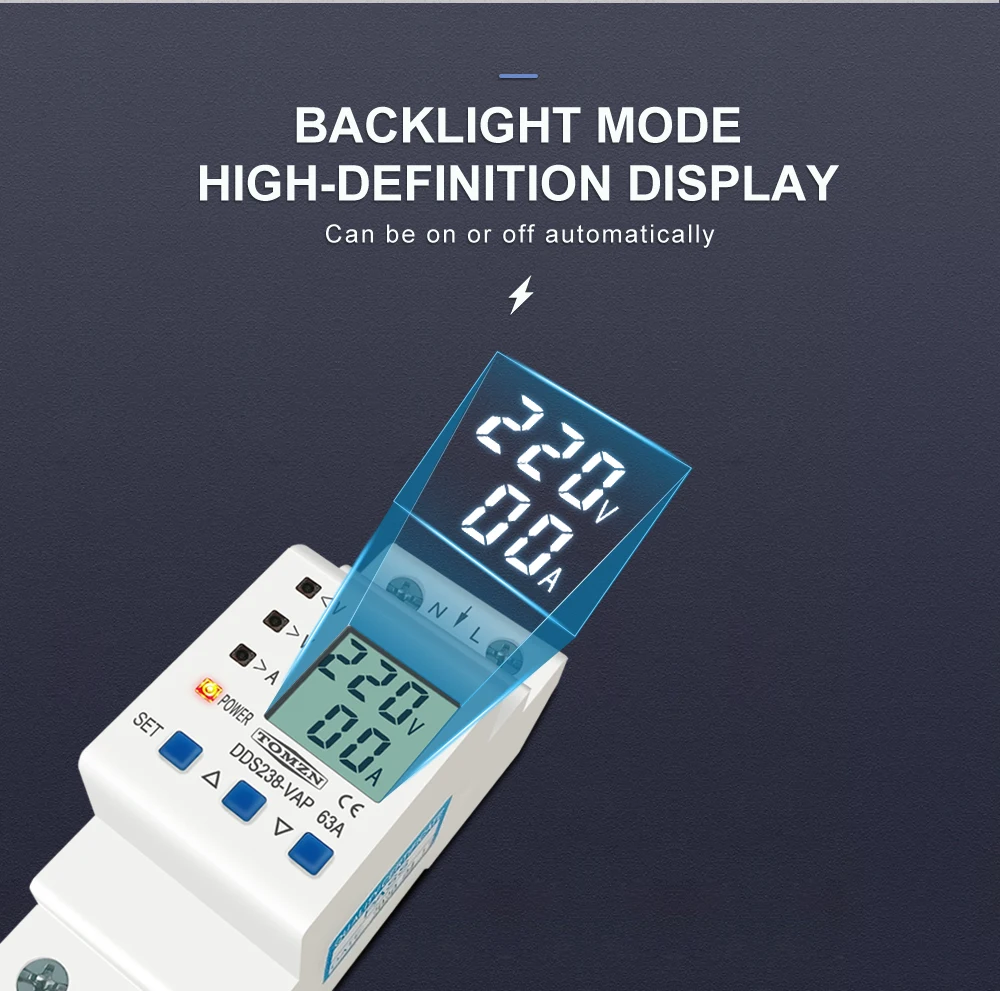

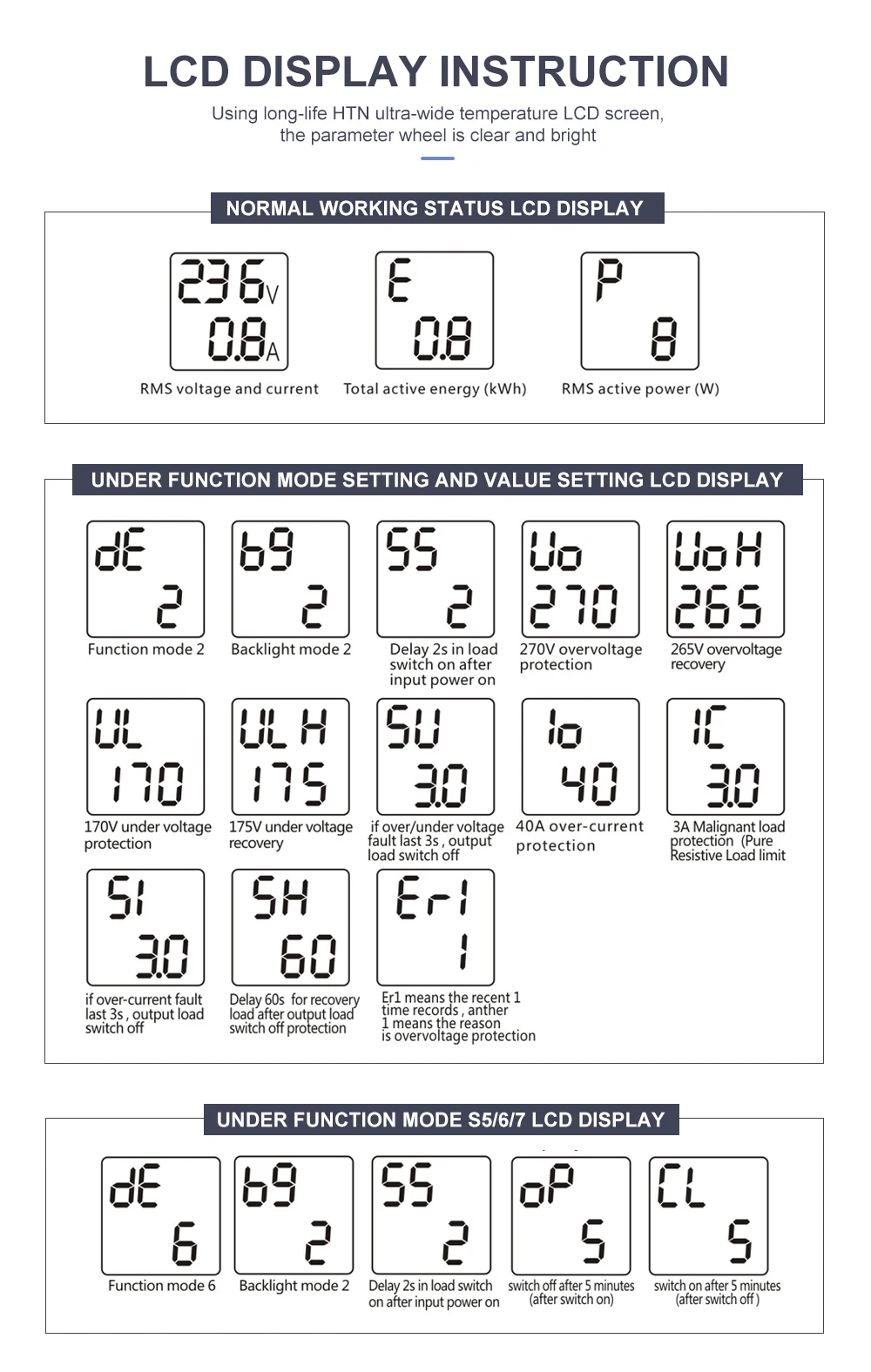

11. Backlight mode is optional, convenient for user scene selection

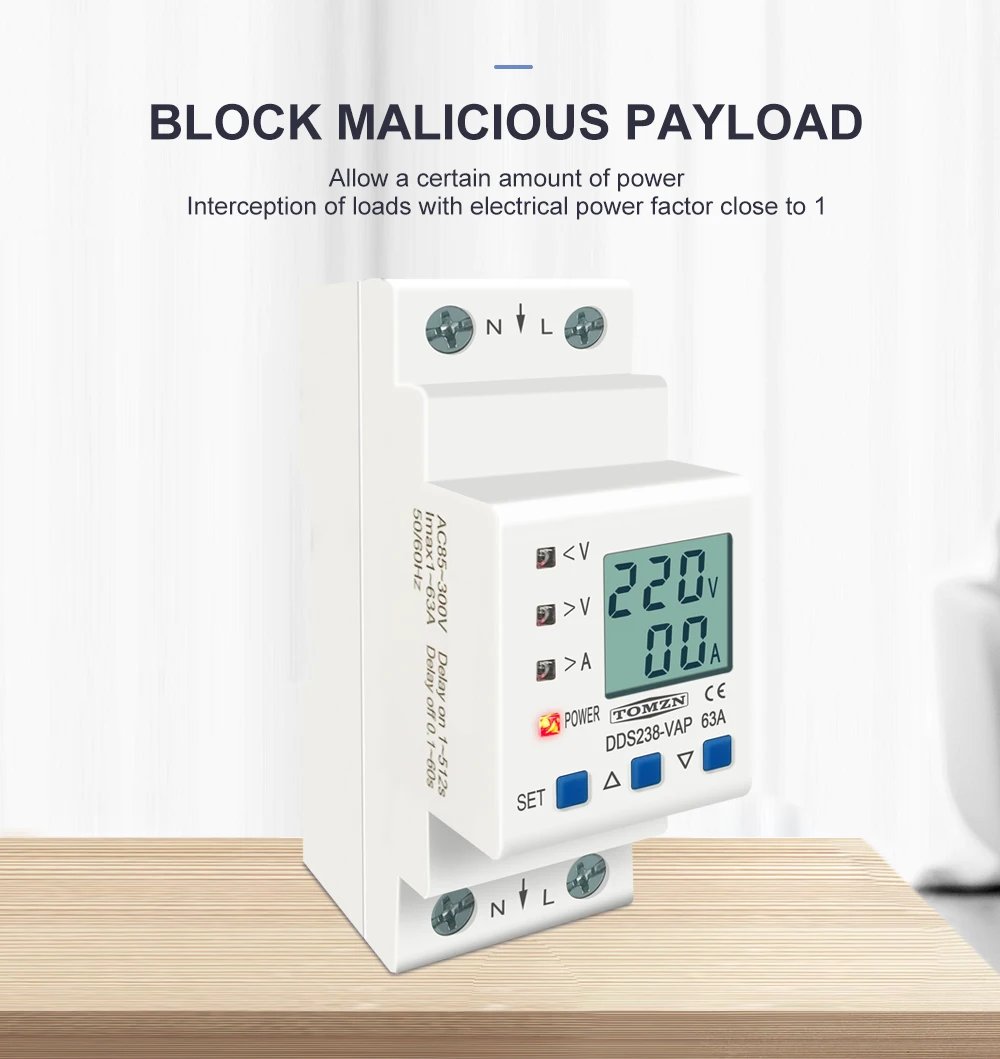

12. Malignant load identification limit (pure resistive load), for apartments Rental housing restrictions Fast heat Electromagnetic Kettle Electric rice cooker and other resistive high-power equipment.
