Notice:

This decive is not compatible with Home Assistant, please use the device in SMART LIFE APP/ TUYA APP.

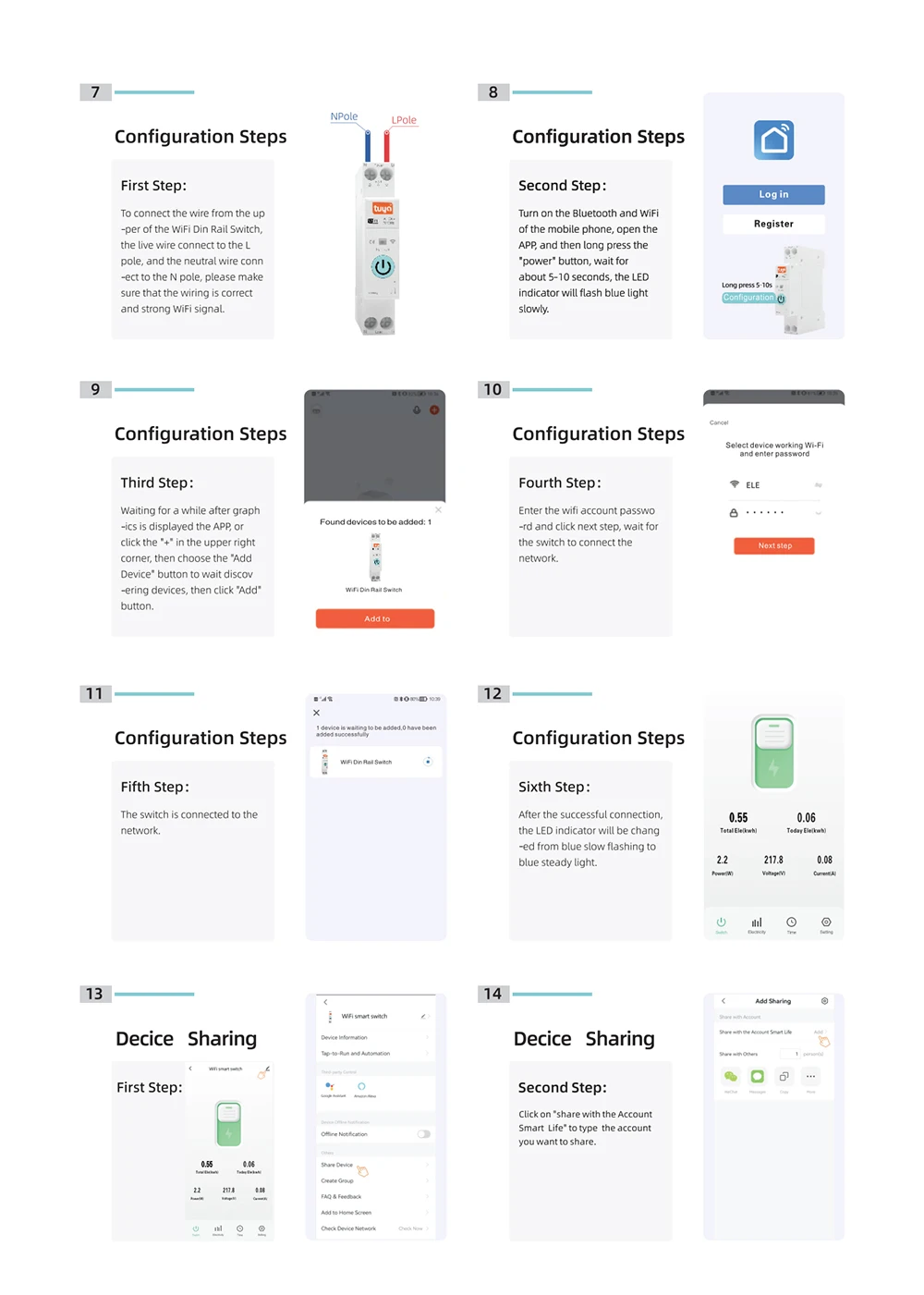

Wiring: Power must enter from the top and must be Live line + Neutral Line (L+N). Live line + Live line (L+L) cannot be used.

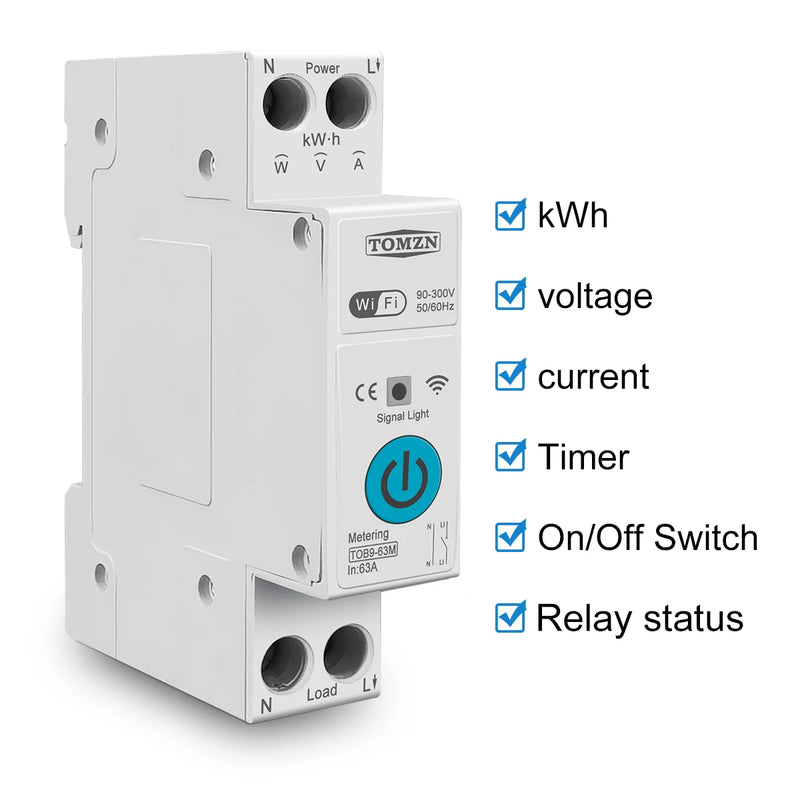

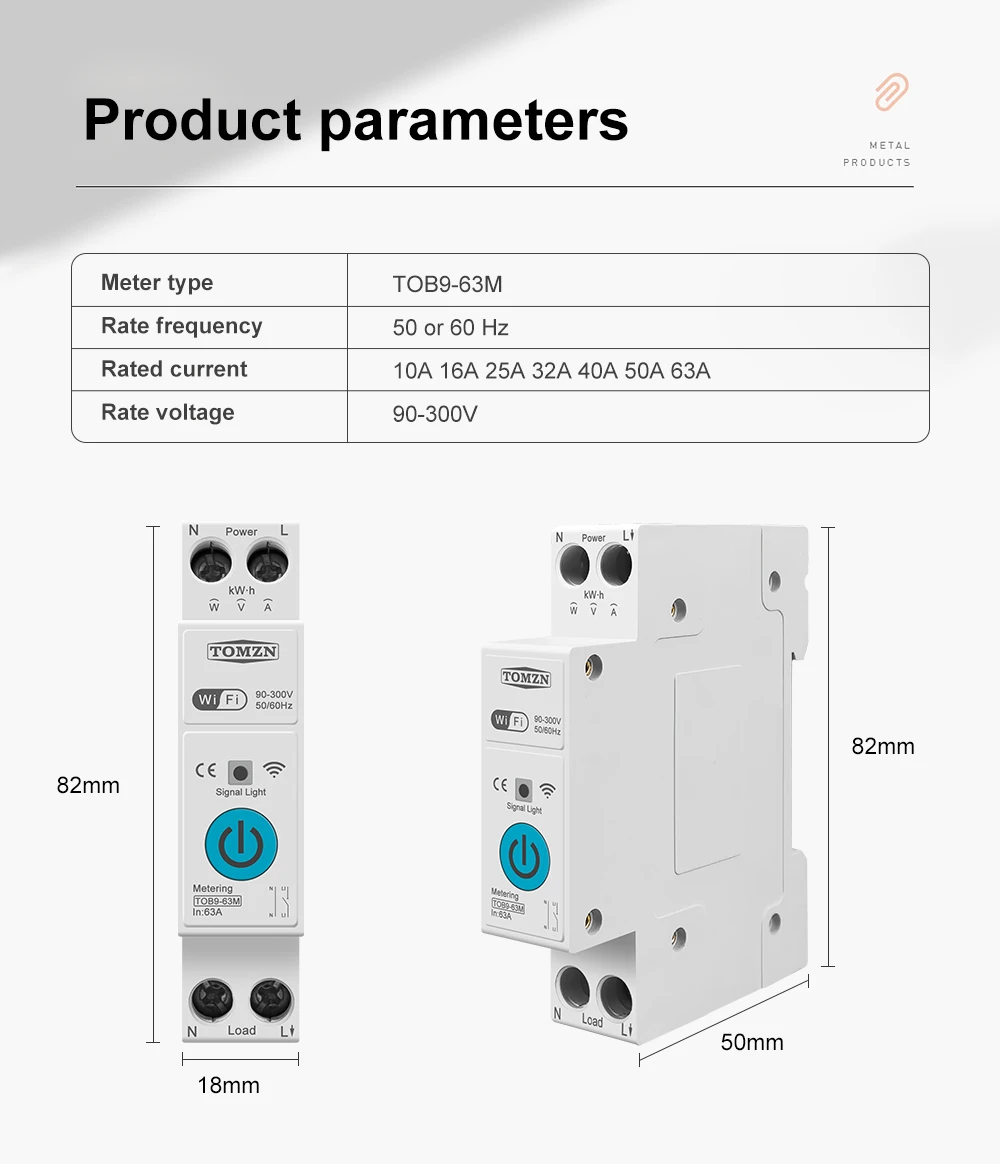

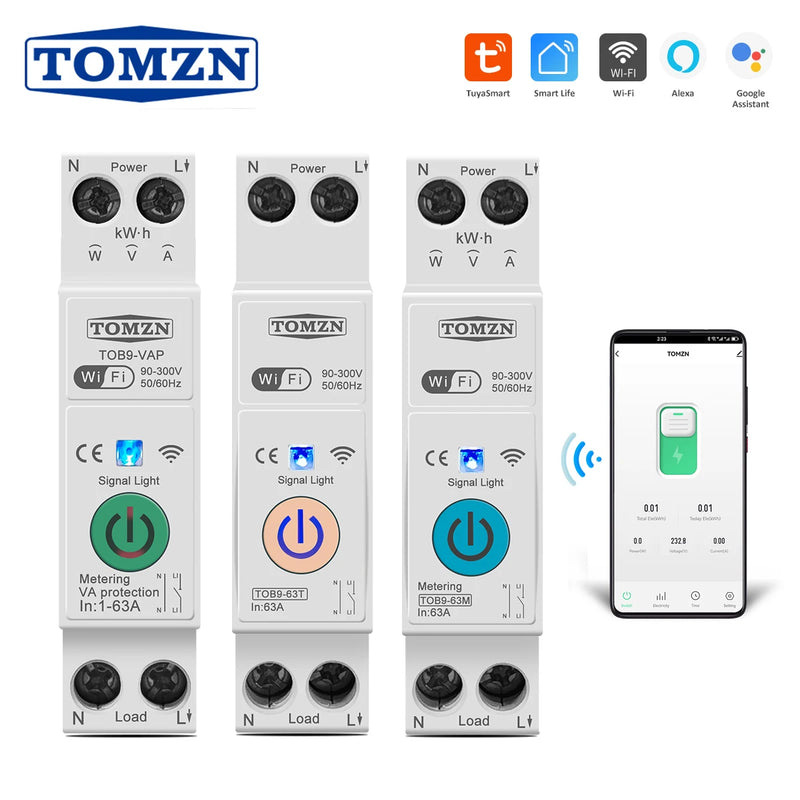

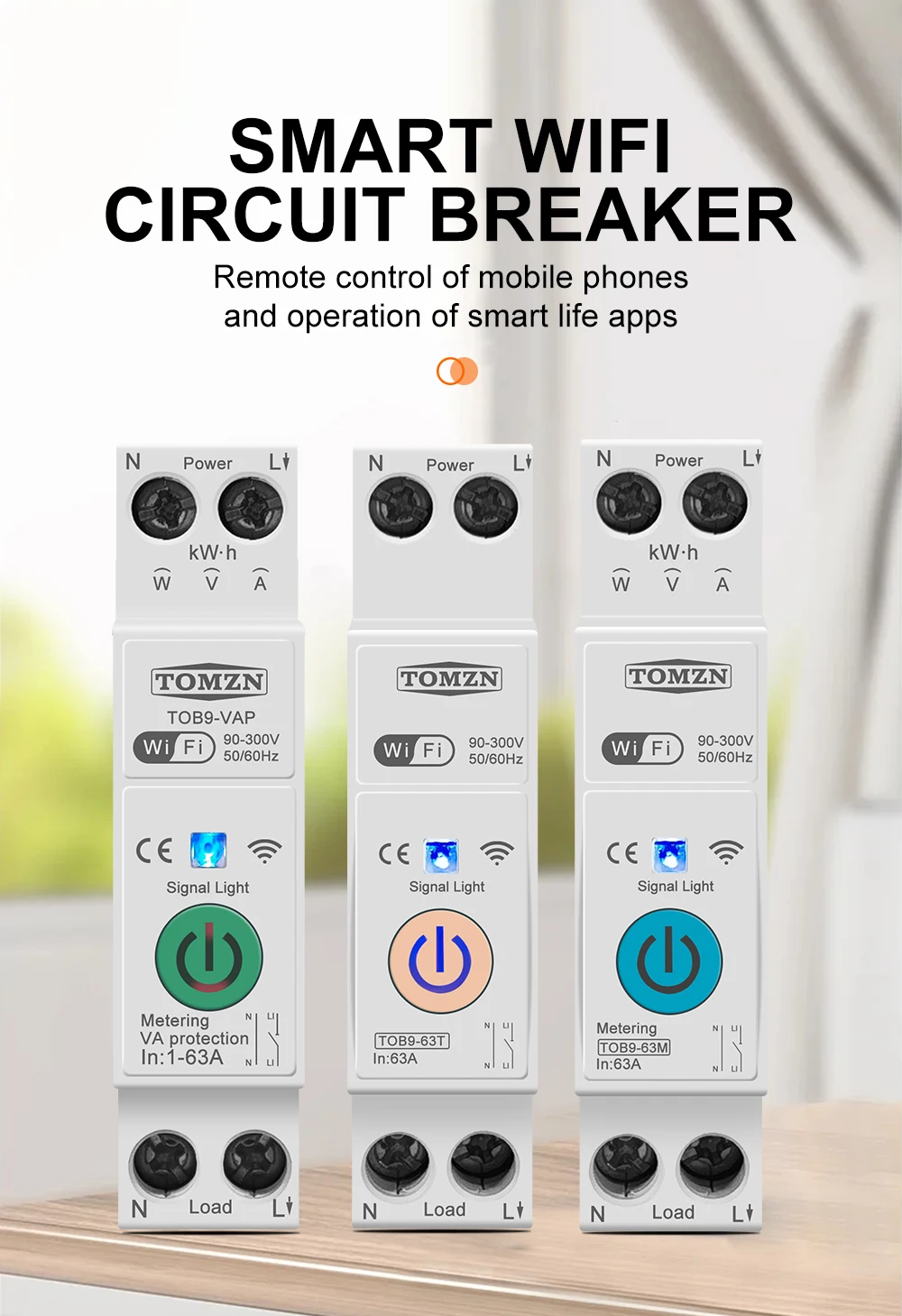

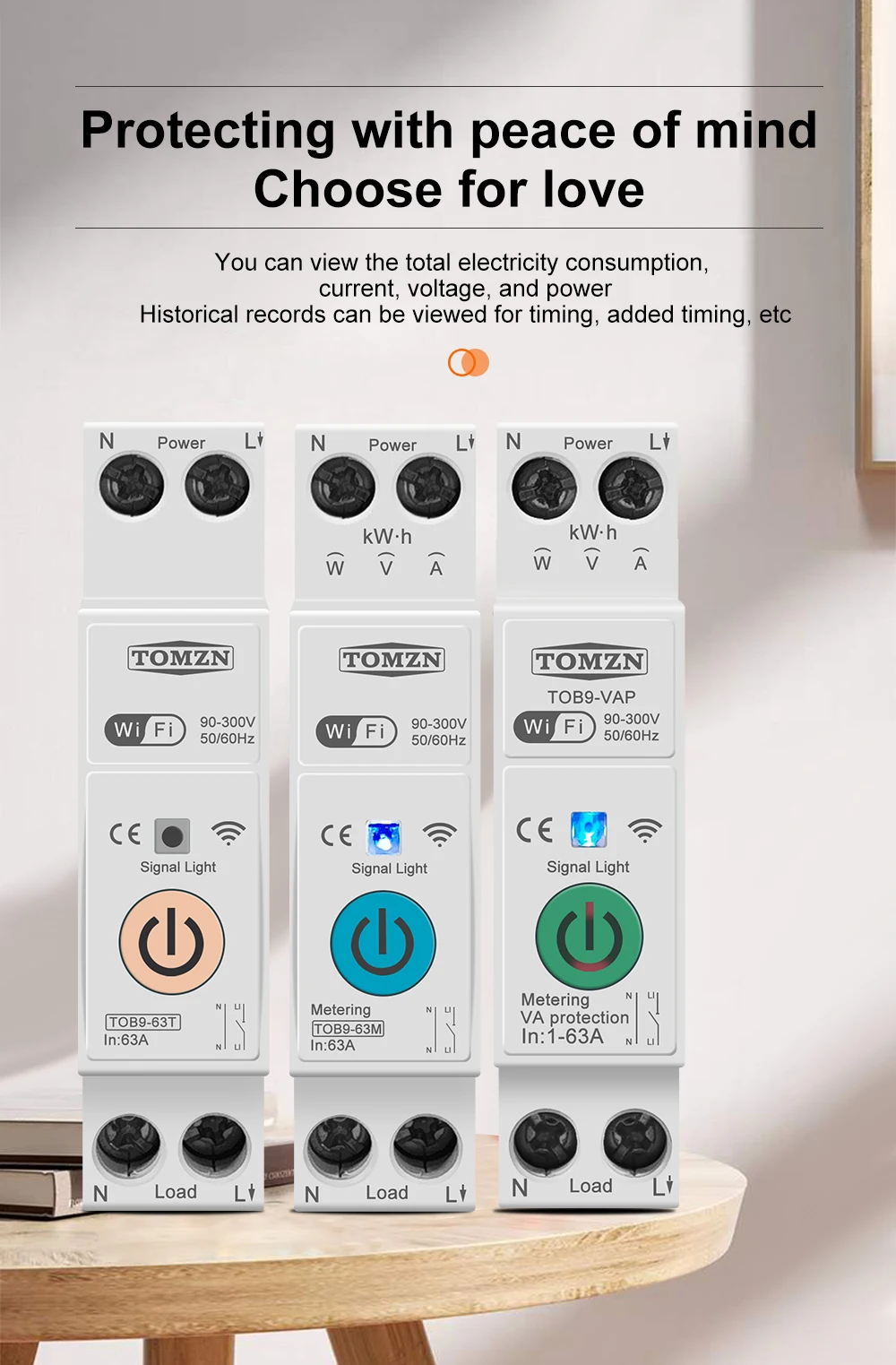

TOB9-63M Metering

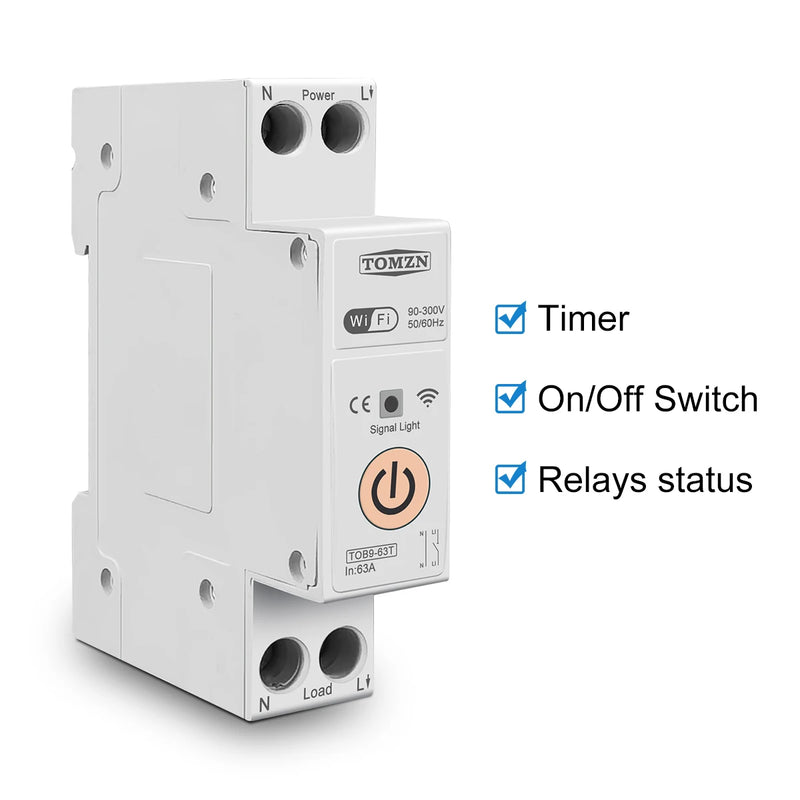

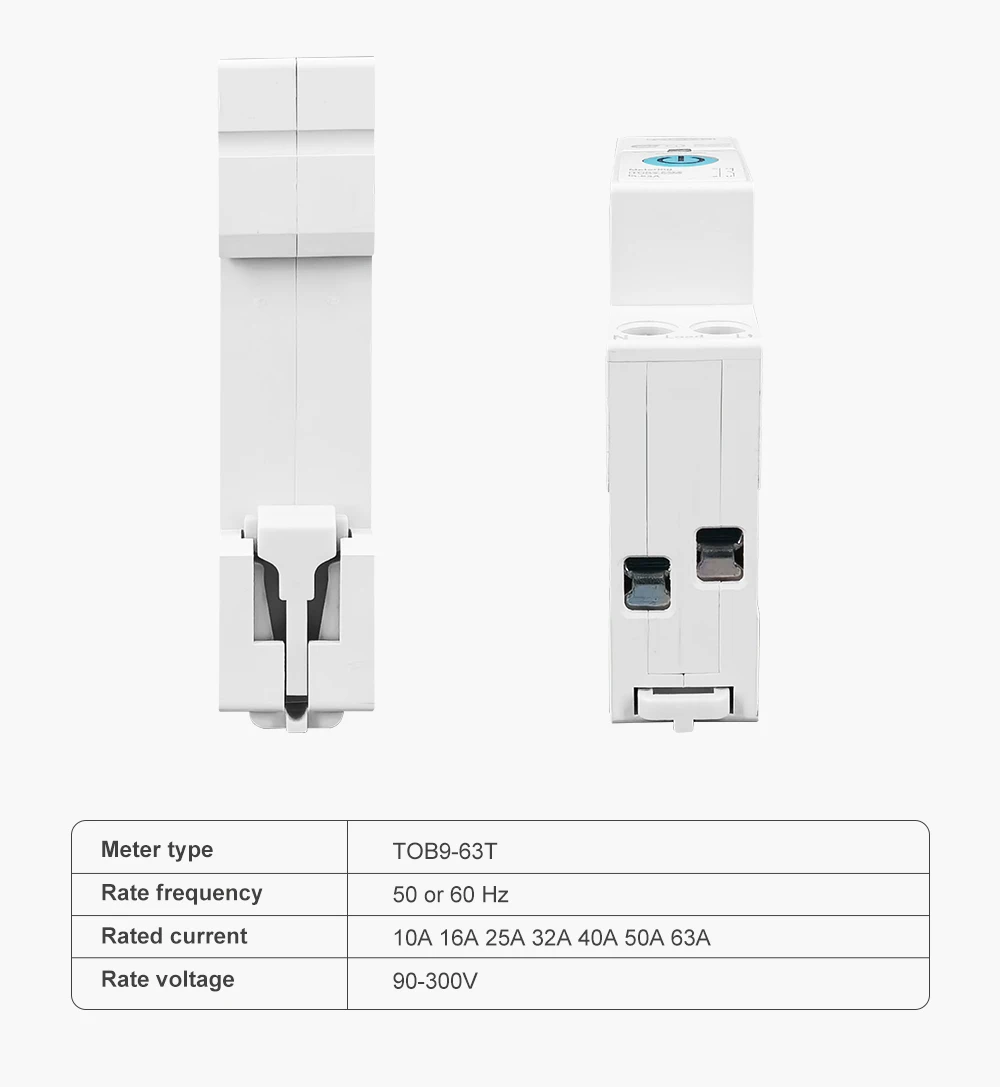

TOB9-63T No metering

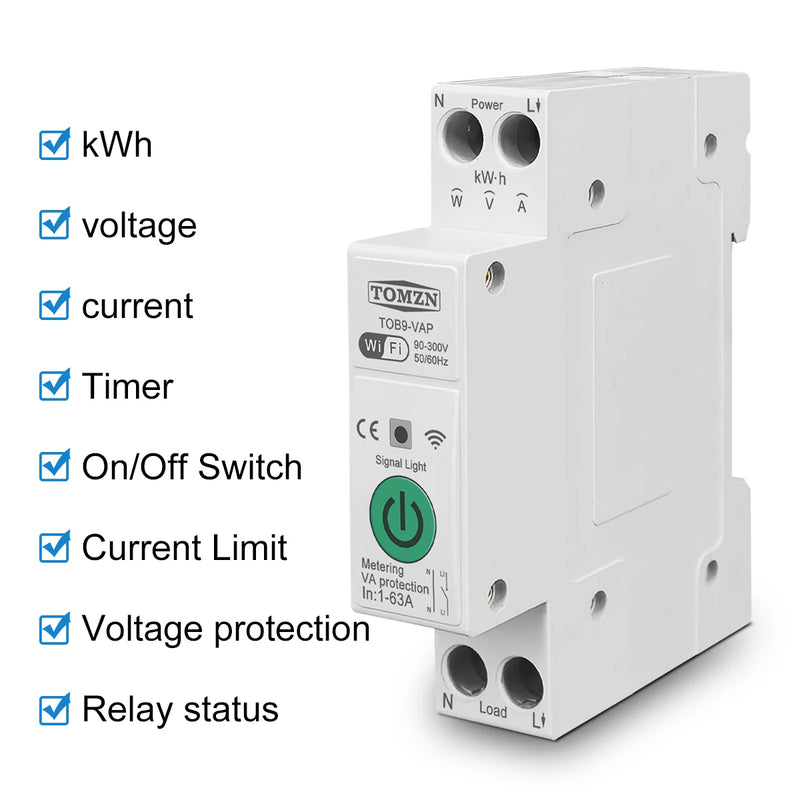

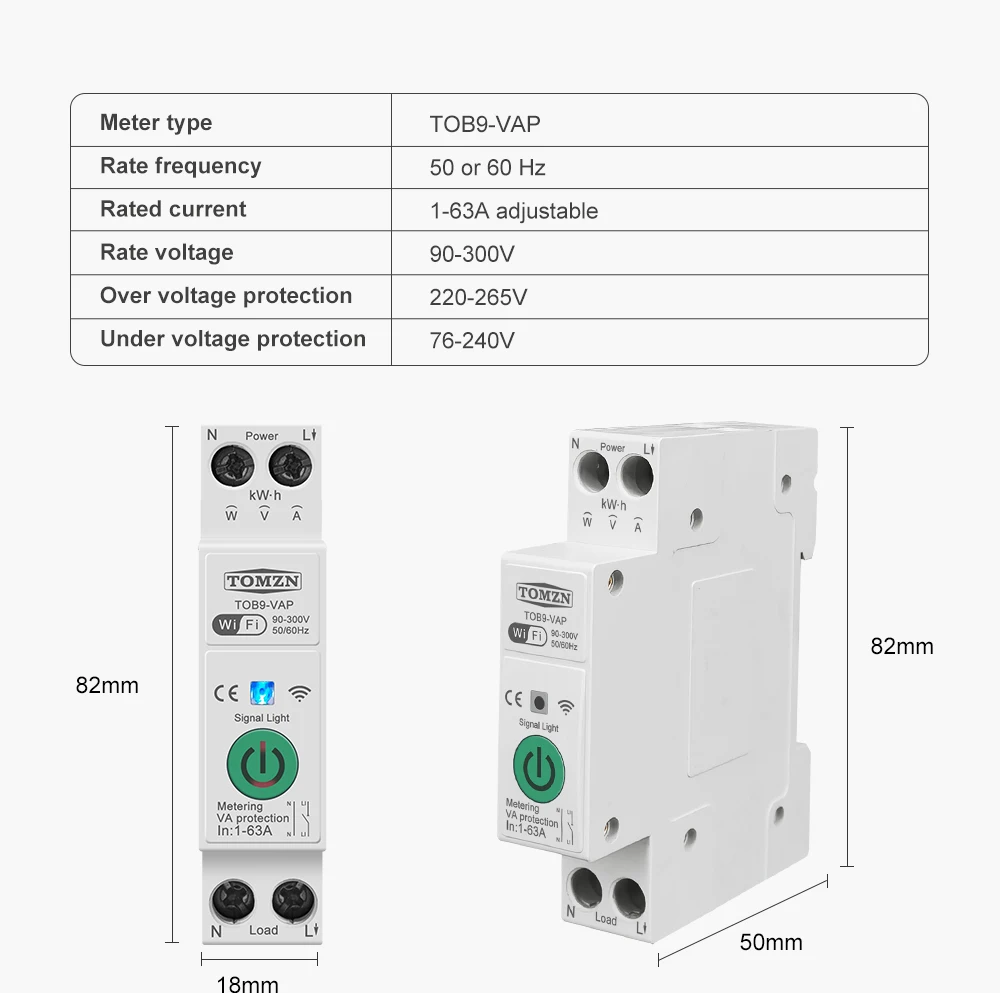

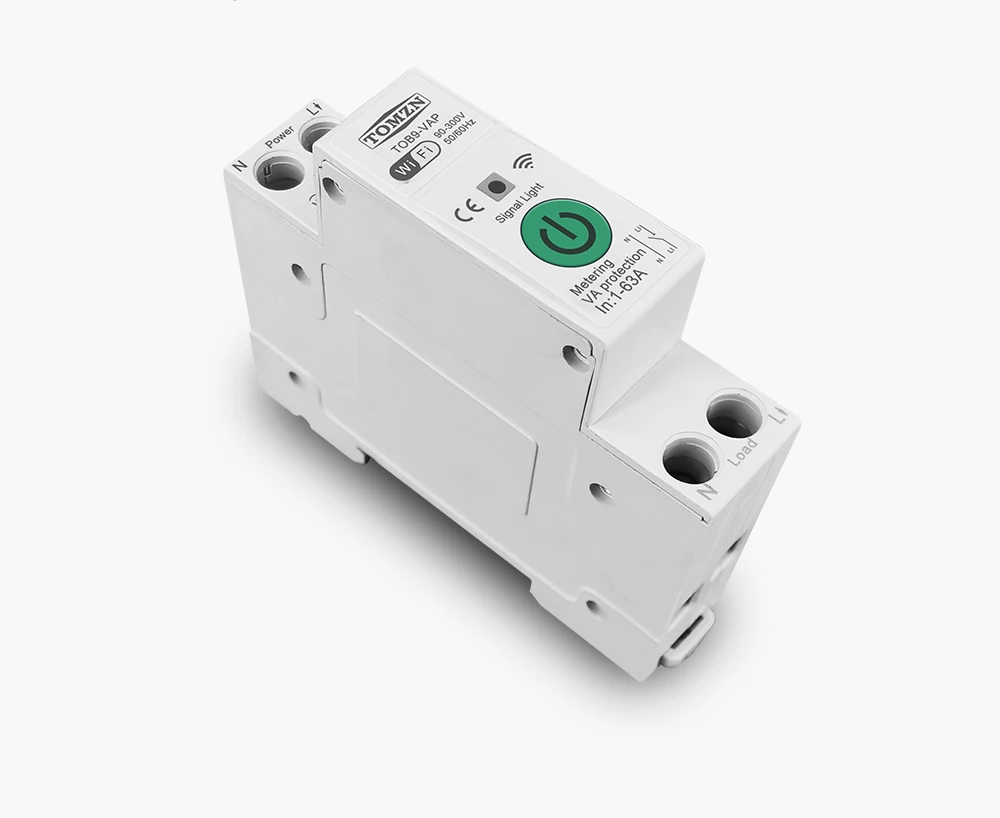

TOB9-VAP Metering, voltage currrent and power protection

Function:

TOB9-63T Function	TOB9-63M Function	TOB9-VAP Function
Remote on/off	Remote on/off	Remote on/off
Time control function	Time control function	Time control function
Relay last status	Relay last status	Relay last status
	Voltmeter	Voltmeter
	Ammeter	Ammeter
	Power meter	Power meter
	Active power	Active power

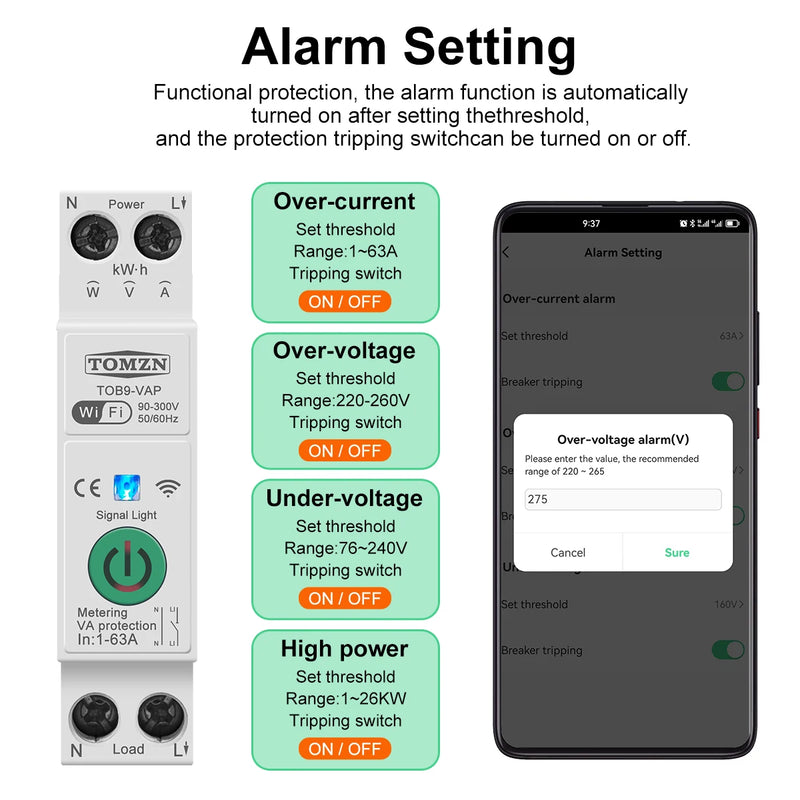

		Over voltage protection
		Under voltage protection
		Over current protection
		Over power protection

Feature

1.Remote control at anytime from anywhere

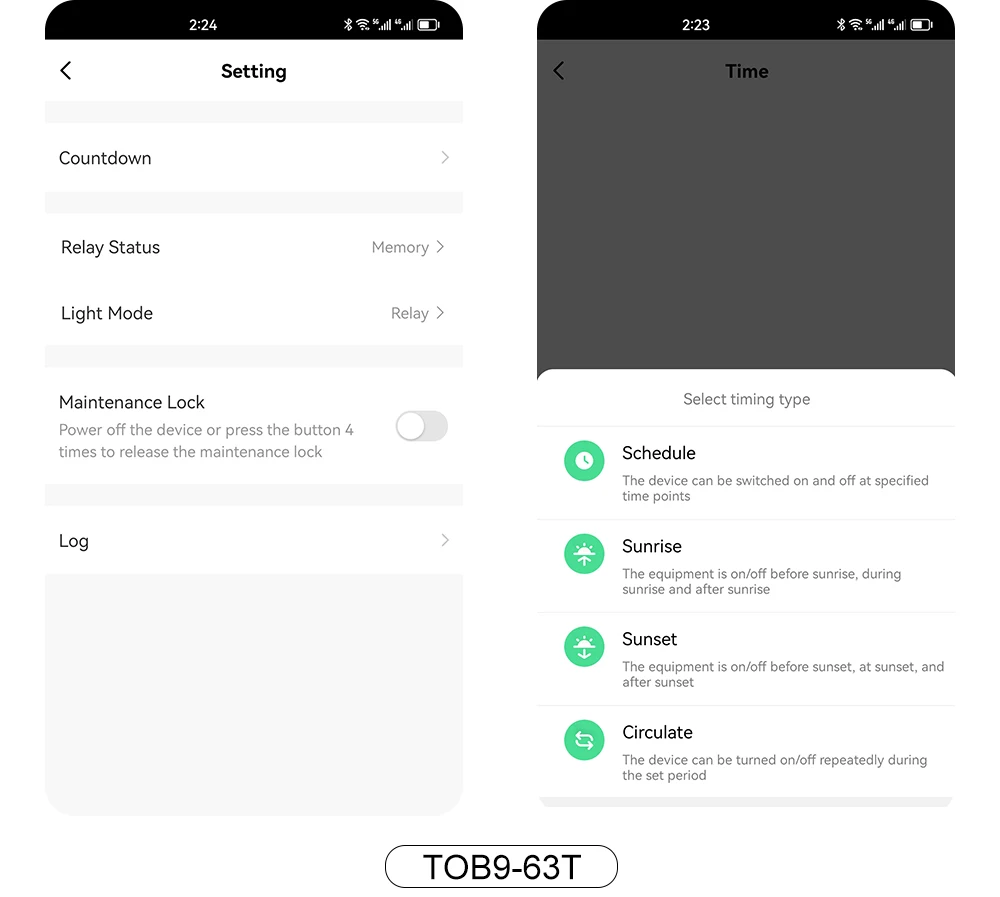

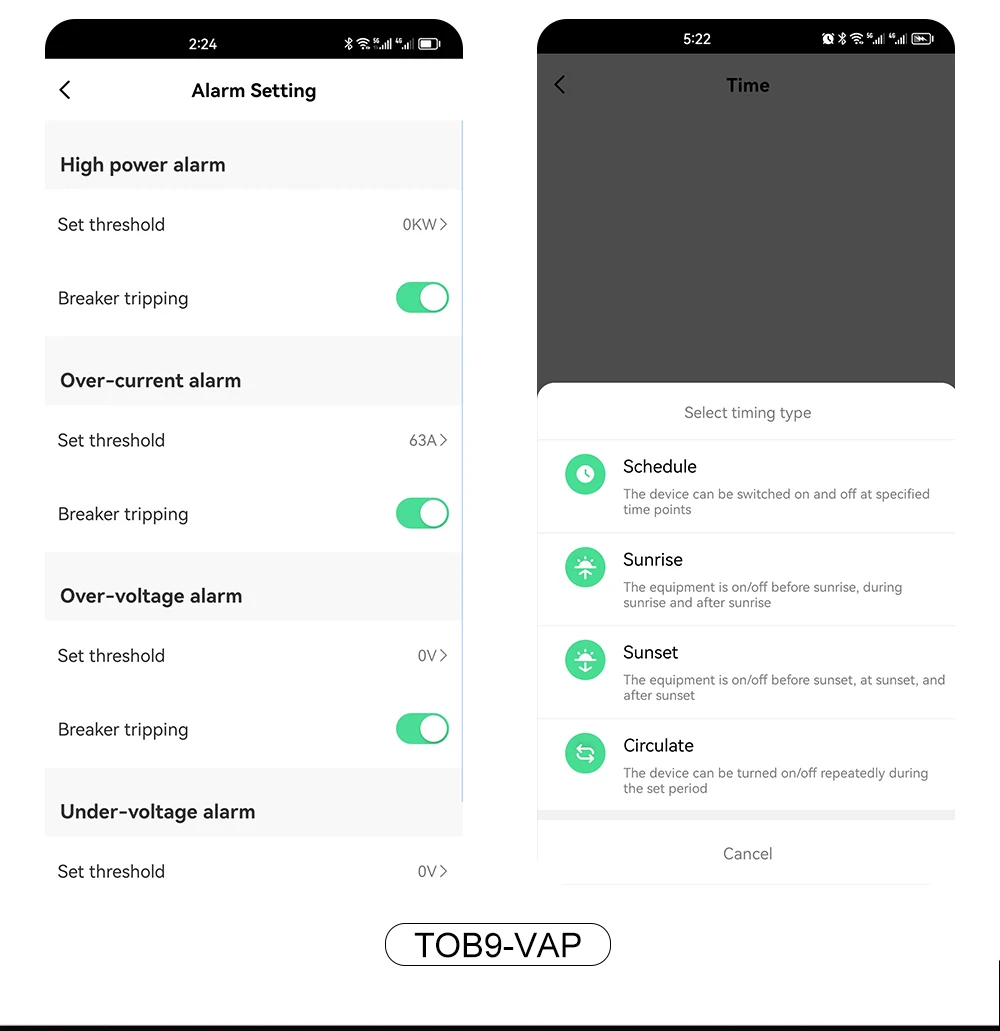

2.Schedule/Timer/loop timer

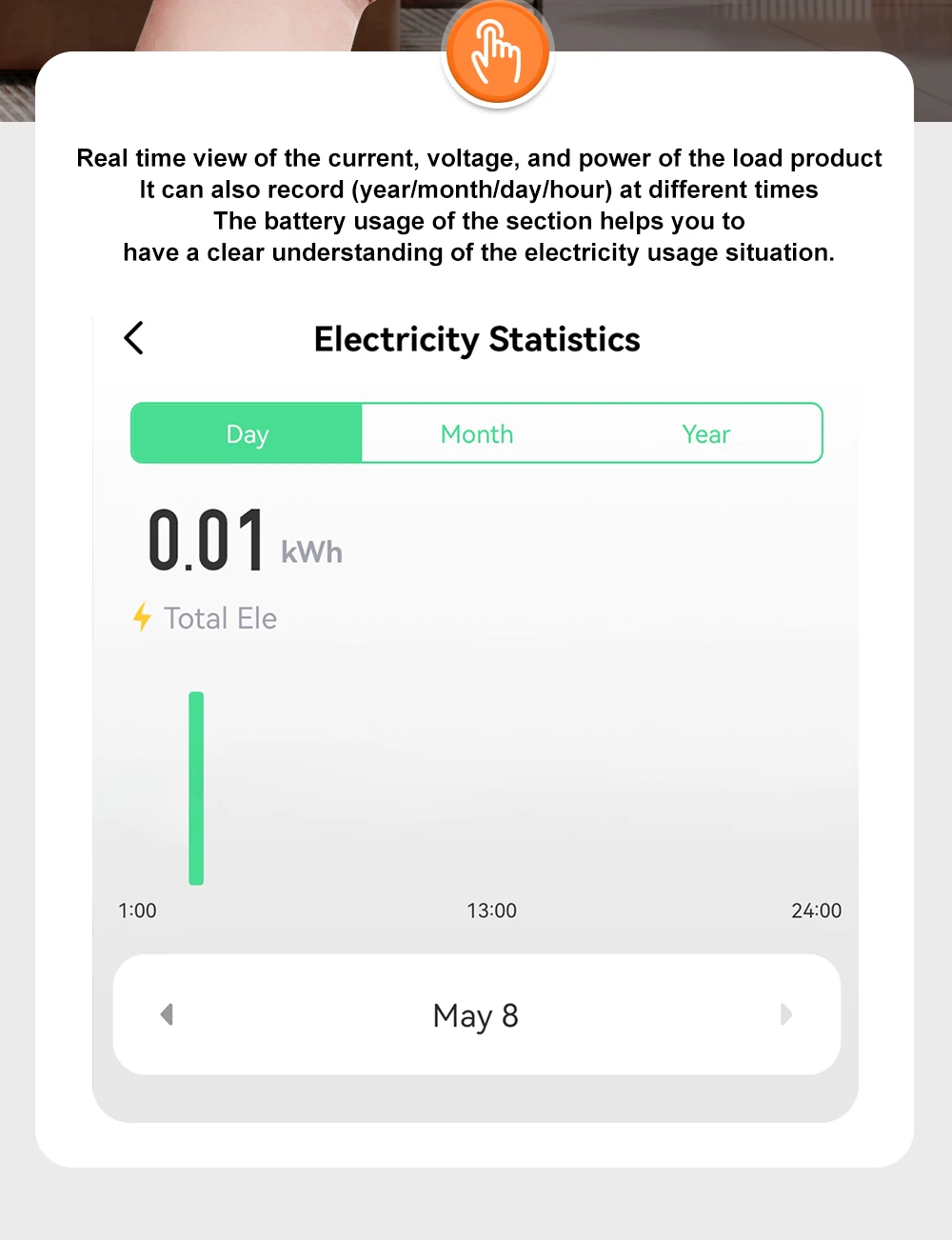

3.Energy monitoring(TOB9-63M, TOB9-63VAP)

4. Working Voltage:AC 90-300V 50/60Hz

5.Mechanical Life: Over 100000 Times

6.Working Temperature: -25℃-70℃

Note:This meter Only supports 2.4G Wireless Network,  NOT for 5G
