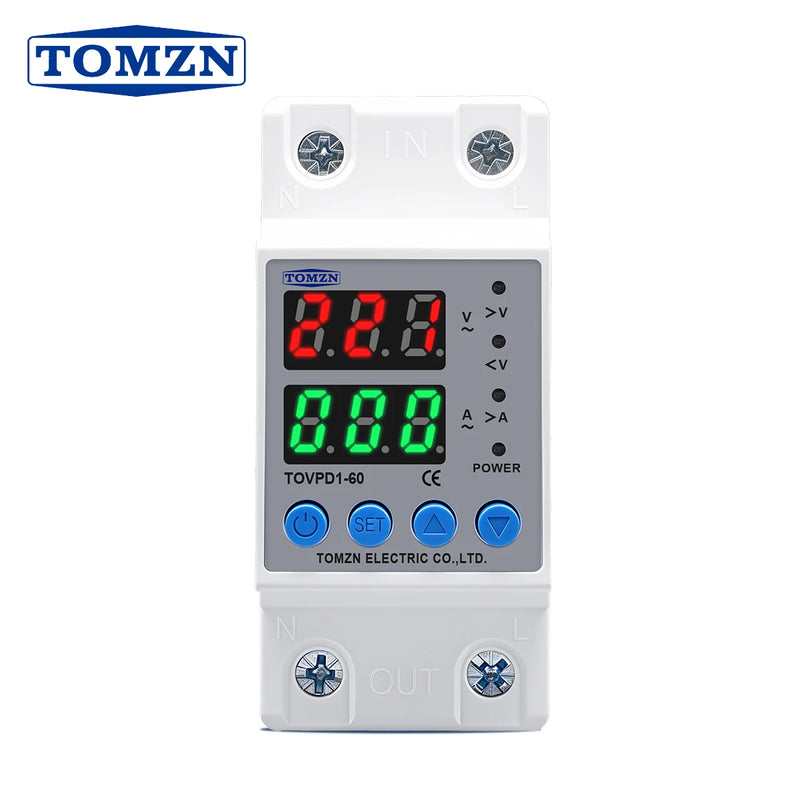

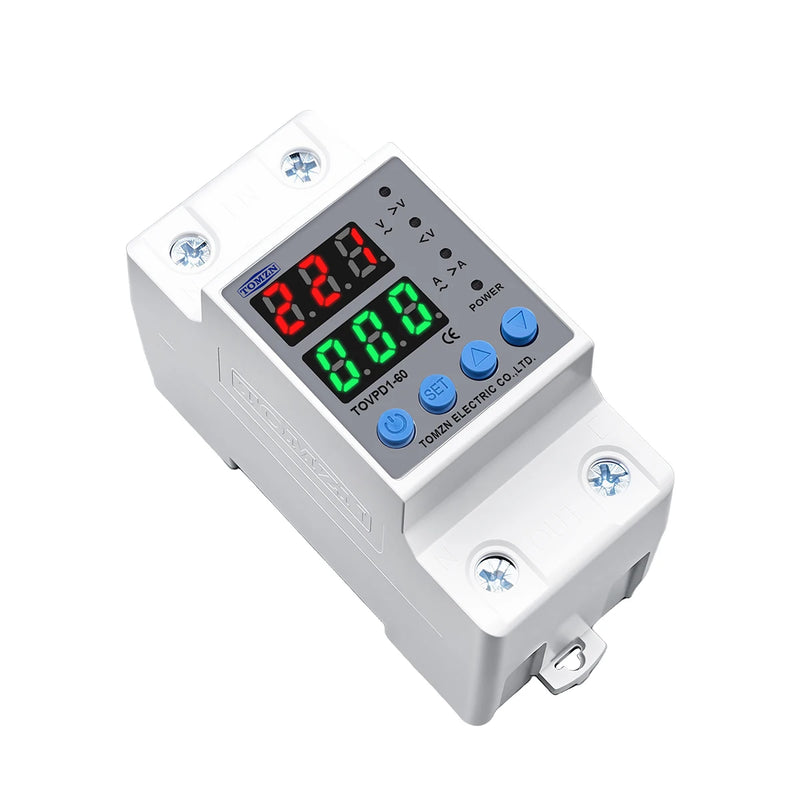

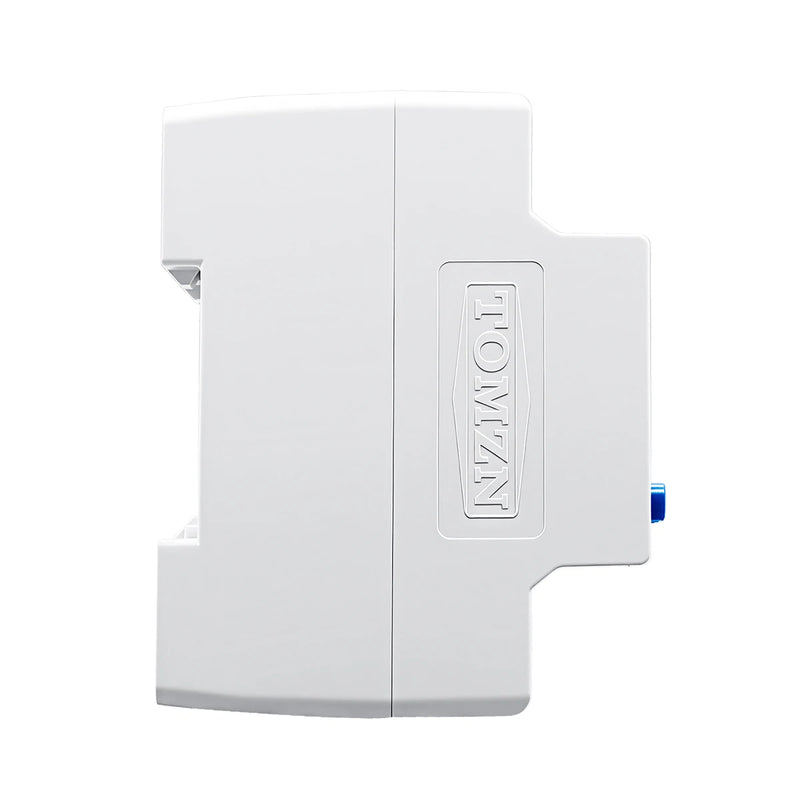

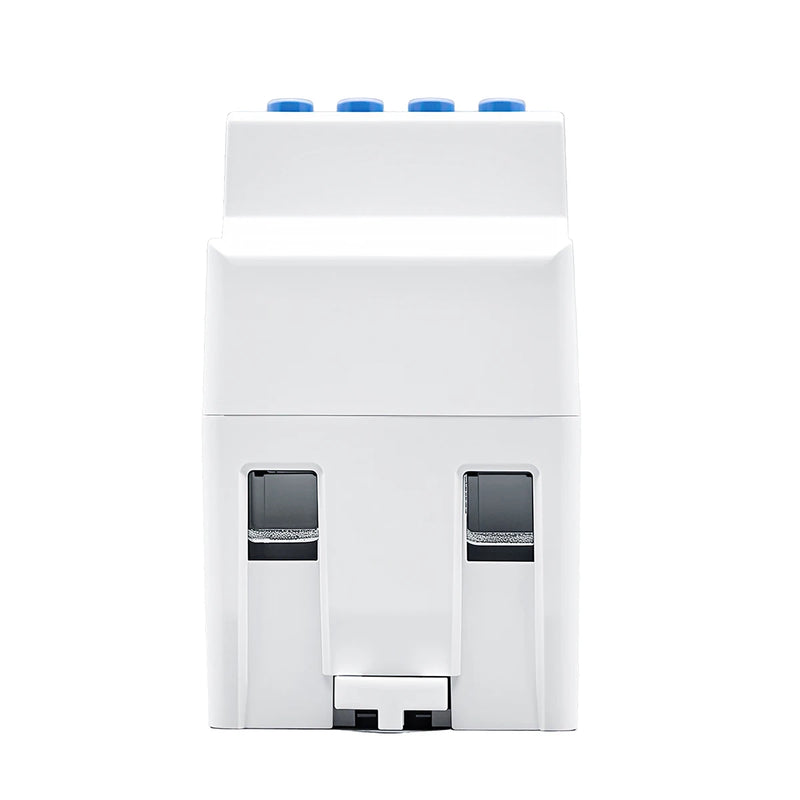

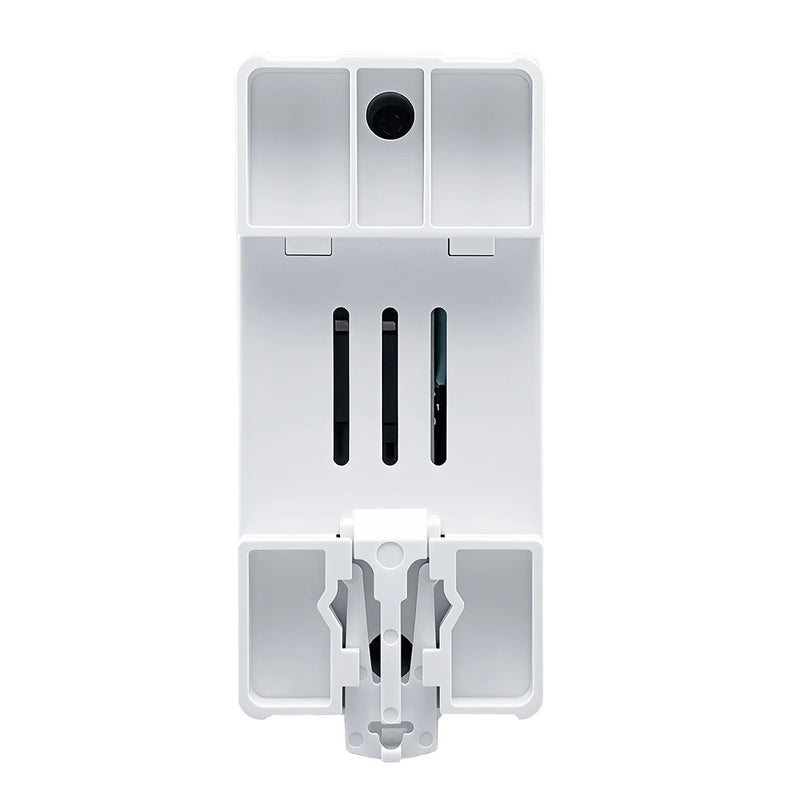

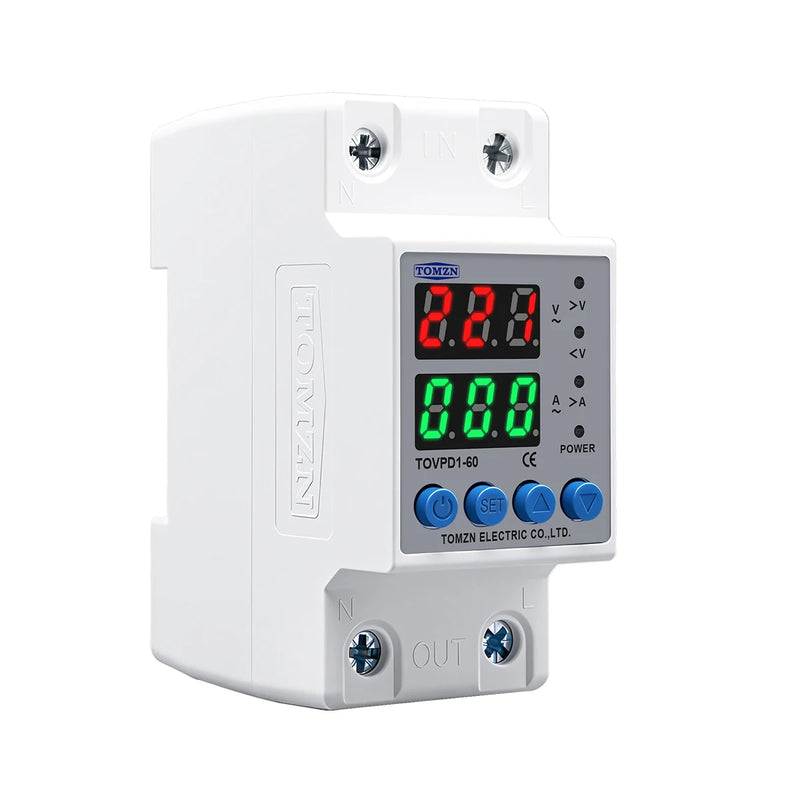

DARAHUB TOMZN 60A 230V Din Rail Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63
TOMZN 60A 230V Din Rail Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63
TOMZN 60A 230V Din Rail Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63
TOMZN 60A 230V Din Rail Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63
TOMZN 60A 230V Din Rail Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63
TOMZN 60A 230V Din Rail Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63
TOMZN 60A 230V Din Rail Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63
$0.00 - $0.00
$0.00
$11.87
$11.16 - $11.87
$11.87
Availability:
15 in stock, ready to be shipped
Availability:
10423 in stock, ready to be shipped
Rated Current: 60A

TOMZN 60A 230V Din Rail Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63

by αžŠαŸ„αž™ TOMZN

All prices exclude shipping and taxes. αžαž˜αŸ’αž›αŸƒαž‘αžΆαŸ†αž„αž’αžŸαŸ‹αž˜αž·αž“αžšαž½αž˜αž”αž‰αŸ’αž…αžΌαž›αžαŸ’αž›αŸƒαžŠαžΉαž€αž‡αž‰αŸ’αž‡αžΌαž“ αž“αž·αž„αž–αž“αŸ’αž’αž‘αŸαŸ”

Choose language

TOMZN 60A 230V Din Rail Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Model Number: TOVPD1-60-VA

Origin: Mainland China

Type: Voltage protector,Voltage relay

is_customized: Yes

semi_Choice: yes

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibrationΒ A13
Product Parameters:Β Β
1.Model number:TOVPD1-60-VA
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40AΒ  Adjustable(default:40A)
Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β Β  1~63AΒ  Adjustable(default:63A)
4.Over-voltage protection value range:230V~300V (default:270V)
Over-voltage recovery voltage range:225V--295V(default:250V)
Β Β  Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V (default:170V)
Under-voltage recovery voltage range:145V--215V (default:190V)
Β Β  Under-voltage protection action time:0.1s~30s(default:0.5s)
Β Β  Under-voltageΒ recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A)1-63AΒ (default:40A)
Β  Β Over-current action range:0.1~30Β secondΒ (default:0.5s)
Over-currentrecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
10.Installation:35mm DIN rail

A13 Voltage adjustable+- 9.5%
