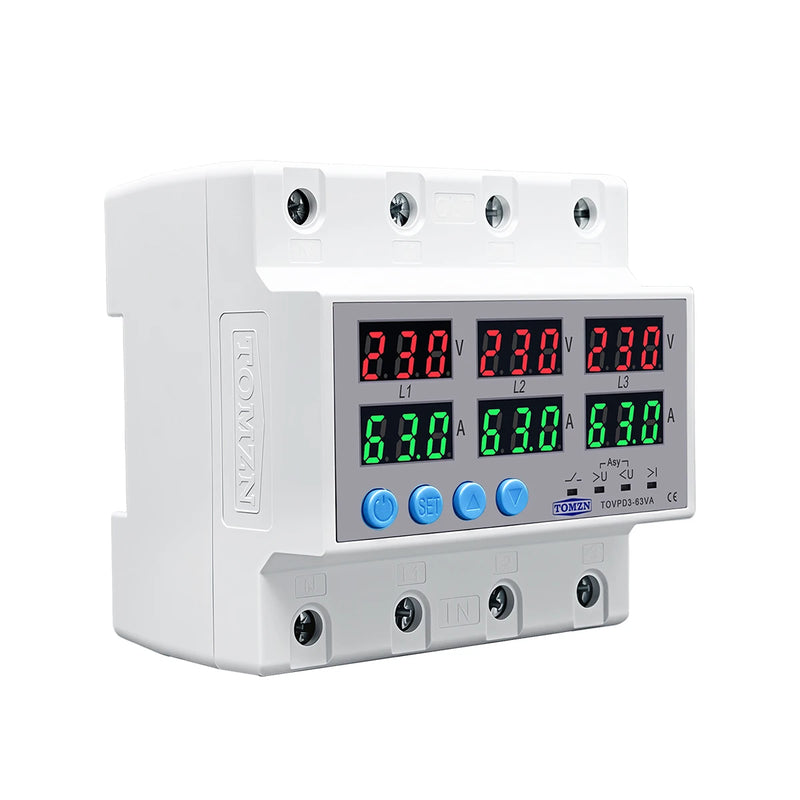

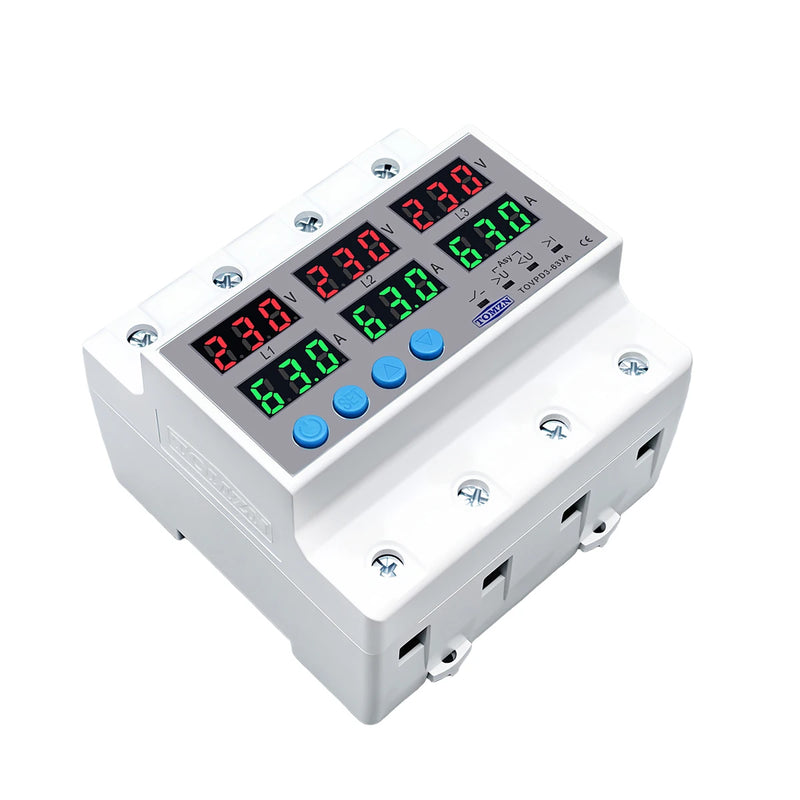

TOMZN 3Phase 3P+N Din Rail Voltmeter Ammeter Adjustable Over and Under Voltage Current Limit Protection Monitor Relays Protector

Name: TOMZN 3Phase 3P+N Din Rail Voltmeter Ammeter Adjustable Over and Under Voltage Current Limit Protection Monitor Relays Protector
Brand: TOMZN
SKU: 1005001594326347-63A With N 3X120V
Price: 15.21 USD
Availability: InStock

by ដោយ TOMZN

All prices exclude shipping Customs and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន គយ និងពន្ធទេ។

Choose language

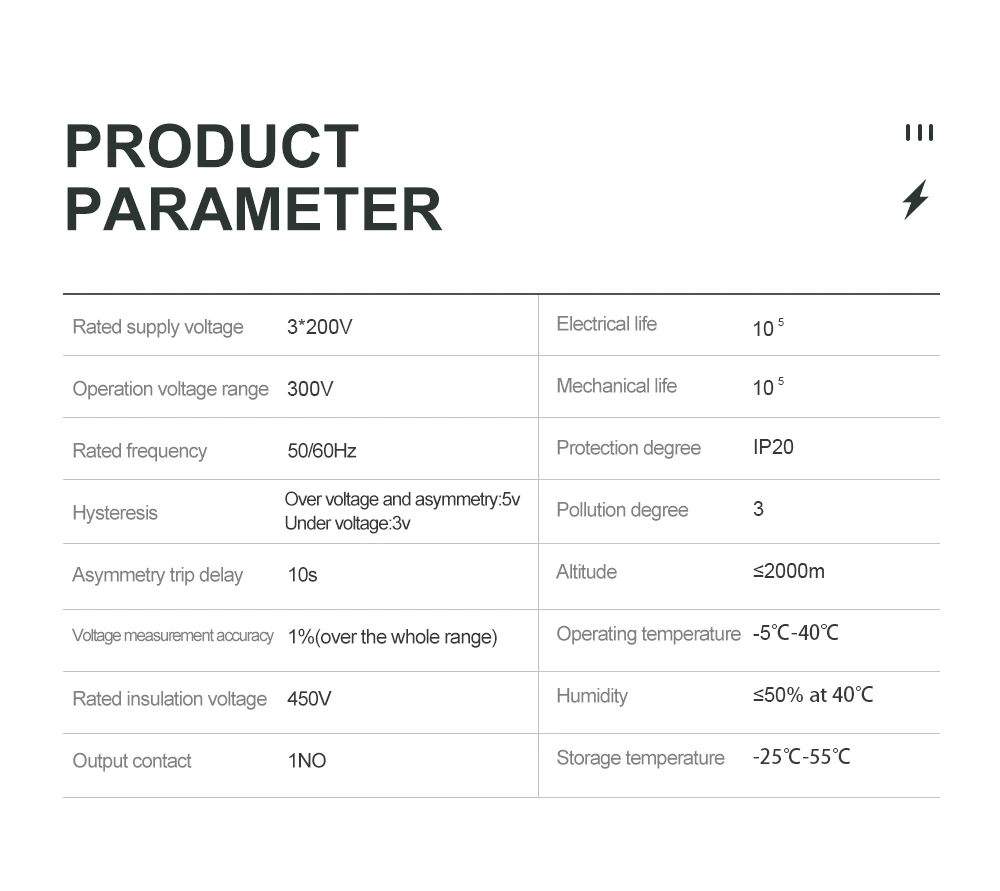

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

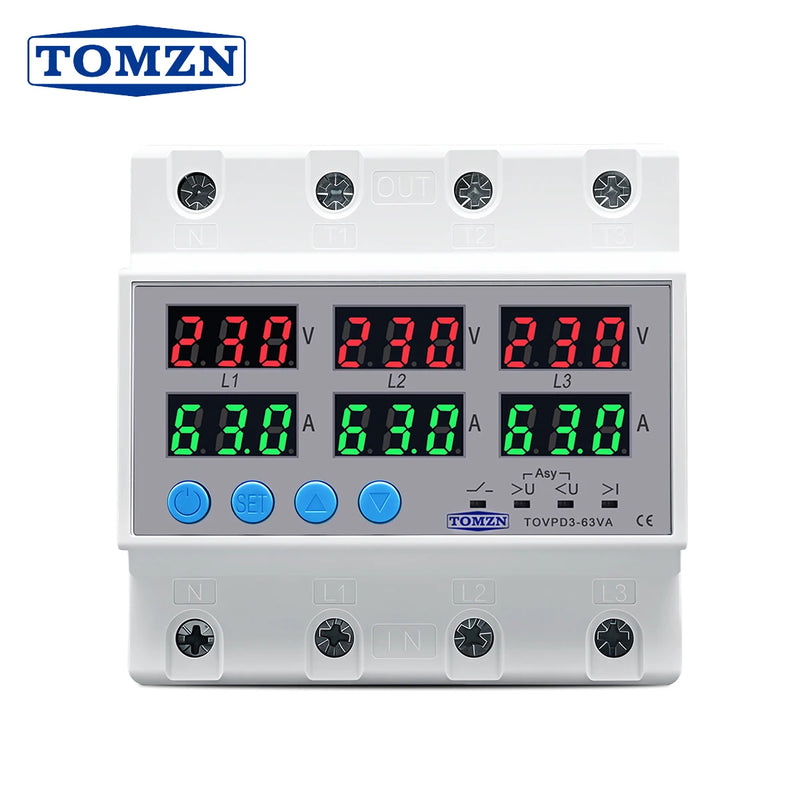

Model Number: TOVPD3-63VA

Origin: Mainland China

Rated Voltage: 220/380V

Type: Voltage protector,Voltage relay

is_customized: Yes

Please noted:

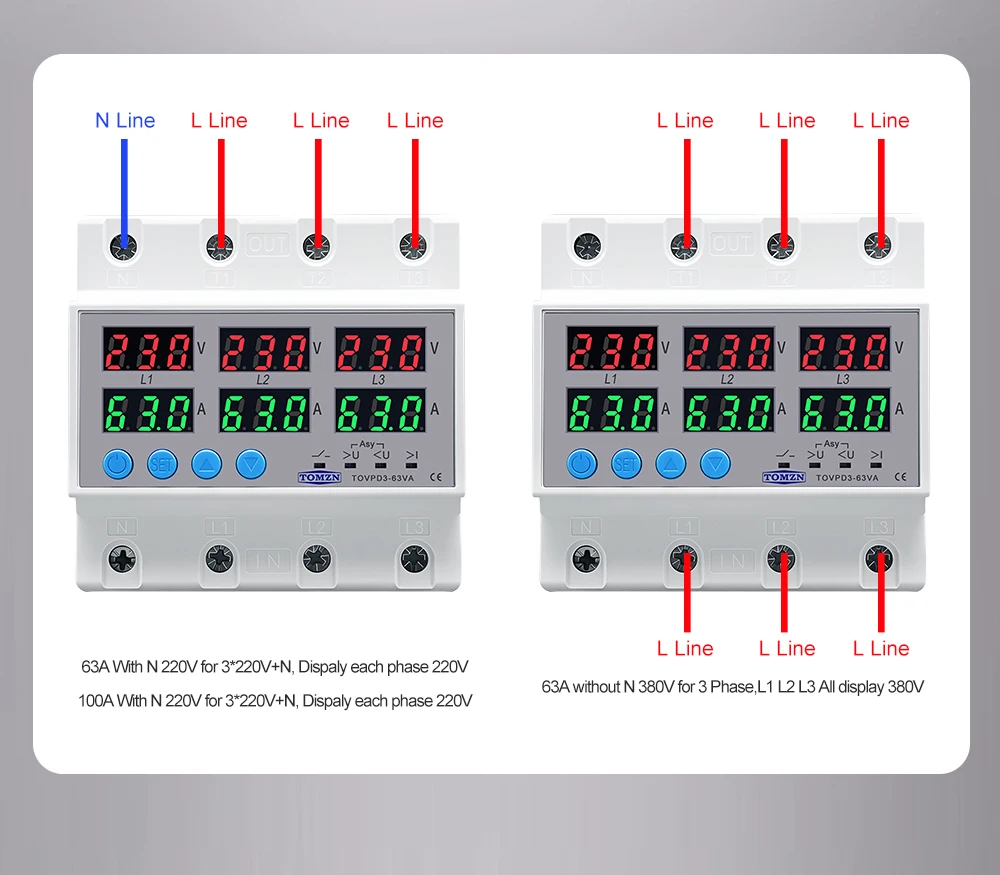

63A With N 220V for 3*220V+N, Dispaly each phase 220V

63A without N 380V for 3 Phase, L1 L2 L3 All display 380V

100A With N 220V for 3*220V+N, Dispaly each phase 220

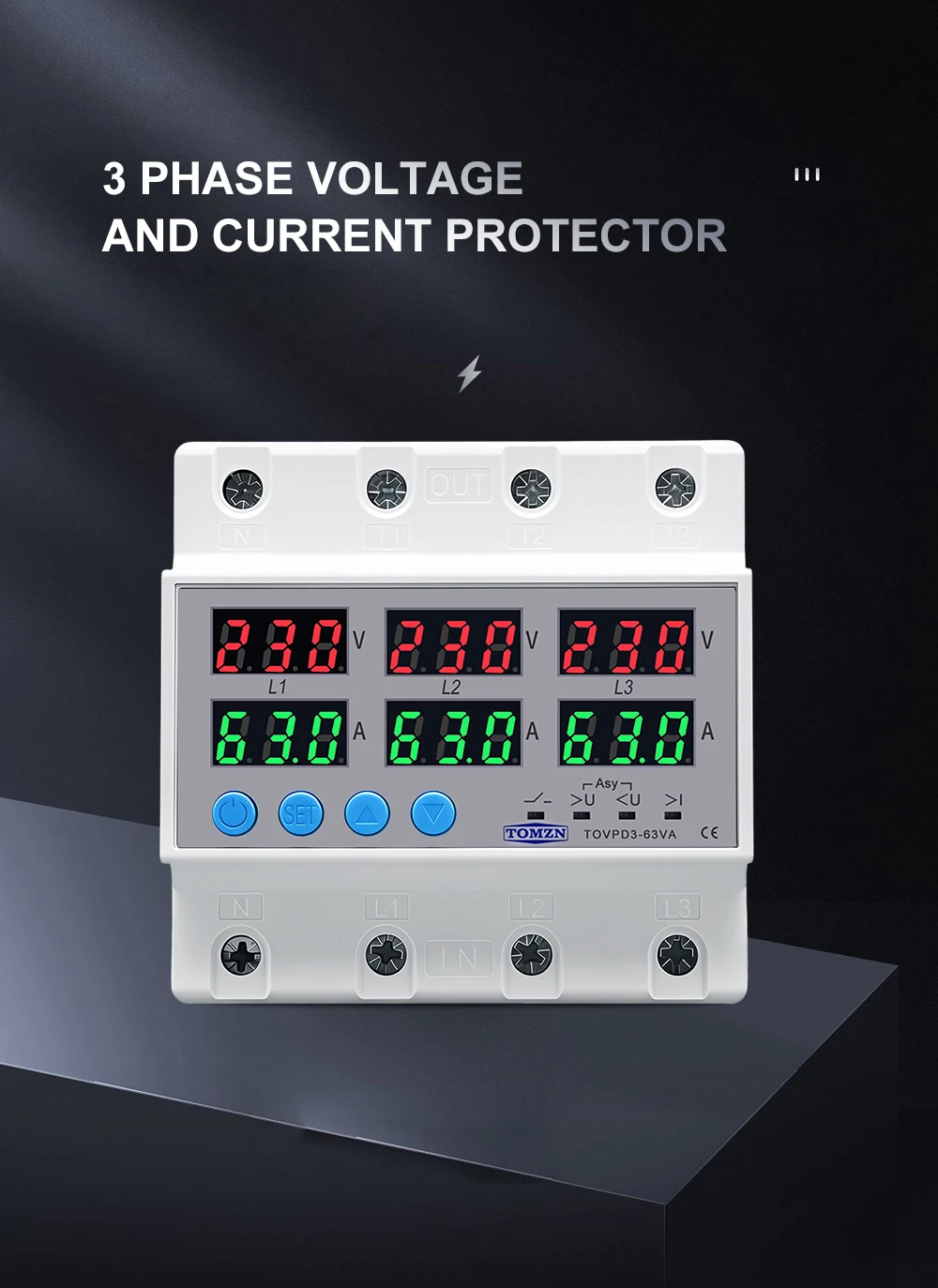

Three phase Voltage Current Relay Protector 63A 60A 100A 220V 3P+N Over Under Voltage Relay Current limiter adjustable

1.Over-voltage protection: Adjustable
2.Under-voltage protection: Adjustable

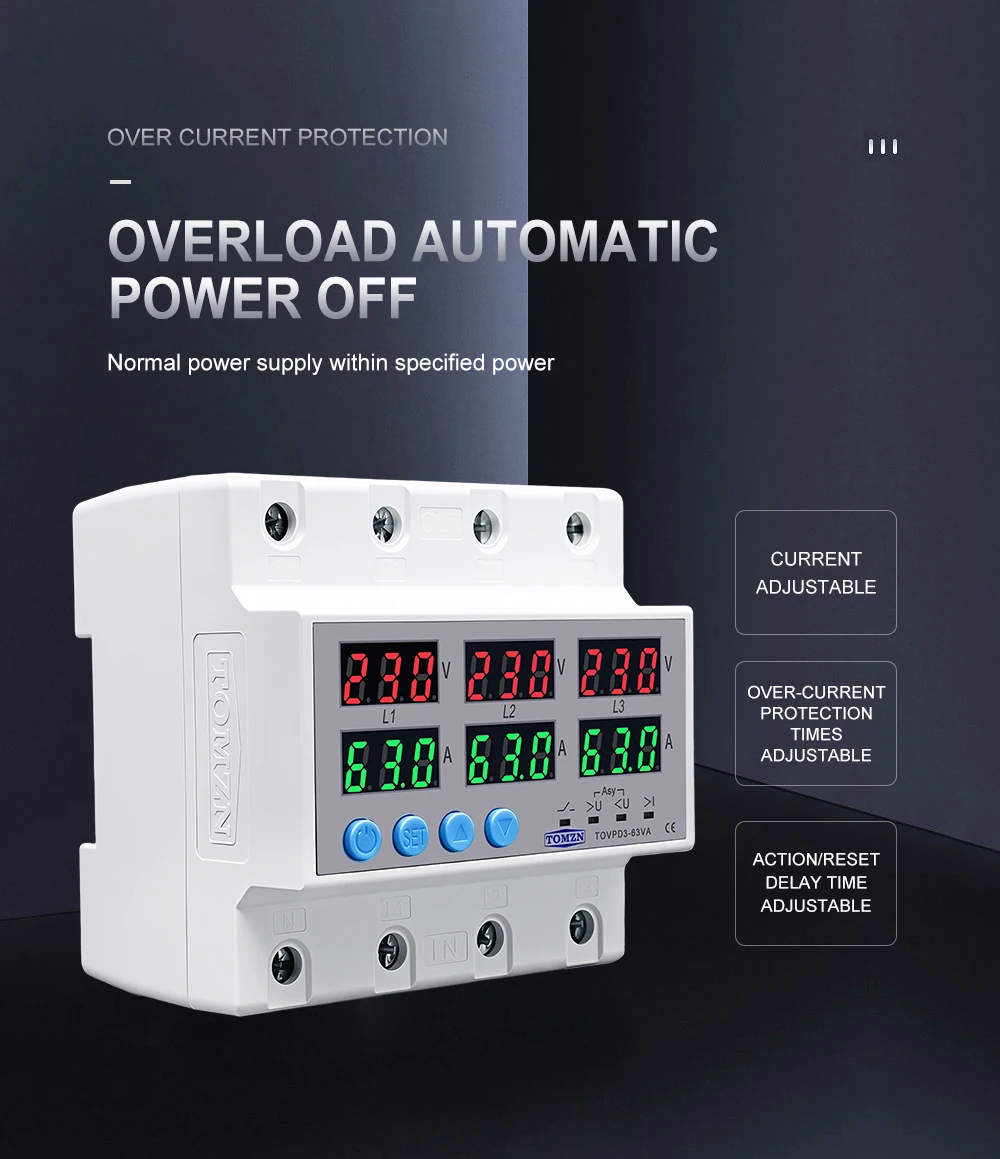

3.Over-Current protection: Adjustable
4. Asymmetry protection
5.Phase squence protection
6. Active time and reconnect time adjsutable

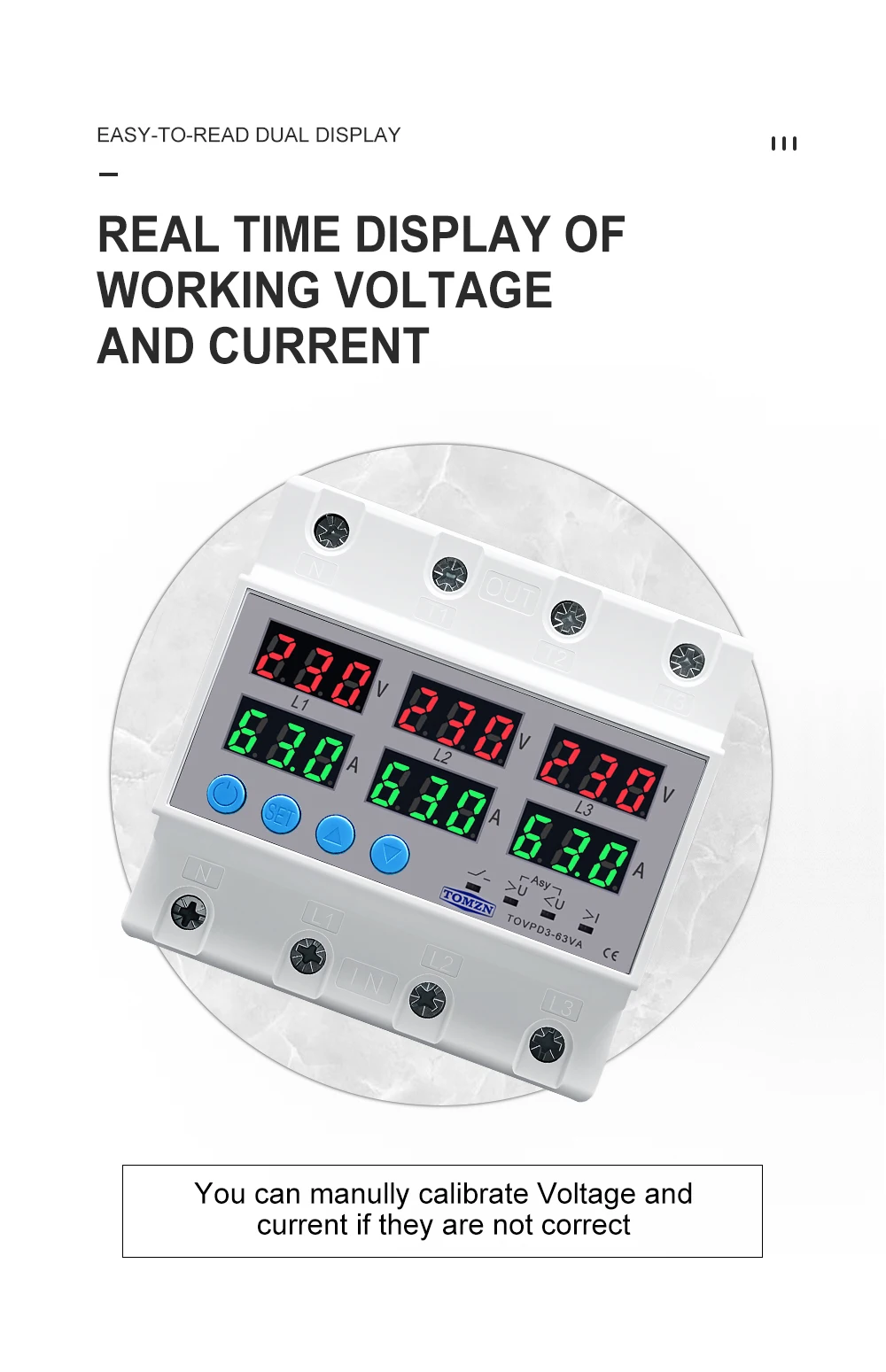

7. Voltage and current can be manually calibrated

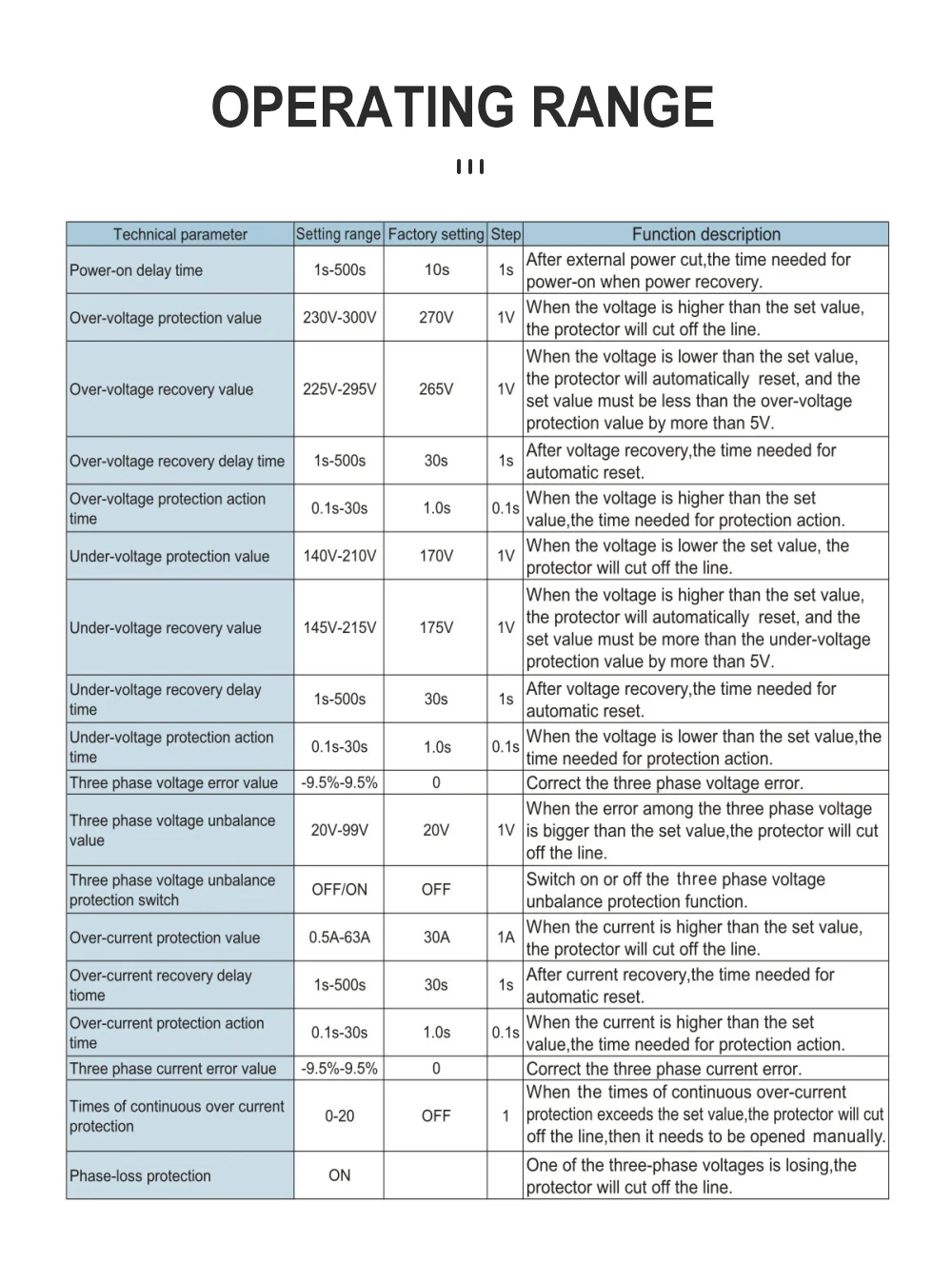

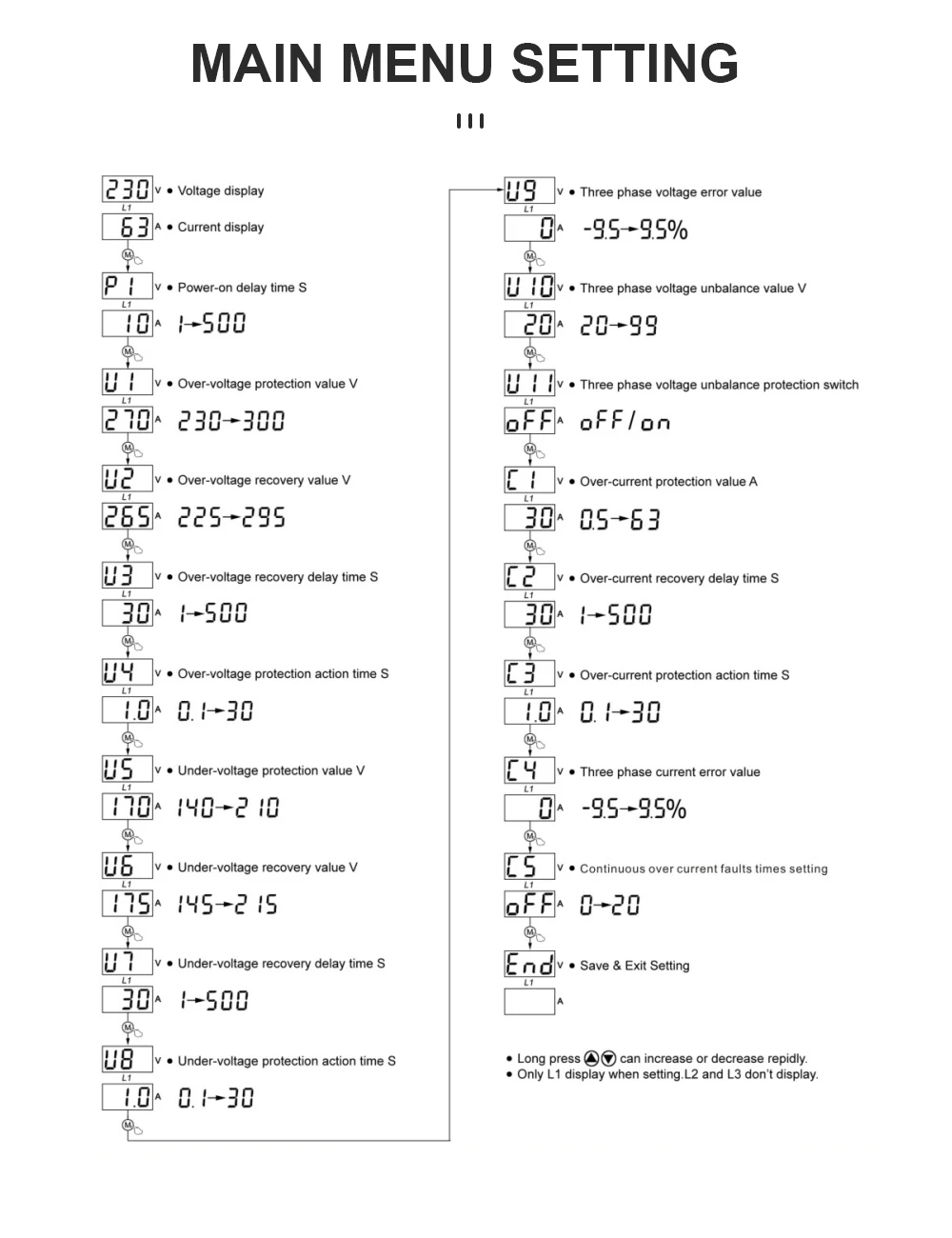

Code	Parameter	Value
P1	Power On Time	1-500S
U1	Over Voltage	230-300V
U2	Recovery Voltage	220-295V
U3	Recovery Time	1-500S
U4	Power Off delay Time	0.1-30S
U5	Under Voltage	140-210V
U6	Recovery Voltage	145-215V
U7	Recovery Time	1-500S
U8	Power Off delay Time	0.1-30S
U9	Voltage Deviation	-9.5 to 9.5%
U10	Asymmetry	20-99V
U11	Phase squence protect	on/off
C1	Over Current	3-63A
C2	Recovery Time	1-500S
C3	Power Off delay Time	0.1-30S
C4	Current Deviation	-9.5 to 9.5%
C5	Continues Over Current Times	1-20 off
