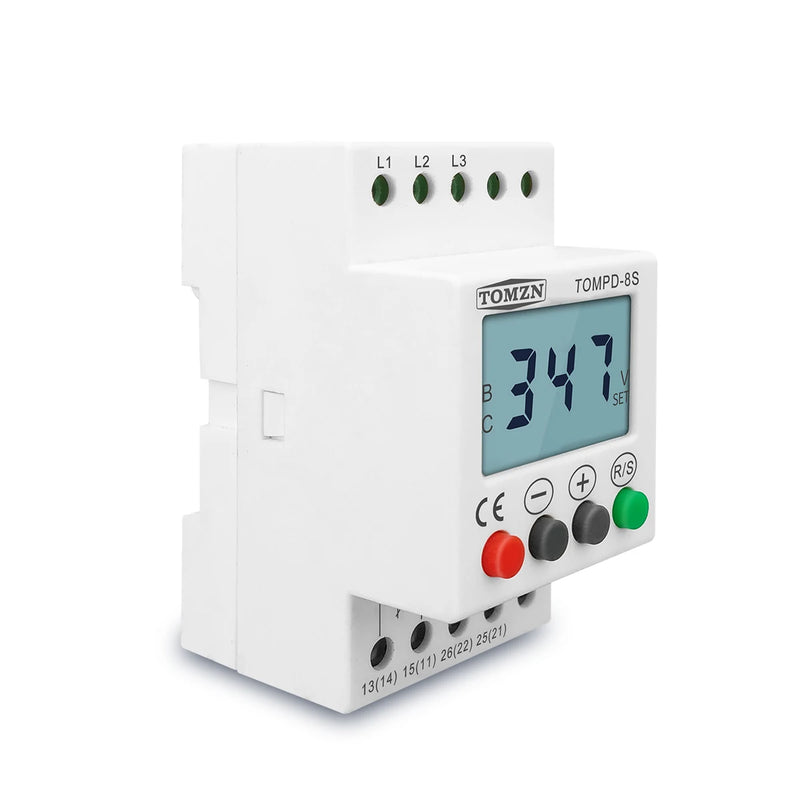

Features

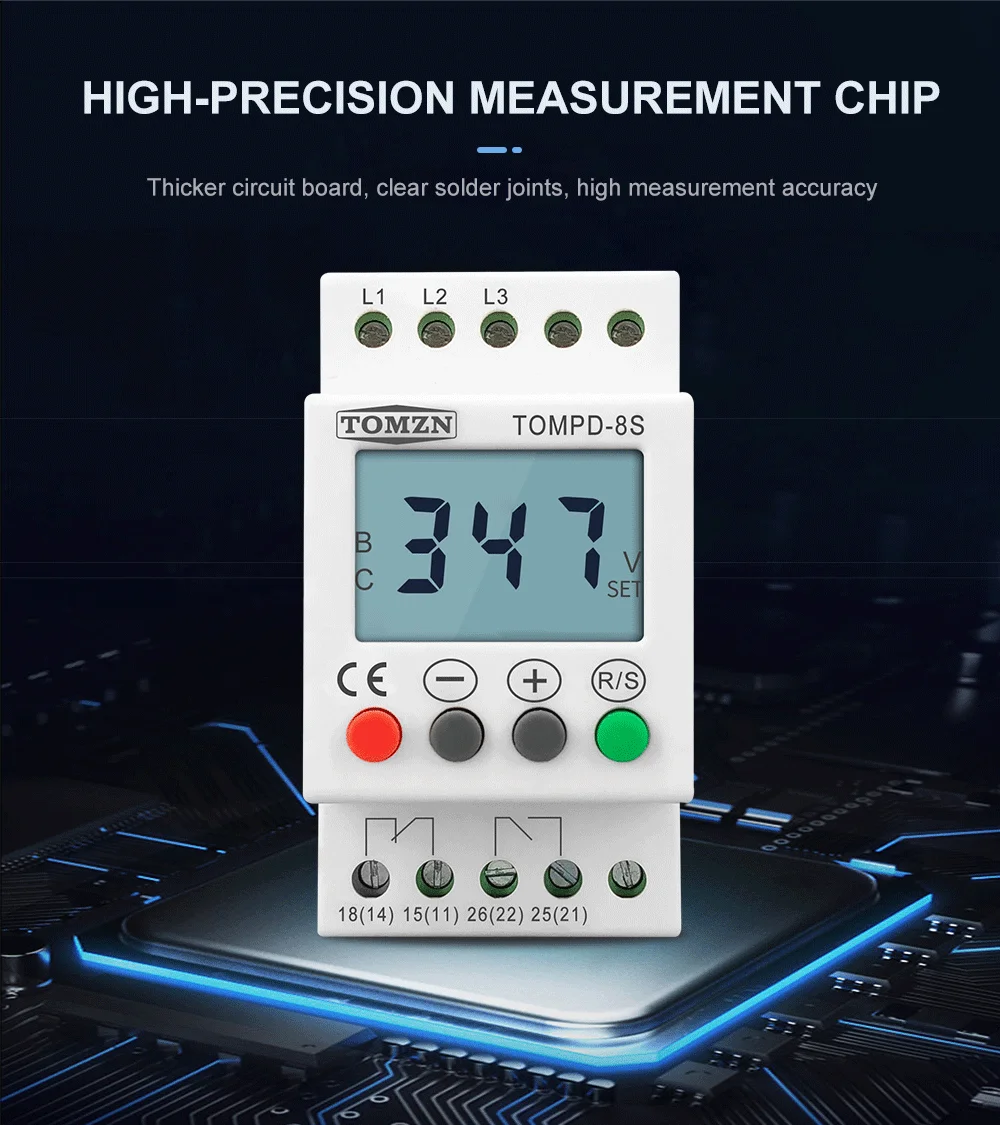

●Microprocessor technology provideshighly accurate and repeatable protection

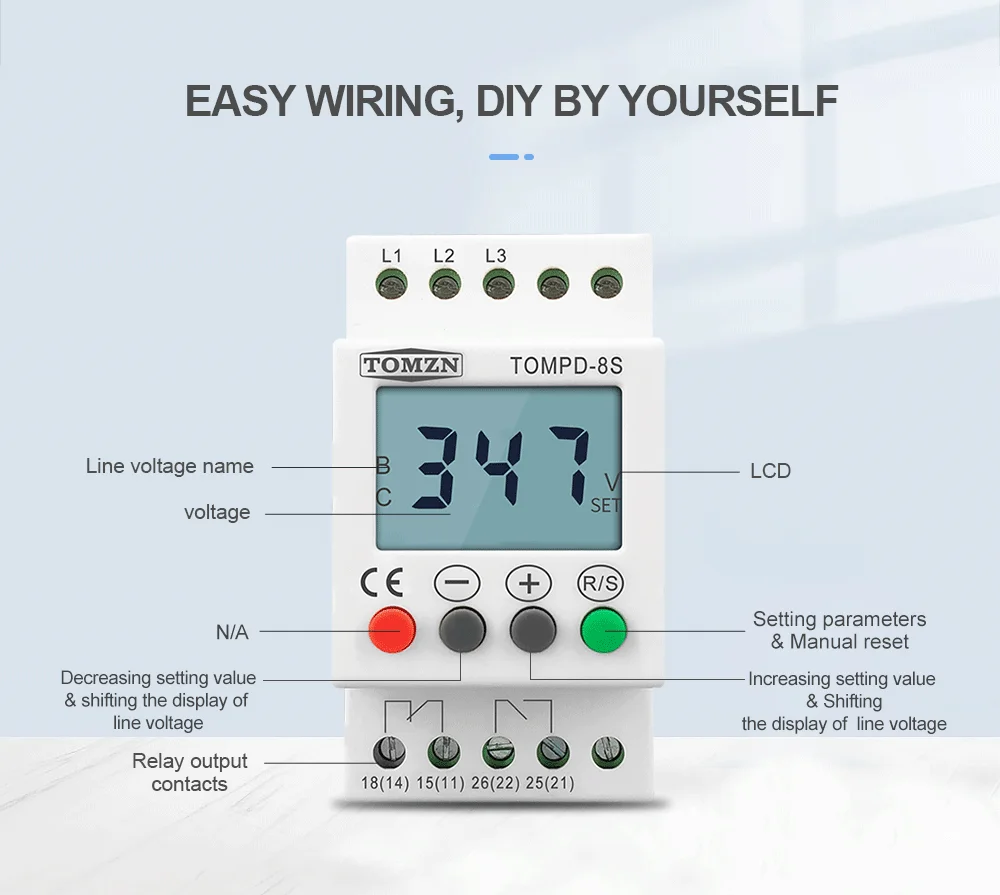

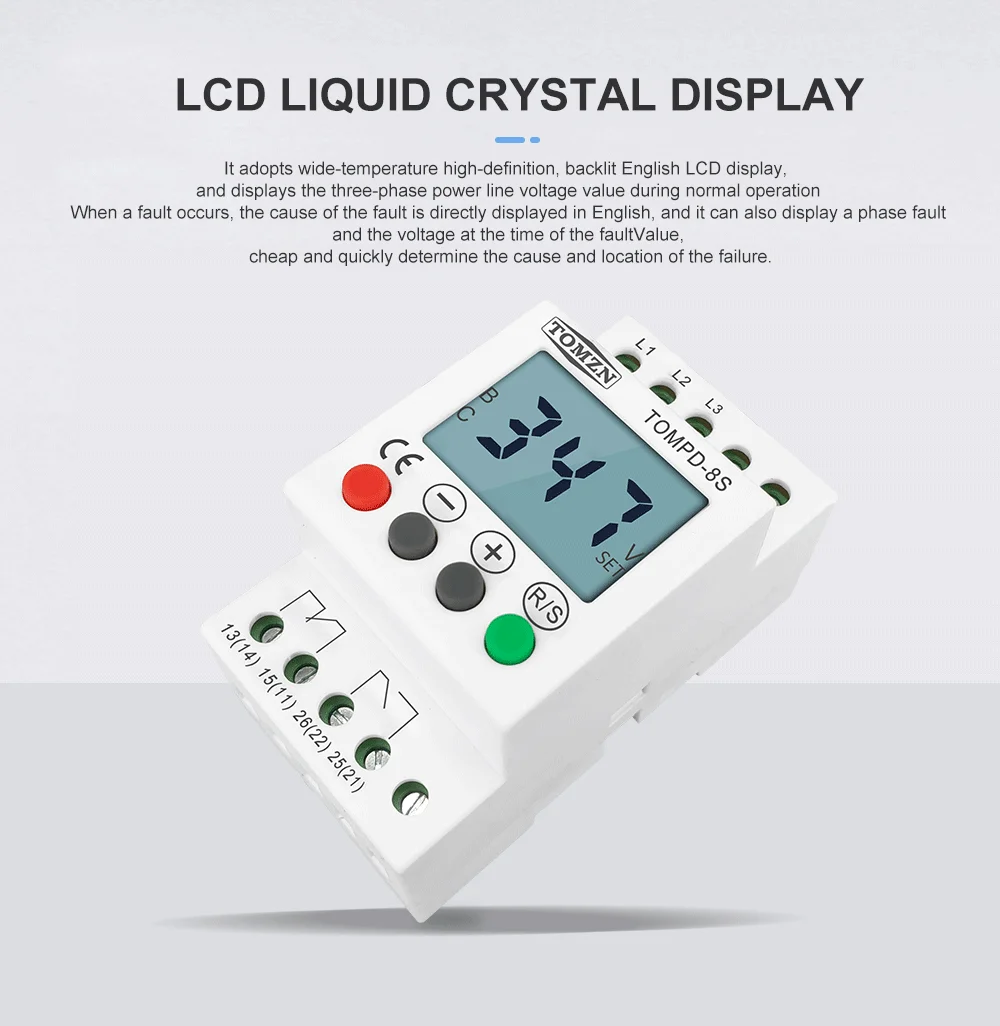

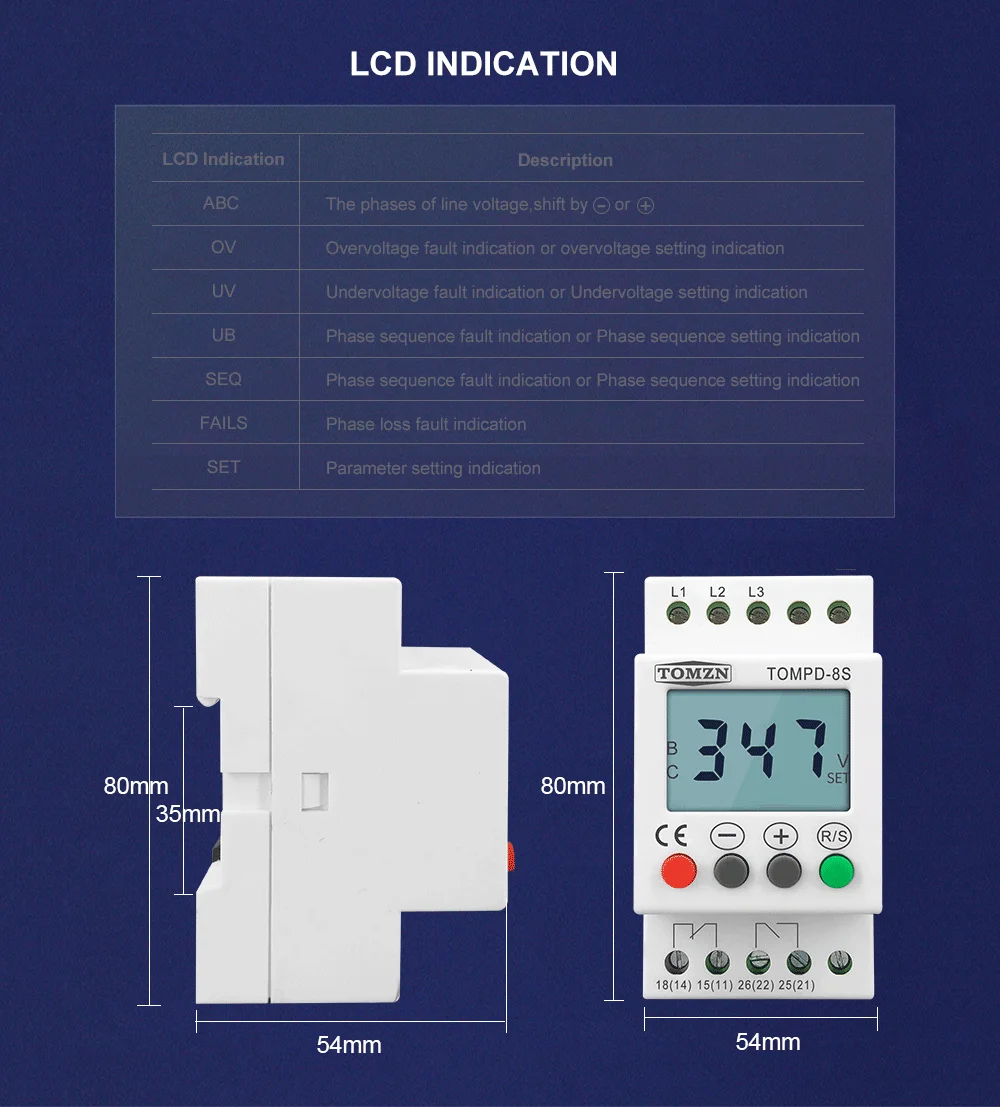

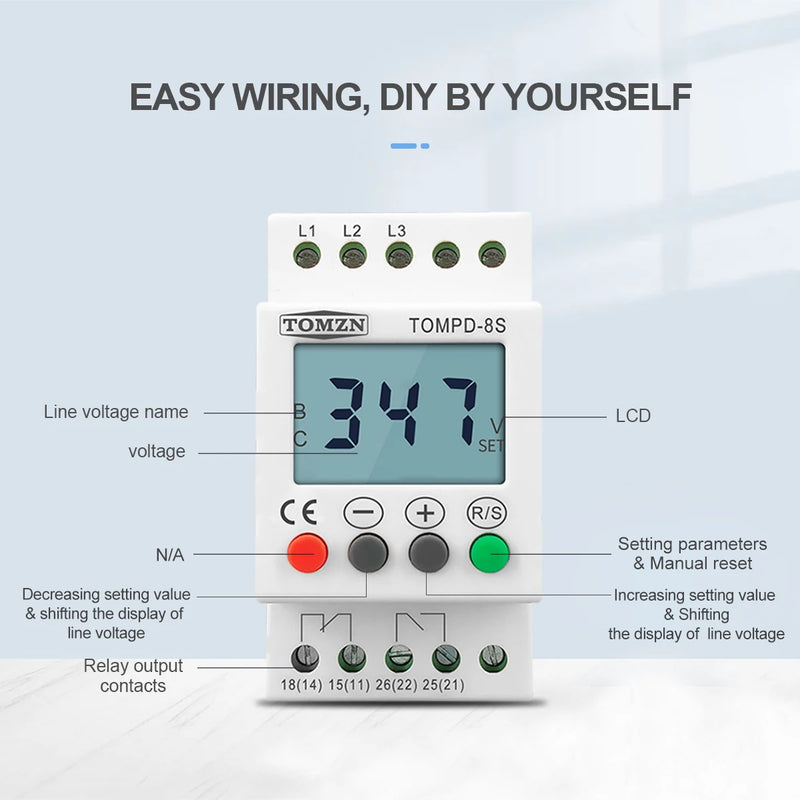

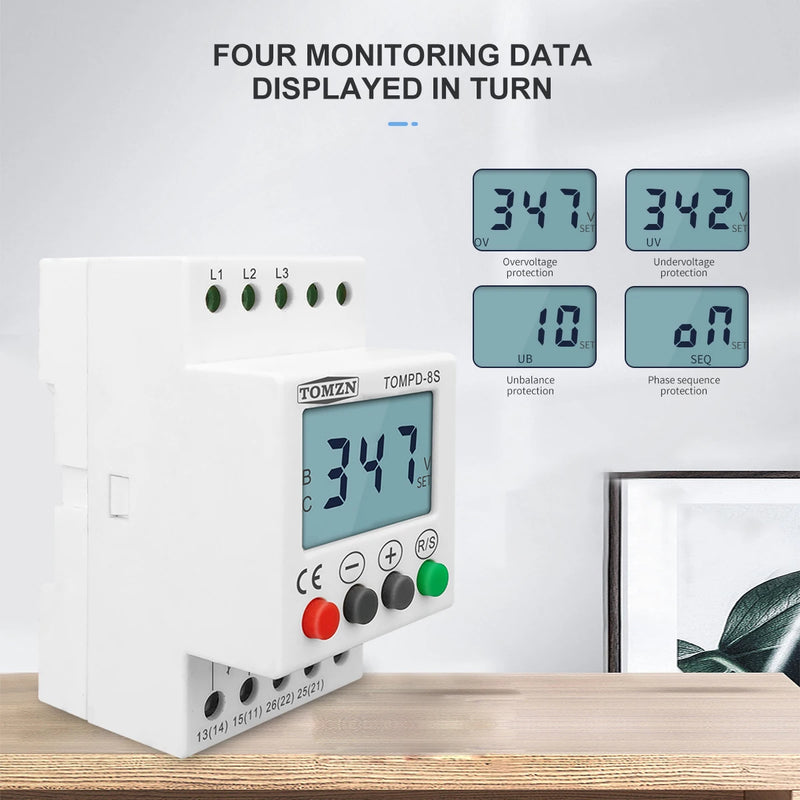

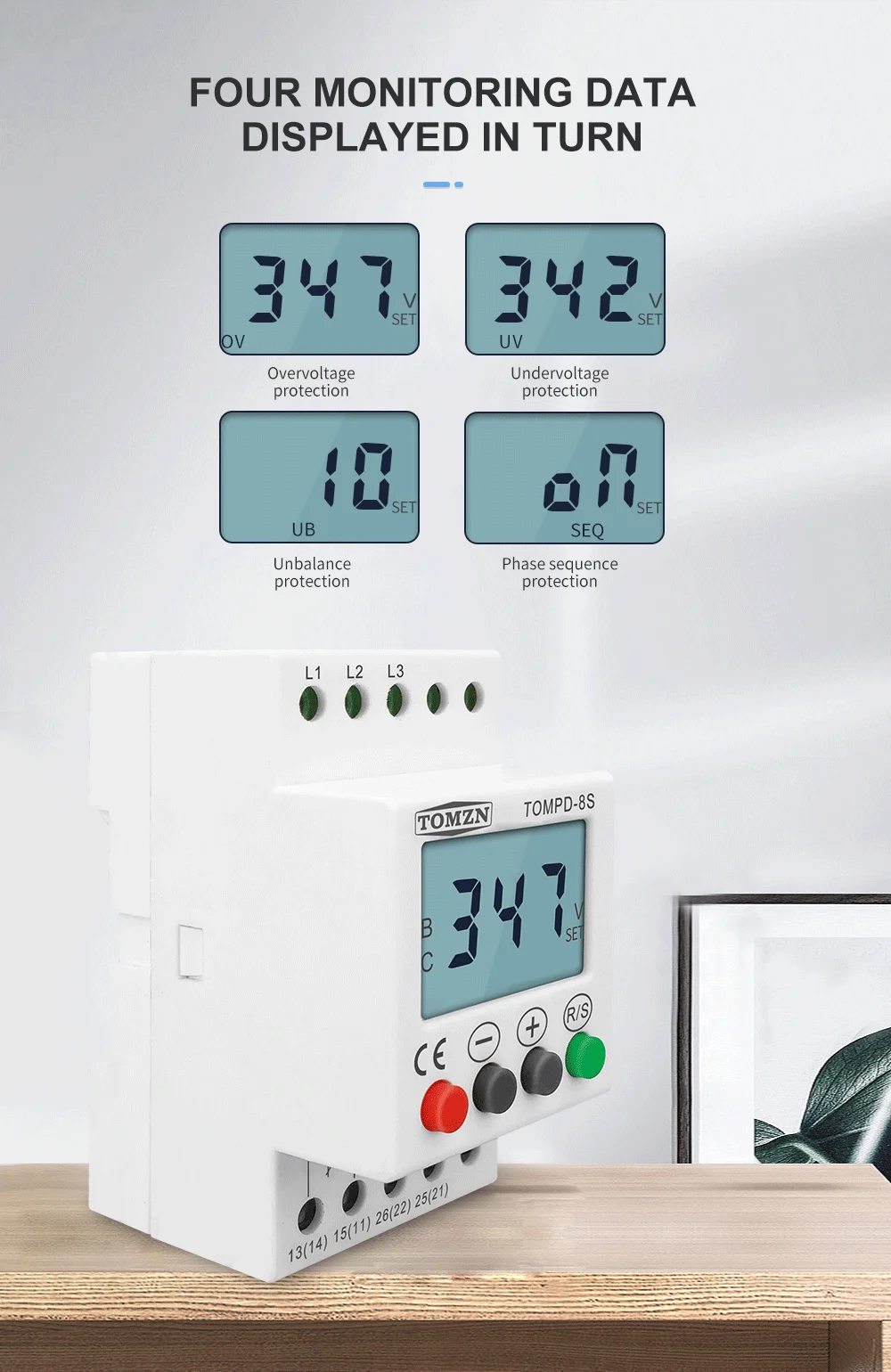

●Built-in LCD and keypad afford a precisediqital setting

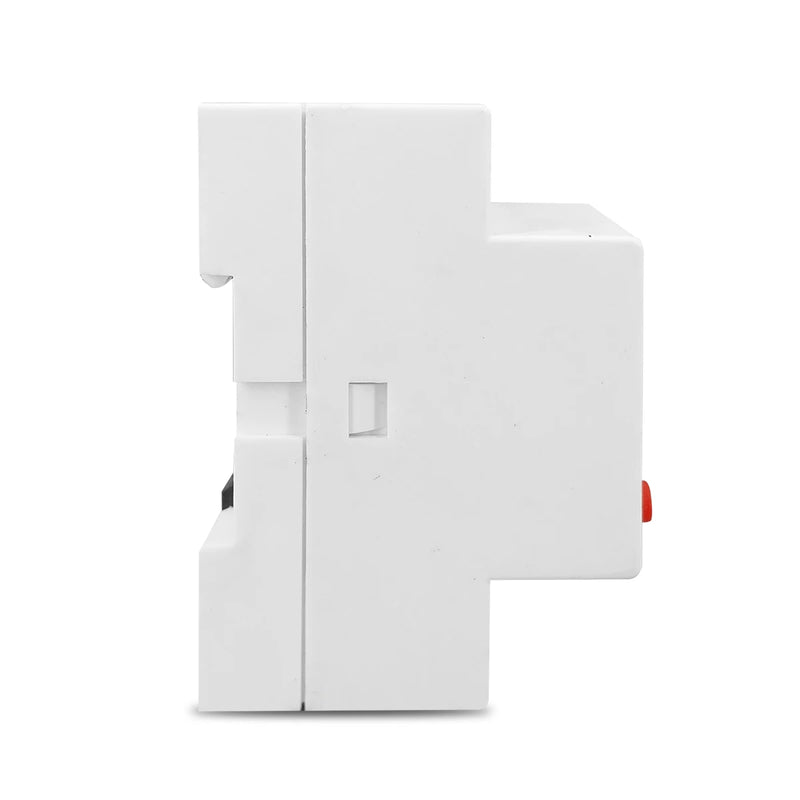

●Compact modular 43mm housing

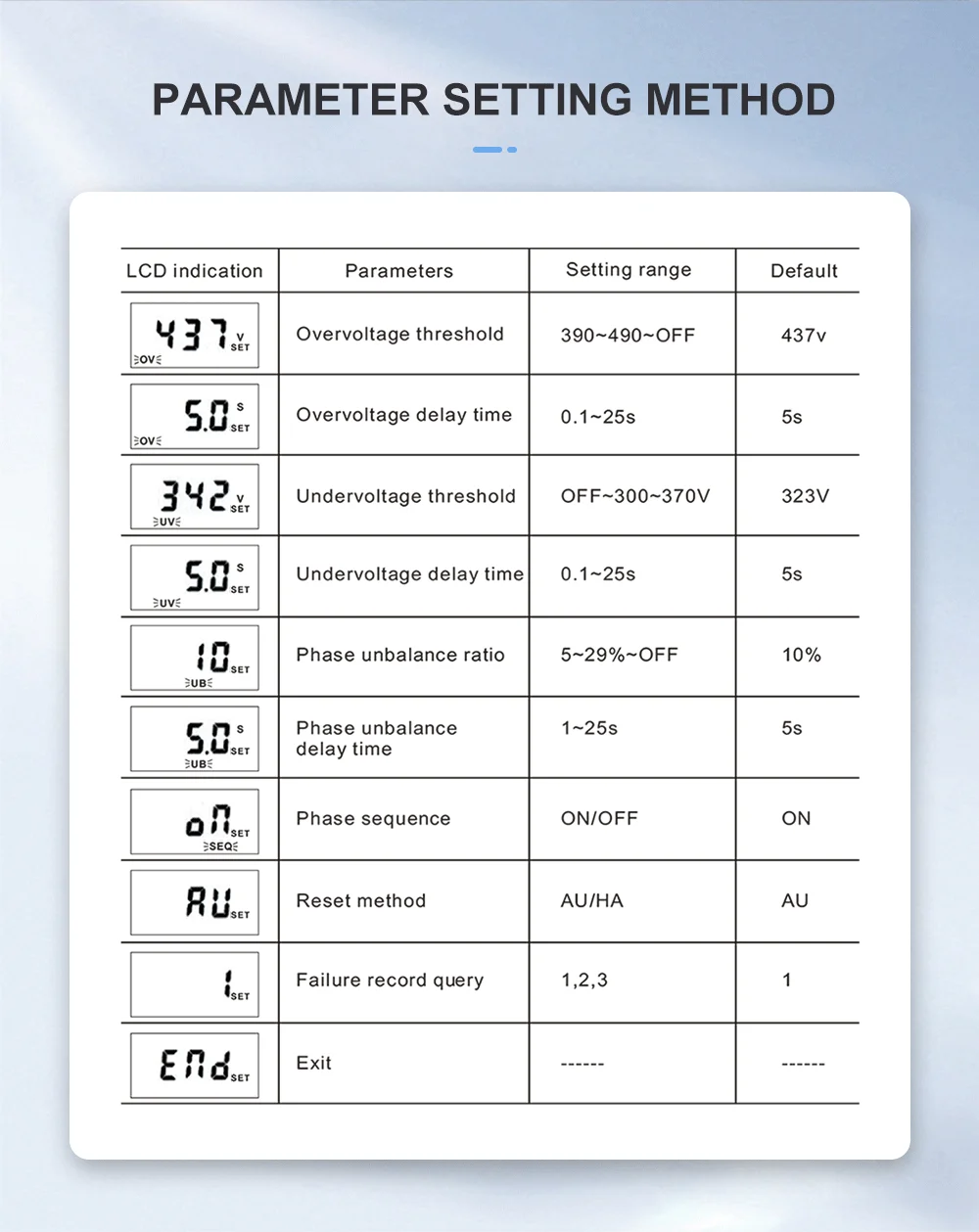

●Adjustable over-and undervoltage,phase unbalance threshold

●Independent adjustable delay time forovervoltage, undervoltage phase unbalance

●Adjustable reset method automatic resetor manual reset

●1 NO&INC contacts

●Failure recording with last 3 faults

Protective FunctionsI Applications
●Phase Loss(Failure)

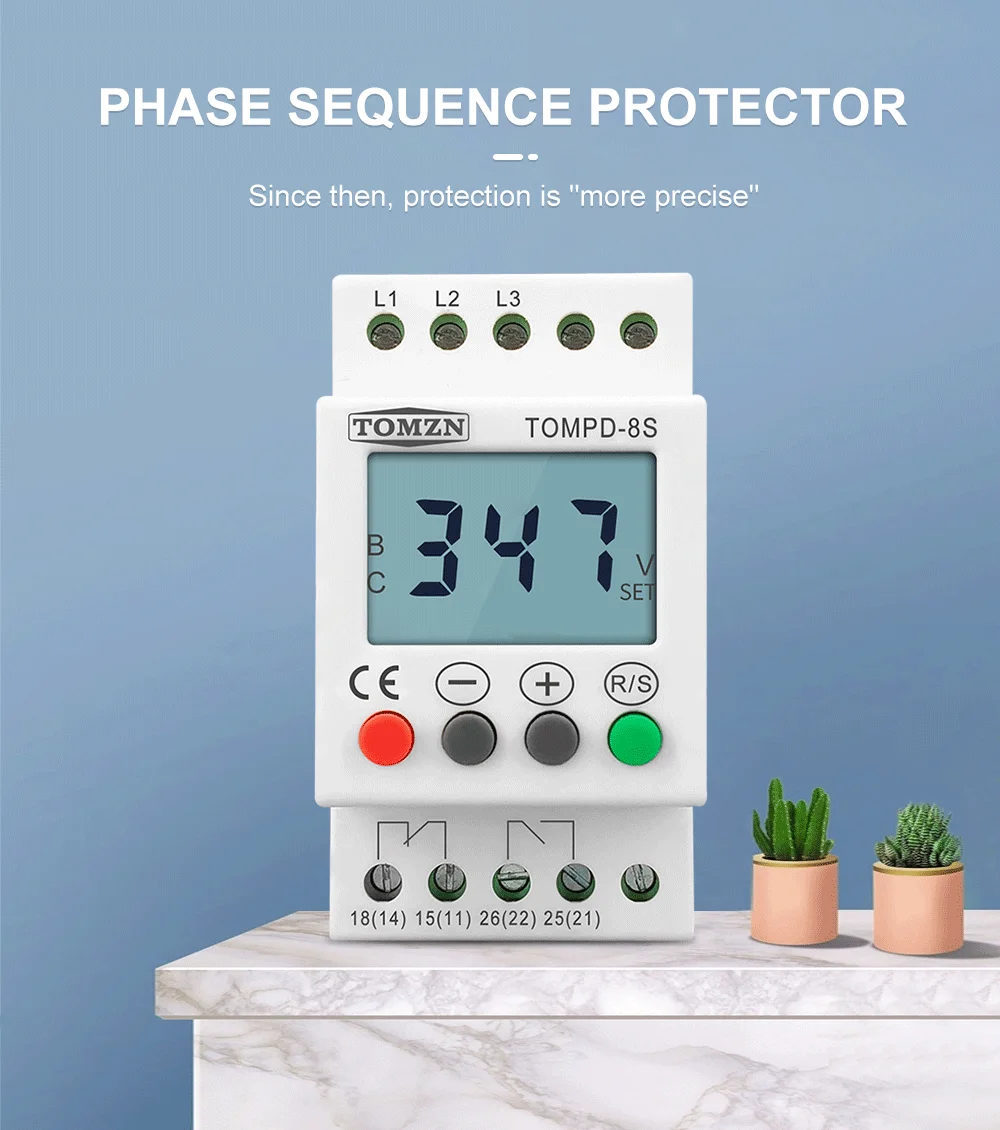

●Pase Sequence(Reversal)

●Phase Unbalance(Asymmetry)

●Undervoltage

●Overvoltage

Applications

●Pumps, Fans, Refrigeration Unit, Blowers, Motors, Compressors, Lifts, Elevators, Crane, Mining excavators and conveyors

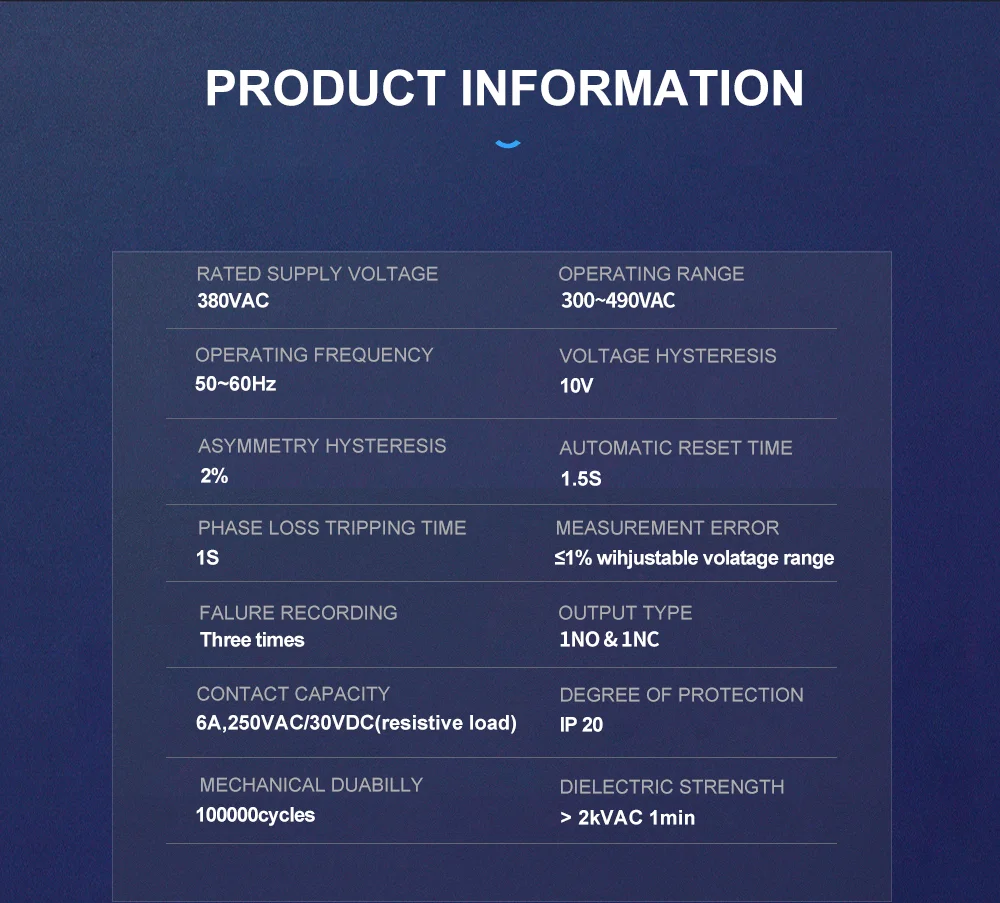

Rated voltage: 380V 50-60Hz, Operating range: 300-490VAC
