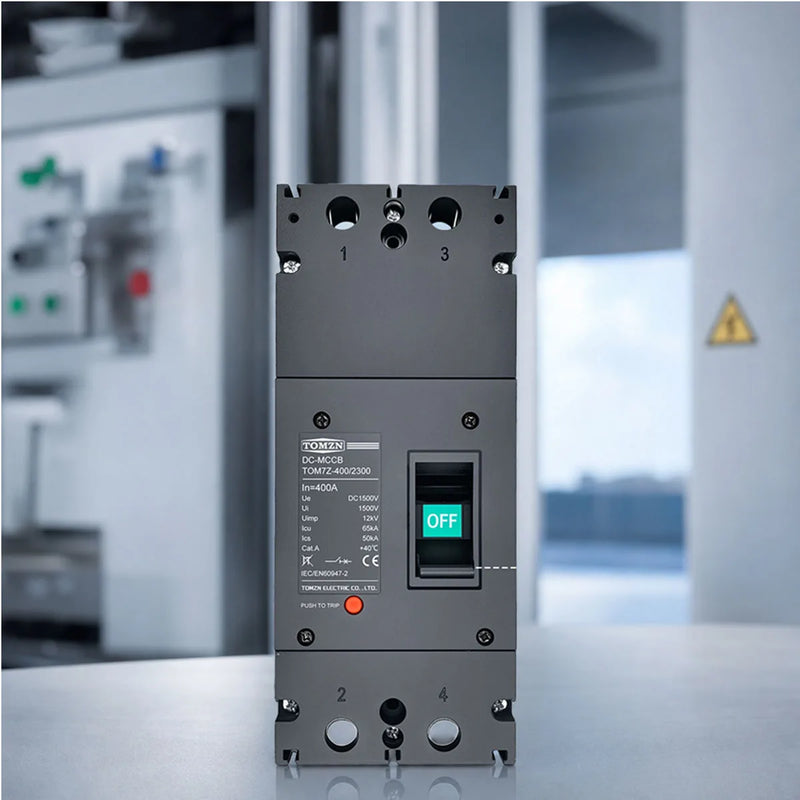

TOMZN 2P DC MCCB TOM7Z 1500V 300A 400A Protect for Solar Photovoltaic PV Molded Case Circuit Breaker Overload Protection Switch

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Model Number: TOM7Z-400/2300

Origin: Mainland China

Pole: 2P

Type: Moulded Case,Circuit breaker

Voltage: DC 1500V

is_customized: Yes

Product Introduction

The TOM7Z DC Circuit Breaker is mainly used for DC power lines, such as PV solar, wind power, hydropower, electric vehicles, and any DC power supply device. With a breaking capacity up to 65kA, it provides reliable overcurrent and short‑circuit protection. The TOM7Z is a non‑polarized circuit breaker, meaning it operates normally regardless of whether the input is from the top or bottom, simplifying installation and ensuring flexibility in various DC systems.

Product Data Sheet

Model: TOM7Z

Type: DC Molded Case Circuit Breaker (non‑polarized)

Rated voltage (Ue): DC1500V

Rated impulse withstand voltage (Uimp): 12kV

Rated ultimate short‑circuit breaking capacity (Icu): 65kA

Rated service short‑circuit breaking capacity (Ics): 50kA

Category temperature (Cat.A): 40°C

Protection functions: Overcurrent protection, short‑circuit protection

Application: PV solar, wind power, hydropower, EV, DC power supplies
