Product Introduction

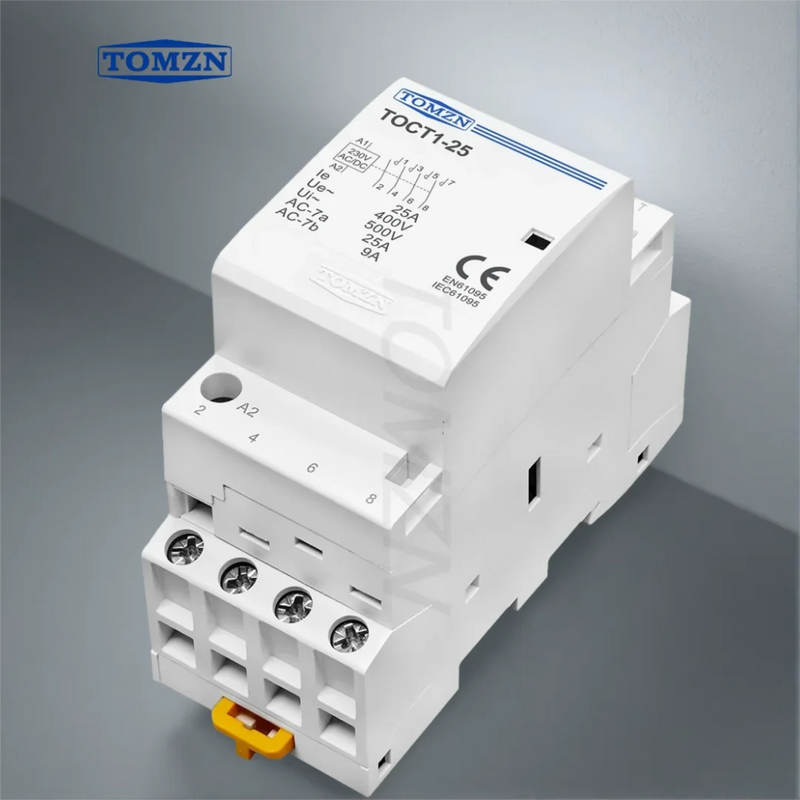

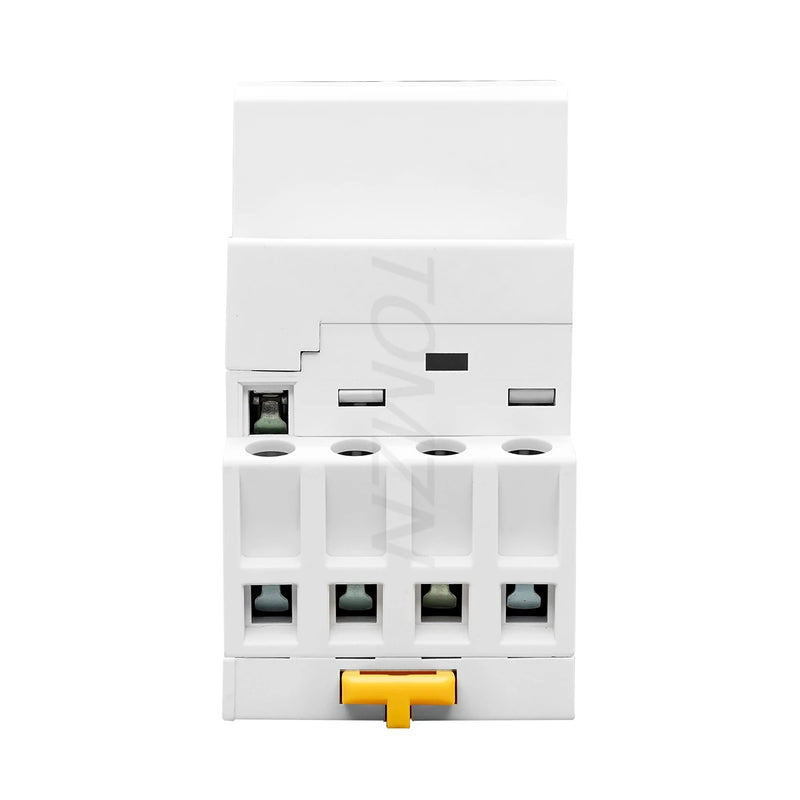

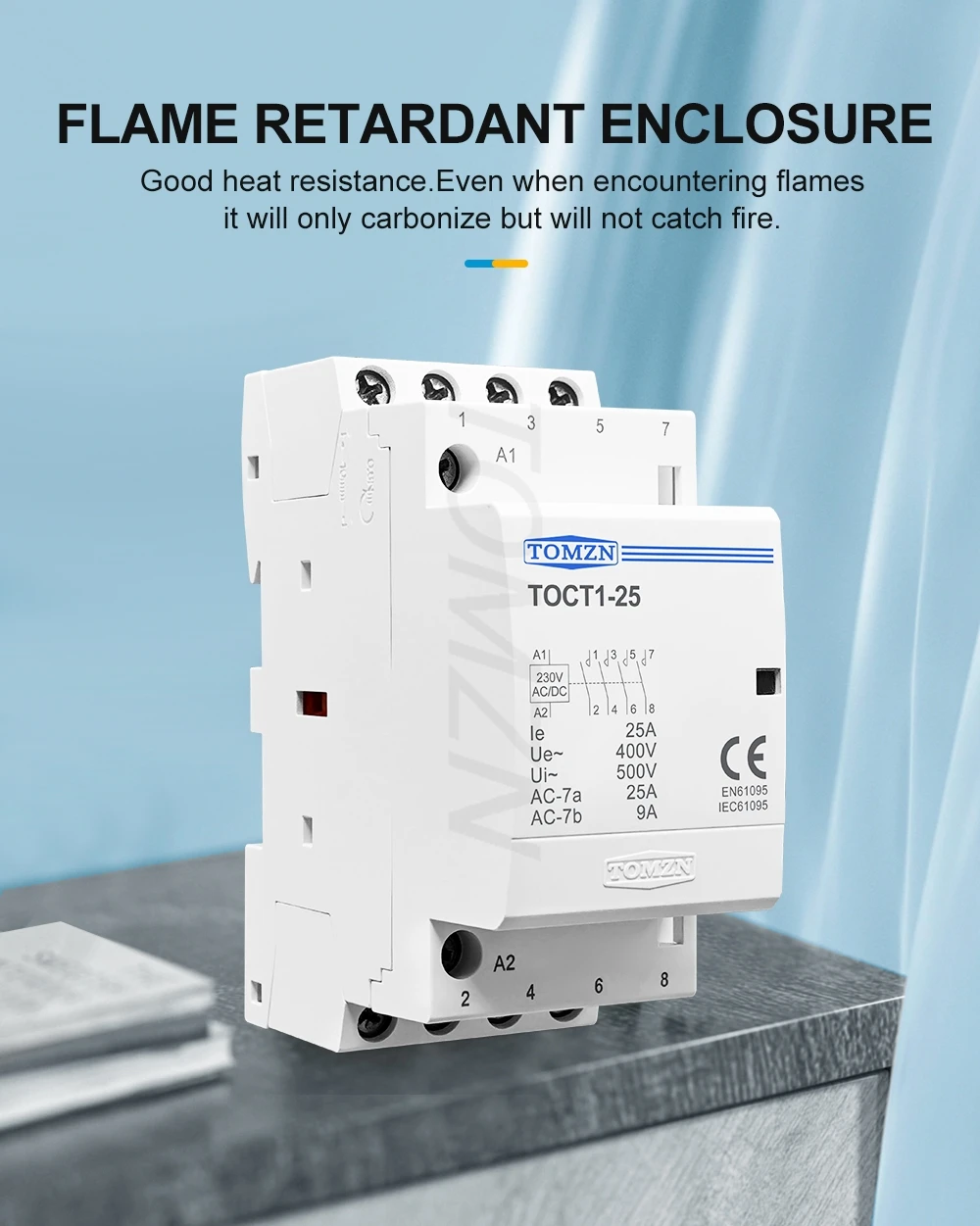

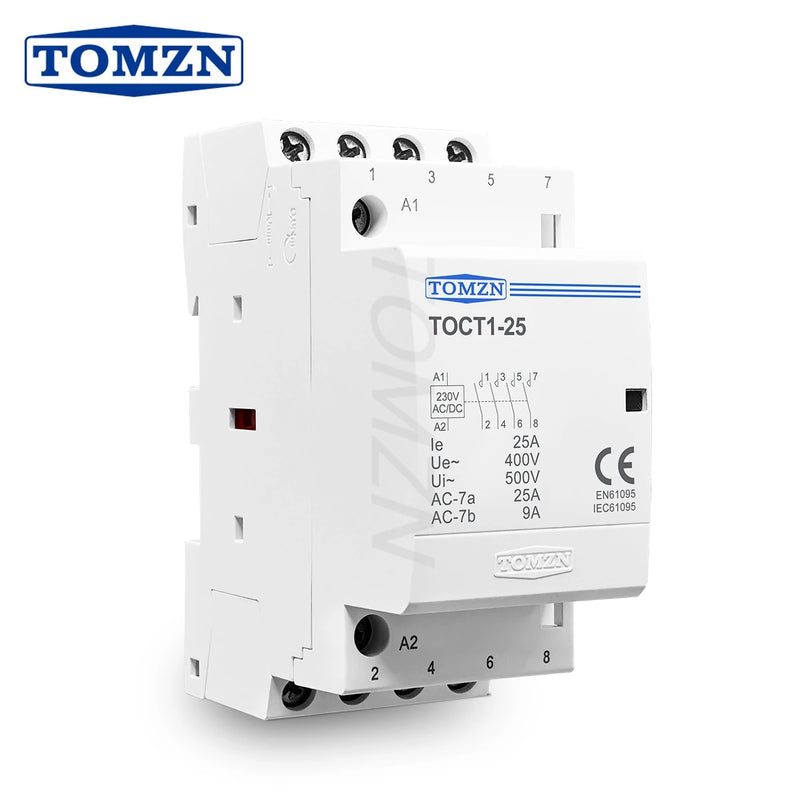

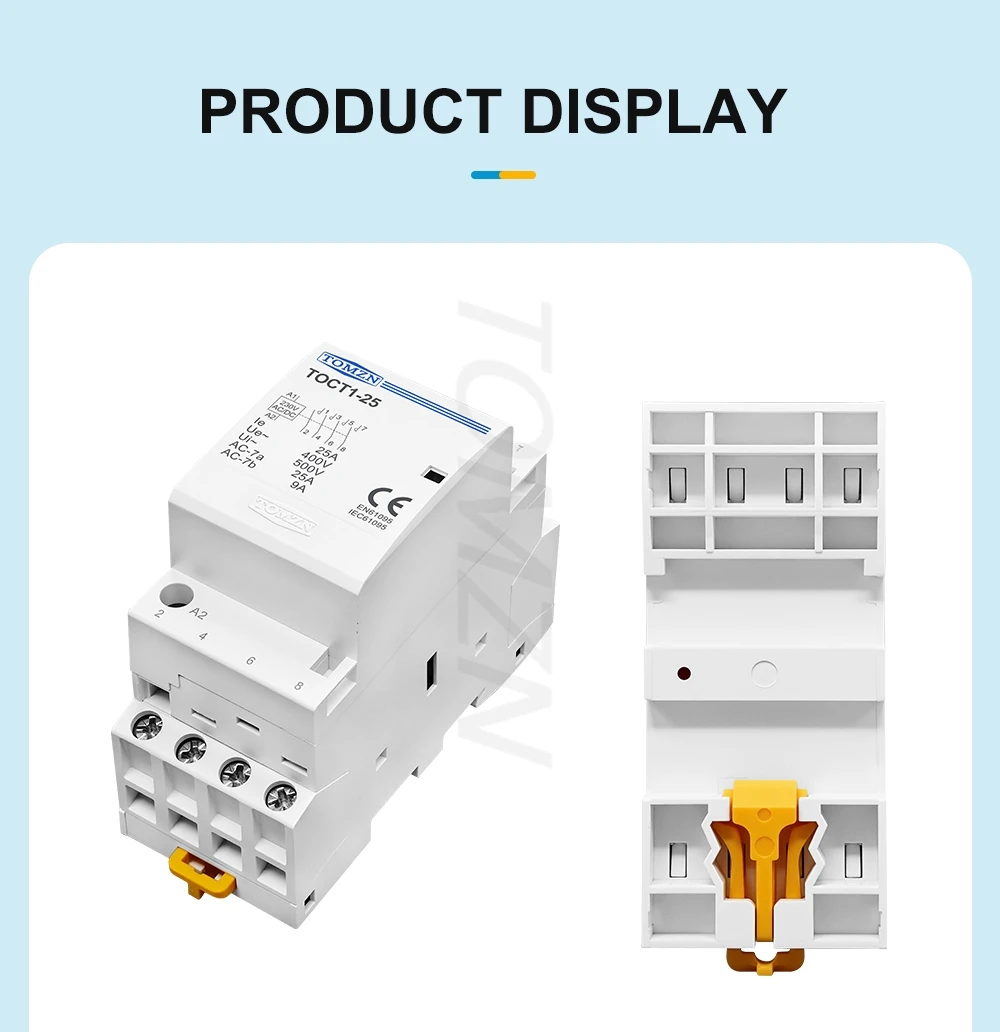

The TOMZN TOCT1-25 is a compact 4-pole modular contactor designed for reliable switching in residential, commercial, and light industrial applications. It features a universal control circuit accepting AC/DC voltages (24V, 110V, or 230V), making it compatible with a wide range of control systems. The main circuit is rated at 230V AC, 25A, suitable for resistive and inductive loads. Available contact configurations include 4NO, 4NC, or 2NO+2NC, providing flexibility for various control schemes. Mounts on standard 35mm DIN rail, offering silent operation and long electrical life.

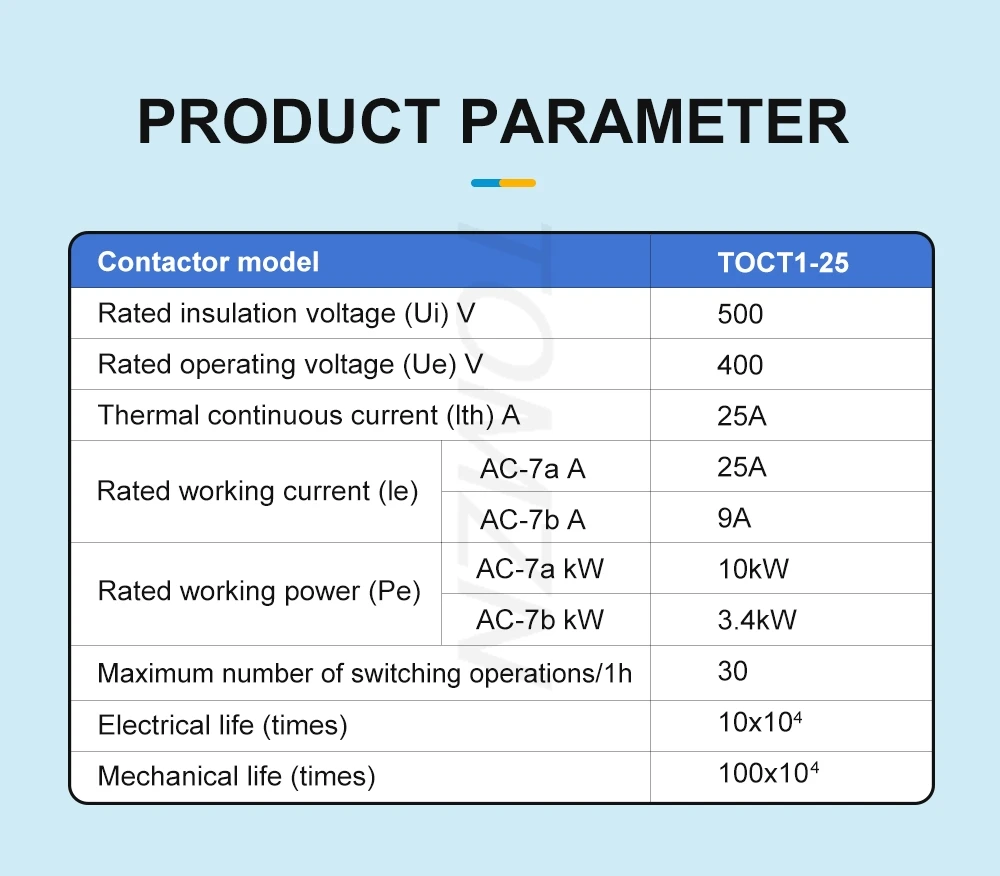

Product Data Sheet

Model: TOCT1-25
Number of poles: 4P
Rated current (main circuit): 25A
Main circuit voltage: 230V AC

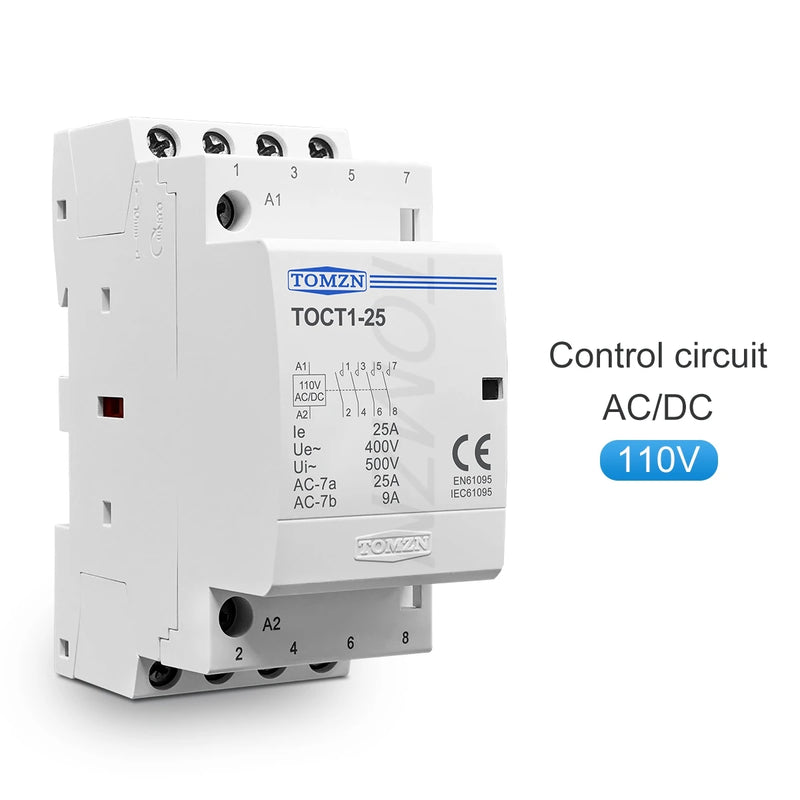

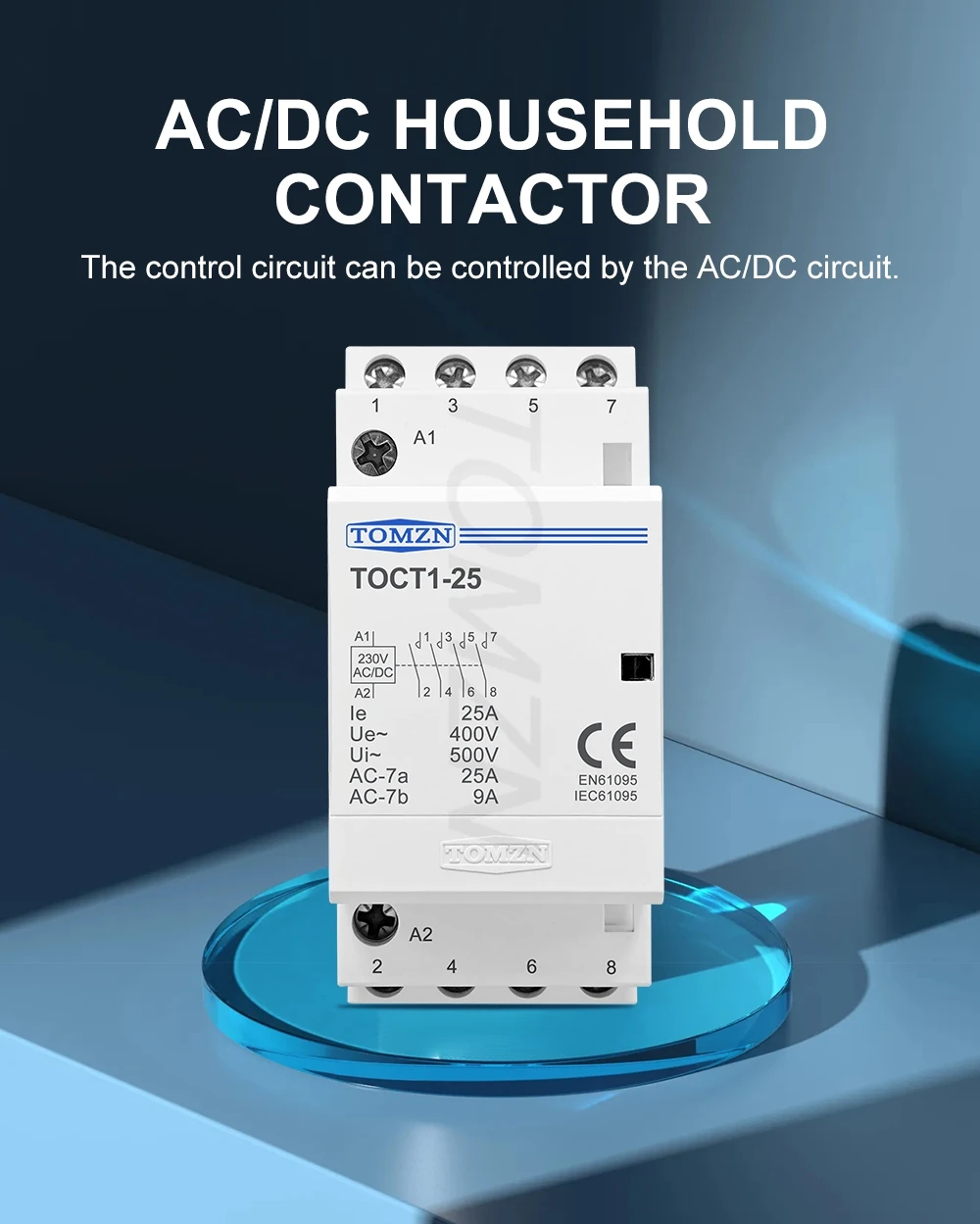

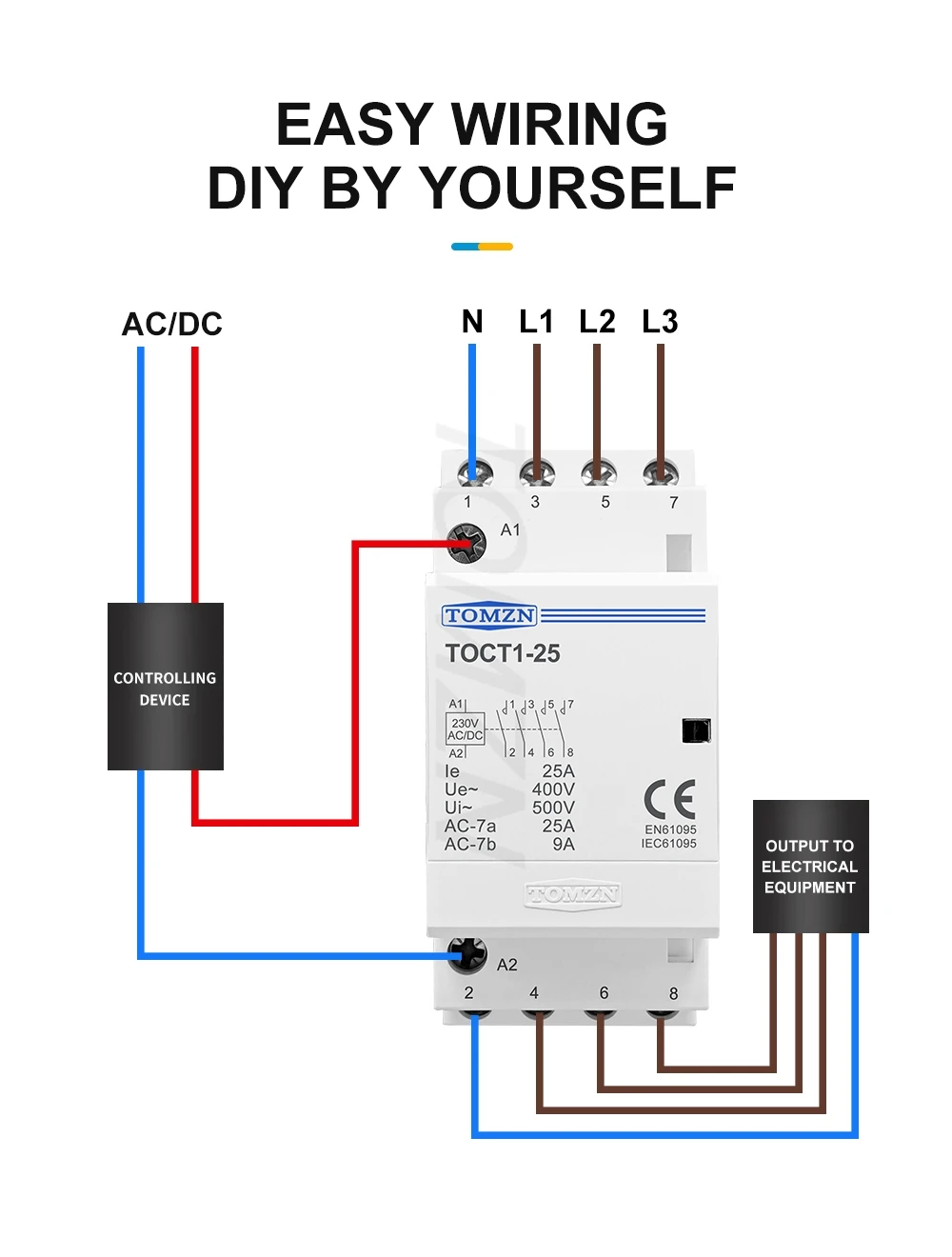

Control circuit voltage: 24V / 110V / 230V AC/DC (universal)

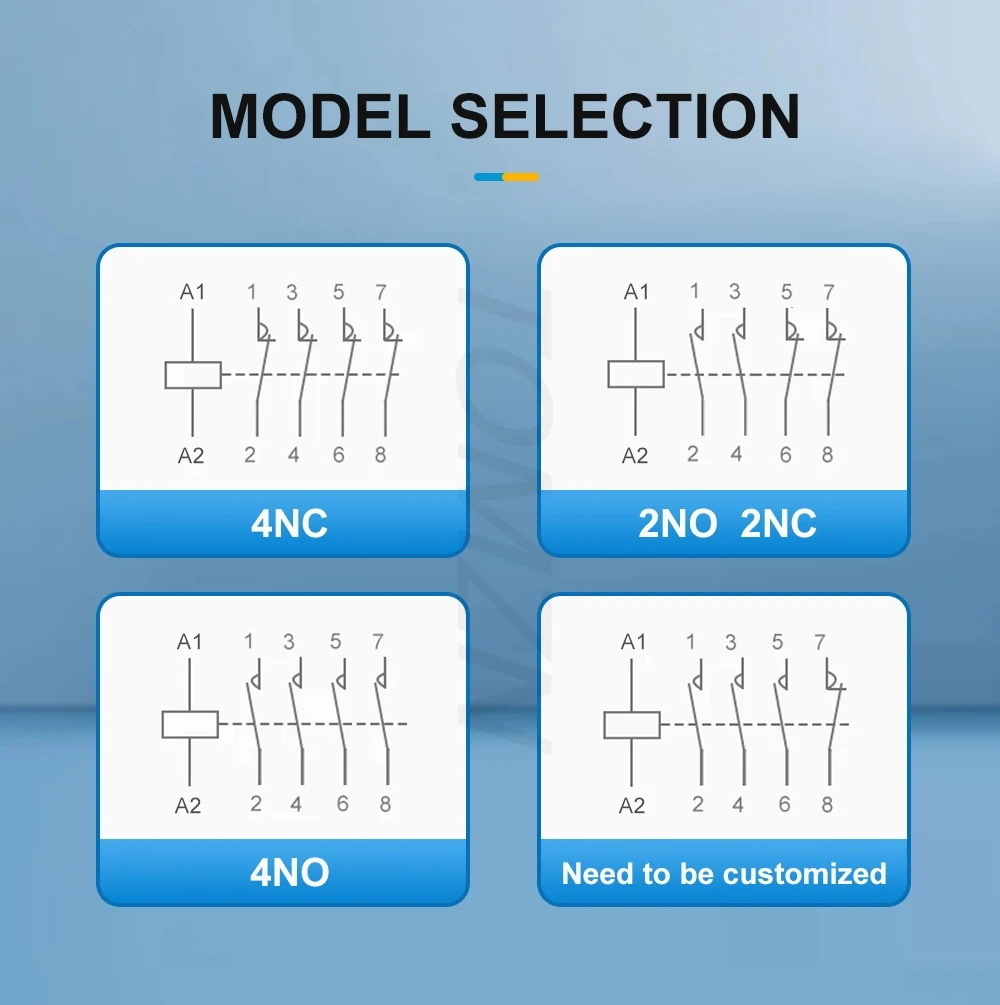

Contact configurations available: 4NO, 4NC, 2NO+2NC

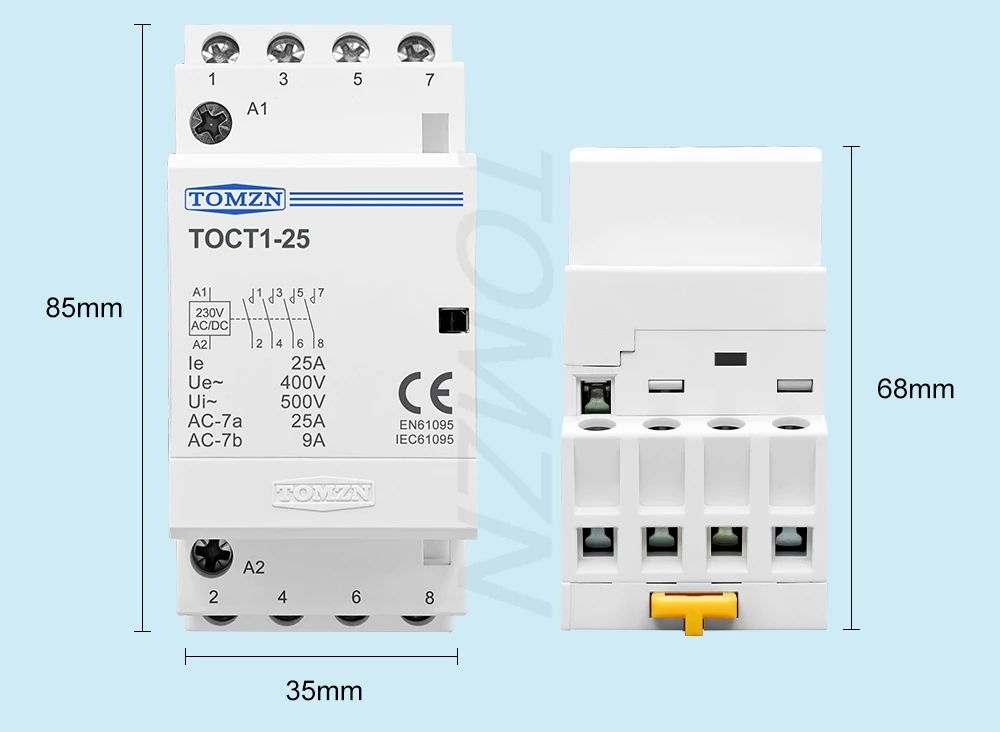

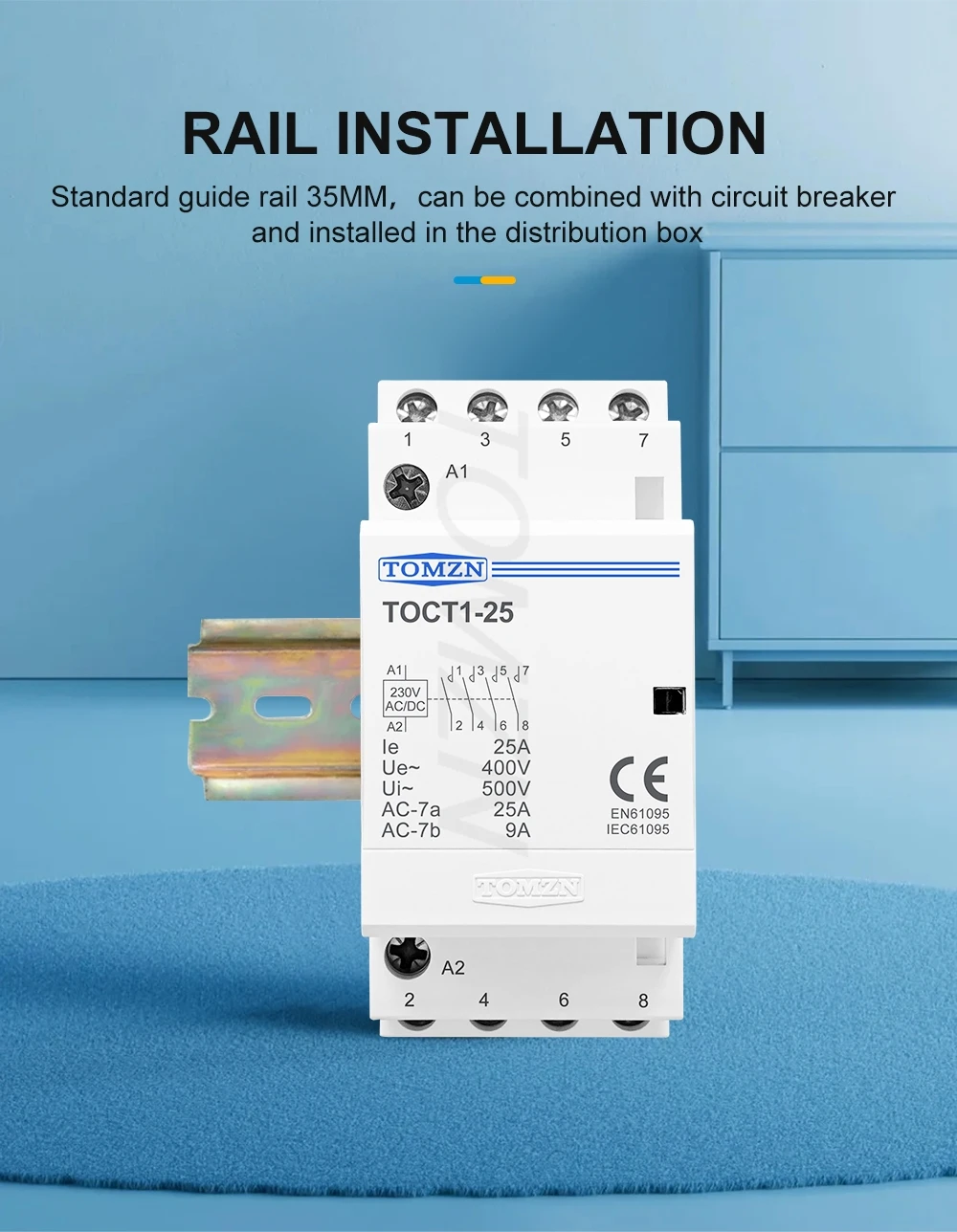

Mounting: 35mm DIN rail
Application: Lighting, HVAC, home automation, motor control
