TOMZN 1PCS TPNL DPNL 1P+N 6A-63A 230VAC 50/60Hz Residual Current Circuit Breaker With Over Current And Leakage Protection RCBO

Name: TOMZN 1PCS TPNL DPNL 1P+N 6A-63A 230VAC 50/60Hz Residual Current Circuit Breaker With Over Current And Leakage Protection RCBO
Brand: DARAHUB
SKU: 32267281430-25A-1P Plus N
Price: 8.82 USD
Availability: InStock

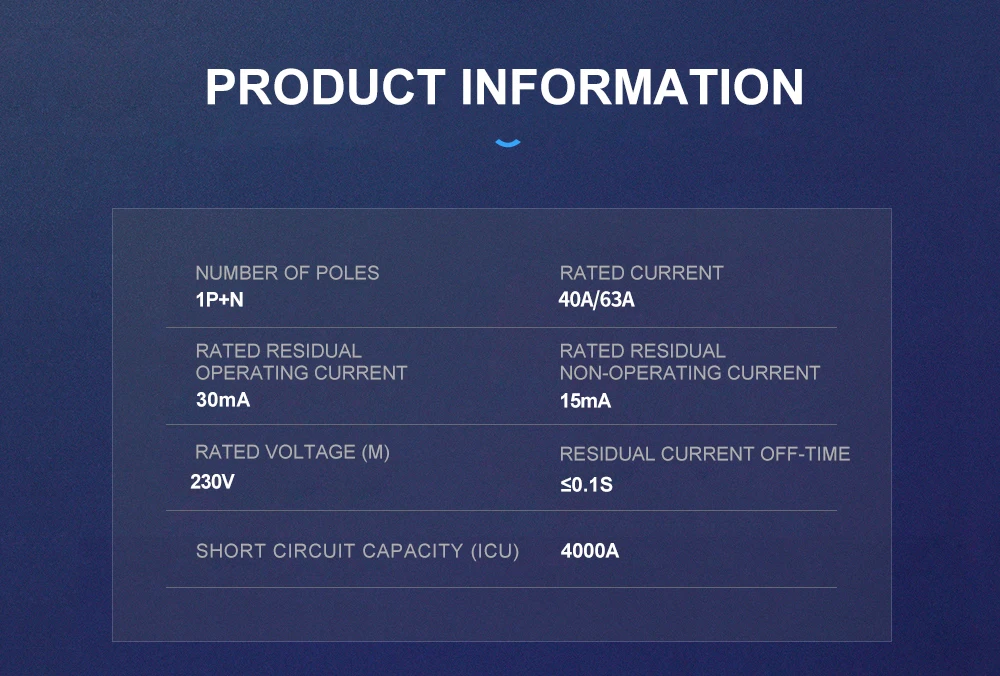

SPECIFICATIONS

Brand Name: TOMZN

Breaking Capacity: 4000A

Certification: CE

Charcteristic Curve: C Type

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Model Number: TPNL-32

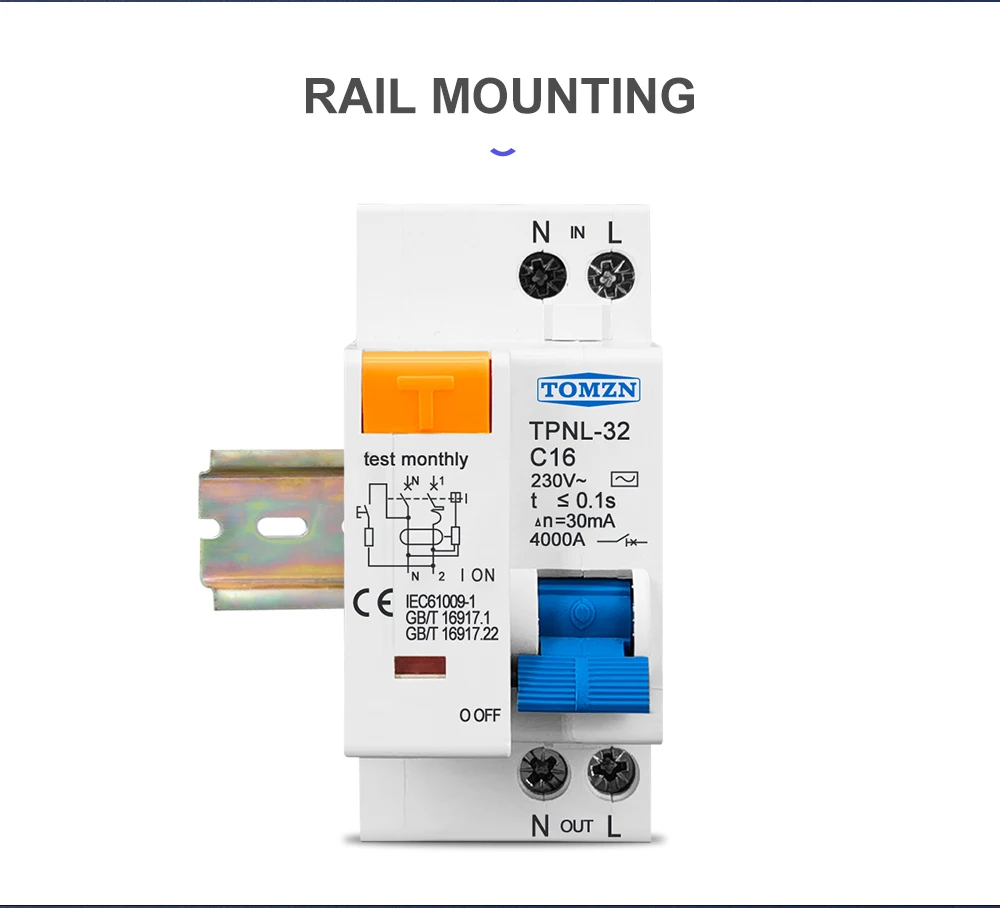

Mounting: 35mm DIN Rail

Origin: Mainland China

Rated Voltage: 220V,230V~

Rated current: 6A 10A 16A 20A 25A 32A 40A 50A 63A

Standard: IEC61009 GB6829

Type: Residual Current,Circuit breaker

is_customized: Yes

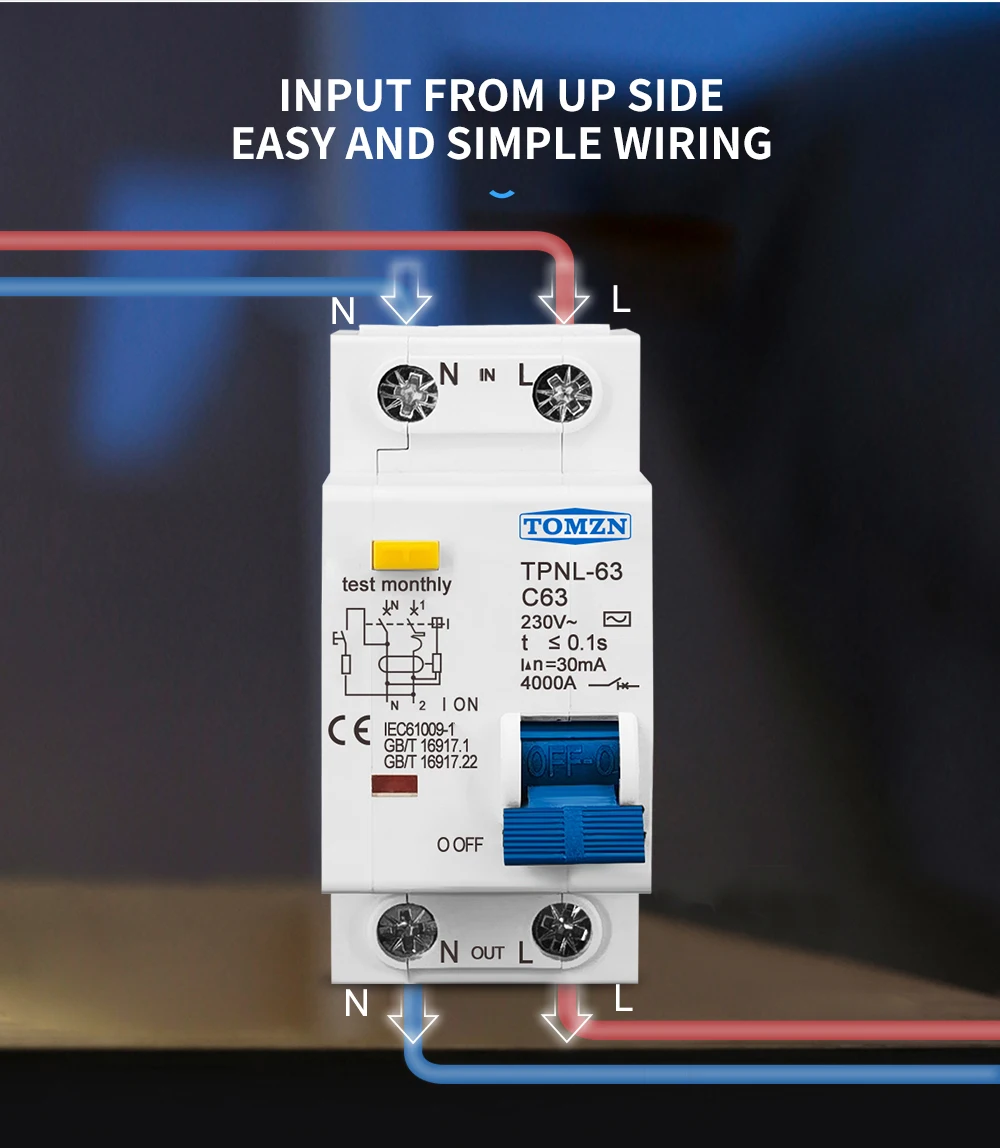

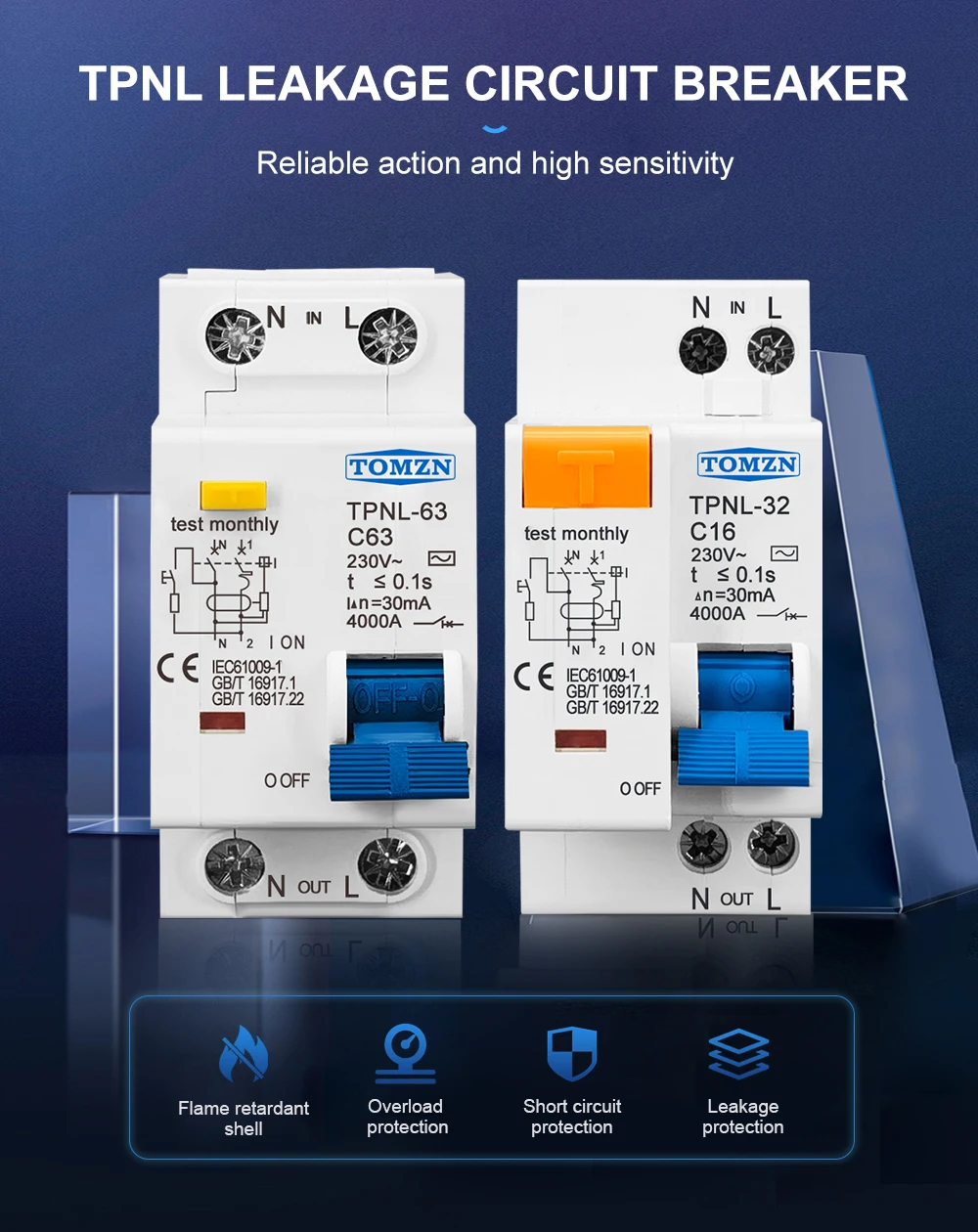

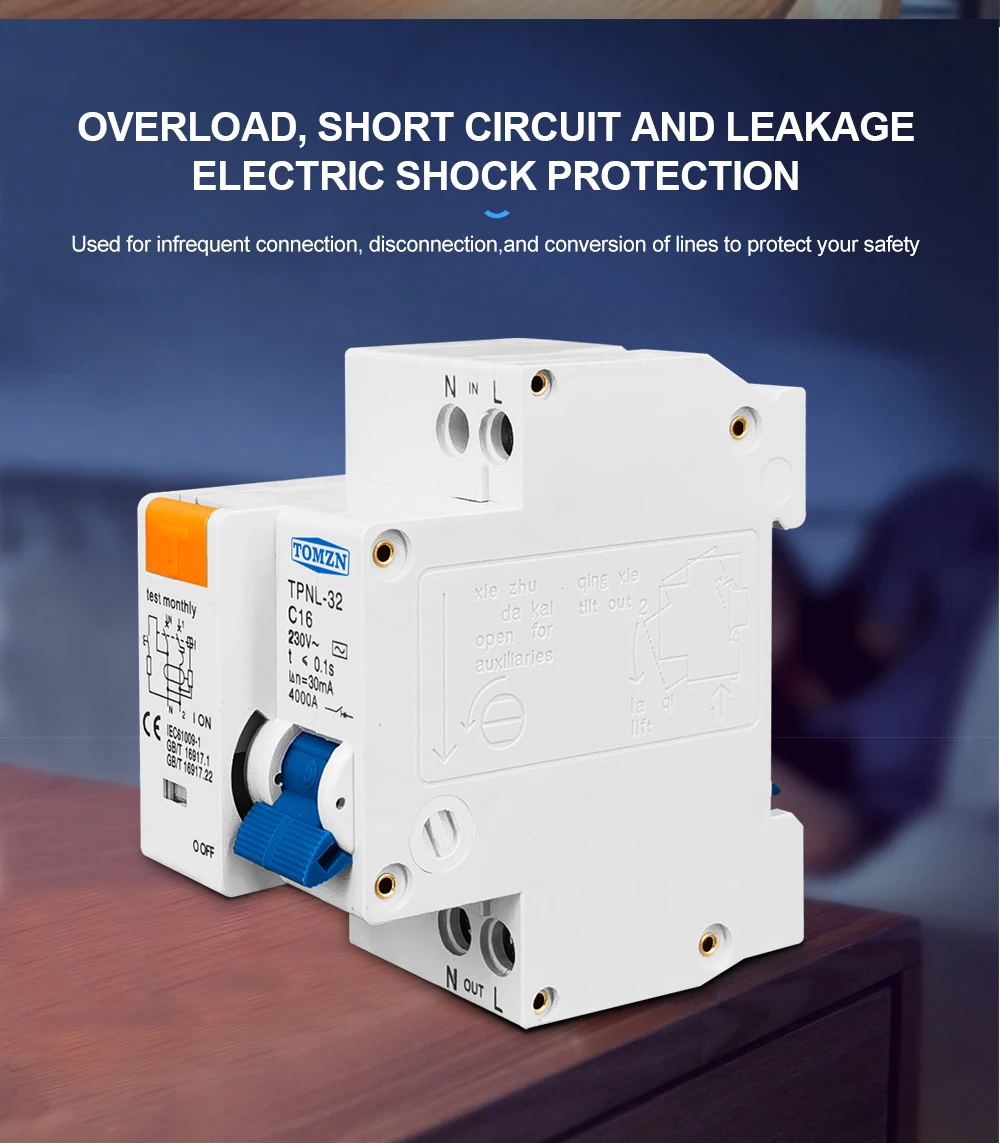

TPNL leakage protective breaker, TPNL leakage protective breaker (phase wire+neutral wire+leakage+overload voltage)protective breaker is used in the single phase residence circuit of AC 50HZ/60HZ, rated voltage 220V, used as electron shock protection. It can protect civil electron circuit from over load and short-circuit. This product has advantages of small volume, high breaking capacity zero, and live wires are cutted off at the same time, also protecting person from electric shock when the livewire connected opposite.

This product conforms to IEC61009, GB6829, GB/16917

Residual current type: AC type
