SPECIFICATIONS

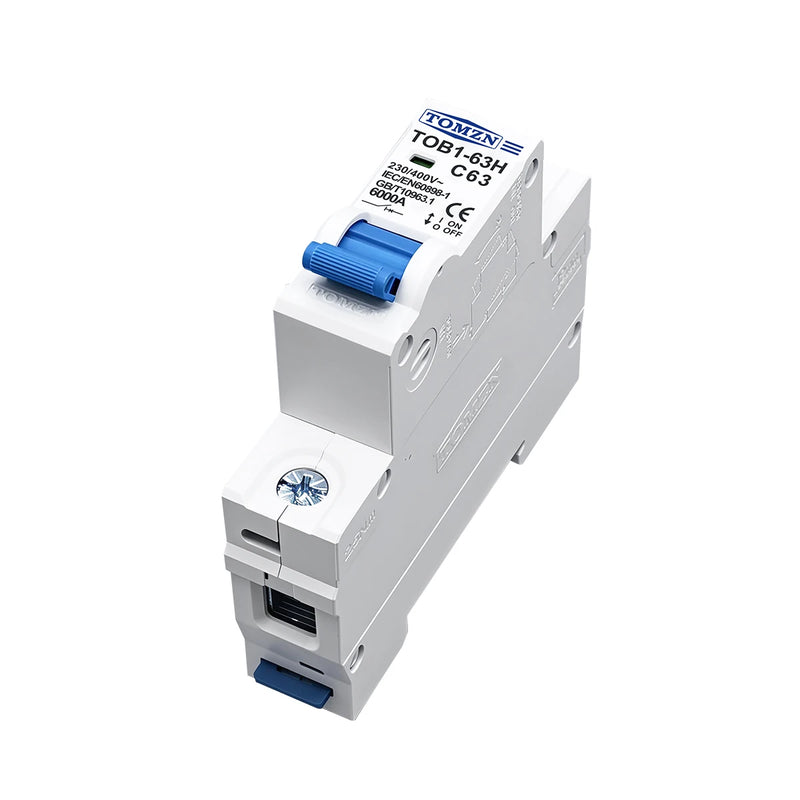

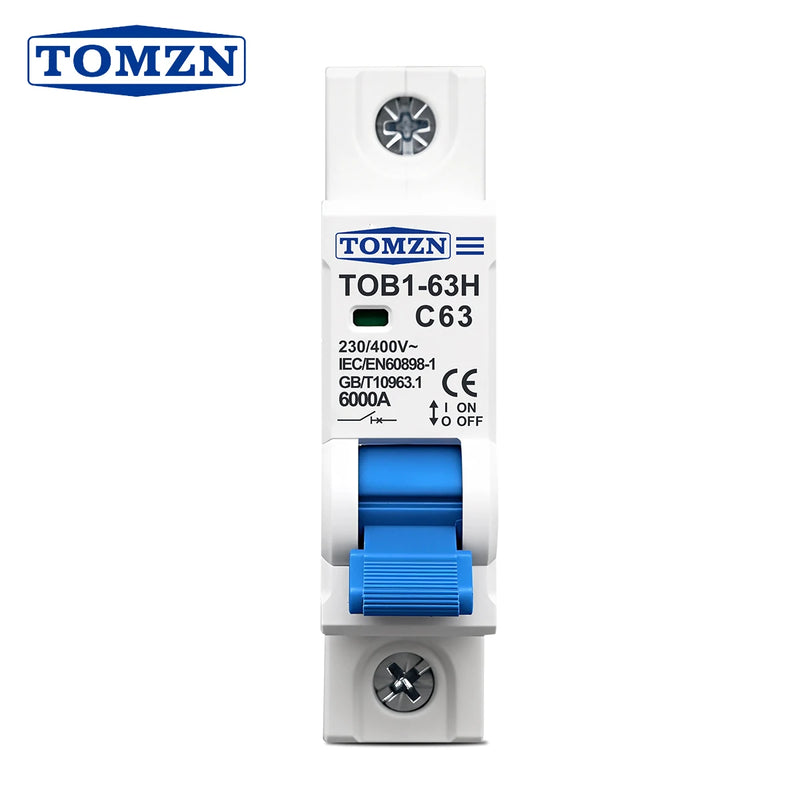

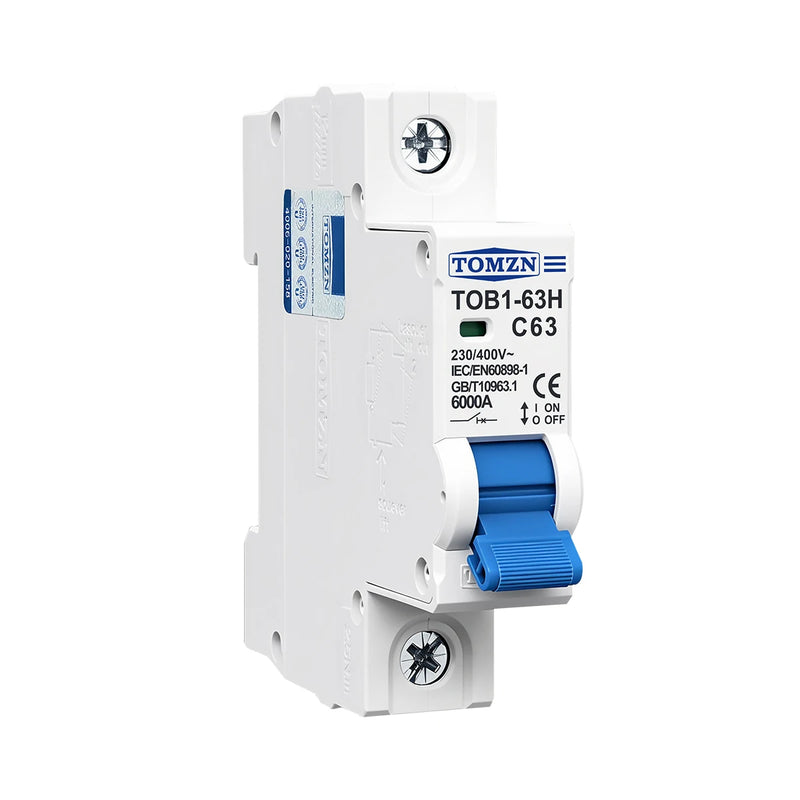

Name: TOMZN 1P AC MCB TOB1-63H C Type AC 230/400V~ 50/60Hz Mini Circuit Breaker 3A 6A 10A 16A 20A 25A 32A 40A 50A 63A
Brand: TOMZN
SKU: 32915456280-1P 63A
Price: 5.41 USD
Availability: InStock

Brand Name: TOMZN

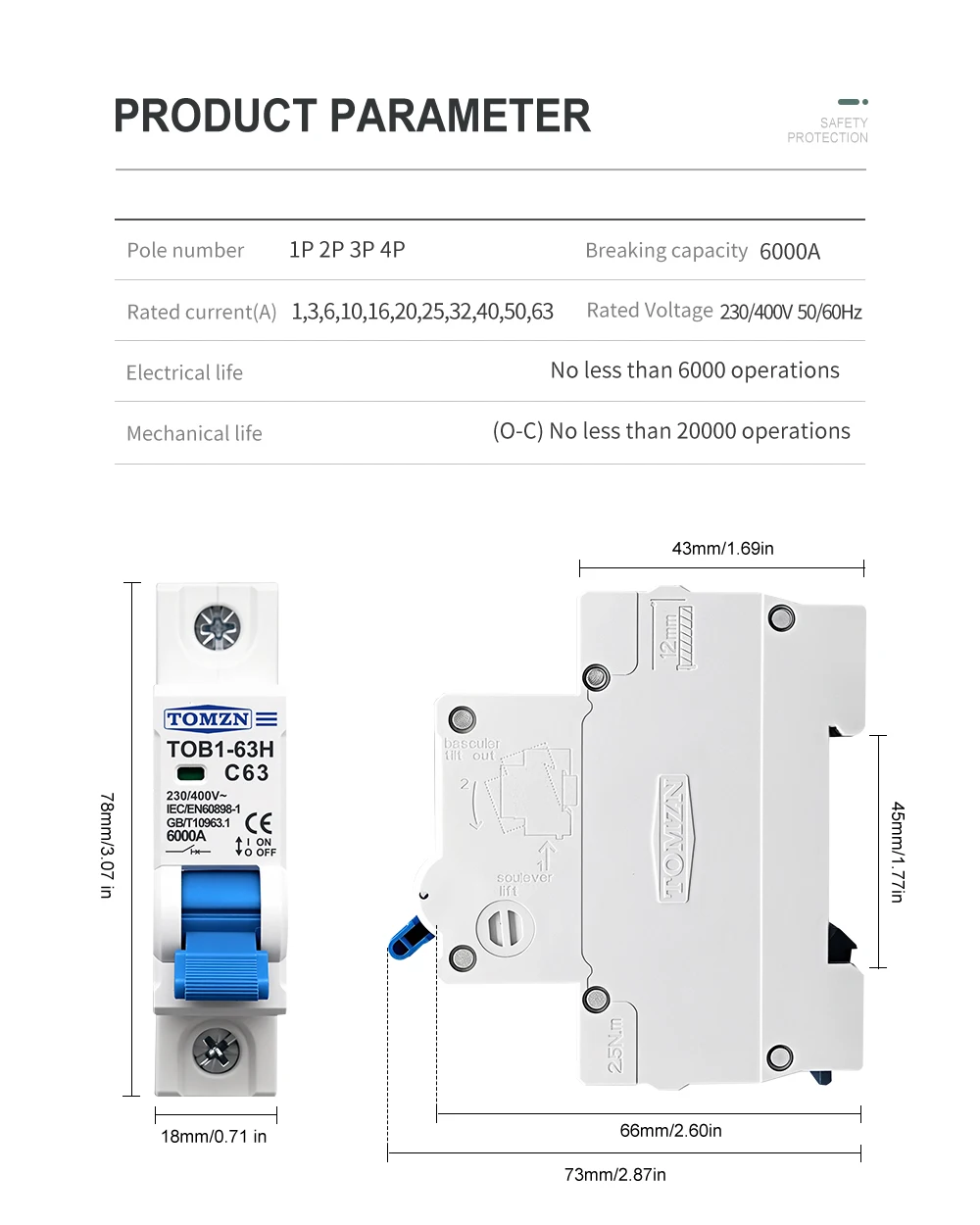

Breaking Capacity: 6000A

Certification: CE

Charcteristic Curve: C Type

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

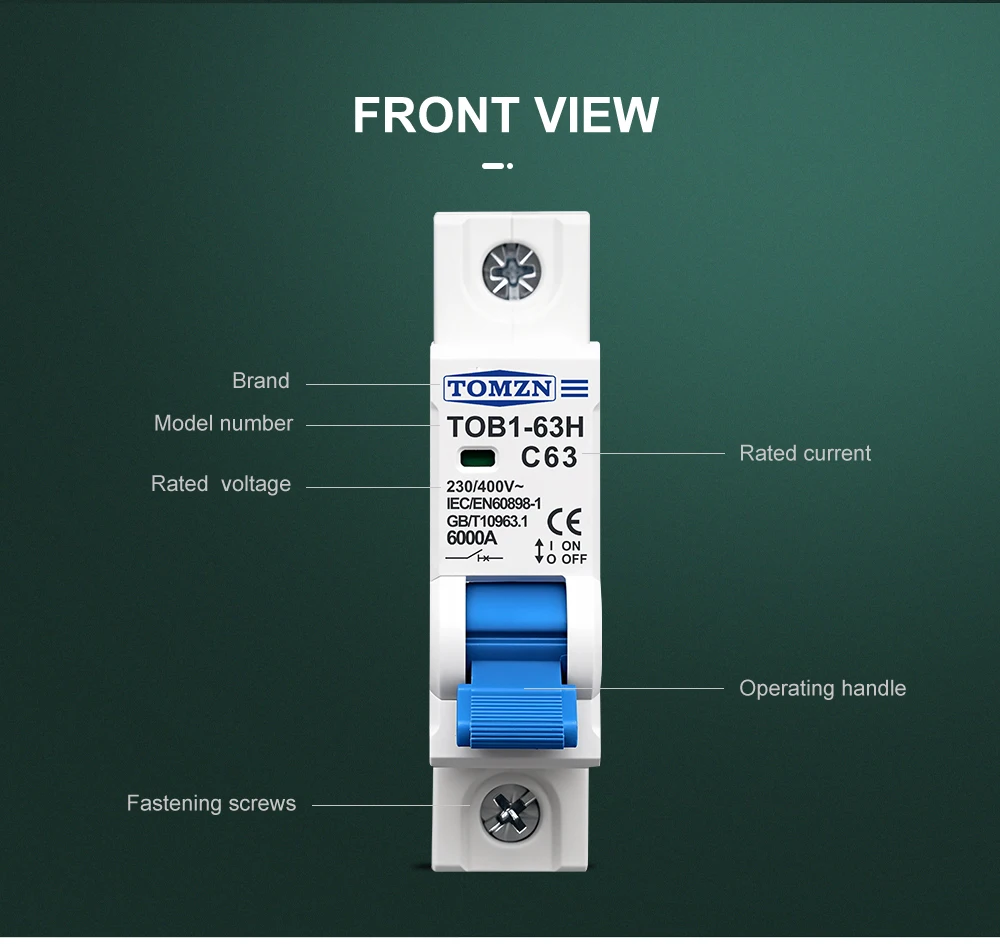

Model Number: TOB1-63H

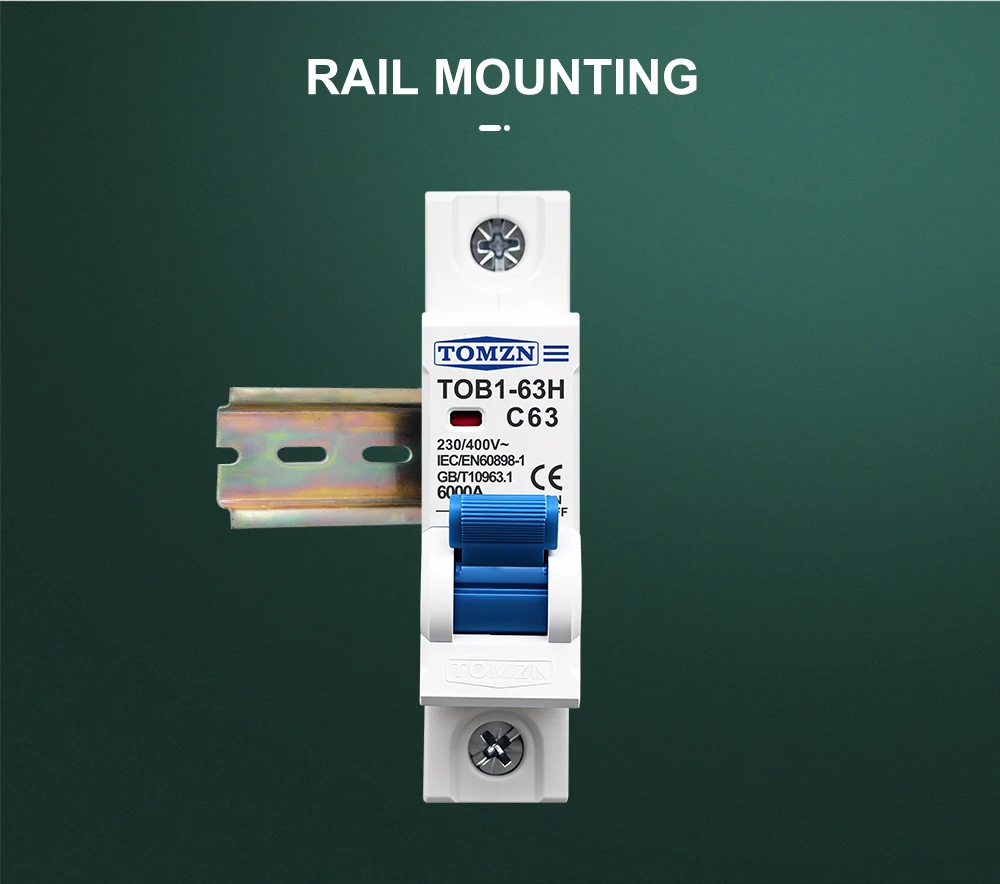

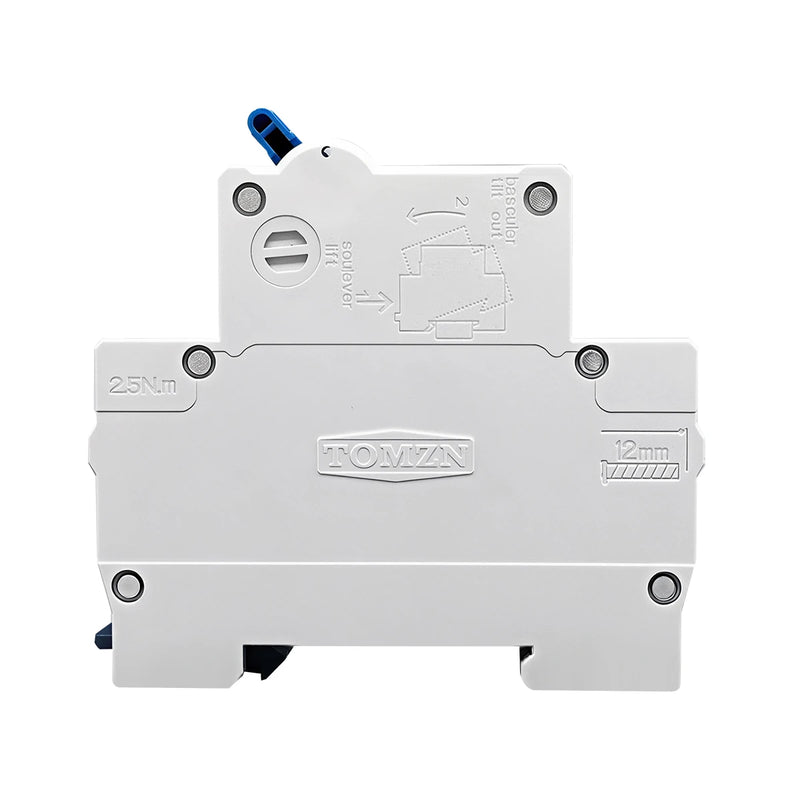

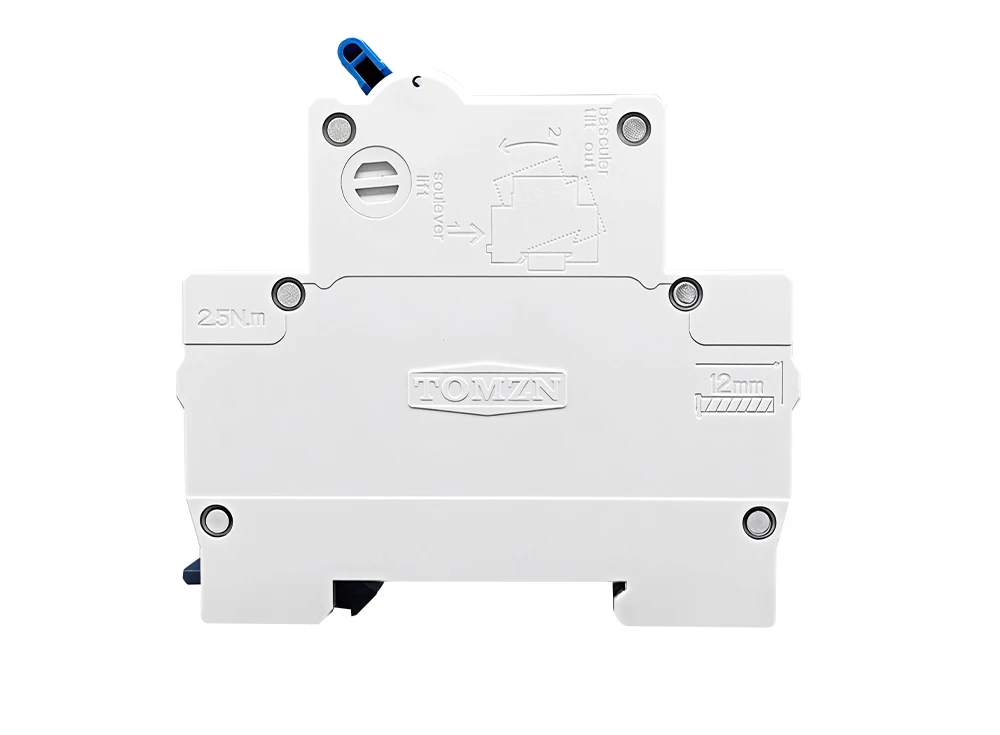

Mounting: 35mm DIN rail

Origin: Mainland China

Place of Origin: Zhejiang, China (Mainland)

Rated Voltage: 220V,230/400V~

Rated current: 3A,6A,10A,16A,20A,25A,32A,40A,63A

Standard: IEC60947, IEC60898

Type: Mini,Circuit breaker

is_customized: Yes

C TYPE

Please noted: This link for C type

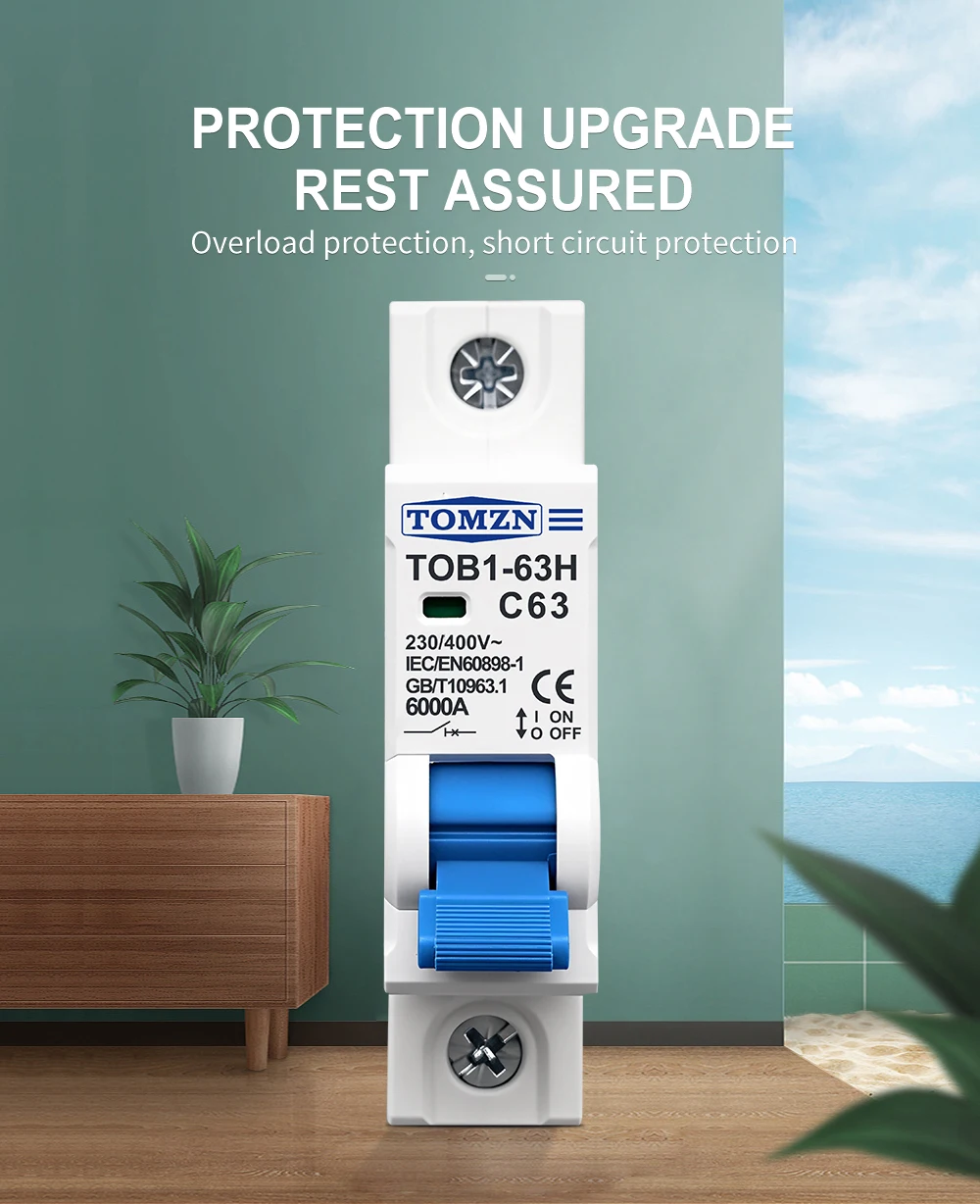

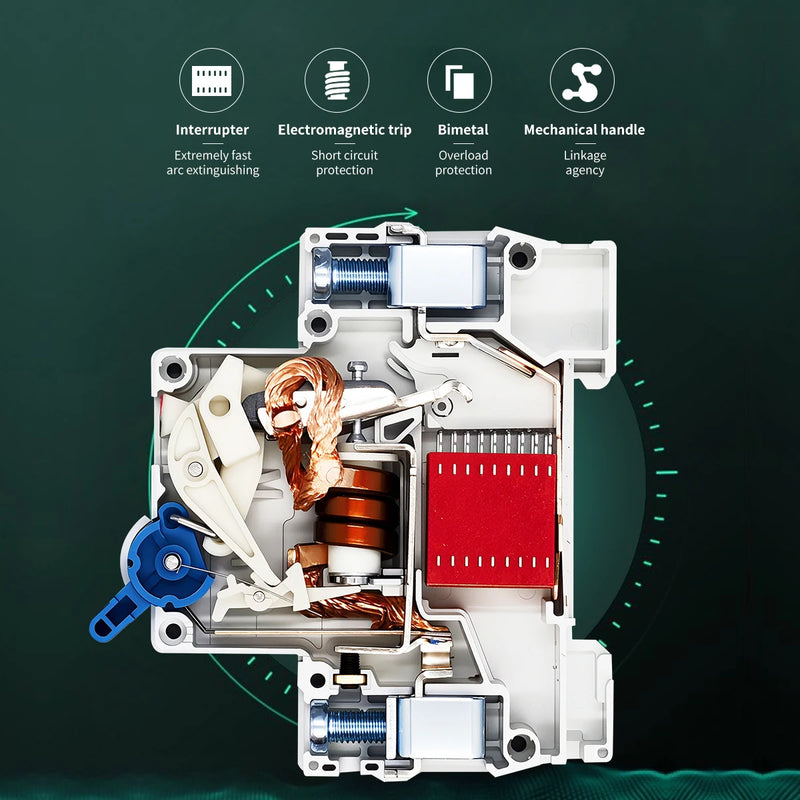

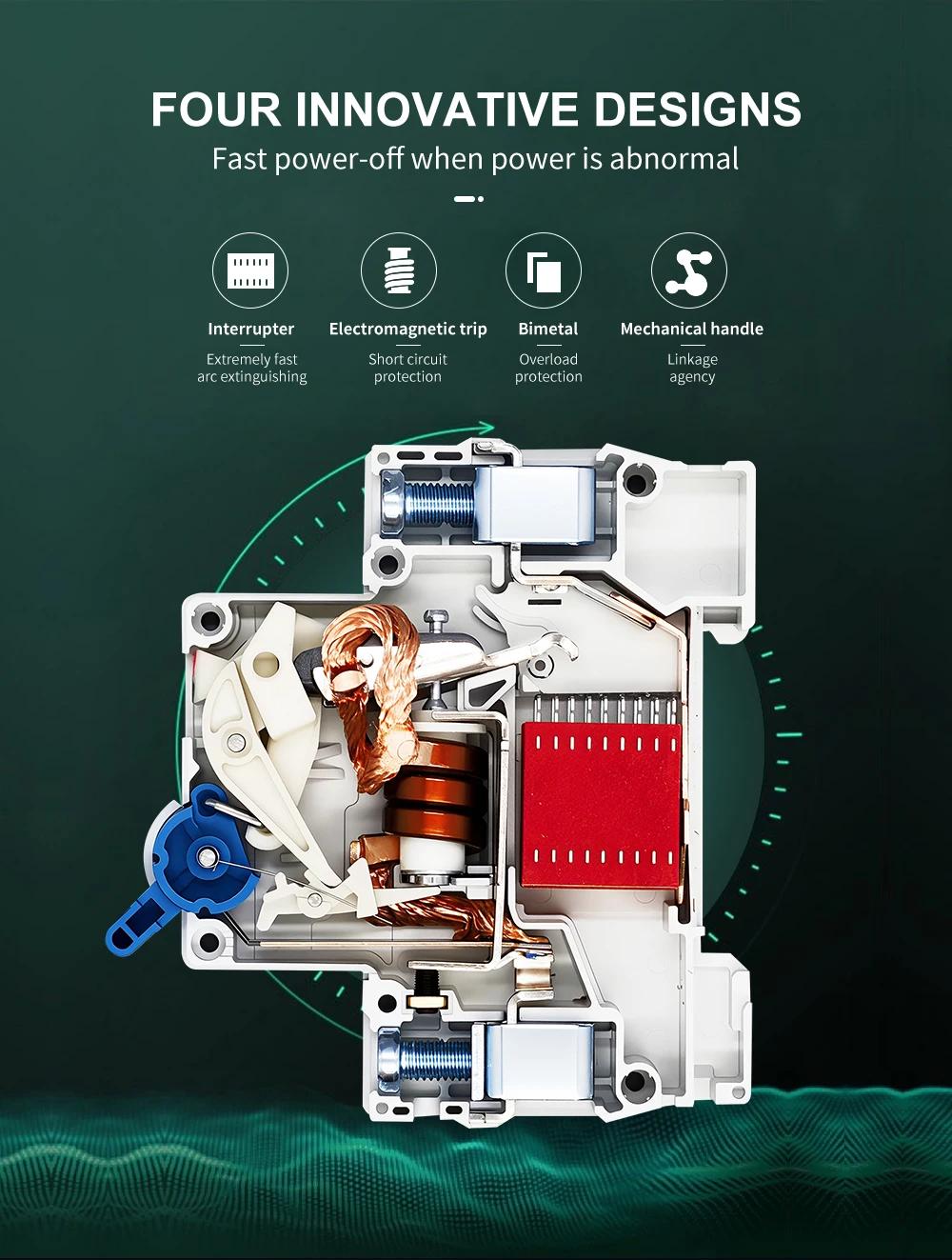

TOB1-63 series circuit breaker is used in lighting distribution system or motor distribution system for

protecting overload and short circuit in the system. The product is neoteric in structure, light in weight, reliable

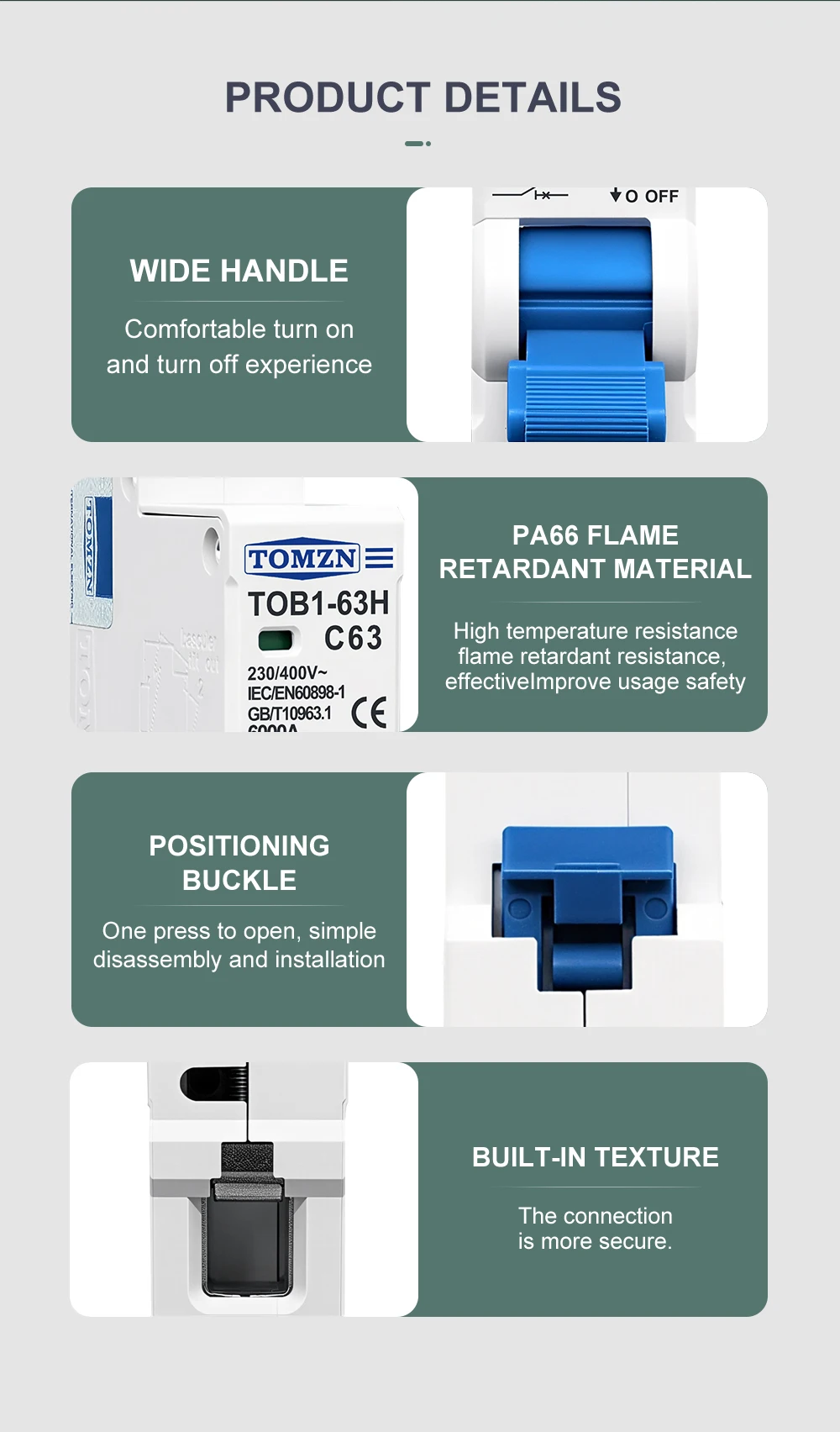

and excellet in performance. Its frame and parts adopt plastics of high fire resistant and shockproof. The product, with long life, is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four poles up to 415V circuit for overload and short circuit protection, as well as for unfrequently switching electric equip ment and lighting circuit in normal case. The products comply with IEC 60898, IEC 60947.
