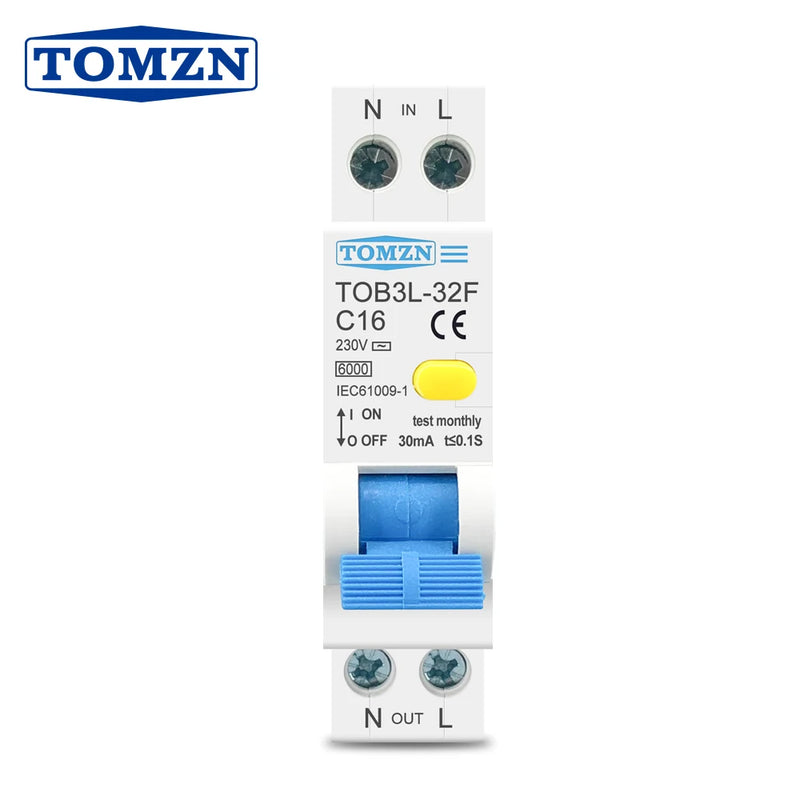

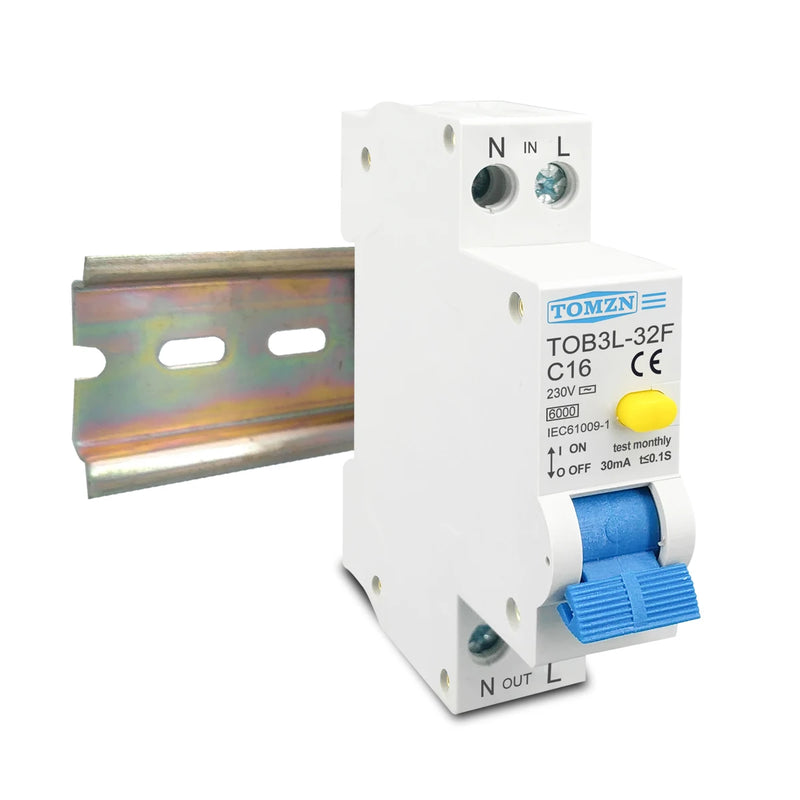

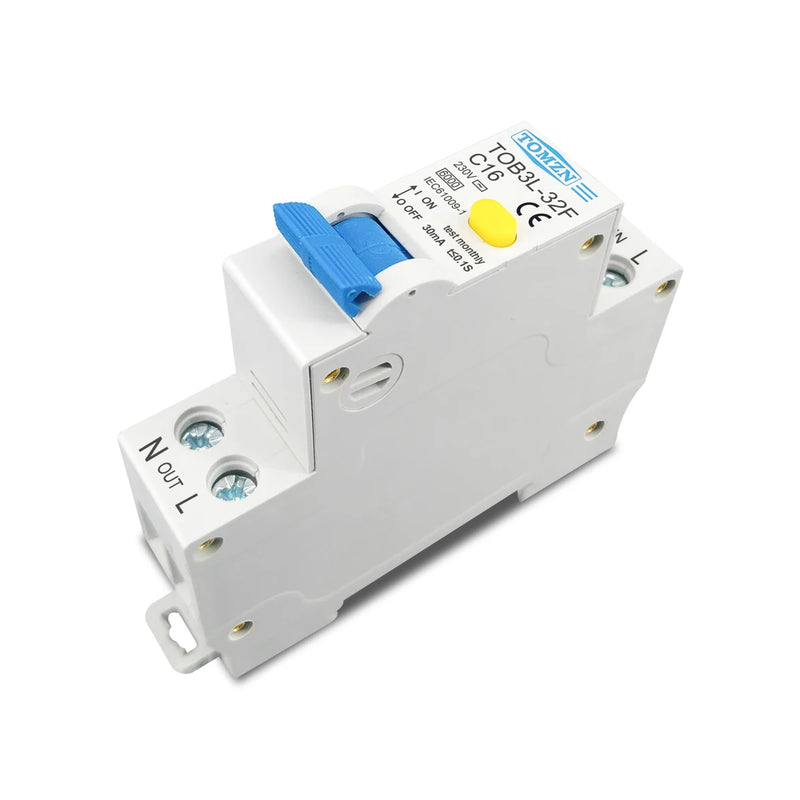

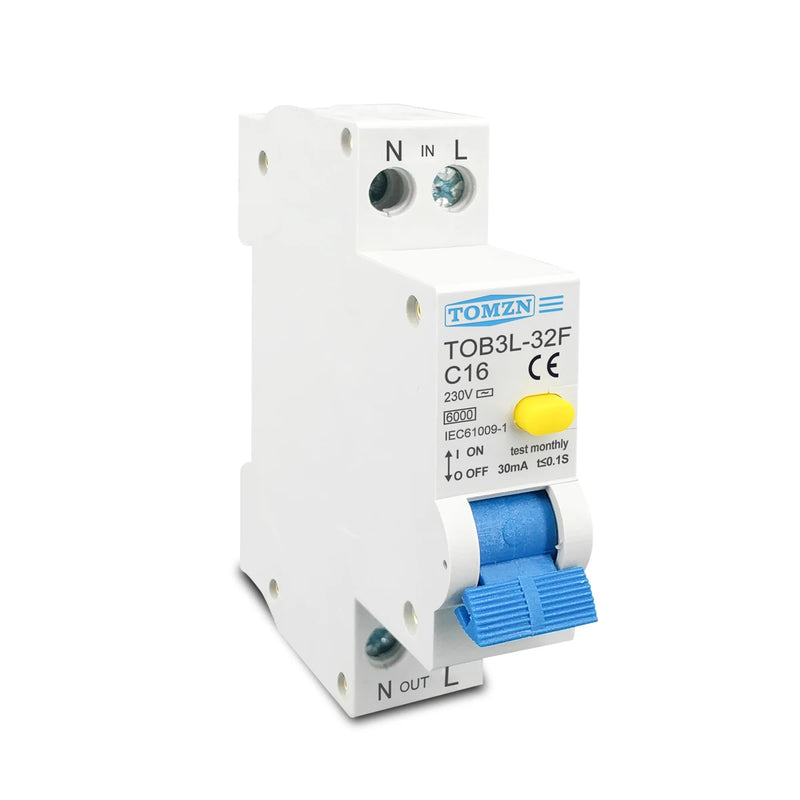

TOMZN 18MM 230V 50/60Hz RCBO 1P+N 6kA Residual Current Differential Auto Circuit Breaker With Over Current Leakage Protection

Name: TOMZN 18MM 230V 50/60Hz RCBO 1P+N 6kA Residual Current Differential Auto Circuit Breaker With Over Current Leakage Protection
Brand: TOMZN
SKU: 4000559256203-25A
Price: 9.85 USD
Availability: InStock

by ដោយ TOMZN

All prices exclude shipping Customs and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន គយ និងពន្ធទេ។

Choose language

SPECIFICATIONS

Brand Name: TOMZN

Breaking Capacity: 6000A

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Model Number: TOB3L-32F

Mounting: 35mm DIN Rail

Origin: Mainland China

Rated Voltage: 220V,230V~

Rated current: 6A 10A 16A 20A 25A 32A

Standard: IEC61009

Type: Residual Current,Circuit breaker,Electronic

is_customized: Yes

Product Description

Protecttion

earth faults

overloads

short circuits

TOB3L-32F products provide protection against earth faults, overloads, short circuits and over -voltage incommercial and dometic installation. The RCBO with both disconnected neutral and phase guarantees its proper actuation against eath leakage fults even when the neutral and phase are wrongly connected the electronic RCBO incorporate a filtering device preventing the risks of unwanted due to transient voltages and transient currents, positive contact indication in accordance with 16th edition of the IEE wiring regulations.

Main technical parameters

TYPE	TOB3L-32F
NUMBER OF POLES	1P+N
RATED CURRENT(In)	16A
RATED OPERATING CURRENT(In)	30MA
RATED VOLTAGE(V)	AC230V
SHORT-CIRCUITE BREAKING CAPACITY(Inc)	6000A
ENDURANCE	≥6000TIMES
RESIDUAL CURRENT-OFF TIME	≤0.1S
DESIGN	A AC
RESIDUAL CURRENT SCOPE	0.5IΔn-1n

Construction features

1. Measuring component and buckling component of products is located between enter line end and entrance line end ;

2. Movement characteristic of products can not be changed with outside mechanical tool ;

3.The operating organization has the free function to take off and buckle;

4. Operate part can not be taken down from the shell outer of products ,the shell can not influence the operating organization to work, the accessory group which replace the feelers pressure ,should guarantee the feelers pressure does not change while running .

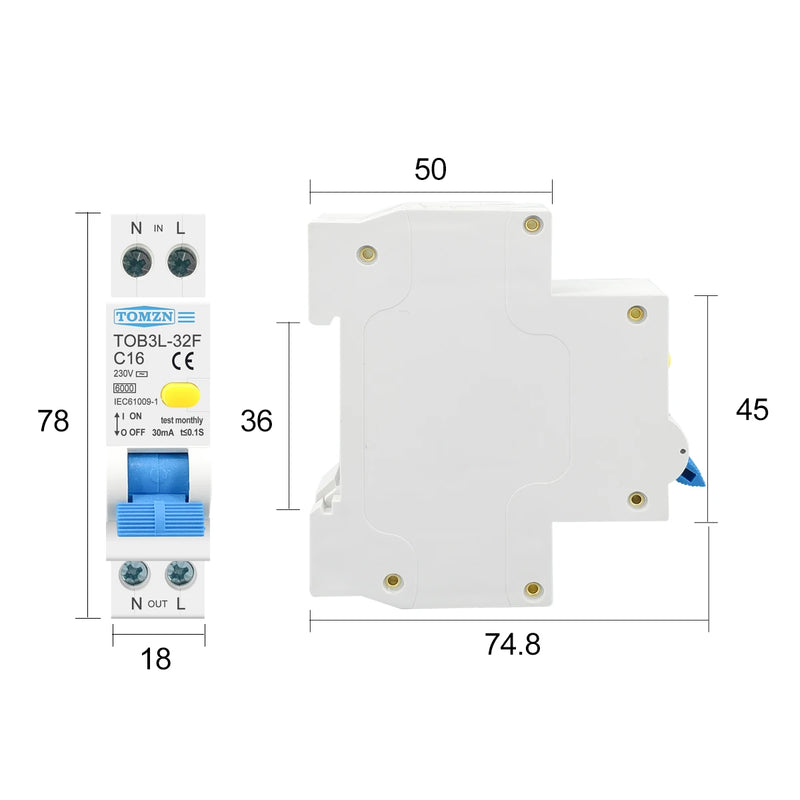

5. Overall and mounting dimensioned chart.
