Product Introduction

The TOMZN Night Light Series TOQ7e Mini ATS is a compact, PC-level dual power automatic transfer switch designed for household power transfer between city power and backup sources such as generators or PV systems. With integrated Wi-Fi smart control via eWeLink, it enables remote monitoring and switching. When the main city power becomes abnormal, the backup source engages immediately with a switching time of less than 50ms, ensuring uninterrupted, reliable, and safe power supply. The device is rated for AC 110-120V L+N, 50/60Hz, with impulse withstand voltage of 8kV, and offers mechanical life of 5000 cycles and electrical life of 2000 cycles. Please note operational limitations: the Wi-Fi chip is powered by source A; if source A loses power, remote switching via eWeLink is unavailable. Also, the power-on state function has specific behaviors as described.

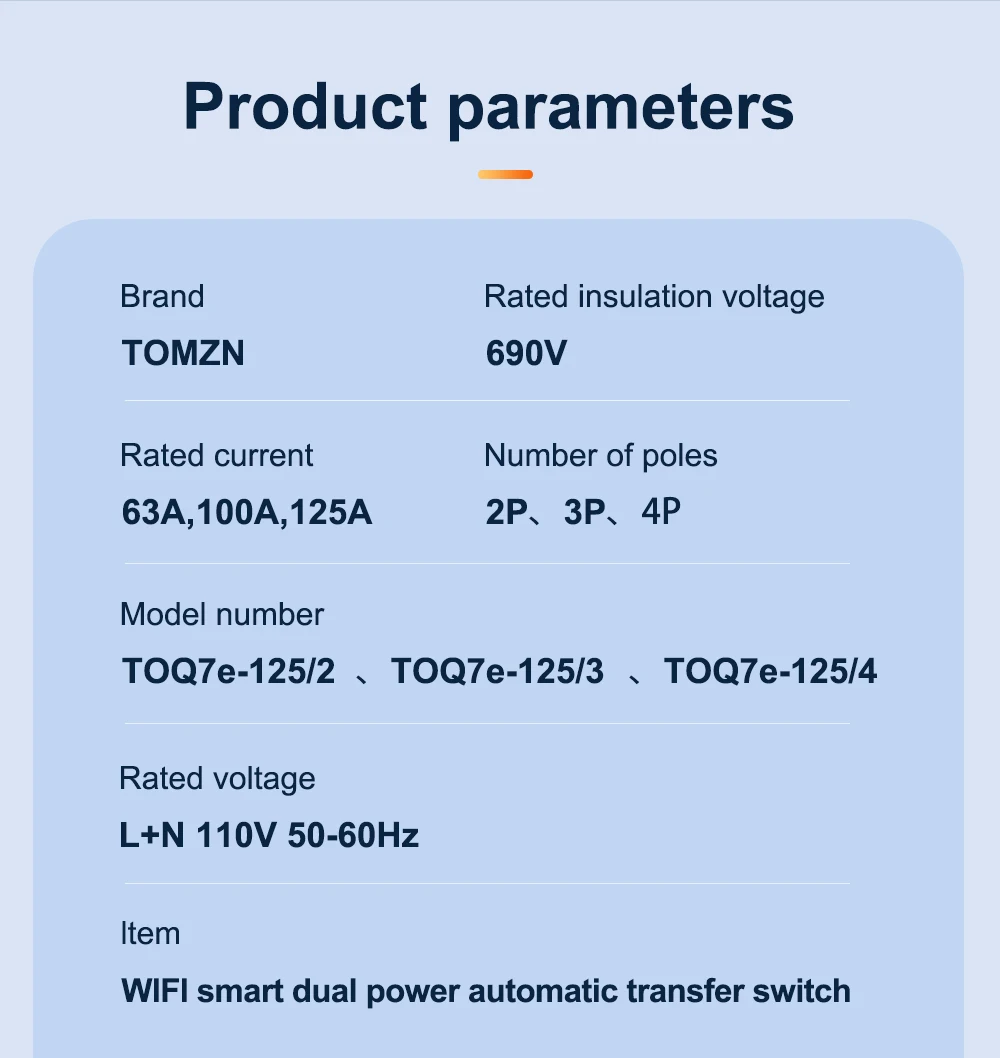

Product Data Sheet

Product series: Night light series

Model: TOQ7e Mini ATS

Type: Dual power automatic transfer switch (PC level)

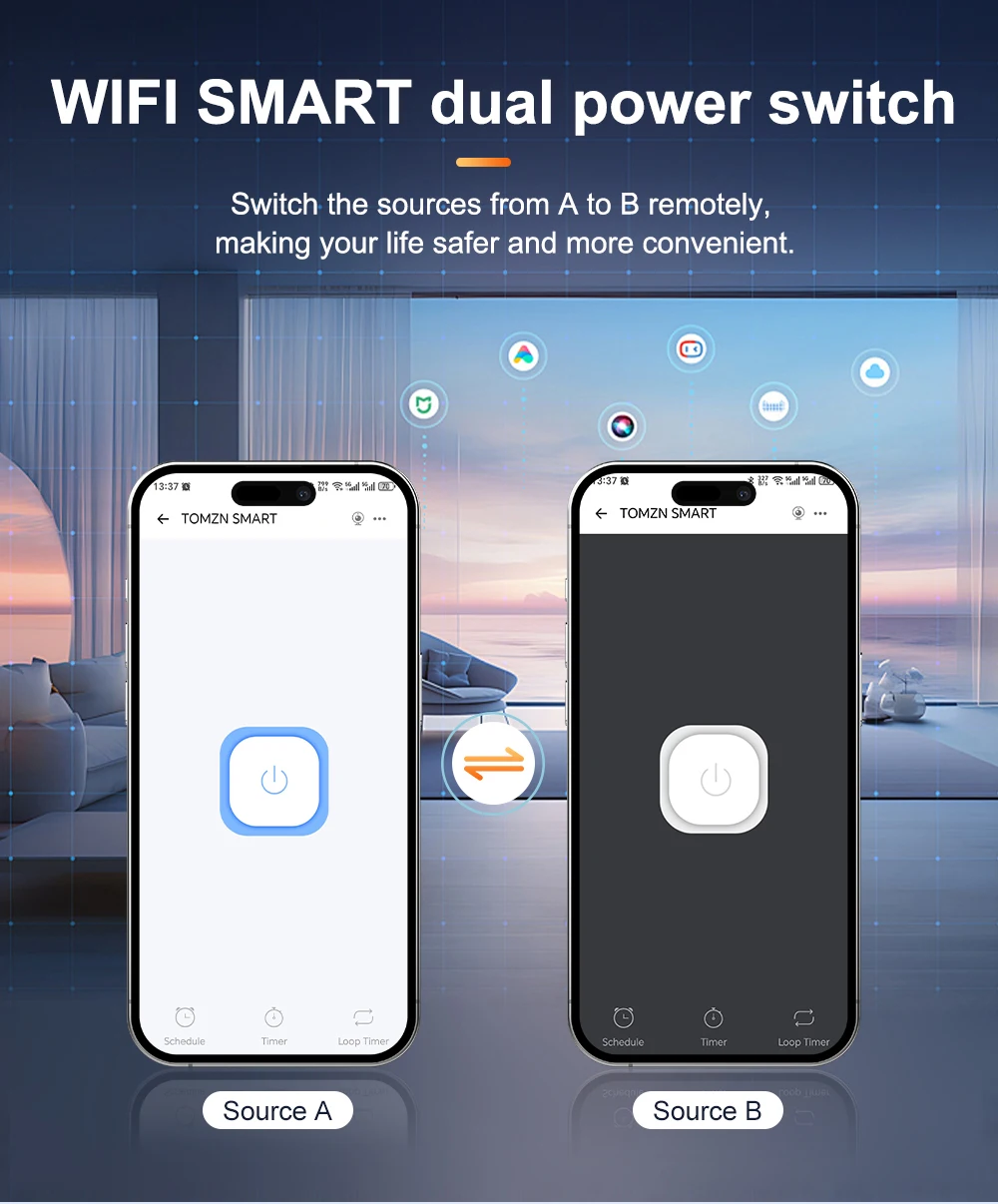

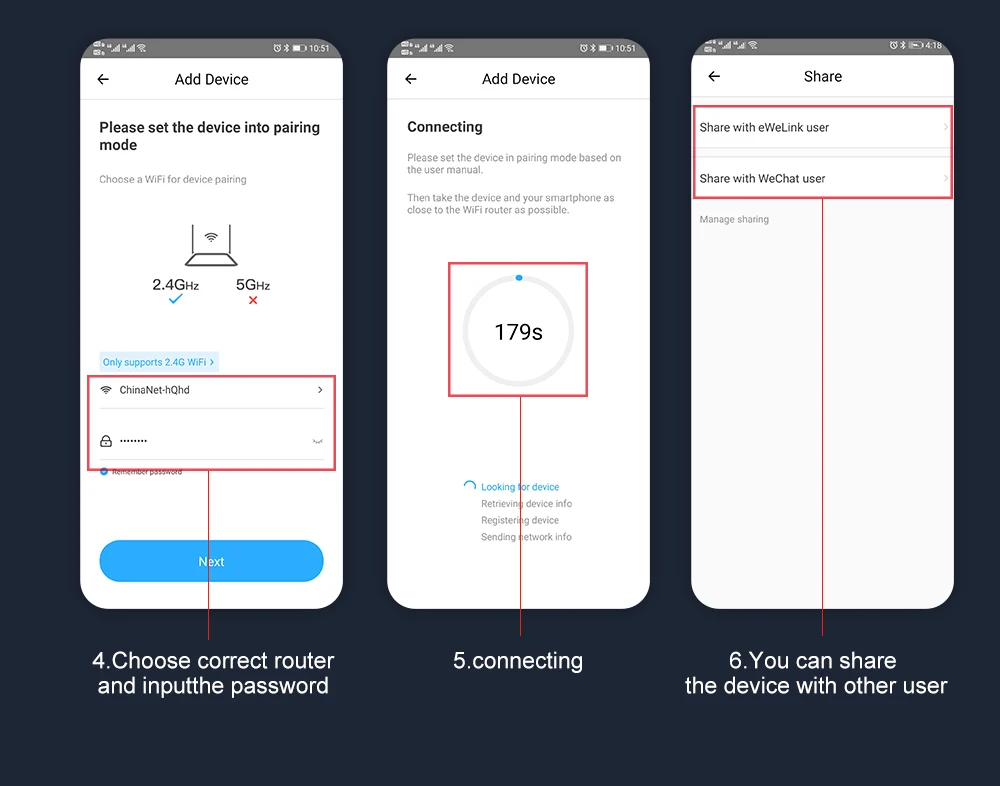

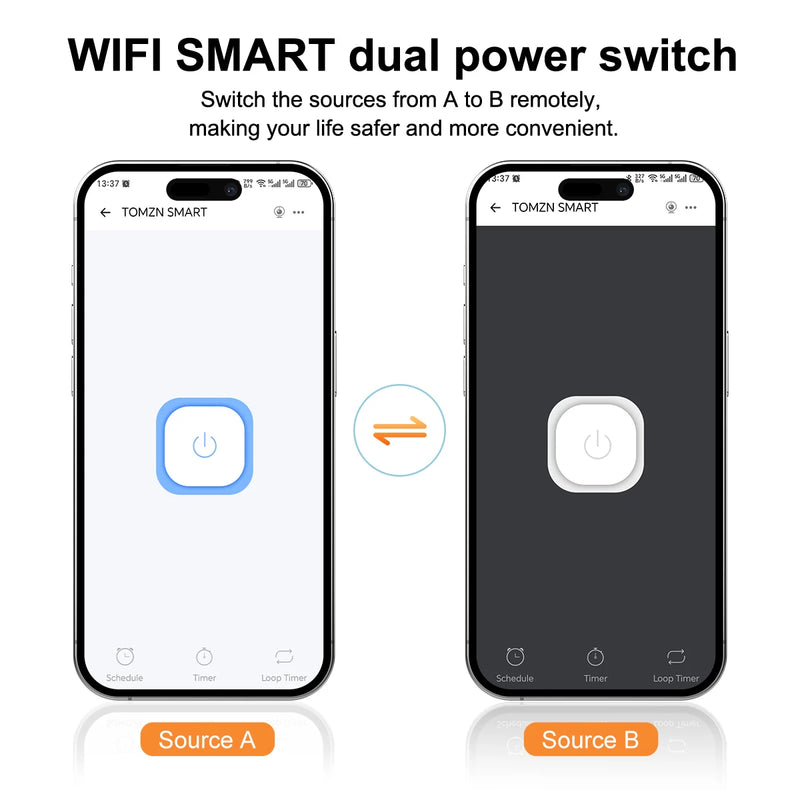

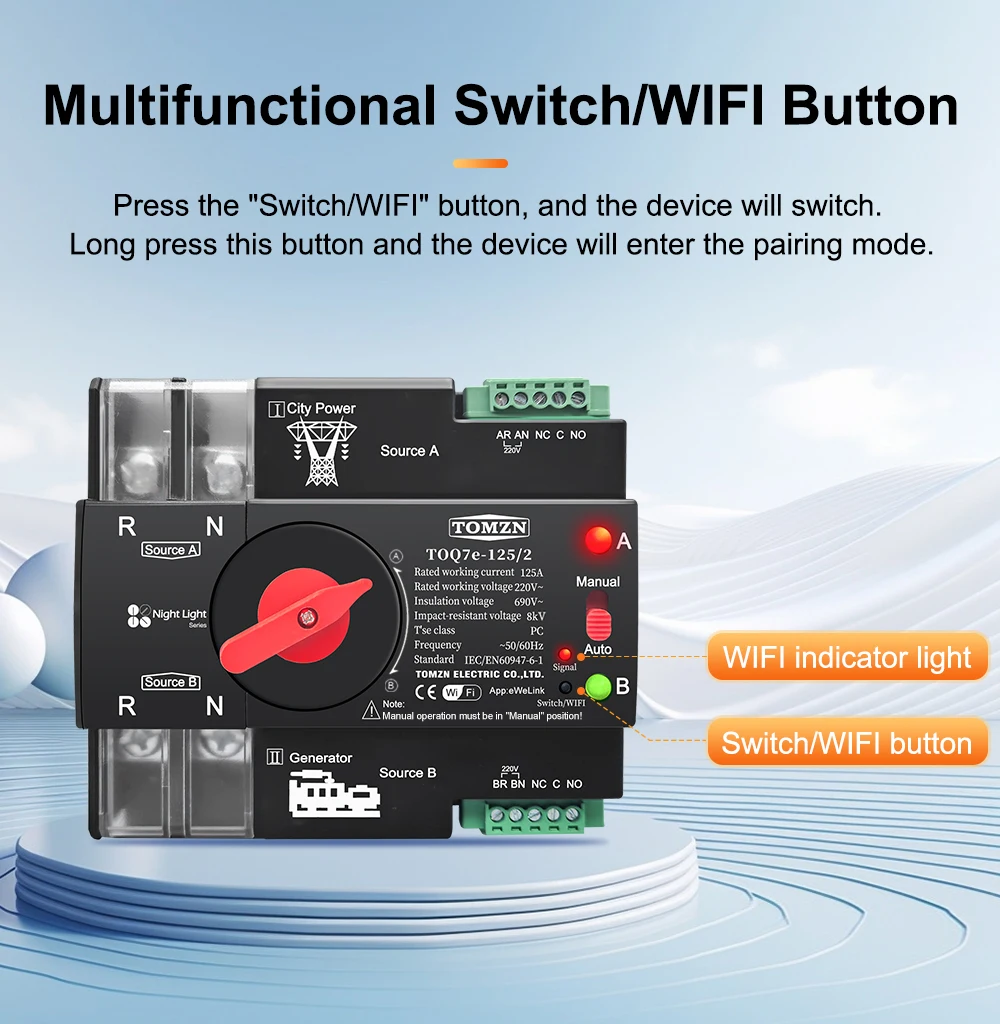

Control: Wi-Fi smart (eWeLink)

Application: City power ⇆ Generator/PV

Rated supply voltage (Us): AC (L+N) 110V-120V, 50/60Hz

Working condition: 85% Us ~ 110% Us

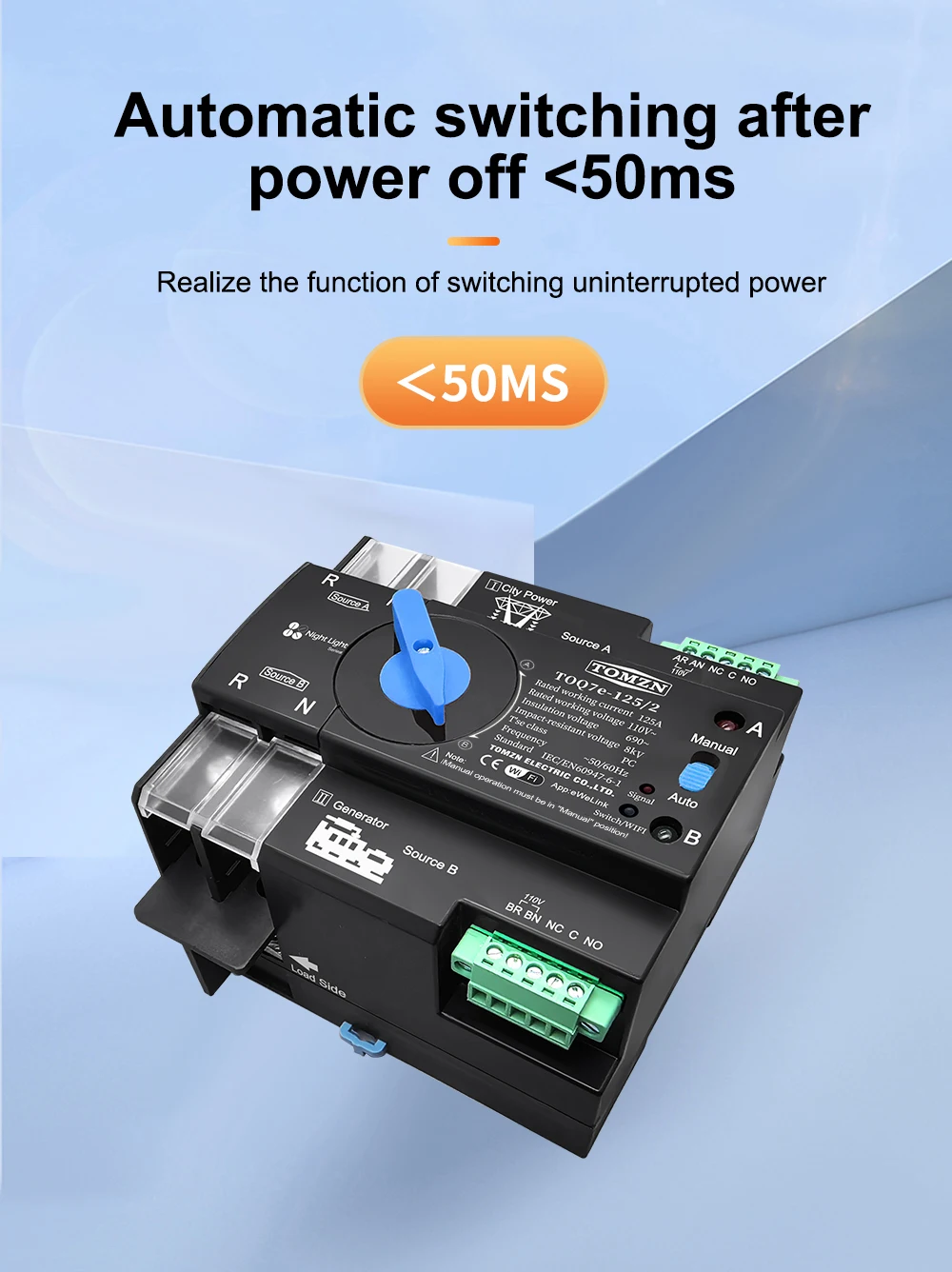

Switching time: <50ms

Action time: <50ms

Rated impulse withstand voltage: 8kV

Electrical life: 2000 times

Mechanical life: 5000 times

Wi-Fi chip power source: Source A

Remote switching when Source A loses power: Not possible

Power-on state function: When enabled, after Source A powers on, the ATS pointer points to Source B; if Source B then loses power, it cannot switch back to Source A.
