Function:

1. Bule backlight

2. Show real voltage V

3. Show real current  A

4. Show active power  W

5. Show reactive power Var

6. Show power Factory COS

7. Show real Frequency Hz

8. Show Total Energy  KWh   (can't reset to zero)

9. Show Positive  KWh           (can't reset to zero)

10. Show reverse KWh            (can't reset to zero)

11. Rest Energy KWh              ( Can rest to zero)

12. RS485

Noted: Please press the Bule button to switch the model type!

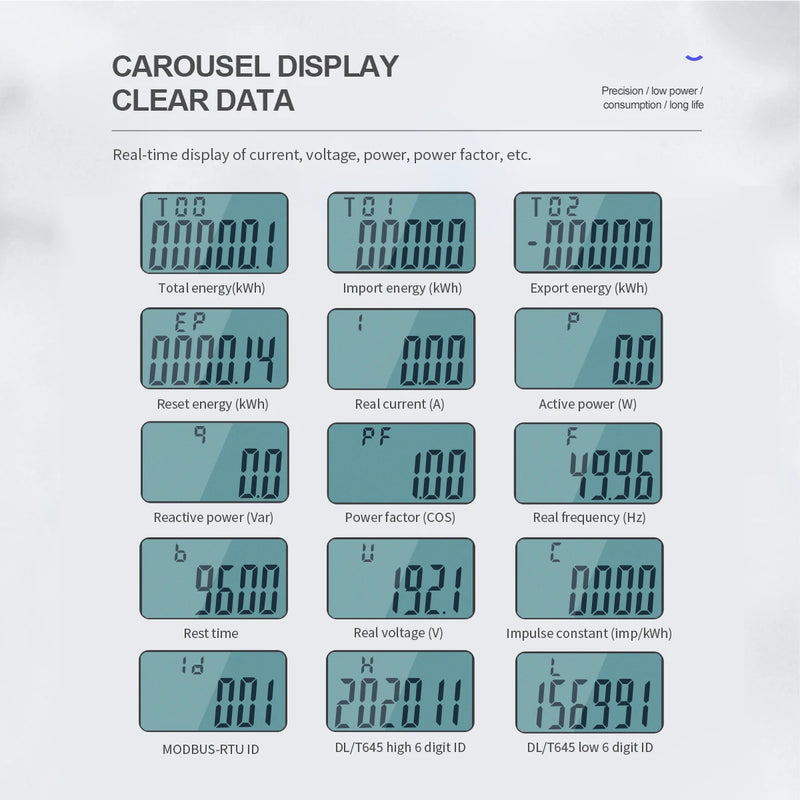

1 Real Frequency Hz

   Range: 00.00~99.99

2. Reset Energy KWH (Only reset Energy can reset to zero, Total energy can't reset to zero)

    Range: 00000.0~99999.9

3 Real CURRENT A

4. Power Factor COS

5 Reactive power

6 Real Positive kWh

 7 Real Reverse kWh

The energy meter is suitble for Solar system, The meter can display Positive  KWh and reverse KWh.

8 Real voltage

9 Active Power W

10 Total Energy KWh

Noted: Total Energy can't reset to zero

(Only reset Energy can reset to zero, Total energy can't reset to zero)

11 MODBUS-RUT ID

12 DL/T645 high 6 digit ID

13 DL/645 low 6 digit ID

14 Baudrate

RoHS

CE EMC

CE LVD
